SAFETY
179
2
IMPORTANT The front airbags and/or side bags may ac-
tivate in the event of sharp knocks to the underbody of the
vehicle (e.g. impact with steps, pavements, potholes or
road bumps etc.).
IMPORTANT A small amount of dust will be released
when the airbags are deployed. The dust is harmless and
does not indicate the beginning of a fire. Furthermore, the
surface of the deployed bag and the interior of the car may
be covered with dusty residue. This dust can irritate skin
and eyes. Wash with mild soap and water in the event of
exposure.
IMPORTANT Pretensioners, front airbags and side bags
are deployed according to different logic on the basis of
the type of collision
. Non-deployment of one or more of
the devices does not therefore indicate a system malfunc-
tion.
Do not rest your head, arms or elbows on the
door, on the windows and on the window bag
area to avoid injuries during inflation. Nev-
er lean your head, arms or elbows out of the win-
dow.
IMPORTANT Should an accident occur activating any of
the safety devices, take the car to a Lancia Dealership to
have the activated devices replaced and the system
checked.
Airbag checking, repair and replacement must only be car-
ried out at a Lancia Dealership. If you are having the car
scrapped, have the airbag system deactivated at a Lan-
cia Dealership first. If the car changes ownership, the new
owner must be informed of the method of use of airbags
and the above warnings and also be given this “Owner
Handbook”.
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 179

180
SAFETY
Never travel with objects on your lap, in front
of your chest or with something between your
lips like a pipe or pencil, etc. In the event of
an impact where the airbags are deployed this could
cause serious injury.Always keep your hands in the correct posi-
tion on the steering wheel whilst driving so
that if the airbags are activated they can in-
flate properly. Do not drive with your body bent for-
ward. Keep the backrest in straight position, rest-
ing your back correctly on it.If someone tried to steal or damage your car,
and in the event of floods, have the airbag
system checked by a Lancia Dealership.
GENERAL WARNINGS
If when turning the key to MAR the ¬warn-
ing light does not turn on or if it stays on
when travelling, there could be a failure in
the safety systems; in this event airbags or preten-
sioners may not be deployed in the event of an im-
pact or, in a lower number of cases, they may de-
ploy accidentally. Before proceeding, contact a Lan-
cia Dealership immediately to have the system
checked.
Do not cover the front seat backrests with covers if
side bags are fitted.
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 180

SAFETY
181
2
With ignition key inserted, at MAR, even if
the engine is off, the airbags can activate al-
so with the car stopped, if it is hit by anoth-
er vehicle. Therefore, even if the car is stationary,
when an active passenger airbag is fitted, DO NOT
install rear facing child restraint systems on the
front passenger seat. Deployment of the airbag fol-
lowing an impact could cause fatal injuries to the
child. Therefore, always deactivate the passenger
airbag when a rear facing child restraint system
is installed on the front passenger seat. The front
passenger seat must also be positioned back as far
as possible in order to avoid the child restraint sys-
tem from coming into contact with the dashboard.
Immediately reactivate the passenger airbag as soon
as the child restraint system has been removed. Al-
so remember that, if the key is turned to STOP, none
of the safety devices (airbags or pretensioners) will
be deployed in the event of collision. Non-deploy-
ment in such cases does not indicate a system mal-
function.
When the ignition key is turned to MAR, the
“warning light turns on and blinks for a few
seconds to remind you that the passenger
airbag will activate in the event of a collision. Then
it should turn off.Do not wash the seats with water or pres-
surised steam (by hand or at automatic car
seat washing stations).The front airbags deploy in the event of more
severe collisions than those required for de-
ploying the pretensioners. For impacts in the
range between the two activation thresholds, pre-
tensioner activation alone is normal.Do not hook rigid objects to clothes hangers
and support handles.The airbag does not replace seat belts; it in-
creases their effectiveness. Furthermore, since
front airbags are not deployed in low speed
collisions, side collisions, rear-end shunts or roll-
overs, the passengers are only protected by the seat
belts which must be fastened at all times.
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 181

182
SAFETY

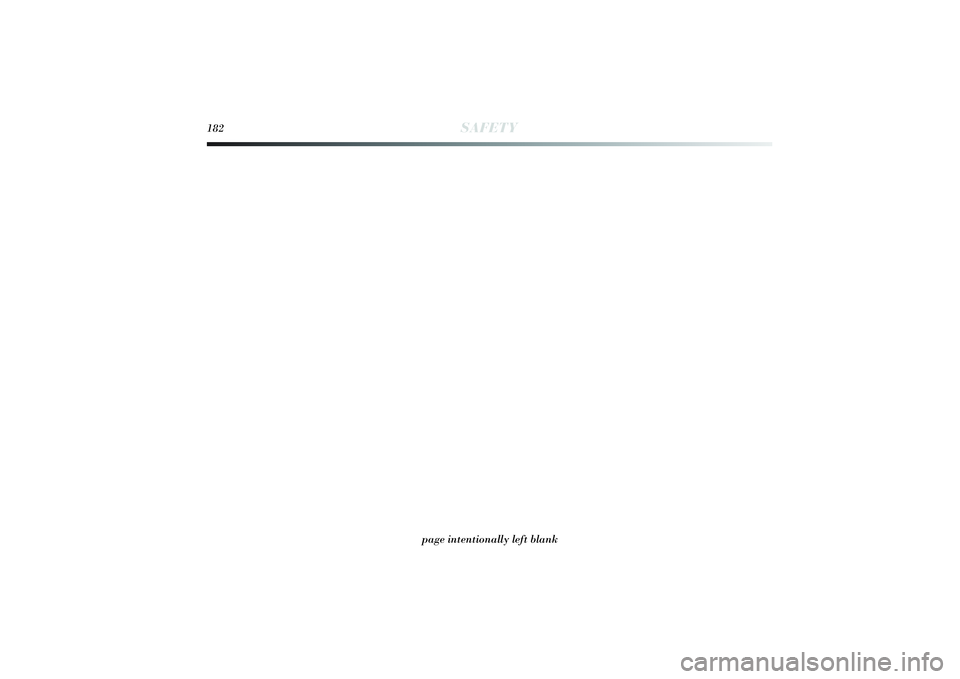

page intentionally left blank
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 182

3
STARTING AND DRIVING
183
Starting the engine ......................................................................184
Handbrake...................................................................................187
Using the gearbox ........................................................................188
Saving fuel ..................................................................................189
To wing trailers ............................................................................191
Snow tyres ...................................................................................192
Snow chains ................................................................................193
Car inactivity ..............................................................................193
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 183

184
STARTING AND DRIVING
STARTING THE ENGINEThe car is fitted with an electronic engine lock device: if
the engine fails to start, see the “Lancia CODE system”
paragraph in chapter 1.
In the first period of use, we recommend
avoiding excessive stress for the car (for in-
stance excessive accelerations, extended trav-
el at maximum speed, sudden braking etc.).With engine off, do not leave the key in the ig-
nition switch on MAR to prevent draining the
battery.
It is dangerous to let the engine run in en-
closed spaces. The engine takes in oxygen and
releases carbon dioxide, carbon monoxide
and other toxic gases. Remember that the brake servo and electri-
cal power steering system are not operational
until the engine is started, therefore a greater
effort will be required to press the brake pedal or
turn the steering wheel.
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 184

STARTING AND DRIVING
185
3
Proceed as follows:
❍engage the handbrake;
❍put the gear lever into neutral;
❍turn the ignition key to MAR: the
m
and
Y
warn-
ing lights on the instrument panel will turn on;
❍wait for the warning lights
Y
and
m
to turn off. The
hotter the engine is, the quicker this will happen;
❍fully depress the clutch pedal without operating the ac-
celerator;
❍turn the ignition key to AVV as soon as the
m
warn-
ing light goes out. Waiting too long will waste the heat-
ing work carried out by the glow plugs.
Release the key as soon as the engine starts.IMPORTANT With cold engine, the accelerator pedal shall
be completely released while turning the ignition key to
AV V.
If the engine does not start at the first attempt, turn the
ignition key to STOP again before repeating the procedure.
If instrument panel
Y
warning light remains lit when the
ignition key is turned to MAR, turn the key to STOP and
then back to MAR; if the warning light remains lit, try the
other keys provided with the vehicle. Contact a Lancia Deal-
ership if you still cannot start the engine.
The
m
warning light will flash for 60 sec-
onds after starting or during prolonged
cranking to indicate a fault with the glow
plug pre-heating system. Use the car normally if the
engine starts and go to a Lancia Dealership as soon
as possible.
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 185

186
STARTING AND DRIVING
Never bump start the engine by pushing, tow-
ing or coasting downhill. This could cause fu-
el to flow into the catalytic converter and
damage it beyond repair.
HOW TO WARM UP THE ENGINE
AFTER IT HAS JUST STARTED
Proceed as follows:
❍drive off slowly, letting the engine turn at medium
speed. Do not accelerate abruptly;
❍do not demand maximum performance for the first few
kilometres. Wait until the engine coolant gauge starts
moving.ENGINE SWITCHING OFF
Turn the ignition key to STOP while the engine is idling.
IMPORTANT After a demanding drive, you should al-
low the engine to “catch its breath” before turning it off
by letting it idle to allow the temperature in the engine
compartment to fall.
A quick burst on the accelerator before turn-
ing off the engine serves absolutely no prac-
tical purpose; it wastes fuel and is especially
damaging to turbocharged engines.
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 186

STARTING AND DRIVING
187
3
HANDBRAKEThe handbrake lever is located between the front seats.
Pull the lever upwards to operate the handbrake, until the
car is braked.
The car should be braked after a few clicks
of the lever; if it is not, contact a Lancia Deal-
ership to have it adjusted.
When the handbrake is on and the ignition key is at MAR,
the instrument panel xwarning light will come on.
Proceed as follows to release the handbrake:
❍slightly lift the lever and press release button A - fig. 1;
❍keep button A pressed and lower the lever. The x
warning light on the instrument panel turns off.
Press the brake pedal when carrying out this operation
to prevent the car from moving accidentally.
PARKING
Proceed as follows:
❍stop the engine and engage the handbrake;
❍engage a gear (on a slope, engage first gear if the car
is facing uphill or reverse if it is facing downhill) and
leave the wheels steered.
Block the wheels with a wedge or a stone if the car is
parked on a steep slope.
Do not leave the ignition key on MAR to avoid draining
the battery. Always remove the key when you leave the
car.
Never leave children unattended in the car. Always remove
the ignition key when leaving the car and take it out with
you.
fig. 1
L0E0072m
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 187

188
STARTING AND DRIVING
USING THE GEARBOX To engage the gears, press the clutch pedal fully and shift
the gear lever into the required position (the gear diagram
varies according to the different versions and is shown
on the knob or on the plate below the lever fig. 2).
To engage 6
thgear, operate the lever by pressing it towards
the right in order to avoid engaging 4
thgear by mistake.
The same goes for changing from 6
thto 5
th.
IMPORTANT The car can only be put into reverse gear
when it has stopped moving completely. With the engine
running, wait at least 2 seconds before engaging reverse
gear with the clutch pedal fully depress in order to avoid
damaging or grinding the gears.
fig. 2
L0E0073m
To engage reverse gear R from neutral, raise sliding ring
A under the knob and at the same time move the gear lever
to the left and then forwards.
To engage reverse R from neutral, lift the sliding ring A
under the knob and move the gear lever to the right and
then backwards.
IMPORTANT The clutch pedal should be used only to
change gear. Do not drive with your foot resting on the
clutch pedal, however lightly. For versions/markets where
provided, the electronic clutch pedal control could cut in,
interpreting the incorrect driving style as a fault.
Press the clutch pedal fully to change gears
correctly. Therefore, the floor area under the
pedal unit should be clear: ensure that any
mats are flat and do not interfere with the pedals.Do not drive with your hand resting on the
gear lever, because this pressure, even if light,
can wear out the internal components of the
gearbox over time.
183-194 Delta GB 1ed 26/08/13 12.15 Pagina 188
