IN AN EMERGENCY
209
4
fig. 13
L0E0113m
REFITTING THE STANDARD WHEEL
Following the procedure described previously, raise the
car and remove the space-saver wheel.
Ve r sions with steel rims
Proceed as follows:
❍make sure the contact surfaces between standard wheel
and hub are clean so that the fastening bolts will not
come loose;
❍fit the standard wheel inserting the 4 bolts into the
holes;
❍using the spanner provided, tighten the fixing bolts;
❍press-fit the hub cap, aligning the special splining (on
the cap) with the inflation valve;
❍lower the car and remove the jack;
❍using the spanner provided, fully tighten the bolts in
the sequence shown previously.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 209

210
IN AN EMERGENCY
Ve r sions with alloy rims
❍Place the wheel onto the hub and tighten the bolts us-
ing the spanner provided;
❍lower the car and remove the jack;
❍using the spanner provided, fully tighten the bolts in
the sequence shown in fig. 8;
❍refit the press-fitted hub cap, making sure that the ref-
erence hole on the wheel is aligned with the reference
pin on the cap.
IMPORTANT If it is not fitted properly, the hub cap may
detach when the vehicle is running.
At the end of the operation
❍Stow the space-saver wheel D - fig. 10 in the space pro-
vided in the luggage compartment;
❍fit the partially open jack in i
ts box forcing it lightly to
prevent it from vibrating when travelling;
❍put the tools back into place in the box;
❍stow the container, complete with tools, in the space-
saver wheel and tighten the locking device B - fig. 10;
❍reposition the luggage compartment mat correctly.IMPORTANT Do not use air chambers tubes with tube-
less tyres. Check the inflation pressure of the tyres and the
space-saver wheel periodically.
Various fixing bolts and space-saver wheels,
specific and differing in structural charac-
teristics, are used depending on the wheel rim
type (alloy or steel). Fixing bolts for alloy rims can
be identified by the presence of a permanent wash-
er and a hollow side on the bolt head.
Therefore, you will need to contact a Lancia Deal-
ership to get the correct type of fixing bolts and
space-saver wheel if you change the type of wheels
fitted (alloy rims instead of steel rims, or vice ver-
sa). Keep the bolts fitted as standard in case of re-
use of the wheels originally mounted on the car.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 210

IN AN EMERGENCY
211
4
REPLACING A BULBGENERAL INSTRUCTIONS
❍Before changing a bulb, check the contacts for oxida-
tion;
❍burnt-out bulbs must be replaced by others of the same
type and power;
❍always check the direction of the beam after chang-
ing a headlight bulb, for safety reasons;
❍when a light is not working, check that the corre-
sponding fuse is intact before changing the bulb. For
the location of fuses, refer to the “Replacing fuses”
paragraph in this chapter.
IMPORTANT The headlight inner surface might be slight-
ly misted: this does not indicate a fault, it is a natural phe-
nomenon due to low temperature and the air humidity lev-
el. Misting will disappear rap
idly when the headlights are
turned on. The presence of drops inside the headlights in-
dicates infiltration of water. Contact a Lancia Dealership.
Modifications or repairs to the electric sys-
tem that are not carried out properly or do
not take the system technical specifications
into account can cause malfunctions leading to the
risk of fire. Halogen bulbs contain gas under pressure, if
they break glass fragments may be thrown
around.
When handling halogen bulbs just touch the
metal part. If the transparent bulb is touched
with the fingers, its lighting intensity is re-
duced and life of the bulb may be compromised. In
the event of accidental contact, wipe the bulb with
a cloth moistened with alcohol and leave it to dry.Where possible, it is advisable to have bulbs
changed at a Lancia Dealership. Proper op-
eration and direction of the external lights
are essential for driving in safety and comply with
law.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 211

212
IN AN EMERGENCY
IMPORTANT When the weather is cold or damp or after
heavy rain or after washing, the surface of headlights or
rear lights may steam up and/or form drops of conden-
sation on the inside. This is a natural phenomenon due
to the difference in temperature and humidity between the
inside and the outside of the glass which does not indicate
a fault and does not compromise the normal operation of
lighting devices. The mist disappears quickly when the
lights are turned on, starting from the centre of the dif-
fuser, extending progressively towards the edges.
TYPES OF BULBS fig. 14
Va rious types of bulbs are fitted to your car:
A.Glass bulbs: they are press-fitted. Pull to remove them.B.Bayonet type bulbs: to remove this type of bulb from
its holder press the bulb, turn it anticlockwise and re-
move it.
C.Tubular bulbs: to remove, release them from their con-
tacts.
D-E. Halogen bulbs: to remove the bulb, release the clip
holding the bulb in place.
fig. 14
L0E0084m
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 212

IN AN EMERGENCY
213
4
LED
LED
D1S(*) / H7
H1(*) / H7
PY 24W
LED
WY5W
LED
LED
W5W
H11
W16W
W16W
5L/5K
12V 5W
12V 5W
W5W
–
–
D
D
B
–
A
–
–
C
E
B
B
–
C
C
A
–
–
55 W
55 W
24 W
–
5 W
–
–
5 W
55 W
16 W
16 W
–
5 W
5 W
5 W
Bulbs Type Power Figure ref.Front side lights/Daytime running lightsRear side lightsDipped beam headlightsMain beam headlightsFront direction indicatorRear direction indicatorSide direction indicatorBrake lightThird brake lightNumber plate lightFog lightsRear fog lightReverse lightFront roof light (white LEDs)Rear roof light
Glove compartment/luggage compartment lightPuddle light
(*) Xenon gas discharge bulb
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 213

214
IN AN EMERGENCY
REPLACING AN EXTERIOR BULBFRONT LIGHT CLUSTERS fig. 15
These contain the bulbs for the dipped beam headlights,
main beam headlights and direction indicators. The bulbs
are arranged as follows:
A.Main beam headlights:
B.Dipped beam headlights;
C.Direction indicators.DIPPED BEAM HEADLIGHTS
With incandescent bulbs
To change the bulb, proceed as follows:
❍remove the protective cover B - fig. 15;
❍release the bulb holder clip A - fig. 16;
❍disconnect the electrical connector B;
❍remove the bulb C and replace it;
❍fit the new bulb, ensuring that the outl
ine of the met-
al part coincides with the splining on the curve of the
headlight. Then reconnect the electrical connector B
and reattach the bulb holder clip A;
❍refit the protective cover B - fig. 15.
fig. 15
L0E0154m
fig. 16
L0E0155m
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 214

IN AN EMERGENCY
215
4
With gas discharge bulbs (Xenon)
(for versions/markets, where provided)
MAIN BEAM HEADLIGHTS
With incandescent bulbs
To change the bulb, proceed as follows:
❍remove the protective cover A - fig. 15;
❍release the bulb holder clip A - fig. 17;
❍disconnect the electrical connector B;
❍remove the bulb C and replace it;
❍fit the new bulb, ensuring that the outline of the met-
al part coincides with the splining on the curve of the
headlight. Then reconnect the electrical connector B
and reattach the bulb holder clip A;
❍refit the protective cover A - fig. 15.
fig. 17
L0E0156m
Due to the high power supply voltage, gas
discharge bulbs (Xenon) should only be re-
placed by specialised personnel: danger of
death! Contact a Lancia Dealership.
With gas discharge bulbs (Xenon)
(for versions/markets, where provided)
Due to the high power supply voltage, gas
discharge bulbs (Xenon) should only be re-
placed by specialised personnel: danger of
death! Contact a Lancia Dealership.
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 215

216
IN AN EMERGENCY
SIDE LIGHTS/DAYTIME RUNNING LIGHTS
The side lights/daytime running lights are LED-type.
Contact a Lancia Dealership to have these lights replaced.
DIRECTION INDICATORS
Front
To replace the bulb, proceed as follows:
❍remove the protective cover C - fig. 15;
❍press down near the bulb holder locking tabs (shown
in fig. 18 by the arrows) and simultaneously pull the
unit;
❍remove the bulb A and replace it;
❍refit the protective cover C.Side
To replace the bulb, proceed as follows:
❍work on the lens cover A - fig. 19 to compress inter-
nal clip B, then pull the unit outwards;
❍turn the bulb holder C anticlockwise, extract the press-
fitted bulb D and replace it;
❍refit the bulb holder C in the lens cover and turn it
clockw
ise;
❍refit the unit making sure that the internal clip B clicks
into place.
fig. 18
L0E0157m
fig. 19
L0E0158m
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 216

IN AN EMERGENCY
217
4
FOG LIGHTS fig. 20
(for versions/markets, where provided)
To replace the front fog light bulbs contact a Lancia Deal-
ership.
REAR LIGHT CLUSTERS
Contact a Lancia Dealership to replace the LED lights in
the rear light clusters.
REVERSING LIGHT fig. 21
Go to a Lancia Dealership to replace the bulb.REAR FOG LIGHT fig. 22
Go to a Lancia Dealership to replace the bulb.
fig. 20
L0E0159m
fig. 22
L0E0161m
fig. 21
L0E0160m
195-232 Delta GB 1ed 02/09/13 09.35 Pagina 217

218
IN AN EMERGENCY

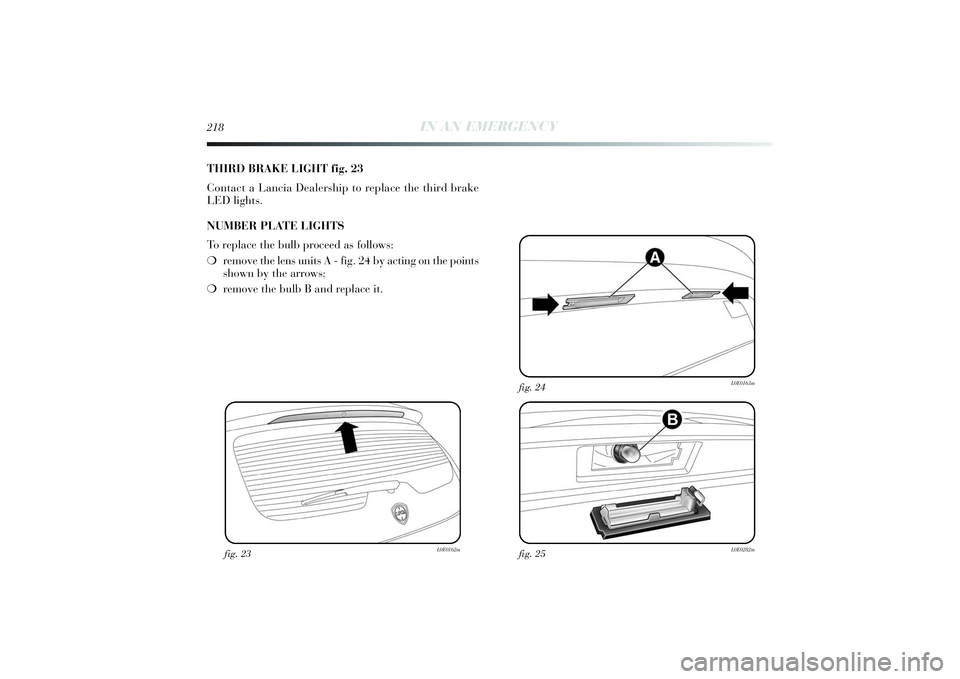

THIRD BRAKE LIGHT fig. 23
Contact a Lancia Dealership to replace the third brake
LED lights.
NUMBER PLATE LIGHTS
To replace the bulb proceed as follows:
❍remove the lens units A - fig. 24 by acting on the points
shown by the arrows;
❍remove the bulb B and replace it.
fig. 23
L0E0162m
fig. 25
L0E0282m
fig. 24
L0E0163m
