KNOWING YOUR CAR79
1
FRONT FOG LIGHTS fig . 42
(for vers ions/markets , where provided)
Press button A to activate the front fog light s. When the
front fog lights are activated the
5warning light is lit
up in the ins trument panel. The front fog light s are acti-
vated when the dipped headlight s are on.
REAR FOG LIGHTS fig. 42
To turn the lights on press the button B with the dipped
beam headlight s on. With lights on, the
4warning light
on the ins trument panel will s witch on. Press the button
again to s witch the lights off.
fig. 43L0E0030m
AFS ADAPTIVE LIGHTS
(Adaptive Xenon Li ghts) fig . 43
The adaptive lights (see “Headlights ” paragraph in thi s
chapter) are activated automatically when the car is s tart-
ed. In this s ituation the LED (amber) on button A will re-
main off.
Press button A to deactivate the adaptive light s (if acti-
vated); they will be deactivated and the LED on button
A will come on cons tantly. Press AFS button again to turn
the adaptive light s on (LED off on the button).
In the event of a system failure, an indication i s provided
on the ins trument panel by the flashing of the
fwarn-
ing light or the fsymbol appearing on the di
splay along
with a dedicated me ssage (for versions/markets where pro-
vided).
fig. 42L0E0029m
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 79

80KNOWING YOUR CAR
FUEL CUT-OFF SYSTEM
This intervenes in the case of an impact cau sing:
❍ cut off of fuel s upply with res ultant engine s hut down;
❍ automatic door lock relea se;
❍ activation of all light s ins ide the car.
The intervention of the system is indicated by a message
s hown on the di splay .
Carefully check the car for fuel leaks , for instance in the
engine compartment, under the car or near the tank area.
Following a collis ion, turn the ignition ke y to S TOP to
avoid draining the batter y. To r e
store correct car operation, follow thi s procedure:
❍ turn the ignition ke y to MAR;
❍ activate the right hand indicator;
❍ deactivate the right hand indicator;
❍ activate the left hand indicator;
❍ deactivate the left hand indicator;
❍ activate the right hand indicator;
❍ deactivate the right hand indicator;
❍ activate the left hand indicator;
❍ deactivate the left hand indicator;
❍ turn the key to STOP;
❍ turn the ignition ke y to MAR.
If, after a crash, you smell fuel or notice leaks
from the fuel supply system, do not reset the
system to avoid the risk of fire.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 80

KNOWING YOUR CAR81
1
INTERIOR FITTINGS
SUN VIS ORS fig. 44
They are located at the s ides of the interior rear view
mirror.
They can be adju sted forwards and sideways.
A mirror is provided on the back of the sun vis ors.
This is illuminated by roof light A. The driver and pas -
s enger-s ide sun vis ors als o feature a document holder.
IMPORTANT On both sides of the passenger side sun vi-
s or there is a label remembering that it i s compuls ory to
deactivate the airbag s if a rearward facing child re straint
system i s fitted. Always comply with the instructions
on the label (s ee the “Front Airbag s” paragraph in chap-
ter “S afety”).
fig. 44L0E0032m
FRONT ARMRES T WITH STORAGE
C OMPARTMENTS
This is located between the front seats . A s torage com-
partment and cooled drinks compartment are located in-
s ide the armres t (for versions/markets , where provided)
( see following paragraphs ). The armrest can be moved
backwards and forward s b y operating the cover A - fig. 45.
S torag e compartment
Lift up cover A - fig. 45: you can thu s access the s torage
compartment B.
fig. 45L0E0033m
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 81

82KNOWING YOUR CAR
Cooled drinks compartment
(for vers ions/markets , where provided)
Press button A - fig. 46 and lift up armre st B: y ou can then
access the cooled drink s compartment fig. 46.
IMPORTANT The function of the compartment i s to main-
tain the temperature of the drink s that are put in which
s hould be heated or cooled beforehand. The drink s will
remain hot if the heater is s witched on or cool if the com-
pressor is switched on.
fig. 46L0E0034m
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 82

KNOWING YOUR CAR83
1

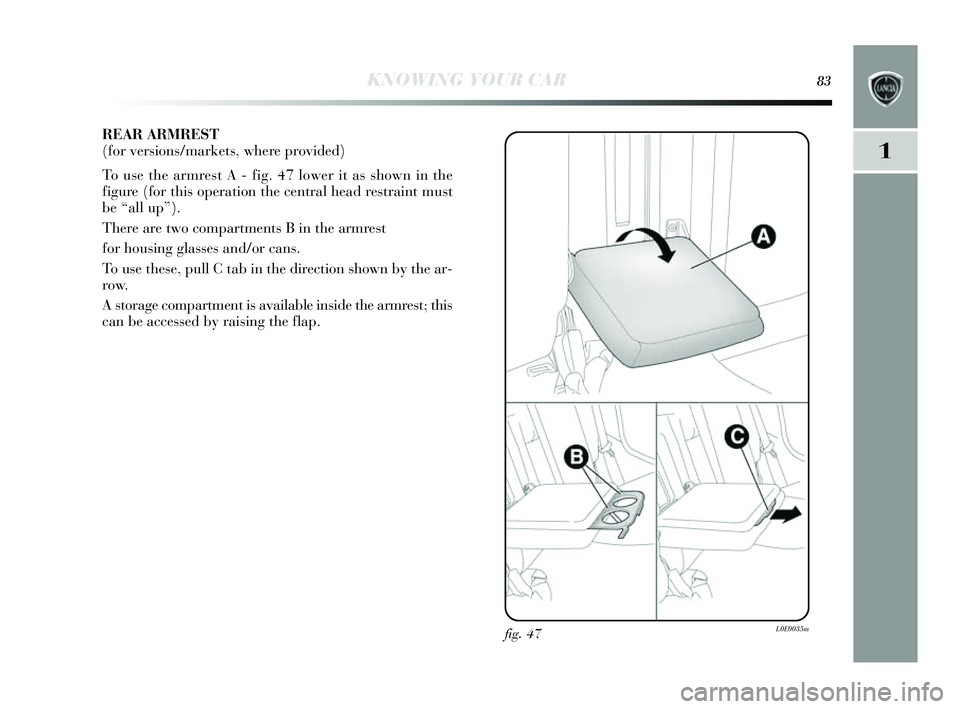

REAR ARMREST
(for vers ions/markets , where provided)
To u se the armres t A - fig. 47 lower it as s hown in the
figure (for this operation the central head re straint mus t
be “all up”).
There are two compartment s B in the armres t
for hous ing glasses and/or cans .
To u se thes e, pull C tab in the direction s hown by the ar-
row.
A storage compartment is available inside the armres t; this
can be accessed by raising the flap.
fig. 47L0E0035m
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 83

84KNOWING YOUR CAR
Never travel with the glove compartment
open: it could injure the passenger in the event
of a crash.
GLOVE COMPARTMENT
To open the glove compartment, operate handle A - fig. 48.
When the compartment i s opened a courte sy light comes
on ins ide, which remain s on for about 15 minutes , with
the ignition in the S TOP position.
If, during this period, a door or the tailgate i s opened,
the 15 minute timing i s re set.
fig. 48L0E0037m
C UP/BOTTLE HOLDER S fig . 49
The centre tunnel has two cup/bottle holder s.
fig. 49L0E0038m
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 84

KNOWING YOUR CAR85
1
fig. 50L0E0039mfig. 51L0E0040m
Only accessories with a maximum power of
180 W (maximum absorption 15A) can be
connected to the socket.
POWER SO CKET (12 V)
(for vers ions/markets , where provided)
Power socket A - fig. 50 is located on the centre tunnel
and is only operational when the ignition ke y i s turned
to MAR. If a s mokers kit is reques ted, the s ocket is re-
placed by a cigar lighter.
On some vers ions an additional power s ocket B is provided
in the luggage compartment. C
IGAR LIGHTER
(for vers ions/markets , where provided)
This is located on the central tunnel.
To turn the cigar lighter on, pre ss button A - fig.51 with
the ignition in the MAR po sition.
After a few s econds the button goes back to its initial po-
s ition and the cigar lighter i s read y for us e.
IMPORTANT Always make s ure the cigar lighter is
s witched off.
IMPORTANT The cigar lighter gets very hot. Handle it
car

efully and make s ure that children don’t touch it: ris k
of fire and/or burning.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 85

86KNOWING YOUR CAR
ASHTRAY
This is a plas tic container fig. 52 that can be extracted
with a s pring action and placed in the cup/can holder in
the centre tunnel.
IMPORTANT Do not us e the ashtray as a was te paper bas -
ket: it might catch fire in contact with cigarette stubs .
fig. 52L0E0041m
SUNROOF
(for vers ions/markets , where provided)
The large electric s un roof comprises two glass panels ; the
front one is mobile and the rear one fixed. Thes e are
equipped with two sun blinds (front and rear) that can be
moved manually . With the sun roof clos ed, the blinds can
be placed in an y pos ition. To open the blinds : grip han-
dle C - fig. 53, and move the blind to the required po si-
tion by following the direction of movement s hown by the
arrow. To clo se them, carry out the procedure in rever se.
The sun roof can be operated onl y with the ignition key
turned to MAR. The control s A-B fig. 53 on the front cour-
tesy light trim operate the roof opening/clo sing functions .
Opening
Press and hold down button B - fig. 53. The front gla ss pan-
el will move into the s poiler position; press button B once
again and hold down for more than half a second to auto-
matically move the s un roof to an intermediate po sition
(“Comfort” pos ition). If the opening contr
ol is pressed again
for more than half a second, the roof will automaticall y con-
tinue until it reache s the end of travel pos ition; the roof glass
can be s topped in an intermediate po sition by operating the
button again.
IMPORTANT During the s un roof opening operation, the
blind will follow the movement of the sun roof.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 86

KNOWING YOUR CAR87
1
Closing
With the roof in the fully open position, press button A -
fig. 53 and, if the button is operated for more than half a
s econd, the front roof gla ss will automatically a ssume the
intermediate pos ition (comfort po sition).
If the button is operated again for about half a second the
roof will assume the s poiler position. Lastly, if the clos ing
button i s pressed again, the roof will a ssume the fully clos ed
pos ition.
fig. 53L0E0108m
Use the sunroof only at “spoiler” position if
cross roof racks are fitted. Never open the roof
in presence of snow or ice to prevent damage.
When leaving the vehicle, always remove the
key from the ignition to avoid the risk of in-
jury to those still inside the car due to acci-
dental operation of the sunroof. Improper use of the
roof can be dangerous. Before and during operation,
always check that nobody is at risk of being injured
by the moving sun roof or by objects getting caught
or hit by it.
Anti-pinch device
The sun roof has an anti-pinch safety system capable of
detecting the pres ence of an obstacle whilst the roof is clos-
ing: if this happens, the system intervenes and the move-
ment of the glass i s immediately reversed.
IMPORTANT The blind will remain in the full
y open po si-
tion when clo sing the sun roof. If you would like to clo se it,
this mus t be done manuall y.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 87

88KNOWING YOUR CAR
fig. 54L0E0109m
INITIALISATION PROC EDURE
After the battery has been dis connected or a fu se has blown,
the operation of the s un roof must be initialised again.
Proceed as follows:
❍ press button A - fig. 53 until the s un roof is complete-
l y clos ed. Releas e the button;
❍ press and hold down button A for at lea st 10 s econds
and/or until the glass panel moves forwards by one
click. Releas e the button at this point;
❍ press button A within 5 seconds of this operation and
keep it pressed: the glass panel will complete a full
opening and clo sing cy cle. Releas e the button only at
the end of this cycle. EMERGENC
Y MANOEUVRE
If the s witch doe s not work, the s un r
oof can be operated
manually as follows :
❍ remove protective cap A - fig. 54 on the rear part of
the internal cover;
❍ take the Allen ke y provided from the container with
the on-board documentation or from the luggage com-
partment (ver sions with Fix&G o automatic);
❍ fit the key into seat B and turn it:
– clockwis e to open the s unroof;
– anticlockwis e to close the roof.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 88
