KNOWING YOUR CAR15
1
Passenger side airba g/side bag s
deactivated (amber)
The
“warning light s witches on when the front
passenger’ s airbag and s ide bag are dis abled. With
the front passenger airbag s activated, when the ignition
key is turned to MAR, the
“warning light s witches on
cons tantly for about 4 seconds , flashes for another 4 sec-
onds and s hould then s witch off.
“
Failure of the “warning light is indicated
by the
¬warning light coming on. In addi-
tion, the airbag system automatically deac-
tivates the passenger side airbags (front airbag and
side bag for versions/markets, where provided). Be-
fore proceeding, contact a Lancia Dealership to have
the system checked immediately.
S eat belts unfastened (red)
This warning light s witches on cons tantly when
the car is not in motion and the driver s ide seat
belt is not correctly fastened. The warning light
will flas h and a buzzer will s ound if the car is in motion
and the front s eat belts are not correctly fastened.
The SBR (S eat Belt Reminder) system buzzer can only
be permanently deactivated by a Lancia Dealer ship.
The system can be reactivated u sing the S etup Menu.
<
Low battery charge (red)
The warning light comes on when the ignition
key is turned to MAR, but it s hould go out as
soon as the engine ha s started (with the engine
running at idle s peed a brief delay before going out is ac-
ceptable).
If the warning light stays on, cons tantly or flas hing, con-
tact a Lancia Dealer ship immediately .
w
Continuously on: low eng ine oil pressure
(red)
Flas hing: engine oil deteriorated (red)
When the key is turned to MAR the warning light
comes on, but s hould go out as s oon as the engine is s tart-
ed.
1. Low eng ine oil pressure
The warning light switches on cons tantly together (for ver-
s ions /markets , where provided) with the me ssage on the
dis play when the system detects that engine oil pressure
i s low.
v
If the v warning light turns on when the
car is travelling (on certain versions togeth-
er with the message on the display) stop the
engine and contact a Lancia Dealership immedi-
ately.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 15

KNOWING YOUR CAR29
1
IMPORTANT Buttons ÕandÔactivate different func-
tions according to the following situations :
– within the menu, they allow you to scroll up and down
through the option s;
– during setting operation s they increas e or decreas e the
values .
IMPORTANT When one of the front door s i s opened, the
dis play will s witch on and s how the clock and km or miles
covered for a few seconds . S
ETUP MENU
The menu compris es a s eries of items which can be select-
ed us ing the
Õand Ôbuttons to access the different s elec-
tion and setting operation s ( set up) de scribed in the follow-
ing paragraph s. S ome options have a submenu. The S etup
Menu can be activated b y briefly pressing the S ET button.
The menu include s the following item s:
– MENU
– LIG HTING
– SPEED BEEP
– LIG HT SENS OR
(for vers ions/markets , where provided)
– CORNERING LIGHTS
(for vers ions/markets , where provided)
– TRIP B ACTIVATION/DATA
– SET TIME
– SET DATE
– FIRS T PAGE (for vers ions/markets , where provided)
– SEE RADIO
– AUTOCLOS E
– UNIT S OF MEAS URE
– LANG UAGE
– W

ARNING VOLUME
– BUTTONS VOLUME
– SEAT BELT BEEP/BUZZ.
– SERVICE
– AIRBAG /PASSENG ER BAG
– DAYTIME RUNNING LIGHTS
– EXIT MENU
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 29

36KNOWING YOUR CAR
Language (Lang uage selection)
Dis play messages can be shown in different languages : Ital-
ian, German, Englis h, Spanis h, French, Portugues e and
Dutch.
To set the des ired language, proceed a s follows :
– briefly press the button S ET: the previously s et language
s tarts flashing on the di splay ;
– pre ss
Õor Ôto make y our choice;
– briefly press the S ET button to go back to the menu
s creen or hold the button down to go back to the standard
s creen without s aving.
Warning s volume (Adjustin g the failure/warnin g
acoustic sig nal volume)
With this function the volume of the acous tic signal which
accompanies the display of failure/warning can be ad-
jus ted according to 8 level s.
To set the des ired volume, proceed a s follows :
– press the S ET button briefly , making the display flash
the previous ly s et volume level;
– press
Õor Ôto adjus t the value;
– briefly press SET to go back to the menu screen or hold
the button down to go back to the standard screen with-
out saving. Button volume (Adjustin
g the button volume)
This function enables y ou to adjus t the volume of the
acous tic signal (8 s ettings) accompany ing the activation
of buttons SET,
Õand Ô.
To set the des ired volume, proceed a s follows :
– press the S ET button briefly , making the display flash
the previous ly s et volume level;
– press
Õor Ôto adjus t the value;
– briefly press the S ET button to go back to the menu
s creen or hold the button down to go back to the standard
s creen without s aving.
Belt reminder
(Buzzer/reactivation for SBR indication)
This function is only display ed after a Lancia Dealer ship
has deactivated the S BR (see SBR paragraph, chapter
“2”).
S ervice (S cheduled servicin g)
U sing this function y ou can display information about the
mileage interval s for car s ervicing.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 36

54KNOWING YOUR CAR
REAR SEATS
Backrest angle adjustment
Lift lever A - fig. 22 (one on each side) for backres t an-
gle adjus tment, for the left or right part of the backre st re-
s pectively (to facilitate thi s operation, s lightly move the
s eat forwards using lever B).
Rear seat movement
(for vers ions/markets , where provided)
The rear s eats can be moved backwards and forwards (by
80 mm). To move the seats backwards or forwards oper-
ate the levers B (one on each side).
fig. 22L0E0010m
“Fixed” type rear seats
(for vers ions/markets , where provided)
In some vers ions, rear s eats are “fixed” ty pe and the back-
re st angle adjus tment is possible if the luggage compart-
ment is extended. Us e lever A-fig. 23 (one each side) for
backres t angle adjus tment.
When repositioning the rear backrest dur-
ing its movement, check that it has been at-
tached correctly, grasping the backrest at the
top and shaking it.
fig. 23L0E0231m
Before tilting the backrests, make sure that the
seat belts are fully stretched, without any
twisting.
001-154 Delta GB 2ed 27/01/14 10.46 Pagina 54

KNOWING YOUR CAR99
1

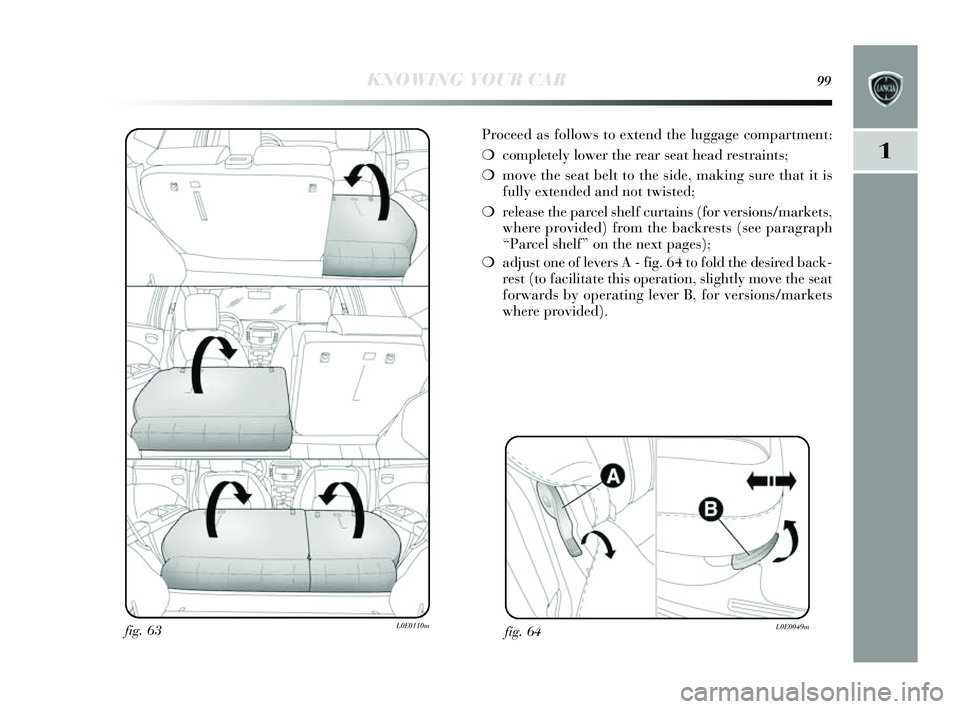

Proceed as follows to extend the luggage compartment:
❍ completely lower the rear seat head res traints;
❍ move the s eat belt to the s ide, making sure that it is
fully extended and not twi sted;
❍ releas e the parcel s helf curtains (for versions/markets ,
where provided) from the backre sts ( see paragraph
“Parcel shelf” on the next page s);
❍ adjus t one of levers A - fig. 64 to fold the des ired back-
re st (to facilitate this operation, slightly move the s eat
forwards by operating lever B, for ver sions /markets
where provided).
fig. 64L0E0049mfig. 63L0E0110m
001-154 Delta GB 2ed 27/01/14 10.47 Pagina 99

100KNOWING YOUR CAR

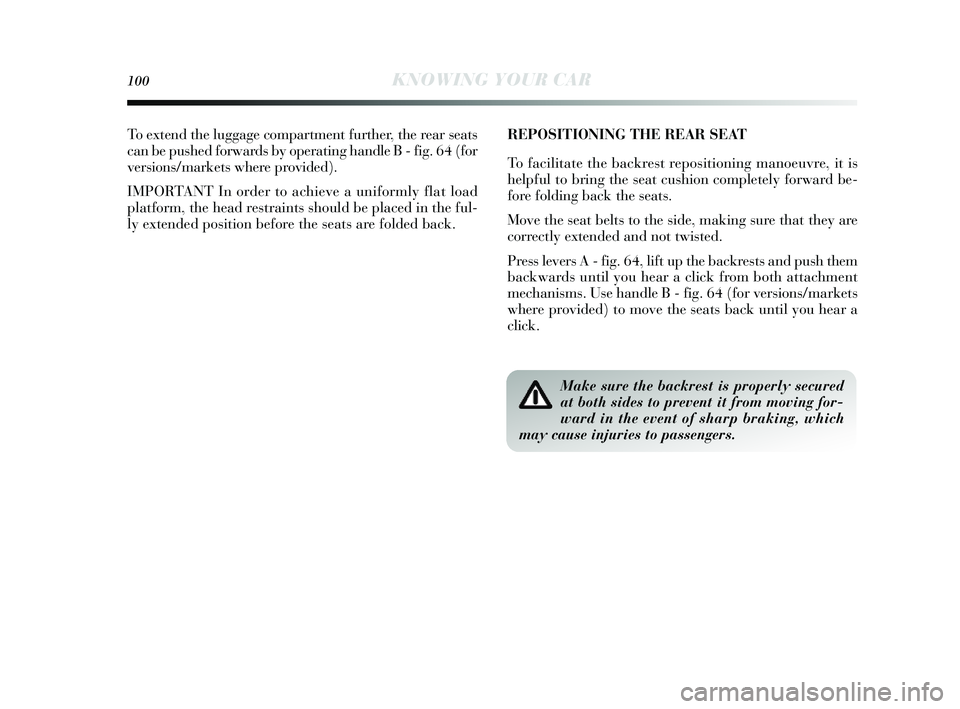

To extend the luggage compartment further, the rear seats
can be pus hed forwards by operating handle B - fig. 64 (for
vers ions /markets where provided).
IMPORTANT In order to achieve a uniforml y flat load
platform, the head re straints s hould be placed in the ful-
l y extended pos ition before the s eats are folded back. REPOS
ITIONING THE REAR S EAT
To facilitate the backres t repositioning manoeuvre, it is
helpful to bring the s eat cushion completel y forward be-
fore folding back the s eats.
Move the s eat belts to the side, making s ure that they are
correctly extended and not twi sted.
Press levers A - fig. 64, lift up the backre sts and pus h them
backwards until you hear a click from both attachment
mechanis ms. Us e handle B - fig. 64 (for vers ions/markets
wher

e provided) to move the seats back until y ou hear a
click.
Make sure the backrest is properly secured
at both sides to prevent it from moving for-
ward in the event of sharp braking, which
may cause injuries to passengers.
001-154 Delta GB 2ed 27/01/14 10.47 Pagina 100

2
SAFETY
155
Seat belts ......................................................................156
SBR system....................................................................157
Pretensioners.................................................................158
Carrying children safely.................................................161
Fitting the “Universal” child restraint system.................163
“Isofix” child restraint system setup ..............................169
Front Airbags ................................................................173
Side bags (Side bag - Window bag) ...............................178
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 155

156
SAFETY
SEAT BELTSUSING THE SEAT BELTS fig. 1
The seat belt should be worn keeping the torso straight
and rested against the backrest.
To fasten the seat belts, hold the tongue A and insert it in-
to the buckle B, until it clicks into place. If the seat belt
jams during removal, let it rewind for a short stretch, then
pull it out again without jerking.
The retractor may lock when the car is parked on a steep
slope: this is normal. Furthermore, the retractor mecha-
nism locks the belt if it is pulled sharply or in the event
of sudden braking, collisions and high-speed bends. The
rear seat is fitted with inertia seat belts with three anchor
points and a retractor.
The rear seat belts must be used as shown in the diagram
in fig. 2.
Never press button C when travelling.Remember that, in the event of a violent col-
lision, back-seat passengers not wearing seat
belts represent a serious danger to the front-
seat passengers as well as to themselves.
fig. 1
L0E0061m
To unfasten the seat belts, press button C. Guide the seat
belt with your hand while it is rewinding, to prevent it
from twisting. Through the retractor, the seat belt auto-
matically adapts to the body of the occupant wearing it,
allowing freedom of movement.
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 156

SAFETY
157
2
IMPORTANT After putting the seats back to their trav-
elling position, restore the seat belt position to make them
ready for use.
IMPORTANT If the rear seat is being moved and this caus-
es the middle seat belt to lock temporarily, normal con-
ditions can be restored simply by moving the seat towards
the back of the car.
fig. 2
L0E0062m
SBR SYSTEM The car is provided with the SBR (Seat Belt Reminder)
system, which warns the driver and the front passenger
if the seat belt is not fastened, as follows:
❍warning light
<
turns on constantly and continuous
activation of the acoustic signal for the first 6 seconds;
❍warning light
intermittently for the next 96 seconds.
For long-term deactivation of the SBR system, contact a
Lancia Dealership.
The SBR system can be reactivated at any time through
the display Setup Menu (see chapter “1”).
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 157

158
SAFETY
PRETENSIONERSThe car is equipped with front seat belt pretensioners in
case of a severe frontal impact. This guarantees the per-
fect adherence of the seat belts to the occupants’ bodies
before the restraining action begins.
It is evident that the pretensioners have operated when the
belt withdraws toward the retractor.
This car is also equipped with a second pretensioner (fit-
ted in the kick plate area). Its activation is signalled by
the shortening of the metal cable.
A slight discharge of smoke may be produced during the
activation of the pretensioner which is not harmful and
does not indicate any fire hazard
.
IMPORTANT To obtain the highest degree of protection
from the action of the pretensioner, wear the seat belt tight
to the chest and pelvis.
The pretensioner does not require any maintenance or lu-
brication: any changes to its original conditions will in-
validate its efficiency. If, due to unusual natural events
(floods, sea storms, etc.), the device has been affected by
water and mud, it must be replaced.
The pretensioner may be used only once. Go
to a Lancia Dealership to have it replaced
after it has been deployed.Operations which lead to impacts, vibrations
or localised heating (over 100°C for a max-
imum of six hours) in the area around the
pretensioner may damage or deploy it. Contact a
Lancia Dealership should intervention be necessary
on these components.
LOAD LIMITERS
To increase passenger safety, the retractors contain a de-
vice which doses the force acting on the chest and shoul-
ders during the belts’ restraining action in the event of
front collisions.
155-182 Delta GB 1ed 26/08/13 11.29 Pagina 158
