Lancia Voyager 2014 Owner handbook (in English)

front door handle to unlock the driv-
er's door automatically. The interior
door panel lock knob will raise when
the door is unlocked.
NOTE:
If “Unlock All Doors 1st
Press” is programmed all doors will
unlock when you grab hold of the
driver’s front door handle. To select
between “Unlock Driver Door 1st
Press” and “Unlock All Doors 1st
Press”, refer to “Electronic Vehicle
Information Center (EVIC)/
Personal Settings (Customer-
Programmable Features)” in “Un-
derstanding Your Instrument
Panel” for further information.
To Unlock From The Passenger
Side:
With a valid Passive Entry RKE
transmitter within 1.5 m of the pas-
senger door handle, grab the front
passenger door handle to unlock all
four doors automatically. The interior
door panel lock knob will raise when
the door is unlocked.
NOTE: All doors will unlock
when the front passenger door
handle is grabbed regardless of the
driver’s door unlock preference
setting (“Unlock Driver Door 1st
Press” or “Unlock All Doors 1st
Press”).
Preventing Inadvertent Locking Of
Passive Entry RKE Transmitter In
Vehicle
To minimize the possibility of unin-
tentionally locking a Passive Entry
RKE transmitter inside your vehicle,
the Passive Entry system is equipped
with an automatic door unlock fea-
ture which will function if there is no
Key Fob present in the ignition. If one of the vehicle doors is open and
the door panel switch is used to lock
the vehicle, once all open doors have
been closed the vehicle checks the in-
side and outside of the vehicle for any
valid Passive Entry RKE transmitters.
If one of the vehicle's Passive Entry
RKE transmitters is detected inside
the vehicle, and no other valid Passive
Entry RKE transmitters are detected
outside the vehicle, the Passive Entry
System automatically unlocks all ve-
hicle doors and chirps the horn three
times (on the third attempt ALL
doors will lock and the Passive Entry
RKE transmitter can be locked in the
vehicle).
To Enter The Liftgate
With a valid Passive Entry RKE
transmitter within 1.5 m of the lift-
gate, cycle the handle to open the
liftgate and pull the liftgate open with
one fluid motion.
NOTE: All doors will remain
locked when the liftgate release
handle is pressed regardless of the
driver’s door unlock preference
setting (“Unlock Driver Door 1st
Grab The Door Handle To Unlock
25

Press” or “Unlock All Doors 1st
Press”).
To Lock The Vehicle’s Doors
With one of the vehicle’s Passive En-
try RKE transmitters within 1.5 m of
the driver or passenger front door
handle, press the door handle LOCK
button to lock all four doors.
Do NOT grab the door handle, when
pressing the door handle lock button.
This could unlock the door(s).NOTE:
After pressing the door handle
LOCK button, you must wait two
seconds before you can lock or
unlock the doors, using either
Passive Entry door handle. This
is done to allow you to check if
the vehicle is locked by pulling
the door handle, without the ve-
hicle reacting and unlocking.
The Passive Entry system will not operate if the RKE transmit-
ter battery is dead. The vehicle doors can also be locked
by using the RKE transmitter lock
button or the lock button located on
the vehicle’s interior door panel.
WINDOWS
POWER VENT WINDOWS
The Power Vent Window Switch lo-
cated on the driver's door trim panel
allows the driver to operate the two
vent windows from the driver's seat.
POWER WINDOWS
You can control either the front or rear
windows using switches located on
the driver's door trim panel. The
switches will operate only when the
Press The Door Handle Button To
Lock
Do NOT Grab The Door HandleWhen Locking
Power Vent Window SwitchOpen/Close
26

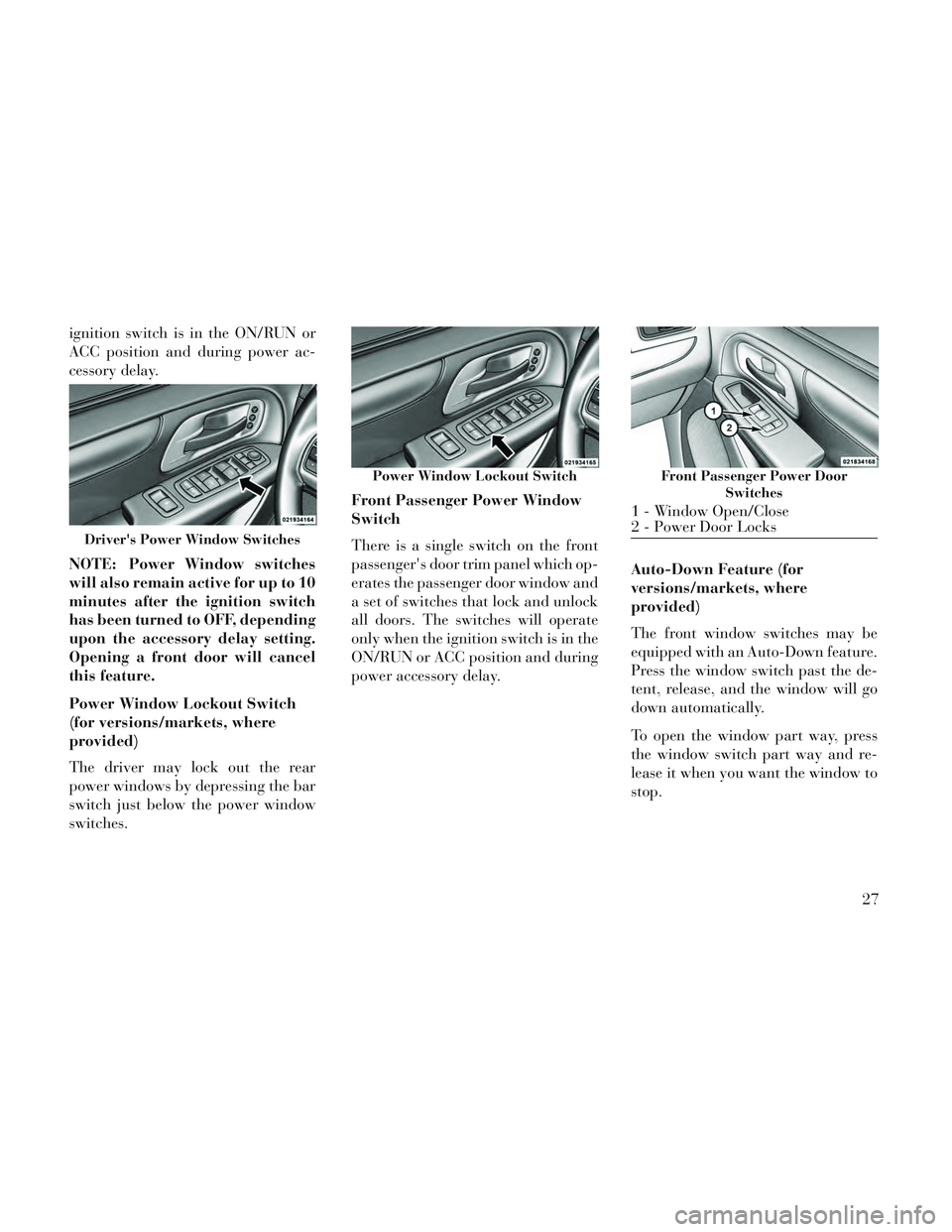

ignition switch is in the ON/RUN or
ACC position and during power ac-
cessory delay.
NOTE: Power Window switches
will also remain active for up to 10
minutes after the ignition switch
has been turned to OFF, depending
upon the accessory delay setting.
Opening a front door will cancel
this feature.
Power Window Lockout Switch
(for versions/markets, where
provided)
The driver may lock out the rear
power windows by depressing the bar
switch just below the power window
switches.Front Passenger Power Window
Switch
There is a single switch on the front
passenger's door trim panel which op-
erates the passenger door window and
a set of switches that lock and unlock
all doors. The switches will operate
only when the ignition switch is in the
ON/RUN or ACC position and during
power accessory delay.
Auto-Down Feature (for
versions/markets, where
provided)
The front window switches may be
equipped with an Auto-Down feature.
Press the window switch past the de-
tent, release, and the window will go
down automatically.
To open the window part way, press
the window switch part way and re-
lease it when you want the window to
stop.
Driver's Power Window Switches
Power Window Lockout SwitchFront Passenger Power Door
Switches
1 - Window Open/Close
2 - Power Door Locks
27

The power window switches remain
active for up to 10 minutes (depend-
ing on the accessory delay setting)
after the ignition switch has been
turned to OFF. Opening a vehicle
front door will cancel this feature.
Auto Up Feature With Anti-Pinch
Protection (for versions/markets,
where provided)
The front driver and front passenger
switches may be equipped with an
Auto Up feature. Lift the window
switch fully upward to the second de-
tent, release, and the window will go
up automatically.
To stop the window from going all the
way up during the Auto Up operation,
push down on the switch briefly.
To close the window part way, lift the
window switch to the first detent and
release when you want the window to
stop.NOTE:
If the window runs into any ob-
stacle during auto-closure, it
will reverse direction and then
go back down. Remove the ob-
stacle and use the window
switch again to close the win-
dow.
Any impact due to rough road conditions may trigger the auto
reverse function unexpectedly
during auto-closure. If this hap-
pens, pull the switch lightly to
the first detent and hold to close
window manually.
WARNING!
There is no anti-pinch protection
when the window is almost closed.
To avoid personal injury be sure to
clear your arms, hands, fingers and
all objects from the window path
before closing. Auto Up Reset (for versions/
markets, where provided)
To reactivate the Auto Up feature,
perform the following steps after ve-
hicle power is restored:
1. Pull the window switch up to close
the window completely and continue
to hold the switch up for an additional
two seconds after the window is
closed.
2. Push the window switch down
firmly to the second detent to open the
window completely and continue to
hold the switch down for an addi-
tional two seconds after the window is
fully open.
Sliding Side Door Power Window
Switch
Second row passengers may open and
close the sliding door window by a
single switch on the door handle as-
sembly.
The switches will operate only when
the ignition switch is in the ON/RUN
or ACC position and during power
accessory delay.
28

NOTE: The switches will not op-
erate if the driver has activated the
Power Window Lockout.
NOTE: The sliding door windows
do not fully open, stopping several
millimeters above the window sill.
WIND BUFFETING
Wind buffeting can be described as
the perception of pressure on the ears
or a helicopter-type sound in the ears.
Your vehicle may exhibit wind buffet-
ing with the windows down, or the
sunroof (for versions/markets, where
provided) in certain open or partially
open positions. This is a normal oc-
currence and can be minimized. If the
rear windows are open and buffetingoccurs, open the front and rear win-
dows together to minimize the buffet-
ing. If the buffeting occurs with the
sunroof open, adjust the sunroof
opening to minimize the buffeting.
SLIDING SIDE DOOR
The sliding door may be opened from
the inside or the outside. Pull outward
on the exterior handle to open the
sliding door. The sliding door inside
handle functions by rocking forward
and back. Rocking the handle back-
wards opens the door and rocking for-
ward releases the hold open latch in
order to close the door.
To keep your door operating properly,
observe the following guidelines:
Always open the door smoothly.
Avoid high impacts against the
door stop when opening the door.
This is very important when your
vehicle is parked on an incline as
the door will slide faster in the
downhill direction.
There is a hold-open latch that is activated when the sliding door is fully opened. This latch will keep
your sliding door open on any in-
cline. To close the sliding door after
the hold-open latch is activated,
you must rock the inside handle
forward or pull outward on the ex-
terior handle.
Always make sure that the sliding
door is fully latched anytime the ve-
hicle is in motion.
NOTE: The left side sliding door
cannot be opened while the fuel
door is open. This feature operates
only when the sliding door is fully
closed prior to opening the fuel
door.
POWER SLIDING SIDE
DOOR (for versions/
markets, where provided)
The power sliding door may
be opened or closed manu-
ally or by using the buttons
on the RKE transmitter,
overhead console switch, or rear door
switch. Pulling the inside or outside
Sliding Door Power Window Switch
29

power sliding door handle will also
power open or close the power sliding
door.
NOTE: Pulling the outside power
sliding door handle a second time
while the sliding door is power
opening or power closing will al-
low the sliding door to be opened
or closed manually.
Press the button on the RKE trans-
mitter twice within five seconds to
open a power sliding door. When the
door is fully open, pressing the button
twice within five seconds a second
time will close the door.
There are power sliding side door
switches located on the b-pillar trim
panel, just in front of the power slid-
ing door for the rear seat passengers
and in the overhead console for the
driver and passengers. Pressing the
switch once will open the power slid-
ing door. If the switch is pressed while
the door is under a power cycle, the
door will reverse direction.NOTE: The power sliding side
door must be unlocked before the
power sliding door switches will
operate.
To avoid unintentional operation of
the power sliding doors from the rear
seats, press the power sliding door
master lock button, located in the
overhead console, to disable the
switches and handles for the rear seat
passengers.
NOTE:
The power sliding side door
switches will not open the power
sliding door if the shift lever is in
gear or the vehicle speed is
above 0 km/h. To close the
power sliding door with the shift lever in gear and vehicle speed
at 0 km/h, the brake must be
pressed.
If anything obstructs the power sliding side door while it is clos-
ing or opening, the door will au-
tomatically reverse to the closed
or open position, provided it
meets sufficient resistance.
If the power sliding side door is not in the full open or close po-
sition, it will fully open when a
power sliding door switch is
pressed. To close the door, wait
until it is fully open and then
press the switch again.
If the power sliding door en- counters multiple obstructions
within the same cycle, the sys-
tem will automatically stop, the
power sliding door motor will
make a clicking sound until the
door has no further movement.
This clicking sound can be
stopped by pulling the inside or
outside handle. If this condition
occurs, no damage is done to the
power sliding door motor. The
Power Sliding Door Switch
30

power sliding door must be
opened or closed manually.
WARNING!
You, or others, could be injured if
caught in the path of the sliding
door. Make sure the door path is
clear before closing the door.
Power Sliding Side Door Open
Flash
The left and right exterior hazard
lights will flash for 12 seconds when
either sliding door is opened. This will
alert other drivers in the area that
passenger(s) could be entering or ex-
iting the vehicle.
The Sliding Side Door Open Flash can
be enabled or disabled by performing
the following procedure:
1. Place the Key Fob in the ignition
switch.
2. Cycle the ignition switch from ON/
RUN to OFF five times ending in the
ON/RUN position (do not start the
engine). 3. Within 10 seconds of the final
cycle, press the HAZARD switch ON.
4. A single chime will sound to sig-
nify that you have successfully com-
pleted the programming.
You can turn the feature back on by
repeating the previous procedure.
Power Sliding Side Door Master
Lock Switch
To provide a safer environment for
small children riding in the rear seats,
the second row sliding door switches
and handles may be overridden by
pressing the OFF side of the Master
Lock Out Switch located in the front
overhead console.
When the power sliding door master
lock switch is in the OFF position, the
power sliding side door may not be
opened or closed by pressing the
switch located on the b-pillar trim
panel, just in front of the sliding door
or activating the inside power sliding
door handle.
SLIDING SIDE DOOR
CHILD PROTECTION
LOCK
To provide a safer environment for
small children riding in the rear seats,
the sliding doors are equipped with a
Child Protection Door Lock system.
NOTE: When the Child Protec-
tion Door Lock system is engaged,
the door can be opened only by
using the outside door handle even
though the inside door lock is in
the unlocked position.
Overhead Console Power Sliding
Door Master Switch
1 — Left Sliding
Door 3 — Right Slid-
ing Door
2 — Liftgate 4 — Master Lock
31

NOTE:
After engaging the Child Protec-tion Door Lock, always test the
door from the inside to make
certain it is in the desired posi-
tion.
When the Child Protection Door Lock system is engaged, (even if
the inside door lock is in the
unlocked position) the door can
be opened only by using the out-
side door handle, the RKE
transmitter, the switches on the
overhead console or the switches
located on the trim panel just in
front of the power sliding door.
The power sliding side door will operate from the switches lo-
cated on the trim panel just in
front of the power sliding door,
regardless of the Child Protec-
tion Door Lock lever position. To
avoid unintentional operation of
the power sliding door from the
rear seats, press the "OFF” Mas-
ter Lock Out Switch located in
the front overhead console, next
to the driver.WARNING!
Avoid trapping anyone in the ve-
hicle in a collision. Remember that
the sliding doors can only be
opened from the outside door
handle or the switches located on
the b-pillar trim panel just in front
of the power sliding door when the
Child Protection Door Locks are
engaged.
To Engage the Child Protection
Door Lock
1. Open the sliding side door.
2. Slide the Child Protection Door
Lock control inward (toward the ve-
hicle) to engage the Child Protection
Door Lock. 3. Repeat Steps 1 and 2 on the oppo-
site sliding door.
NOTE:
After engaging the Child Protec-
tion Door Lock, always test the
door from the inside to make
certain it is in the desired posi-
tion.
When the Child Protection Door Lock system is engaged, (even if
the inside door lock is in the
unlocked position) the door can
be opened only by using the out-
side door handle, the RKE
transmitter, the switches on the
overhead console or the switches
located on the trim panel just in
front of the power sliding door.
The power sliding side door will operate from the switches lo-
cated on the b-pillar trim panel,
just in front of the power sliding
door, regardless of the Child
Protection Door Lock lever po-
sition. To avoid unintentional
operation of the power sliding
door from the rear seats, press
Child Protection Door Lock
32

the “OFF” Master Lock Out
Switch located in the front over-
head console, next to the driver.
WARNING!
Avoid trapping anyone in the ve-
hicle in a collision. Remember that
the sliding doors can only be
opened from the outside door
handle or the switches located on
the b-pillar trim panel just in front
of the power sliding door when the
Child Protection Door Locks are
engaged.
To Disengage the Child Protection
Door Lock
1. Open the sliding side door.
2. Slide the Child Protection Door
Lock control outward (away from the
vehicle) to disengage the Child Pro-
tection Door Lock.
3. Repeat Steps 1 and 2 on the oppo-
site sliding door (for versions/
markets, where provided). NOTE:
After setting the Child Protec-
tion Door Lock system, always
test the door from the inside to
make certain it is in the desired
position.
The power sliding side door switches will not open the power
sliding doors if the vehicle is in
gear or the vehicle speed is
above 0 km/h.
The power sliding door will op- erate from the outside door
handle, the RKE transmitter, the
switches on the overhead con-
sole, or the switches located on
the b-pillar trim panel just in
front of the power sliding door
when the shift lever is in PARK,
regardless of the child lock lever
position.
LIFTGATE
On vehicles equipped with power
locks, the liftgate can be unlocked
using the Remote Keyless Entry (RKE) transmitter button, or by acti-
vating the power door lock switches
located on the front doors.
To open the liftgate, press the liftgate
release handle located on the under-
side of the license plate bar and pull
the liftgate open with one fluid mo-
tion.
POWER LIFTGATE (for
versions/markets, where
available)
The power liftgate may be opened
manually or by using the button on
the Remote Keyless Entry (RKE)
transmitter. Press the button on the
transmitter twice within five seconds,
to open the power liftgate. When the
Liftgate Handle Location
33

liftgate is fully open, pressing the but-
ton twice within five seconds, a sec-
ond time, will close the liftgate.
The power liftgate may also be
opened and closed by pressing the
button located on the overhead con-
sole.
The power liftgate may be closed by
pressing the button, located in the
upper left trim in the liftgate opening.
Pushing once will only close the lift-
gate. This button cannot be used to
open the liftgate.When the RKE transmitter button is
pressed and the Flash Lights feature
is enabled, the tail lights will flash and
several audible beeps will occur to
signal that the liftgate is opening or
closing.
WARNING!
During power operation, personal
injury or cargo damage may occur.
Ensure the liftgate travel path is
clear. Make sure the liftgate is
closed and latched before driving
away.NOTE:
If anything obstructs the power
liftgate while it is closing or
opening, the liftgate will auto-
matically reverse to the closed or
open position, provided it meets
sufficient resistance.
There are also pinch sensors at- tached to the side of the liftgate
opening. Light pressure any-
where along these strips will
cause the liftgate to return to the
open position.
During power operation, whether liftgate is fully open or
fully closed, the liftgate chime
will beep several times indicat-
ing power operation is in
progress.
The power liftgate must be in the full open or close positions for
any of the buttons to operate. If
the liftgate is not in the full open
or close positions, it must be
opened or closed manually.
Overhead Console Master Power
Switch
1 — Left Door 3 — Right Door
2 — Liftgate 4 — Master Lock
Rear Power Liftgate Switch
34
