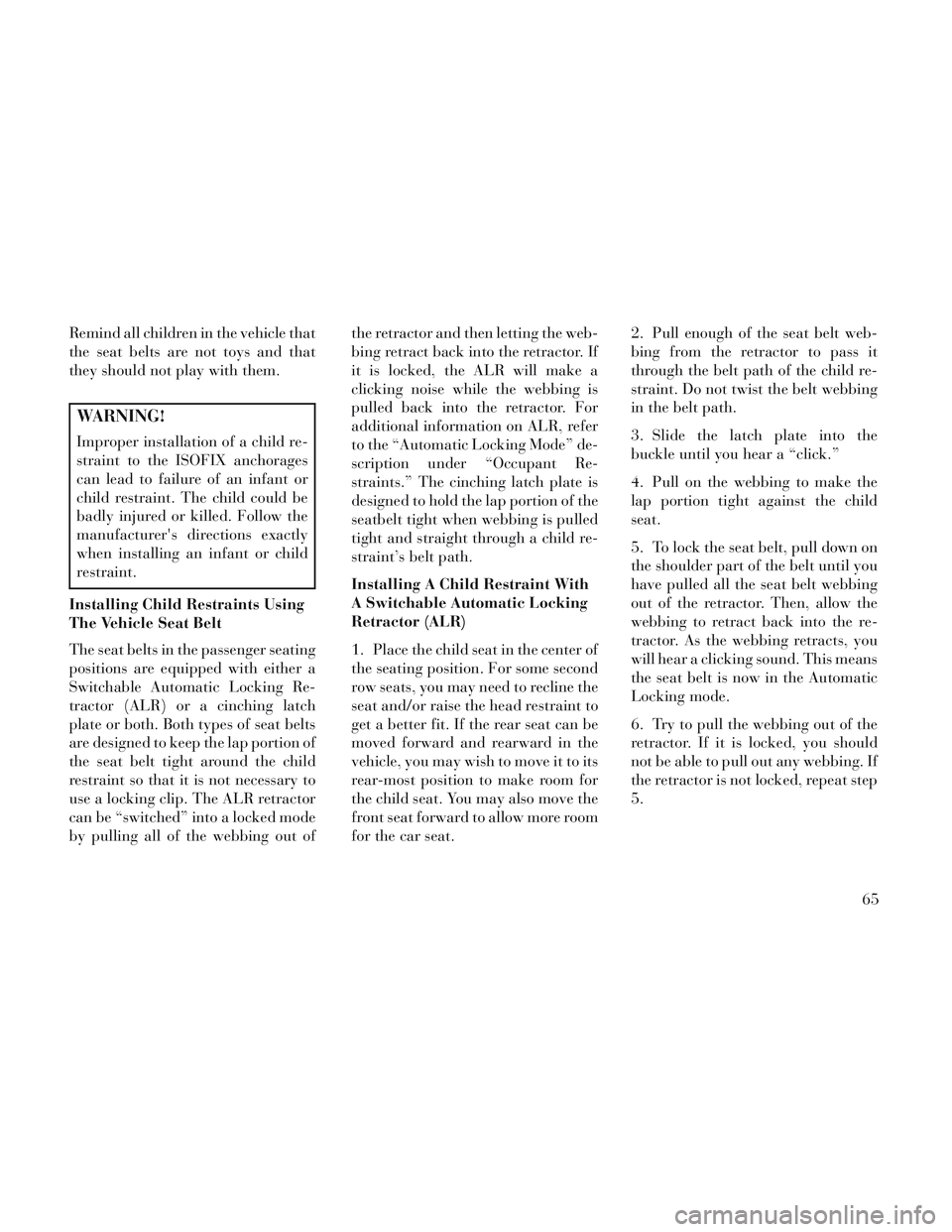

Remind all children in the vehicle that
the seat belts are not toys and that
they should not play with them.
WARNING!
Improper installation of a child re-
straint to the ISOFIX anchorages
can lead to failure of an infant or
child restraint. The child could be
badly injured or killed. Follow the
manufacturer's directions exactly
when installing an infant or child
restraint.
Installing Child Restraints Using
The Vehicle Seat Belt
The seat belts in the passenger seating
positions are equipped with either a
Switchable Automatic Locking Re-
tractor (ALR) or a cinching latch
plate or both. Both types of seat belts
are designed to keep the lap portion of
the seat belt tight around the child
restraint so that it is not necessary to
use a locking clip. The ALR retractor
can be “switched” into a locked mode
by pulling all of the webbing out of the retractor and then letting the web-
bing retract back into the retractor. If
it is locked, the ALR will make a
clicking noise while the webbing is
pulled back into the retractor. For
additional information on ALR, refer
to the “Automatic Locking Mode” de-
scription under “Occupant Re-
straints.” The cinching latch plate is
designed to hold the lap portion of the
seatbelt tight when webbing is pulled
tight and straight through a child re-
straint’s belt path.
Installing A Child Restraint With
A Switchable Automatic Locking
Retractor (ALR)
1. Place the child seat in the center of
the seating position. For some second
row seats, you may need to recline the
seat and/or raise the head restraint to
get a better fit. If the rear seat can be
moved forward and rearward in the
vehicle, you may wish to move it to its
rear-most position to make room for
the child seat. You may also move the
front seat forward to allow more room
for the car seat.2. Pull enough of the seat belt web-
bing from the retractor to pass it
through the belt path of the child re-
straint. Do not twist the belt webbing
in the belt path.
3. Slide the latch plate into the
buckle until you hear a “click.”
4. Pull on the webbing to make the
lap portion tight against the child
seat.
5. To lock the seat belt, pull down on
the shoulder part of the belt until you
have pulled all the seat belt webbing
out of the retractor. Then, allow the
webbing to retract back into the re-
tractor. As the webbing retracts, you
will hear a clicking sound. This means
the seat belt is now in the Automatic
Locking mode.
6. Try to pull the webbing out of the
retractor. If it is locked, you should
not be able to pull out any webbing. If
the retractor is not locked, repeat step
5.
65
Page 72 of 364

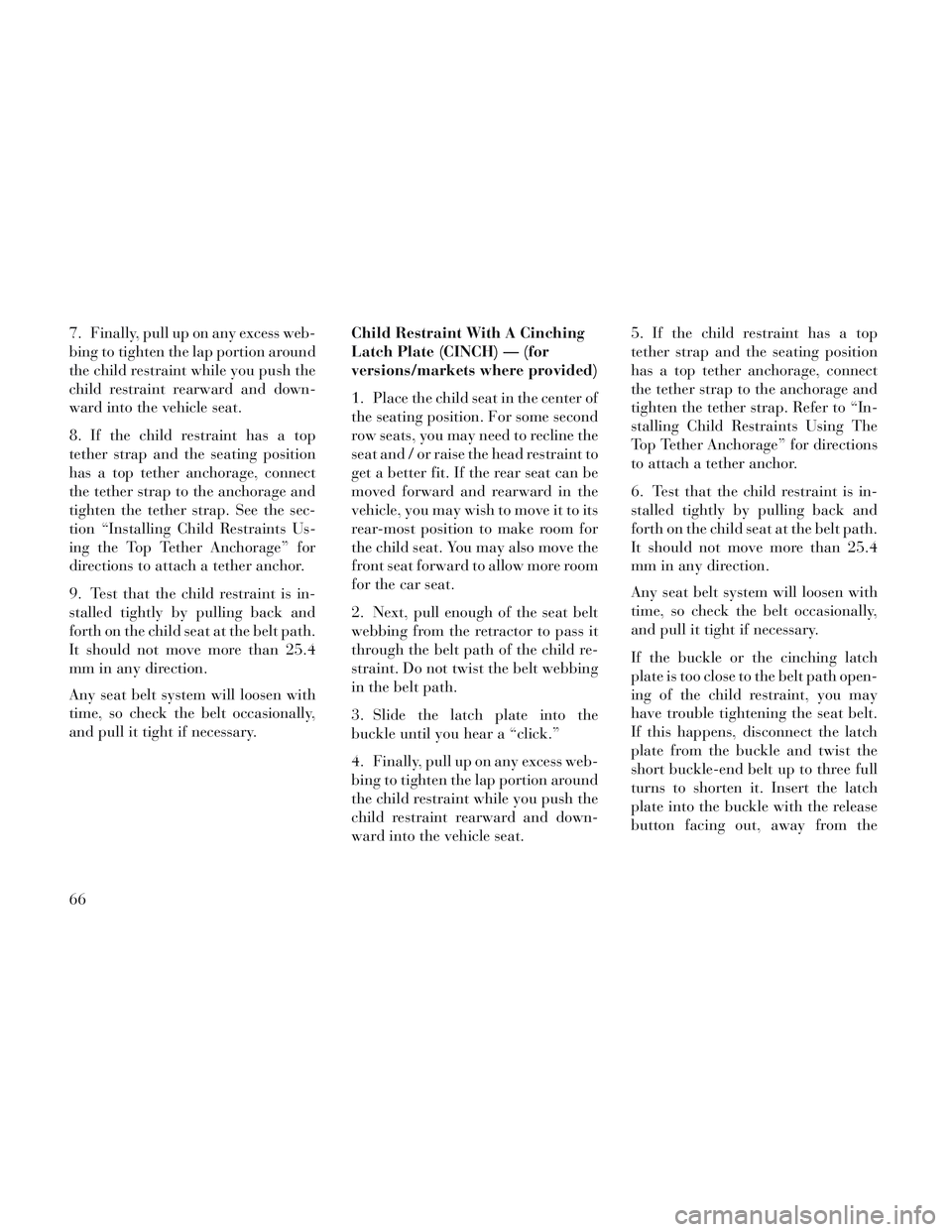

7. Finally, pull up on any excess web-
bing to tighten the lap portion around
the child restraint while you push the
child restraint rearward and down-
ward into the vehicle seat.
8. If the child restraint has a top
tether strap and the seating position
has a top tether anchorage, connect
the tether strap to the anchorage and
tighten the tether strap. See the sec-
tion “Installing Child Restraints Us-
ing the Top Tether Anchorage” for
directions to attach a tether anchor.
9. Test that the child restraint is in-
stalled tightly by pulling back and
forth on the child seat at the belt path.
It should not move more than 25.4
mm in any direction.
Any seat belt system will loosen with
time, so check the belt occasionally,
and pull it tight if necessary.Child Restraint With A Cinching
Latch Plate (CINCH) — (for
versions/markets where provided)
1. Place the child seat in the center of
the seating position. For some second
row seats, you may need to recline the
seat and / or raise the head restraint to
get a better fit. If the rear seat can be
moved forward and rearward in the
vehicle, you may wish to move it to its
rear-most position to make room for
the child seat. You may also move the
front seat forward to allow more room
for the car seat.
2. Next, pull enough of the seat belt
webbing from the retractor to pass it
through the belt path of the child re-
straint. Do not twist the belt webbing
in the belt path.
3. Slide the latch plate into the
buckle until you hear a “click.”
4. Finally, pull up on any excess web-
bing to tighten the lap portion around
the child restraint while you push the
child restraint rearward and down-
ward into the vehicle seat.5. If the child restraint has a top
tether strap and the seating position
has a top tether anchorage, connect
the tether strap to the anchorage and
tighten the tether strap. Refer to “In-
stalling Child Restraints Using The
Top Tether Anchorage” for directions
to attach a tether anchor.
6. Test that the child restraint is in-
stalled tightly by pulling back and
forth on the child seat at the belt path.
It should not move more than 25.4
mm in any direction.
Any seat belt system will loosen with
time, so check the belt occasionally,
and pull it tight if necessary.
If the buckle or the cinching latch
plate is too close to the belt path open-
ing of the child restraint, you may
have trouble tightening the seat belt.
If this happens, disconnect the latch
plate from the buckle and twist the
short buckle-end belt up to three full
turns to shorten it. Insert the latch
plate into the buckle with the release
button facing out, away from the
66
Page 73 of 364

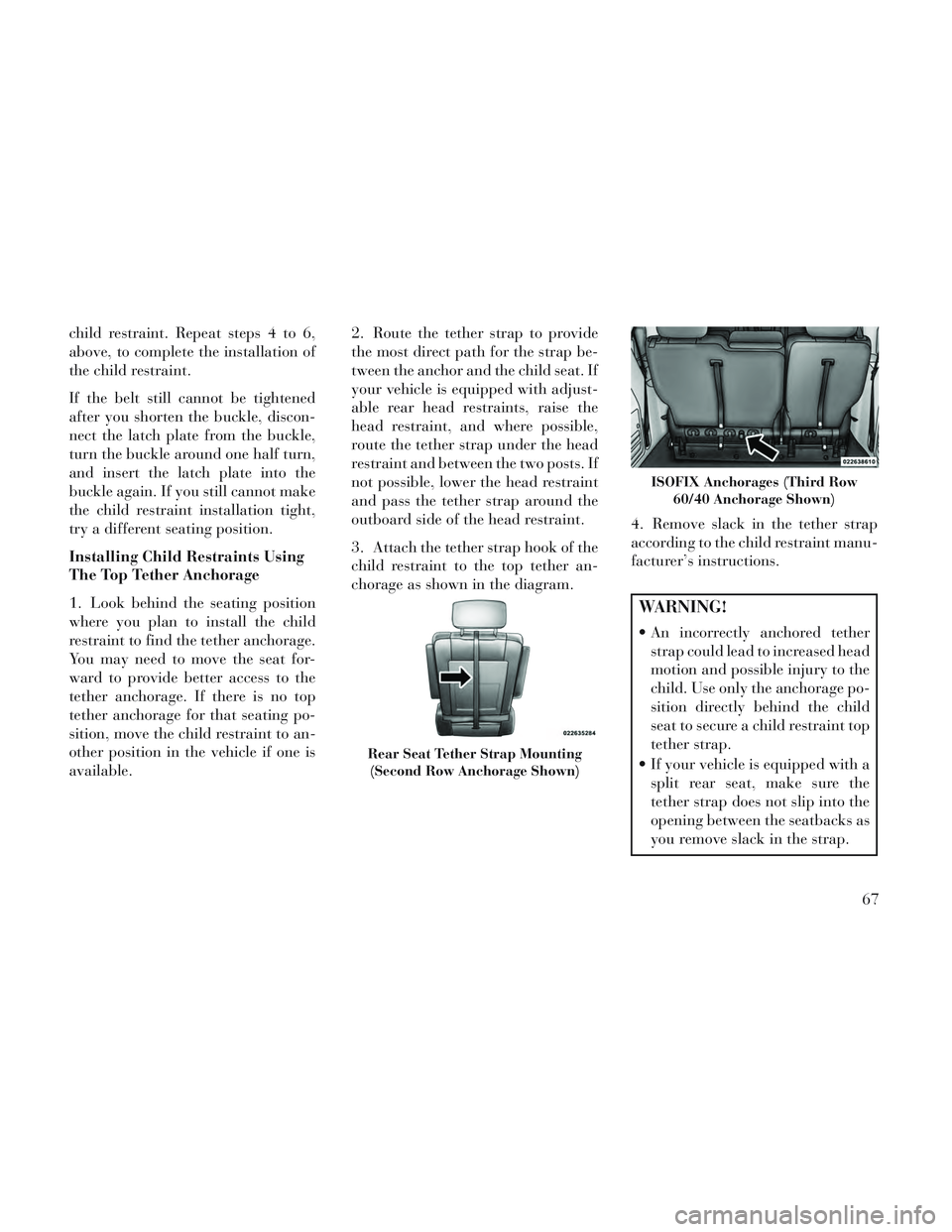

child restraint. Repeat steps 4 to 6,
above, to complete the installation of
the child restraint.
If the belt still cannot be tightened
after you shorten the buckle, discon-
nect the latch plate from the buckle,
turn the buckle around one half turn,
and insert the latch plate into the
buckle again. If you still cannot make
the child restraint installation tight,
try a different seating position.
Installing Child Restraints Using
The Top Tether Anchorage
1. Look behind the seating position
where you plan to install the child
restraint to find the tether anchorage.
You may need to move the seat for-
ward to provide better access to the
tether anchorage. If there is no top
tether anchorage for that seating po-
sition, move the child restraint to an-
other position in the vehicle if one is
available.2. Route the tether strap to provide
the most direct path for the strap be-
tween the anchor and the child seat. If
your vehicle is equipped with adjust-
able rear head restraints, raise the
head restraint, and where possible,
route the tether strap under the head
restraint and between the two posts. If
not possible, lower the head restraint
and pass the tether strap around the
outboard side of the head restraint.
3. Attach the tether strap hook of the
child restraint to the top tether an-
chorage as shown in the diagram.
4. Remove slack in the tether strap
according to the child restraint manu-
facturer’s instructions.
WARNING!
An incorrectly anchored tether
strap could lead to increased head
motion and possible injury to the
child. Use only the anchorage po-
sition directly behind the child
seat to secure a child restraint top
tether strap.
If your vehicle is equipped with a split rear seat, make sure the
tether strap does not slip into the
opening between the seatbacks as
you remove slack in the strap.
Rear Seat Tether Strap Mounting
(Second Row Anchorage Shown)
ISOFIX Anchorages (Third Row 60/40 Anchorage Shown)
67
Page 74 of 364
Transporting Pets
Air Bags deploying in the front seat
could harm your pet. An unrestrained
pet could be thrown about and possi-
bly injured, or injure a passenger dur-
ing panic braking or in a collision.
Pets should be restrained in the rear
seat in pet harnesses or pet carriers
that are secured by seat belts.
ENGINE BREAK-IN
RECOMMENDATIONS
A long break-in period is not required
for the engine and drivetrain (trans-
mission and axle) in your vehicle.
Drive moderately during the first
500 km. After the initial 100 km,
speeds up to 80 or 90 km/h are desir-
able.
While cruising, brief full-throttle ac-
celeration within the limits of local
traffic laws contributes to a good
break-in. Wide-open throttle accel-
eration in low gear can be detrimental
and should be avoided.The engine oil installed in the engine
at the factory is a high-quality energy
conserving type lubricant. Oil
changes should be consistent with an-
ticipated climate conditions under
which vehicle operations will occur.
For the recommended viscosity and
quality grades, refer to “Maintenance
Procedures” in “Maintaining Your Ve-
hicle”. NON-DETERGENT OR
STRAIGHT MINERAL OILS MUST
NEVER BE USED.
A new engine may consume some oil
during its first few thousand kilome-
ters of operation. This should be con-
sidered a normal part of the break-in
and not interpreted as an indication of
difficulty.
ADDITIONAL
REQUIREMENTS FOR
DIESEL ENGINE
During the first 1500 km avoid heavy
loads, e.g. driving at full throttle. Do
not exceed 2/3 of the maximum per-
missible engine speed for each gear.
Change gear in good time. Do not shift
down a gear manually in order to
brake.
SAFETY TIPS
TRANSPORTING
PASSENGERS
NEVER TRANSPORT PASSEN-
GERS IN THE CARGO AREA.
WARNING!
Do not leave children or animals
inside parked vehicles in hot
weather. Interior heat build-up
may cause serious injury or
death.
It is extremely dangerous to ride in a cargo area, inside or outside
of a vehicle. In a collision, people
riding in these areas are more
likely to be seriously injured or
killed.
Do not allow people to ride in any area of your vehicle that is not
equipped with seats and seat
belts.
Be sure everyone in your vehicle is in a seat and using a seat belt
properly.
68
Page 75 of 364
EXHAUST GAS
WARNING!
Exhaust gases can injure or kill.
They contain carbon monoxide
(CO), which is colorless and odor-
less. Breathing it can make you un-
conscious and can eventually poi-
son you. To avoid breathing (CO),
follow these safety tips:
Do not run the engine in a closedgarage or in confined areas any
longer than needed to move your
vehicle in or out of the area.
If you are required to drive with the trunk/liftgate/rear doors
open, make sure that all windows
are closed and the climate control
BLOWER switch is set at high
speed. DO NOT use the recircula-
tion mode.
If it is necessary to sit in a parked vehicle with the engine running,
adjust your heating or cooling
controls to force outside air into
the vehicle. Set the blower at high
speed. The best protection against carbon
monoxide entry into the vehicle body
is a properly maintained engine ex-
haust system.
Whenever a change is noticed in the
sound of the exhaust system, when
exhaust fumes can be detected inside
the vehicle, or when the underside or
rear of the vehicle is damaged, have a
competent mechanic inspect the com-
plete exhaust system and adjacent
body areas for broken, damaged, de-
teriorated, or mispositioned parts.
Open seams or loose connections
could permit exhaust fumes to seep
into the passenger compartment. In
addition, inspect the exhaust system
each time the vehicle is raised for lu-
brication or oil change. Replace as
required.
SAFETY CHECKS YOU
SHOULD MAKE INSIDE
THE VEHICLE
Seat Belts
Inspect the belt system periodically,
checking for cuts, frays, and loose parts. Damaged parts must be re-
placed immediately. Do not disas-
semble or modify the system.
Front seat belt assemblies must be
replaced after a collision. Rear seat
belt assemblies must be replaced after
a collision if they have been damaged
(i.e., bent retractor, torn webbing,
etc.). If there is any question regard-
ing belt or retractor condition, replace
the belt.
Air Bag Warning Light
The light should come on
and remain on for four to
eight seconds as a bulb
check when the ignition
switch is first turned ON. If the light is
not lit during starting, see your autho-
rized dealer. If the light stays on,
flickers, or comes on while driving,
have the system checked by an autho-
rized dealer.
Defroster
Check operation by selecting the de-
frost mode and place the blower con-
trol on high speed. You should be able
69

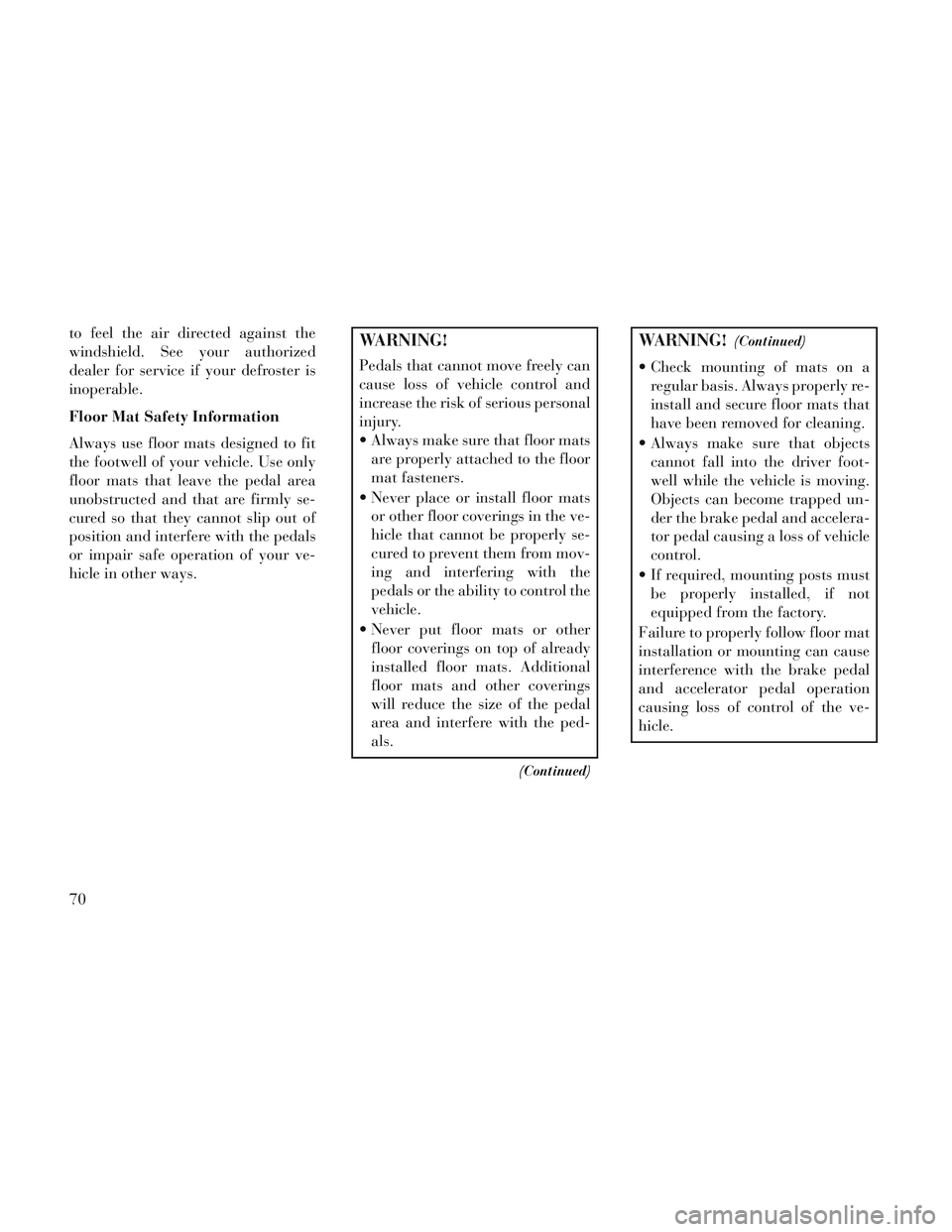

Page 76 of 364
to feel the air directed against the
windshield. See your authorized
dealer for service if your defroster is
inoperable.
Floor Mat Safety Information
Always use floor mats designed to fit
the footwell of your vehicle. Use only
floor mats that leave the pedal area
unobstructed and that are firmly se-
cured so that they cannot slip out of
position and interfere with the pedals
or impair safe operation of your ve-
hicle in other ways.WARNING!
Pedals that cannot move freely can
cause loss of vehicle control and
increase the risk of serious personal
injury.
Always make sure that floor matsare properly attached to the floor
mat fasteners.
Never place or install floor mats or other floor coverings in the ve-
hicle that cannot be properly se-
cured to prevent them from mov-
ing and interfering with the
pedals or the ability to control the
vehicle.
Never put floor mats or other floor coverings on top of already
installed floor mats. Additional
floor mats and other coverings
will reduce the size of the pedal
area and interfere with the ped-
als.
(Continued)
WARNING!(Continued)
Check mounting of mats on aregular basis. Always properly re-
install and secure floor mats that
have been removed for cleaning.
Always make sure that objects cannot fall into the driver foot-
well while the vehicle is moving.
Objects can become trapped un-
der the brake pedal and accelera-
tor pedal causing a loss of vehicle
control.
If required, mounting posts must be properly installed, if not
equipped from the factory.
Failure to properly follow floor mat
installation or mounting can cause
interference with the brake pedal
and accelerator pedal operation
causing loss of control of the ve-
hicle.
70
Page 77 of 364
PERIODIC SAFETY
CHECKS YOU SHOULD
MAKE OUTSIDE THE
VEHICLE
Tires
Examine tires for excessive tread wear
and uneven wear patterns. Check for
stones, nails, glass, or other objects
lodged in the tread or sidewall. In-
spect the tread for cuts and cracks.
Inspect sidewalls for cuts, cracks and
bulges. Check the wheel nuts for
tightness. Check the tires (including
spare) for proper cold inflation pres-
sure.
Lights
Have someone observe the operation
of brake lights and exterior lights
while you work the controls. Check
turn signal and high beam indicator
lights on the instrument panel.Door Latches
Check for positive closing, latching,
and locking.
Fluid Leaks
Check area under vehicle after over-
night parking for fuel, engine coolant,
oil, or other fluid leaks. Also, if gaso-
line fumes are detected or if fuel,
power steering fluid (if equipped), or
brake fluid leaks are suspected, the
cause should be located and corrected
immediately.
71
Page 78 of 364
72
Page 79 of 364

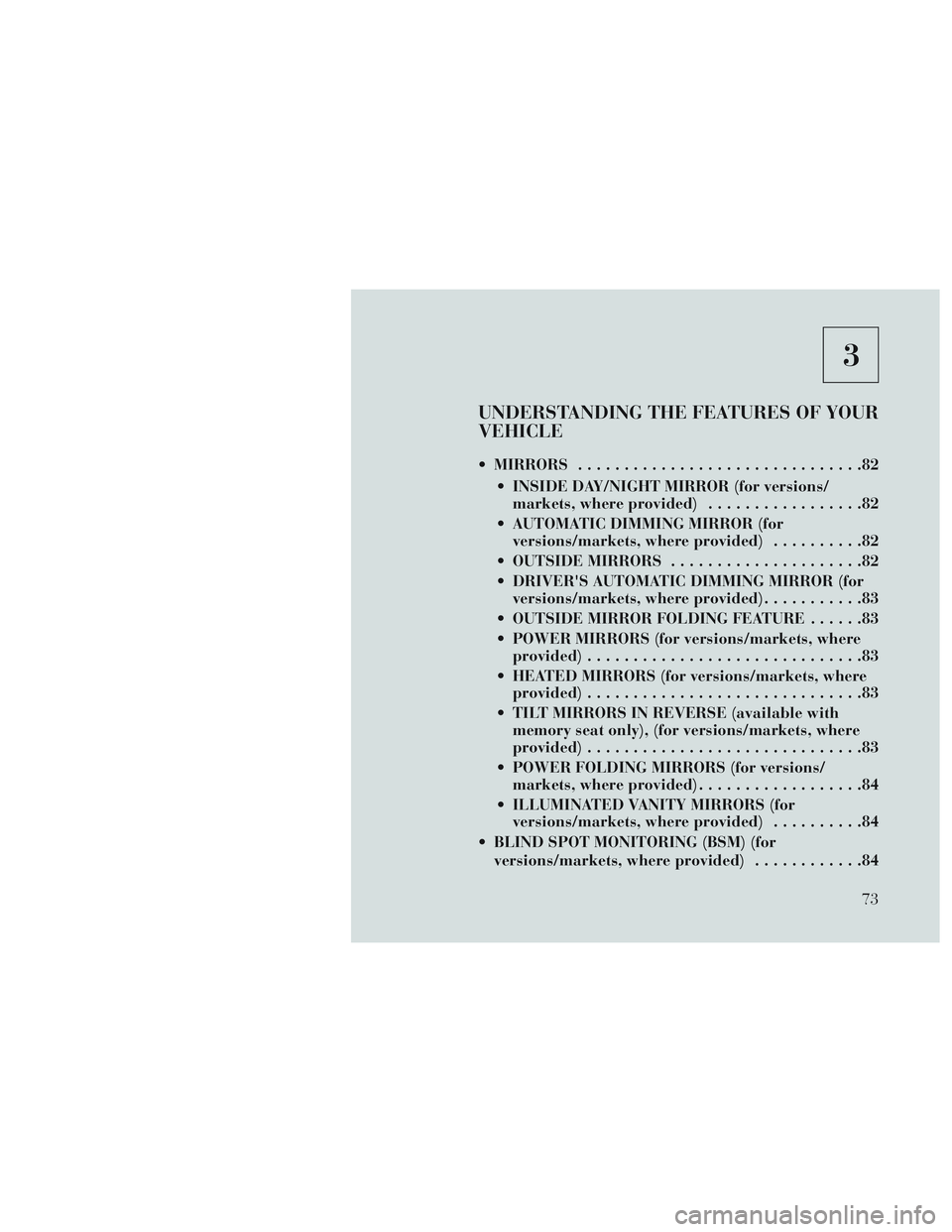

3
UNDERSTANDING THE FEATURES OF YOUR
VEHICLE
MIRRORS...............................82
INSIDE DAY/NIGHT MIRROR (for versions/ markets, where provided) .................82
AUTOMATIC DIMMING MIRROR (for versions/markets, where provided) ..........82
OUTSIDE MIRRORS .....................82
DRIVER'S AUTOMATIC DIMMING MIRROR (for versions/markets, where provided) ...........83
OUTSIDE MIRROR FOLDING FEATURE ......83
POWER MIRRORS (for versions/markets, where provided) ..............................83
HEATED MIRRORS (for versions/markets, where provided) ..............................83
TILT MIRRORS IN REVERSE (available with memory seat only), (for versions/markets, where
provided) ..............................83
POWER FOLDING MIRRORS (for versions/ markets, where provided) ..................84
ILLUMINATED VANITY MIRRORS (for versions/markets, where provided) ..........84
BLIND SPOT MONITORING (BSM) (for versions/markets, where provided) ............84
73
Page 80 of 364
REAR CROSS PATH (for versions/markets, whereprovided) ..............................87
MODES OF OPERATION ..................88
Uconnect® PHONE ........................89
COMPATIBLE PHONES ...................90
OPERATION ............................90
PHONE CALL FEATURES ...................95
ANSWER OR REJECT AN INCOMING CALL — NO CALL CURRENTLY IN PROGRESS ...........95
ANSWER OR REJECT AN INCOMING CALL — CALL CURRENTLY IN PROGRESS ...........95
MAKING A SECOND CALL WHILE CURRENT CALL IN PROGRESS .....................95
PLACE/RETRIEVE A CALL FROM HOLD .....95
CONFERENCE CALL .....................95
THREE-WAY CALLING ...................95
CALL TERMINATION .....................96
REDIAL ...............................96
CALL CONTINUATION ....................96
Uconnect® PHONE FEATURES ...............96
LANGUAGE SELECTION ..................96
EMERGENCY ASSISTANCE ................97
BREAKDOWN SERVICE (for versions/markets, where provided) .........................97
PAGING ...............................97
VOICE MAIL CALLING ...................97
WORKING WITH AUTOMATED SYSTEMS ....97
BARGE IN — OVERRIDING PROMPTS .......98
74
