FRONT AXLE
54-8 REPAIRS
6.Using a suitable lever, remove pinion oil seal.
Take care to avoid damage to oil seal
recess.
Refit
1.Clean pinion oil seal recess and pinion flange.
2.Lubricate pinion oil seal lip with clean
differential oil.

+ CAPACITIES, FLUIDS AND
LUBRICANTS, Lubrication.
3.Using LRT-51-010 , fit pinion oil seal. 4.Fit pinion flange and securing bolt and washer.
Using LRT- 51-003, restrain pinion flange and
tighten pinion flange bolt to 100 Nm (74 lbf.ft).
5.Position propeller shaft and align reference
marks. Fit nuts and bolts and tighten to 47 Nm
(35 lbf.ft).
6.Remove stand(s) and lower vehicle.
7.Check differential oil level.
+ MAINTENANCE, PROCEDURES,
Front and rear axle.

FRONT AXLE
REPAIRS 54-9
Seal - oil - front axle casing
$% 54.15.04
Remove
1.Raise front of vehicle.
WARNING: Do not work on or under a
vehicle supported only by a jack. Always
support the vehicle on safety stands.
2.Remove road wheel.
3.Remove front brake disc.

+ BRAKES, REPAIRS, Brake disc -
front.
4.Disconnect ABS sensor multiplug.5.Release harness from brake hose and hose
bracket.
6.Remove 4 bolts securing wheel hub to steering
knuckle.
7.Release wheel hub from steering knuckle.
8.Remove wheel hub and drive shaft from axle.

FRONT AXLE
54-10 REPAIRS
9.Remove oil seal from axle casing.
Refit
1.Clean drive shaft oil seal recess, oil seal
running surface, wheel hub and swivel hub
mating faces.
2.Lubricate oil seal lip and running surface with
clean differential oil.

+ CAPACITIES, FLUIDS AND
LUBRICANTS, Lubrication.
3.Using tool LRT-54-012 and tool LRT-99-003,
fit new drive shaft oil seal to axle casing. 4.Apply anti-seize compound to wheel hub and
steering knuckle mating faces.
5.Ensure ABS harness is located in cut out in
steering knuckle.
6.Fit drive shaft and wheel hub to axle casing and
align wheel hub with steering knuckle. Fit wheel
hub bolts and tighten to 100 Nm (74 lbf.ft).
7.Connect ABS sensor multiplug and secure
harness to harness bracket and brake hose.
8.Fit front brake disc.

+ BRAKES, REPAIRS, Brake disc -
front.
9.Fit road wheel and tighten nuts to 140 Nm (103
lbf.ft).
10.Remove stand(s) and lower vehicle.
11.Check differential oil level.

+ MAINTENANCE, PROCEDURES,
Front and rear axle.

FRONT AXLE
REPAIRS 54-11
Constant velocity joint - drive shaft
$% 54.20.21
Remove
1.Remove wheel hub.

+ FRONT SUSPENSION, REPAIRS,
Wheel hub.
2.Place drive shaft in vice.

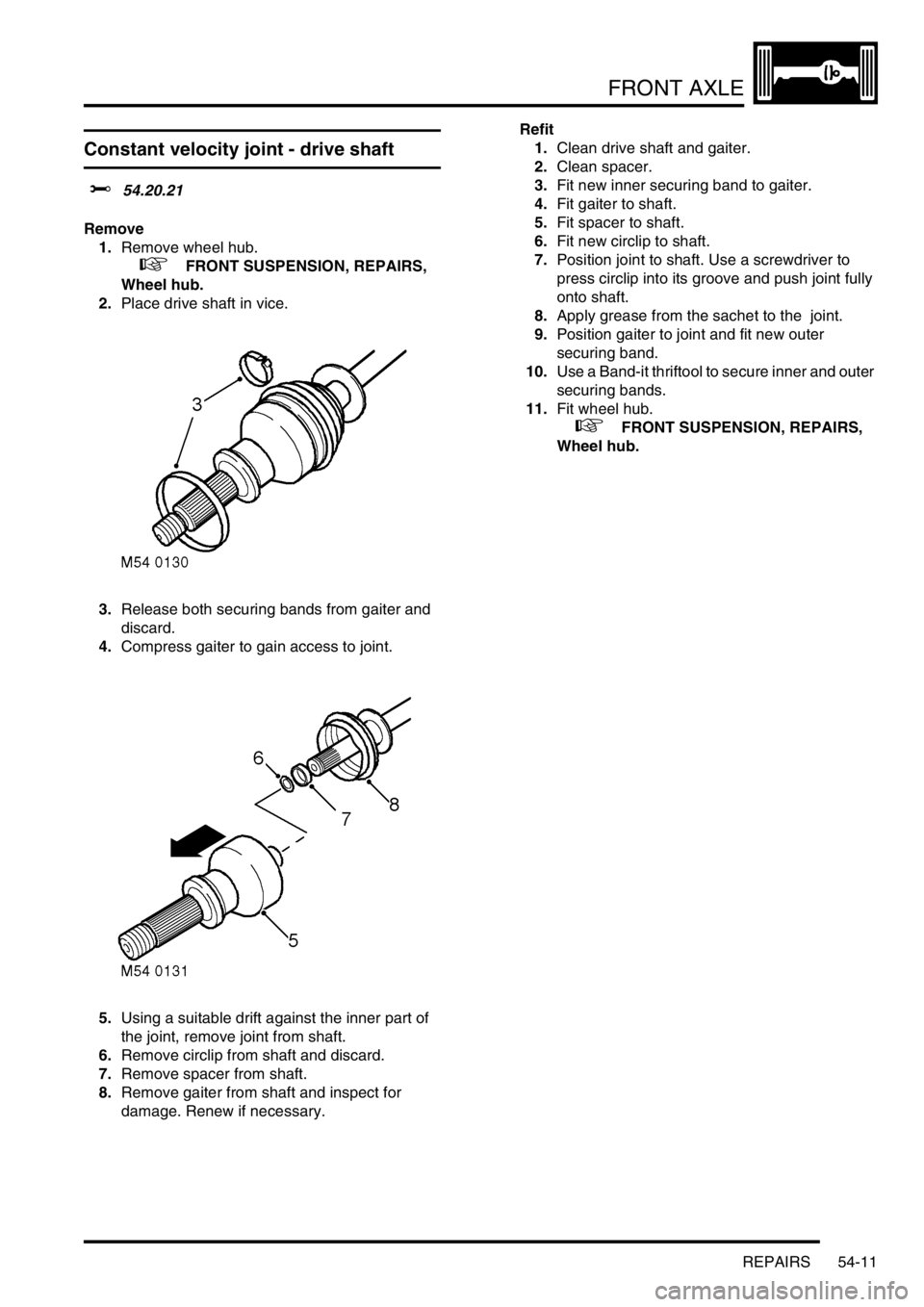

3.Release both securing bands from gaiter and
discard.
4.Compress gaiter to gain access to joint.
5.Using a suitable drift against the inner part of
the joint, remove joint from shaft.
6.Remove circlip from shaft and discard.
7.Remove spacer from shaft.
8.Remove gaiter from shaft and inspect for
damage. Renew if necessary. Refit
1.Clean drive shaft and gaiter.
2.Clean spacer.
3.Fit new inner securing band to gaiter.
4.Fit gaiter to shaft.
5.Fit spacer to shaft.
6.Fit new circlip to shaft.
7.Position joint to shaft. Use a screwdriver to
press circlip into its groove and push joint fully
onto shaft.
8.Apply grease from the sachet to the joint.
9.Position gaiter to joint and fit new outer
securing band.
10.Use a Band-it thriftool to secure inner and outer
securing bands.
11.Fit wheel hub.

+ FRONT SUSPENSION, REPAIRS,
Wheel hub.

FRONT AXLE
54-12 REPAIRS

DISCOVERY SERIES II
WORKSHOP MANUAL - 1999MY ON
Publication Part No. VDR 100090 ENG (6)
© Land Rover 2002
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form,
electronic, mechanical, recording or other means without prior written permission from Land Rover.

STEERING
DESCRIPTION AND OPERATION 57-1
STEERING DESCRIPTION AND OPERAT ION

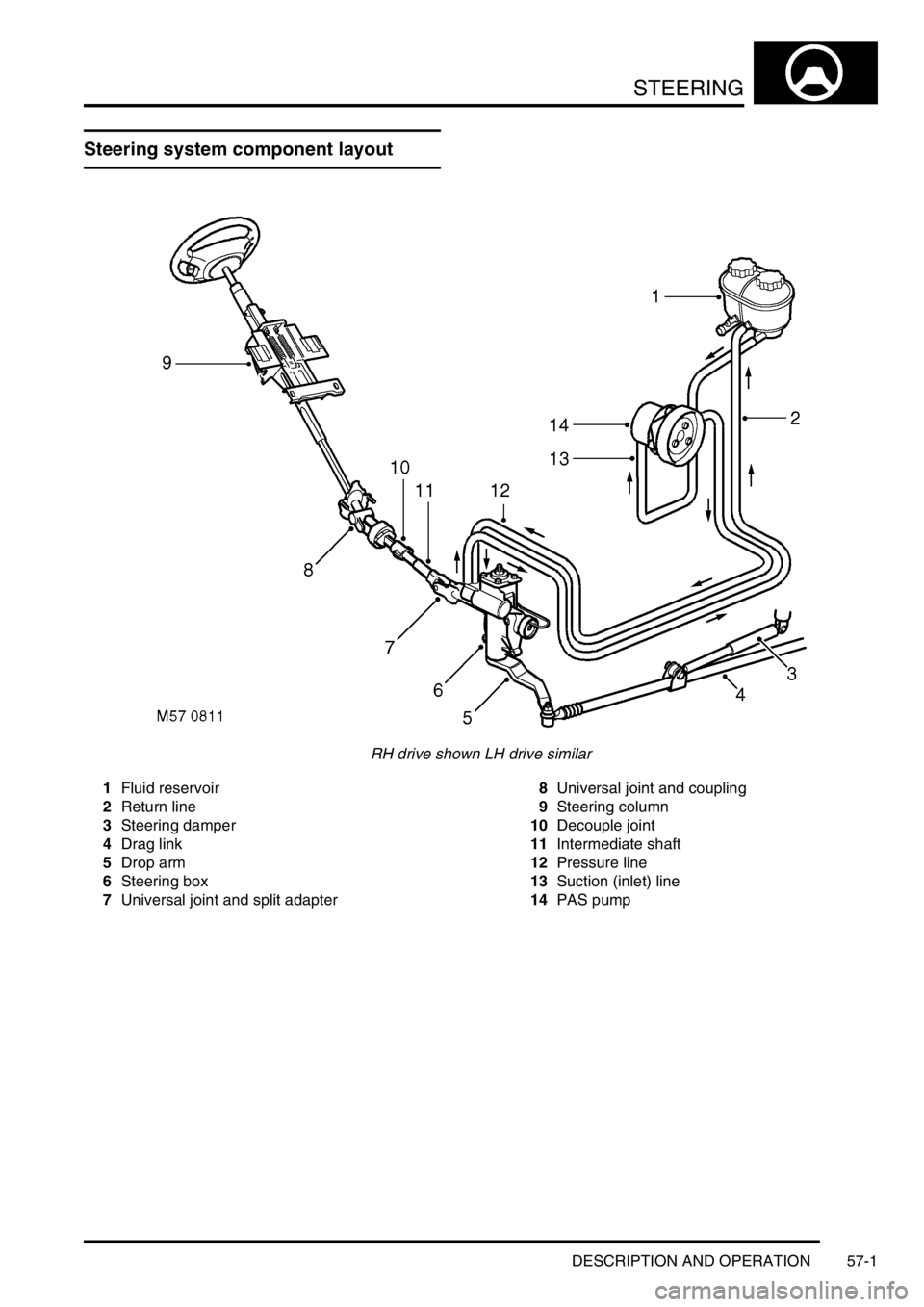

Steering system component layout
RH drive shown LH drive similar
1Fluid reservoir
2Return line
3Steering damper
4Drag link
5Drop arm
6Steering box
7Universal joint and split adapter8Universal joint and coupling
9Steering column
10Decouple joint
11Intermediate shaft
12Pressure line
13Suction (inlet) line
14PAS pump

STEERING
57-2 DESCRIPTION AND OPERATION

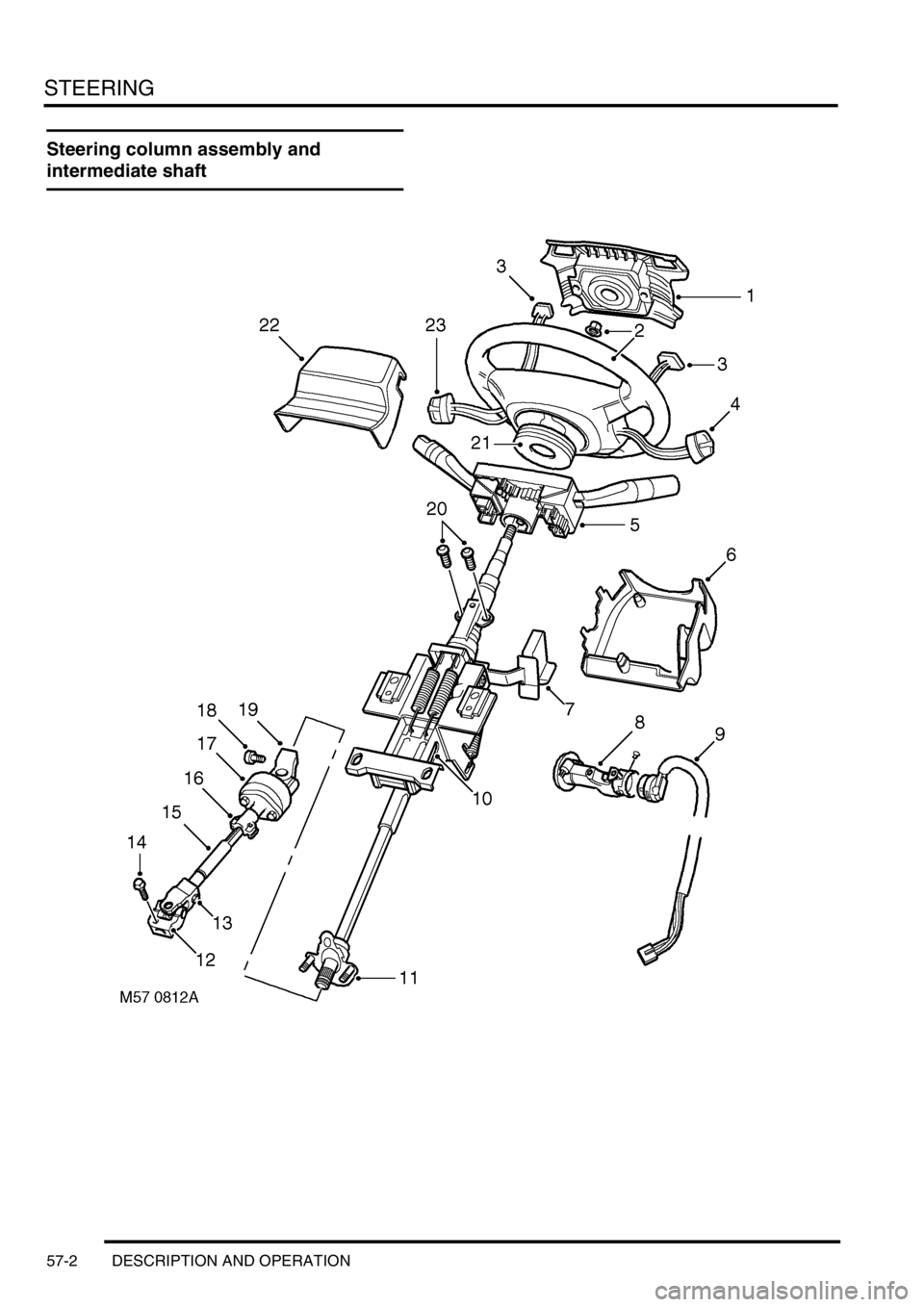

Steering column assembly and
intermediate shaft

STEERING
DESCRIPTION AND OPERATION 57-3
1Air bag module
2Steering wheel and nut
3Horn switch 2 off
4Radio remote control switch (if fitted)
5Column switches
6Lower nacelle
7Column tilt adjustment lever
8Steering column lock
9Ignition switch and harness
10Upper column assembly
11Lower column
12Universal joint 13Bolt
14Bolt
15Intermediate shaft assembly
16Decouple joint
17Rubber coupling and heat shield
18Bolt
19Universal joint
20Shear bolt 2 off
21Rotary coupler
22Upper nacelle
23Cruise control switch (if fitted)
