GENERAL DATA
04-28
Front Suspension
Type Independent, MacPherson struts with coil springs, lower "L" shaped
arms and anti-roll bar
Nominal height to wheel arch from hub centre* 453 mm (17.83 in)
Road spring identification (colour code):
Td4 with manual gearbox
⇒ Colour code YELLOW / BLUE
⇒ Total coils 6
⇒ Active coils 5
⇒ Wire diameter 14.87 mm (0.585 in)
⇒ Free length 367 mm (14.45 in)
Td4 with automatic gearbox, non air conditioning
⇒ Colour code YELLOW / WHITE
⇒ Total coils 6
⇒ Active coils 5
⇒ Wire diameter 14.87 mm (0.585 in)
⇒ Free length 367 mm (14.445 in)
Td4 with automatic gearbox and air conditioning
⇒ Colour code YELLOW / BROWN
⇒ Total coils 6
⇒ Active coils 5
⇒ Wire diameter 14.866 mm (0.5853 in)
⇒ Free length 375 mm (14.76 in)
K1.8 without air conditioning
⇒ Colour code YELLOW / PINK
⇒ Total coils 5.5
⇒ Active coils 4.5
⇒ Wire diameter 14.03 mm (0.552 in)
⇒ Free length 359 mm (14.13 in)
K1.8 with air conditioning
⇒ Colour code YELLOW / GREY
⇒ Total coils 5.5
⇒ Active coils 4.5
⇒ Wire diameter 14.03 mm (0.552 in)
⇒ Free length 359 mm (14.13 in)
KV6 without air conditioning
⇒ Colour code YELLOW / BLUE
⇒ Total coils 6
⇒ Active coils 5
⇒ Wire diameter 14.87 mm (0.585 in)
⇒ Free length 367 mm (14.45 in)
KV6 with air conditioning
⇒ Colour code YELLOW / WHITE
⇒ Total coils 6
⇒ Active coils 5
⇒ Wire diameter 14.87 mm (0.585 in)
⇒ Free length 371 mm (14.61 in)
Page 92 of 1007

GENERAL DATA
04-29
From 04MY: Models with Sports Suspension .
⇒ Colour code GREY / ORANGE
⇒ Total coils 5.5
⇒ Active coils 5.5
⇒ Wire diameter 15.5
⇒ Free length 308.5
Anti-roll bar diameter 20.5 mm (0.81 in)
* At unladen weight
Page 93 of 1007

GENERAL DATA
04-30
Rear Suspension
* At unladen weight
Type Independent, MacPherson struts with coil springs and lower
"trapezoidal links"
All models, except those with Sports
Suspension:Nominal height to wheel arch from hub
centre*463 mm (18.228 in) ± 10 mm (0.39)
Models with Sports Suspension only:Nominal height
to wheel arch from hub centre*433 mm (17.047 in)
Road spring identification:
All models except Sports Suspension
⇒ Colour code WHITE / GREEN
Total coils 6.42
Active coils 4.7
Wire diameter 13.825 mm (0.5443 in)
Free length 349.86 (13.774 in)
Models with Sports Suspension, (fitted from 04MY)
⇒ Colour code ORANGE / ORANGE
⇒ Total coils 6.8
⇒ Active coils 5.6
⇒ Wire diameter 13.97
⇒ Free length 311
Page 94 of 1007

GENERAL DATA
04-31
Brakes
Front disc brakes
Type Pin-slider caliper with ventilated disc, self-adjusting
Disc diameter 262 mm (10.31 in)
Disc thickness:
⇒ New
⇒ Service limit20.8 - 21.00 mm (0.818 - 0.826 in)
18.00 mm (0.708 in)
Disc run-out (maximum) 0.040 mm (0.0016 in), with wheel on
Pad minimum thickness 3.00 mm (0.118 in)
Rear drum brakes
Drum inside diameter 254 mm (10.00 in)
Drum wear limit 255.49 mm (10.059 in), discard drum
Lining minimum thickness 2.00 mm (0.079 in)
Drum ovality limit 0.012 mm (0.0005 in)
Master cylinder
Bore diameter 23.80 mm (0.937 in)
Brake servo
Servo boost ratio 4.5 : 1
Parking brake
Type Mechanically operated via twin cables on rear drum brakes
Anti-lock braking system
Circuit type Diagonal split, dual circuit, 4-sensor ABS
ABS type TEVES MK20 with ABS, Hill Descent Control (HDC), Electronic
Traction Control (ETC) and Electronic Brakeforce Distribution (EBD)
Page 95 of 1007

GENERAL DATA
04-32
Wheels and tyres
Tyre pressures
Wheel type and size:
⇒ Standard 51/2 J x 15" steel
⇒ Option 51/2 J x 15" alloy
⇒ Option 6.0 J x 16" alloy
⇒ Option 6.0 J x 16" alloy
Tyre sizes
5
1/2 J x 15" Wheels 195/80 R15 'Multi terrain' tyre
6 J x 16" Wheels 225/55 R17 'Multi terrain' tyre
7 J x 17" Wheels 225/55 R17 'Multi terrain' tyre
Front and rear – all engine variations
⇒ Normal driving conditions (up to 4 passengers and
luggage)2.1 bar (30 lbf/in
2)
⇒ Maximum Gross Vehicle Weight 2.1 bar (30 lbf/in
2)
⇒ Towing 2.1 bar (30 lbf/in
2)
Page 96 of 1007

GENERAL DATA
04-33
Heating and Ventilation
Air Conditioning
PTC heater - Td4 engine - if fitted
⇒ Make/Type Catem, 900 Watt output, 12 volt supply, located in Hevac unit
FBH - Td4 engine - if fitted
⇒ Make/Type Webasto Thermotop C, self-regulating, 5 kW output
System CFC free, sealed, closed-loop system
Refrigerant HFC - R134a
Refrigerant charge quantity:
All models except LHD KV6
LHD KV6 models540 ± 25 grammes
430 ± 25 grammes
Compressor, up to 04MY (some very early 04MY
vehicles may be fitted with this type of compressor):
⇒ Type Denso - variable displacement, 7-cylinder swash plate unit
⇒ High Pressure Blow-off valve 35.3 bar (3.53 MPa, 512 lbf/in
2)
⇒ Displacement (Min.) 5%
⇒ Displacement (Max.) 95%
Compressor, 04MY onwards
⇒ Type Sanden PXV16 - variable displacement, 7-cylinder swash plate unit
⇒ High Pressure Blow-off valve 35.3 bar (3.53 MPa, 512 lbf/in
2)
⇒ Displacement (Min.) 3%
⇒ Displacement (Max.) 100%
Lubricating oil Nippon Denso ND-8
Evaporator thermostat:
⇒ Opens
⇒ Closes+2 °C (+36 °F)
-4 °C (+25 °F)
Condenser fan control PWM signal from ECM to cooling fan control unit
Refrigerant Pressure Sensor
Low pressure limit:
⇒ A/C on (pressure rising) 2.25 ± 0.2 bar (32.6 ± 2.9 lbf/in
2)
⇒ A/C off (pressure falling) 1.96 ± 0.2 bar (28.4 ± 2.9 lbf/in
2)
High pressure limit:
⇒ A/C off (pressure rising) 31.4 ± 2.0 bar (455.3 ± 29 lbf/in
2)
⇒ A/C on (pressure falling) 25.5 ± 2.0 bar (369.8 ± 29 lbf/in
2)
Page 97 of 1007

GENERAL DATA
04-34
Electrical - Td4 engine
Electrical - K1.8 engine
Electrical - KV6 engine
System 12 volt, negative earth
Battery:
⇒ Type
⇒ CapacityH6, sealed for life
75 amp /hour
⇒ Type
⇒ CapacityH7, sealed for life (cold climates)
80 amp /hour
Alternator:
⇒ Type
⇒ Maximum output
⇒ Maximum output (models with PTC heater)Nippon Denso K-frame
105 amp
150 amp
System 12 volt, negative earth
Battery:
⇒ Type
⇒ CapacityH5, sealed for life
55 amp/hour
Alternator
⇒ Type
⇒ Maximum outputNippon Denso K-frame
105 amp
System 12 volt, negative earth
Battery:
⇒ Type
⇒ CapacityH6, sealed for life
75 amp/hour
Alternator:
⇒ Type
⇒ Maximum outputNippon Denso L-frame
120 amp
Page 98 of 1007

GENERAL DATA
04-35
Dimensions
* At EEC kerb weight
Overall length (inc. 195/80 spare wheel/tyre):
⇒ K1.8 4368 mm (14 ft 4 in)
⇒ KV6 4433 mm (14 ft 7 in)
⇒ Td4 4368 mm (14 ft 4 in)
Overall width (including mirrors 2.068 m (6 ft 9.4 in)
Overall height (including roof bars and cross rails)* 1.708 m (5 ft 7.2 in)
Overall height (including roof bars and cross rails)*
⇒ 3 door 1.808 m (5 ft 11.2 in)
⇒ 5 door 1.828 m (5 ft 11.9 in)
Ground clearance (minimum)*: 186 mm (7.3 in)
Wading depth (maximum) 400 mm (15.7 in)
Wheelbase 2.557 m (8 ft 4.7 in)
Maximum approach angle
*30.5°
Maximum departure angle (with towbar)
*24°
Maximum departure angle (without towbar)
*33.9°
Maximum breakover angle 24°
Track:
⇒ Front
⇒ Rear1534 mm (60.4 in)
1545 mm (60.8 in)
Page 99 of 1007

GENERAL DATA
04-36
Weights
†To increase stability, it is recommended that the nose weight is adjusted to the maximum limit, when loading to the
maximum trailer weight.
*If the vehicle trailer weight exceeds 1800 kg the vehicle payload must be restricted to less than the Gross Vehicle
Weight to ensure the loaded combination is within the Gross Train Weight limit.
**The Gross Towing Weight must be reduced by 300 kg (662 lb) when the following conditions exist:
climbing steep hills and mountains with air temperatures above 30
°C/ 86°F.
altitudes of 1000 metres (3280 feet) and above.
Unladen weight (full fuel tank, excluding options):
⇒ Petrol models 1410 - 1620 kg (3109 -3572 lb)
⇒ Diesel models 1540 - 1635 kg (3395 - 3605 lb)
Maximum gross vehicle weight:
⇒ Td4 engine 2080 kg (4586 lb)
⇒ K1.8 engine 2040 kg (4497 lb)
⇒ KV6 engine 2060 kg (4542 lb)
Maximum front axle load:
⇒ Td4 engine 1100 kg (2425 lb)
⇒ K1.8 engine 1050 kg (2315 lb)
⇒ KV6 engine 1080 kg (2381 lb)
Maximum rear axle load (must NOT be exceeded) 1120 kg (2470 lb)
Maximum trailer weight
*2000 kg (4410 lb)
Maximum Gross Towing Weight (GTW)
**:
⇒ Td4 engine 3880 kg (8554 lb)
⇒ K1.8 engine 3840 kg (8466 lb)
⇒ KV6 engine 3860 kg (8510 lb)
Towing hitch downward load (maximum nose weight)
†140 kg (309 lb)
Maximum roof rack load (includes weight of rack) 75 kg (165 lb)
Page 100 of 1007

IDENTIFICATION NUMBERS
05-1
IDE NTIFICATION NUMBERS

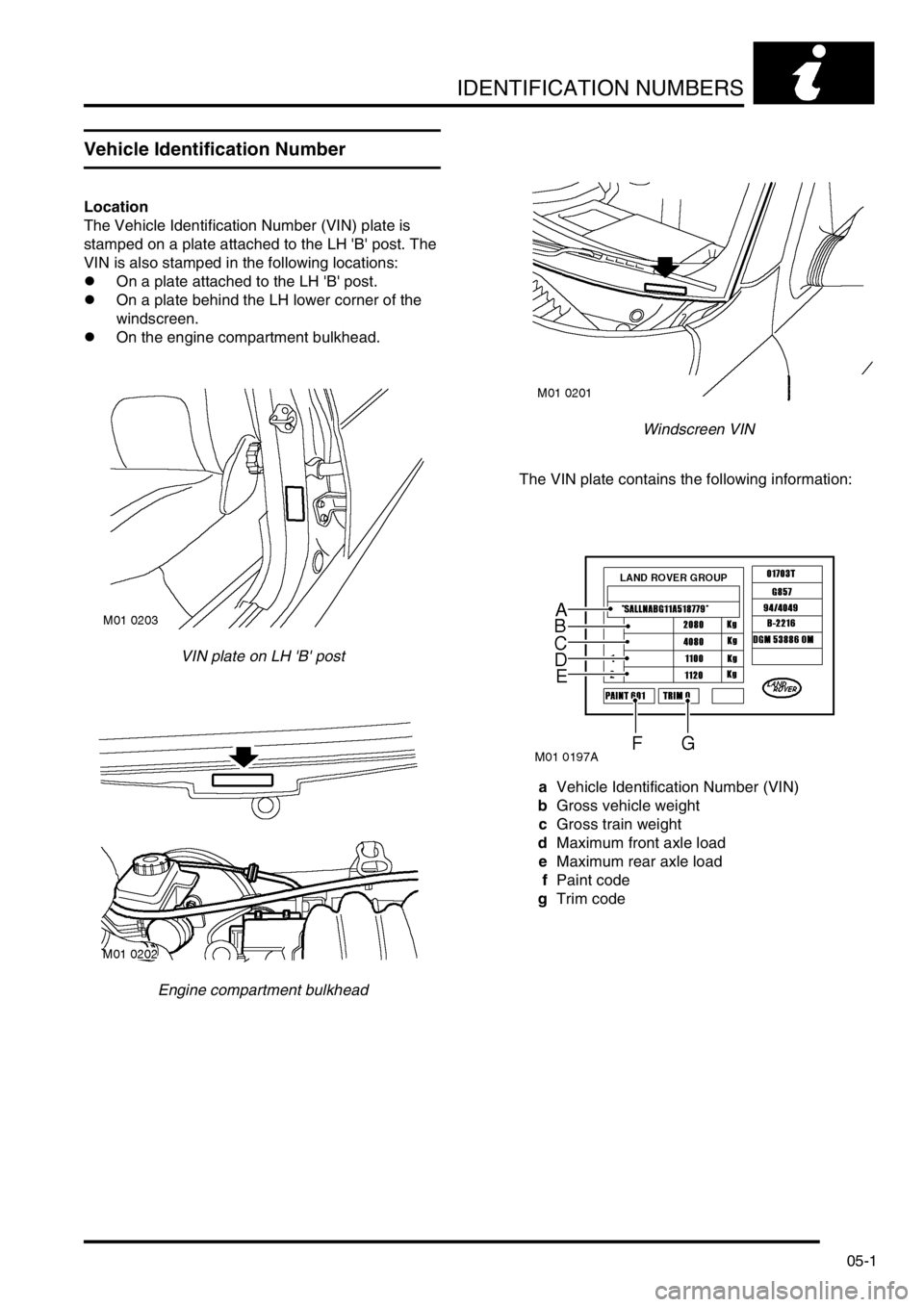

Vehicle Identification Number
Location
The Vehicle Identification Number (VIN) plate is
stamped on a plate attached to the LH 'B' post. The
VIN is also stamped in the following locations:
lOn a plate attached to the LH 'B' post.
lOn a plate behind the LH lower corner of the
windscreen.
lOn the engine compartment bulkhead.
VIN plate on LH 'B' post
Engine compartment bulkheadWindscreen VIN
The VIN plate contains the following information:
aVehicle Identification Number (VIN)
bGross vehicle weight
cGross train weight
dMaximum front axle load
eMaximum rear axle load
fPaint code
gTrim code
