LAND ROVER FREELANDER 2001 Workshop Manual

IDENTIFICATION NUMBERS
05-2
Vehicle identification number -
Example: SALLNABG11A518779
Paint and trim colour codes
Paint code (F): a 3 digit code identifying the original
paint colour is stamped on the VIN plate.
Trim code (G):a code identifying the original trim
type and colour is stamped on the VIN plate.
Identification Number Locations

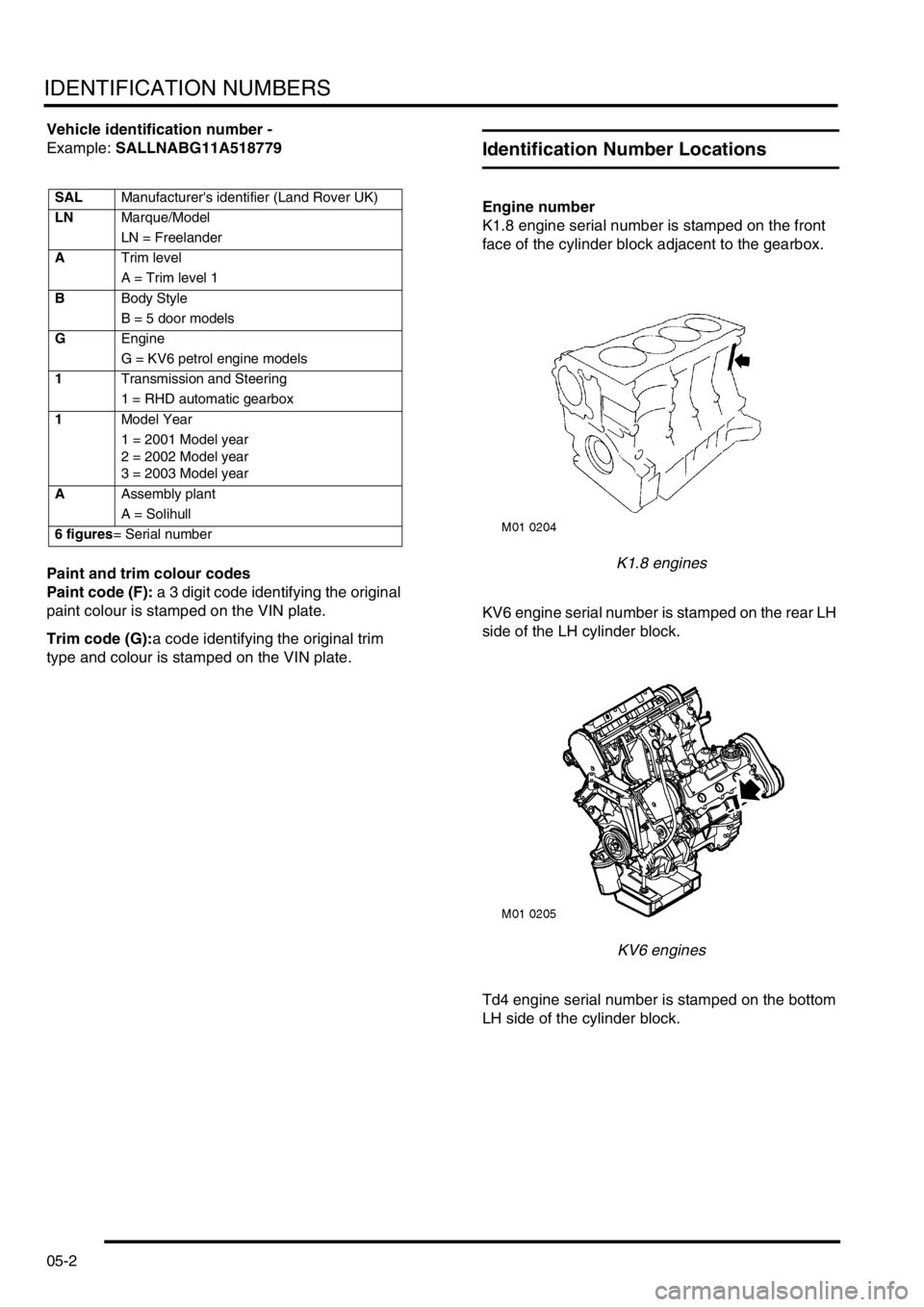

Engine number
K1.8 engine serial number is stamped on the front
face of the cylinder block adjacent to the gearbox.
K1.8 engines
KV6 engine serial number is stamped on the rear LH
side of the LH cylinder block.
KV6 engines
Td4 engine serial number is stamped on the bottom
LH side of the cylinder block.SALManufacturer's identifier (Land Rover UK)
LNMarque/Model
LN = Freelander
ATrim level
A = Trim level 1
BBody Style
B = 5 door models
GEngine
G = KV6 petrol engine models
1Transmission and Steering
1 = RHD automatic gearbox
1Model Year
1 = 2001 Model year
2 = 2002 Model year
3 = 2003 Model year
AAssembly plant
A = Solihull
6 figures= Serial number

IDENTIFICATION NUMBERS
05-3
Td4 engines

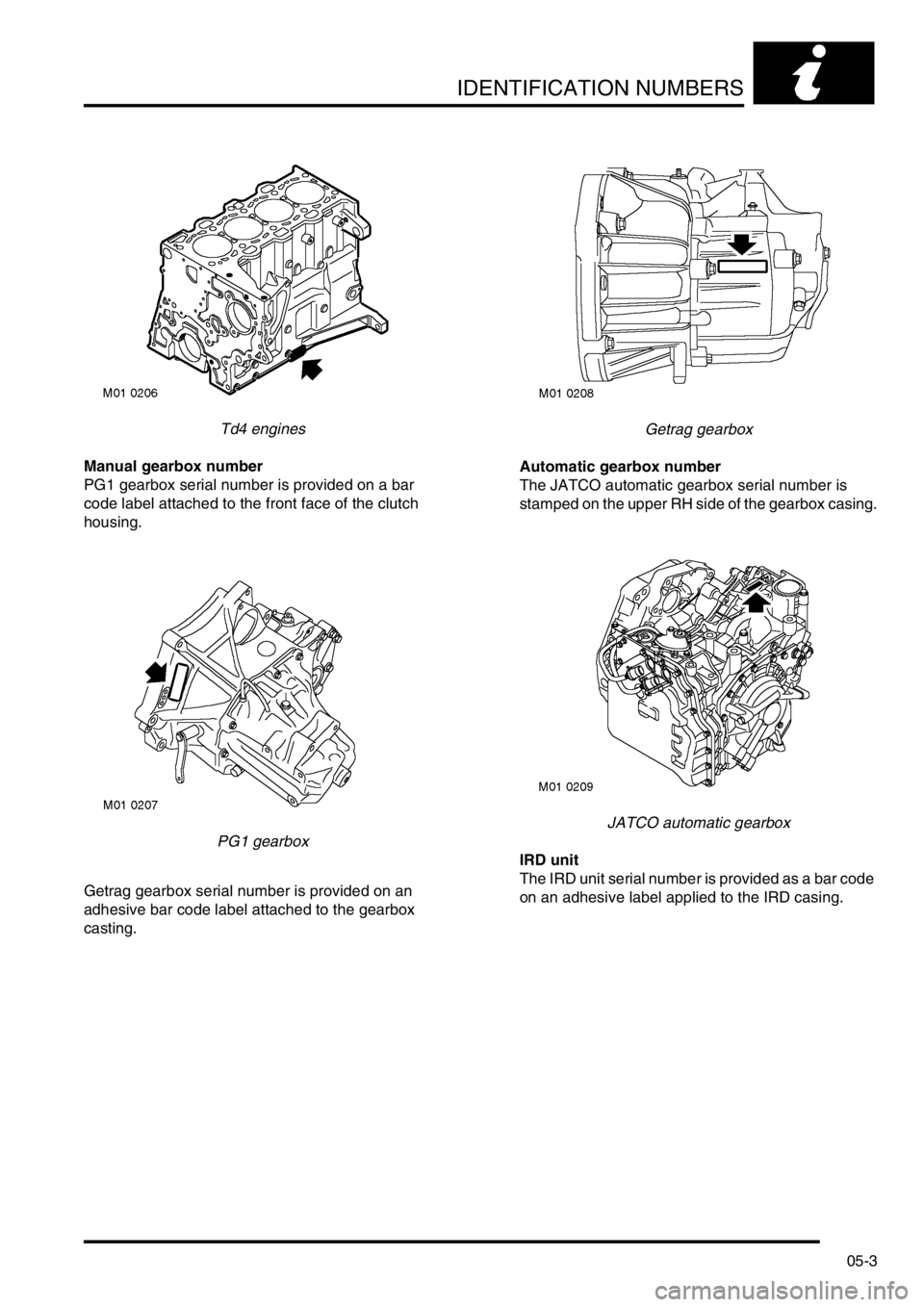

Manual gearbox number
PG1 gearbox serial number is provided on a bar
code label attached to the front face of the clutch
housing.
PG1 gearbox
Getrag gearbox serial number is provided on an
adhesive bar code label attached to the gearbox
casting.Getrag gearbox
Automatic gearbox number
The JATCO automatic gearbox serial number is
stamped on the upper RH side of the gearbox casing.
JATCO automatic gearbox
IRD unit
The IRD unit serial number is provided as a bar code
on an adhesive label applied to the IRD casing.

IDENTIFICATION NUMBERS
05-4
IRD unit

TORQUE WRENCH SETTINGS
06-1
TORQUE WRE NCH SETTINGS
Maintenance
TORQUE DESCRIPTION METRIC IMPERIAL
K1.8 engine oil drain plug 25 Nm 18 lbf.ft
KV6 engine oil drain plug 25 Nm 18 lbf.ft
Td4 engine oil drain plug 28 Nm 21 lbf.ft
Td4 engine oil filter cap 25 Nm 18 lbf.ft
Automatic gearbox oil drain plug 45 Nm 33 lbf.ft
Automatic gearbox oil filler/level plug 14 Nm 10 lbf.ft
Manual gearbox oil drain plug 35 Nm 26 lbf.ft
Manual gearbox oil filler/level plug 35 Nm 26 lbf.ft
Road wheel bolts - Alloy and steel wheels 115 Nm 85 lbf.ft

TORQUE WRENCH SETTINGS
06-2
Engine – Td4
TORQUE DESCRIPTION METRIC IMPERIAL
Acoustic cover to engine 8 Nm 6 lbf.ft
Ancillary drive belt jockey pulley Allen bolt
*24 Nm 18 lbf.ft
Ancillary drive belt tensioner arm nut 10 Nm 7.5 lbf.ft
Big end bearing cap bolts:
⇒ Stage 15 Nm 3.5 lbf.ft
⇒ Stage 225 Nm 18 lbf.ft
⇒ Stage 3+70°+70°
Camshaft bearing cap bolts
† 10 Nm 7.5 lbf.ft
Camshaft cover bolts
† 10 Nm 7.5 lbf.ft
Camshaft sprocket retaining screw:
⇒ Stage 120 Nm 15 lbf.ft
⇒ Stage 2+35°+35°
Chain lubrication jet bolt 10 Nm 7.5 lbf.ft
Coolant rail to exhaust manifold bolts 20 Nm 15 lbf.ft
Coolant rail to exhaust manifold bolts 8 Nm 6 lbf.ft
Crankshaft pulley:
⇒ Stage 1100 Nm 74 lbf.ft
⇒ Stage 2+60 °+60 °
⇒ Stage 3+60 °+60 °
⇒ Stage 4+30 °+30 °
Crankshaft rear oil seal housing:
⇒ M6 bolts10 Nm 7.5 lbf.ft
⇒ M8 bolts22 Nm 16 lbf.ft
Cylinder block reinforcing plate 22 Nm 16 lbf.ft
Cylinder head bolts: (Stages 1 to 5 relate to bolts 1 to 11. Stage 6 is for bolt 12 only.)
⇒ Stage 1
†80 Nm 59 lbf.ft
⇒ Stage 2 - loosen all bolts
†-1/2 turn -1/2 turn
⇒ Stage 3
†50 Nm 37 lbf.ft
⇒ Stage 4
†+90°+90°
⇒ Stage 5
†+90°+90°
⇒ Stage 6 – tighten 41 mm bolt in position 12 110 Nm 81 lbf.ft
Cylinder head to timing cover Allen screws 15 Nm 11 lbf.ft
Dipstick tube to oil filter housing bolt 10 Nm 7.5 lbf.ft
Drive plate to crankshaft bolts
† 115 Nm 85 lbf.ft
EGR cooler to cylinder head and lifting bracket bolts 25 Nm 18 lbf.ft
Engine breather pipe to air cleaner housing bolt 10 Nm 7.5 lbf.ft
Engine lifting eye bolts 20 Nm 15 lbf.ft
Engine mounting bracket assembly to engine bolts 100 Nm 74 lbf.ft
Engine mounting bracket to hydramount nut 85 Nm 63 lbf.ft
Engine lower steady bracket bolts:
⇒ M1045 Nm 33 lbf.ft
⇒ M1250 Nm 37 lbf.ft
Engine steady mounting bolt 100 Nm 74 lbf.ft
Exhaust manifold to cylinder head nuts 24 Nm 18 lbf.ft
Flywheel to crankshaft bolts
† 115 Nm 85 lbf.ft
Fuel pipe bracket to oil filter housing bolt 10 Nm 7.5 lbf.ft
Fuel pipe union nuts 30 Nm 22 lbf.ft
Fuel pump drive chain lower guide Allen bolt 24 Nm 18 lbf.ft

TORQUE WRENCH SETTINGS
06-3
† Tighten in sequence
* Fit new bolt
Fuel pump sprocket retaining nut 65 Nm 48 lbf.ft
Fuel rail Allen screws 24 Nm 18 lbf.ft
Fuel rail to coolant rail bolts 10 Nm 7.5 lbf.ft
Fuel rail to support bracket bolts 10 Nm 7.5 lbf.ft
Glow plugs18 Nm 13 lbf.ft
Heatshield to coolant rail Allen screws 8 Nm 6 lbf.ft
Hose adaptor to cylinder head bolts 8 Nm 6 lbf.ft
LH engine mounting to gearbox bracket through bolt 100 Nm 74 lbf.ft
LH engine mounting to body 45 Nm 33 lbf.ft
Lower coolant rail support bracket bolts 15 Nm 11 lbf.ft
Main bearing cap bolts:
⇒ 1st. Stage
† 20 Nm 15 lbf.ft
⇒ 2nd Stage
† +70°+70°
Oil cooler to oil filter housing bolts 22 Nm 16 lbf.ft
Oil feed guide rail bolts 10 Nm 7.5 lbf.ft
Oil filter cap25 Nm 18 lbf.ft
Oil filter housing bolts 25 Nm 18 lbf.ft
Oil pick-up strainer to oil pump bolts 10 Nm 7.5 lbf.ft
Oil pressure switch 38 Nm 28 lbf.ft
Oil pump drive gear to oil pump drive shaft Torx bolt 25 Nm 18 lbf.ft
Oil pump to cylinder block 25 Nm 18 lbf.ft
PAS pipe clip to engine lifting eye bolt 10 Nm 7.5 lbf.ft
Sump: †
⇒ M6 bolts10 Nm 7.5 lbf.ft
⇒ M8 bolts28 Nm 21 lbf.ft
Sump drain plug28 Nm 21 lbf.ft
Sump plate bolts10 Nm 7.5 lbf.ft
Timing chain support guides 20 Nm 15 lbf.ft
Timing chain tensioner access plug 30 Nm 22 lbf.ft
Timing chain tensioner bolt 10 Nm 7.5 lbf.ft
Timing cover bolts
† 15 Nm 11 lbf.ft
Turbocharger to exhaust manifold bolts 45 Nm 33 lbf.ft
Turbocharger outlet pipe fixing bolts:
⇒ 6mm10 Nm 7.5 lbf.ft
⇒ 8mm25 Nm 18 lbf.ft
Vacuum pump bolts 22 Nm 16 lbf.ft

TORQUE WRENCH SETTINGS
06-4
Engine – K1.8
TORQUE DESCRIPTION METRIC IMPERIAL
Big end bearing cap dowel bolts:
⇒ Stage 120 Nm 15 lbf.ft
⇒ Stage 2+45°+45°
Bearing ladder to cylinder block bolts:
⇒ Stage 1
†++5 Nm 3.5 lbf.ft
⇒ Stage 2
† ++30 Nm 22 lbf.ft
Camshaft carrier to cylinder head bolts
†++10 Nm 7.5 lbf.ft
Camshaft cover to carrier bolts
†8 Nm 6 lbf.ft
Camshaft gear bolt 65 Nm 48 lbf.ft
Camshaft rear oil seal cover plate bolts:
⇒ Exhaust25 Nm 18 lbf.ft
⇒ Inlet6 Nm 4.5 lbf.ft
Camshaft sensor bolt 8 Nm 6 lbf.ft
Camshaft timing belt lower front cover bolts 9 Nm 7 lbf.ft
Camshaft drive belt upper front cover bolts 5 Nm 3.5 lbf.ft
Camshaft timing belt rear cover bolts 9 Nm 7 lbf.ft
Camshaft timing belt tensioner bolt
* 25 Nm 18 lbf.ft
Camshaft upper cover to rear cover bolts 5 Nm 3.5 lbf.ft
Coolant outlet elbow to cylinder head bolts 9 Nm 7 lbf.ft
Crankshaft pulley bolt 205 Nm 151 lbf.ft
Cylinder head bolts
⇒ Stage 1
†20 Nm 15 lbf.ft
⇒ Stage 2
†+180 °+180 °
⇒ Stage 3
†+180 °+180 °
Dipstick tube to cylinder block 10 Nm 7.5 lbf.ft
Dipstick tube bracket and thermostat housing to cylinder block bolt 10 Nm 7.5 lbf.ft
Engine earth lead to body nut 9 Nm 7 lbf.ft
Engine harness to oil pump housing bolts 10 Nm 7.5 lbf.ft
Engine LH gearbox mounting bracket through bolt 80 Nm 59 lbf.ft
Engine LH mounting bracket to body bolts 45 Nm 33 lbf.ft
Engine lower steady to sump mounting bracket bolt 80 Nm 59 lbf.ft
Engine lower steady bracket to sump bolts 100 Nm 74 lbf.ft
Engine lower steady to subframe bolt 80 Nm 59 lbf.ft
Engine steady to LH mounting bolt 25 Nm 18 lbf.ft
Engine steady (lower) to rear beam bolt 80 Nm 59 lbf.ft
Engine steady (lower) to sump mounting bracket bolt 80 Nm 59 lbf.ft
Engine steady (upper RH) to body bolt 80 Nm 59 lbf.ft
Engine steady (upper RH) to top arm bolt 80 Nm 59 lbf.ft
Engine to gearbox top and front cover plate bolts and nuts 80 Nm 59 lbf.ft
Flywheel to crankshaft bolts
†*80 Nm 59 lbf.ft
Front cover plate to gearbox M6 bolt 9 Nm 7 lbf.ft
Ignition coils to camshaft cover bolts 8 Nm 6 lbf.ft
Oil pick-up strainer bolt 12 Nm 9 lbf.ft
Oil pick-up strainer support bracket to oil rail bolt 12 Nm 9 lbf.ft
Oil pressure switch
+17 Nm 12.5 lbf.ft
Oil pressure relief valve plug
+25 Nm 18 lbf.ft
Oil pump to cylinder block bolts
†*10 Nm 7.5 lbf.ft
Oil rail to bearing ladder nuts
++9 Nm 7 lbf.ft

TORQUE WRENCH SETTINGS
06-5
† Tighten in sequence
* New bolt(s) must be fitted
+ Apply sealant, Part No. STC 50552 to threads
++ Apply sealant, Part No. STC 4600 to threads
Oil temperature sensor 17 Nm 12.5 lbf.ft
Pressure plate to flywheel bolts 25 Nm 18 lbf.ft
Spark plugs25 Nm 18 lbf.ft
Spark plug cover screws 10 Nm 7.5 lbf.ft
Sump to engine bearing ladder bolts:
⇒ M8 x 25 bolts
† ++25 Nm 18 lbf.ft
⇒ M8 x 60 bolts
† ++30 Nm 22 lbf.ft
Sump to gearbox bolts
†45 Nm 33 lbf.ft
Sump drain plug28 Nm 21 lbf.ft
Timing belt tensioner bolt * 22 Nm 16 lbf.ft
Top arm to RH hydramount and engine:
⇒ Bolts170 Nm 125 lbf.ft
⇒ Nut85 Nm 63 lbf.ft TORQUE DESCRIPTION METRIC IMPERIAL

TORQUE WRENCH SETTINGS
06-6
Engine – KV6
TORQUE DESCRIPTION METRIC IMPERIAL
Bearing ladder to cylinder block bolts
†
⇒ Stage 120 Nm 15 lbf.ft
⇒ Stage 2+90 °+90 °
Camshaft carrier to cylinder head bolts
†++10 Nm 7.5 lbf.ft
Camshaft cover to carrier bolts
†9 Nm 7 lbf.ft
Camshaft timing belt cover bolts 4 Nm 3 lbf.ft
Camshaft timing belt front cover backplate to cylinder head bolts
+9 Nm 7 lbf.ft
Camshaft timing belt rear cover backplate to cylinder head bolts
+9 Nm 7 lbf.ft
Camshaft timing belt tensioner bolts 25 Nm 18 lbf.ft
Camshaft timing gear bolts *
⇒ Stage 127 Nm 20 lbf.ft
⇒ Stage 2+90 °+90 °
Camshaft position sensor bracket to camshaft cover bolt 9 Nm 7 lbf.ft
Connecting rod big-end bolts
⇒ Stage 120 Nm 15 lbf.ft
⇒ Stage 2+45 °+45 °
Crankcase (lower) to cylinder block bolts
⇒ M6 bolts
+++25 Nm 7 lbf.ft
⇒ M8 bolts
+++25 Nm 18 lbf.ft
Crankshaft pulley bolt 160 Nm 118 lbf.ft
Crankshaft rear oil seal to cylinder block bolts
* † 8 Nm 6 lbf.ft
Cylinder head bolts
†
⇒ Stage 125 Nm 18 lbf.ft
⇒ Stage 218 lbf.ft 18 lbf.ft
⇒ Stage 325 Nm 18 lbf.ft
⇒ Stage 4+180 °+180 °
Drain plug to sump 25 Nm 18 lbf.ft
Drive plate to crankshaft bolts
†
⇒ Stage 1
⇒ Stage 225 Nm
100 Nm18 lbf.ft
74 lbf.ft
Earth lead to RH camshaft cover bolt 9 Nm 7 lbf.ft
Engine front mounting plate to cylinder block and IRD bracket
⇒ M10 bolt - No. 1 on tightening sequence 25 Nm 18 lbf.ft
⇒ M10 bolt - No. 5 on tightening sequence 45 Nm 33 lbf.ft
⇒ M12 bolts85 Nm 63 lbf.ft
Engine mounting bracket to engine front plate bolts 45 Nm 33 lbf.ft
Engine mounting (LH) to body bolts 45 Nm 33 lbf.ft
Engine mounting bracket (LH) to gearbox bracket through bolt 85 Nm 63 lbf.ft
Engine mounting bracket (LH) to gearbox bracket through bolt 100 Nm 74 lbf.ft
Engine steady (lower) to sump bracket and subframe bolts 100 Nm 74 lbf.ft
Engine steady (upper RH) to body bolts 100 Nm 74 lbf.ft
Engine steady (upper RH) to top arm bolt 100 Nm 74 lbf.ft
Fuel rail to inlet manifold bolts 9 Nm 7 lbf.ft
Heat shield (RH rear timing belt) to cylinder head bolts
⇒ M69 Nm 7 lbf.ft
⇒ M825 Nm 18 lbf.ft
Hydramount (RH)85 Nm 63 lbf.ft
Idler pulley to engine front mounting plate Allen bolt 45 Nm 33 lbf.ft

TORQUE WRENCH SETTINGS
06-7
† Tighten in sequence
*New bolts must be fitted
+ Apply sealant, Part No. STC50552 to threads
++ Apply sealant, Part No. STC 4600 to threads
+++ Apply sealant, Part No. STC 50550 to threads
Ignition coils to LH inlet manifold nut and bolts 9 Nm 7 lbf.ft
Ignition plug top coils to spark plug bolts 9 Nm 7 lbf.ft
Inlet manifold to cylinder head nuts and bolts 25 Nm 18 lbf.ft
IRD support bracket to front mounting plate bolts 45 Nm 33 lbf.ft
IRD support bracket to sump bolts 45 Nm 33 lbf.ft
LH mounting to body bolts 48 Nm 35 lbf.ft
LH mounting bracket to gearbox bolts 85 Nm 63 lbf.ft
LH mounting to gearbox bracket through bolt 100 Nm 74 lbf.ft
Oil cooler to sump mounting bracket nuts 25 Nm 18 lbf.ft
Oil cooler pipes to oil filter and oil cooler unions 26 Nm 19 lbf.ft
Oil dipstick tube bracket to cylinder block bolt 9 Nm 7 lbf.ft
Oil pick-up strainer to bearing ladder bolts
+8 Nm 6 lbf.ft
Oil pressure relief valve plug nut
+25 Nm 18 lbf.ft
Oil pressure switch 14 Nm 10 lbf.ft
Oil pump to cylinder block bolts
†
⇒ Stage 1
⇒ Stage 25 Nm
9 Nm4 lbf.ft
7 lbf.ft
PAS pipe to engine front mounting plate bolt 25 Nm 18 lbf.ft
PAS pipe support bracket to RH hydramount nut 85 Nm 63 lbf.ft
Sump to lower crankcase bolts
†++35 Nm 26 lbf.ft
Timing belt cover (front LH and RH) bolts 4 Nm 3 lbf.ft
Timing belt cover (lower) to cylinder block bolts 9 Nm 7 lbf.ft
Timing belt cover (rear LH and RH) bolts 4 Nm 3 lbf.ft
Rear timing belt cover backplate bolts 9 Nm 7.5 lbf.ft
Top arm to RH hydramount nut 85 Nm 63 lbf.ft
Top arm bracket to engine front plate and RH mounting bolts 100 Nm 74 lbf.ft
