LAND ROVER FRELANDER 2 2006 Repair Manual

Publi s hed: 11-May-2011

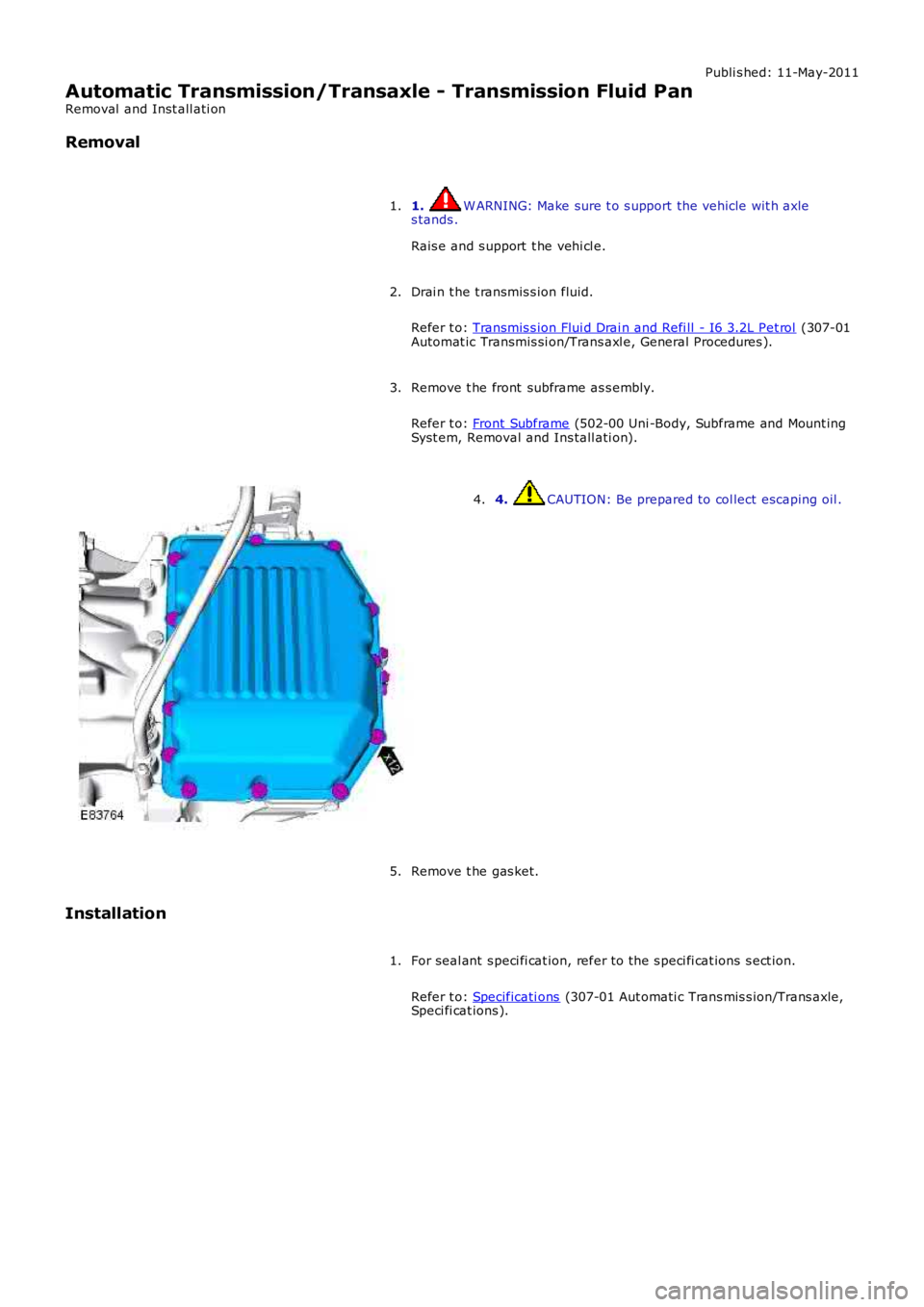

Automatic Transmission/Transaxle - Transmission Fluid Pan
Removal and Inst all ati on
Removal
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Drai n t he t ransmis s ion fluid.
Refer t o: Transmis s ion Flui d Drai n and Refi ll - I6 3.2L Pet rol (307-01Automat ic Transmis si on/Trans axl e, General Procedures ).
2.
Remove t he front subframe as s embly.
Refer t o: Front Subframe (502-00 Uni -Body, Subframe and Mount ingSyst em, Removal and Ins tall ati on).
3.
4. CAUTION: Be prepared to col lect escaping oil .4.
Remove t he gas ket.5.
Installation
For seal ant s peci fi cat ion, refer to t he s peci fi cat ions s ect ion.
Refer t o: Specificati ons (307-01 Aut omati c Trans mis s ion/Trans axle,Speci fi cat ions ).
1.

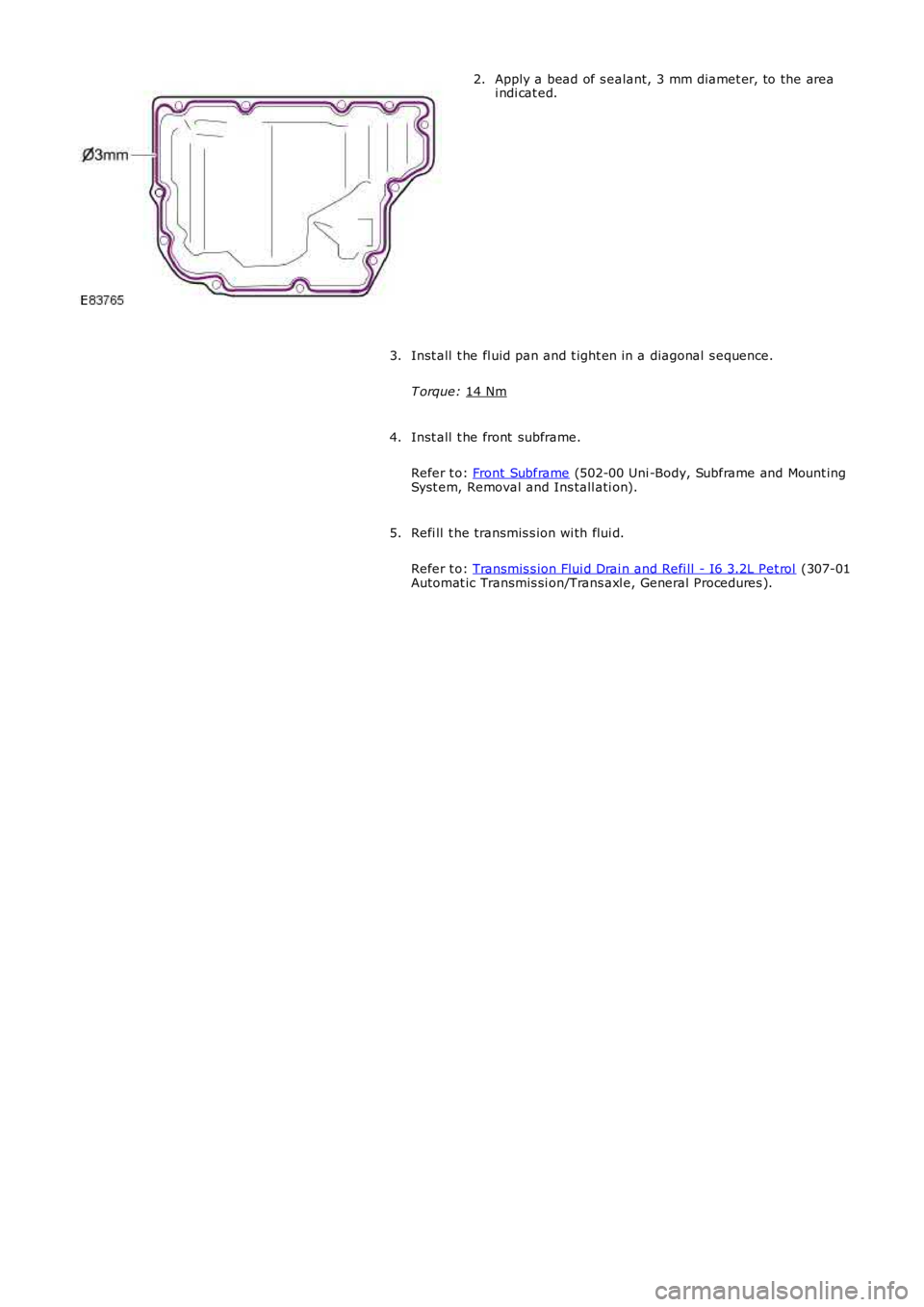

Apply a bead of s ealant, 3 mm diamet er, to the area
i ndi cat ed.
2.
Inst all t he fl uid pan and t ight en in a diagonal s equence.
T orque: 14 Nm 3.
Inst all t he front subframe.
Refer t o: Front Subframe (502-00 Uni -Body, Subframe and Mount ing
Syst em, Removal and Ins tall ati on).
4.
Refi ll t he transmis s ion wi th flui d.
Refer t o: Transmis s ion Flui d Drai n and Refi ll - I6 3.2L Pet rol (307-01
Automat ic Transmis si on/Trans axl e, General Procedures ).
5.

Publi s hed: 11-May-2011
Automatic Transmission/Transaxle - Main Control Valve Body
Removal and Inst all ati on
Removal
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
2.
Remove t he oil pan.
Refer t o: Transmis s ion Flui d Pan (307-01 Automat icTrans mi ss ion/Transaxle, Removal and Ins tal lati on).
3.
Remove the oi l temperat ure sens or.4.
5. CAUTIONS:
Take ext ra care not t o damage the wiring harnes ses .
Not e the fi tt ed posi ti on of the component prior t oremoval.
Release the trans mi ss i on wiring harnes s .
5.
Remove the sucti on cover and dis card t he gas ket .6.

7.
8.

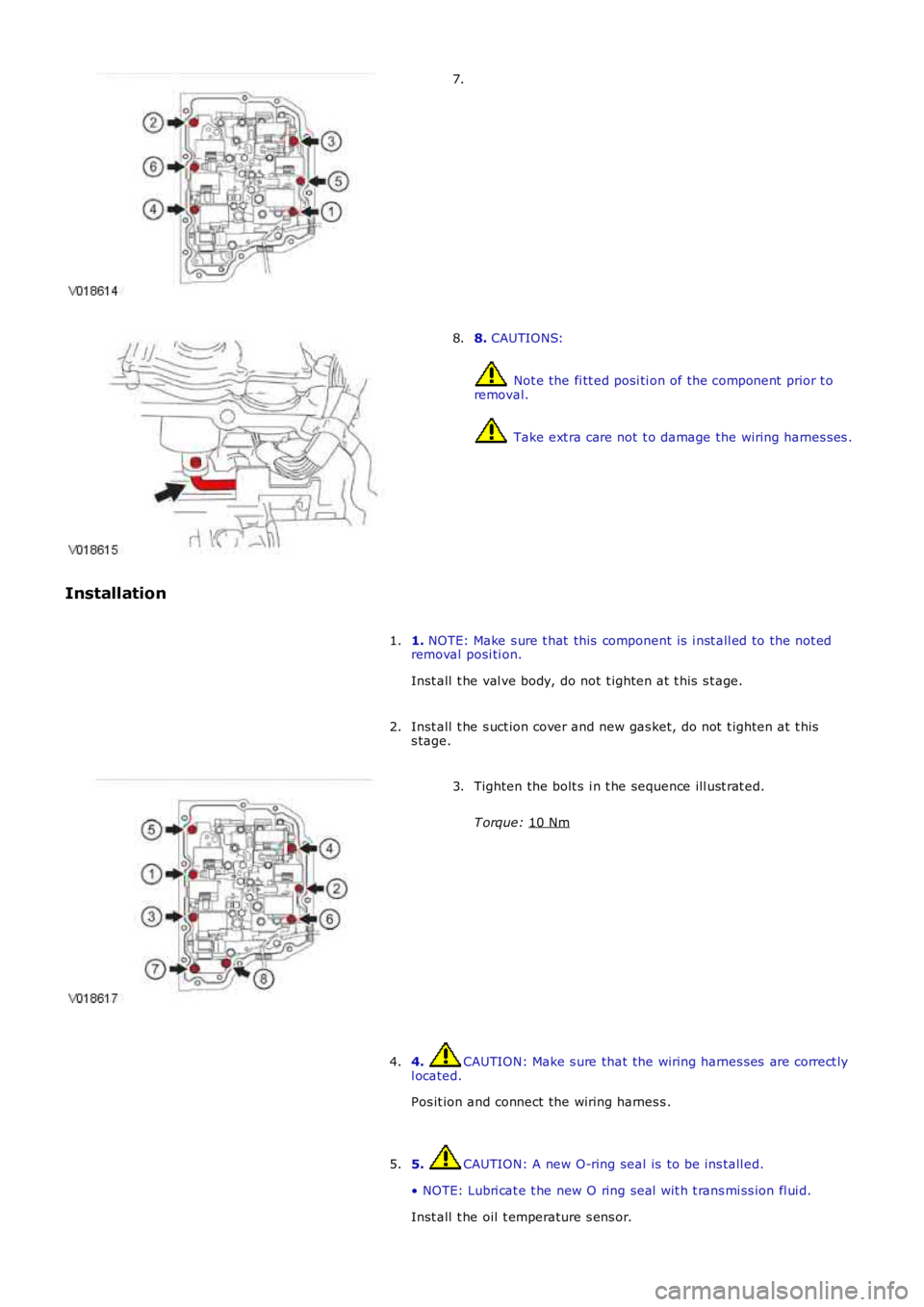

CAUTIONS: Not e the fi tt ed posi ti on of the component prior t o
removal. Take ext ra care not t o damage the wiring harnes ses .
8.
Installation 1. NOTE: Make s ure t hat this component is i nst all ed to the not ed
removal posi ti on.
Inst all t he val ve body, do not t ighten at t his s t age.
1.
Inst all t he s uct ion cover and new gas ket, do not t ighten at t his
s tage.
2. Tighten the bolt s i n t he sequence ill ust rat ed.
T orque: 10 Nm 3.
4. CAUTION: Make s ure that the wiring harnes s es are correct ly
l ocated.
Pos it ion and connect the wiring harnes s .
4.
5. CAUTION: A new O-ring seal is to be ins tall ed.
• NOTE: Lubri cat e t he new O ring seal wit h t rans mi ss ion fl ui d.
Inst all t he oil t emperature s ens or.
5.

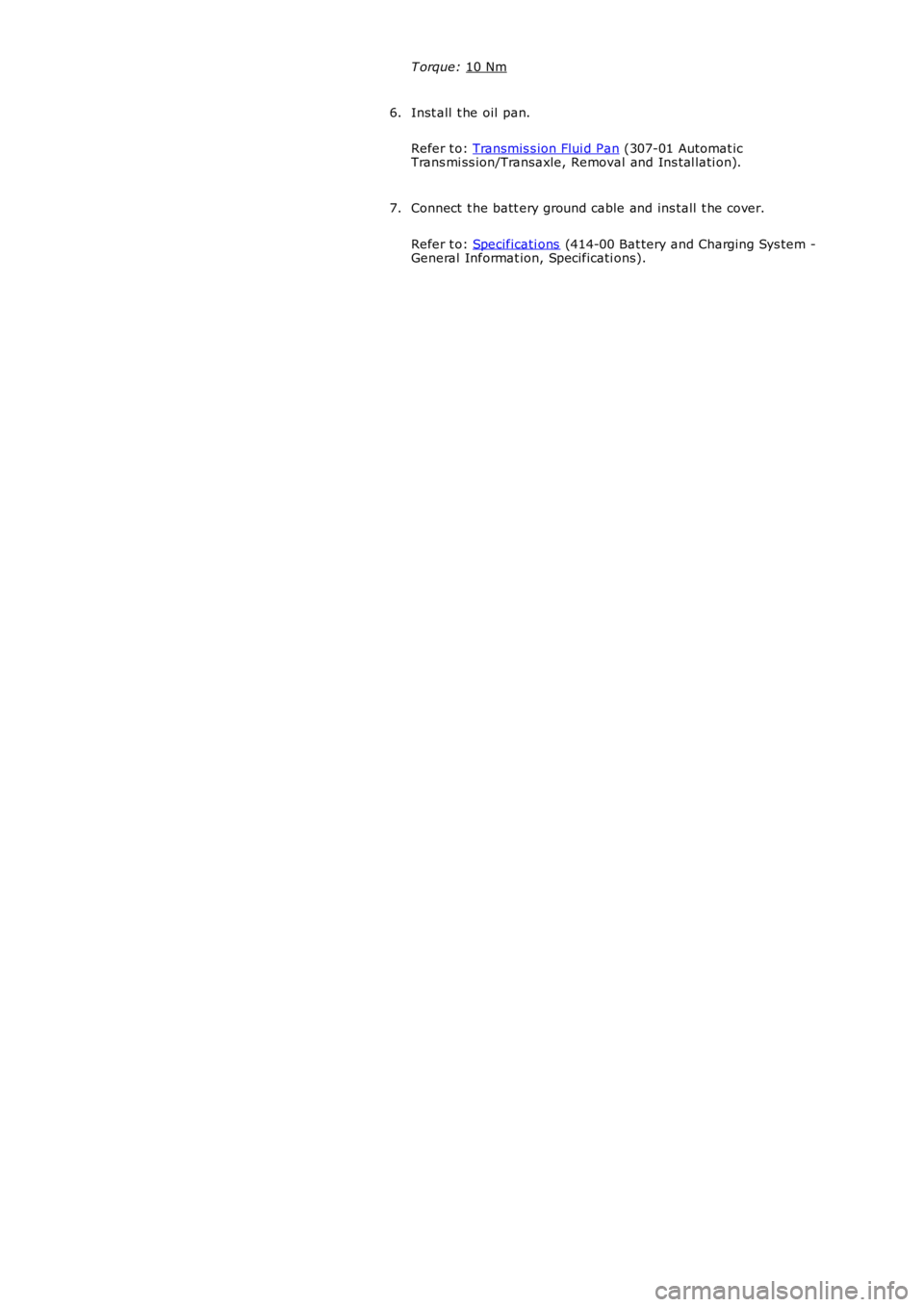

T orque:
10 Nm Inst all t he oil pan.
Refer t o: Transmis s ion Flui d Pan (307-01 Automat ic
Trans mi ss ion/Transaxle, Removal and Ins tal lati on).
6.
Connect t he batt ery ground cable and ins tall t he cover.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
7.

Publi s hed: 11-May-2011

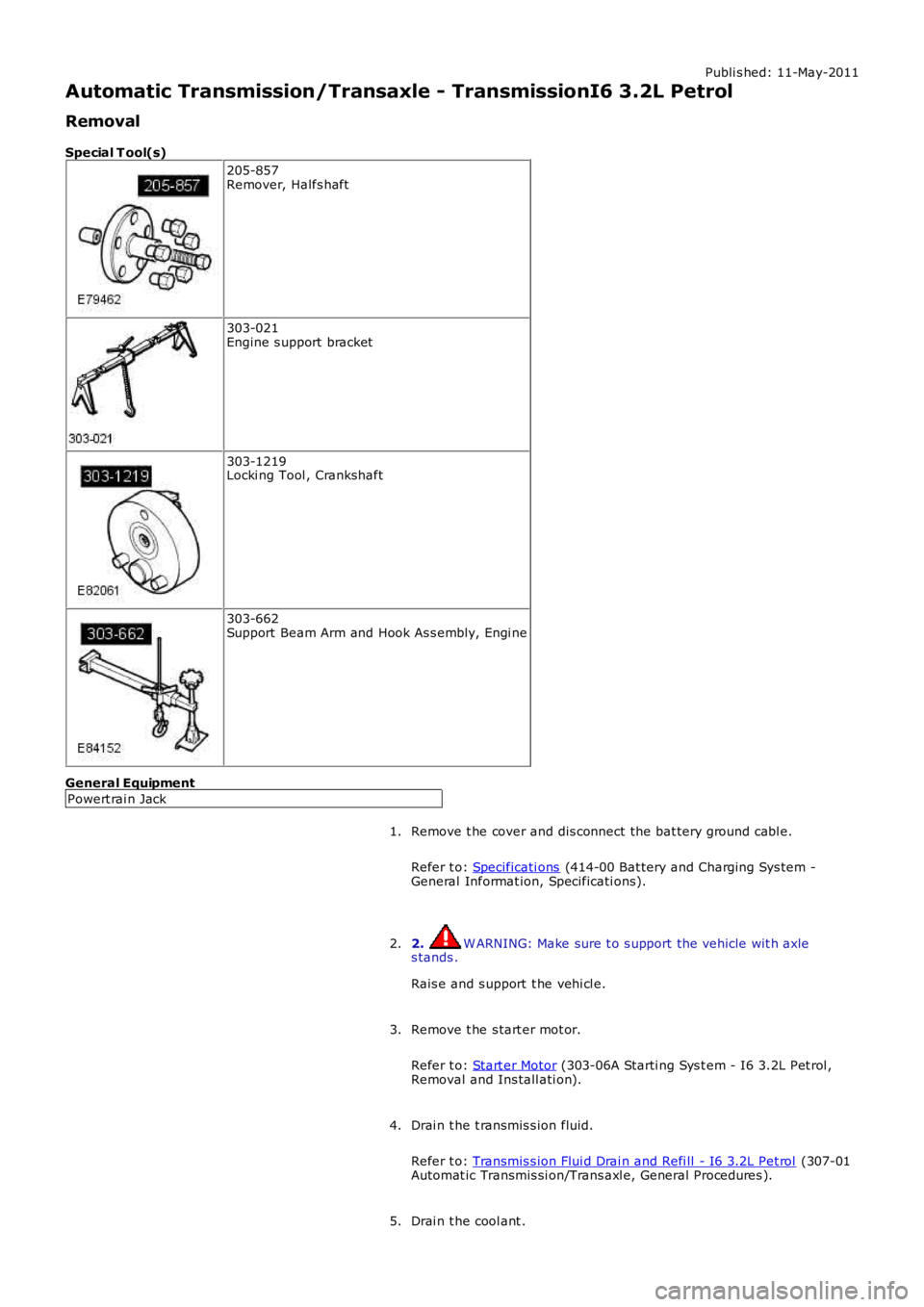

Automatic Transmission/Transaxle - TransmissionI6 3.2L Petrol
Removal
Special T ool(s) 205-857
Remover, Halfs haft 303-021
Engine s upport bracket 303-1219
Locki ng Tool , Crankshaft 303-662
Support Beam Arm and Hook As s embly, Engi ne
General Equipment Powert rai n Jack
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
2.
Remove t he s tart er mot or.
Refer t o: Start er Motor (303-06A Starti ng Sys t em - I6 3.2L Pet rol ,
Removal and Ins tall ati on).
3.
Drai n t he t ransmis s ion fluid.
Refer t o: Transmis s ion Flui d Drai n and Refi ll - I6 3.2L Pet rol (307-01
Automat ic Transmis si on/Trans axl e, General Procedures ).
4.
Drai n t he cool ant .
5.

Refer t o:
Cool ing Sys tem Drai ni ng, Fi lli ng and Bleeding (303-03A
Engine Cooli ng - I6 3.2L Petrol, General Procedures).
Remove t he acces sory dri ve pul ley.
Refer t o: Acces sory Dri ve Pulley (303-05A Acces s ory Drive - I6 3.2L
Petrol, Removal and Ins tall ati on).
6.
Remove t he front subframe as s embly.
Refer t o: Front Subframe (502-00 Uni -Body, Subframe and Mount ing
Syst em, Removal and Ins tall ati on).
7.
Remove t he cranks haft front oil s eal.
Refer t o: Engi ne Front Seal (303-01A Engi ne - I6 3.2L Pet rol,
Removal and Ins tall ati on).

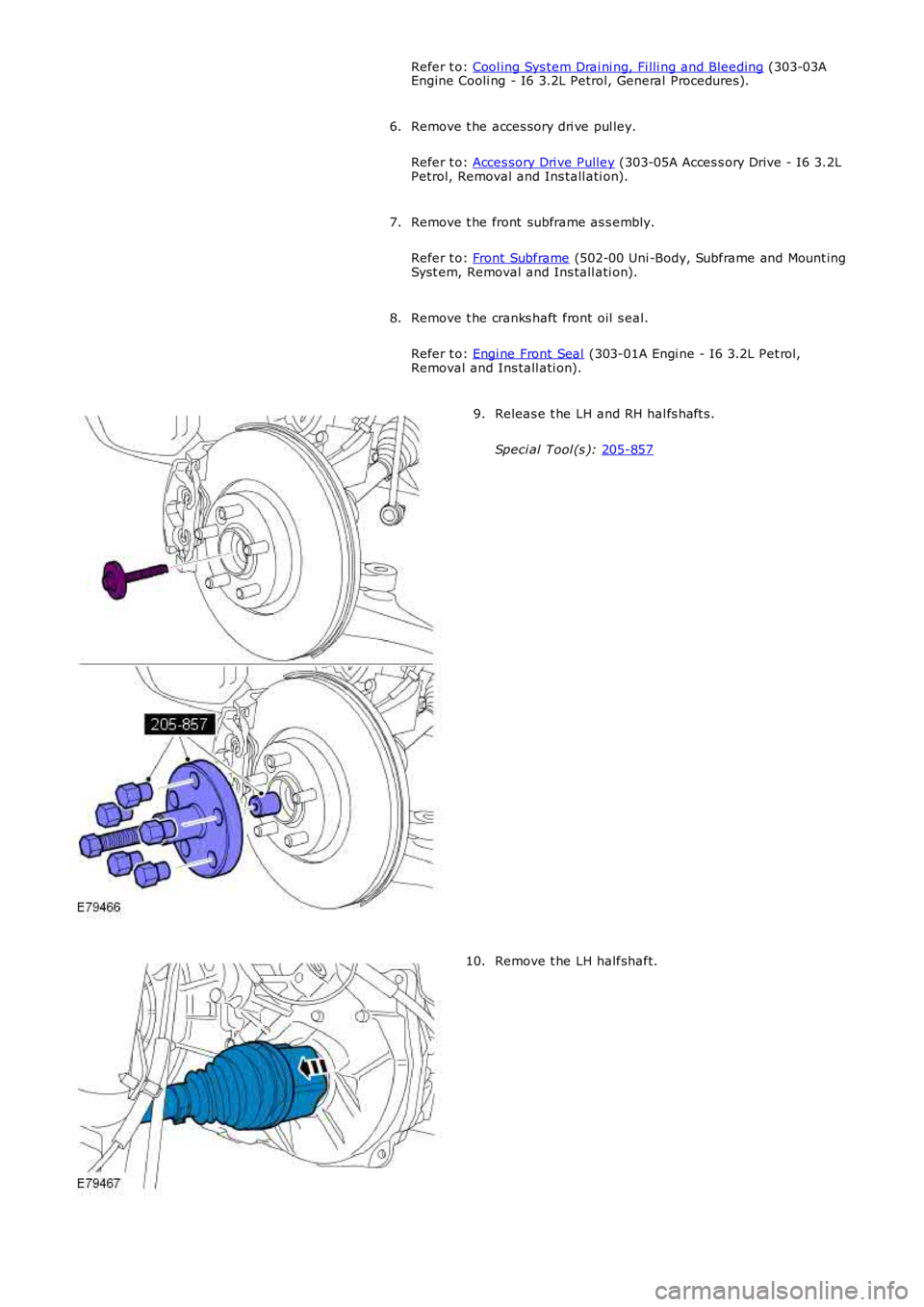

8. Releas e t he LH and RH hal fs haft s.
Speci al Tool (s ): 205-857 9.
Remove t he LH halfshaft.
10.

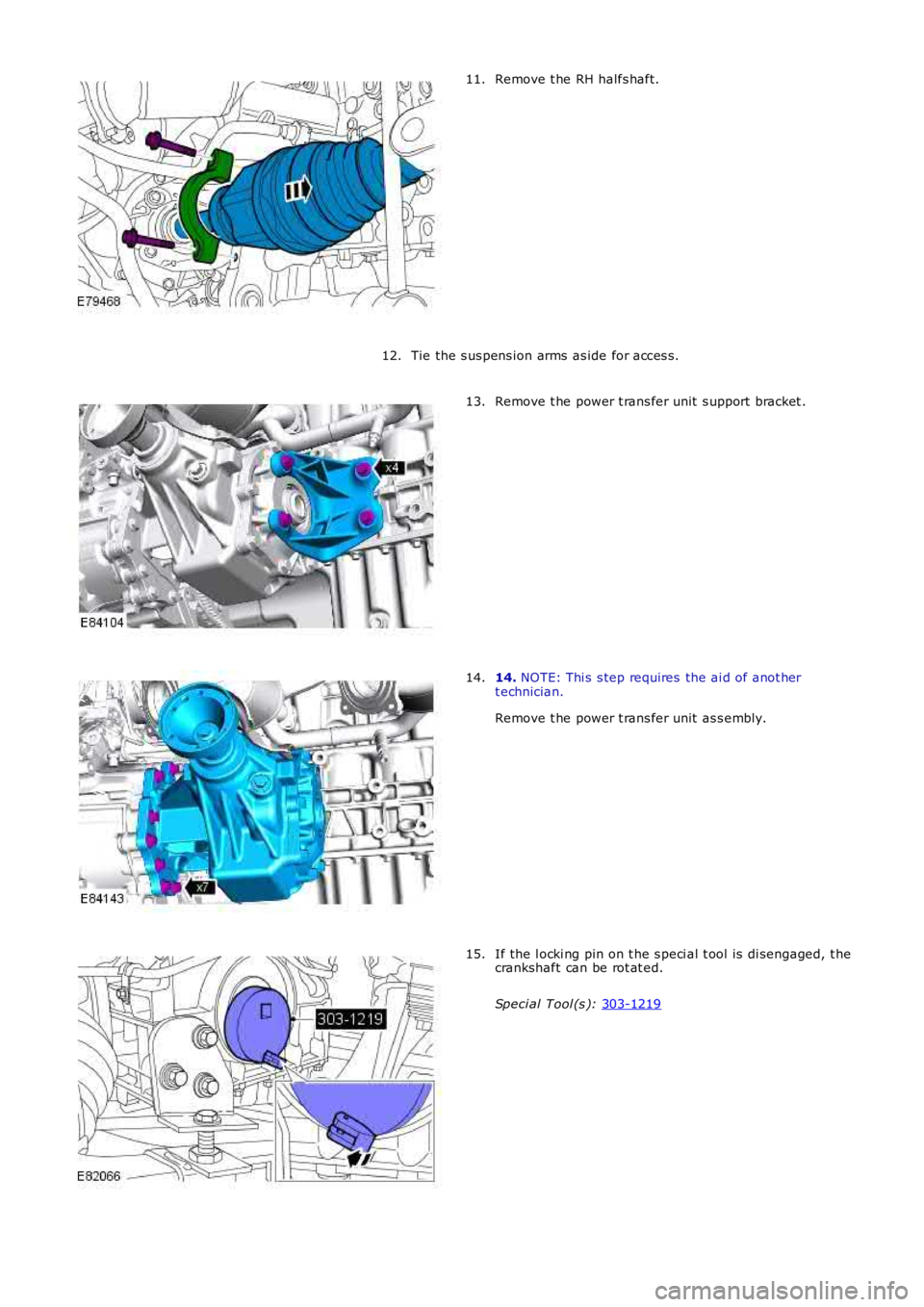

Remove t he RH halfs haft.
11.
Tie the s us pens ion arms as ide for acces s.
12. Remove t he power t rans fer unit s upport bracket .
13. 14.
NOTE: Thi s s tep requires the ai d of anot her
t echnician.
Remove t he power t rans fer unit as s embly.
14. If the l ocki ng pin on t he s peci al t ool is di sengaged, t he
crankshaft can be rot at ed.
Speci al Tool (s ): 303-1219 15.

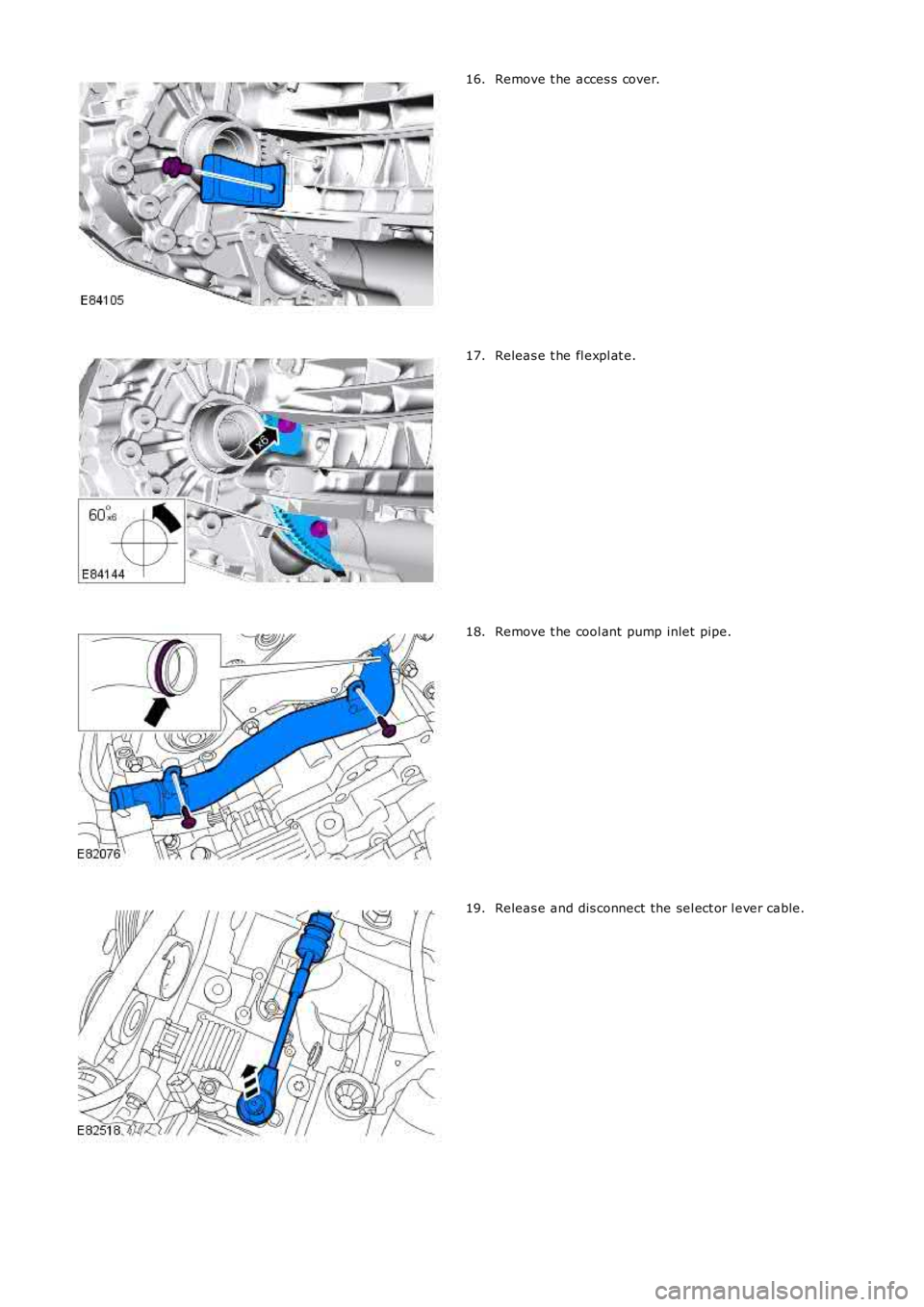

Remove t he acces s cover.
16. Releas e t he fl expl at e.
17. Remove t he cool ant pump inlet pipe.
18. Releas e and dis connect the sel ect or l ever cable.
19.

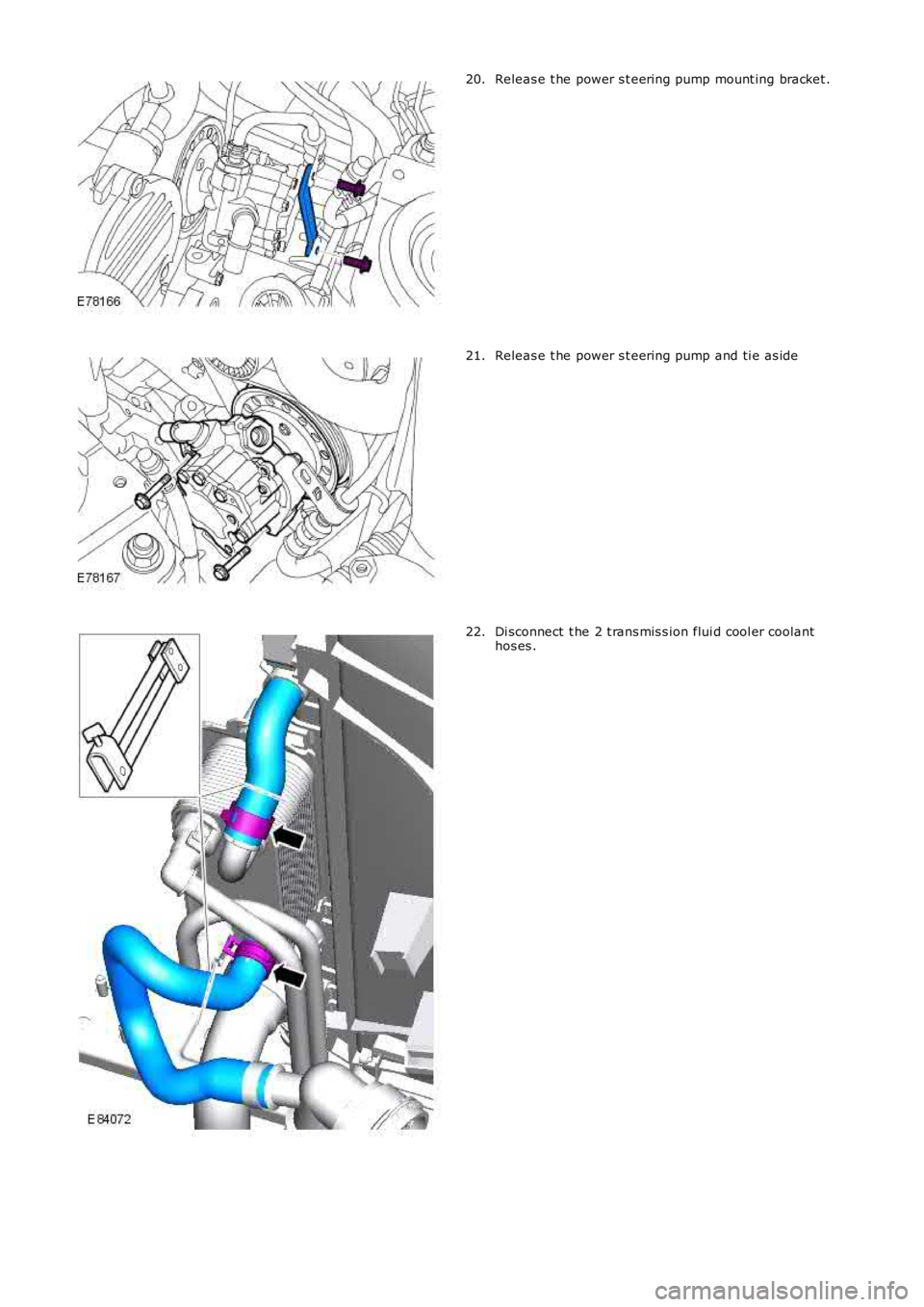

Releas e t he power s t eering pump mount ing bracket .
20. Releas e t he power s t eering pump and ti e as ide
21. Di sconnect t he 2 t rans mis s ion flui d cool er coolant
hos es .
22.
