Remove t he transmis si on s elector lever.
6. 7.
Installation Inst all t he TCM.
T orque: 24 Nm 1.
Inst all t he transmis si on s elector lever.
T orque: 13 Nm 2.
Secure and connect the sel ect or lever cable.
3.
Inst all t he s upport bracket.
T orque: 25 Nm 4.
Inst all t he A/C compress or mounti ng bracket .
Refer t o: Acces sory Dri ve Component Bracket (303-05A Access ory
Drive - I6 3.2L Pet rol , Removal and Ins t al lat ion).
5.
Connect t he batt ery ground cable and ins tall t he cover.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
6.
If a new component has been ins t al led, configure usi ng Land Rover
approved diagnos t ic equipment .
7.

Publi s hed: 11-May-2011

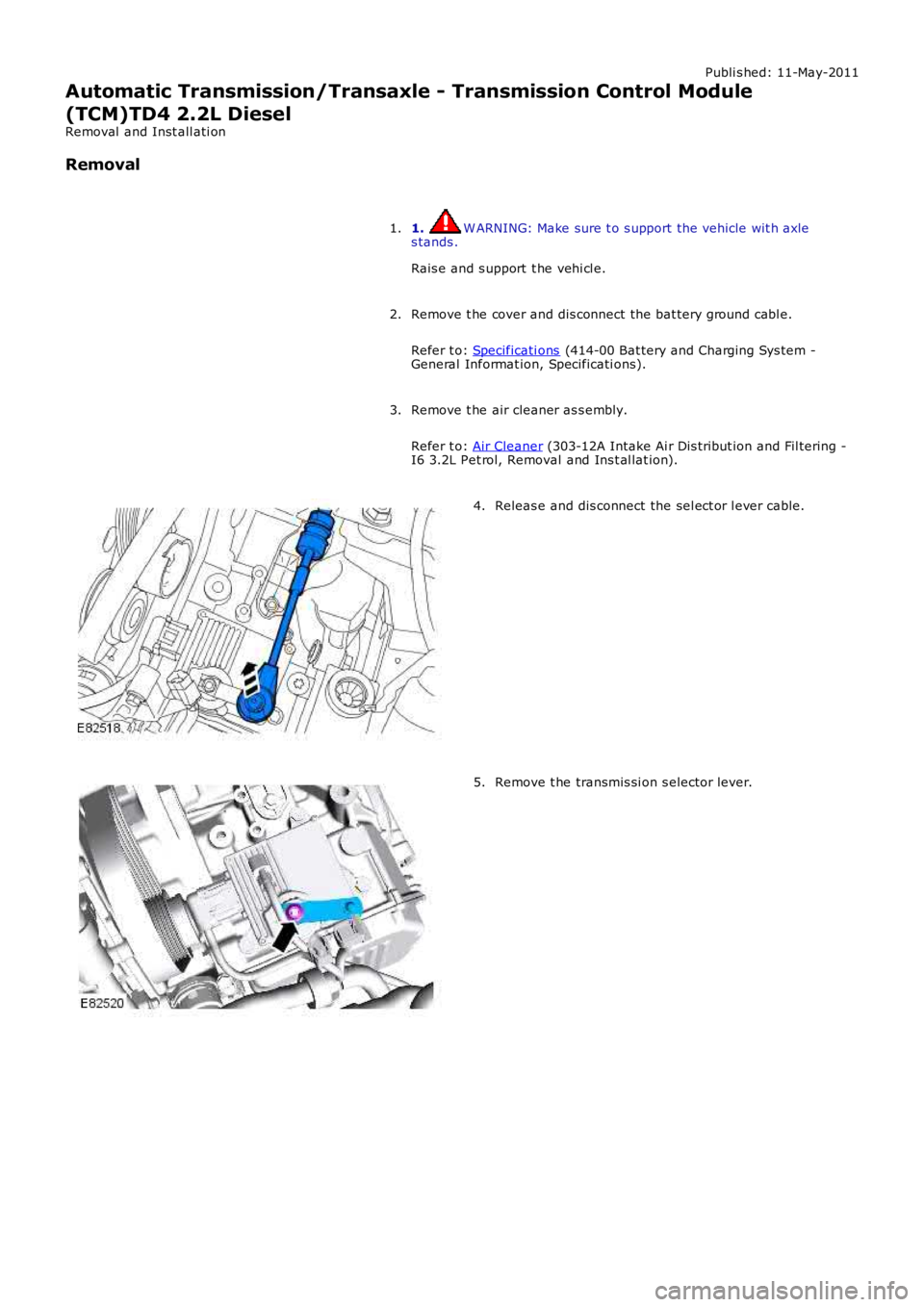

Automatic Transmission/Transaxle - Transmission Control Module
(TCM)TD4 2.2L Diesel
Removal and Inst all ati on
Removal
1. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
2.
Remove t he air cleaner as s embly.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -I6 3.2L Pet rol, Removal and Ins t al lat ion).
3.
Releas e and dis connect the sel ect or l ever cable.4.
Remove t he transmis si on s elector lever.5.

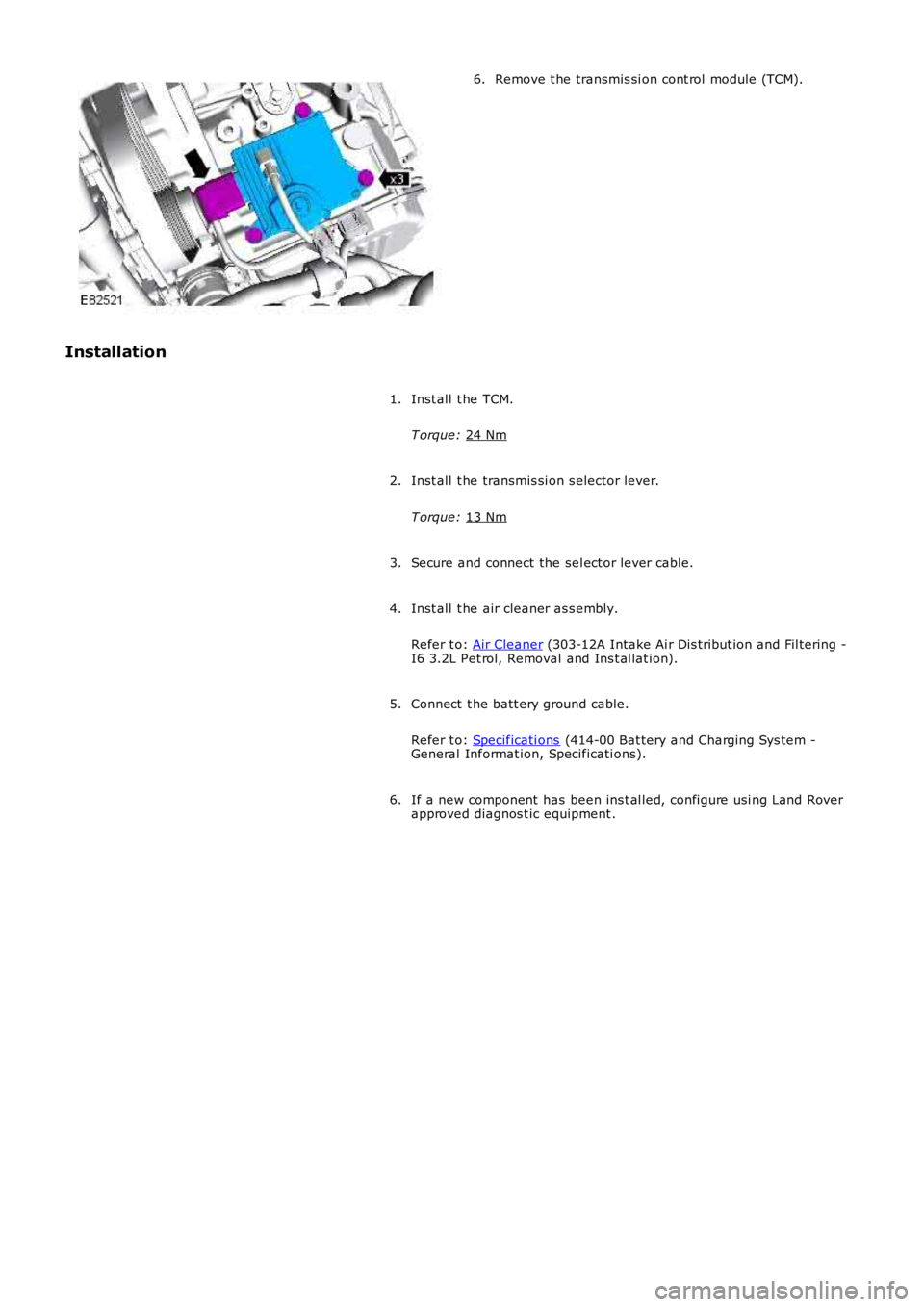

Remove t he transmis si on cont rol module (TCM).
6.
Installation Inst all t he TCM.
T orque: 24 Nm 1.
Inst all t he transmis si on s elector lever.
T orque: 13 Nm 2.
Secure and connect the sel ect or lever cable.
3.
Inst all t he air cleaner as s embly.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -
I6 3.2L Pet rol, Removal and Ins t al lat ion).
4.
Connect t he batt ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
5.
If a new component has been ins t al led, configure usi ng Land Rover
approved diagnos t ic equipment .
6.

Publi s hed: 11-May-2011
Automatic Transmission/Transaxle - Torque Converter SealI6 3.2L Petrol
Removal and Inst all ati on
Special T ool(s) 307-597
Inst all er, Torque Converter Seal 307-613
Hol di ng Pins , Torque Converter
Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
2.
Remove t he transmis si on and convert er.
Refer t o: Transmis s ion - I6 3.2L Pet rol (307-01 Automat ic
Trans mi ss ion/Transaxle, Removal).
3.
Remove t he torque convert er retai ner.
4. 5.
CAUTIONS: Be prepared t o collect es caping oi l.
Make s ure that all openings are sealed.
Remove t he torque convert er.
Speci al Tool (s ): 307-613 5.

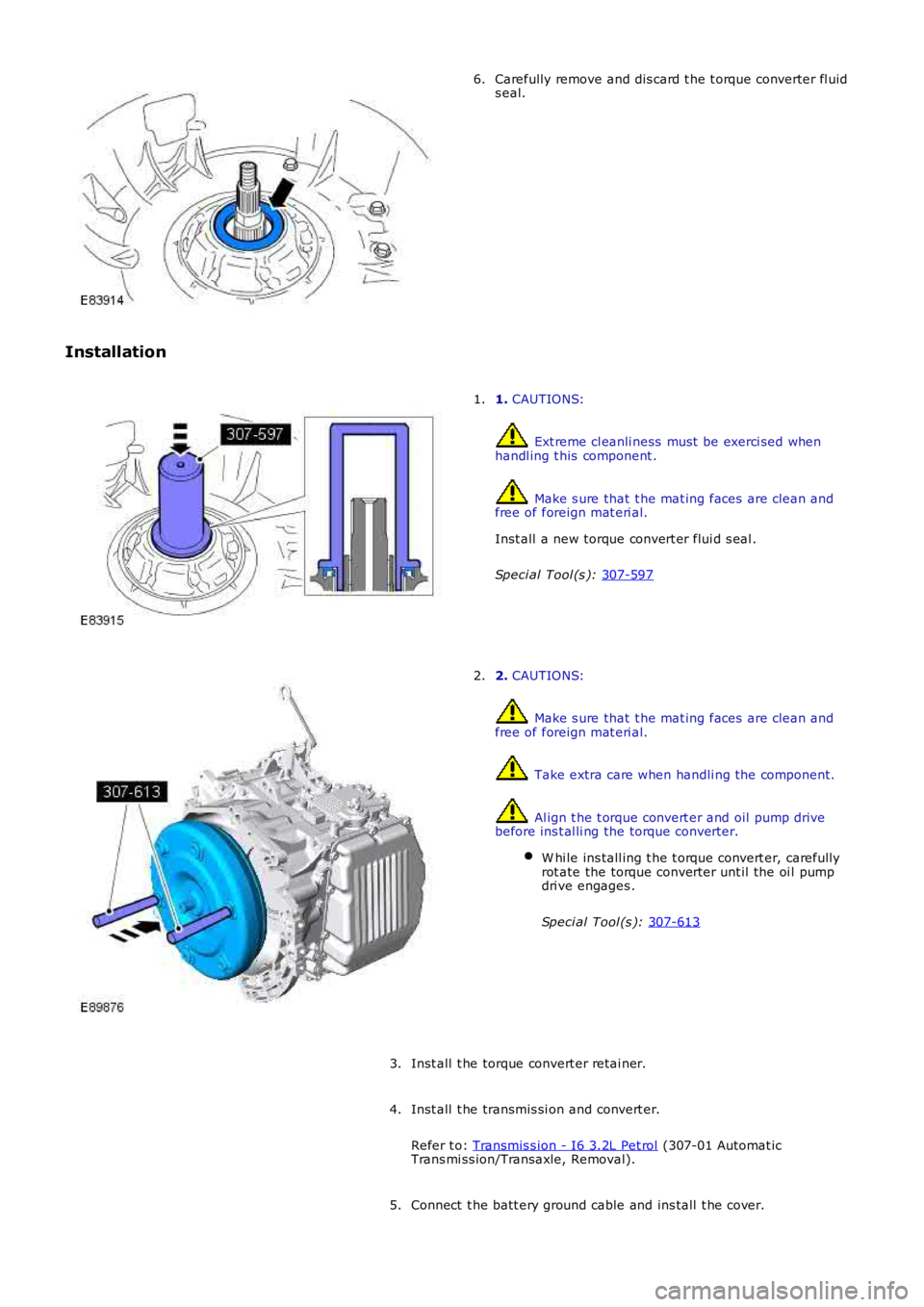

Carefully remove and dis card t he t orque converter fl uid
s eal.
6.
Installation 1.
CAUTIONS: Ext reme cl eanli ness must be exerci sed when
handl ing t his component . Make s ure that t he mat ing faces are clean and
free of foreign mat eri al.
Inst all a new torque convert er flui d s eal .
Speci al Tool (s ): 307-597 1.
2.
CAUTIONS: Make s ure that t he mat ing faces are clean and
free of foreign mat eri al. Take extra care when handli ng the component.
Al ign t he t orque convert er and oil pump drive
before ins t al li ng the torque converter.
W hi le ins tall ing t he t orque convert er, carefully
rot ate the torque converter unt il the oi l pump
dri ve engages .
Speci al Tool (s ): 307-613 2.
Inst all t he torque convert er retai ner.
3.
Inst all t he transmis si on and convert er.
Refer t o: Transmis s ion - I6 3.2L Pet rol (307-01 Automat ic
Trans mi ss ion/Transaxle, Removal).
4.
Connect t he batt ery ground cable and ins tall t he cover.
5.

Publi s hed: 11-May-2011

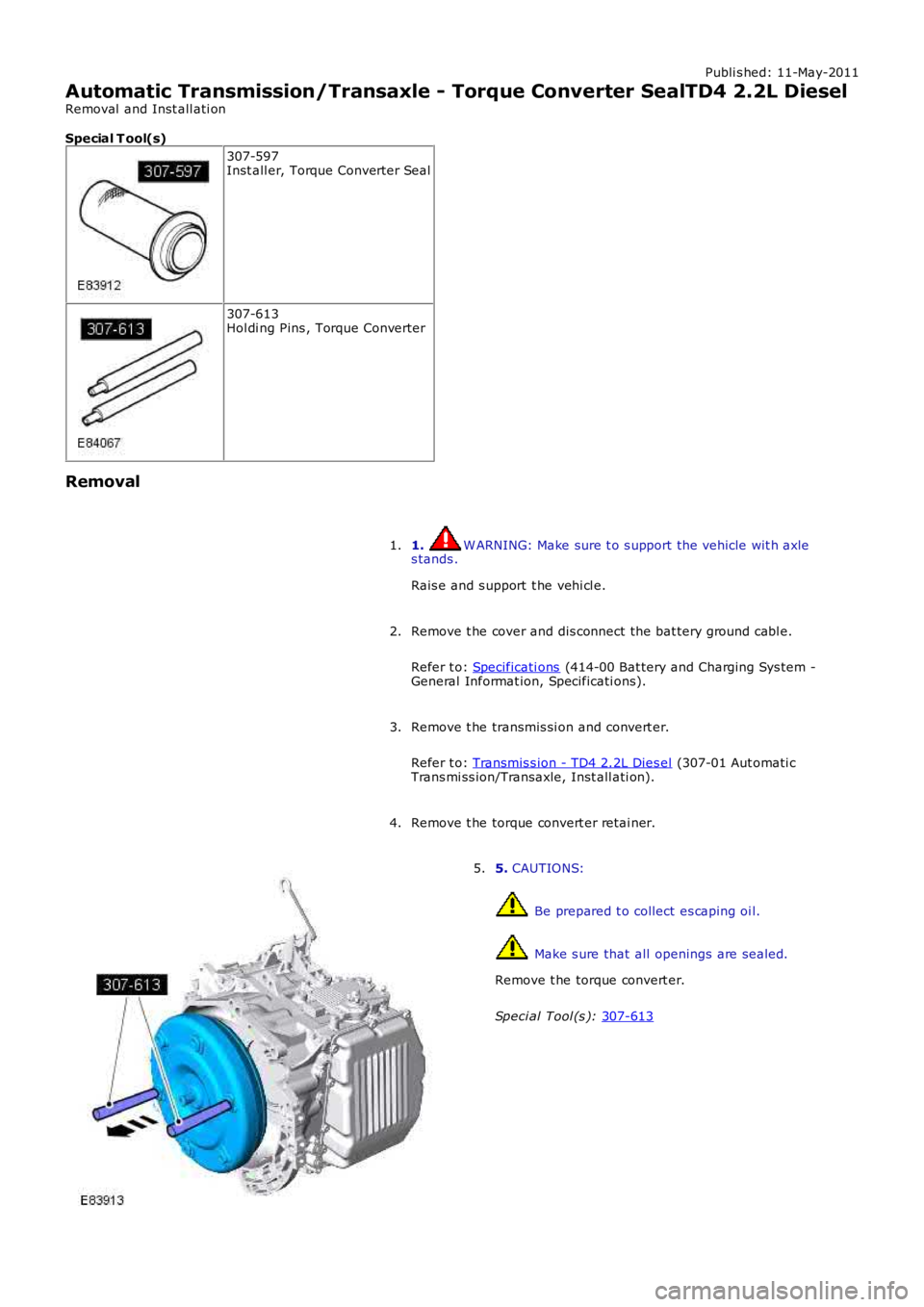

Automatic Transmission/Transaxle - Torque Converter SealTD4 2.2L Diesel
Removal and Inst all ati on
Special T ool(s) 307-597
Inst all er, Torque Converter Seal 307-613
Hol di ng Pins , Torque Converter
Removal 1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
2.
Remove t he transmis si on and convert er.
Refer t o: Transmis s ion - TD4 2.2L Dies el (307-01 Aut omati c
Trans mi ss ion/Transaxle, Inst all ati on).
3.
Remove t he torque convert er retai ner.
4. 5.
CAUTIONS: Be prepared t o collect es caping oi l.
Make s ure that all openings are sealed.
Remove t he torque convert er.
Speci al Tool (s ): 307-613 5.

Carefully remove and dis card t he t orque converter fl uid
s eal.
6.
Installation 1.
CAUTIONS: Ext reme cl eanli ness must be exerci sed when
handl ing t his component . Make s ure that t he mat ing faces are clean and
free of foreign mat eri al.
Inst all a new torque convert er flui d s eal .
Speci al Tool (s ): 307-597 1.
2.
CAUTIONS: Make s ure that t he mat ing faces are clean and
free of foreign mat eri al. Take extra care when handli ng the component.
Al ign t he t orque convert er and oil pump drive
before ins t al li ng the torque converter.
W hi le ins tall ing t he t orque convert er, carefully
rot ate the torque converter unt il the oi l pump
dri ve engages .
Speci al Tool (s ): 307-613 2.
Inst all t he torque convert er retai ner.
3.
Inst all t he transmis si on and convert er.
Refer t o: Transmis s ion - TD4 2.2L Dies el (307-01 Aut omati c
Trans mi ss ion/Transaxle, Inst all ati on).
4.
Connect t he batt ery ground cable and ins tall t he cover.
5.

Publi s hed: 11-May-2011

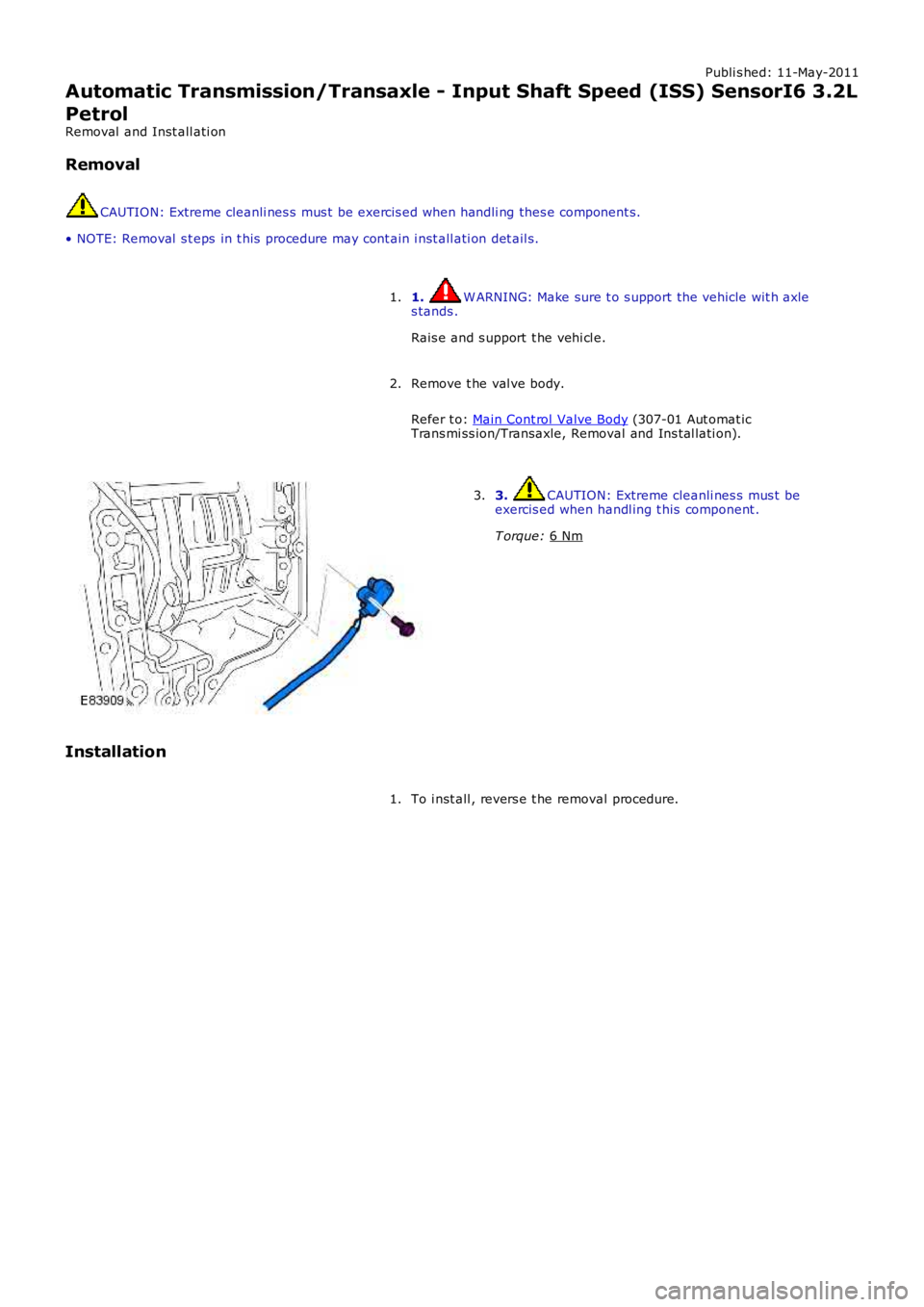

Automatic Transmission/Transaxle - Input Shaft Speed (ISS) SensorI6 3.2L
Petrol
Removal and Inst all ati on
Removal CAUTION: Extreme cleanli nes s mus t be exercis ed when handli ng thes e component s.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
1. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
1.
Remove t he val ve body.
Refer t o: Main Cont rol Valve Body (307-01 Aut omat ic
Trans mi ss ion/Transaxle, Removal and Ins tal lati on).
2. 3. CAUTION: Extreme cleanli nes s mus t be
exercis ed when handl ing t his component .
T orque: 6 Nm 3.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

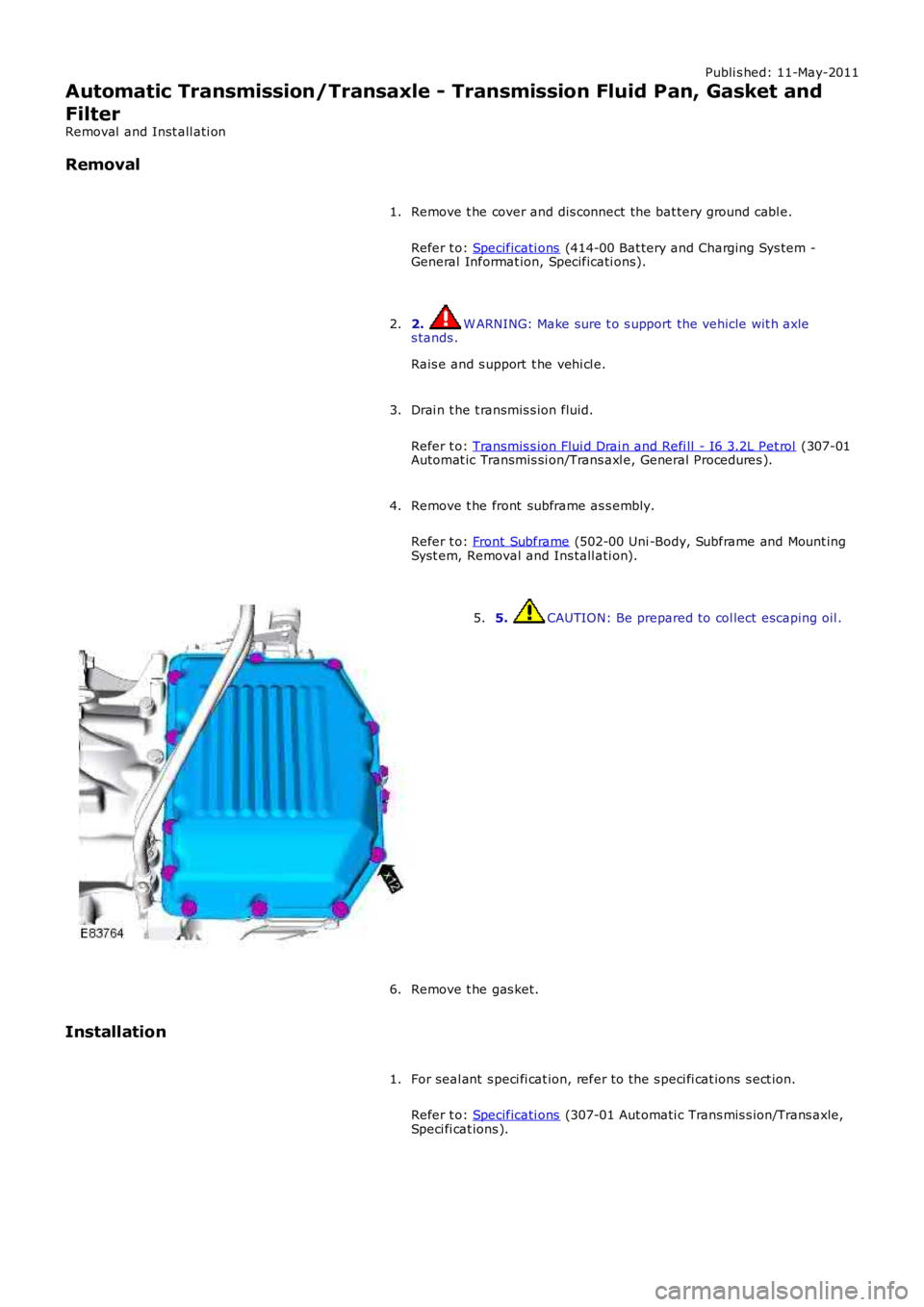

Automatic Transmission/Transaxle - Transmission Fluid Pan, Gasket and
Filter
Removal and Inst all ati on
Removal
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
2. W ARNING: Make sure t o s upport the vehicle wit h axles tands .
Rais e and s upport t he vehi cl e.
2.
Drai n t he t ransmis s ion fluid.
Refer t o: Transmis s ion Flui d Drai n and Refi ll - I6 3.2L Pet rol (307-01Automat ic Transmis si on/Trans axl e, General Procedures ).
3.
Remove t he front subframe as s embly.
Refer t o: Front Subframe (502-00 Uni -Body, Subframe and Mount ingSyst em, Removal and Ins tall ati on).
4.
5. CAUTION: Be prepared to col lect escaping oil .5.
Remove t he gas ket.6.
Installation
For seal ant s peci fi cat ion, refer to t he s peci fi cat ions s ect ion.
Refer t o: Specificati ons (307-01 Aut omati c Trans mis s ion/Trans axle,Speci fi cat ions ).
1.

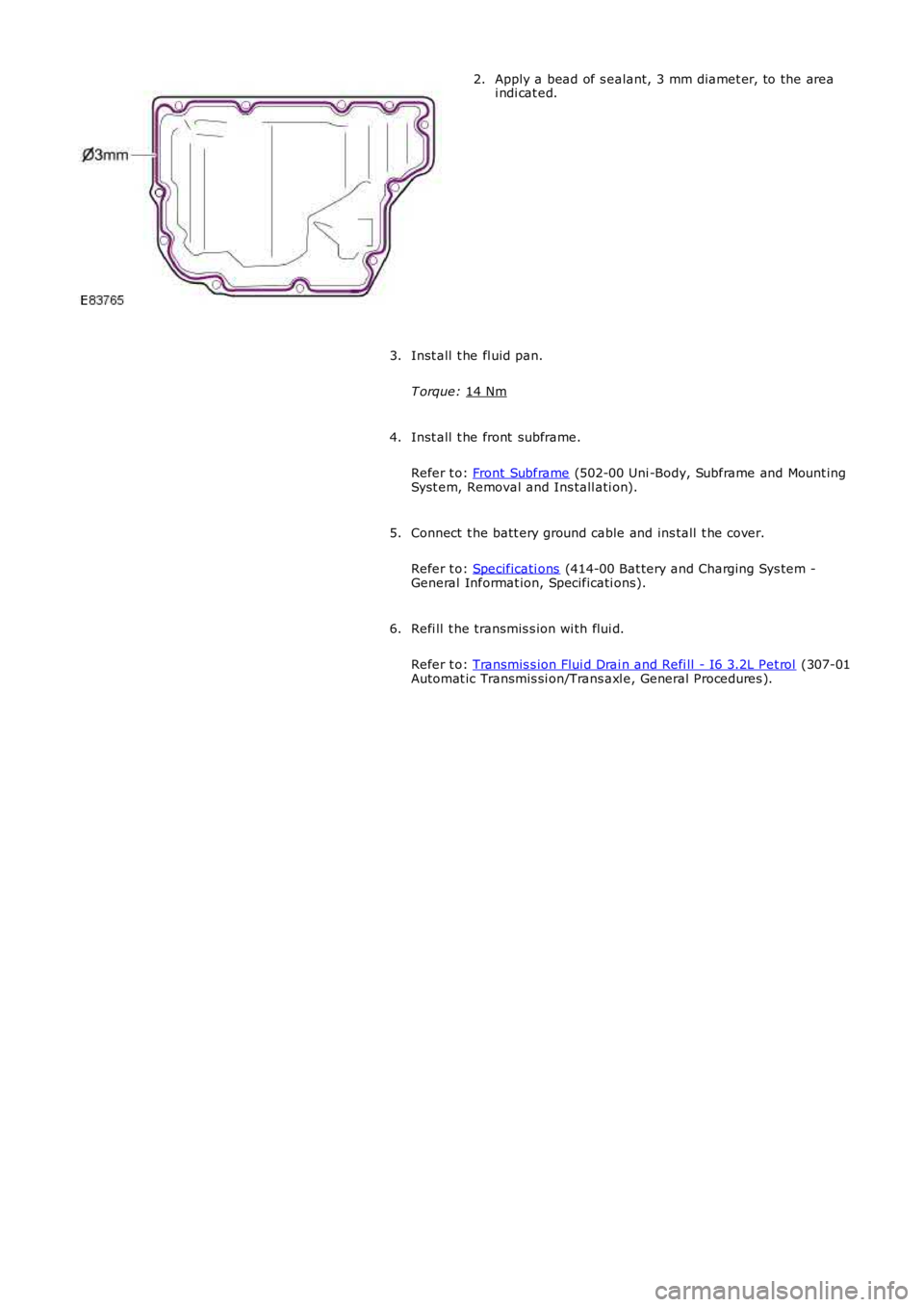

Apply a bead of s ealant, 3 mm diamet er, to the area
i ndi cat ed.
2.
Inst all t he fl uid pan.
T orque: 14 Nm 3.
Inst all t he front subframe.
Refer t o: Front Subframe (502-00 Uni -Body, Subframe and Mount ing
Syst em, Removal and Ins tall ati on).
4.
Connect t he batt ery ground cable and ins tall t he cover.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
5.
Refi ll t he transmis s ion wi th flui d.
Refer t o: Transmis s ion Flui d Drai n and Refi ll - I6 3.2L Pet rol (307-01
Automat ic Transmis si on/Trans axl e, General Procedures ).
6.
