LAND ROVER FRELANDER 2 2006 Repair Manual

Publi s hed: 11-May-2011

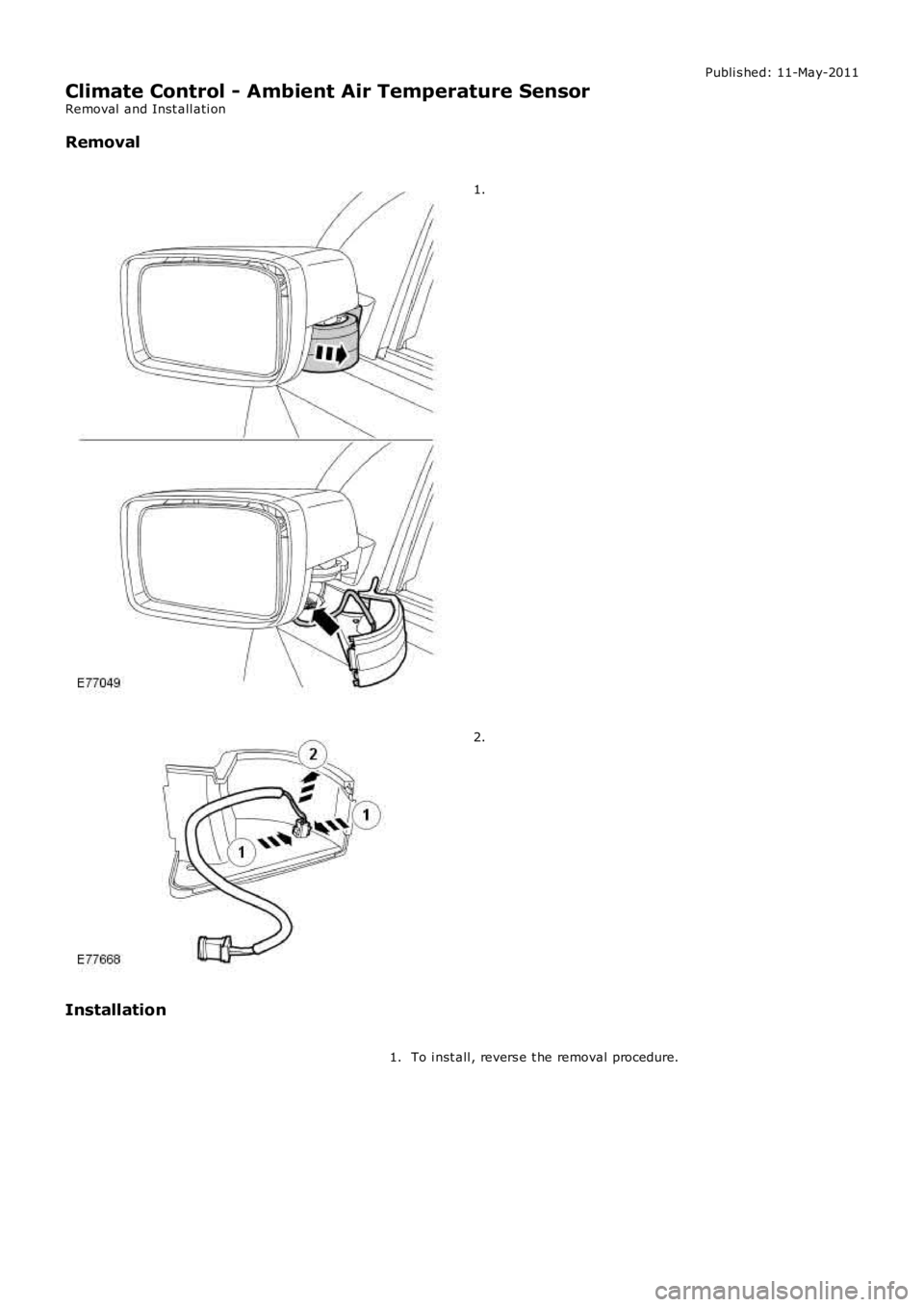

Climate Control - Ambient Air Temperature Sensor
Removal and Inst all ati on
Removal 1.
2.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011
Climate Control - Air Conditioning (A/C) CompressorI6 3.2L Petrol
Removal and Inst all ati on
Removal
CAUTION: Make s ure that the specified amount of refrigerant oi l is added.
Remove t he cover and dis connect the bat tery ground cabl e.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
1.
Recover t he air condi ti oni ng (A/C) refri gerant .
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on andCharging (412-00 Cl imat e Control Sys t em - General Informat ion,General Procedures).
2.
Remove t he engi ne cover.
Refer t o: Engi ne Cover - I6 3.2L Pet rol (501-05 Int eri or Trim andOrnament ati on, Removal and Ins tal lat ion).
3.
Remove t he bat t ery t ray.
Refer t o: Bat t ery Tray (414-01 Bat tery, Mount ing and Cables ,Removal and Ins tall ati on).
4.
Remove t he air cleaner as s embly.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -I6 3.2L Pet rol, Removal and Ins t al lat ion).
5.
Remove t he A/C compress or, upper s upport bracket.6.
Remove t he A/C compress or, l ower support bracket.7.Us ing s uit able t ools , rel eas e t he acces s ory drive beltt ens i on.8.9. CAUTIONS:
Make s ure that all openings are sealed. Us e newblanking caps.
Ext reme cl eanli ness must be exerci sed whenhandl ing t hese components .
Di sconnect t he A/C compress or refri gerant lines .
9.

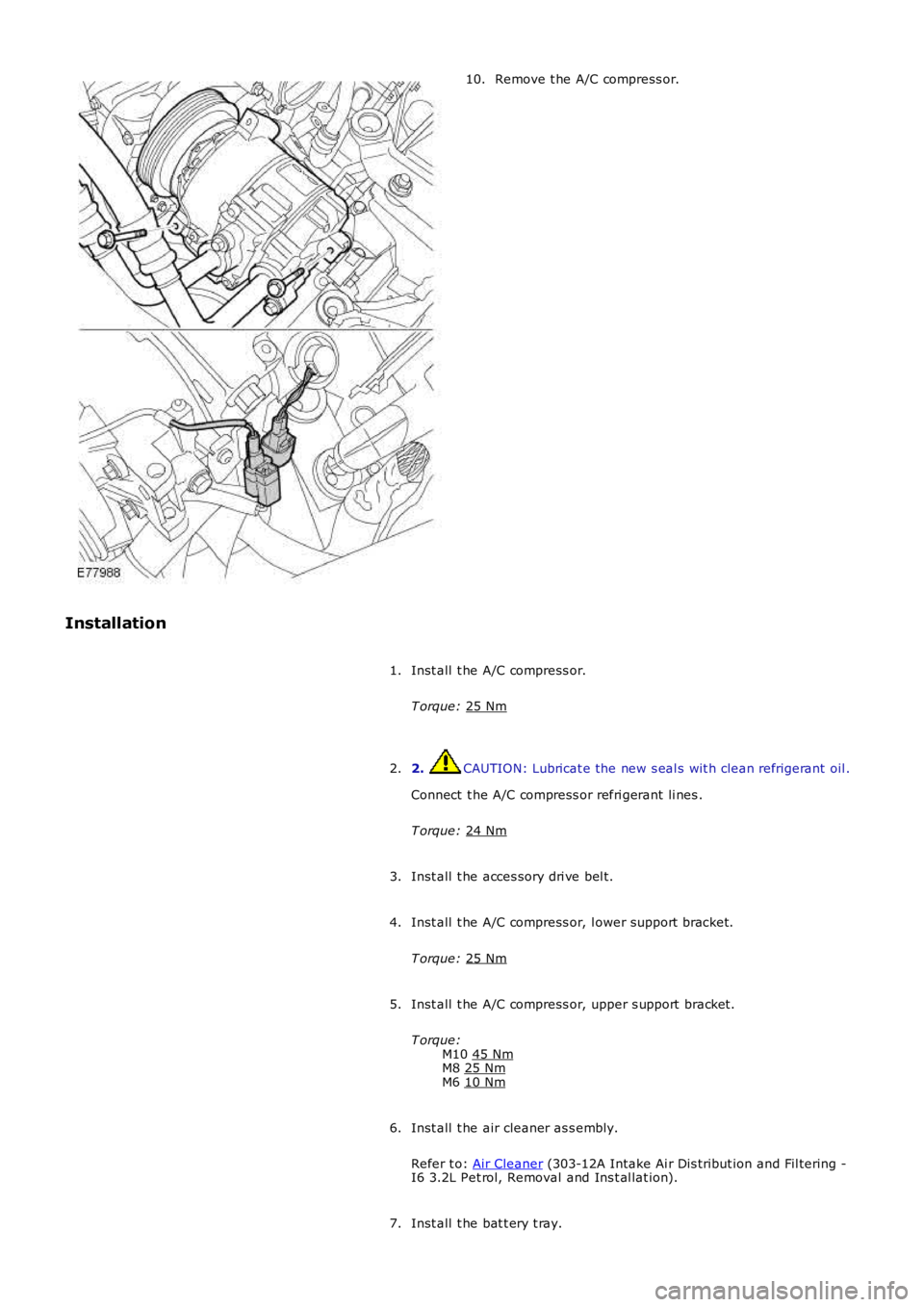

Remove t he A/C compress or.
10.
Installation Inst all t he A/C compress or.
T orque: 25 Nm 1.
2. CAUTION: Lubricat e the new s eal s wit h clean refrigerant oil .
Connect t he A/C compress or refri gerant li nes .
T orque: 24 Nm 2.
Inst all t he acces sory dri ve bel t.
3.
Inst all t he A/C compress or, l ower support bracket.
T orque: 25 Nm 4.
Inst all t he A/C compress or, upper s upport bracket.
T orque: M10 45 Nm M8
25 Nm M6
10 Nm 5.
Inst all t he air cleaner as s embly.
Refer t o: Air Cleaner (303-12A Intake Ai r Dis tribut ion and Fil tering -
I6 3.2L Pet rol, Removal and Ins t al lat ion).
6.
Inst all t he bat t ery t ray.
7.

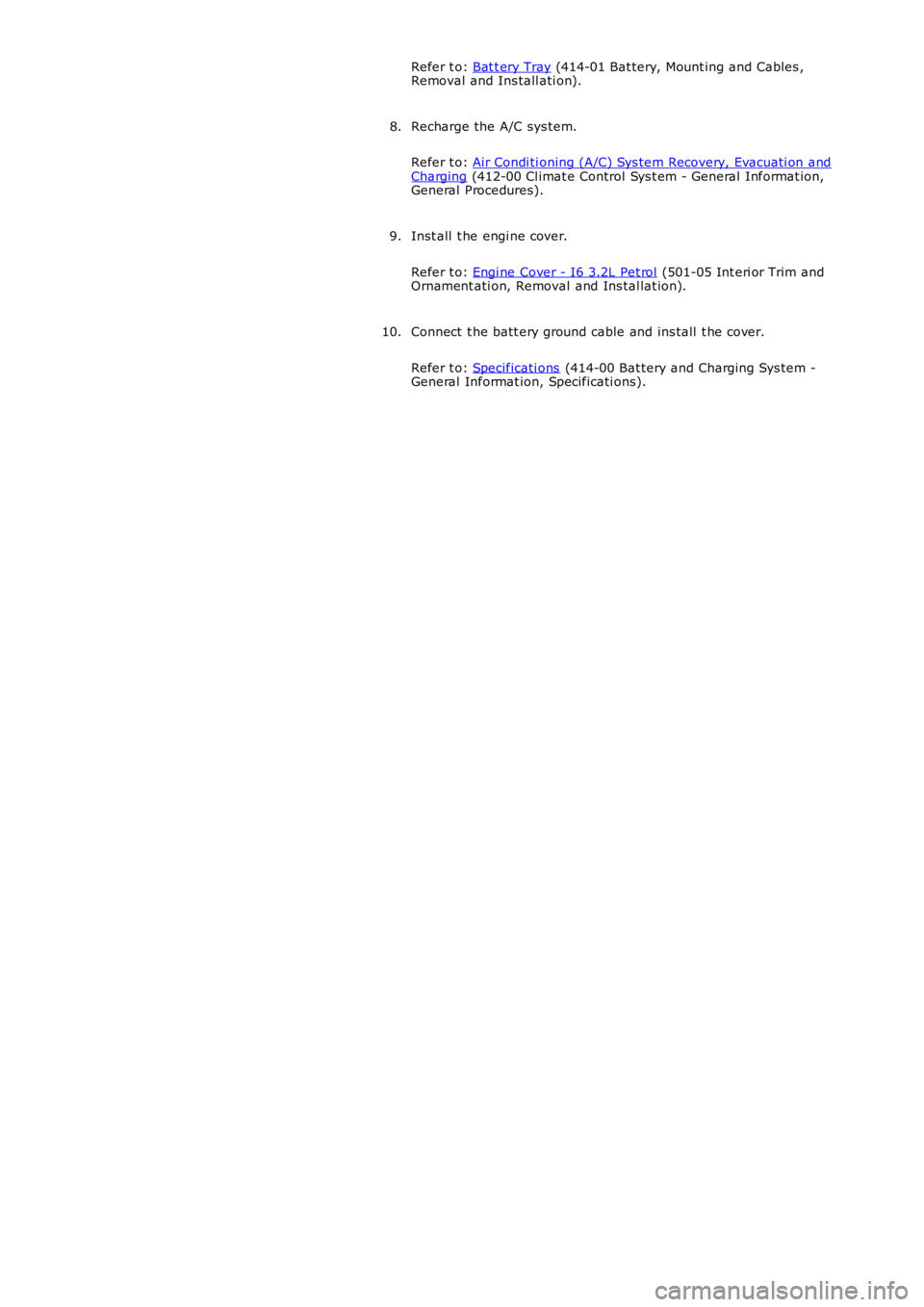

Refer t o: Bat t ery Tray (414-01 Bat tery, Mount ing and Cables ,Removal and Ins tall ati on).
Recharge the A/C sys tem.
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on andCharging (412-00 Cl imat e Control Sys t em - General Informat ion,General Procedures).
8.
Inst all t he engi ne cover.
Refer t o: Engi ne Cover - I6 3.2L Pet rol (501-05 Int eri or Trim andOrnament ati on, Removal and Ins tal lat ion).
9.
Connect t he batt ery ground cable and ins tall t he cover.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -General Informat ion, Specificati ons).
10.

Publi s hed: 11-May-2011

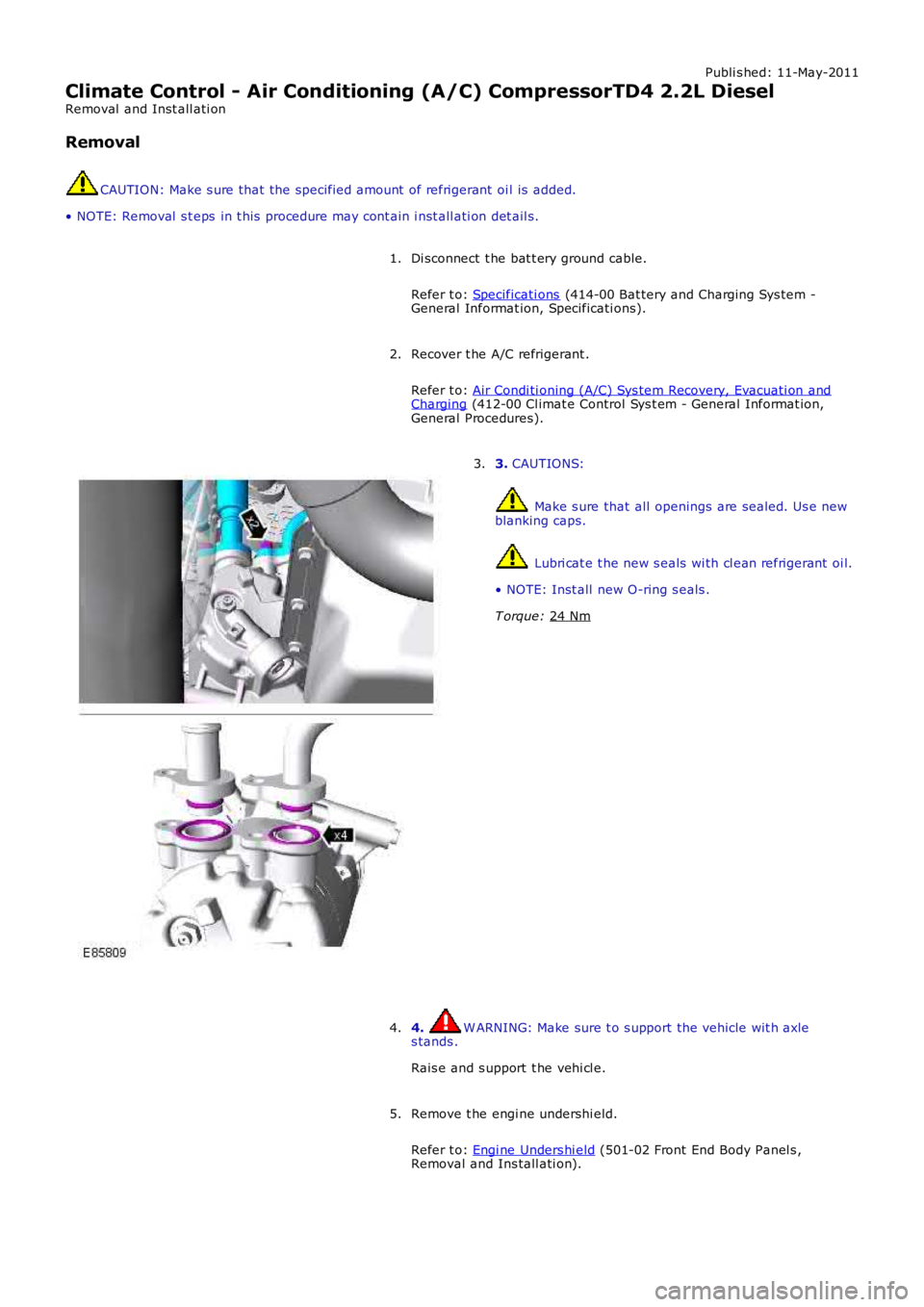

Climate Control - Air Conditioning (A/C) CompressorTD4 2.2L Diesel
Removal and Inst all ati on
Removal CAUTION: Make s ure that the specified amount of refrigerant oi l is added.
• NOTE: Removal s t eps in t his procedure may cont ain i nst all ati on det ail s.
Di sconnect t he bat t ery ground cable.
Refer t o: Specificati ons (414-00 Bat tery and Charging Sys tem -
General Informat ion, Specificati ons).
1.
Recover t he A/C refrigerant .
Refer t o: Air Condi ti oning (A/C) Sys tem Recovery, Evacuati on and Charging (412-00 Cl imat e Control Sys t em - General Informat ion,
General Procedures).
2. 3.
CAUTIONS: Make s ure that all openings are sealed. Us e new
blanking caps. Lubri cat e t he new s eals wi th cl ean refrigerant oi l.
• NOTE: Inst all new O-ring s eals .
T orque: 24 Nm 3.
4. W ARNING: Make sure t o s upport the vehicle wit h axle
s tands .
Rais e and s upport t he vehi cl e.
4.
Remove t he engi ne undershi eld.
Refer t o: Engi ne Unders hi eld (501-02 Front End Body Panel s ,
Removal and Ins tall ati on).
5.

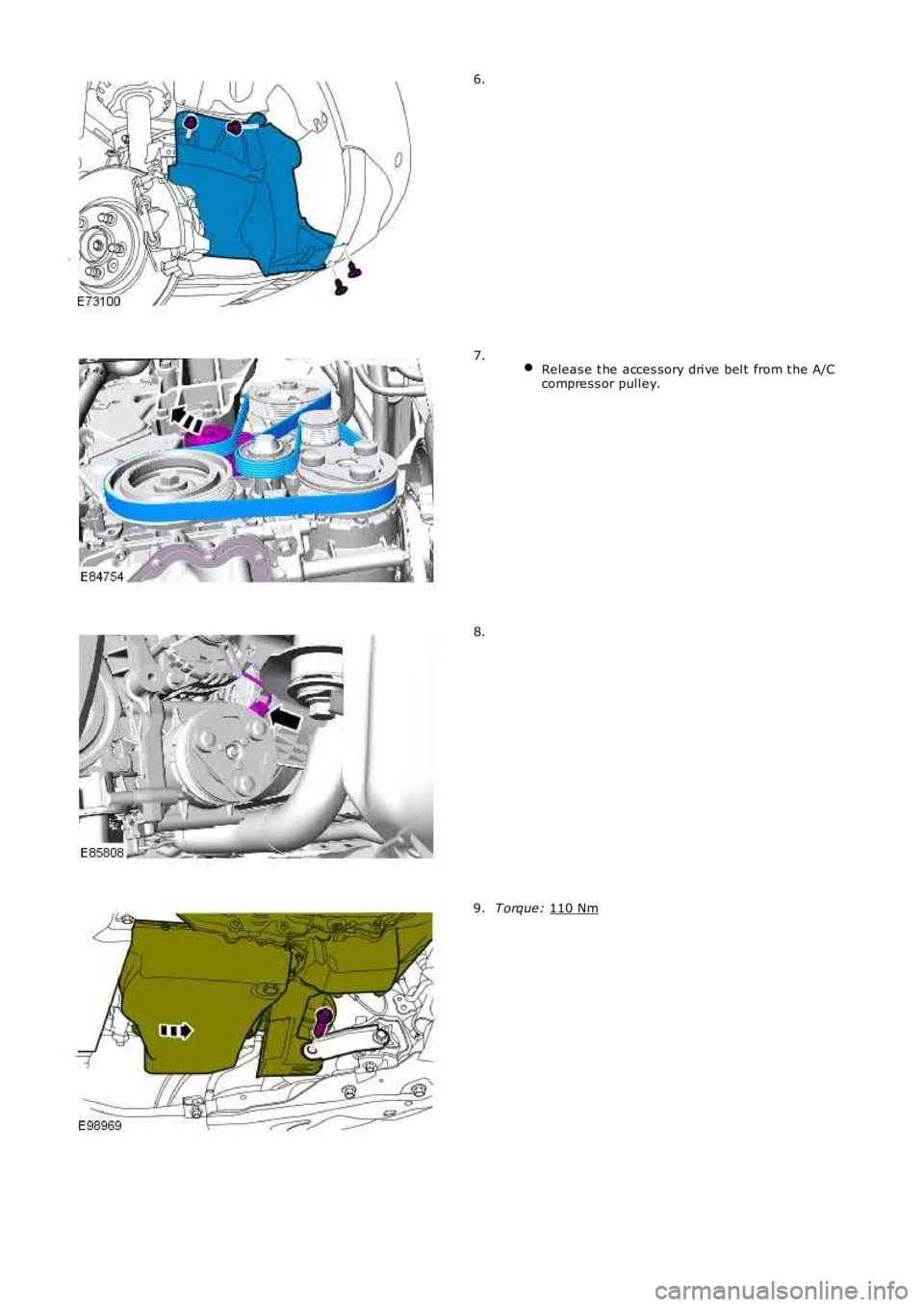

6.

Releas e t he acces sory dri ve bel t from t he A/C
compres s or pull ey. 7.
8.
T orque:
110 Nm 9.

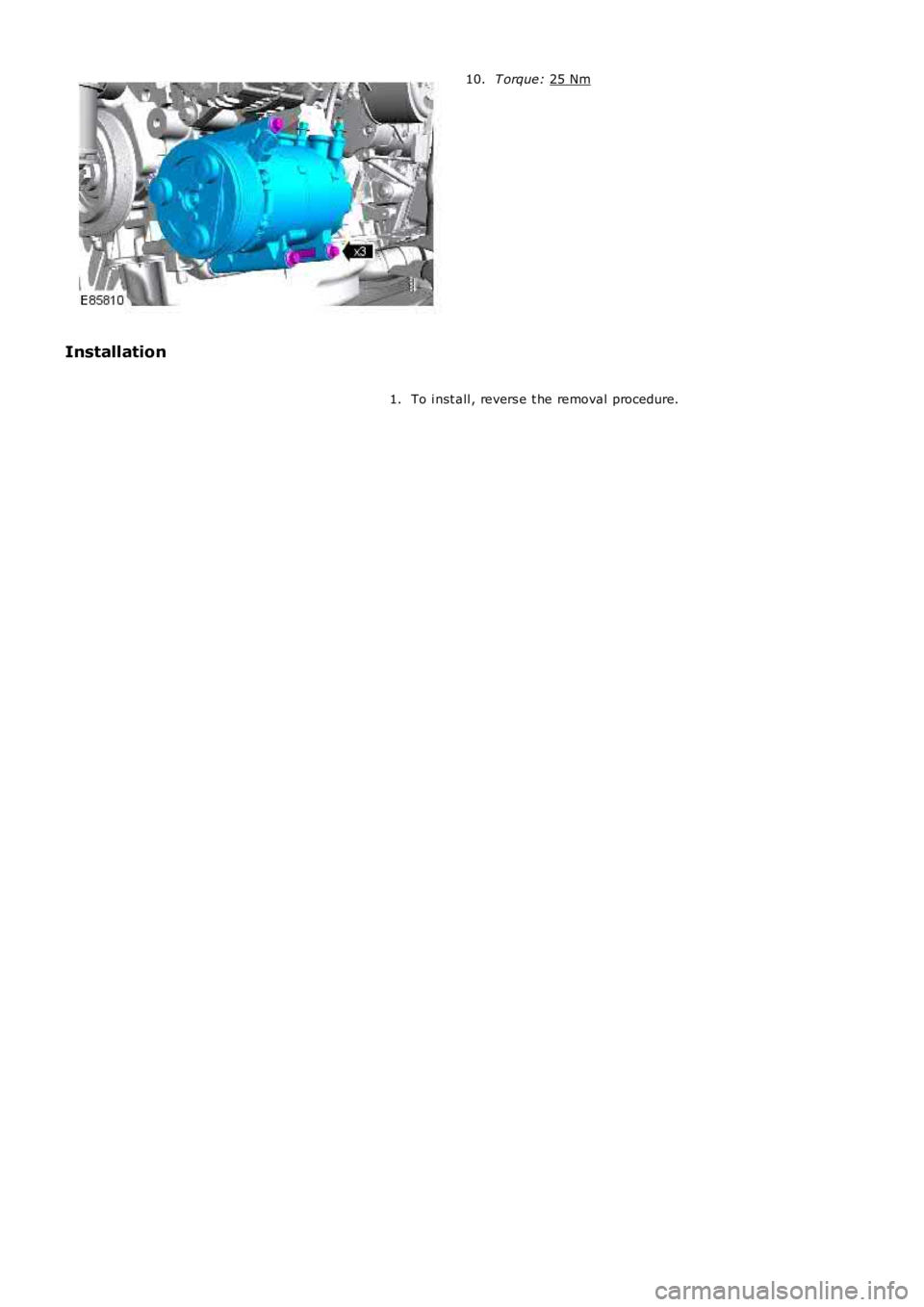

T orque:
25 Nm 10.
Installation To i nst all , revers e t he removal procedure.
1.

Publi s hed: 11-May-2011

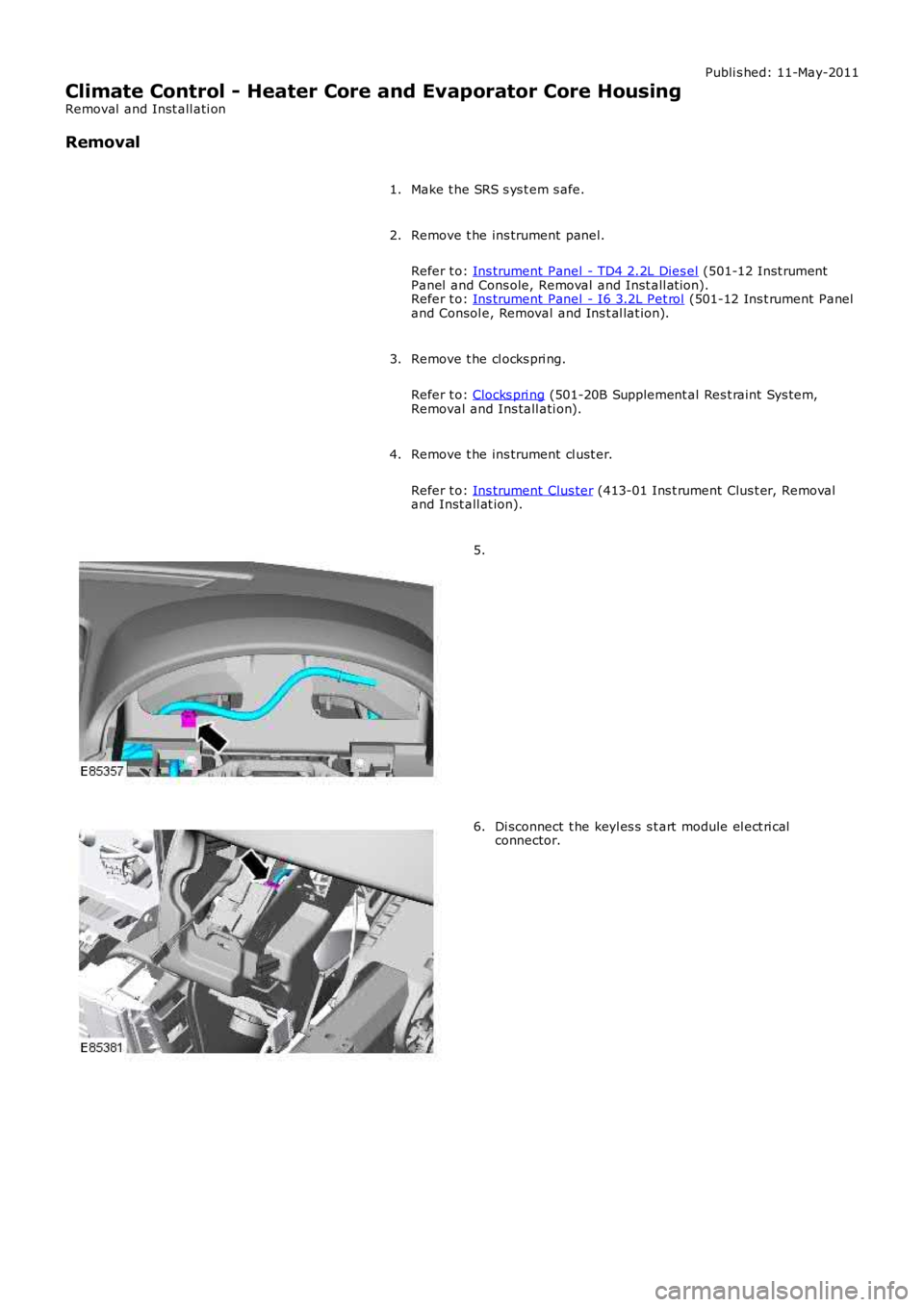

Climate Control - Heater Core and Evaporator Core Housing
Removal and Inst all ati on
Removal
Make t he SRS s ys t em s afe.1.
Remove t he ins trument panel.
Refer t o: Ins trument Panel - TD4 2.2L Dies el (501-12 Inst rumentPanel and Cons ole, Removal and Inst all at ion).Refer t o: Ins trument Panel - I6 3.2L Pet rol (501-12 Ins t rument Paneland Consol e, Removal and Ins t al lat ion).
2.
Remove t he cl ocks pri ng.
Refer t o: Clocks pri ng (501-20B Supplement al Res t raint Sys tem,Removal and Ins tall ati on).
3.
Remove t he ins trument cl ust er.
Refer t o: Ins trument Clus ter (413-01 Ins t rument Clus t er, Removaland Inst all at ion).
4.
5.
Di sconnect t he keyl es s s t art module el ect ri calconnector.6.

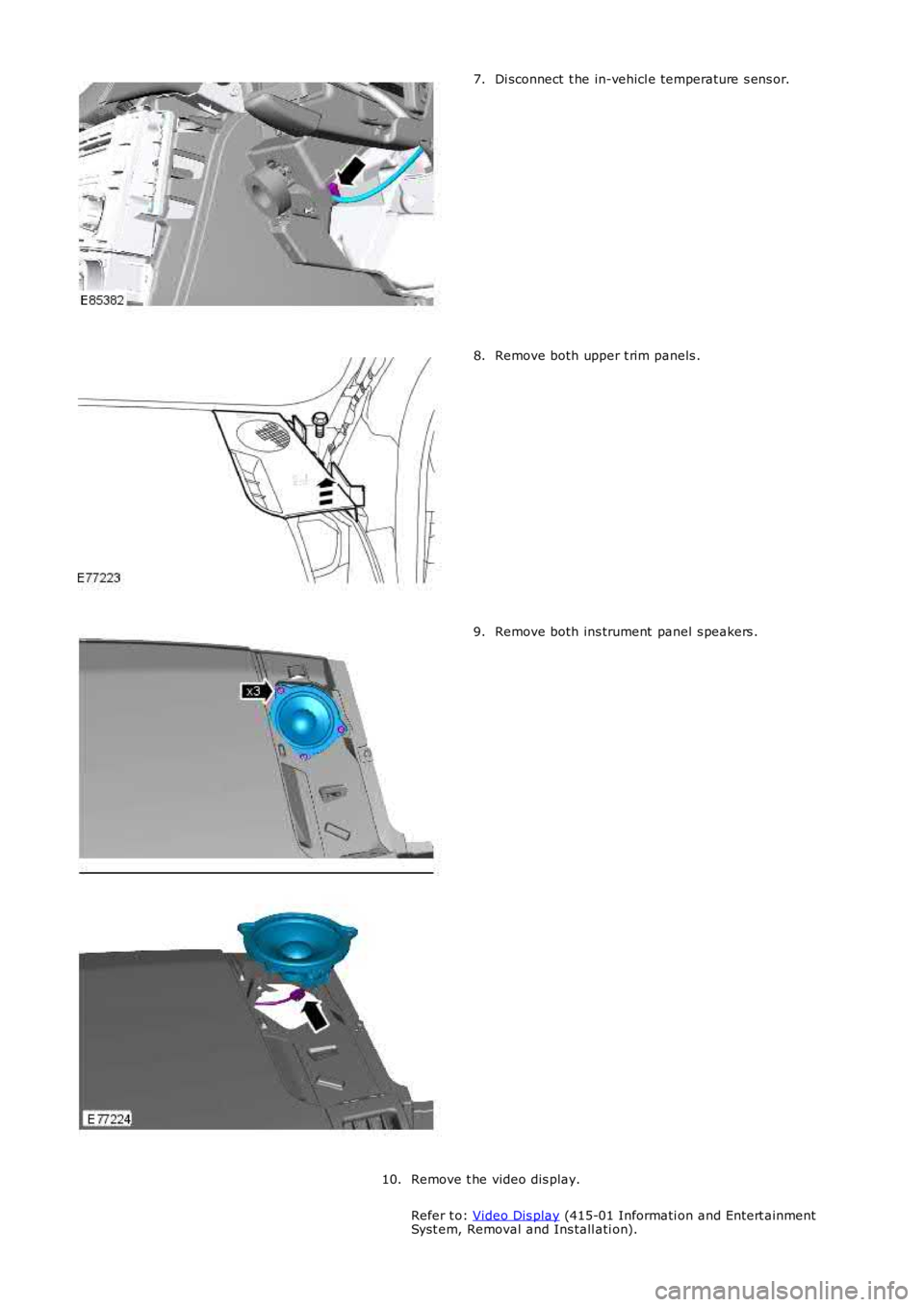

Di sconnect t he in-vehicl e temperature s ens or.7.
Remove both upper t rim panels .8.
Remove both ins trument panel s peakers .9.
Remove t he video dis play.
Refer t o: Video Dis play (415-01 Informati on and Entert ainmentSyst em, Removal and Ins tall ati on).
10.

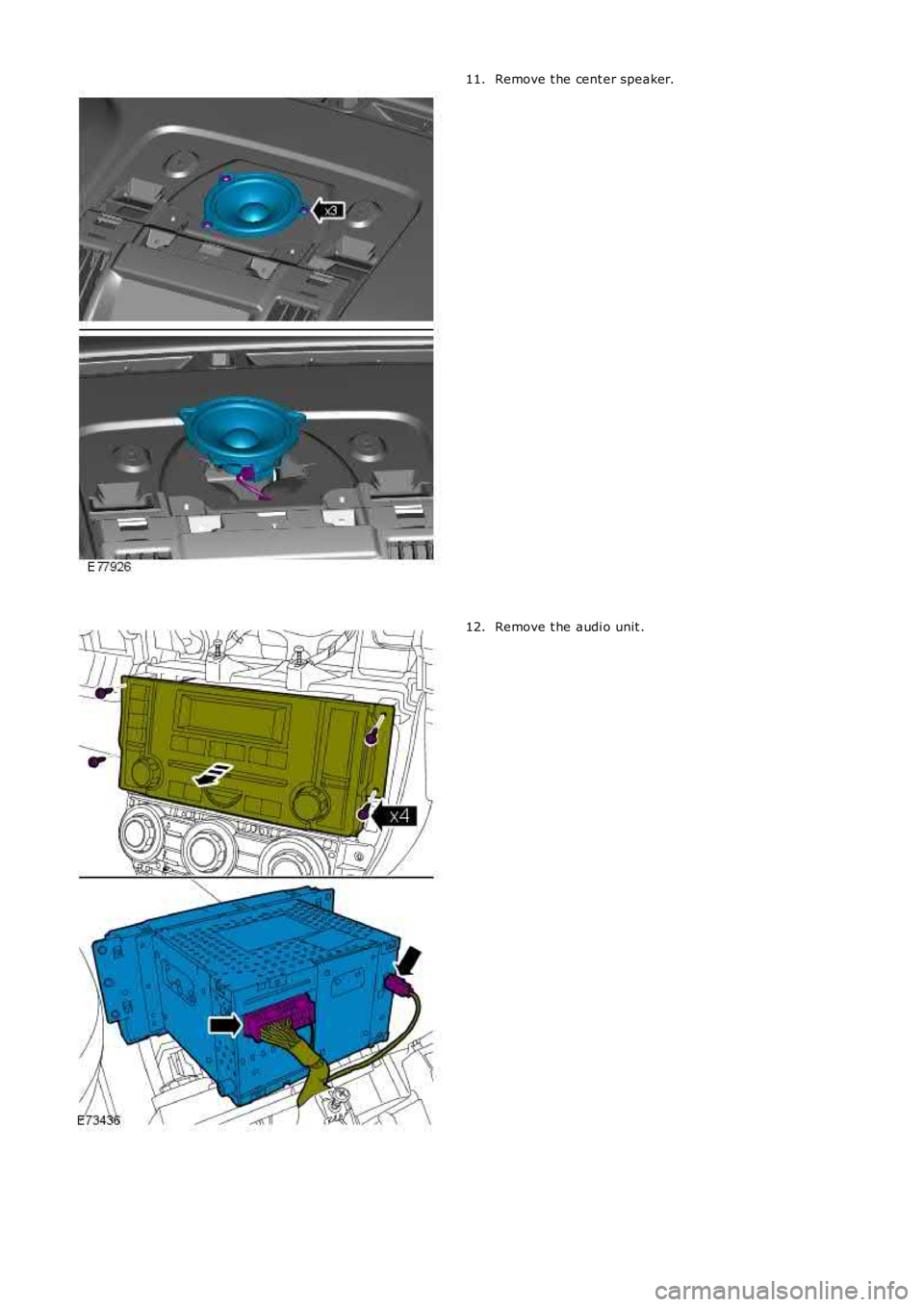

Remove t he cent er speaker.11.
Remove t he audi o unit .12.
