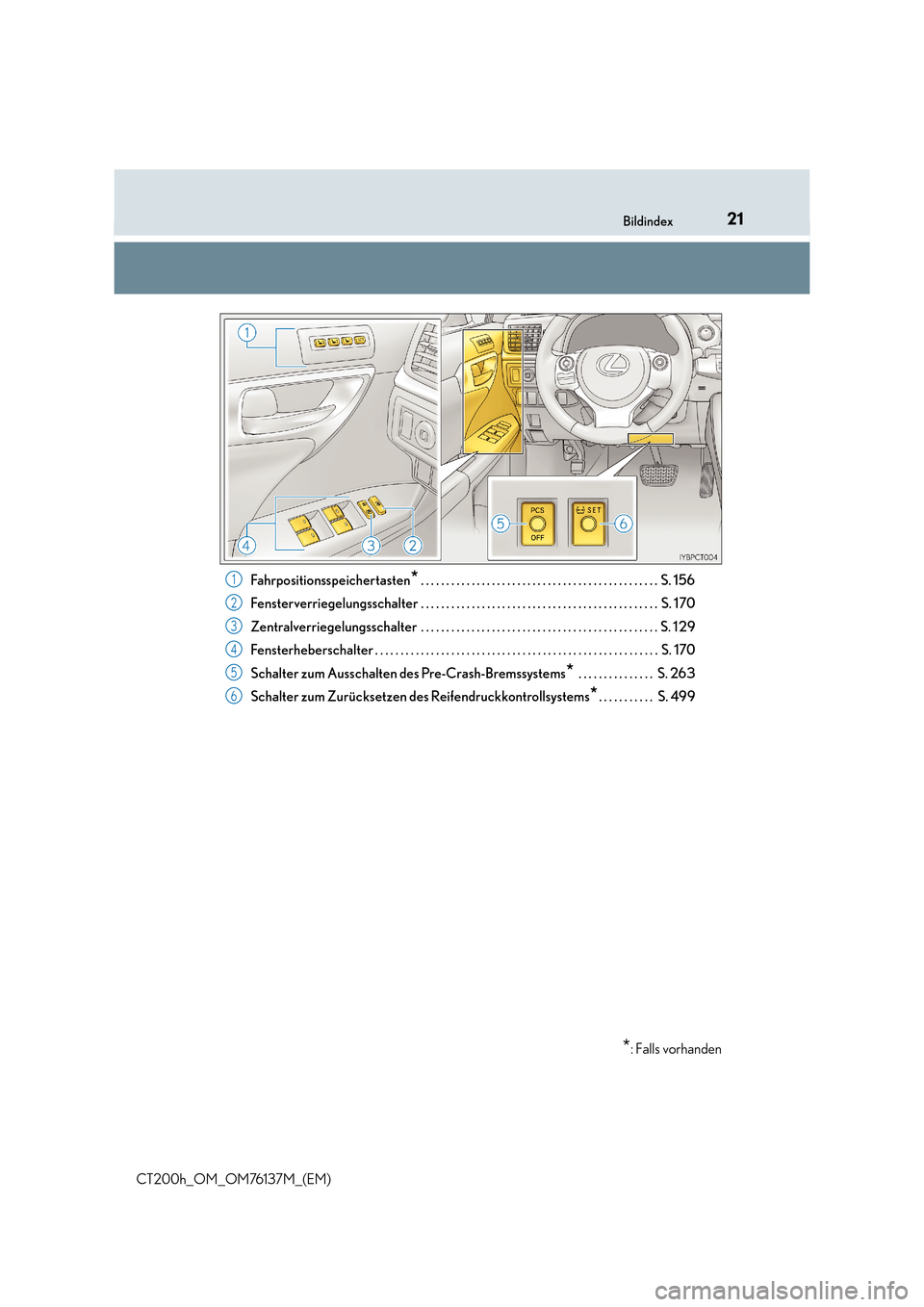

CT200h_OM_OM76137M_(EM)Fahrpositionsspeichertasten
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 156
Fensterverriegelungsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 1 70
Zentralverriegelungsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 1 29
Fensterheberschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 170
Schalter zum Ausschalten des Pre-Crash-Bremssystems
* . . . . . . . . . . . . . . . S. 263
Schalter zum Zurücksetzen des Reifendruckkontrollsystems
*. . . . . . . . . . . S. 499
*: Falls vorhanden
1
2
3
4
5
6
Page 22 of 664
22Bildindex

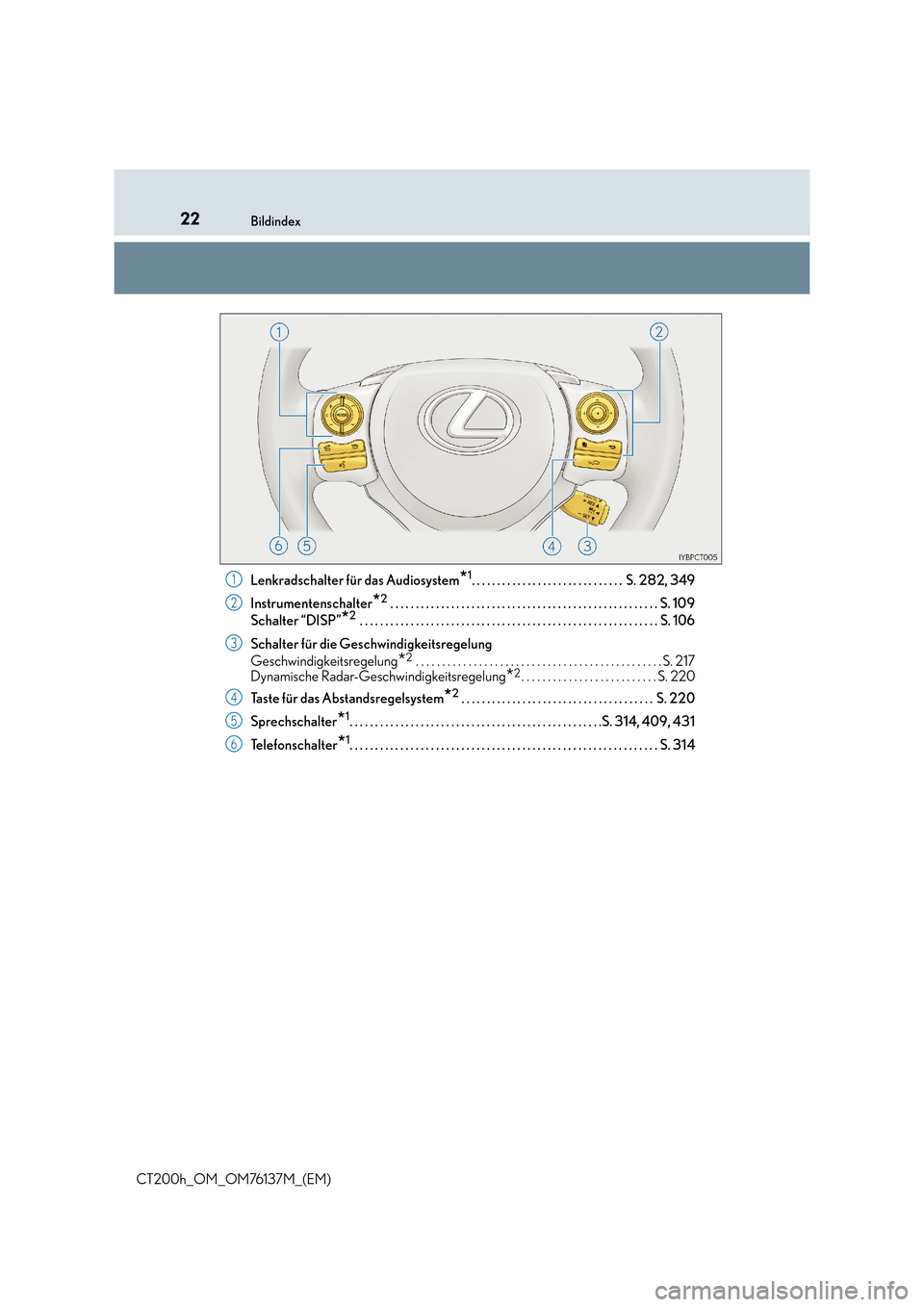

CT200h_OM_OM76137M_(EM)Lenkradschalter für das Audiosystem
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 282, 349
Instrumentenschalter
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 109
Schalter “DISP”
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 106
Schalter für die Geschwindigkeitsregelung
Geschwindigkeitsregelung
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 217
Dynamische Radar-Geschwindigkeitsregelung
*2. . . . . . . . . . . . . . . . . . . . . . . . . . S. 220
Taste für das Abstandsregelsystem
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 220
Sprechschalter
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 314, 409, 431
Te l e f o n s c h a l t e r
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 31 4
1
2
3
4
5
6
Page 23 of 664
23Bildindex

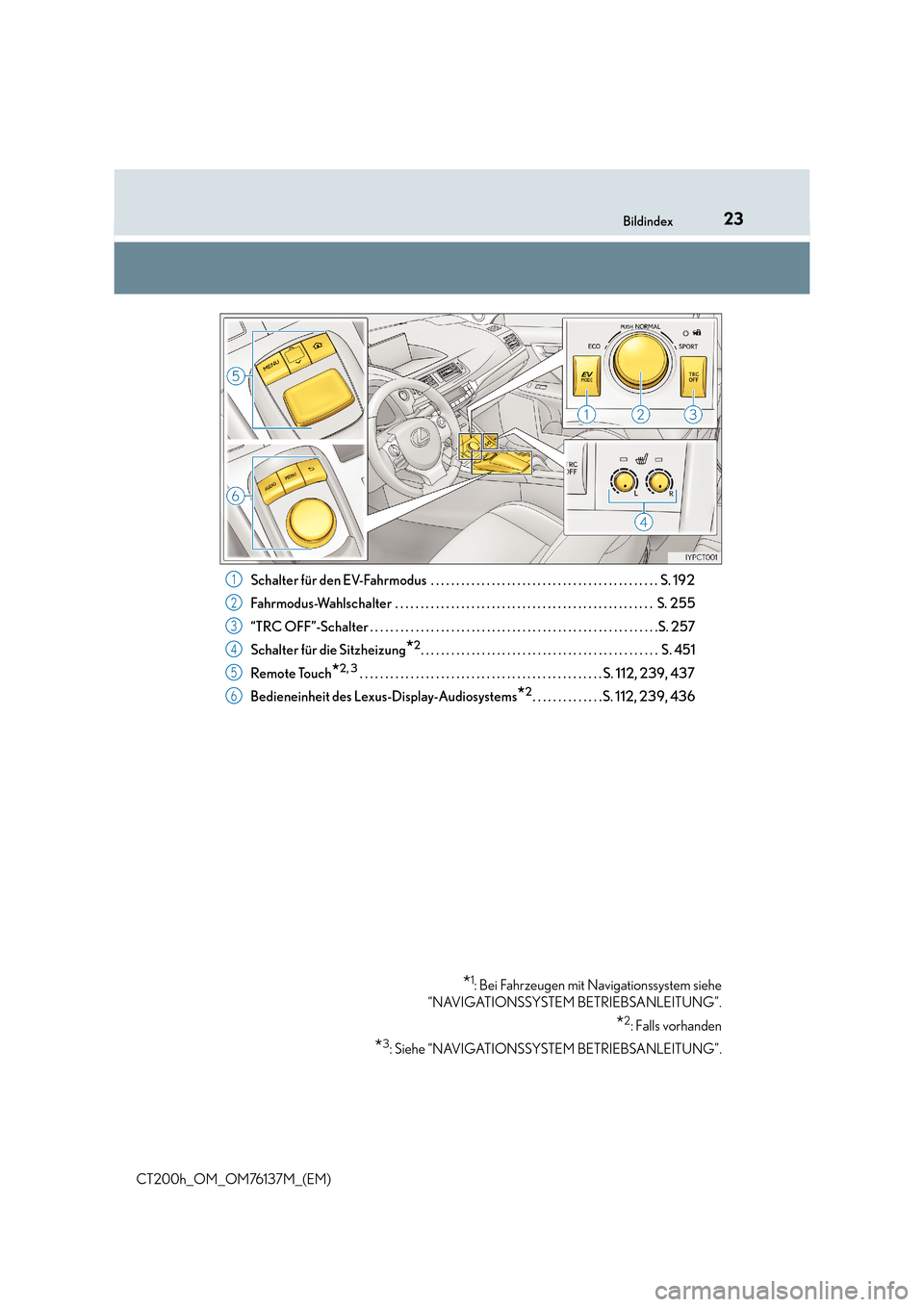

CT200h_OM_OM76137M_(EM)Schalter für den EV-Fahrmodus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 192
Fahrmodus-Wahlschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S.
255
“TRC OFF”-Schalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 257
Schalter für die Sitzheizung
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 451
Remote Touch
*2, 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 112, 239, 437
Bedieneinheit des Lexus-Display-Audiosystems
*2. . . . . . . . . . . . . .S. 112, 239, 436
*1: Bei Fahrzeugen mit Navigationssystem siehe
“NAVIGATIONSSYSTEM BETRIEBSANLEITUNG”.
*2: Falls vorhanden
*3: Siehe “NAVIGATIONSSYSTEM BETRIEBSANLEITUNG”.
1
2
3
4
5
6
Page 24 of 664
24Bildindex
CT200h_OM_OM76137M_(EM)
■Innen (Fahrzeuge mit Linkslenkung)

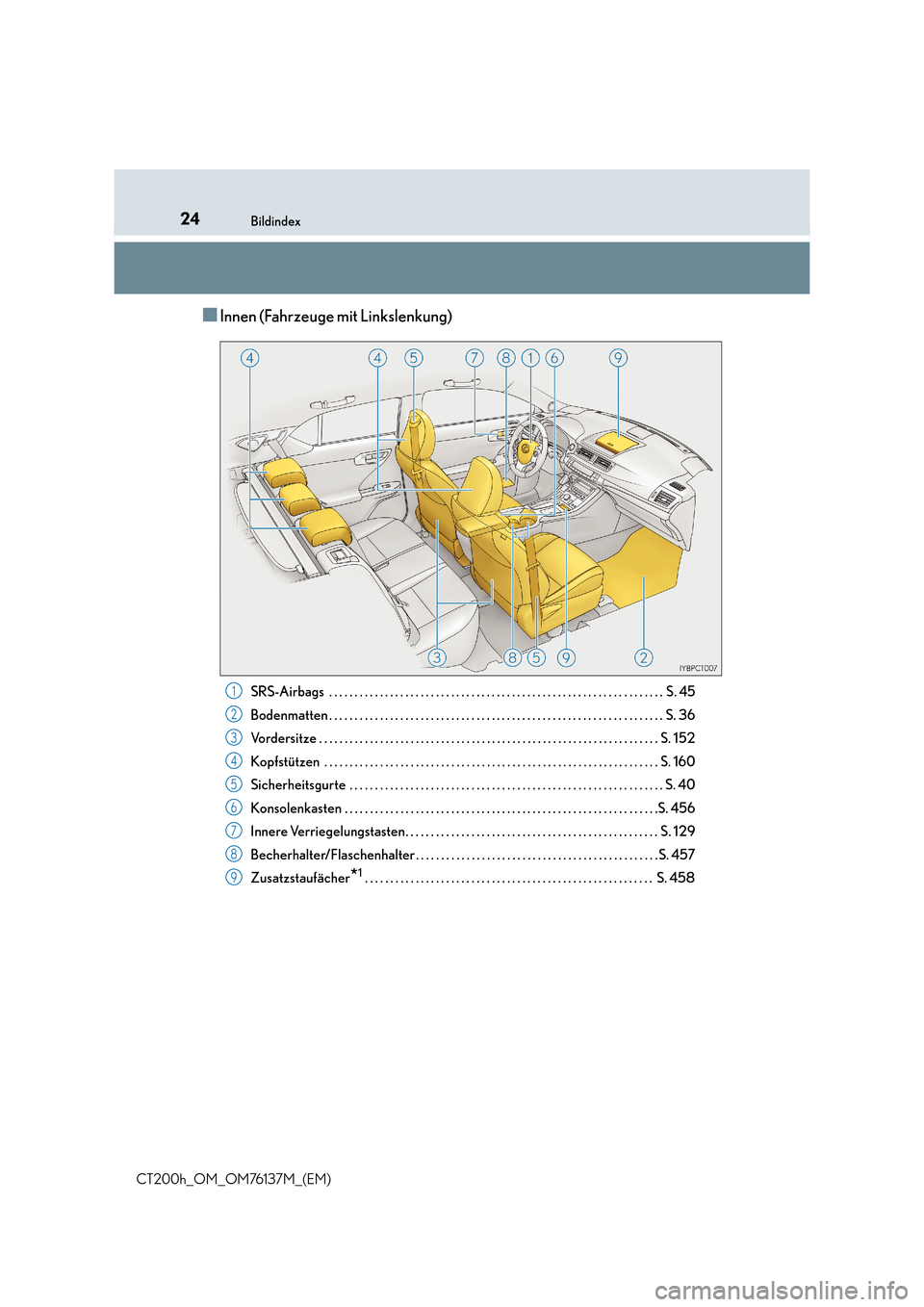

SRS-Airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 45
Bodenmatten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 36
Vordersitze . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 152
Kopfstützen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 160
Sicherheitsgurte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 40
Konsolenkasten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 456
Innere Verriegelungstasten. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S . 129
Becherhalter/Flaschenhalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 45 7
Zusatzstaufächer
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 458
1
2
3
4
5
6
7
8
9
Page 25 of 664
25Bildindex

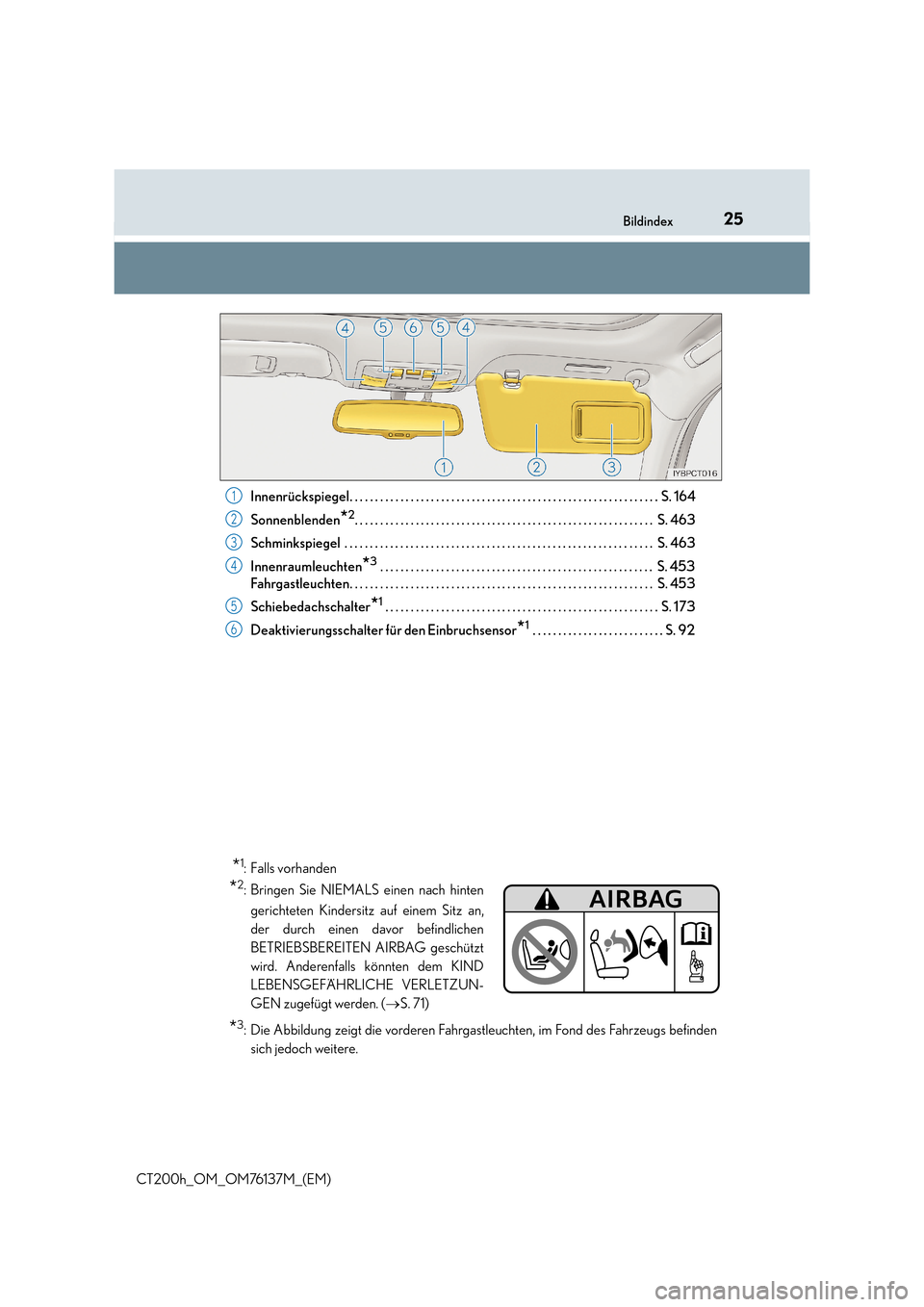

CT200h_OM_OM76137M_(EM)Innenrückspiegel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . S. 164
Sonnenblenden
*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 463
Schminkspiegel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 463
Innenraumleuchten
*3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 453
Fahrgastleuchten. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 453
Schiebedachschalter
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 173
Deaktivierungsschalter für den Einbruchsensor
*1 . . . . . . . . . . . . . . . . . . . . . . . . . . S. 92
1
2
3
4
5
6
*1: Falls vorhanden
*2: Bringen Sie NIEMALS einen nach hinten gerichteten Kindersitz auf einem Sitz an,
der durch einen davor befindlichen
BETRIEBSBEREITEN AIRBAG geschützt
wird. Anderenfalls könnten dem KIND
LEBENSGEFÄHRLICHE VERLETZUN-
GEN zugefügt werden. ( →S. 71)
*3: Die Abbildung zeigt die vorderen Fahrgastleuchten, im Fond des Fahrzeugs befinden
sich jedoch weitere.
Page 26 of 664
26Bildindex
CT200h_OM_OM76137M_(EM)
■Instrumententafel (Fahrzeuge mit Rechtslenkung)

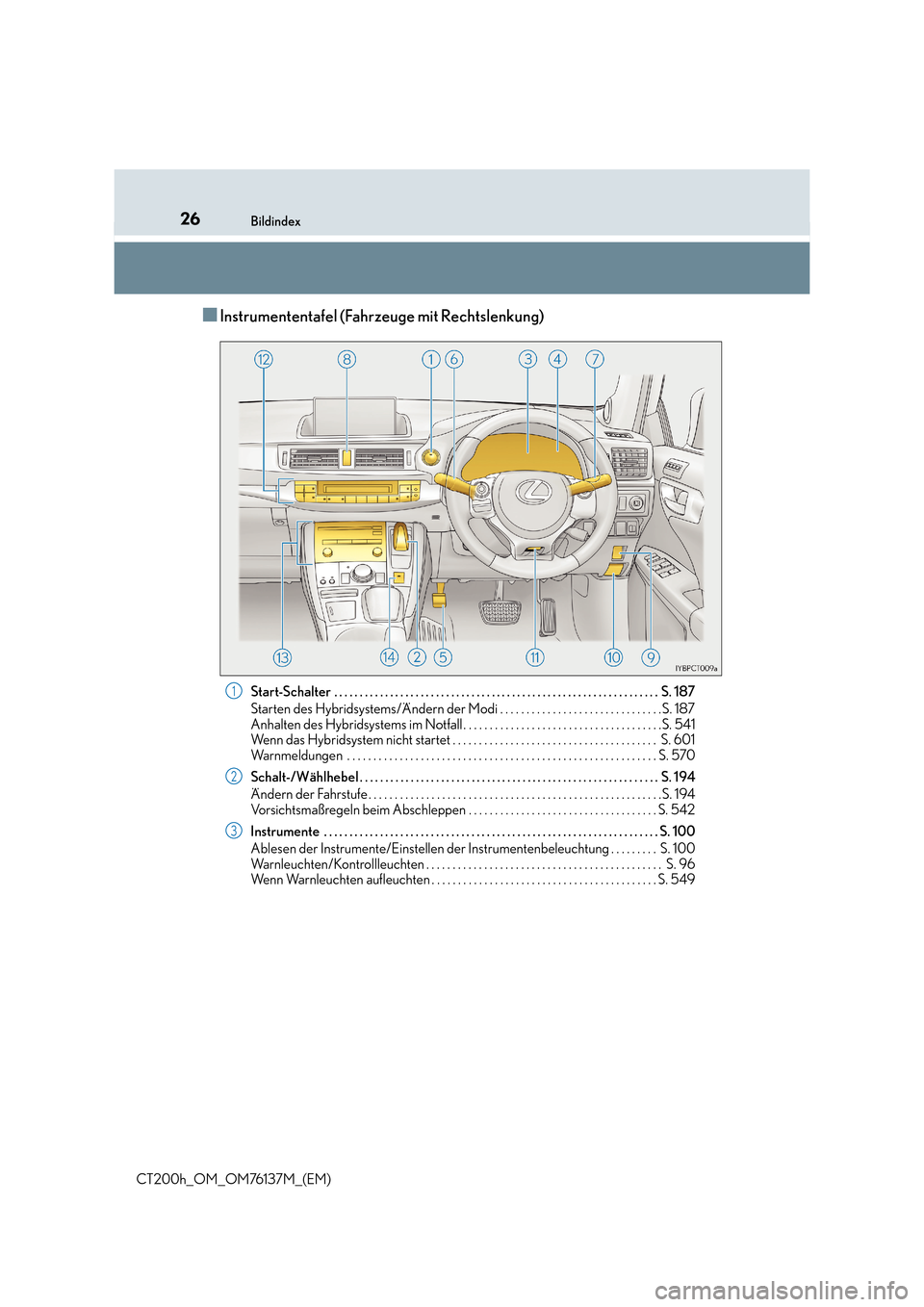

Start-Schalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 187
Starten des Hybridsystems/Ändern der Modi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 187
Anhalten des Hybridsystems im Notfall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 541
Wenn das Hybridsystem nicht startet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 601
Warnmeldungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 570
Schalt-/Wählhebel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 194
Ändern der Fahrstufe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 194
Vorsichtsmaßregeln beim Abschleppen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 542
Instrumente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 100
Ablesen der Instrumente/Einstellen der Instru mentenbeleuchtung . . . . . . . . . S. 100
Warnleuchten/Kontrollleuchten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 96
Wenn Warnleuchten aufleuchten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 5491
2
3
Page 27 of 664
27Bildindex

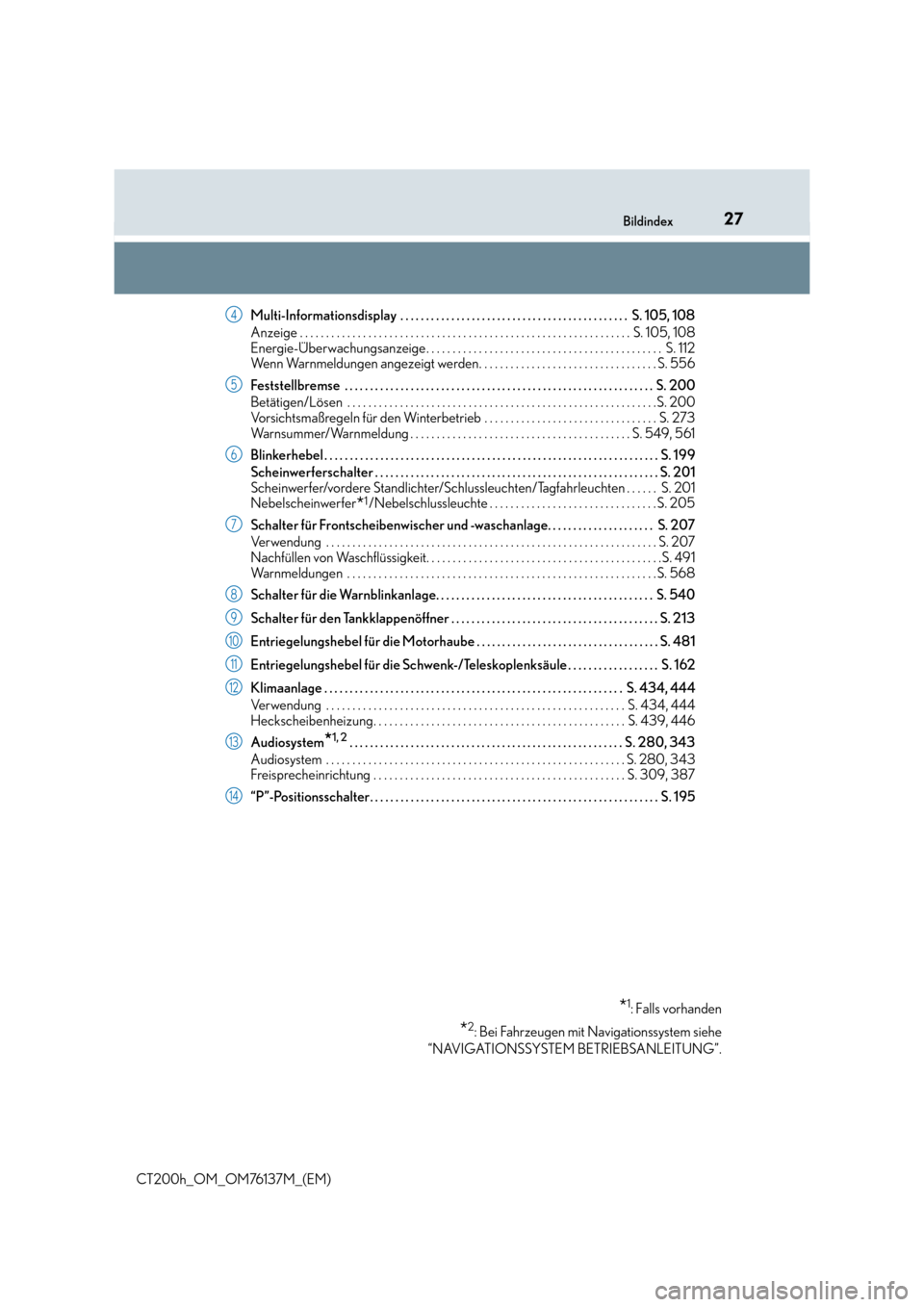

CT200h_OM_OM76137M_(EM)Multi-Informationsdisplay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 105, 108
Anzeige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . S. 105, 108
Energie-Überwachungsanzeige. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 112
Wenn Warnmeldungen angezeigt werden. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 556
Feststellbremse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 200
Betätigen/Lösen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 200
Vorsichtsmaßregeln für den Winterbetrieb . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 273
Warnsummer/Warnmeldung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 549, 561
Blinkerhebel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 199
Scheinwerferschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 201
Scheinwerfer/vordere Standlichter/Schlussleuchten/Tagfahrleuchten . . . . . . S. 201
Nebelscheinwerfer
*1/Nebelschlussleuchte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 205
Schalter für Frontscheibenwischer und -waschanlage. . . . . . . . . . . . . . . . . . . . . S. 207
Verwendung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 207
Nachfüllen von Waschflüssigkeit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 491
Warnmeldungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 568
Schalter für die Warnblinkanlage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 540
Schalter für den Tankklappenöffner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 213
Entriegelungshebel für die Motorhaube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 481
Entriegelungshebel für die Schwenk-/Teleskoplenksäule . . . . . . . . . . . . . . . . . . S. 162
Klimaanlage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 434, 444
Verwendung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 434, 444
Heckscheibenheizung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 439, 446
Audiosystem
*1, 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 280, 343
Audiosystem . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 280, 343
Freisprecheinrichtung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 309, 3 87
“P”-Positionsschalter. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 195
*1: Falls vorhanden
*2: Bei Fahrzeugen mit Navigationssystem siehe
“NAVIGATIONSSYSTEM BETRIEBSANLEITUNG”.
4
5
6
7
8
9
10
11
12
13
14
Page 28 of 664
28Bildindex
CT200h_OM_OM76137M_(EM)

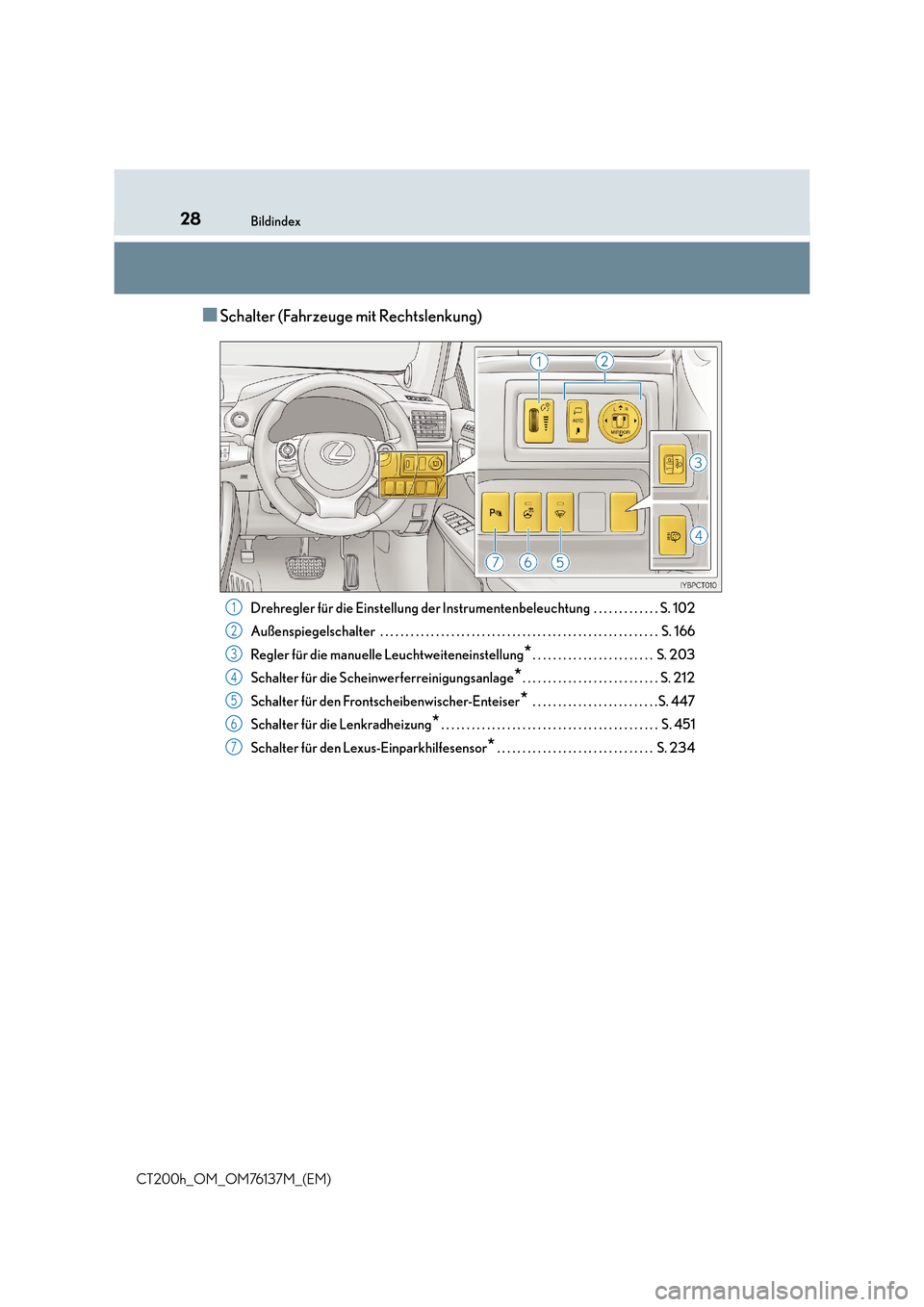

■Schalter (Fahrzeuge mit Rechtslenkung)
Drehregler für die Einstellung der Instrumentenbeleuchtung . . . . . . . . . . . . . S. 102
Außenspiegelschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 166
Regler für die manuelle Leuchtweiteneinstellung
*. . . . . . . . . . . . . . . . . . . . . . . . S. 203
Schalter für die Scheinwerferreinigungsanlage
*. . . . . . . . . . . . . . . . . . . . . . . . . . . S. 212
Schalter für den Frontscheibenwischer-Enteiser
* . . . . . . . . . . . . . . . . . . . . . . . . .S. 447
Schalter für die Lenkradheizung
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 451
Schalter für den Lexus-Einparkhilfesensor
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 234
1
2
3
4
5
6
7
Page 29 of 664
29Bildindex

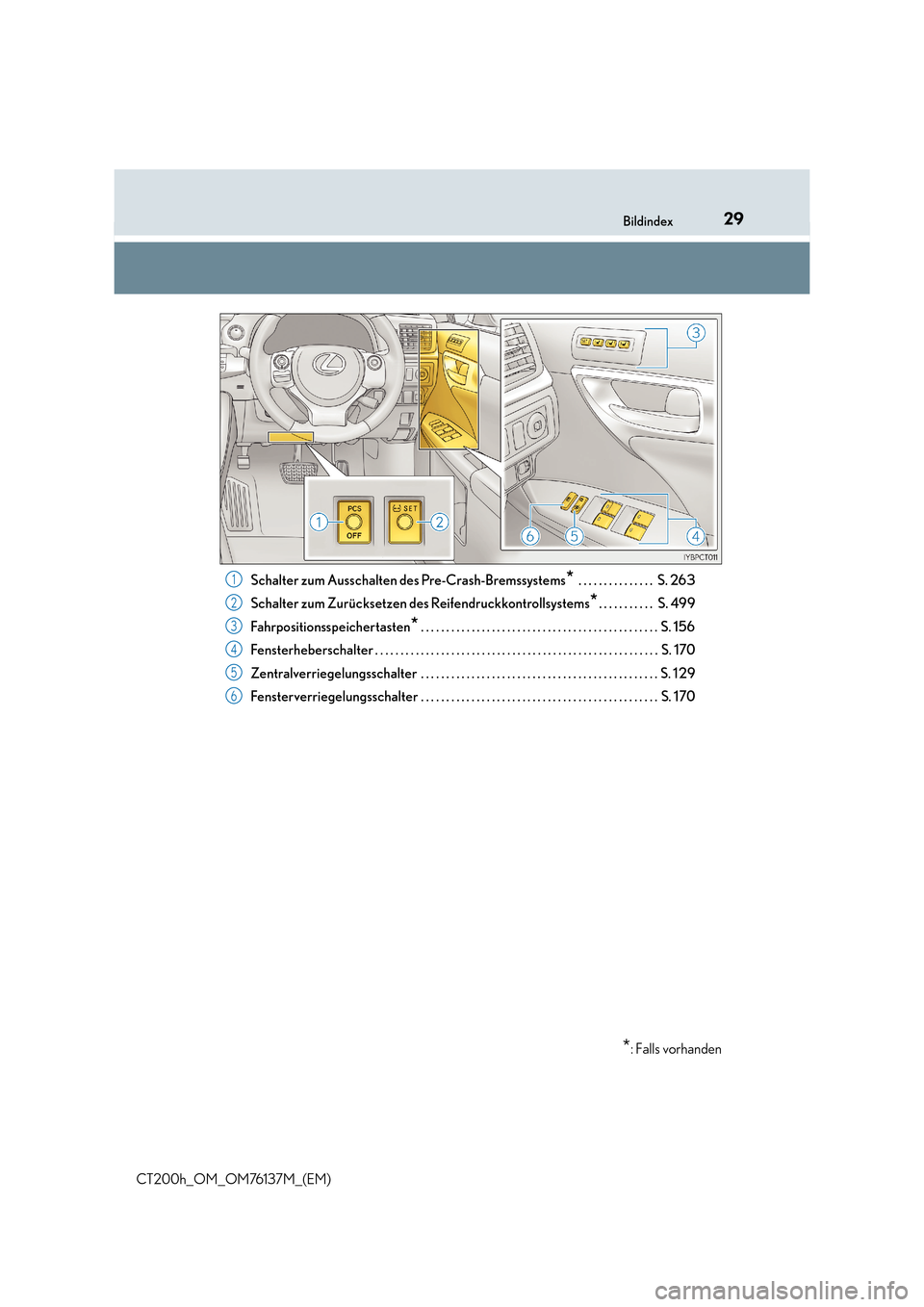

CT200h_OM_OM76137M_(EM)Schalter zum Ausschalten des Pre-Crash-Bremssystems
* . . . . . . . . . . . . . . . S. 263
Schalter zum Zurücksetzen des Reifendruckkontrollsystems
*. . . . . . . . . . . S. 499
Fahrpositionsspeichertasten
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 156
Fensterheberschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 170
Zentralverriegelungsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 1 29
Fensterverriegelungsschalter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 1 70
*: Falls vorhanden
1
2
3
4
5
6
Page 30 of 664
30Bildindex

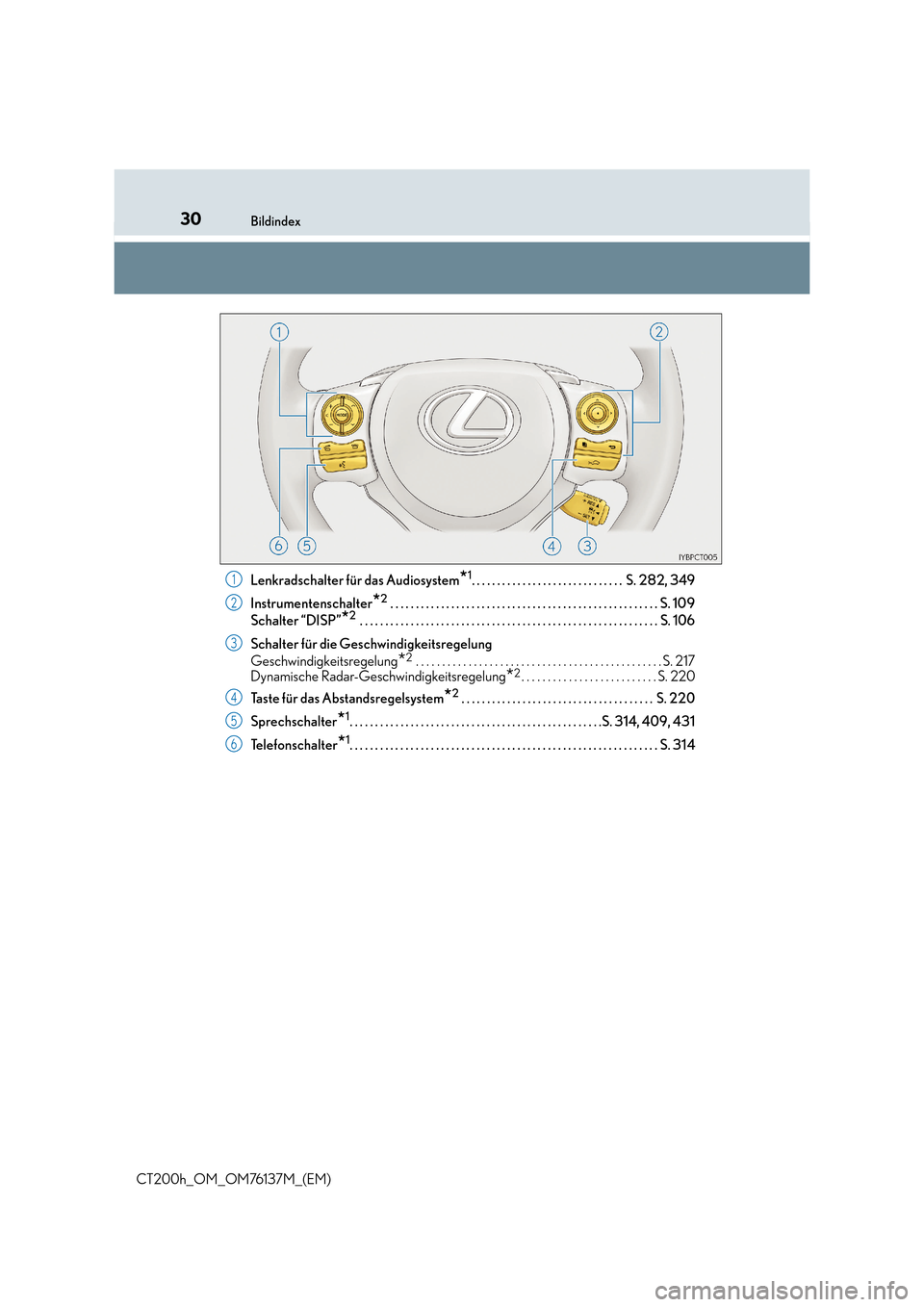

CT200h_OM_OM76137M_(EM)Lenkradschalter für das Audiosystem
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 282, 349
Instrumentenschalter
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 109
Schalter “DISP”
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 106
Schalter für die Geschwindigkeitsregelung
Geschwindigkeitsregelung
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 217
Dynamische Radar-Geschwindigkeitsregelung
*2. . . . . . . . . . . . . . . . . . . . . . . . . . S. 220
Taste für das Abstandsregelsystem
*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 220
Sprechschalter
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .S. 314, 409, 431
Te l e f o n s c h a l t e r
*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . S. 31 4
1
2
3
4
5
6
