Lexus CT200h 2014 Navigation manual (in English)

6
291
1
2
3
4
5
6
7
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
8
1. LEXUS PARKING ASSIST
MONITOR..................................... 292
LEXUS PARKING ASSIST
MONITOR .......................................... 292
DRIVING PRECAUTIONS .................. 292
SCREEN DISPLAY............................... 294
USING THE SYSTEM WHEN
PERPENDICULAR PARKING .......... 296
USING THE SYSTEM WHEN
PARALLEL PARKING ...................... 297
SWITCHING THE PARKING MODE
SCREEN .............................................. 298
2. PERPENDICULAR PARKING
(ESTIMATED COURSE LINE
DISPLAY MODE) ........................ 299
SCREEN DESCRIPTION ...................... 299
PARKING............................................... 300
3. PERPENDICULAR PARKING
(PARKING ASSIST GUIDE LINE
DISPLAY MODE) ........................ 301
SCREEN DESCRIPTION ...................... 301
PARKING............................................... 302
4. PARALLEL PARKING .................. 303
VEHICLE MOVEMENT
PROCEDURE ...................................... 303
PARKING............................................... 305
NARROW MODE .................................. 310
5. LEXUS PARKING ASSIST
MONITOR PRECAUTIONS........ 312
AREA DISPLAYED ON SCREEN ....... 312
THE CAMERA....................................... 313
DIFFERENCES BETWEEN THE
SCREEN AND THE ACTUAL ROAD .....
314
WHEN APPROACHING
THREE-DIMENSIONAL OBJECTS .. 315
6. THINGS YOU SHOULD KNOW .. 317
IF YOU NOTICE ANY SYMPTOMS ... 317
1LEXUS PARKING ASSIST
MONITOR
PERIPHERAL MONITORING SYSTEM
For vehicles sold outside Europe, some of the functions cannot be operated while

292
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16

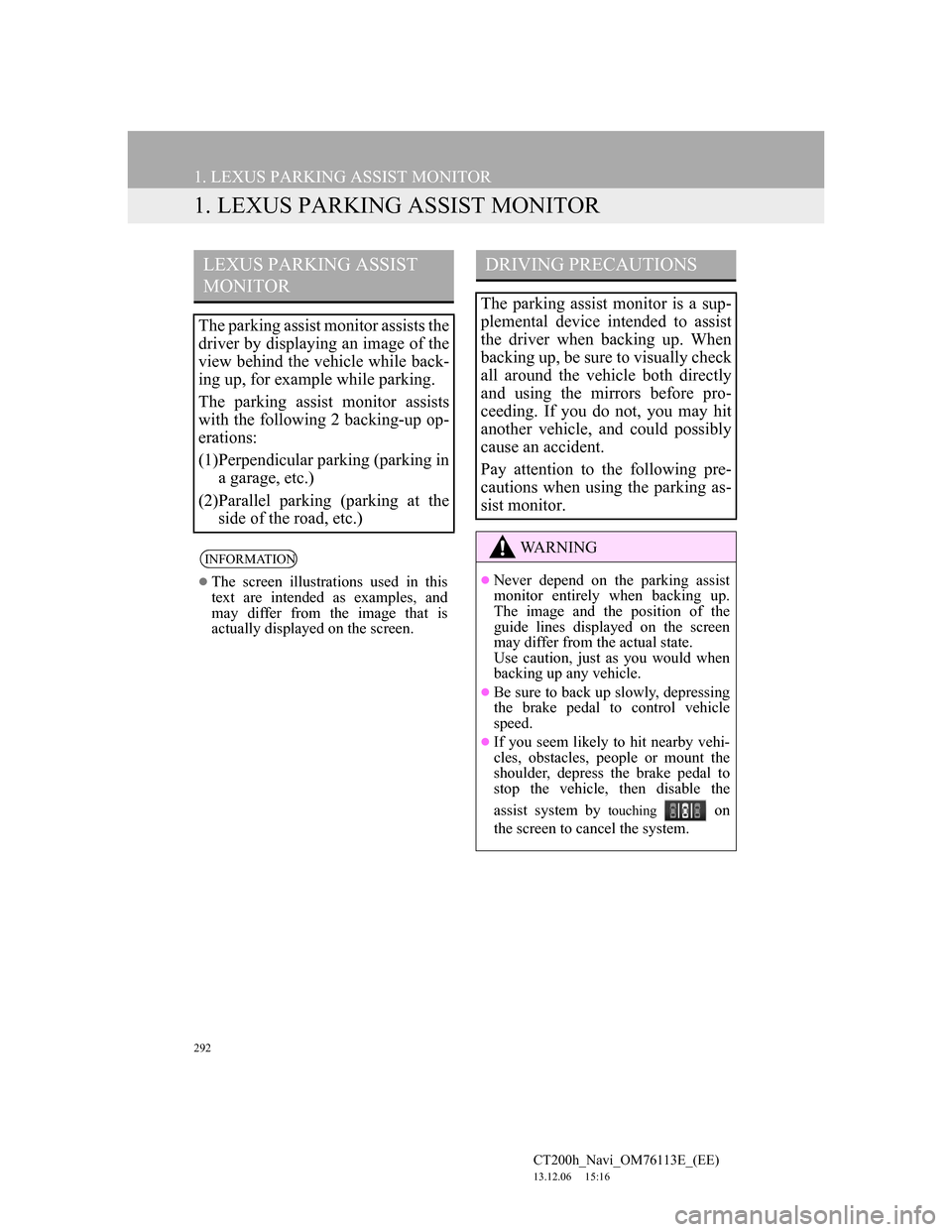

1. LEXUS PARKING ASSIST MONITOR
1. LEXUS PARKING ASSIST MONITOR
LEXUS PARKING ASSIST
MONITOR
The parking assist monitor assists the
driver by displaying an image of the
view behind the vehicle while back-
ing up, for example while parking.
The parking assist monitor assists
with the following 2 backing-up op-
erations:
(1)Perpendicular parking (parking in
a garage, etc.)
(2)Parallel parking (parking at the
side of the road, etc.)
INFORMATION
The screen illustrations used in this
text are intended as examples, and
may differ from the image that is
actually displayed on the screen.
DRIVING PRECAUTIONS
The parking assist monitor is a sup-
plemental device intended to assist
the driver when backing up. When
backing up, be sure to visually check
all around the vehicle both directly
and using the mirrors before pro-
ceeding. If you do not, you may hit
another vehicle, and could possibly
cause an accident.
Pay attention to the following pre-
cautions when using the parking as-
sist monitor.
WA R N I N G
Never depend on the parking assist
monitor entirely when backing up.
The image and the position of the
guide lines displayed on the screen
may differ from the actual state.
Use caution, just as you would when
backing up any vehicle.
Be sure to back up slowly, depressing
the brake pedal to control vehicle
speed.
If you seem likely to hit nearby vehi-
cles, obstacles, people or mount the
shoulder, depress the brake pedal to
stop the vehicle, then disable the
assist system by
touching on
the screen to cancel the system.

293
1. LEXUS PARKING ASSIST MONITOR
6
PERIPHERAL MONITORING SYSTEM
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
WA R N I N G
The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when
parking. It is necessary to be fully
aware of this before using the parking
assist system.
When parking, be sure to check that
the parking space will accommodate
your vehicle before maneuvering into
it.
Do not use the parking assist monitor
system in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tyre chains or emer-
gency tires
• When the back door is not closed
completely
• On roads that are not flat or straight,
such as curves or slopes.
In low temperatures, the screen may
darken or the image may become
faint. The image could distort when
the vehicle is moving, or you may
become unable to see the image on
the screen. Be sure to visually check
all around the vehicle both directly
and using the mirrors before proceed-
ing.
If the tyre sizes are changed, the posi-
tion of the guide lines displayed on
the screen may change.
The camera uses a special lens. The
distances between objects and pedes-
trians that appear in the image dis-
played on the screen will differ from
the actual distances. (P.314)

294
1. LEXUS PARKING ASSIST MONITOR
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
The parking assist monitor displays the last-used parking mode first.
Perpendicular parkingParallel parking
SCREEN DISPLAY
The parking assist monitor screen will be displayed if the shift position is shift-
ed to “R” while the power switch is in ON mode.
No.DisplayFunction
Display mode switch screen
buttonSwitches the display mode.
Parking mode switch screen
buttonSwitches the parking mode (between perpen-
dicular parking and parallel parking assist
screens)
Narrow mode screen on-off
buttonSwitch the narrow mode on and off.
(P.298)
Lexus parking assist-sensor
If an obstacle is detected while the Lexus
parking assist-sensor is on, a display is shown
in the top right corner of the screen.

295
1. LEXUS PARKING ASSIST MONITOR
6
PERIPHERAL MONITORING SYSTEM
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
When the shift position is shifted to “R” and any mode button (such as
“MENU”) is pressed
The parking assist monitor is cancelled, and the screen is switched to the
mode of the button that was pressed.
CANCELING LEXUS PARKING ASSIST MONITOR
The parking assist monitor is cancelled when the shift position is shifted into
any position other than the “R”.

296
1. LEXUS PARKING ASSIST MONITOR
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
Estimated course line display mode
(P.299)Parking assist guide line display
mode
(P.301)
Distance guide line display mode
USING THE SYSTEM WHEN
PERPENDICULAR PARKING
Use any of the following modes
when perpendicular parking (for ex-
ample, when parking in a garage).
Estimated course lines are displayed
which move in accordance with the
operation of the steering wheel.The steering wheel return points
(parking assist guide lines) are dis-
played.
Distance guide lines only are dis-
played.

297
1. LEXUS PARKING ASSIST MONITOR
6
PERIPHERAL MONITORING SYSTEM
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
1Select the display mode switch
screen button.
With each touch, the perpendicular
parking assist screen switches as fol-
lows:
SWITCHING THE DISPLAY
MODE
Distance guide line
display mode
Parking assist guide line
display mode
Estimated course line
display mode
USING THE SYSTEM WHEN
PARALLEL PARKING
Screen display and beep sounds pro-
vide an estimation of the point at
which you should turn the steering
wheel when parallel parking. If the
position the vehicle is to be parked in
is narrower than usual, narrow mode
can be used.

298
1. LEXUS PARKING ASSIST MONITOR
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
1Select the narrow mode screen on-
off button on the parallel parking as-
sist.
With each touch, the mode switches as
follows:
1Select the parking mode switch
screen button.
With each touch, the perpendicular
parking and parallel parking assist
screen switches as follows:
SWITCHING TO NARROW
MODE
“Caution” screen
Normal mode
Narrow mode “I agree”
SWITCHING THE PARKING
MODE SCREEN
Perpendicular parking
• Estimated course line display mode
• Parking assist guide line display
modeParallel parking

299
1. LEXUS PARKING ASSIST MONITOR
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
6
PERIPHERAL MONITORING SYSTEM
2. PERPENDICULAR PARKING (ESTIMATED COURSE LINE DISPLAY MODE)
SCREEN DESCRIPTION
No.DisplayFunction
Vehicle width guide
line
Displays a guide path when the vehicle is being
backed straight up.
The displayed width is wider than the actual vehi-
cle width.
These guide lines align with the estimated course
lines when the vehicle is going straight ahead.
Estimated course linesShow a estimated course when the steering wheel is
turned.
Distance guide lines
Show distance behind the vehicle when the steering
wheel is turned.
The guide lines move in conjunction with the esti-
mated course lines.
The guide lines display points approximately 0.5 m
(1.5 ft.) (red) and approximately 1 m (3 ft.) (yel-
low) from the centre of the edge of the bumper.
Distance guide line
Shows distance behind the vehicle.
Displays a point approximately 0.5 m (1.5 ft.)
(blue) from the edge of the bumper.
WA R N I N G
If the steering wheel is straight and the vehicle width guide lines and the estimated
course lines are not in alignment, have the vehicle inspected by your Lexus dealer
or repairer, or another duly qualified and equipped professional.

300
1. LEXUS PARKING ASSIST MONITOR
CT200h_Navi_OM76113E_(EE)
13.12.06 15:16
1Shift the shift position to “R”.
2Turn the steering wheel so that the
estimated course lines are within the
parking space, and back up slowly.
Parking space
Estimated course lines
3When the rear position of the vehicle
has entered the parking space, turn
the steering wheel so that the vehicle
width guide lines are within the left
and right dividing lines of the park-
ing space.
Vehicle width guide line
4Once the vehicle width guide lines
and the parking space lines are paral-
lel, straighten the steering wheel and
back up slowly until the vehicle has
completely entered the parking
space.
5Stop the vehicle in an appropriate
place, and finish parking.
PARKING
When parking in a space which is in
the reverse direction to the space de-
scribed in the procedure below, the
steering directions will be reversed.
