Lexus CT200h 2014 Owner's Manual (in English)

4316-3. Using the storage features
CT200h_OM_OM76135E_(EE)
6
Interior features
NOTICE
Put the cap on before stowing a bottle. Do not place open bottles or glass and paper
cups containing liquid in the bottle holders.
The contents may spill and glasses may break.
Auxiliary boxes
XTy p e AXTy p e B
Press in the lid.
This box is useful for temporarily storing
sunglasses and similar small items.
XTy p e C ( i f e q u i p p e d )XType D (if equipped)
CT200h_OM_OM76135E_(EE).book Page 431 Friday, May 30, 2014 1 1:14 AM

4326-3. Using the storage features
CT200h_OM_OM76135E_(EE)
■Auxiliary box (type D)
If an object has fallen down the back of the lid,
the fallen object can be retrieved by removing
the cover inside the auxiliary box.
Remove the mat.
Remove the cover using a flathead screw-
driver protected with tape etc.
WA R N I N G
Do not store items heavier than 200 g (0.44 lb.).
Doing so may cause the auxiliary box to open and the items inside may fall out, result-
ing in an accident. (type A)
NOTICE
Do not leave items in the auxiliary box or on the dashboard for long periods of time
when the vehicle is in the sun.
The inside of the auxiliary box and the dashboard will become extremely hot compared
to other parts of the vehicle, and the items could be deformed or damaged. (type D)
1
2
CT200h_OM_OM76135E_(EE).book Page 432 Friday, May 30, 2014 1 1:14 AM

4336-3. Using the storage features
CT200h_OM_OM76135E_(EE)
6
Interior features
Luggage compartment features
Raise the hook to use.
The cargo hooks are provided for
securing loose items.
Secure the first-aid kit. To loosen
To t i g h t e n
Cargo hooks
First-aid kit storage belt
1
2
Auxiliary boxes
XCenter XRight side
Lift the center deck board. Lift the right side deck board.
CT200h_OM_OM76135E_(EE).book Page 433 Friday, May 30, 2014 1 1:14 AM

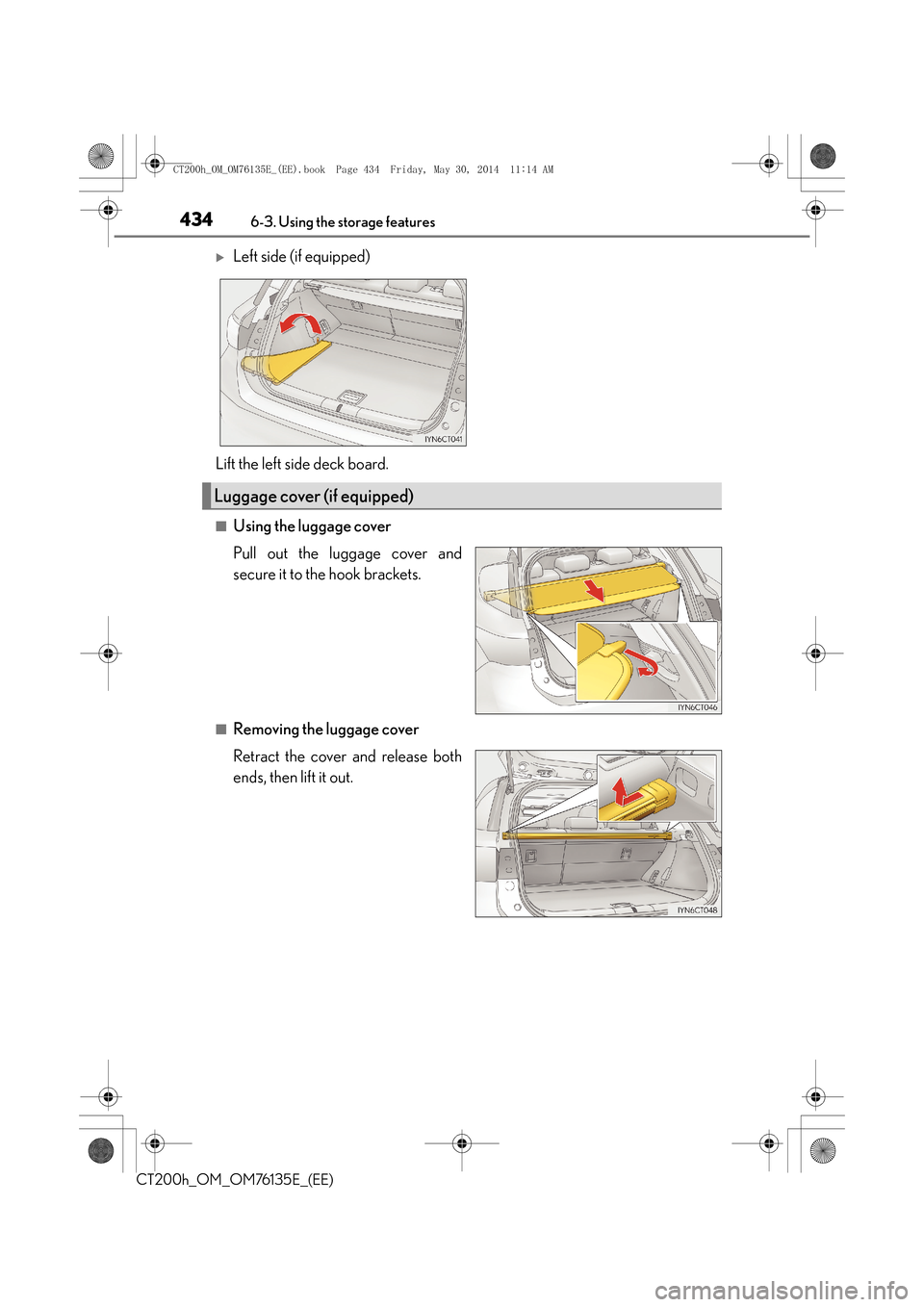

4346-3. Using the storage features
CT200h_OM_OM76135E_(EE)
■Using the luggage cover
Pull out the luggage cover and
secure it to the hook brackets.
■Removing the luggage cover
Retract the cover and release both
ends, then lift it out.
XLeft side (if equipped)
Lift the left side deck board.
Luggage cover (if equipped)
CT200h_OM_OM76135E_(EE).book Page 434 Friday, May 30, 2014 1 1:14 AM

4356-3. Using the storage features
CT200h_OM_OM76135E_(EE)
6
Interior features
■Stowing the luggage cover Remove the side deck boards and
open the center auxiliary box.
Adjust the cover so that the infor-
mation label is facing up.
Fold the rear edge of the cover
over, replace the side deck
boards and close the center auxil-
iary box.
1
2
3
WA R N I N G
●To avoid injury, always return the cargo hooks to their stowed positions when not in
use.
●If the deck boards are removed, return them to their original positions before driving.
In the event of sudden braking, an accident may occur due to an occupant being
struck by the deck boards or the items stored in the auxiliary box.
●Do not allow children to climb on the luggage cover. Climbing on the luggage cover
could result in damage to the luggage cove r, possibly causing death or serious injury
to the child.
CT200h_OM_OM76135E_(EE).book Page 435 Friday, May 30, 2014 1 1:14 AM

4366-4. Using the other interior features
CT200h_OM_OM76135E_(EE)
Other interior features
To set the visor in the forward posi-
tion, flip it down.
To set the visor in the side position,
flip down, unhook, and swing it to the
side.
Slide the cover to open.
The light turns on when the cover is
opened.
If the vanity lights remain on when the power sw itch is turned off, the light will go off auto-
matically after 20 minutes.
Sun visors
1
2
Vanity mirrors
NOTICE
To prevent 12-volt battery discharge, do not leave the vanity lights on for extended peri-
ods while the hybrid system is off.
CT200h_OM_OM76135E_(EE).book Page 436 Friday, May 30, 2014 1 1:14 AM

4376-4. Using the other interior features
CT200h_OM_OM76135E_(EE)
6
Interior features
XVehicles with a navigation system
Refer to the “NAVIGATION SYSTEM OWNER’S MANUAL”.
XVehicles without navigation system
The clock can be adjusted by pressing the buttons.
Adjusts the hours
Adjusts the minutes
Rounds to the nearest hour
*
*
:e.g. 1:00 to 1:29 →1:00
1:30 to 1:59 →2:00
The clock is displayed when the power switch is in ACCESSORY or ON mode.
Please use a power supply for electronic goods that use less than 12 VDC /10 A
(power consumption of 120 W).
When using electronic goods, make sure that the power consumption of all the
connected power outlets is less than 120 W.
XCenter console
Press down and release the lid.
Clock
1
2
3
Power outlet
1
CT200h_OM_OM76135E_(EE).book Page 437 Friday, May 30, 2014 1 1:14 AM

438
CT200h_OM_OM76135E_(EE)6-4. Using the other interior features
Open the cover.
XAuxiliary box (if equipped)
Press the button.
Open the cover.
2
1
2
CT200h_OM_OM76135E_(EE).book Page 438 Friday, May 30, 2014 1
1:14 AM

4396-4. Using the other interior features
CT200h_OM_OM76135E_(EE)
6
Interior features
●The power outlet can be used when the power switch is in ACCESSORY or ON mode.
An assist grip installed on the ceiling
can be used to support your body while
sitting on the seat.
●The gap in the lid allows power cables to be
passed through even when the lid is closed.
(auxiliary box)
NOTICE
●To avoid damaging the power outlet, close the power outlet lid when the power outlet
is not in use.
Foreign objects or liquids that enter the power outlet may cause a short circuit.
●To prevent 12-volt battery discharge, do not use the power outlet longer than neces-
sary when the hybrid system is off.
Assist grips
WA R N I N G
Do not use the assist grip when getting in or out of the vehicle or rising from your seat.
NOTICE
To prevent damage to the assist grip, do not hang any heavy object or put a heavy load
on the assist grip.
CT200h_OM_OM76135E_(EE).book Page 439 Friday, May 30, 2014 1 1:14 AM

440
CT200h_OM_OM76135E_(EE)6-4. Using the other interior features
