Lexus CT200h 2014 Owner's Manual (in English)

5418-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
Remove the center deck board.
Remove the center auxiliary box.
WA R N I N G
■Using the tire jack
Observe the following precautions.
Improper use of the tire jack may cause the vehicle to suddenly fall off the jack, leading
to death or serious injury.
●Do not use the tire jack for any purpose other than replacing tires or installing and
removing tire chains.
●Only use the tire jack that comes with this vehicle for replacing a flat tire.
Do not use it on other vehicles, and do not use other tire jacks for replacing tires on
this vehicle.
●Put the jack properly in its jack point.
●Do not put any part of your body under the vehicle while it is supported by the jack.
●Do not start the hybrid system or drive the vehicle while the vehicle is supported by
the jack.
●Do not raise the vehicle while someone is inside.
●When raising the vehicle, do not put an object on or under the jack.
●Do not raise the vehicle to a height greater than that required to replace the tire.
●Use a jack stand if it is necessary to get under the vehicle.
●When lowering the vehicle, make sure that there is no-one near the vehicle. If there
are people nearby, warn them vocally before lowering.
Taking out the jack
1
2
CT200h_OM_OM76135E_(EE).book Page 541 Friday, May 30, 2014 1 1:14 AM

5428-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
Take out the jack.For loosening
For tightening
Remove the center deck board and center auxiliary box. ( →P. 5 4 1 )
Loosen the center fastener that
secures the spare tire.3
1
2
Taking out the spare tire
1
2
WA R N I N G
■When storing the spare tire
Be careful not to catch fingers or other body parts between the spare tire and the body
of the vehicle.
CT200h_OM_OM76135E_(EE).book Page 542 Friday, May 30, 2014 1 1:14 AM

5438-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
Chock the tires.
For vehicles with 15 inch wheels,
remove the wheel ornament using
the wrench.
To protect the wheel ornament, place a
rag between the wrench and the wheel
ornament.
Slightly loosen the wheel nuts (one
turn).
Replacing a flat tire
1
Flat tireWheel chock positions
FrontLeft-hand sideBehind the rear right-hand side tire
Right-hand sideBehind the rear left-hand side tire
RearLeft-hand sideIn front of the front right-hand side tire
Right-hand sideIn front of the front left-hand side tire
2
3
CT200h_OM_OM76135E_(EE).book Page 543 Friday, May 30, 2014 1 1:14 AM

5448-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
Turn the tire jack portion by hand
until the notch of the jack is in con-
tact with the jack point.
The jack point guides are located under
the rocker panel. They indicate the jack
point positions.
Raise the vehicle until the tire is
slightly raised off the ground.
Remove all the wheel nuts and the
tire.
When resting the tire on the ground,
place the tire so that the wheel design
faces up to avoid scratching the wheel
surface.
4A
5
6
CT200h_OM_OM76135E_(EE).book Page 544 Friday, May 30, 2014 11:14 AM

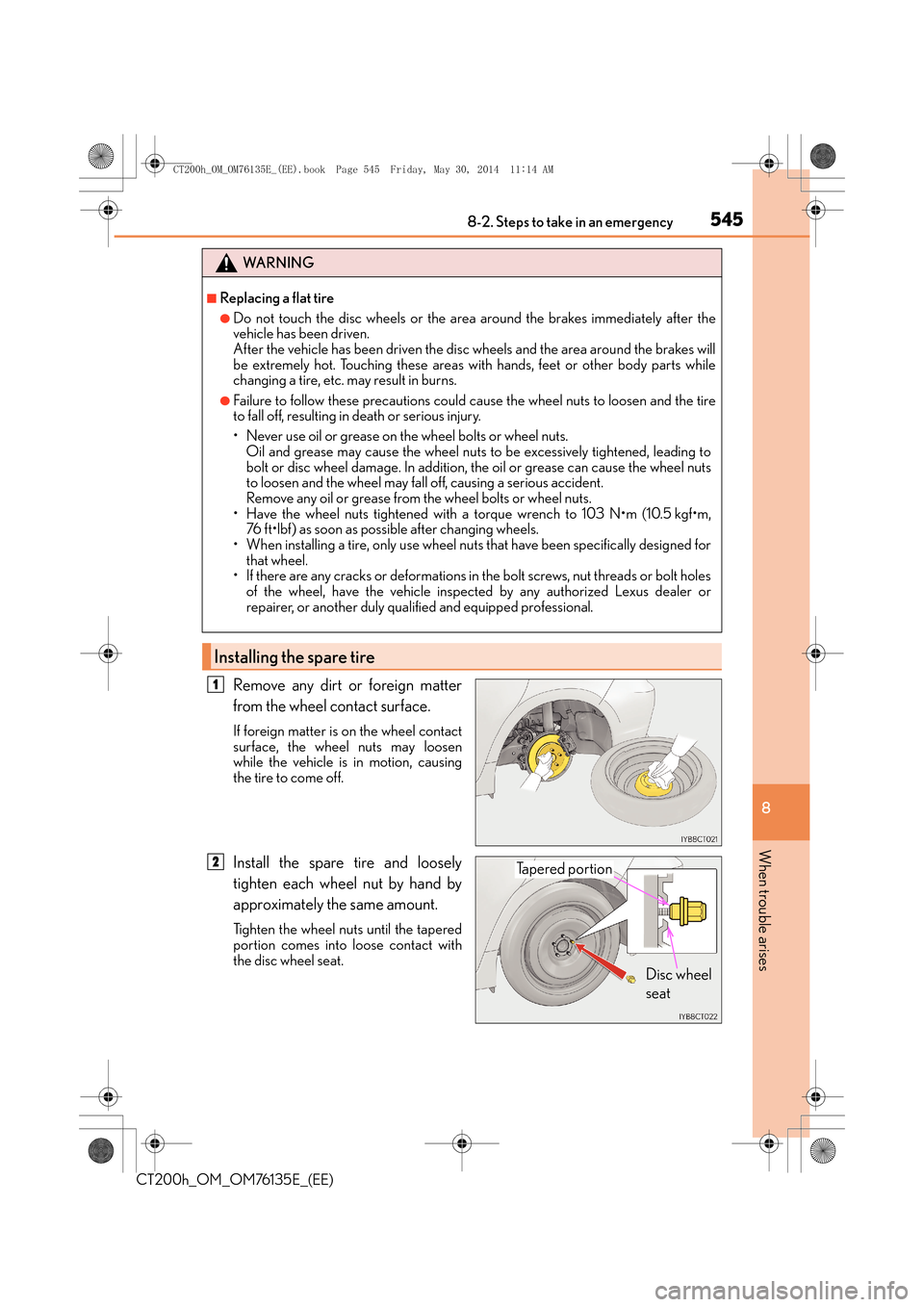

5458-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
Remove any dirt or foreign matter
from the wheel contact surface.
If foreign matter is on the wheel contact
surface, the wheel nuts may loosen
while the vehicle is in motion, causing
the tire to come off.
Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.
Tighten the wheel nuts until the tapered
portion comes into loose contact with
the disc wheel seat.
WA R N I N G
■Replacing a flat tire
●Do not touch the disc wheels or the area around the brakes immediately after the
vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around the brakes will
be extremely hot. Touching these areas with hands, feet or other body parts while
changing a tire, etc. may result in burns.
●Failure to follow these precautions could cause the wheel nuts to loosen and the tire
to fall off, resulting in death or serious injury.
• Never use oil or grease on the wheel bolts or wheel nuts. Oil and grease may cause the wheel nuts to be excessively tightened, leading to
bolt or disc wheel damage. In addition, the oil or grease can cause the wheel nuts
to loosen and the wheel may fall off, causing a serious accident.
Remove any oil or grease from the wheel bolts or wheel nuts.
• Have the wheel nuts tightened with a torque wrench to 103 N•m (10.5 kgf•m, 76 ft•lbf) as soon as possible after changing wheels.
• When installing a tire, only use wheel nuts that have been specifically designed for that wheel.
• If there are any cracks or deformations in the bolt screws, nut threads or bolt holes
of the wheel, have the vehicle inspected by any authorized Lexus dealer or
repairer, or another duly qualified and equipped professional.
Installing the spare tire
1
Disc wheel
seat
Tapered portion2
CT200h_OM_OM76135E_(EE).book Page 545 Friday, May 30, 2014 1 1:14 AM

5468-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
Lower the vehicle.
Firmly tighten each wheel nut two or
three times in the order shown in the
illustration.
Tightening torque:
103 N•m (10.5 kgf•m, 76 ft•lbf)
Stow the flat tire, tire jack and all tools.
Vehicles with a 16 or 17 inch wheel:
Before stowing the flat tire, remove
the center wheel ornament by push-
ing from the reverse side.
Place the flat tire on the deck board,
and pass the belt through the lower-
right cargo hook and then through
the hole in the center of the tire.
3
4
Stowing the flat tire
5
1
2
CT200h_OM_OM76135E_(EE).book Page 546 Friday, May 30, 2014 11:14 AM

5478-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
Pass the belt through the lower-left
cargo hook.
Pass the belt through the buckle and
secure the tire firmly. Check that the
belt is securely held by the buckle.
The belt cannot be fastened securely if
the buckle is facing the wrong direction.
■The compact spare tire
●The compact spare tire is identified by the label “TEMPORARY USE ONLY” on the
tire sidewall.
Use the compact spare tire temporarily, and only in an emergency.
●Make sure to check the tire inflation pressure of the compact spare tire. ( →P. 5 8 6 )
■When using the compact spare tire (vehicles with the tire pressure warning system)
As the compact spare tire is not equipped with a tire pressure warning valve and trans-
mitter, low inflation pressure of the spare tire will not be indicated by the tire pressure
warning system. Also, if you replace the compact spare tire after the tire pressure warn-
ing light comes on, the light remains on.
■When the compact spare tire is equipped
The vehicle becomes lower when driving with the compact spare tire compared to when
driving with standard tires.
■If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on one of the rear wheels of the vehicle. Perform the follow-
ing steps and fit tire chains to the front tires:
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of the vehicle.
Fit tire chains to the front tires.
3
4
1
2
3
CT200h_OM_OM76135E_(EE).book Page 547 Friday, May 30, 2014 1 1:14 AM

5488-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
■Certification for the jack
CT200h_OM_OM76135E_(EE).book Page 548 Friday, May 30, 2014 11:14 AM

5498-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
8
When trouble arises
WA R N I N G
■When using the compact spare tire
●Remember that the spare tire provided is specifically designed for use with your vehi-
cle. Do not use your spare tire on another vehicle.
●Do not use more than one spare tire simultaneously.
●Replace the spare tire with a standard tire as soon as possible.
●Avoid sudden acceleration, abrupt steeri ng, sudden braking and shifting operations
that cause sudden engine braking.
■When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following systems may not
operate correctly:
■Speed limit when using the compact spare tire
Do not drive at speeds in excess of 80 km/h (50 mph) when a compact spare tire is
installed on the vehicle.
The compact spare tire is not designed for driving at high speeds. Failure to observe
this precaution may lead to an accid ent causing death or serious injury.
■After using the tools and jack
Before driving, make sure all the tools and jack are securely in place in their storage
location to reduce the possibility of personal injury during a collision or sudden brak-
ing.
■When stowing the flat tire
●Make sure the rear seatbacks are in their original position.
●Secure it using a tire tie-down belt. Otherwise, the flat tire may fly out in case of sud-
den braking or an accident, resulting in death or serious injury.
• ABS & Brake assist
•VSC
•TRC
• Cruise control (if equipped)
• Dynamic radar cruise control (if equipped)
• PCS (Pre-Crash Safety system)
(if equipped) •EPS
• Rear view monitor system
(if equipped)
• Lexus parking assist monitor
(if equipped)
• Lexus parking assist-sensor (if equipped)
• Navigation system (if equipped)
CT200h_OM_OM76135E_(EE).book Page 549 Friday, May 30, 2014 1 1:14 AM

5508-2. Steps to take in an emergency
CT200h_OM_OM76135E_(EE)
NOTICE
■Be careful when driving over bumps with the compact spare tire installed on the vehi-
cle
The vehicle becomes lower when driving with the compact spare tire compared to
when driving with standard tires. Be careful when driving over uneven road surfaces.
■Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving performance.
