3005-7. Setup menu
CT200h_OM_OM76135E_(EE)
Bluetooth® audio system setup
To enter the menu of each setting, follow the steps below. Press the off-hook switch ( →P. 294) and select “Setup” using the
“TUNE•SEL” knob
Select “System Setup” using the knob.
Select one of the following items using the knob:
●Setting voice guidance volume
“Guidance Vol” ( →P. 3 0 4 )
●Displaying the Bluetooth® device address and name
“Device Name” ( →P. 3 0 4 )
●Initializing the system
“Initialize” ( →P. 3 0 4 )
System setup items an d operation procedures
1
2
3
CT200h_OM_OM76135E_(EE).book Page 300 Friday, May 30, 2014 1 1:14 AM

3025-7. Setup menu
CT200h_OM_OM76135E_(EE)
Select “Change Name” using the “TUNE•SEL” knob.
Select the desired cellular phone name to be changed using the knob.
Select “Record Name” using the knob, and say the new name after the beep.
The name to be registered will be repeated aloud. Select “Confirm” using the knob.
Select “List Phones” using the “TUNE•SEL” knob. The list of registered cellular
phones will be read aloud.
When listing is complete, the system returns to “Phone Setup”. Select “Set Passkey” using the “TUNE•SEL” knob.
Select a 4 to 8-digit number using the knob.
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been input, press
the knob again.
If the number to be registered has 8 digits, pressing of the knob is not necessary.
Select “Delete Phone” using the “TUNE•SEL” knob.
Select the desired cellular phone to be deleted using the knob.
If the cellular phone to be deleted is paired as a Bluetooth
® audio player, the
registration of the audio player can be deleted at the same time.
When “Del Audio?” is displayed, select “Yes” or “No” using the knob.
(Bluetooth
® audio player →P. 316)
■The number of cellular phones that can be registered
Up to 6 cellular phones can be registered in the system.
Changing the registered name of a cellular phone
Listing the registered cellular phones
Changing the passkey
Deleting a registered cellular phone
1
2
3
4
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 302 Friday, May 30, 2014 1 1:14 AM

303
5
5-7. Setup menu
Audio system
CT200h_OM_OM76135E_(EE)
Security and system setup
To enter the menu of each setting, follow the steps below.
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob.
Select “Security” using the knob.
Select one of the following items using the knob:
●Setting or changing the PIN (Personal Identification Number)
“Set PIN”
●Locking the phone book
“Phbk Lock”
●Unlocking the phone book
“Phbk Unlock”
Press the off-hook switch and select “Setup” using the “TUNE•SEL” knob.
Select “System Setup” using the knob.
Select one of the following items using the knob:
●Setting voice guidance volume
“Guidance Vol”
●Displaying the Bluetooth® device address and name
“Device Name”
●Initializing the system
“Initialize”
Security setting items and operation procedures
System setup items an d operation procedures
1
2
3
1
2
3
CT200h_OM_OM76135E_(EE).book Page 303 Friday, May 30, 2014 1 1:14 AM

3045-7. Setup menu
CT200h_OM_OM76135E_(EE)
■Setting a PINSelect “Set PIN” using the “TUNE•SEL” knob.
Enter a PIN using the knob.
Input the code 1 digit at a time.
■Changing the PINSelect “Set PIN” using the “TUNE•SEL” knob.
Enter the registered PIN using the knob.
Enter a new PIN using the knob.
Input the code 1 digit at a time.
Select “Phbk Lock” or “Phbk Unlock” using the “TUNE•SEL” knob.
Input a PIN by using the knob and select “Confirm” using the knob.
Input the code 1 digit at a time.
Select “Guidance Vol” using the “TUNE•SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Device Name” using the “TUNE•SEL” knob.
Turn the knob to display the Bluetooth
® device address and name.
Select “Go Back” using the knob to return to “System Setup”.
Select “Initialize” and then “Confirm” using the “TUNE•SEL” knob.
Select “Confirm” again using the knob.
Setting or changing the PIN
Locking or unlocking the phone book
Setting voice guidance volume
Displaying the Bluetooth® device address and name
Initializing the system
1
2
1
2
3
1
2
1
2
1
2
3
1
2
CT200h_OM_OM76135E_(EE).book Page 304 Friday, May 30, 2014 1 1:14 AM

3065-7. Setup menu
CT200h_OM_OM76135E_(EE)
Using the phone book
To enter the menu of each setting, follow the steps below. Press the off-hook switch and select “Phonebook” using the “TUNE•SEL”
knob.
Select one of the following items using the knob.
●Adding a new phone number
“A d d E n t r y ”
●Changing the registered name in the phone book
“Change Name”
●Listing the registered data
“List Names”
●Setting speed dials
“Speed Dial”
●Deleting the registered data
“Delete Entry”
●Deleting speed dials
“Del Spd Dial”
The following methods can be used to add a new phone number:
●Transferring data from the cellular phone
●Inputting a phone number using the “TUNE•SEL” knob
●Selecting a phone number from outgoing or incoming call history
■Adding procedure Select “Add Entry” using the “TUNE•SEL” knob.
Use one of the following methods to input a telephone number:
Transferring data from the cellular phone: STEP2-1 Select “By Phone” and then “Confirm” using the knob.
STEP2-2 When “Transfer” appears in the display, transfer the data from the cellular phone.
Refer to the manual that comes with the cellular phone for the details
of transferring data.
STEP2-3 Select the desired data using the knob.
Adding a new phone number
1
2
1
2
CT200h_OM_OM76135E_(EE).book Page 306 Friday, May 30, 2014 1 1:14 AM

309
5
5-8. Bluetooth
® Audio
Audio system
CT200h_OM_OM76135E_(EE)
Operating a Bluetooth® enabled portable player
To select the desired album, press the “5” button or the “6” button.
Press “
∧” or “ ∨” on the “SEEK•TRACK” button to select the desired track.
Control panel
Displaying text message
Repeat play
Playback/pause
Album selection
“TUNE•SEL” knob
BT•A menu
Playback Track selection
Random play
Po w e r/v o l u m e k n o b
Press: Turning the audio system on
or off
Turn: Adjusting the volume1
2
3
4
5
6
7
8
9
Selecting an album
Selecting tracks
CT200h_OM_OM76135E_(EE).book Page 309 Friday, May 30, 2014 1
1:14 AM

3105-8. Bluetooth® Audio
CT200h_OM_OM76135E_(EE)
To play or pause a track, press the “3” button.
To fast-forward or rewind, press and hold “∧” or “ ∨” on the “SEEK•TRACK” but-
ton until you hear a beep.
Press the “1” button.
To cancel, press the button again.
Press the “2” button.
To cancel, press the button again.
Press the “TEXT” button.
Each time the button is pressed, the di splay changes in the following order:
Elapsed time → Album title → Track title → Artist name
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions may
not be available.
■Display
→ P. 2 7 2
■Error messages
“Memory Error”: This indicates a problem in the system.
Playing and pausing tracks
Fast-forwarding and rewinding tracks
Random play
Repeat play
Switching the display
CT200h_OM_OM76135E_(EE).book Page 310 Friday, May 30, 2014 1 1:14 AM

311
5
5-9. Bluetooth
® Phone
Audio system
CT200h_OM_OM76135E_(EE)
Making a phone call
◆Making a phone call
●Dialing by inputting a name
“Dial by name”
●Speed dialing
●Dialing a number stored in the outgoing history memory
“Redial”
●Dialing a number stored in the incoming history memory
“Call back”
◆Using the call history memory
●Dialing
●Storing data in the phone book
●Deleting
Press the talk switch and say a registered name.
The desired name or number is displayed.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Select “Dial” using the “TUNE•SEL” knob.
In step , if the pronounced name cannot be recognized, select the desired name
using the knob.
Press the off-hook switch.
Press the preset button in which the desired number is registered.
Press the off-hook switch.
Dialing by inputting a name
Speed dialing
1
2
1
1
2
3
CT200h_OM_OM76135E_(EE).book Page 311 Friday, May 30, 2014 1 1:14 AM

315
5
5-10. Bluetooth
®
Audio system
CT200h_OM_OM76135E_(EE)
Bluetooth®
■Conditions under which th
e system will not operate
●If using a cellular phone that does not support Bluetooth®.
●If the cellular phone is switched off.
●If you are outside service range.
●If the cellular phone is not connected.
●If the cellular phone’s battery is low.
●If the cellular phone is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player/phone
■Signal status
This display may not correspond exact ly with the cellular phone itself.
■When using the hands-free system
●The audio system and voice guidance are muted when making a call.
●If both parties speak at the same time, it may be difficult to hear.
●If the incoming call volume is overly loud, an echo may be heard.
●Try to face toward the microphone as much as possible when speaking.
●In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
•When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly accessed.
(→ P. 3 0 4 )
■About Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
CT200h_OM_OM76135E_(EE).book Page 315 Friday, May 30, 2014 1 1:14 AM

321
5
5-11. Basic Operations (Lex
us Display Audio System)
Audio system
CT200h_OM_OM76135E_(EE)

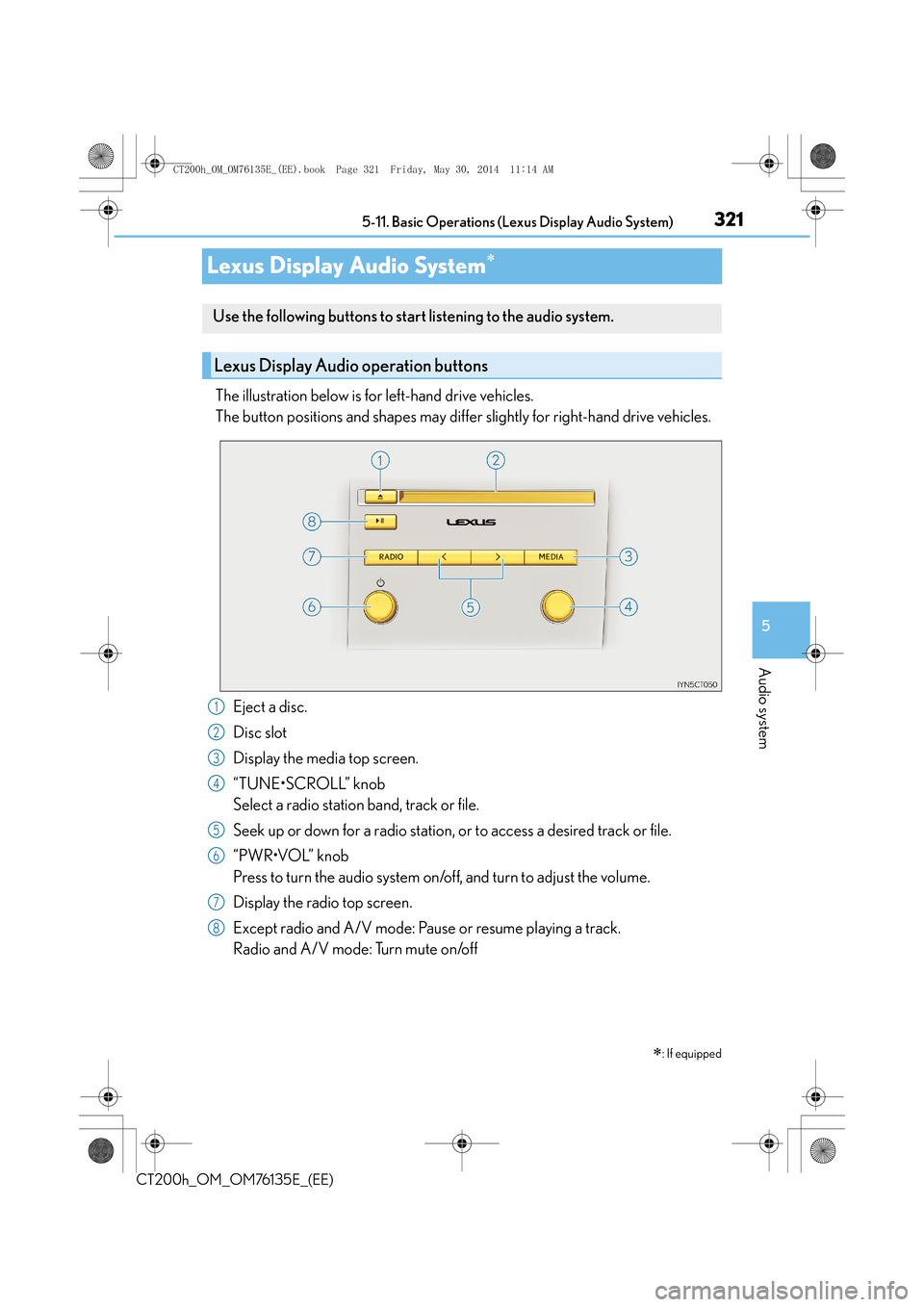

Lexus Display Audio System∗
The illustration below is for left-hand drive vehicles.
The button positions and shapes may differ slightly for right-hand drive vehicles.
Eject a disc.
Disc slot
Display the media top screen.
“TUNE•SCROLL” knob
Select a radio station band, track or file.
Seek up or down for a radio station, or to access a desired track or file.
“PWR•VOL” knob
Press to turn the audio system on/off, and turn to adjust the volume.
Display the radio top screen.
Except radio and A/V mode: Pause or resume playing a track.
Radio and A/V mode: Turn mute on/off
∗: If equipped
Use the following buttons to start listening to the audio system.
Lexus Display Audio operation buttons
1
2
3
4
5
6
7
8
CT200h_OM_OM76135E_(EE).book Page 321 Friday, May 30, 2014 1 1:14 AM
