bluetooth Lexus CT200h 2017 (in English) Owner's Guide

306
CT200h_OM_OM76215U_(U)5-7. Setup menu
Security and system setup
To enter the menu for each function, follow the steps below using a voice com-
mand or the “TUNE•SEL” knob:
●Setting or changing the PIN (Personal Identification Number)
1. “Setup”
 2. “Security”  3. “Set PIN”
●Locking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Lock (Phbk Lock)”
●Unlocking the phone book
1. “Setup”  2. “Security”  3. “Phonebook Unlock (Phbk Unlock)”
To enter the menu for each function, follow the steps below using the
“TUNE•SEL” knob:
●Setting voice guidance volume
1. “Setup”  2. “System Setup”  3. “Guidance Vol”
●Displaying the Bluetooth® device address and name
1. “Setup”  2. “System Setup”  3. “Device Name”
●Initializing the system
1. “Setup”  2. “System Setup”  3. “Initialize”
■Setting a PIN
Select “Set PIN” using a voice command or the “TUNE•SEL” knob.
Enter a PIN using a voice command or the knob.
When using the “TUNE•SEL” knob, input the code 1 digit at a time.
■Changing the PINSelect “Set PIN” using a voice command or the “TUNE•SEL” knob.
Enter the registered PIN using a voice command or the knob.
Enter a new PIN using a voice command or the knob.
When using the knob, input the code 1 digit at a time.
Security setting items and operation procedures
System setup items and operation procedures
Setting or changing the PIN
1
2
1
2
3

CT200h_OM_OM76215U_(U)
3075-7. Setup menu
5
Audio system
Select “Phonebook Lock (Phbk Lock)” or “Phonebook Unlock (Phbk
Unlock)” using a voice command or the “TUNE•SEL” knob.
Input the PIN by either of the following methods and select “Confirm” using a
voice command or the knob:
a. Press the talk switch and say the registered PIN.
b. Input a new PIN using the knob.
Select “Guidance Vol” using the “TUNE•SEL” knob.
Change the voice guidance volume.
To decrease the volume: Turn the knob counterclockwise.
To increase the volume: Turn the knob clockwise.
Select “Device Name” using the “TUNE•SEL” knob.
Turn the knob to display the Bluetooth
® device address and name.
Select “Go Back” using the knob to return to “System Setup”.
Select “Initialize” and then “Confirm” using the “TUNE•SEL” knob.
Select “Confirm” again using the knob.
Locking or unlocking the phone book
Setting voice guidance volume
Displaying the Bluetooth® device address and name
Initializing the system
1
2
1
2
1
2
3
1
2

3085-7. Setup menu
CT200h_OM_OM76215U_(U)
■Initialization
●The following data in the system can be initialized:
• Phone book
• Outgoing and incoming call history
• Speed dials
• Registered cellular phone data
• Security code
• Registered Bluetooth
® enabled portable player data
• Passkey for the cellular phones
• Passkey for the Bluetooth
® audio players
•Guidance volume
• Receiver volume
• Ring tone volume
●Once the initialization has been completed, the data cannot be restored to its original
state.
■When the phone book is locked
The following functions cannot be used:
●Dialing by inputting a name
●Speed dialing
●Dialing a number stored in the call history memory
●Using the phone book

314
CT200h_OM_OM76215U_(U)5-8. Bluetooth
® Audio
Operating a Bluetooth® enabled portable player
Control panel
Displaying text message
Repeat play
Playback/pause
Search play
“TUNE•SEL” knob
BT•A menu
Playback
Album selection
Track selection
Random play
Power/volume knob
Press: Turning the audio system on or
off
Turn: Adjusting the volume
1
2
3
4
5
6
7
8
9
10

CT200h_OM_OM76215U_(U)
3155-8. Bluetooth® Audio
5
Audio system
Press “”or “ ” on the “TYPE•FOLDER” button to select the desired album.
Press “ ”or “ ” on the “SEEK•TRACK” button to select the desired track.
To play or pause a track, press the “3” button.
To fast-forward or rewind, press and hold “ ”or “ ” on the “SEEK•TRACK” but-
ton until you hear a beep.
Press the “1” button.
To cancel, press the button again.
Press the “2” button.
To cancel, press the button again.
Press the “SCAN” button.
To cancel, press the button again.
Press the “TEXT” button.
Each time the button is pressed, the display changes in the following order: Elapsed
time  Album title  Track title  Artist name
■Bluetooth® audio system functions
Depending on the portable play er that is connected to the system, certain functions may
not be available.
■Display
 P. 2 7 2
■Error messages
“Memory Error”: This indicates a problem in the system.
Selecting an album
Selecting tracks
Playing and pausing tracks
Fast-forwarding and rewinding tracks
Random play
Repeat play
Scanning tracks
Switching the display

316
CT200h_OM_OM76215U_(U)5-9. Bluetooth
® Phone
Making a phone call
■Making a phone call
●Dialing by inputting a number
“Dial by number”
●Dialing by inputting a name
“Dial by name”
●Speed dialing
●Dialing a number stored in the outgoing history memory
“Redial”
●Dialing a number stored in the incoming history memory
“Call back”
■Using the call history memory
●Dialing
●Storing data in the phone book
●Deleting
Press the talk switch and say “Dial by number”.
Press the talk switch and say the phone number.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using the “TUNE•SEL” knob.
Press the talk switch and say “Dial by name”.
Select a registered name to be inpu t by either of the following methods:
a. Press the talk switch and say a registered name.
b. Press the talk switch and say “List Names”. Press the talk switch when the desired name is read aloud.
Dial by one of the following methods:
a. Press the off-hook switch.
b. Press the talk switch and say “Dial”.
c. Select “Dial” using the “TUNE•SEL” knob.
Dialing by inputting a number
Dialing by inputting a name
1
2
3
1
2
3

CT200h_OM_OM76215U_(U)
3175-9. Bluetooth® Phone
5
Audio system
Press the off-hook switch.
Press the preset button in which the desired number is registered.
Press the off-hook switch.
Follow the procedure below to use a number stored in the call history memory: Press the talk switch and say “Redial” (when using a number stored in the out-
going call history memory) or “Call back” (when using a number stored in the
incoming call history memory).
Select the number by either of the following methods:
a. Say “Previous” or “Go back” until the desired number is displayed.
b. Select the desired number using the “TUNE•SEL” knob.
The following operations can be performed:
Dialing: Press the off-hook switch or select “Dial” using a voice command or
the “TUNE•SEL” knob.
Storing the number in the phone book : Select “Store” and then “Confirm”
using a voice command or the knob.
Deleting: Select “Delete” and then “Confirm” using a voice command or the
knob.
■Call history
Up to 5 numbers can be stored in each of the outgoing and incoming call history memo-
ries.
Speed dialing
Using the call history memory
1
2
3
1
2
3

318
CT200h_OM_OM76215U_(U)5-9. Bluetooth
® Phone

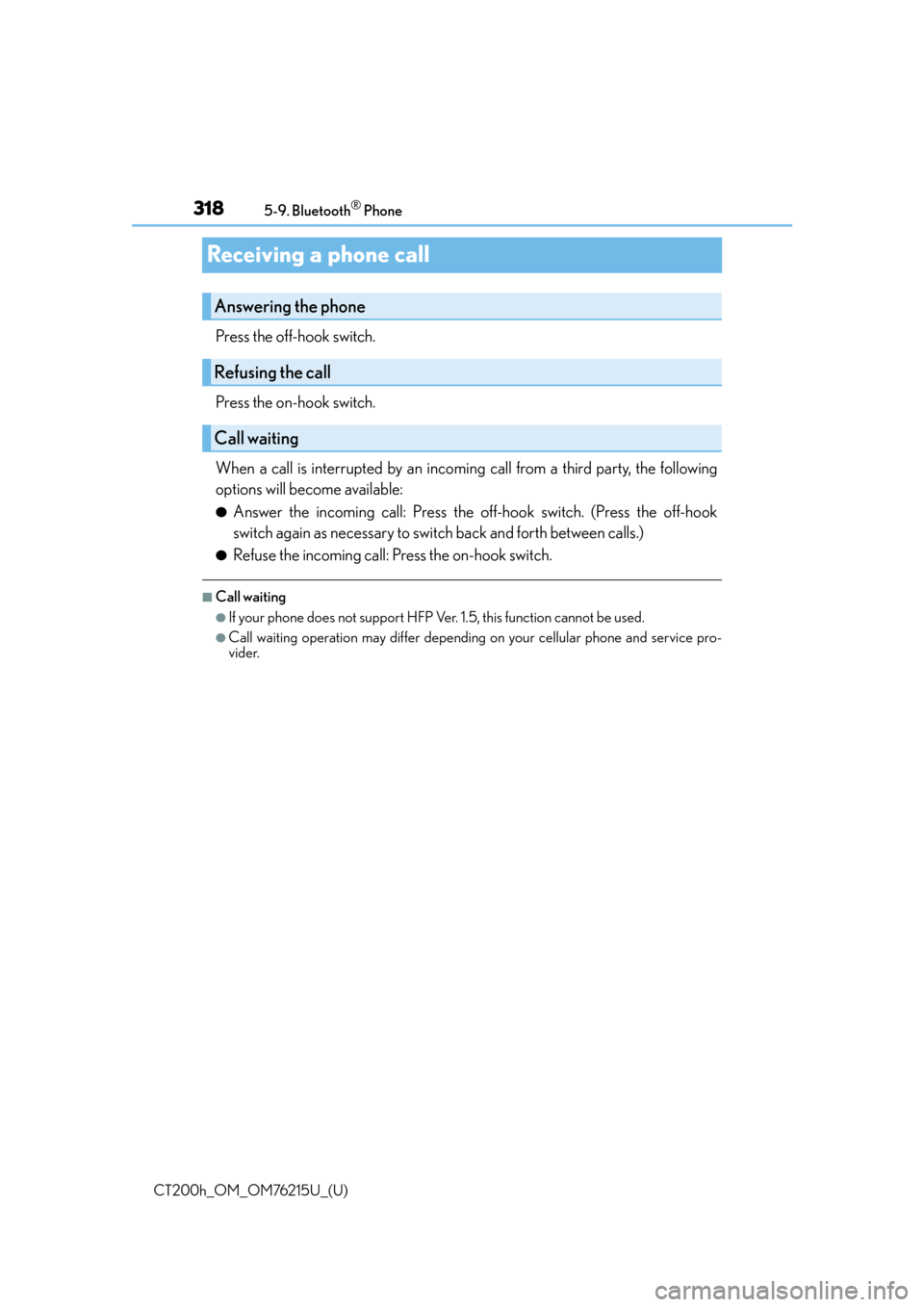

Receiving a phone call
Press the off-hook switch.
Press the on-hook switch.
When a call is interrupted by an incomi
ng call from a third party, the following
options will become available:
●Answer the incoming call: Press the off-hook switch. (Press the off-hook
switch again as necessary to switch back and forth between calls.)
●Refuse the incoming call: Press the on-hook switch.
■Call waiting
●If your phone does not support HFP Ver. 1.5, this function cannot be used.
●Call waiting operation may differ dependin g on your cellular phone and service pro-
vider.
Answering the phone
Refusing the call
Call waiting

319
CT200h_OM_OM76215U_(U)5-9. Bluetooth
® Phone
5
Audio system
Speaking on the phone
A call can be transferred between the ce
llular phone and system while dialing,
receiving a call, or during a call. Use one of the following methods:
a. Operate the cellular phone.
Refer to the manual that comes with the cellular phone for the operation of the
phone.
b. Press the off-hook switch*1.
c. Press the talk switch and say “Call Transfer”
*2.
*1: This operation can be performed only wh en transferring a call from the cellular
phone to the system during a call.
*2: While the vehicle is in motion, calls cannot be transferred from the system to the cellular phone.
■When talking on the phone
●Do not talk simultaneously with the other party.
●Keep the volume of the received voice do wn. Otherwise, voice echo will increase.
Transferring a call

320
CT200h_OM_OM76215U_(U)5-10. Bluetooth
®
Bluetooth®
■Conditions under which th
e system will not operate
●If using a cellular phone that does not support Bluetooth®
●If the cellular phone is switched off
●If you are outside service range
●If the cellular phone is not connected
●If the cellular phone’s battery is low
●If the cellular phone is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player/phone
■Signal status
This display may not correspond exact ly with the cellular phone itself.
■When using the hands-free system
●The audio system and voice guidance are muted when making a call.
●If both parties speak at the same time, it may be difficult to hear.
●If the incoming call volume is ov erly loud, an echo may be heard.
●Try to face toward the microphone as much as possible when speaking.
●In the following circumstances, it may be difficult to hear the other party:
• When driving on unpaved roads
• When driving at high speeds
• When a window is open
• When the air conditioning is blowing directly on the microphone
• When the air conditioning is set to high
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent pe rsonal data from being improperly accessed.
(  P. 3 0 7 )
■For detailed information about Handsfree Phone System
For assistance with pairing and operatin g your cell phone, go to the website
www.lexus.letstalk.com.
■About Bluetooth®
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
