4516-4. Using the other interior features
6
Interior features
Press the appropriate HomeLink® button. The HomeLink® indicator light
should turn on.
The status of the opening and closing of
a garage door is shown by the indica-
tors.
Opening
Closing
This function is only available if the
garage door opener motor used is a
compatible device. (To check device
compatibility, refer to the Owner’s man-
ual supplied with the garage door
opener motor.)
The indicators can operate within approximately 820 ft. (250 m) of the garage
door. However, if there are obstacles between the garage door and the vehicle,
such as houses and trees, feedback signals from the garage door may not be
received.
To recall the previous door operation status, press and release either
HomeLink
® buttons “1” and “2” or “2” and “3” simultaneously for 2 seconds. The
last recorded status will be displayed for 5 seconds.
Press and hold the 2 outside buttons for
10 seconds until the HomeLink
® indi-
cator light changes from continuously
lit (orange) to rapidly flashing (green).
If you sell your vehicle, be sure to erase
the programs stored in the HomeLink®
memory.
Operating HomeLink®
Garage door operation indicators
1
2
ColorStatus
Orange (flashing)Currently opening/closing
GreenOpening/closing has completed
Red (flashing)Feedback signals cannot be received
Erasing the entire HomeLink® memory (all three programs)

452
CT200h_OM_OM76215U_(U)6-4. Using the other interior features
■Programs stored in the HomeLink® memory
●The registered codes are not erased even if the 12-volt battery cable is disconnected.
●If learning failed when registerin
g a different code to a HomeLink® button that already
has a code registered to it, the already registered code is not erased.
■Certification for the garage door opener
For vehicles sold in the U.S.A., Hawaii , Guam, Puerto Rico and NATO Germany
For vehicles sold in Canada
■For additional programming assistance with your HomeLink® Universal Transceiver
Visit on the web at www.homelink.com
or call 1-800-355-3515.

CT200h_OM_OM76215U_(U)
4536-4. Using the other interior features
6
Interior features

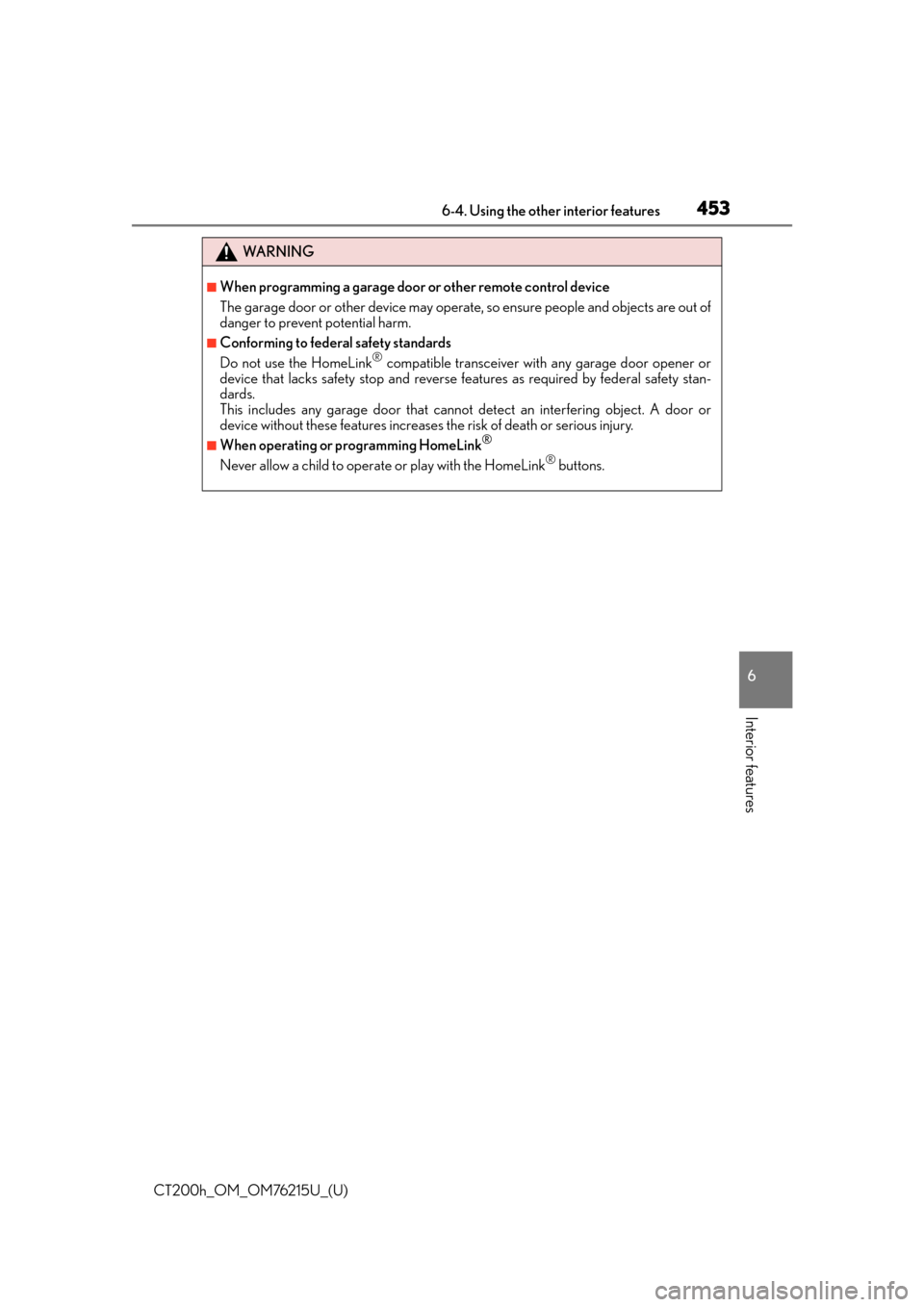

WA R N I N G
■When programming a garage door or other remote control device
The garage door or other device may operate, so ensure people and objects are out of
danger to prevent potential harm.
■Conforming to federal safety standards
Do not use the HomeLink® compatible transceiver with any garage door opener or
device that lacks safety stop and reverse fe atures as required by federal safety stan-
dards.
This includes any garage door that canno t detect an interfering object. A door or
device without these features increases the risk of death or serious injury.
■When operating or programming HomeLink®
Never allow a child to operate or play with the HomeLink® buttons.

454
CT200h_OM_OM76215U_(U)6-4. Using the other interior features
Compass
Vehicles without garage door opener
Vehicles with garage door opener
To turn the compass on or off, press the
button.
: If equipped
The compass on the inside rear view mi rror indicates the direction in which
the vehicle is heading.
Operation
Ty p e A : Ty p e B :
To turn the compass on or off, press the
“AUTO” button for more than 3 sec-
onds. To turn the compass on or off, press
the “AUTO” button for more than 3
seconds.

CT200h_OM_OM76215U_(U)
4556-4. Using the other interior features
6
Interior features
Displays and directions
DisplayDirection
“N”North
“NE”Northeast
“E”East
“SE”Southeast
“S”South
“SW”Southwest
“W”We s t
“NW”Northwest

456
CT200h_OM_OM76215U_(U)6-4. Using the other interior features
The direction display deviates from the true direction determined by the earth’s
magnetic field. The amount of deviation varies depending on the geographic
position of the vehicle.
If you cross over one of the map boundaries shown in illustration, the compass will
deviate.
To obtain higher precision or perfect ca
libration, refer to “Deviation calibration”.
Calibrating the compass

CT200h_OM_OM76215U_(U)
4576-4. Using the other interior features
6
Interior features
■Deviation calibration
Vehicles without garage door opener
Stop the vehicle.
Press and hold the “AUTO” button for 6 seconds. A number (1 to 15)
appears on the compass display.
Referring to the map above, press the “AUTO” button to select the number
of the zone you are in.
If the direction is displayed several seconds after adjustment, the calibration is
complete.
Vehicles with garage door opener
Stop the vehicle.
Press and hold the button for 3
seconds. A number (1 to 15)
appears on the compass display.
Referring to the map above, press the button to select the number of the
zone you are in.
If the direction is displayed several se conds after adjustment, the calibration is
complete.
1
2
Ty p e A : Ty p e B :
3
1
2
3

458
CT200h_OM_OM76215U_(U)6-4. Using the other interior features
■Circling calibration
Vehicles without garage door opener
Stop the vehicle in a place where it
is safe to drive in a circle.
Press and hold the “AUTO” button for 9 seconds.
“C” appears on the compass display.
Drive the vehicle at 5 mph
(8 km/h) or less in a circle until a
direction is displayed.
If there is not enough space to drive
in a circle, drive around the block
until a direction is displayed.
Vehicles with garage door opener
Stop the vehicle in a place where it is safe to drive in a circle.
Press and hold the button for 6
seconds.
“C” appears on the compass display.
1
2
Ty p e A : Ty p e B :
3
1
2

CT200h_OM_OM76215U_(U)
4596-4. Using the other interior features
6
Interior features
Drive the vehicle at 5 mph
(8 km/h) or less in a circle until a
direction is displayed.
If there is not enough space to drive
in a circle, drive around the block
until a direction is displayed.
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground car park/parking lot, under a steel tower,
between buildings, roof car park/parking lot, near an intersection, near a large vehicle,
etc.).
●The vehicle has become magnetized. (There is a magnet or metal object near the inside
rear view mirror.)
●The 12-volt battery has been disconnected.
●A door is open.
3
WA R N I N G
■While driving the vehicle
Do not adjust the display. Adjust the di splay only when the vehicle is stopped.
■When doing the circling calibration
Secure a wide space, and watch out for people and vehicles in the vicinity. Do not vio-
late any local traffic rules while performing circling calibration.
NOTICE
■To avoid compass malfunctions
Do not place magnets or any metal object s near the inside rear view mirror.
Doing this may cause the compass sensor to malfunction.
■To ensure normal operation of the compass
●Do not perform a circling calibration of the compass in a place where the earth’s
magnetic field is subject to interfer ence by artificial magnetic fields.
●During calibration, do not operate electric systems (moon roof, power windows, etc.)
as they may interfere with the calibration.

460
CT200h_OM_OM76215U_(U)6-4. Using the other interior features
LEXUS Enform Safety Connect
Microphone
LED light indicators
“SOS” button
: If equipped
Safety Connect is a subscription-based telematics service that uses Global
Positioning System (GPS) data and embe
dded cellular technology to provide
safety and security features to subscribers. Safety Connect is supported by
Lexus’ designated response center, wh ich operates 24 hours per day, 7 days
per week.
Safety Connect service is available by su bscription on select, telematics hard-
ware-equipped vehicles.
By using the Safety Connect service, yo u are agreeing to be bound by the
Telematics Subscription Service Agreement and its Terms and Conditions, as
in effect and amended from time to time, a current copy of which is available
at Lexus.com. All use of the Safety Connect service is subject to such then-
applicable Terms and Conditions.
System components
1
2
3
