5-1. Essential information
GX460_OM_OM60J63U_(U)
NOTICE
■To prevent causing serious damage to the transmission and transfer when towing
using a wheel-lift type truck
Never tow this vehicle with any of the wheels in contact with the ground.
■To avoid serious damage to your vehicle
■]To prevent damage to the vehicle when towing using a wheel-lift type truck
When raising the vehicle, ensure adequate ground clearance for towing at the
opposite end of the raised vehicle. Without adequate clearance, the vehicle could
be damaged while being towed.
■To prevent body damage when towing with a sling-type truck
Do not tow with a sling-type truck, either from the front or rear.
■To prevent causing serious damage to the transmission and transfer in emer-
gency towing
Never tow a vehicle from the rear with four wheels on the ground. This may cause
serious damage to the transmission.
Do not use the rear emergency towing hook.
GX460_OM_OM60J63U_(U).book Page 690 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
691
5-1. Essential information
GX460_OM_OM60J63U_(U)
If you think something is wrong
If you notice any of the following symptoms, your vehicle probably needs
adjustment or repair. Contact your Lexus dealer as soon as possible.
■Visible symptoms
● Fluid leaks under the vehicle
(Water dripping from the air conditioning after use is normal.)
● Flat-looking tires or uneven tire wear
● Engine coolant temperature gauge needle continually points
higher than normal
■ Audible symptoms
● Changes in exhaust sound
● Excessive tire squeal when cornering
● Strange noises related to the suspension system
● Pinging or other noises related to the engine
■ Operational symptoms
● Engine missing, stumbling or running roughly
● Appreciable loss of power
● Vehicle pulls heavily to one side when braking
● Vehicle pulls heavily to one side when driving on a level road
● Loss of brake effectiveness, sp ongy feeling, pedal almost touches
the floor
GX460_OM_OM60J63U_(U).book Page 691 Thursday, March 29, 2012 9:10 AM

692
5-1. Essential information
GX460_OM_OM60J63U_(U)
Fuel pump shut off system
Follow the procedure below to restart the engine after the system is acti-
vated.Turn the “ENGINE START STOP” switch to ACCESSORY mode
or turn it off.
Restart the engine.
NOTICE
■Before starting the engine
Inspect the ground under the vehicle.
If you find that fuel has leaked on to the ground, the fuel system has been damaged
and is in need of repair. Do not restart the engine.
To minimize the risk of fuel leakage when the engine stalls or an airbag
inflates upon collision, the fuel pump shut off system stops supplying fuel to
the engine.
STEP1
STEP2
GX460_OM_OM60J63U_(U).book Page 692 Thursday, March 29, 2012 9:10 AM

5
When trouble arises

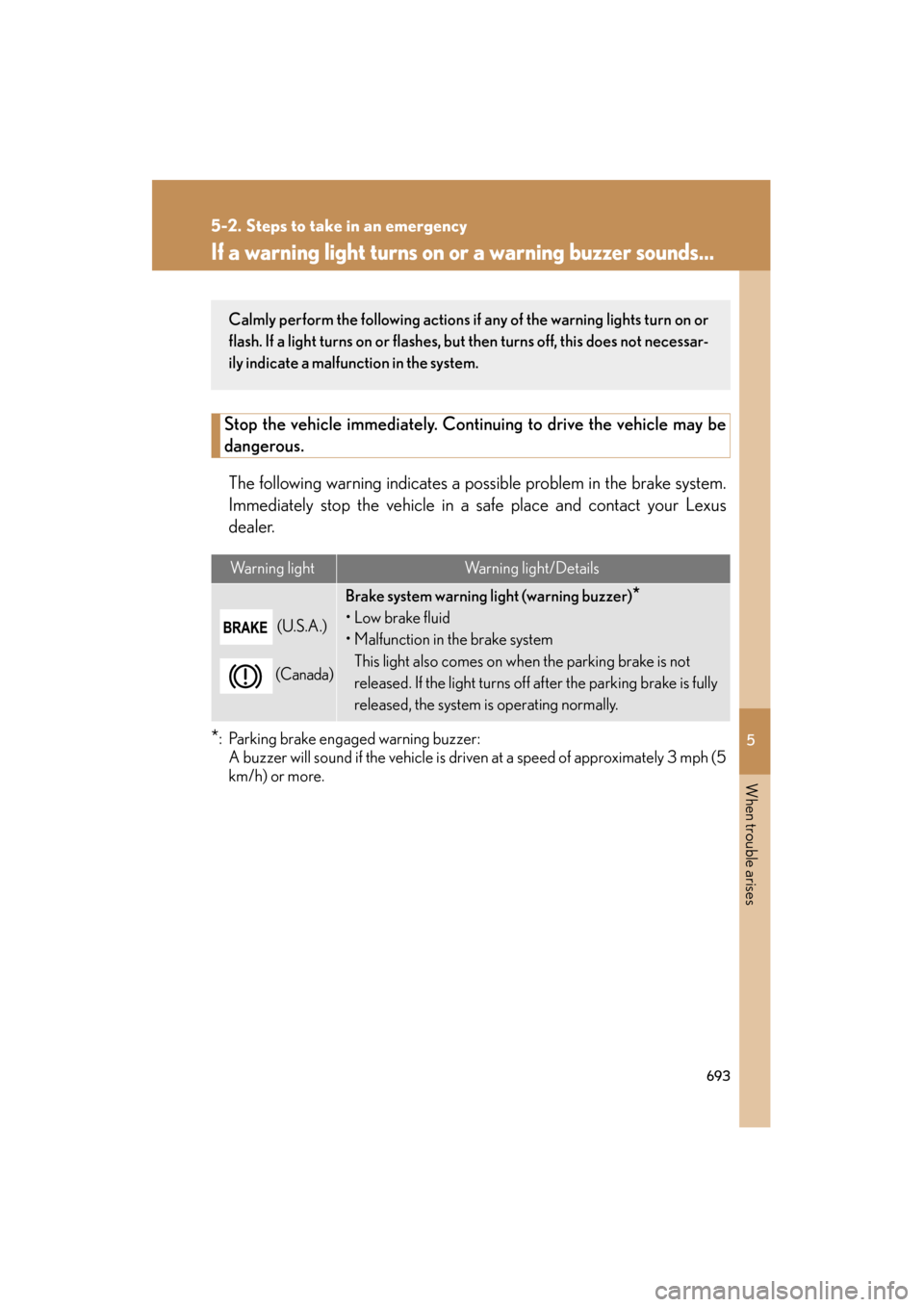

693
GX460_OM_OM60J63U_(U)
5-2. Steps to take in an emergency
If a warning light turns on or a warning buzzer sounds...
Stop the vehicle immediately. Continuing to drive the vehicle may be
dangerous.
The following warning indicates a possible problem in the brake system.
Immediately stop the vehicle in a safe place and contact your Lexus
dealer.
*: Parking brake engaged warning buzzer: A buzzer will sound if the vehicle is driven at a speed of approximately 3 mph (5
km/h) or more.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Brake system warning light (warning buzzer)*
• Low brake fluid
• Malfunction in the brake system
This light also comes on when the parking brake is not
released. If the light turns off after the parking brake is fully
released, the system is operating normally.
Calmly perform the following actions if any of the warning lights turn on or
flash. If a light turns on or flashes, but then turns off, this does not necessar-
ily indicate a malfunction in the system.
GX460_OM_OM60J63U_(U).book Page 693 Thursday, March 29, 2012 9:10 AM

694
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Stop the vehicle immediately.
The following warning indicates the possibility of damage to the vehicle
that may lead to an accident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Have the vehicle inspected by your Lexus dealer immediately. Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
Charging system warning light Indicates a malfunction in the vehicle’s charging system
while the engine is running.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lampMalfunction in:
• The emission control system;
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
GX460_OM_OM60J63U_(U).book Page 694 Thursday, March 29, 2012 9:10 AM

5
When trouble arises

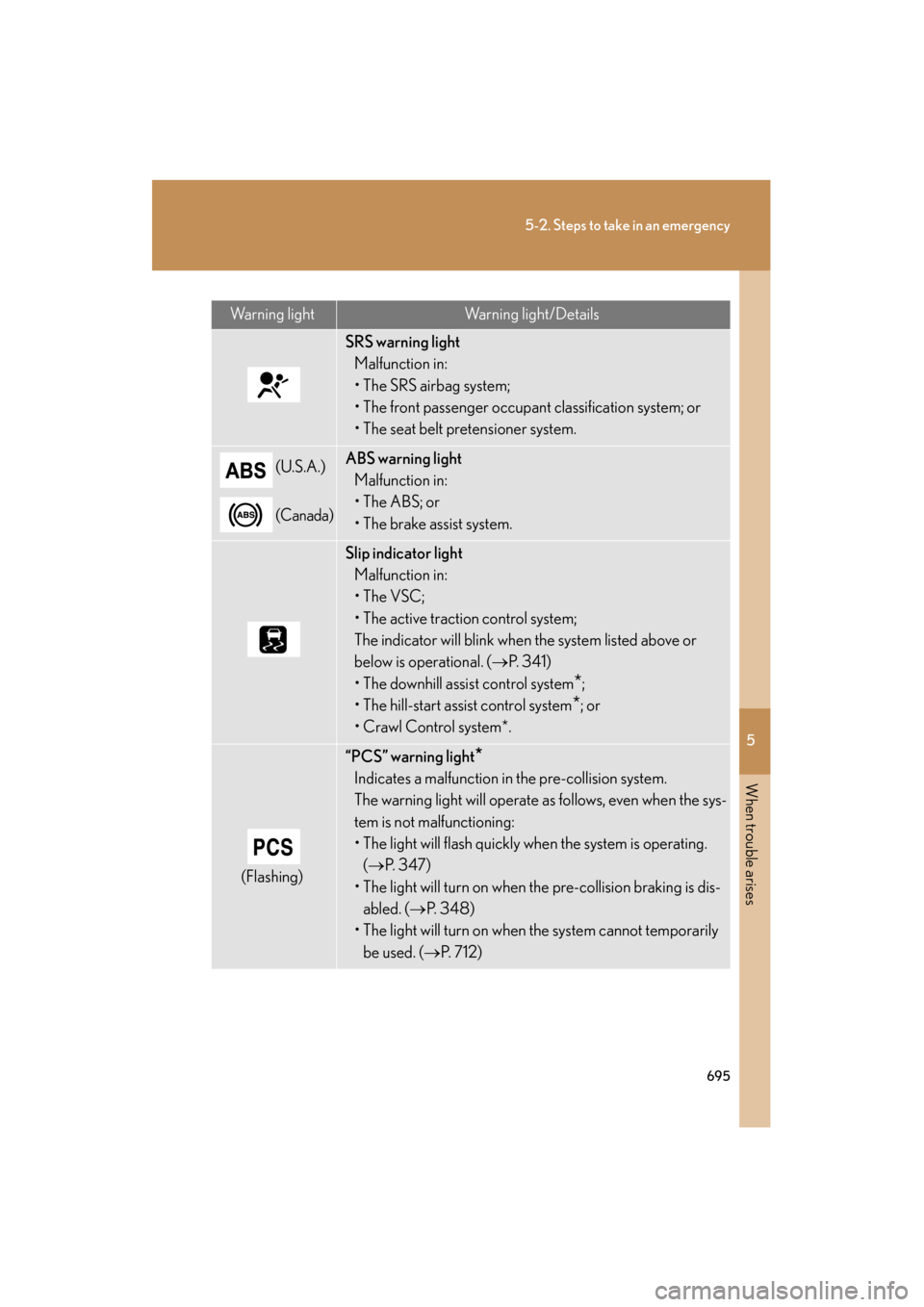

695
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Warning lightWarning light/Details
SRS warning lightMalfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.
(U.S.A.)

(Canada)
ABS warning lightMalfunction in:
•The ABS; or
• The brake assist system.
Slip indicator light
Malfunction in:
•The VSC;
• The active traction control system;
The indicator will blink when the system listed above or
below is operational. ( →P. 3 4 1 )
• The downhill assist control system
*;
• The hill-start assist control system
*; or
•Crawl Control system*.
(Flashing)
“PCS” warning light*
Indicates a malfunction in the pre-collision system.
The warning light will operate as follows, even when the sys-
tem is not malfunctioning:
• The light will flash quickly when the system is operating.
(→ P. 3 4 7 )
• The light will turn on when the pre-collision braking is dis- abled. ( →P. 3 4 8 )
• The light will turn on when the system cannot temporarily be used. ( →P. 7 1 2 )
GX460_OM_OM60J63U_(U).book Page 695 Thursday, March 29, 2012 9:10 AM

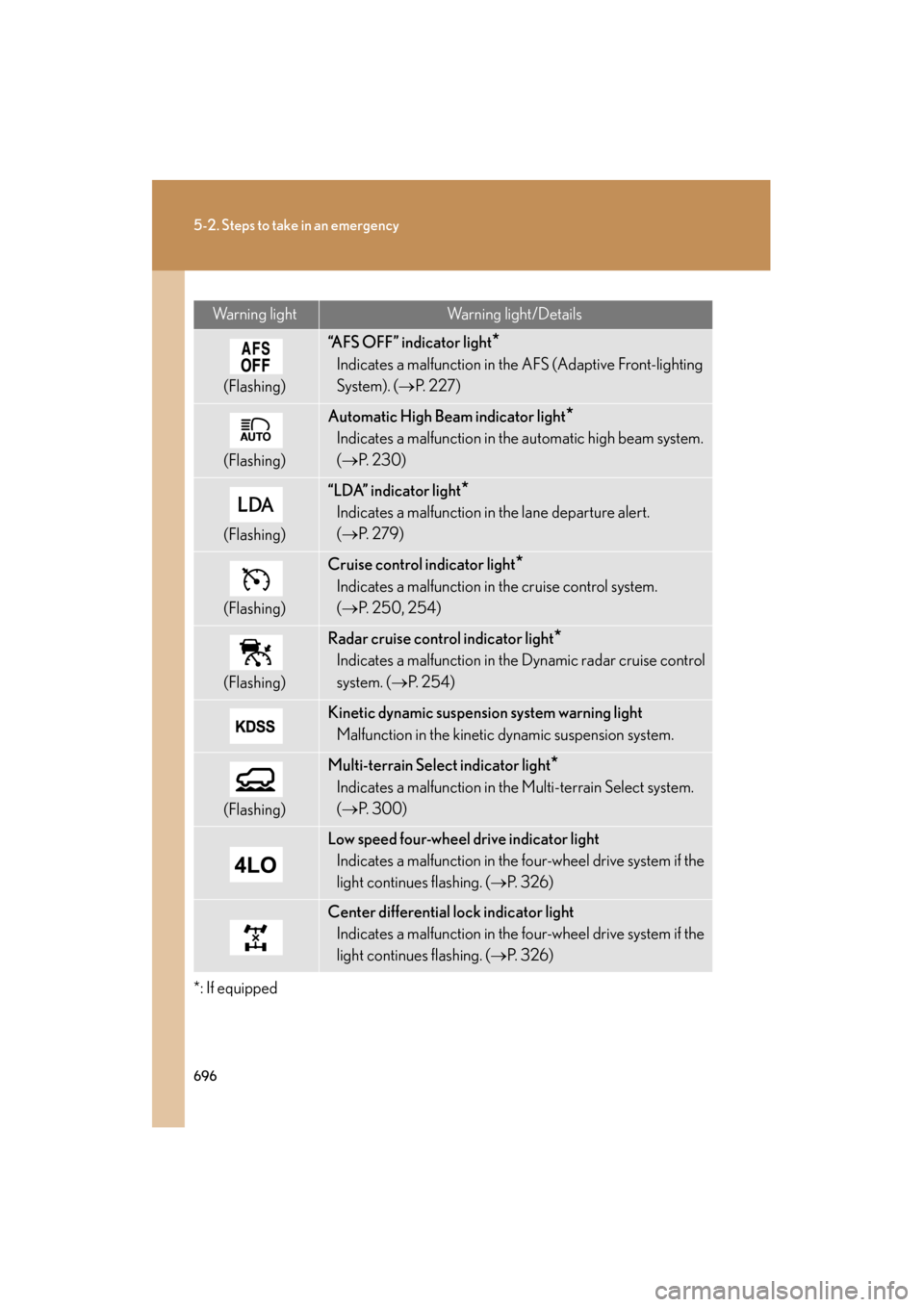

696
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
*: If equipped
Warning lightWarning light/Details
(Flashing)
“AFS OFF” indicator light*
Indicates a malfunction in the AFS (Adaptive Front-lighting
System). (→P. 2 2 7 )
(Flashing)
Automatic High Beam indicator light*
Indicates a malfunction in the automatic high beam system.
(→ P. 2 3 0 )
(Flashing)
“LDA” indicator light*
Indicates a malfunction in the lane departure alert.
(→ P. 2 7 9 )
(Flashing)
Cruise control indicator light*
Indicates a malfunction in the cruise control system.
(→ P. 2 5 0 , 2 5 4 )
(Flashing)
Radar cruise control indicator light*
Indicates a malfunction in the Dynamic radar cruise control
system. ( →P. 2 5 4 )
Kinetic dynamic suspension system warning light
Malfunction in the kinetic dynamic suspension system.
(Flashing)
Multi-terrain Select indicator light*
Indicates a malfunction in the Multi-terrain Select system.
(→ P. 300)
Low speed four-wheel drive indicator light
Indicates a malfunction in the four-wheel drive system if the
light continues flashing. ( →P. 326)
Center differential lock indicator light
Indicates a malfunction in the four-wheel drive system if the
light continues flashing. ( →P. 326)
GX460_OM_OM60J63U_(U).book Page 696 Thursday, March 29, 2012 9:10 AM

5
When trouble arises

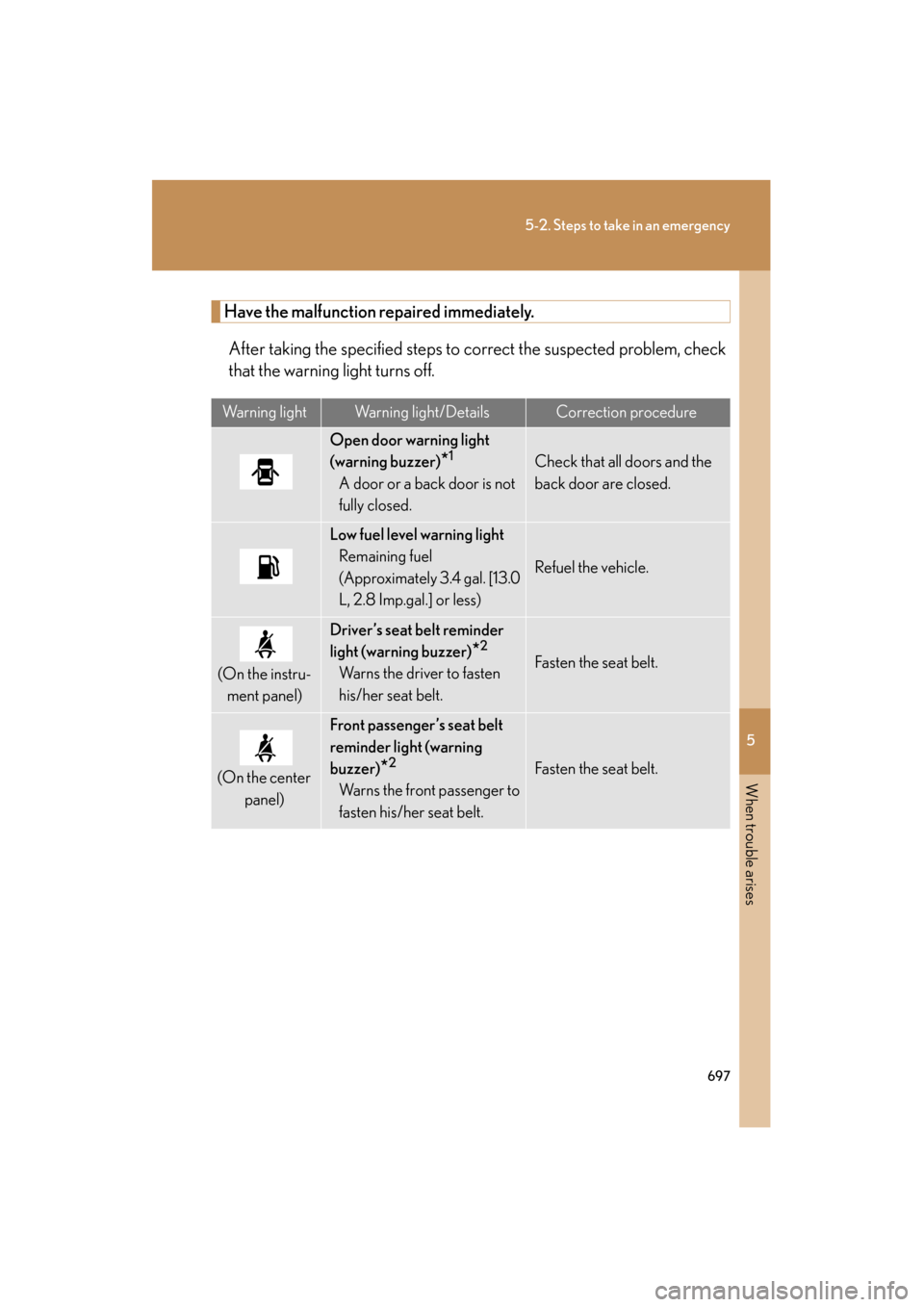

697
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
Have the malfunction repaired immediately.After taking the specified steps to co rrect the suspected problem, check
that the warning light turns off.
Warning lightWarning light/DetailsCorrection procedure
Open door warning light
(warning buzzer)
*1
A door or a back door is not
fully closed.
Check that all doors and the
back door are closed.
Low fuel level warning light
Remaining fuel
(Approximately 3.4 gal. [13.0
L, 2.8 Imp.gal.] or less)
Refuel the vehicle.
(On the instru-
ment panel)
Driver’s seat belt reminder
light (warning buzzer)
*2
Warns the driver to fasten
his/her seat belt.Fasten the seat belt.
(On the center panel)
Front passenger’s seat belt
reminder light (warning
buzzer)
*2
Warns the front passenger to
fasten his/her seat belt.
Fasten the seat belt.
GX460_OM_OM60J63U_(U).book Page 697 Thursday, March 29, 2012 9:10 AM

698
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
*1: Open door warning buzzer:
The open door warning buzzer sounds to alert one or more of the doors is not
fully closed (with the vehicle having reached a speed of 3 mph [5 km/h]).
(→ P. 7 0 9 )
*2: Driver’s and front passenger’s seat belt reminder buzzer:
The driver’s and front passenger’s seat belts reminder buzzer sounds to alert
the driver and front passenger that his/her seat belt is not fastened. Once the
“ENGINE START STOP” switch is turned to IGNITION ON mode, the buzzer
sounds for 4 to 8 seconds. If the vehicle reaches a speed of 12 mph (20 km/h),
the buzzer sounds intermittently for 10 seconds. Then, if the seat belt is still
unfastened, the buzzer will sound in a different tone for 20 more seconds.
Warning lightWarning light/DetailsCorrection procedure
Master warning light
A buzzer sounds and the
warning light comes on and
flashes to indicate that the
master warning system has
detected a malfunction.
→ P. 7 0 5
Tire pressure warning light
When the light comes on:
Low tire inflation pressure.Adjust the tire inflation pres-
sure.
When the light comes on after
blinking for 1 minute:
Malfunction in the tire pres-
sure warning system.
Have the system checked by
your Lexus dealer.
GX460_OM_OM60J63U_(U).book Page 698 Thursday, March 29, 2012 9:10 AM

5
When trouble arises
699
5-2. Steps to take in an emergency
GX460_OM_OM60J63U_(U)
■SRS warning light
This warning light system monitors the airbag sensor assembly, front airbag sensors,
side and curtain shield airbag sensors, rear side and curtain shield airbag sensors,
floor sensor, driver’s seat belt buckle switch, front passenger occupant classification
system (ECU and sensors), “AIR BAG ON” indicator light, “AIR BAG OFF” indica-
tor light, the “RSCA OFF” indicator light, front passenger’s seat belt buckle switch,
seat belt pretensioner assemblies, airbags, interconnecting wiring and power
sources. (→P. 1 2 6 )
■Front passenger detection sensor and passenger seat belt reminder
●If luggage is placed on the front passenger seat, the front passenger detection
sensor may cause the warning light to flash, even if a passenger is not sitting in
the seat.
●If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
■If the malfunction indicator lamp comes on while driving
First check the following:
●Is your vehicle low on gas?
If it is, refuel the vehicle immediately.
●Is the fuel tank cap loose?
If it is, tighten it securely.
The light will go off after taking several driving trips.
If the light does not go off even after several trips, contact your Lexus dealer as soon
as possible.
