Lexus IS F 2011 Owner's Manual

93
1-6. Theft deterrent system
1
Before driving
IS F_EE
Engine immobilizer certification

94
1-6. Theft deterrent system
IS F_EE

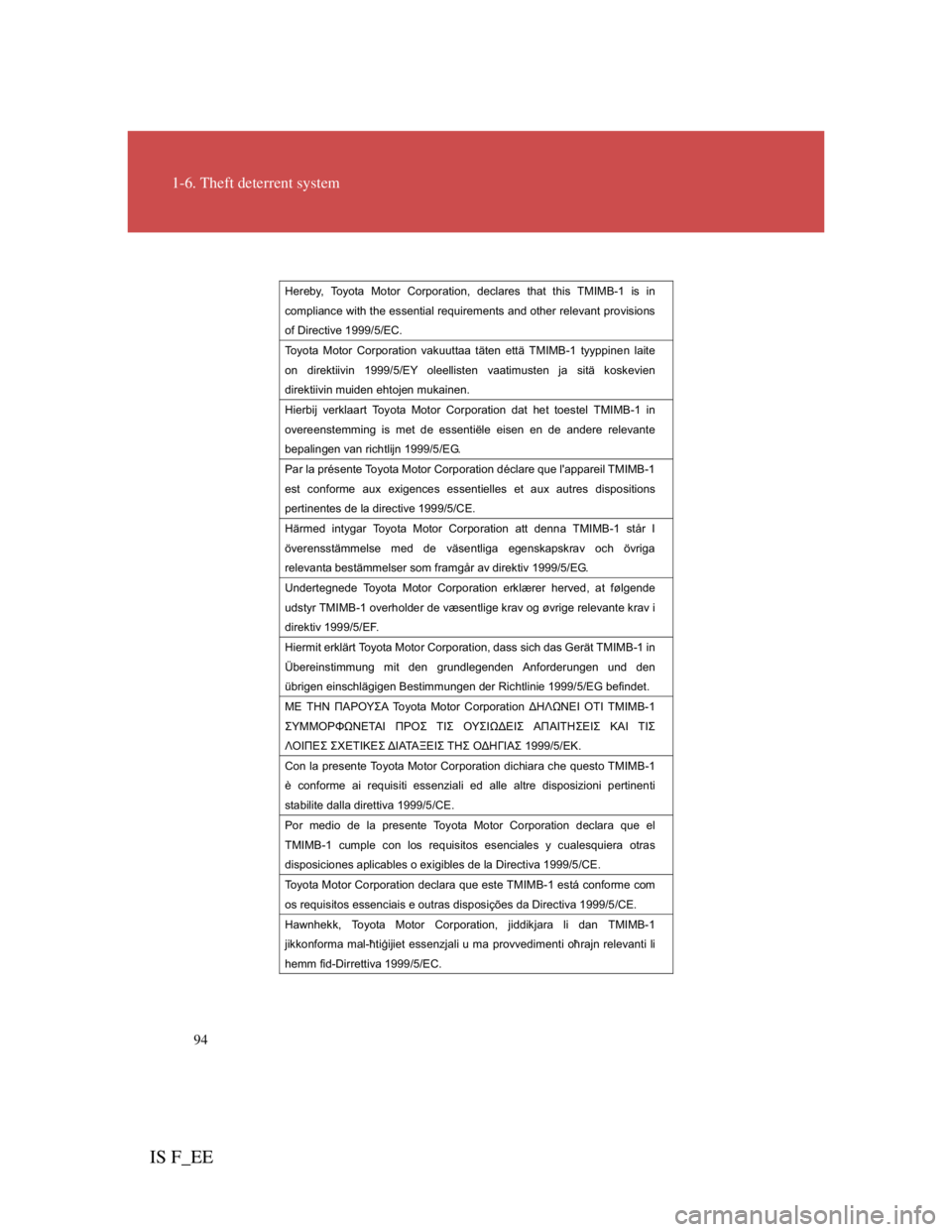

Hereby, Toyota Motor Corporation, declares that this TMIMB-1 is in
compliance with the essential requirements and other relevant provisions
of Directive 1999/5/EC.:w
Toyota Motor Corporation vakuuttaa täten että TMIMB-1 tyyppinen laite
on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.:w
Hierbij verklaart Toyota Motor Corporation dat het toestel TMIMB-1 in
overeenstemming is met de essentiële eisen en de andere relevante
bepalingen van richtlijn 1999/5/EG.:w
Par la présente Toyota Motor Corporation déclare que l'appareil TMIMB-1
est conforme aux exigences essentielles et aux autres dispositions
pertinentes de la directive 1999/5/CE.:w
Härmed intygar Toyota Motor Corporation att denna TMIMB-1 står I
överensstämmelse med de väsentliga egenskapskrav och övriga
relevanta bestämmelser som framgår av direktiv 1999/5/EG.
Undertegnede Toyota Motor Corporation erklærer herved, at følgende
udstyr TMIMB-1 overholder de væsentlige krav og øvrige relevante krav i
direktiv 1999/5/EF.
Hiermit erklärt Toyota Motor Corporation, dass sich das Gerät TMIMB-1 in
Übereinstimmung mit den grundlegenden Anforderungen und den
übrigen einschlägigen Bestimmungen der Richtlinie 1999/5/EG befindet.:w

ü

95
1-6. Theft deterrent system
1
Before driving
IS F_EE
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.

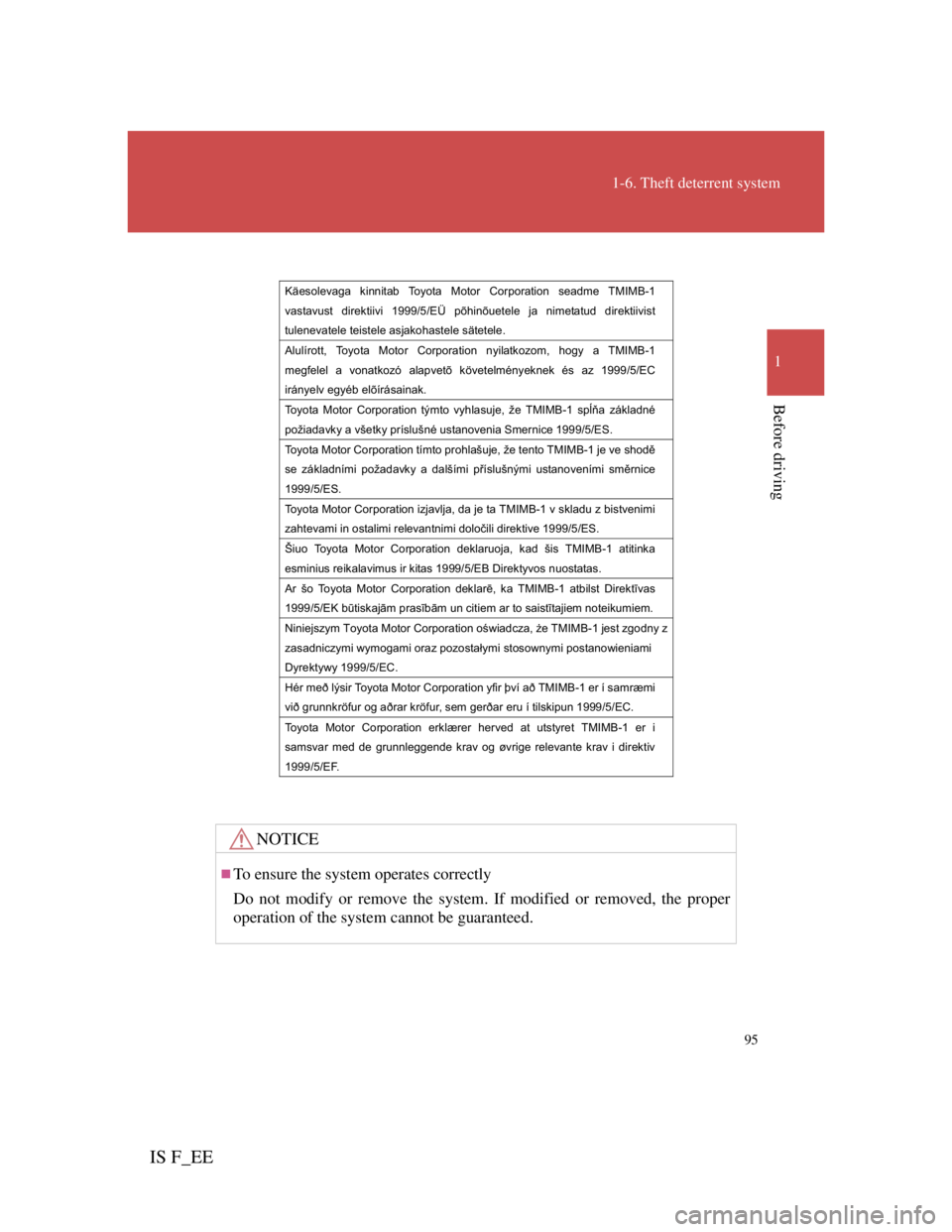

Käesolevaga kinnitab Toyota Motor Corporation seadme TMIMB-1
vastavust direktiivi 1999/5/EÜ põhinõuetele ja nimetatud direktiivist
tulenevatele teistele asjakohastele sätetele.
Alulírott, Toyota Motor Corporation nyilatkozom, hogy a TMIMB-1
megfelel a vonatkozó alapvetõ követelményeknek és az 1999/5/EC
irányelv egyéb elõírásainak.
Toyota Motor Corporation týmto vyhlasuje, že TMIMB-1 sp

a základné
požiadavky a všetky príslušné ustanovenia Smernice 1999/5/ES.
Toyota Motor Corporation tímto prohlašuje, že tento TMIMB-1 je ve shod

se základními požadavky a dalšími p
íslušnými ustanoveními sm
rnice
1999/5/ES.
Toyota Motor Corporation izjavlja, da je ta TMIMB-1 v skladu z bistvenimi
zahtevami in ostalimi relevantnimi doloþili direktive 1999/5/ES.
Šiuo Toyota Motor Corporation deklaruoja, kad šis TMIMB-1 atitinka
esminius reikalavimus ir kitas 1999/5/EB Direktyvos nuostatas.
Ar šo Toyota Motor Corporation deklar, ka TMIMB-1 atbilst Direkt
¯vas
1999/5/EK b
Ìtiskaj
—m pras
¯b
—m un citiem ar to saist
¯tajiem noteikumiem.:w
Niniejszym Toyota Motor Corporation o
wiadcza,
*e TMIMB-1 jest zgodny z
zasadniczymi wymogami oraz pozostaáymi stosownymi postanowieniami
Dyrektywy 1999/5/EC.
Hér með lýsir Toyota Motor Corporation yfir því að TMIMB-1 er í samræmi
við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 1999/5/EC.
Toyota Motor Corporation erklærer herved at utstyret TMIMB-1 er i
samsvar med de grunnleggende krav og øvrige relevante krav i direktiv
1999/5/EF.

96
1-6. Theft deterrent system
IS F_EE
Double locking system
Setting the double locking system
Turn the “ENGINE START STOP” switch OFF, have all the pas-
sengers exit the vehicle and ensure that all the doors are closed.
Using the entry function:
Press the lock button on the outside door handle twice within 2.5
seconds.
Using the wireless remote control:
Press twice within 5 seconds.
Canceling the double locking system
Using the entry function: Hold the outside door handle.
Using the wireless remote control: Press .
CAUTION
Double locking system precaution
Never activate the double locking system when there are people in the vehi-
cle, because all the doors cannot be opened from inside the vehicle.
Unauthorized access to the vehicle is prevented by disabling the door
unlocking function from both the interior and exterior of the vehicle.
Vehicles employing this sys-
tem have labels on the win-
dow glass of both front
doors.

97
1
1-6. Theft deterrent system
Before driving
IS F_EE
Alarm
The system sounds the alarm and flashes the lights when forcible entry
is detected.
Triggering of the alarm
The alarm is triggered in the following situations with the
alarm set.
A locked door or trunk is unlocked or opened in any way
other than using the entry function or wireless remote door
lock function.
The hood is opened.
The intrusion sensor detects something moving inside the
vehicle. (An intruder gets in the vehicle.)
Setting the alarm system
Close the doors, trunk and
hood, and lock all doors
using the entry function or
the wireless remote control.
The system will be set auto-
matically after 30 seconds.
The indicator light changes
from being on to flashing
when the system is set.
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
Unlock the doors or trunk using the entry function or the
wireless remote control.
Start the engine. (The alarm will be deactivated or stopped

98
1-6. Theft deterrent system
IS F_EE
Intrusion sensor
The intrusion sensor detects an intruder or movement in the vehi-
cle. When an intruder or movement is detected, the alarm will be
triggered.
This system is designed to deter and prevent vehicle theft but does
not guarantee absolute security against all intrusions.
Canceling the intrusion sensor
The operation of intrusion sensor can be canceled using the satel-
lite switches.
(P. 333)
System maintenance
The vehicle has a maintenance-free type alarm system.
Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows and moon roof are closed before the alarm is set.
No valuables or other personal items are left in the vehicle.

99
1-6. Theft deterrent system
1
Before driving
IS F_EE
Triggering of the alarm
The alarm may be triggered in the following situations.
Stopping the alarm deactivates the alarm system.
Alarm-operated door lock
When the alarm is operating, the doors are locked automatically to pre-
vent intruders.
Do not leave the key inside the vehicle when the alarm is operating, and
make sure the key is not inside the vehicle when recharging or replacing
the battery.
The doors or trunk are unlocked using
the mechanical key.
A person inside the vehicle opens a
door, the trunk or hood.
The battery is disconnected.

100
1-6. Theft deterrent system
IS F_EE
Canceling the intrusion sensor
The alarm will be set even when the intrusion sensor is canceled.
To re-enable the intrusion sensor, press the “ENGINE START STOP”
switch or unlock the doors using the wireless remote door lock function
while the intrusion sensor is canceled.
Automatic re-enabling of the intrusion sensor
When the alarm system is set again, the intrusion sensor will also be set.
Intrusion sensor
The sensor may trigger the alarm in the following situations.
Persons or pets are in the vehicle.
Unstable items, such as dangling accessories or clothes hanging on the
coat hooks, are in the vehicle.
The windows or moon roof are open.
The vehicle is parked in a place where extreme vibration or noises occur,
such as in a parking garage.
The vehicle is inside an automatic or high-pressure car wash.
The vehicle experiences impacts, such as hail, lightning strikes, or other
kinds of repeated impacts or vibrations.
Ice or snow is removed from the vehicle, causing the vehicle to receive
repeated impacts or vibrations.
The wind or something similar causes an externally mounted reflectively
coated windshield cover to move.
When the battery is disconnected
Be sure to deactivate the alarm system.
If the battery is disconnected before deactivating the alarm system, the
alarm may be triggered.
When using the mechanical key to unlock the doors or trunk
Deactivate the alarm.
If the doors or trunk are unlocked using the mechanical key with the alarm
operational, the alarm will be triggered.

101
1-6. Theft deterrent system
1
Before driving
IS F_EE
Certification
The sensor installed to vehicles sold other than UK and Ireland is not
allowed to operate in UK.
The latest “DECLARATION of CONFORMITY” (DoC) is available at the
address stated in the DoC.

102
1-6. Theft deterrent system
IS F_EE
NOTICE
To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper
operation of the system cannot be guaranteed.
