Lexus IS300h 2013 Owner's Manual

5078-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)

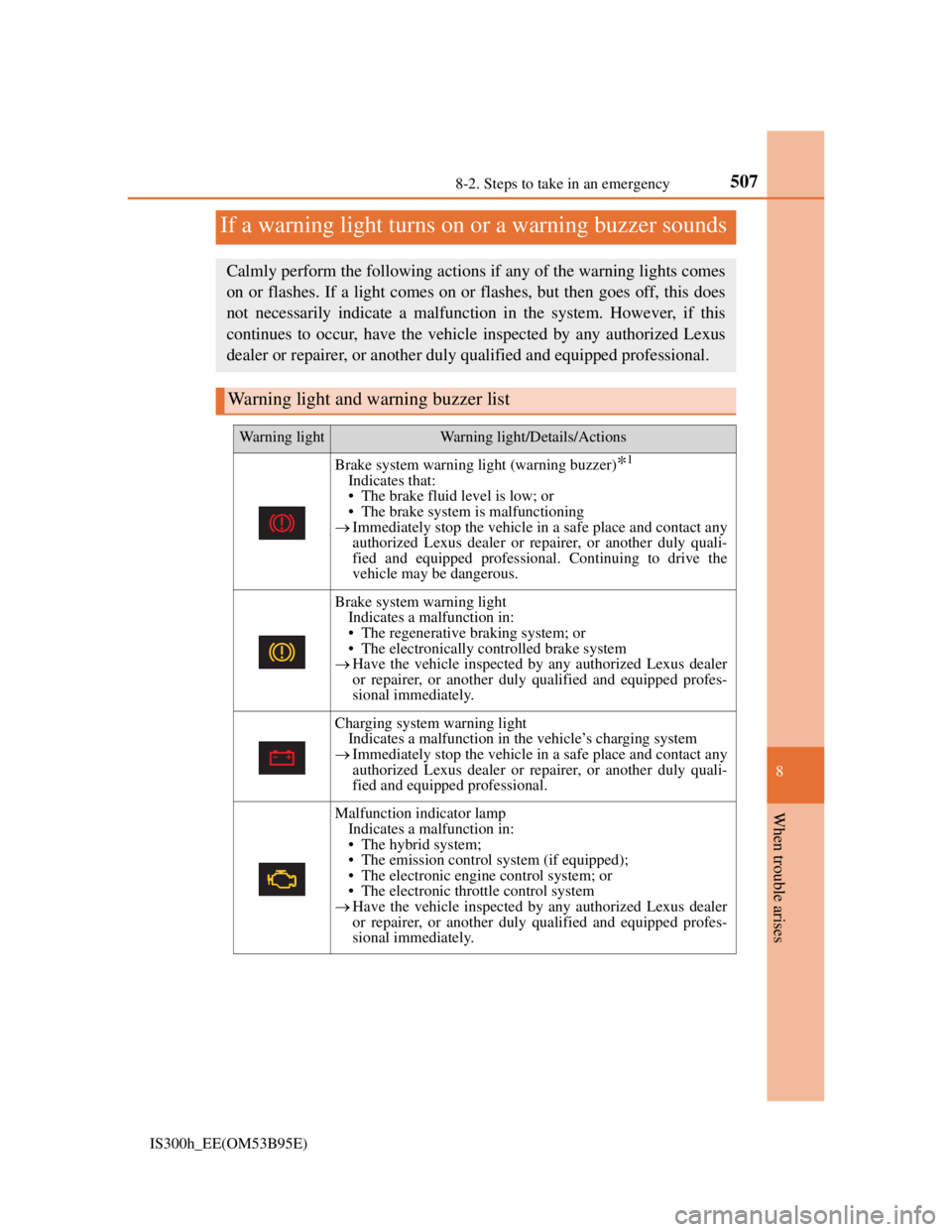

If a warning light turns on or a warning buzzer sounds
Calmly perform the following actions if any of the warning lights comes
on or flashes. If a light comes on or flashes, but then goes off, this does
not necessarily indicate a malfunction in the system. However, if this
continues to occur, have the vehicle inspected by any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)*1
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional. Continuing to drive the
vehicle may be dangerous.
Brake system warning light
Indicates a malfunction in:
• The regenerative braking system; or
• The electronically controlled brake system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
Immediately stop the vehicle in a safe place and contact any
authorized Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Malfunction indicator lamp
Indicates a malfunction in:
• The hybrid system;
• The emission control system (if equipped);
• The electronic engine control system; or
• The electronic throttle control system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.

5088-2. Steps to take in an emergency
IS300h_EE(OM53B95E)

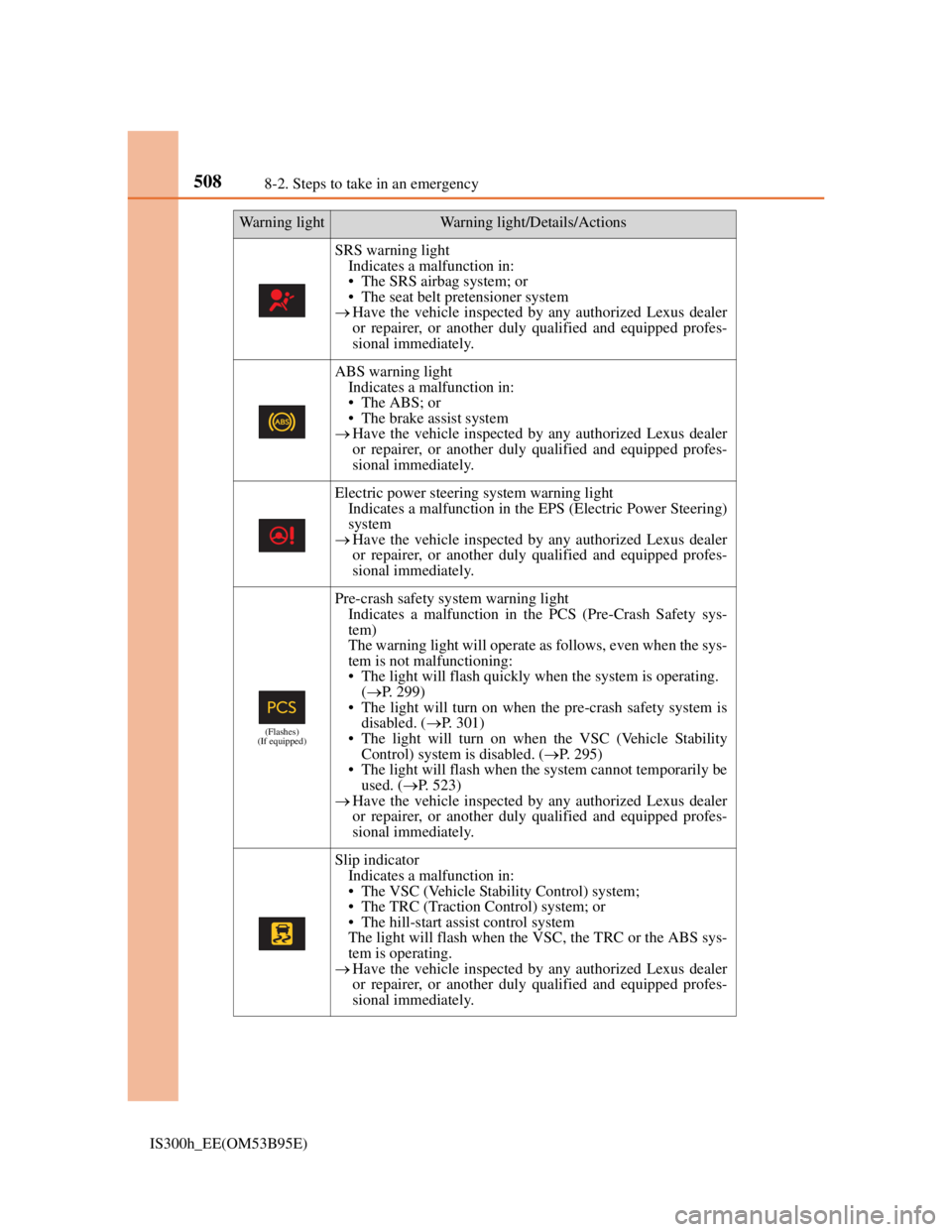

SRS warning light
Indicates a malfunction in:
• The SRS airbag system; or
• The seat belt pretensioner system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
ABS warning light
Indicates a malfunction in:
•The ABS; or
• The brake assist system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Electric power steering system warning light
Indicates a malfunction in the EPS (Electric Power Steering)
system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
(Flashes)
(If equipped)
Pre-crash safety system warning light
Indicates a malfunction in the PCS (Pre-Crash Safety sys-
tem)
The warning light will operate as follows, even when the sys-
tem is not malfunctioning:
• The light will flash quickly when the system is operating.
(P. 299)
• The light will turn on when the pre-crash safety system is
disabled. (P. 301)
• The light will turn on when the VSC (Vehicle Stability
Control) system is disabled. (P. 295)
• The light will flash when the system cannot temporarily be
used. (P. 523)
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Slip indicator
Indicates a malfunction in:
• The VSC (Vehicle Stability Control) system;
• The TRC (Traction Control) system; or
• The hill-start assist control system
The light will flash when the VSC, the TRC or the ABS sys-
tem is operating.
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Warning lightWarning light/Details/Actions

5098-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)

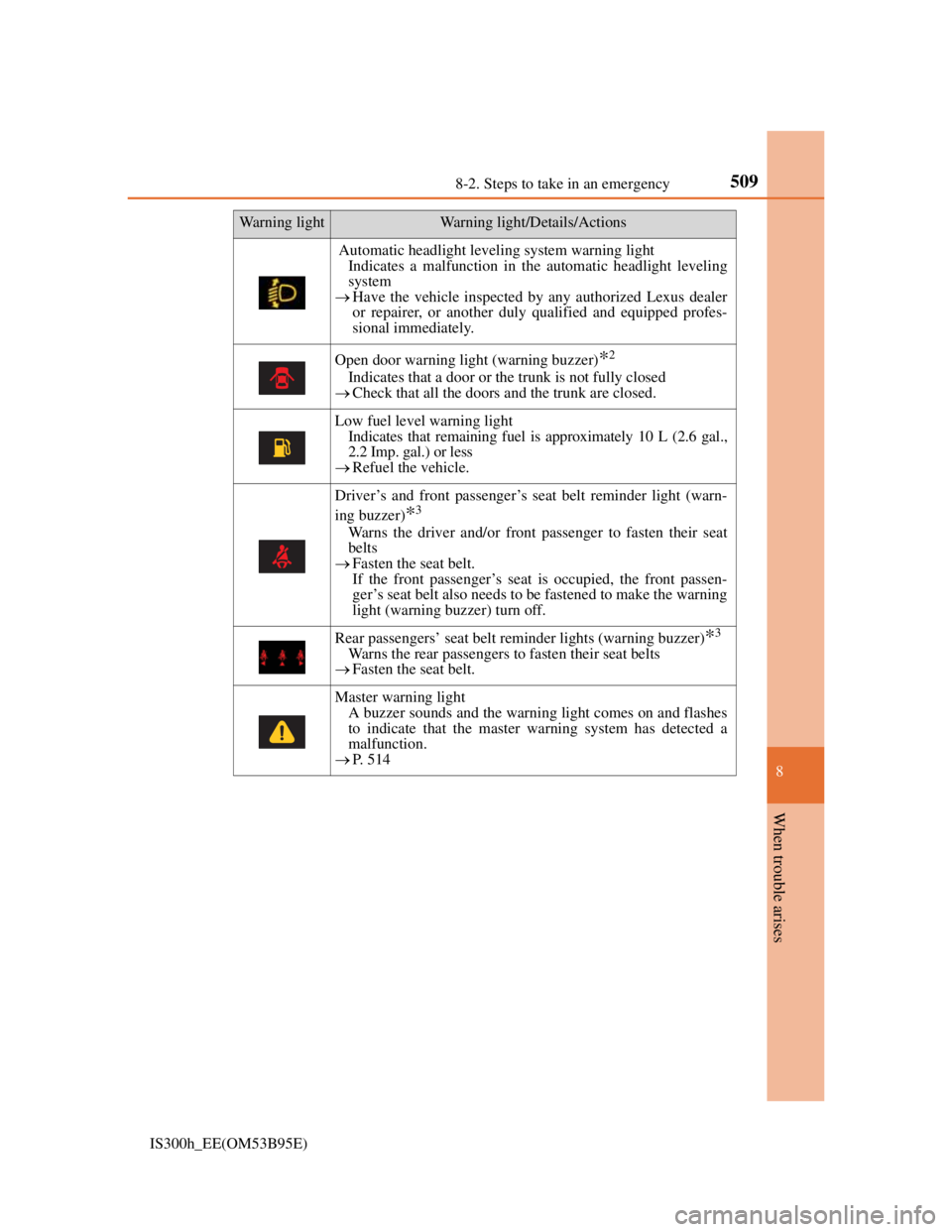

Automatic headlight leveling system warning light
Indicates a malfunction in the automatic headlight leveling
system
Have the vehicle inspected by any authorized Lexus dealer
or repairer, or another duly qualified and equipped profes-
sional immediately.
Open door warning light (warning buzzer)*2
Indicates that a door or the trunk is not fully closed
Check that all the doors and the trunk are closed.
Low fuel level warning light
Indicates that remaining fuel is approximately 10 L (2.6 gal.,
2.2 Imp. gal.) or less
Refuel the vehicle.
Driver’s and front passenger’s seat belt reminder light (warn-
ing buzzer)
*3
Warns the driver and/or front passenger to fasten their seat
belts
Fasten the seat belt.
If the front passenger’s seat is occupied, the front passen-
ger’s seat belt also needs to be fastened to make the warning
light (warning buzzer) turn off.
Rear passengers’ seat belt reminder lights (warning buzzer)*3
Warns the rear passengers to fasten their seat belts
Fasten the seat belt.
Master warning light
A buzzer sounds and the warning light comes on and flashes
to indicate that the master warning system has detected a
malfunction.
P. 5 1 4
Warning lightWarning light/Details/Actions

5108-2. Steps to take in an emergency
IS300h_EE(OM53B95E)

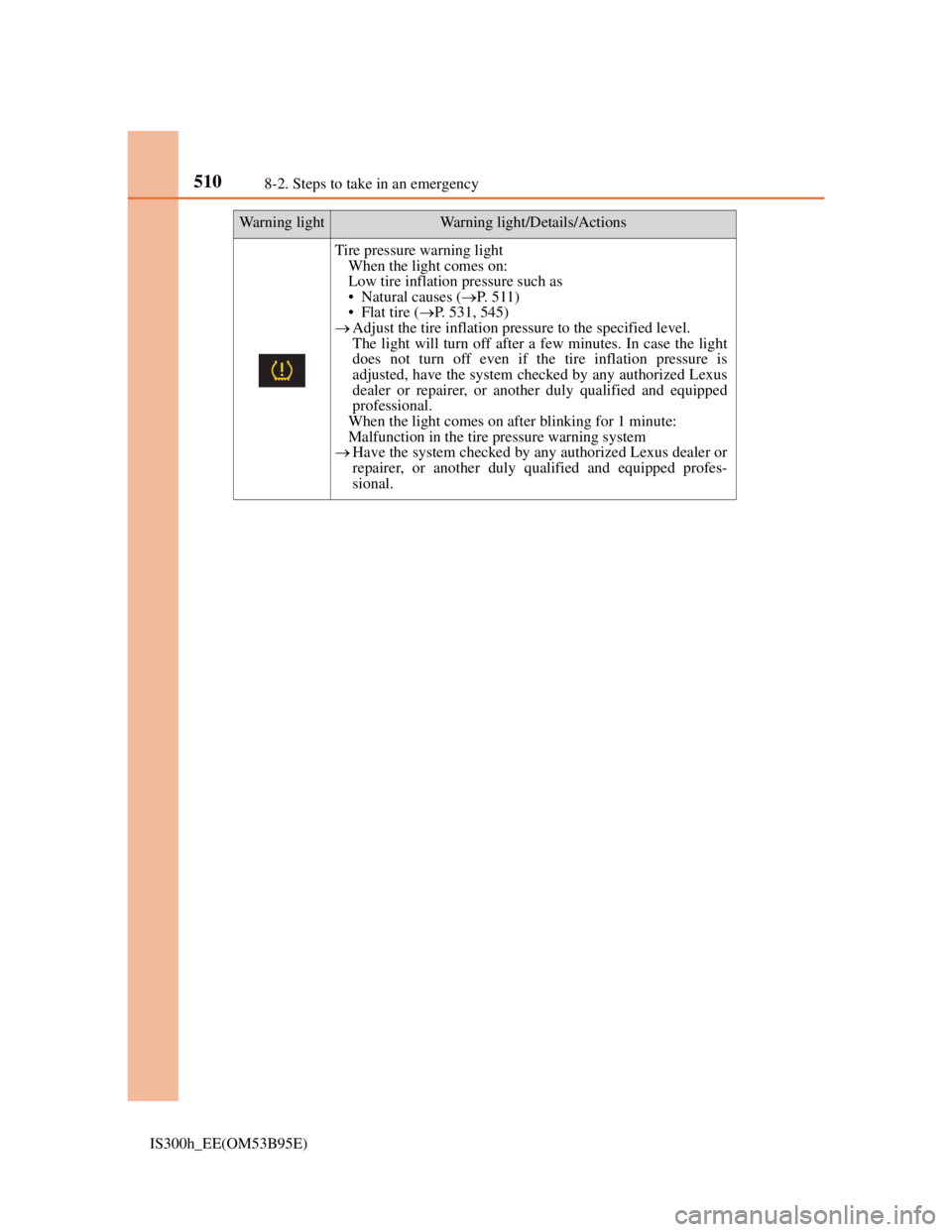

Tire pressure warning light
When the light comes on:
Low tire inflation pressure such as
• Natural causes (P. 511)
• Flat tire (P. 531, 545)
Adjust the tire inflation pressure to the specified level.
The light will turn off after a few minutes. In case the light
does not turn off even if the tire inflation pressure is
adjusted, have the system checked by any authorized Lexus
dealer or repairer, or another duly qualified and equipped
professional.
When the light comes on after blinking for 1 minute:
Malfunction in the tire pressure warning system
Have the system checked by any authorized Lexus dealer or
repairer, or another duly qualified and equipped profes-
sional.
Warning lightWarning light/Details/Actions

5118-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)*
1: Parking brake engaged warning buzzer:
P. 518
*2: Open door warning buzzer:
P. 516
*3: Seat belt warning buzzer:
The seat belt warning buzzer sounds to alert the driver, front passenger and
rear passengers that his or her seat belt is not fastened. The buzzer sounds for
30 seconds after the vehicle reaches a speed of 20 km/h (12 mph). Then, if the
seat belt is still unfastened, the buzzer will sound in a different tone for 90
more seconds.
Passenger detection sensor, seat belt reminder and warning buzzer
If luggage is placed on a passenger seat, the passenger detection sensor may
cause the warning light to flash and the warning buzzer to sound even if a pas-
senger is not sitting in the seat.
If a cushion is placed on the seat, the sensor may not detect a passenger, and the
warning light may not operate properly.
If the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will come on if the fuel tank becomes com-
pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The mal-
function indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional as soon as
possible.
Electric power steering system warning light (warning buzzer)
When the 12-volt battery charge becomes insufficient of the voltage temporarily
drops, the electric power steering system warning light may come on and the
warning buzzer may sound.
When the tire pressure warning light comes on
Carry out the following procedure after the tire temperature has lowered suffi-
ciently.
Check the tire inflation pressure and adjust to the appropriate level.
If the warning light does not go out even after several minutes, check that the
tire inflation pressure is at the specified level and carry out initialization.
The warning light may come on again if the above operations are conducted
without first allowing the tire temperature to lower sufficiently.
The tire pressure warning light may come on due to natural causes
The tire pressure warning light may come on due to natural causes such as natu-
ral air leaks and tire inflation pressure changes caused by temperature. In this
case, adjusting the tire inflation pressure will turn off the warning light (after a
few minutes).
Conditions that the tire pressure warning system may not function properly
P. 454

5128-2. Steps to take in an emergency
IS300h_EE(OM53B95E)
If the tire pressure warning light frequently comes on after blinking for 1 minute
If the tire pressure warning light frequently comes on after blinking for 1 minute
when the power switch is turned to ON mode, have it checked by any authorized
Lexus dealer or repairer, or another duly qualified and equipped professional.
Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location or
audio sound.
CAUTION
If both the ABS and the brake system warning lights remain on
Stop your vehicle in a safe place immediately and contact any authorized Lexus
dealer or repairer, or another duly qualified and equipped professional. The
vehicle will become extremely unstable during braking, and the ABS system
may fail, which could cause an accident resulting in death or serious injury.
When the electric power steering system warning light comes on
The steering wheel may become extremely heavy.
If the steering wheel becomes heavier than usual when operating, hold firmly
and operate using more force than usual.
If the tire pressure warning light comes on
Be sure to observe the following precautions. Failure to do so could cause a
loss of vehicle control and result in death or serious injury.
Vehicles with an emergency tire puncture repair kit
Stop your vehicle in a safe place as soon as possible. Adjust the tire inflation
pressure immediately.
If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Check the tires. If a tire is
flat, repair the flat tire by using emergency tire puncture repair kit.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
Vehicles with run-flat tires
Decelerate to the lowest appropriate speed as soon as possible. Do not drive
over 60 km/h (37 mph).
Check and adjust the tire inflation pressure immediately.
If the tire pressure warning light comes on even after tire inflation pressure
adjustment, it is probable that you have a flat tire. Have the tire replaced by
the nearest authorized Lexus dealer or repairer, or another duly qualified and
equipped professional.
Avoid abrupt maneuvering and braking. If the vehicle tires deteriorate, you
could lose control of the steering wheel or the brakes.
If a blowout or sudden air leakage should occur
The tire pressure warning system may not activate immediately.

5138-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)
NOTICE
Precaution when installing a different tire
When differently constructed tires or tires of different makers, models or tread
patterns are installed, the tire pressure warning system may not operate prop-
erly.

5148-2. Steps to take in an emergency
IS300h_EE(OM53B95E)

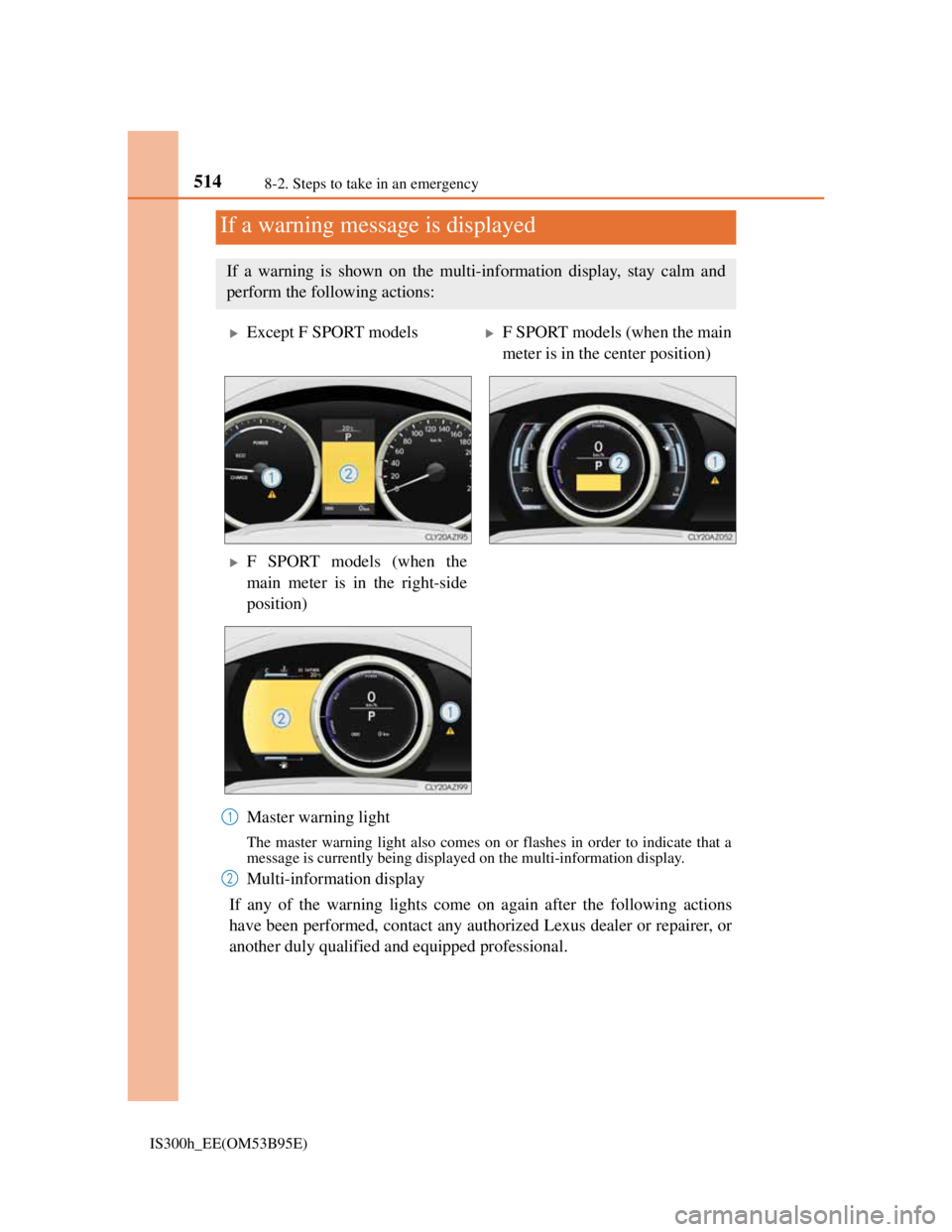

Master warning light
The master warning light also comes on or flashes in order to indicate that a
message is currently being displayed on the multi-information display.
Multi-information display
If any of the warning lights come on again after the following actions
have been performed, contact any authorized Lexus dealer or repairer, or
another duly qualified and equipped professional.
If a warning message is displayed
If a warning is shown on the multi-information display, stay calm and
perform the following actions:
Except F SPORT modelsF SPORT models (when the main
meter is in the center position)
F SPORT models (when the
main meter is in the right-side
position)
1
2

5158-2. Steps to take in an emergency
8
When trouble arises
IS300h_EE(OM53B95E)

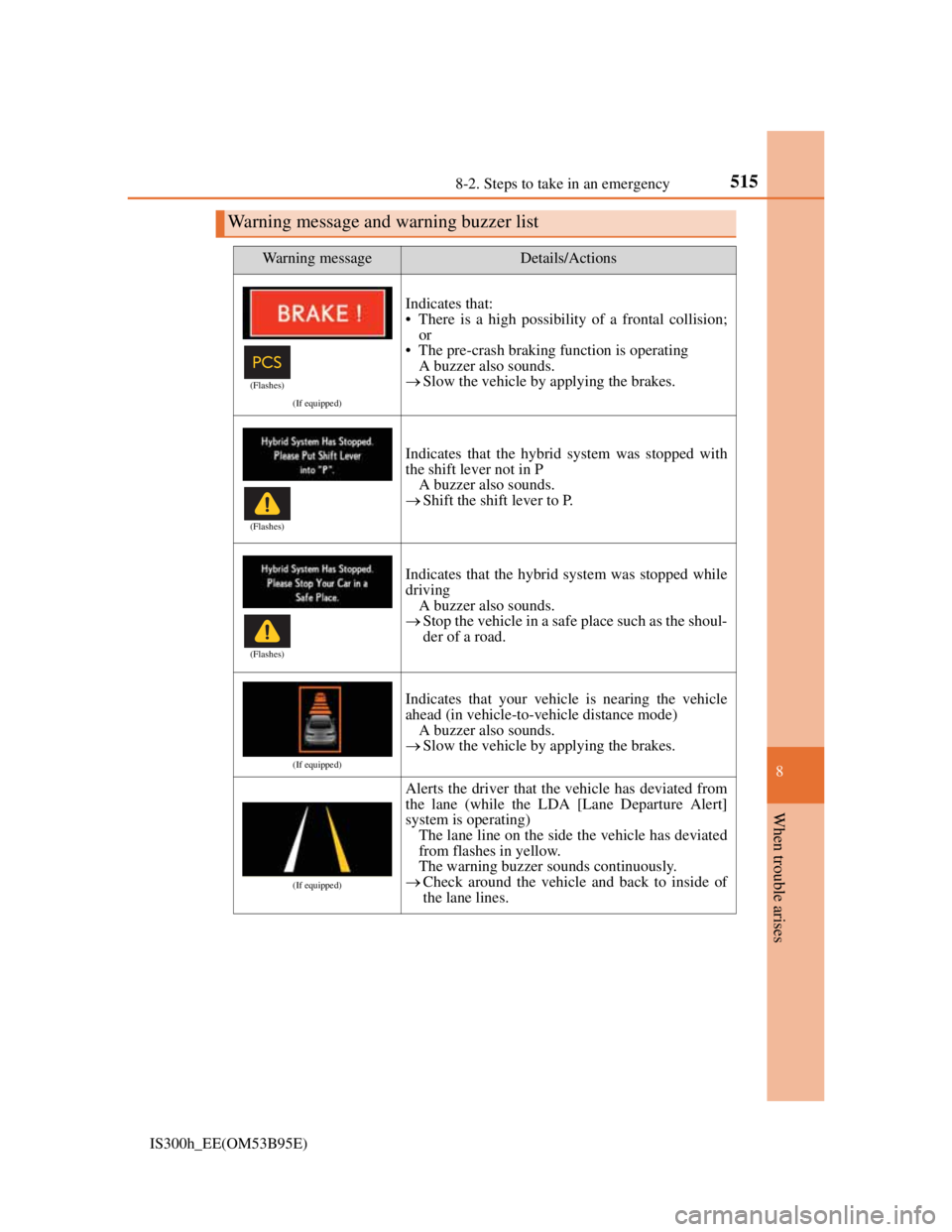

Warning message and warning buzzer list
Warning messageDetails/Actions
(If equipped)
Indicates that:
• There is a high possibility of a frontal collision;
or
• The pre-crash braking function is operating
A buzzer also sounds.
Slow the vehicle by applying the brakes.
Indicates that the hybrid system was stopped with
the shift lever not in P
A buzzer also sounds.
Shift the shift lever to P.
Indicates that the hybrid system was stopped while
driving
A buzzer also sounds.
Stop the vehicle in a safe place such as the shoul-
der of a road.
(If equipped)
Indicates that your vehicle is nearing the vehicle
ahead (in vehicle-to-vehicle distance mode)
A buzzer also sounds.
Slow the vehicle by applying the brakes.
(If equipped)
Alerts the driver that the vehicle has deviated from
the lane (while the LDA [Lane Departure Alert]
system is operating)
The lane line on the side the vehicle has deviated
from flashes in yellow.
The warning buzzer sounds continuously.
Check around the vehicle and back to inside of
the lane lines.
(Flashes)
(Flashes)
(Flashes)

5168-2. Steps to take in an emergency
IS300h_EE(OM53B95E)
Indicates that:
• The brake fluid level is low; or
• The brake system is malfunctioning
A buzzer also sounds.
Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped profes-
sional. Continuing to drive the vehicle may be
dangerous.
Indicates a malfunction in the hybrid system
A buzzer also sounds.
Immediately stop the vehicle in a safe place and
contact any authorized Lexus dealer or repairer,
or another duly qualified and equipped profes-
sional.
Indicates that one or more of the doors is not fully
closed
The system also indicates which doors are not
fully closed.
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate
that the door(s) are not yet fully closed.
Make sure that all the doors are closed.
Indicates that the hood is not fully closed
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate
that the hood is not yet fully closed.
Close the hood.
Indicates that the trunk is not fully closed
If the vehicle reaches a speed of 5 km/h (3 mph),
flashes and a buzzer sounds to indicate
that the trunk is not yet fully closed.
Close the trunk.
(If equipped)
Indicates a malfunction in the Lexus parking
assists-sensor
The assist-sensors flash.
A buzzer also sounds.
Have the vehicle inspected by any authorized
Lexus dealer or repairer, or another duly quali-
fied and equipped professional.
Warning messageDetails/Actions
