LEXUS RX350 2011 Service Manual

41

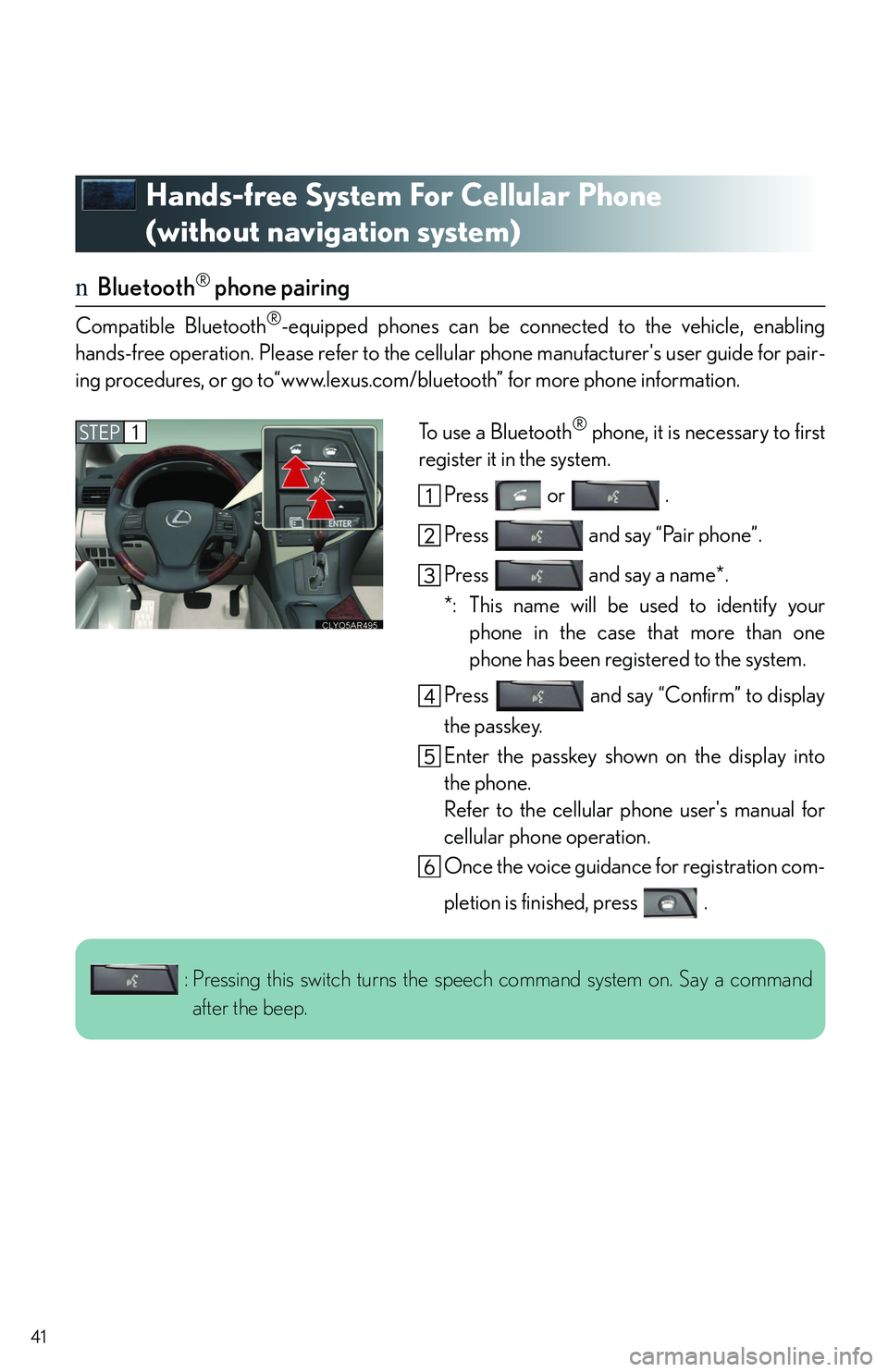

Hands-free System For Cellular Phone
(without navigation system)
nBluetooth® phone pairing
Compatible Bluetooth®-equipped phones can be connected to the vehicle, enabling
hands-free operation. Please refer to the cellular phone manufacturer's user guide for pair-
ing procedures, or go to“www.lexus.com/bluetooth” for more phone information.
To use a Bluetooth® phone, it is necessary to first
register it in the system.
Press or .
Press and say “Pair phone”.
Press and say a name*.
*: This name will be used to identify your
phone in the case that more than one
phone has been registered to the system.
Press and say “Confirm” to display
the passkey.
Enter the passkey shown on the display into
the phone.
Refer to the cellular phone user's manual for
cellular phone operation.
Once the voice guidance for registration com-
pletion is finished, press .
STEP1
: Pressing this switch turns the speech command system on. Say a command
after the beep.

42

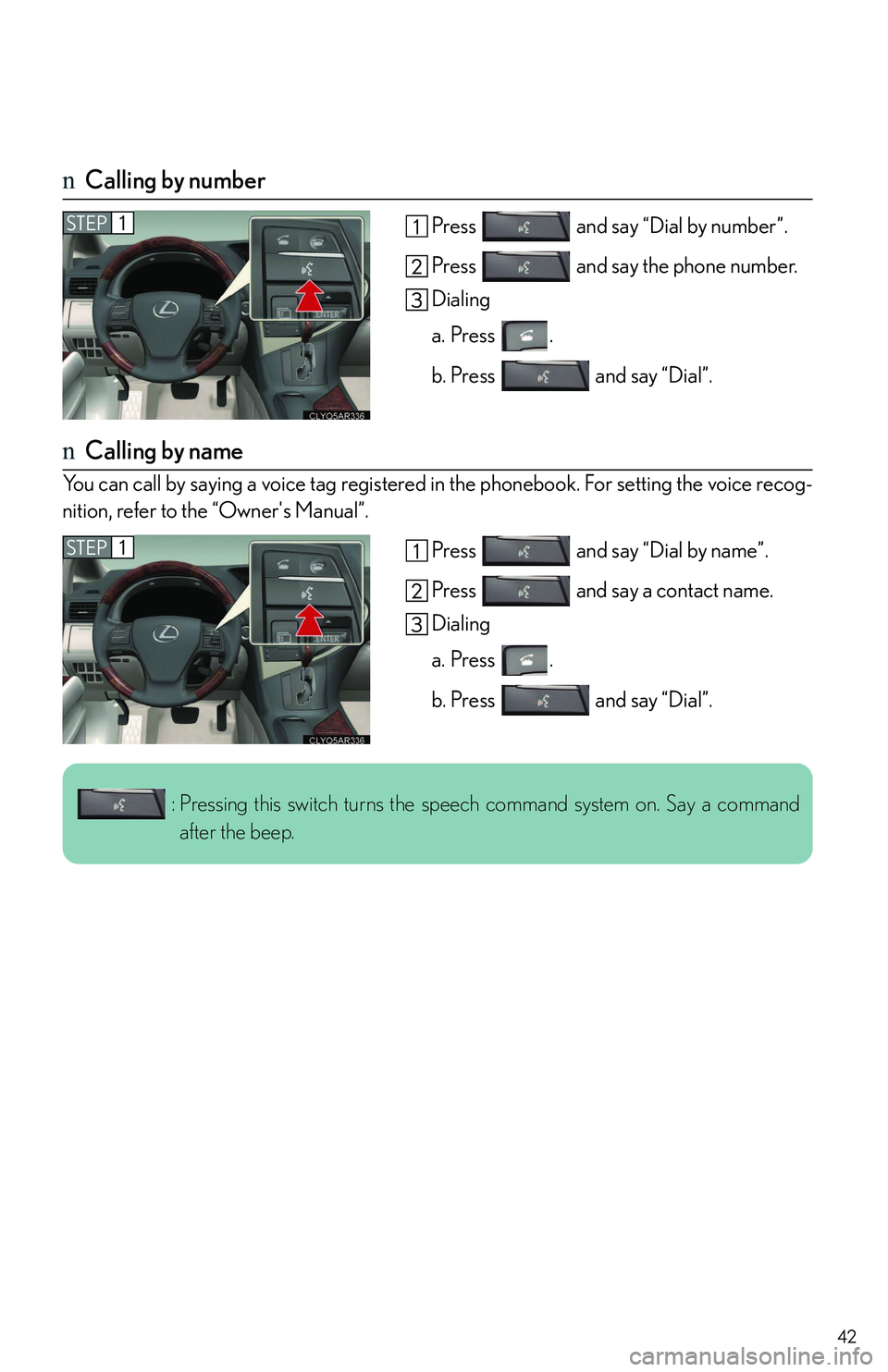

nCalling by number
Press and say “Dial by number”.
Press and say the phone number.
Dialing
a. Press .
b. Press and say “Dial”.
nCalling by name
You can call by saying a voice tag registered in the phonebook. For setting the voice recog-
nition, refer to the “Owner's Manual”.
Press and say “Dial by name”.
Press and say a contact name.
Dialing
a. Press .
b. Press and say “Dial”.
STEP1
STEP1
: Pressing this switch turns the speech command system on. Say a command
after the beep.

43

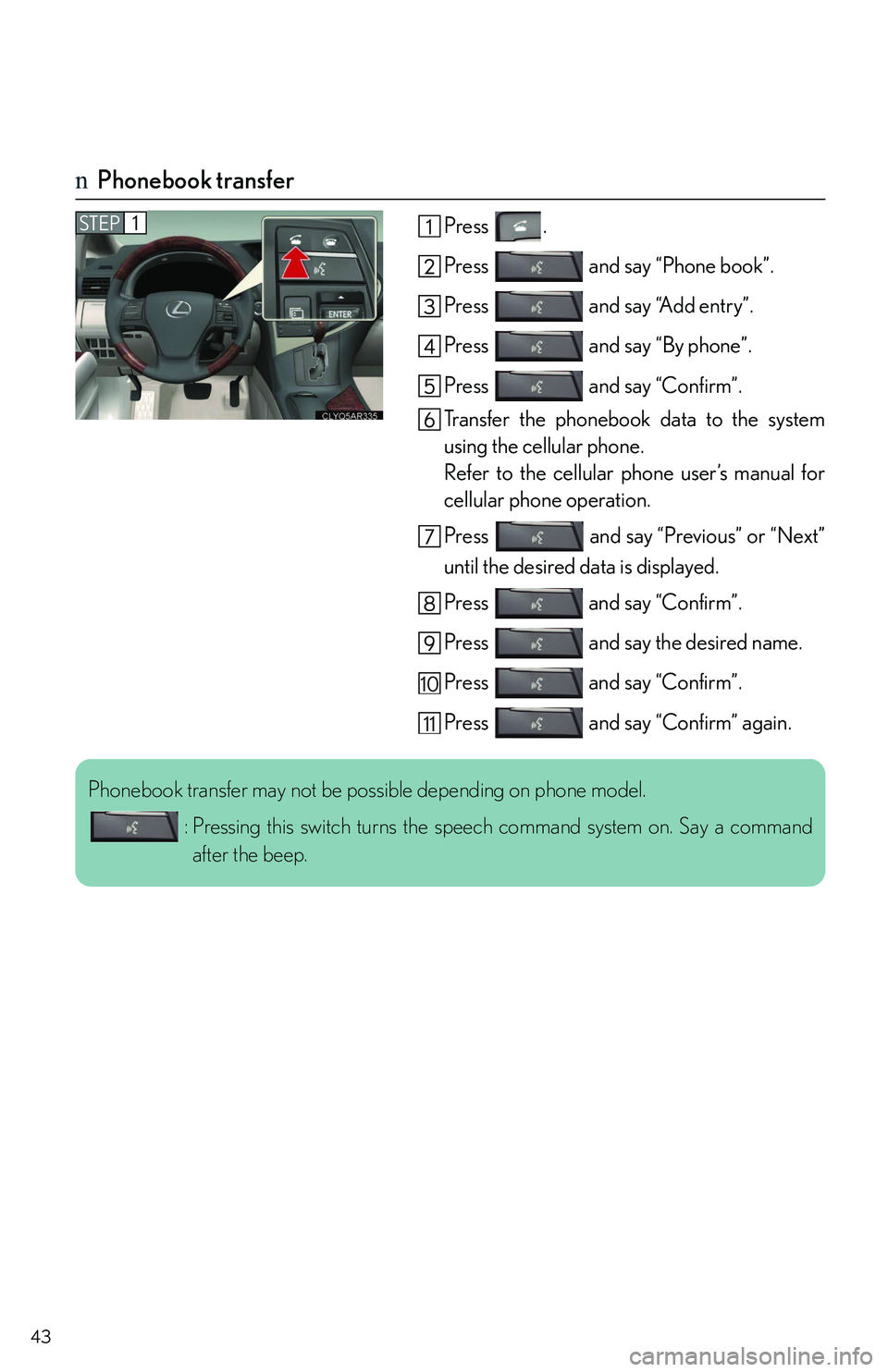

nPhonebook transfer
Press .
Press and say “Phone book”.
Press and say “Add entry”.
Press and say “By phone”.
Press and say “Confirm”.
Transfer the phonebook data to the system
using the cellular phone.
Refer to the cellular phone user’s manual for
cellular phone operation.
Press and say “Previous” or “Next”
until the desired data is displayed.
Press and say “Confirm”.
Press and say the desired name.
Press and say “Confirm”.
Press and say “Confirm” again.
STEP1
10
11
Phonebook transfer may not be possible depending on phone model.
: Pressing this switch turns the speech command system on. Say a command
after the beep.

44

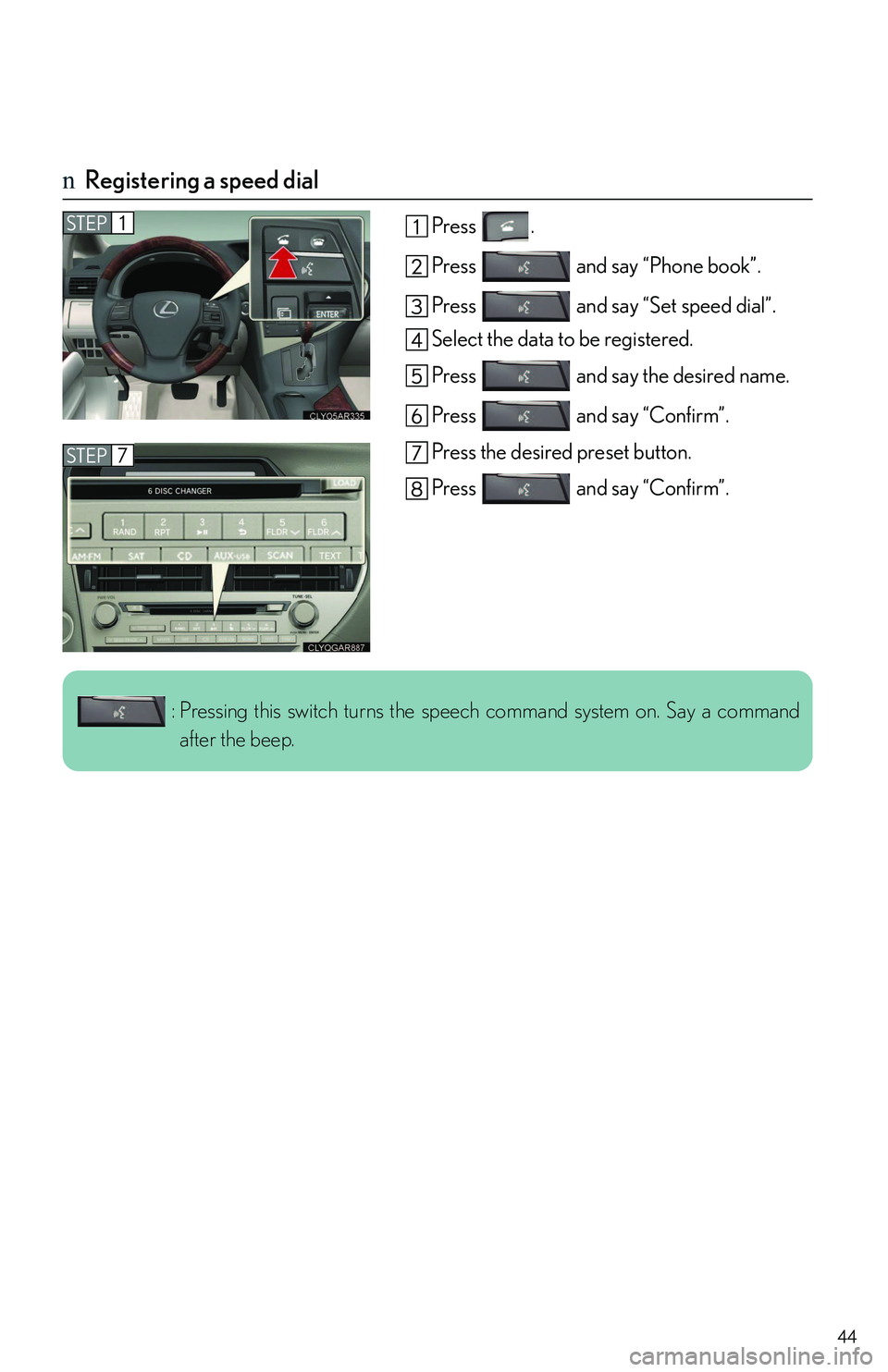

nRegistering a speed dial
Press .
Press and say “Phone book”.
Press and say “Set speed dial”.
Select the data to be registered.
Press and say the desired name.
Press and say “Confirm”.
Press the desired preset button.
Press and say “Confirm”.
STEP1
STEP7
: Pressing this switch turns the speech command system on. Say a command
after the beep.

45

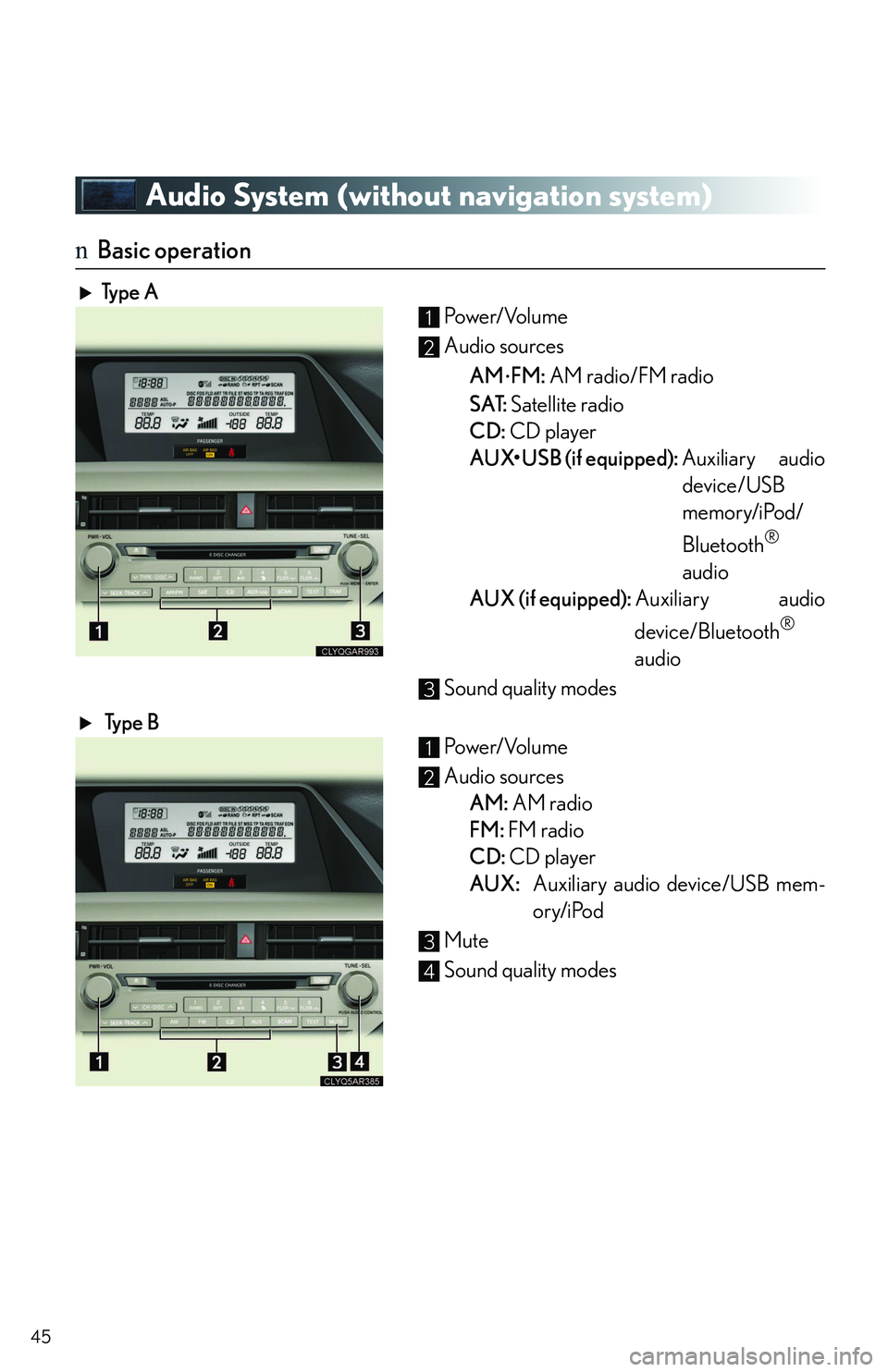

Audio System (without navigation system)
nBasic operation
Typ e A Po w e r/ Vo l u m e
Audio sources
AM⋅FM: AM radio/FM radio
SAT: Satellite radio
CD: CD player
AUX

46

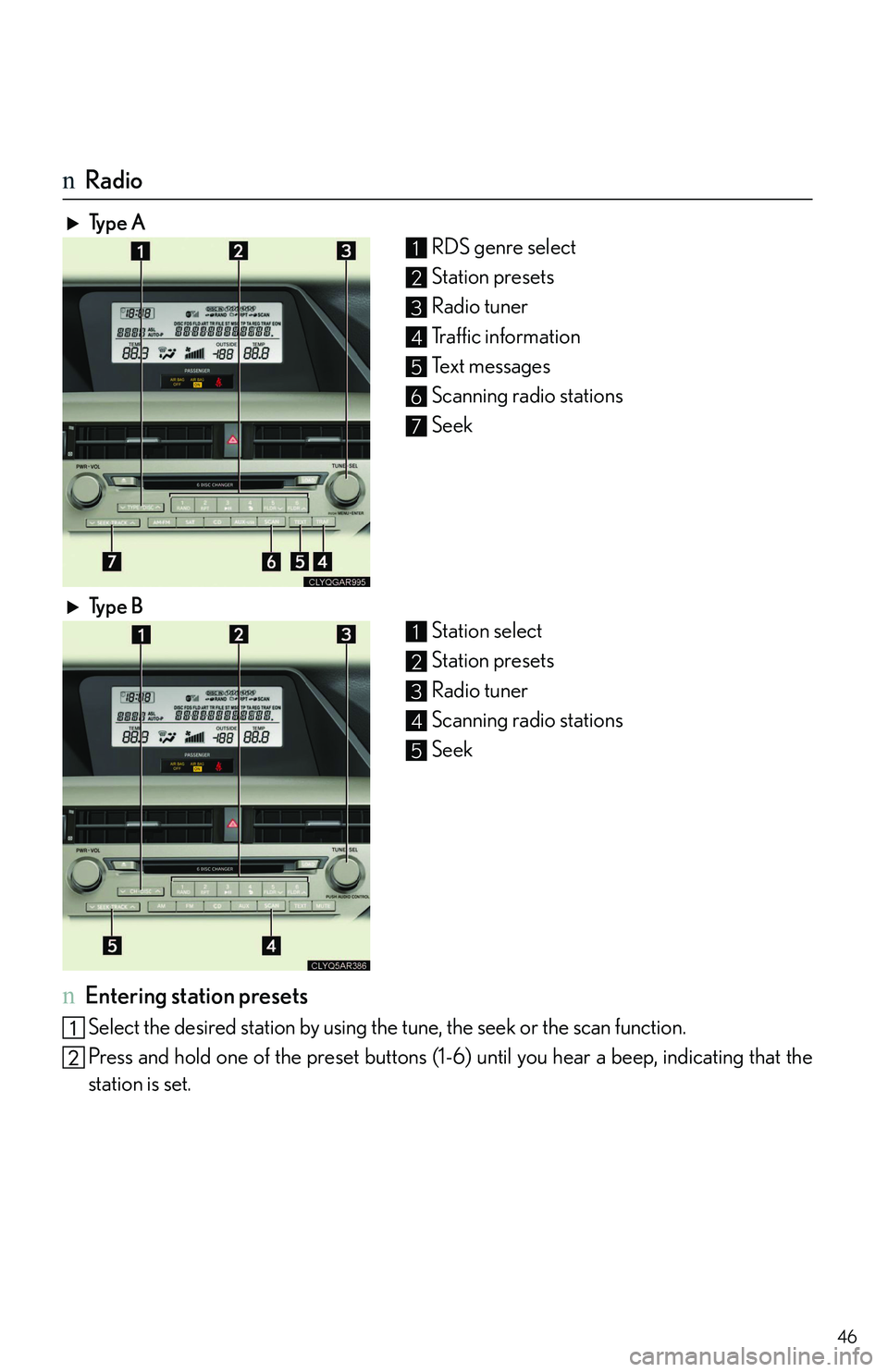

nRadio
Typ e A
RDS genre select
Station presets
Radio tuner
Traffic information
Te x t m e s s a g e s
Scanning radio stations
Seek
Ty p e B
Station select
Station presets
Radio tuner
Scanning radio stations
Seek
nEntering station presets
Select the desired station by using the tune, the seek or the scan function.
Press and hold one of the preset buttons (1-6) until you hear a beep, indicating that the
station is set.
1
2
3
4
5
6
7
1
2
3
4
5

47

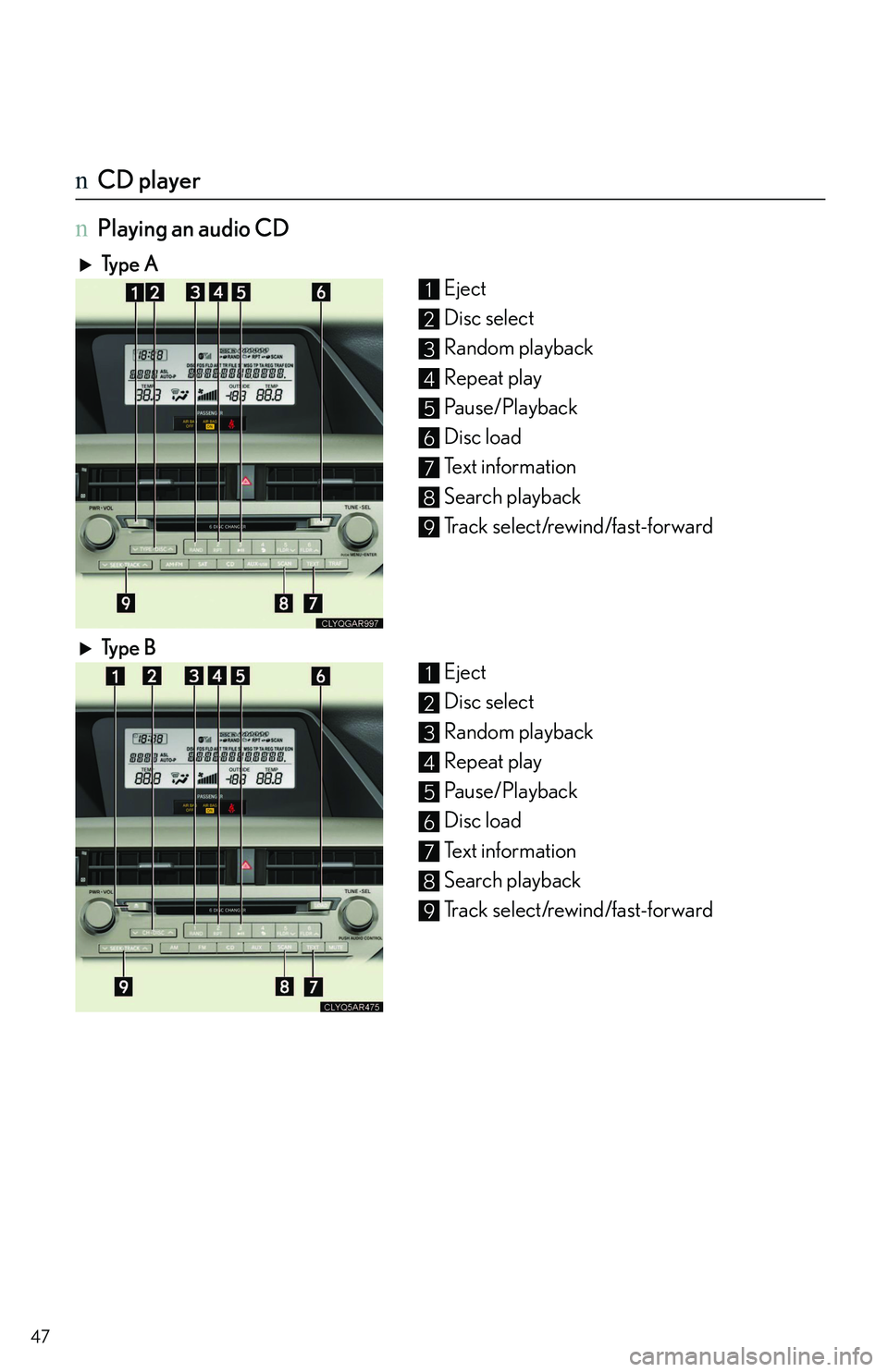

nCD player
nPlaying an audio CD
Typ e A
Eject
Disc select
Random playback
Repeat play
Pa u s e / P l a y b a c k
Disc load
Text information
Search playback
Track select/rewind/fast-forward
Ty p e B
Eject
Disc select
Random playback
Repeat play
Pa u s e / P l a y b a c k
Disc load
Text information
Search playback
Track select/rewind/fast-forward
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9

48

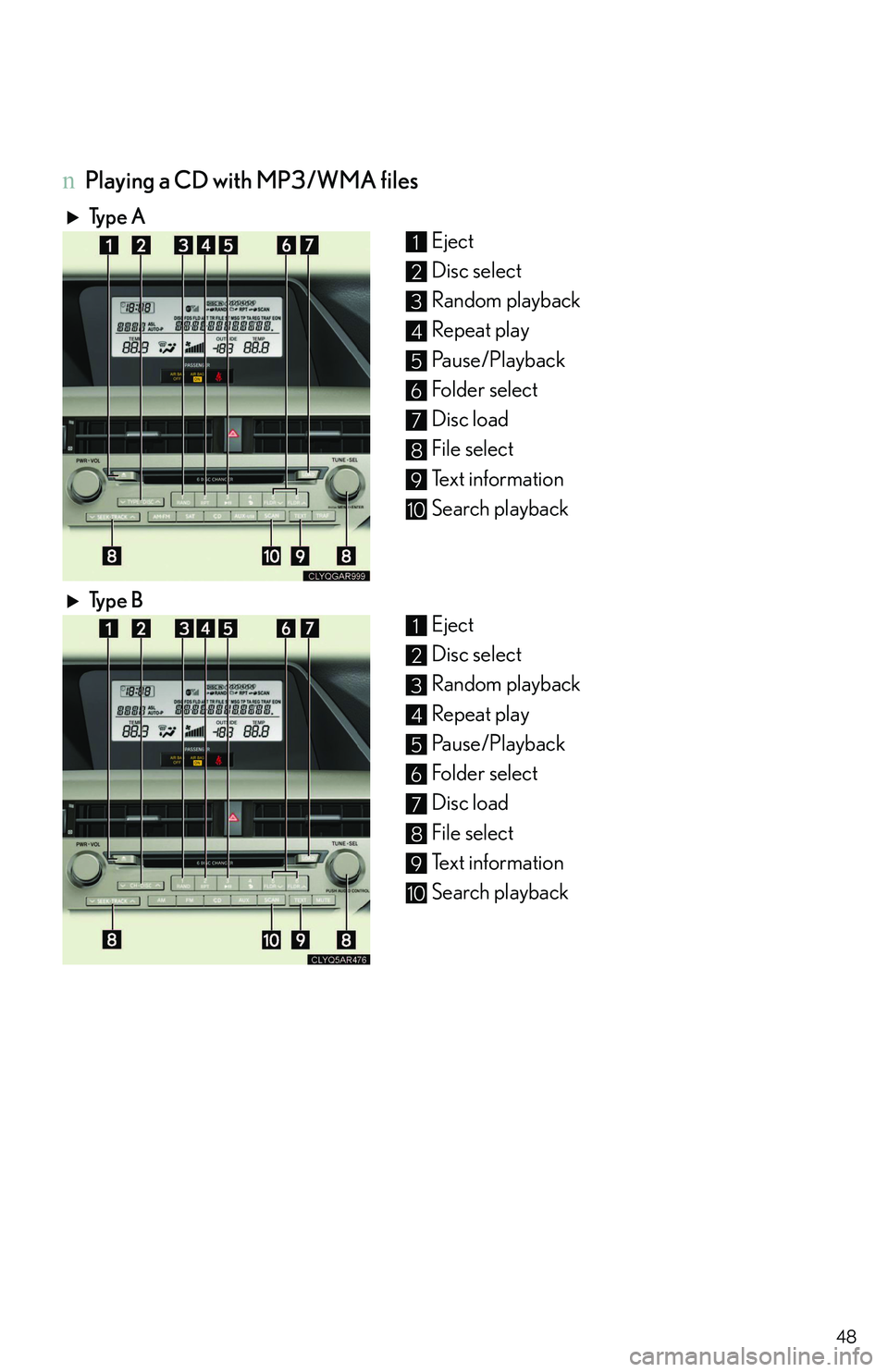

nPlaying a CD with MP3/WMA files
Typ e A
Eject
Disc select
Random playback
Repeat play
Pause/Playback
Folder select
Disc load
File select
Text information
Search playback
Ty p e B
Eject
Disc select
Random playback
Repeat play
Pause/Playback
Folder select
Disc load
File select
Text information
Search playback
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10

49

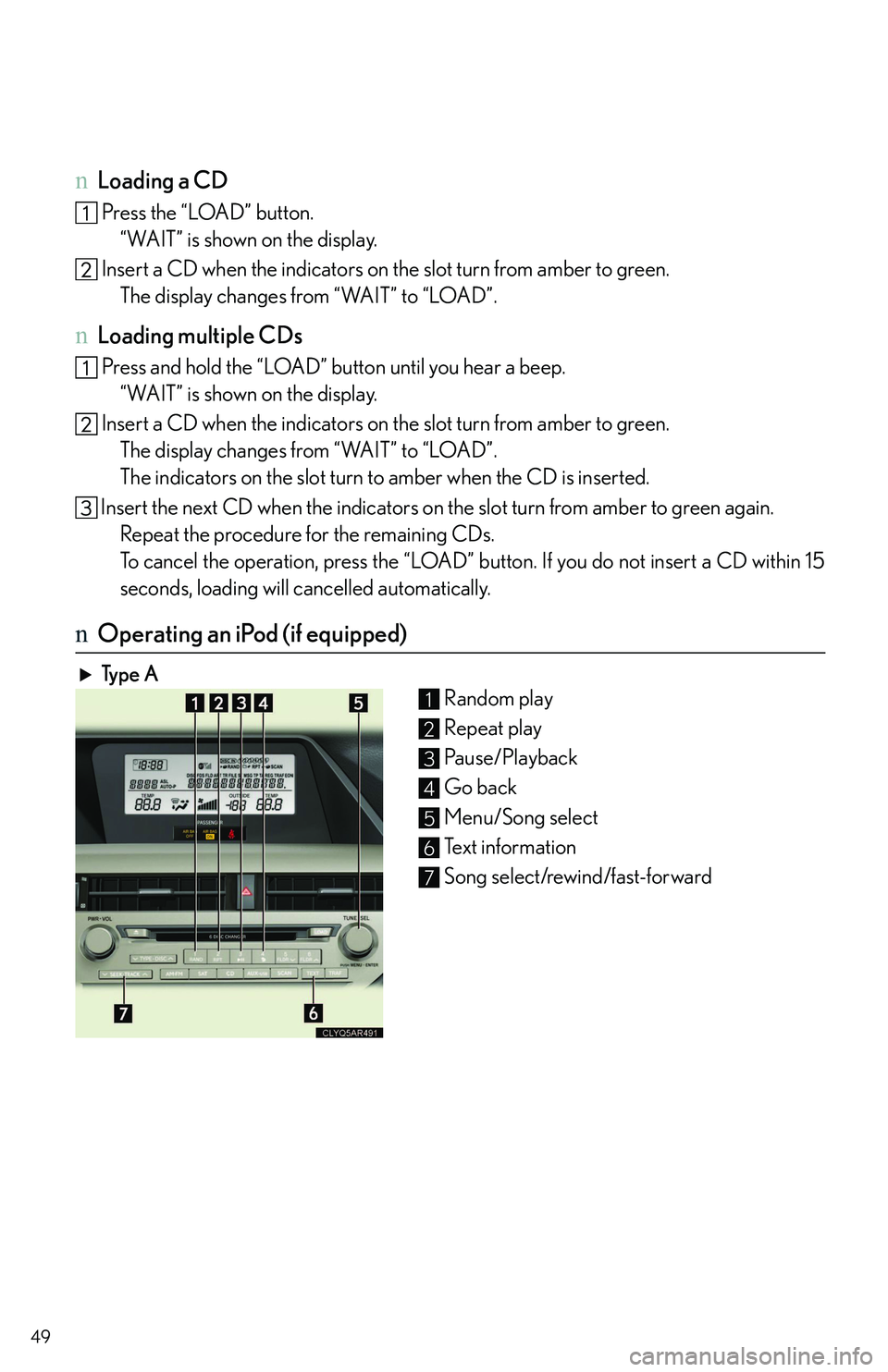

nLoading a CD
Press the “LOAD” button.
“WAIT” is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from “WAIT” to “LOAD”.
nLoading multiple CDs
Press and hold the “LOAD” button until you hear a beep.
“WAIT” is shown on the display.
Insert a CD when the indicators on the slot turn from amber to green.
The display changes from “WAIT” to “LOAD”.
The indicators on the slot turn to amber when the CD is inserted.
Insert the next CD when the indicators on the slot turn from amber to green again.
Repeat the procedure for the remaining CDs.
To cancel the operation, press the “LOAD” button. If you do not insert a CD within 15
seconds, loading will cancelled automatically.
nOperating an iPod (if equipped)
Typ e A
Random play
Repeat play
Pa u s e / P l a y b a c k
Go back
Menu/Song select
Text information
Song select/rewind/fast-forward
1
2
3
4
5
6
7

50
Typ e B
Random play
Repeat play
Pause/Playback
Go back
Menu/Song select
Text information
Song select/rewind/fast-forward
nRemote control (steering wheel switches)
The audio system can be operated using the remote control located on the steering wheel.
Vo l u m e
Power on/change mode: press
Power off: press and hold
Radio mode: radio tuner
CD mode: disc/track/file (MP3/WMA) select
iPod mode (if equipped): song select
1
2
3
4
5
6
7
1
2
3
