1 0 ELECTRICAL COMPONENTS OF 4-WHEEL STEERING
awq a Failure of stepper motor or harness
Disconnect R-01 (17-pin) connector. Check for no
continuity between each terminal of harness side
connector and body ground.
NG
Disconnect stepper motor connector. Check for no
continuity between each terminal and body ground.
Terminal Continuity
NG
Terminal Continuity
A (WB) No NG WB No
B (WL) No WL No
C (WR) No WR No
D (WY) No WY No
L(G) No G No
OK , OK | NG OK
Repair harness (Step-
per motor to Control
unit).
Replace rear steering
gear assembly.
Check for continuity between terminals of R-01
(17-pin) harness side connector.
NG
Disconnect stepper motor connector. Check for con-tinuity between terminals of motor side connector.
Terminal Continuity NG Terminals Continuity
A (WB) - L (G) Yes NG WB — G Yes
B (WL) — L (G) Yes
NG
WL — G Yes
C (WR) — L (G) Yes
NG
WR — G Yes
D (WY) — L (G) Yes
NG
WY — G Yes
NG
OK OK | NG
Replace control unit. Repair wiring harness (Stepper motor to Con-trol unit).
Replace rear steering gear assembly.
Repair wiring harness (Stepper motor to Con-trol unit).
Replace rear steering gear assembly.
4WS-5 Failure of rear to front steering ra-
tio sensor
Go to 4W5-2
76G10X-046
10-100

ELECTRICAL COMPONENTS OF 4-WHEEL STEERING 1 0
4WS-6 Failure of rear to front steering ra-tio sensor or harness
Start engine.
I
Check voltage between control unit terminal and body ground.
OK
Check voltage between control unit terminal and body ground.
Terminal Resistance
2F (GO) Approx. 5.0 V
NG Replace control unit.
Terminal Resistance
2G (GW) Approx. 4.5 V
OK Replace control unit.
NG
Check rear to front ratio sensor (Refer to page 10-103).
NG Replace rear steering gear assembly
OK
Repair harness (Control unit to Sensor).
Flashes or illuminates
Check voltage between 0(Y) terminal of R-01 (17-pin)
connector and a body ground.
Terminal Voltage
0(Y) 0 V
OK Replace control unit.
NG
10-101

ELECTRICAL COMPONENTS OF 4-WHEEL STEERING 1 0
SPEED SENSOR (IN METER)
1. Jack up the front of the vehicle.
2. Connect a voltmeter between 2A (GR) terminal of
the control unit connector and a body ground.
3. Start the engine. Check that periodic voltage is de-
tected when turning'the front wheels slowly.
4. If periodic voltage is not detected, check the wir-
ing harness. Replace the speed sensor if
necessary.
86U10X-233
SPEED SENSOR (AT TRANSAXLE)
1. Jack up the front of the vehicle.
2. Connect a voltmeter between R (O) terminal of the
control unit connector and a body ground.
3. Start the engine. Check that periodic voltage is de-
tected when turning the front wheels slowly.
4. If periodic voltage is not detected, check the wir-
ing harness. Replace the speed sensor if
necessary.
86U10X-234
REAR-TO-FRONT STEERING RATIO SENSOR
Check the resistance between the terminals with an
ohmmeter.
Terminal [ Resistance
GB—GO l 3.5—6.5 kfi
GB—GW ' 3.2—5.9 kfi

If
the resistance is not within specification, replace the
rear steering gear assembly.
86U10X-235
OIL LEVEL SWITCH (IN P/S RESERVOIR)
Check for continuity of the switch with an ohmmeter.
Fluid level Continuity
More than L No
Less than L Yes

If
the continuity is not within specification, replace the
P/S reservoir.
86U10X-236
10—103

11
BRAKING SYSTEM
OUTLINE 11—2
STRUCTURAL VIEW 11—2
SPECIFICATIONS 11— 4
TROUBLESHOOTING GUIDE 11— 5
ON-VEHICLE MAINTENANCE 11—6
BRAKE FLUID LEVEL IN MASTER
CYLINDER RESERVOIR 11— 6
BRAKE HYDRAULIC LINE 11—6
STRUCTURAL VIEW 11—6
ON-VEHICLE INSPECTION OF
BRAKE LINES 11— 8
REMOVAL AND INSTALLATION OF
BRAKE LINES 11— 9
REPLACEMENT OF BRAKE
FLUID 11— 9
AIR BLEEDING 11— 9
BRAKE PEDAL 11—11
ON-VEHICLE INSPECTION 11—11
REMOVAL 11—12
INSPECTION 11—13
INSTALLATION 11—13
MASTER CYLINDER 11—14
REMOVAL 11—15
DISASSEMBLY AND ASSEMBLY
(EXCEPT RHD DOHC TURBO).... 11—14
INSPECTION 11—17
DISASSEMBLY AND ASSEMBLY
(RHD DOHC TURBO) 11—18
INSPECTION 11—21
INSTALLATION 11—22
POWER BRAKE UNIT 11—27
FUNCTION CHECK 11—27
INSPECTION OF CHECK VALVE... 11—29
REMOVAL 11—29
DISASSEMBLY AND ASSEMBLY... 11—30
INSPECTION 11—32
INSTALLATION 11—33
VACUUM PUMP 11—35
ON-VEHICLE INSPECTION 11—35
REMOVAL AND INSTALLATION.... 11—35
DISASSEMBLY AND ASSEMBLY... 11—36
INSPECTION 11—37
DUAL PROPORTIONING VALVE 11—38
FUNCTION CHECK 11—38
REMOVAL AND INSTALLATION.... 11—39
FRONT DISC BRAKE 11—40
SIMPLE INSPECTION OF DISC
PAD WEAR 11—40
REPLACEMENT OF DISC PAD 11—40
REMOVAL 11—42
DISASSEMBLY AND ASSEMBLY... 11—43
INSPECTION 11—44
INSTALLATION 11—45
REAR DISC BRAKE 11—46
SIMPLE INSPECTION OF DISC
PAD WEAR 11—46
REPLACEMENT OF DISC PAD 11—46
REMOVAL 11—49
DISASSEMBLY AND ASSEMBLY... 11—50
INSPECTION 11—54
INSTALLATION 11—55
REAR DRUM BRAKE 11—56
REMOVAL 11—56
DISASSEMBLY AND ASSEMBLY
OF WHEEL CYLINDER 11—59
INSPECTION 11—60
INSTALLATION 11—61
PARKING BRAKE 11—65
ON-VEHICLE MAINTENANCE 11—65
REMOVAL AND INSTALLATION
OF PARKING BRAKE LEVER 11—66
REMOVAL OF PARKING BRAKE
CABLE 11—68
INSTALLATION OF PARKING
BRAKE CABLE 11—69
ANTI-LOCK BRAKE SYSTEM
(ABS) 11—71
STRUCTURAL VIEW 11—71
WIRING DIAGRAM 11—72
TROUBLESHOOTING 11—73
DIAGNOSIS INDICATION MODE ... 11—86
MEMORY CANCEL 11—86
ABS WARNING LIGHT 11—87
RELAY BOX 11—87
WHEEL SPEED SENSOR 11—87
SENSOR ROTOR 11—90
HYDRAULIC UNIT FLUID 11—94
HYDRAULIC UNIT 11—94
CONTROL UNIT CIRCUIT 11—99
76G11X-001

OUTLINE 11
86U11X-003
1. Front disc brake
2. Hydraulic unit
3. Pipe joint
4. Master cylinder
5. Power brake unit
6. Relay box
7. Control unit
8. Wheel speed sensor
9. Sensor rotor
10. Rear disc brake
11. Parking brake lever
12. Parking brake cable
Front disc brake
(Ventilated disc)
Rear disc brake
(Solid disc)
Rear drum brake
(Leading-trailing)

1 1 OUTLINE
SPECIFICATIONS
Item Specification
Brake pedal
Type Suspended
Brake pedal Pedal lever ratio 4.2 Brake pedal
Max. stroke mm (in) LHD: 136.5 (5.37) RHD: 135 (5.31)
Master cylinder Type Tandem (with level sensor) Master cylinder
Cylinder inner diameter mm (in) 22.22 (0.87)
Front disc brake
Type Mounting support, Ventilated disc
Front disc brake
Cylinder bore mm (in) 53.97 (2.12)
Front disc brake Pad dimensions (area x thickness) mm2 x mm (in2 x in) 4,800 x 10 (7.44 x 0.39) Front disc brake
Disc plate dimensions mm (in) (outer diameter x thickness) 13 inch-wheel: 242 x 20 (9.53 x 0.79) 14 or 15 inch-wheel: 264 x 24 (10.39 x 0.94)
Rear disc brake
(Turbo model)
Type Mounting support, Solid disc
Rear disc brake
(Turbo model)
Cylinder bore mm (in) 30.2 (1.19)
Rear disc brake
(Turbo model) Pad dimensions (area x thickness) mm2 x mm (in2 x in) 2,900 x 8 (4.5 x 0.31)
Rear disc brake
(Turbo model)
Disc plate dimensions mm (in) (outer diameter x thickness) 259 x 10 (10.2 x 0.39)
Rear drum brake
(Non-Turbo model)
Type Leading-trailing
Rear drum brake
(Non-Turbo model)
Wheel cylinder inner diameter mm (in) 17.46 (0.69)
Rear drum brake
(Non-Turbo model) Lining dimensions mm (in)
(width x length x thickness) (a): 25 x 191.9 x 5 (0.98 x 7.56 x 0.20)
(b): 30 x 219.3 x 5 (1.18 x 8.63 x 0.20)
Rear drum brake
(Non-Turbo model)
Drum inner diameter mm (in) (a): 200.0 (7.87) (b): 228.6 (9.0)
Rear drum brake
(Non-Turbo model)
Shoe clearance adjustment Automatic adjuster
Power brake unit Type Vacuum multiplier Power brake unit
Diameter mm (in) 238 (9.37)
Braking force control device Type Dual proportioning valve or ABS (if equipped)
Brake fluid DOT-3 or DOT-4, or SAE J1703
Parking brake Type Center lever (Mechanical two rear brakes)
(a)...13-inch wheel in General LHD and RHD models
(b)...Except 13-inch wheel in General LHD and RHD models
11-4

1 1 MASTER CYLINDER
MASTER CYLINDER
REMOVAL
Remove in the sequence shown in the figure, referring to removal note for specially marked parts.
Caution
Brake fluid will damage painted surfaces. If it does get on a painted surface, wipe it off
immediately.
1. Fluid level sensor connector
2. Brake pipe
76G11X-011
3. Master cylinder
4. Clutch pipe holder (LHD MTX ABS)
Removal Note
Brake pipe (Flare nut type)
1. Place rags under the master cylinder to prevent
brake fluid from dripping on painted surfaces.
2. Disconnect the brake pipe from the master cylin-
der with the SST.
76G11X-012
11—14

MASTER CYLINDER 1 1
DISASSEMBLY AND ASSEMBLY (EXCEPT RHD DOHC TURBO)
1. Pour out the brake fluid.
2. Disassemble in the sequence shown in the figure, referring to disassembly note for specially marked
parts.
3. Assemble in the reverse order of disassembly, referring to assembly note for specially marked parts.
Caution a) Do not to allow any foreign material into the master cylinder during repairs. b)Do not scratch the inside of the cylinder or the outer surface of the piston.
Note
The primary piston assembly is not repairable. Replace it as an assembly.
76G11X-013
1. Fluid level sensor 5. Secondary piston assembly
2. Stopper screw and O-ring 6. Reservoir assembly
3. Snap ring 7. Bushing
4. Primary piston assembly
11—15

1 1 MASTER CYLINDER
DISASSEMBLY AND ASSEMBLY (RHD DOHC TURBO)
1. Pour out the brake fluid.
2. Disassemble in the sequence shown in the figure, referring to disassembly note for specially marked
parts.
3. Assemble in the reverse order of disassembly, referring to assembly note for specially marked parts.
Caution a) Do not to allow any foreign material into the master cylinder during repairs. b)Do not scratch the inside of the cylinder or the outer surface of the piston.
Note
The primary piston assembly is not repairable. Replace it as an assembly.
76G11X-014
1. Stopper screw and O-ring
2. Snap ring
3. Spacer
4. Piston guide assembly
5. Primary piston assembly
6. Stopper
7. O-ring
8. Piston guide cup
9. Piston guide
10. Secondary piston assembly
11. Stopper
12. Piston cup
13. Washer
14. Secondary piston
15. Spring
16. O-ring
17. Screw
18. Bushing
19. Reservoir assembly
20. Fluid level sensor
21. Master cylinder body
11—18

POWER BRAKE UNIT 1 1
76G11X-034

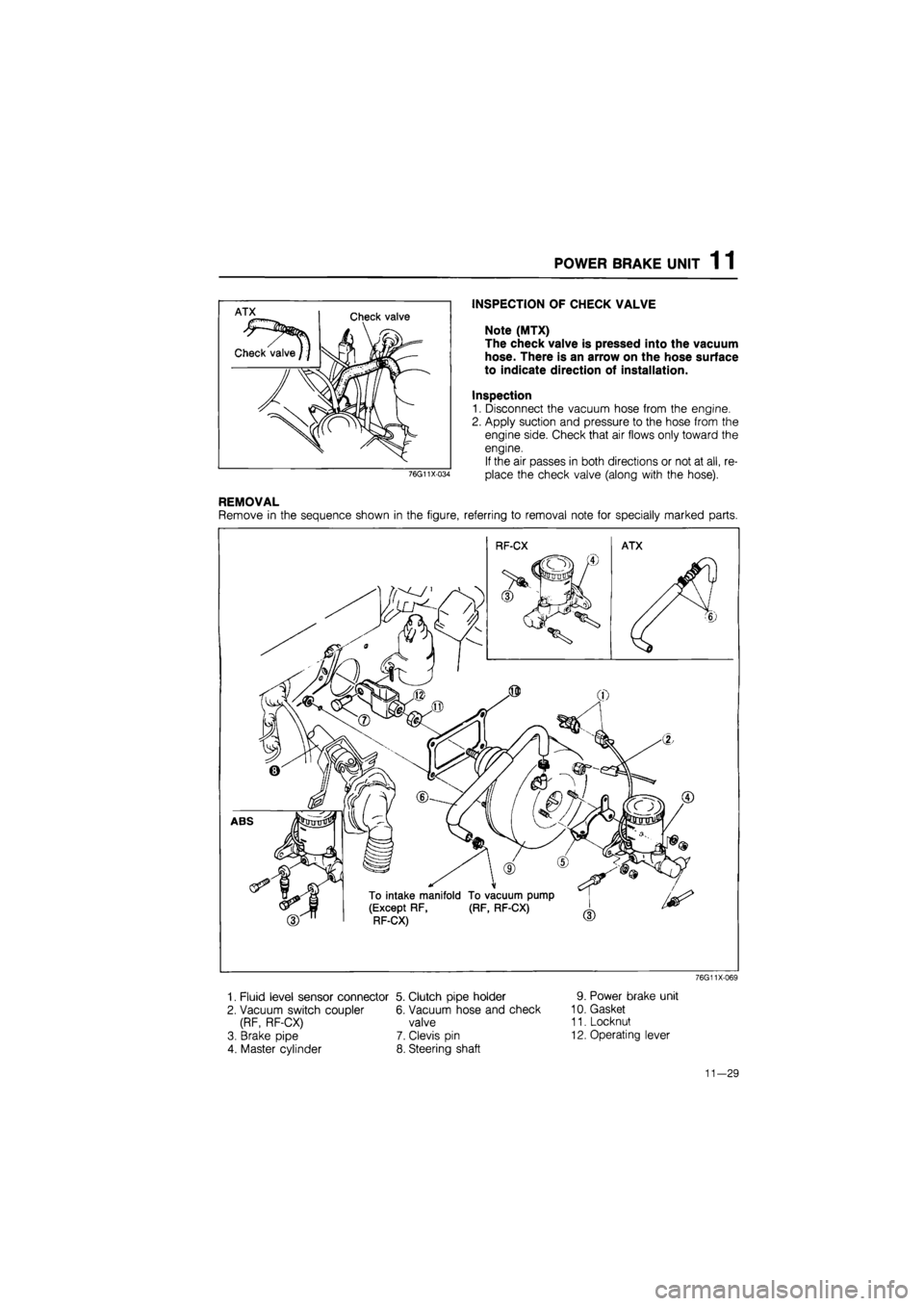

INSPECTION OF CHECK VALVE
Note (MTX)
The check valve is pressed into the vacuum
hose. There is an arrow on the hose surface
to indicate direction of installation.
Inspection
1. Disconnect the vacuum hose from the engine.
2. Apply suction and pressure to the hose from the
engine side. Check that air flows only toward the
engine.
If the air passes in both directions or not at all, re-
place the check valve (along with the hose).
REMOVAL
Remove in the sequence shown in the figure, referring to removal note for specially marked parts.
1. Fluid level sensor connector
2. Vacuum switch coupler
(RF, RF-CX)
3. Brake pipe
4. Master cylinder
5. Clutch pipe holder
6. Vacuum hose and check
valve
7. Clevis pin
8. Steering shaft
76G11X-069
9. Power brake unit
10. Gasket
11. Locknut
12. Operating lever
11-29
