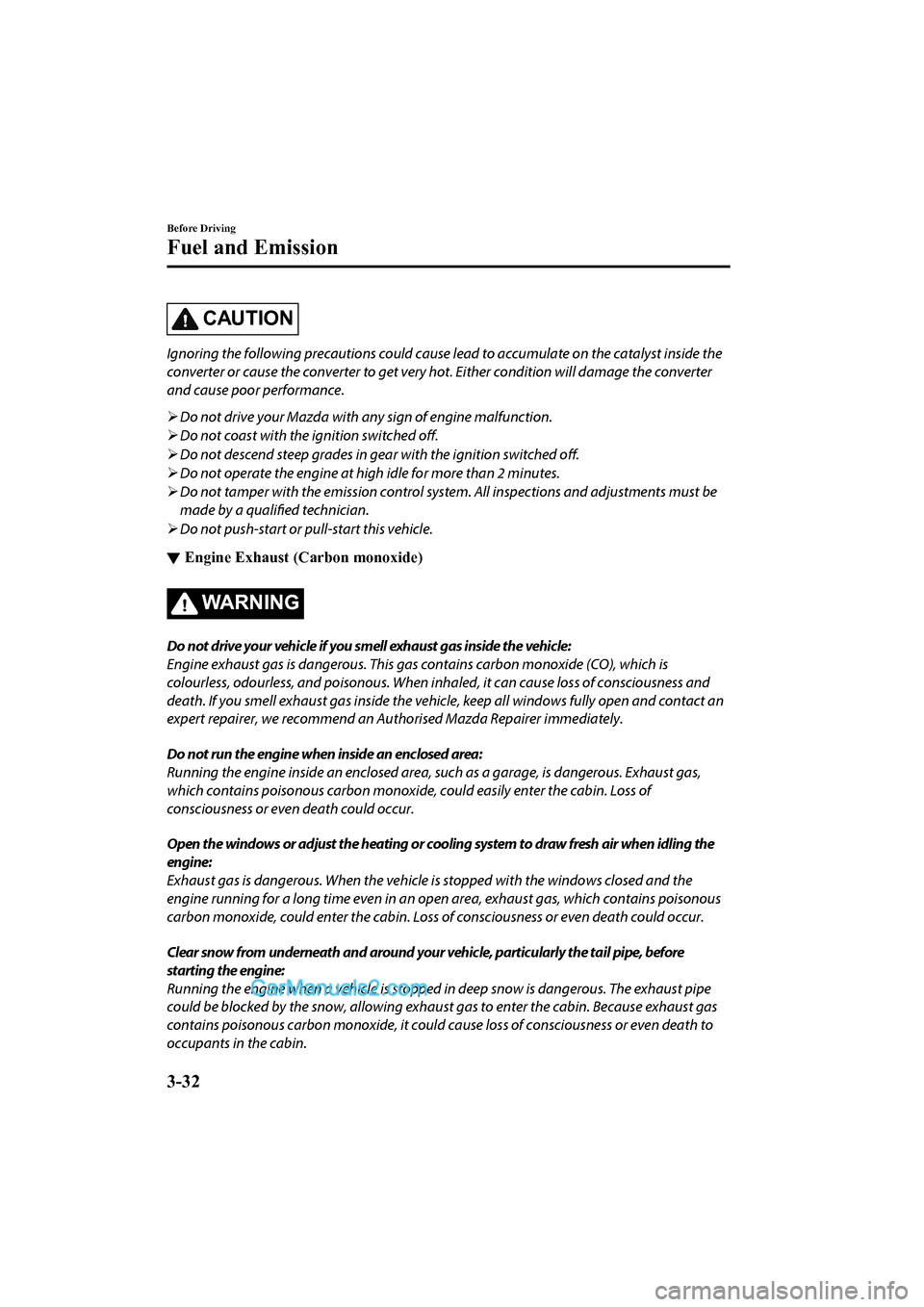

CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst inside the
converter or cause the converter to get very ho t. Either condition will damage the converter
and cause poor performance.
 Do not drive your Mazda with any sign of engine malfunction.
 Do not coast with the ignition switched
off.
 Do not descend steep grades in gear with the ignition switched off.
 Do not operate the engine at hi gh idle for more than 2 minutes.
 Do not tamper with the emission control syst em. All inspections and adjustments must be
made by a qualified technician.
 Do not push-start or pull-start this vehicle.
▼ Engine Exhaust (Carbon monoxide)
WA R N I N G
Do not drive your vehicle if you smell exhaust gas inside the vehicle:
Engine exhaust gas is dangerous. This gas contains carbon monoxide (CO), which is
colourless, odourless, and poisonous. When i
nhaled, it can cause loss of consciousness and
death. If you smell exhaust gas inside the vehi cle, keep all windows fully open and contact an
expert repairer, we recommend an Au thorised Mazda Repairer immediately.
Do not run the engine when inside an enclosed area:
Running the engine inside an enclosed area, such as a garage, is dangerous. Exhaust gas,
which contains poisonous carbon monoxide , could easily enter the cabin. Loss of
consciousness or even death could occur.
Open the windows or adjust the heating or cooling system to draw fresh air when idling the
engine:
Exhaust gas is dangerous. When the vehicle is stopped with the windows closed and the
engine running for a long time even in an op en area, exhaust gas, which contains poisonous
carbon monoxide, could enter the cabin. Loss of consciousness or even death could occur.
Clear snow from underneath and around your vehicle, particularly the tail pipe, before
starting the engine:
Running the engine when a vehi cle is stopped in deep snow is dangerous. The exhaust pipe
could be blocked by the snow, allowing exhaust gas to enter the cabin. Because exhaust gas
contains poisonous carbon monoxide, it could cause loss of consciousness or even death to
occupants in the cabin.
Before Driving
Fuel and Emission
3-32
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

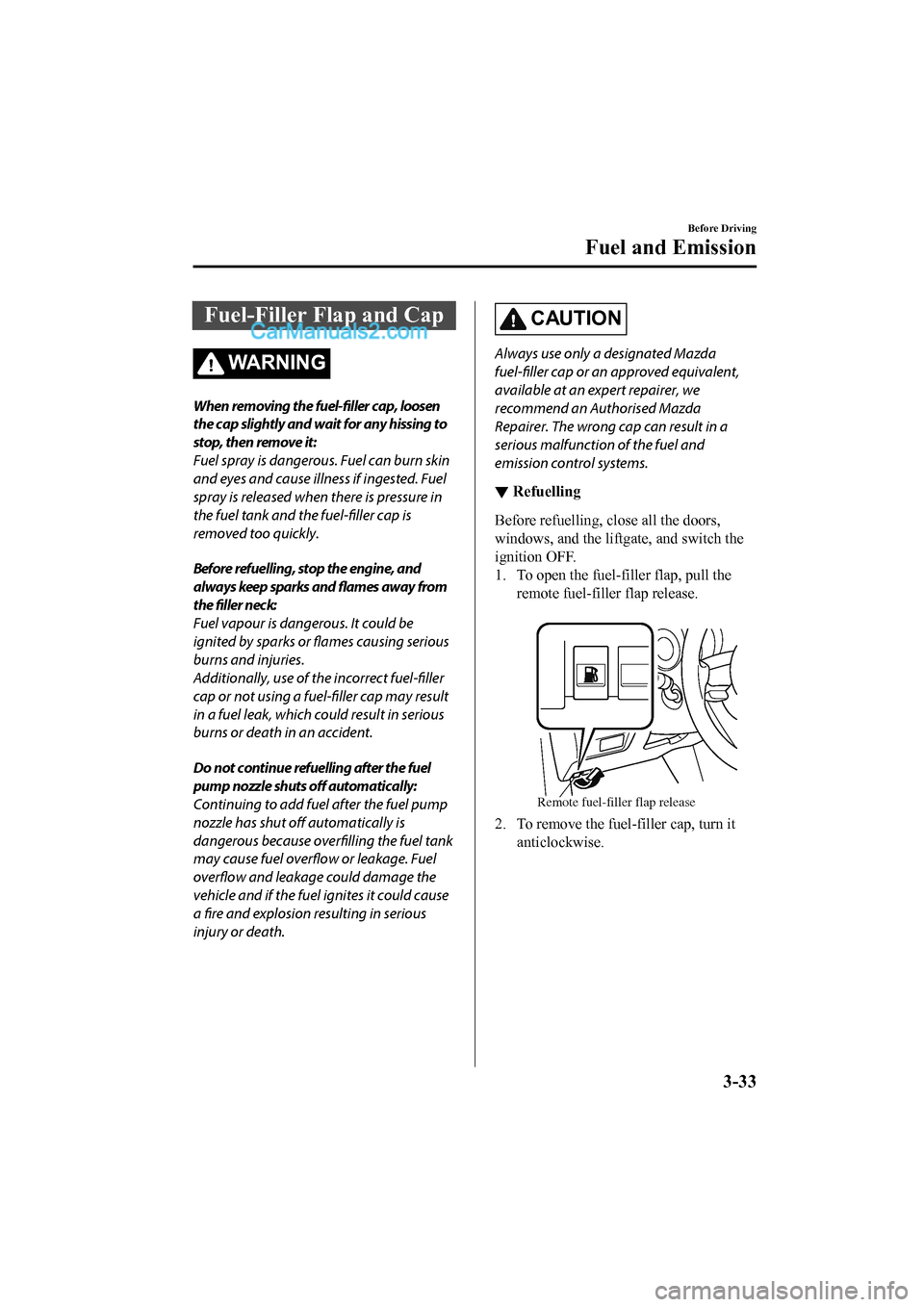

Fuel-Filler Flap and Cap
WA R N I N G
When removing the fuel-filler cap, loosen
the cap slightly and wait for any hissing to
stop, then remove it:
Fuel spray is dangerous. Fuel can burn skin
and eyes and cause illness if ingested. Fuel
spray is released when there is pressure in
the fuel tank and the fuel-filler cap is
removed too quickly.
Before refuelling, stop the engine, and
always keep sparks and flames away from
the filler neck:
Fuel vapour is dangerous. It could be
ignited by sparks or flames causing serious
burns and injuries.
Additionally, use of the incorrect fuel-filler
cap or not using a fuel-filler cap may result
in a fuel leak, which could result in serious
burns or death in an accident.
Do not continue refuelling after the fuel
pump nozzle shuts off automatically:
Continuing to add fuel after the fuel pump
nozzle has shut off automatically is
dangerous because overfilling the fuel tank
may cause fuel overflow or leakage. Fuel
overflow and leakage could damage the
vehicle and if the fuel ignites it could cause
a fire and explosion resulting in serious
injury or death.
CAUTION
Always use only a designated Mazda
fuel-filler cap or an approved equivalent,
available at an expert repairer, we
recommend an Authorised Mazda
Repairer. The wrong cap can result in a
serious malfunction of the fuel and
emission control systems.
▼ Refuelling
Before refuelling, close all the doors,
windows, and the liftg
ate, and switch the
ignition OFF.
1. To open the fuel-filler flap, pull the remote fuel-filler flap release.

Remote fuel-filler flap release
2. To remove the fuel-filler cap, turn it
anticlockwise.
Before Driving
Fuel and Emission
3-33
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

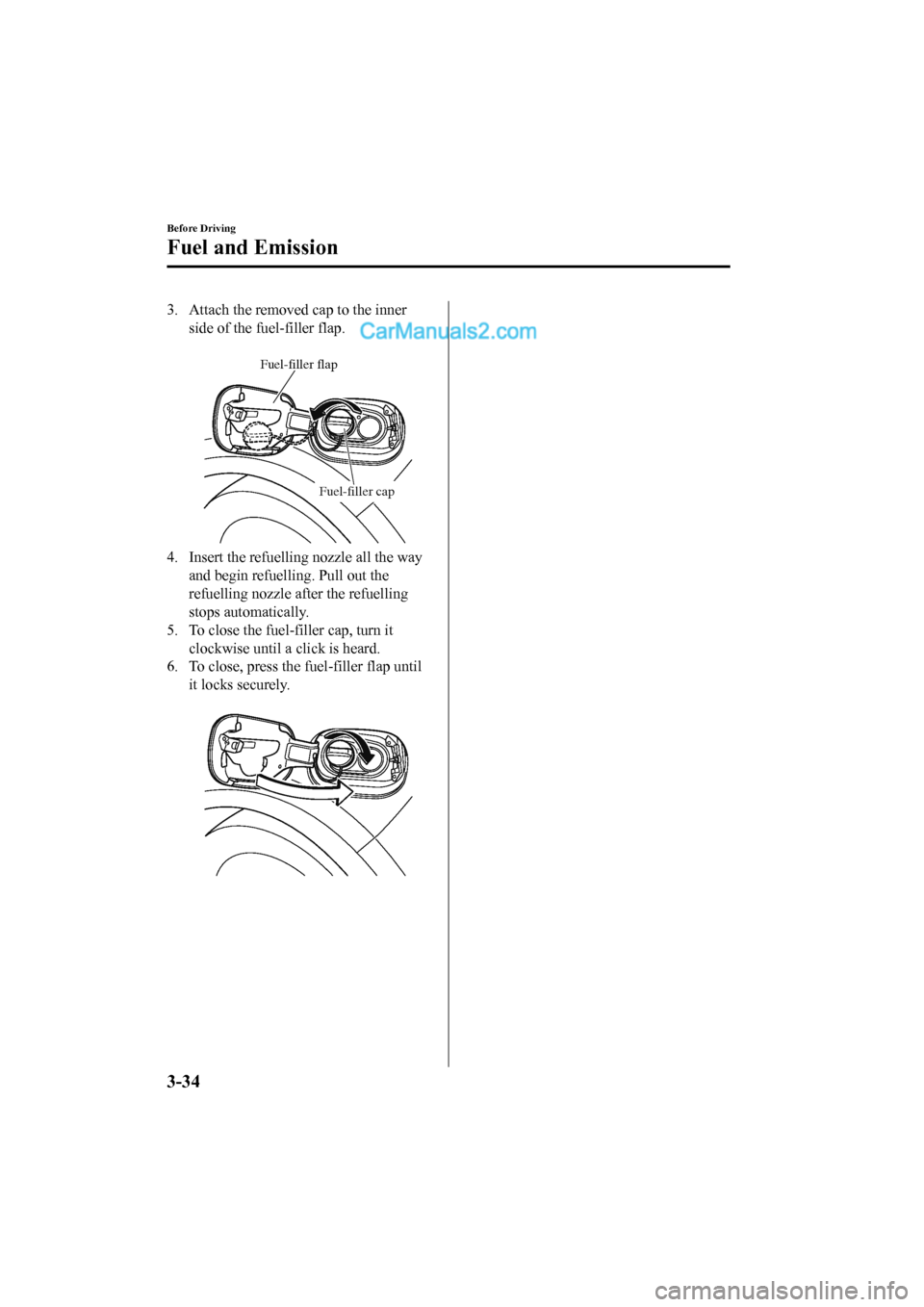

3. Attach the removed cap to the innerside of the fuel-filler flap.

Fuel-filler cap
Fuel-filler flap
4. Insert the refuelling nozzle all the wayand begin refuelling. Pull out the
refuelling nozzle after the refuelling
stops automatically.
5. To close the fuel-filler cap, turn it
clockwise until a click is heard.
6. To close, press the fuel-filler flap until
it locks securely.

Before Driving
Fuel and Emission
3-34
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Steering Wheel
WA R N I N G
Never adjust the steering wheel while the
vehicle is moving:
Adjusting the steering wheel while the
vehicle is moving is dangerous. Moving it
can very easily cause the driver to abruptly
turn to the left or right. This can lead to loss
of control or an accident.
▼Steering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, and then pull down
the lock release lever under the
steering column.

Lock release lever
2. Tilt the steering wheel and/or adjustthe steering column length to the
desired positions, then push the lever
up to lock the column.
3. Attempt to push th e steering wheel up
and down to make sure it's locked
before driving.
▼ Heated Steering Wheel*
The grips on the left and right of the
steering wheel can be warmed up.
Heated steering
wheel switch
Heating area
The ignition must be switched ON.

Press the switch to turn on the heated
steering wheel. The heated steering wheel
operates for about 30 minutes and then
turns off automatically.
The indicator light illuminates when the
heater is operating.

To turn off the heated steering wheel
before the 30 minutes has elapsed, press
the switch again.
CAUTION
The following types of persons should be
careful not to touch the steering wheel.
Otherwise, it could cause a
low-temperature burn.
 Infants, small children, elderly people,
and physically challenged people
 People with delicate skin
 People who are excessively fatigued
 People who are intoxicated
 People who have taken sleep-inducing
medicine such as sleeping pills or cold
medicine
Before Driving
Steering Wheel
*Some models.3-35
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

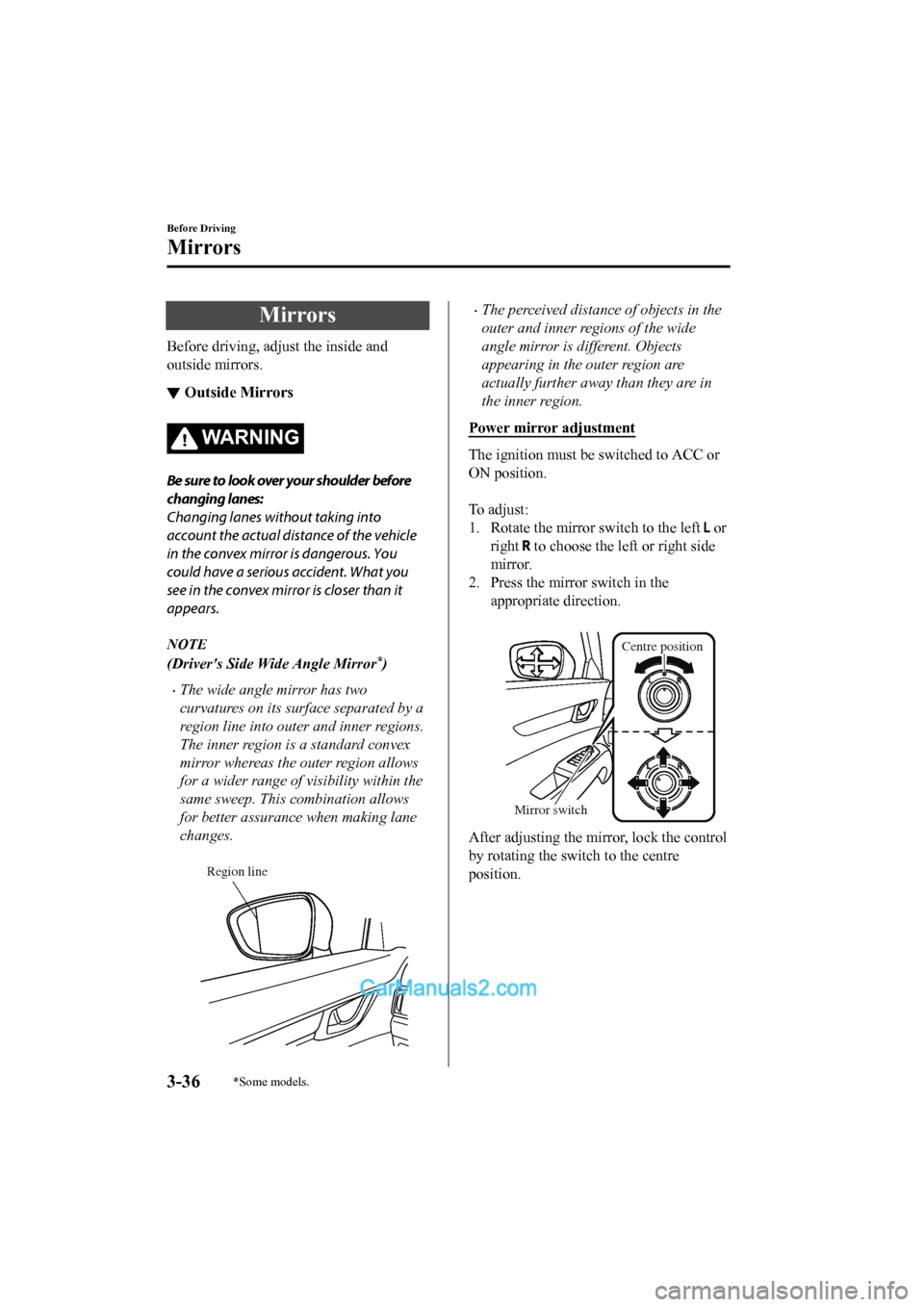

Mirrors
Before driving, adjust the inside and
outside mirrors.
▼Outside Mirrors
WA R N I N G
Be sure to look over your shoulder before
changing lanes:
Changing lanes without taking into
account the actual distance of the vehicle
in the convex mirror is dangerous. You
could have a serious accident. What you
see in the convex mirror is closer than it
appears.
NOTE
(Driver's Side Wide Angle Mirror*)
•The wide angle mirror has two
curvatures on its surface separated by a
region line into outer and inner regions.
The inner region is a standard convex
mirror whereas the outer region allows
for a wider range of vi
sibility within the
same sweep. This combination allows
for better assurance when making lane
changes.

Region line
•The perceived distance of objects in the
outer and inner regions of the wide
angle mirror is different. Objects
appearing in the outer region are
actually further away than they are in
the inner region.
Power mirror adjustment
The ignition must be switched to ACC or
ON position.

To adjust:
1. Rotate the mirror switch to the left
or
right
to choose the left or right side
mirror.
2. Press the mirro r switch in the
appropriate direction.

Centre position
Mirror switch
After adjusting the mirror, lock the control
by rotating the switch to the centre
position.
Before Driving
Mirrors
3-36*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

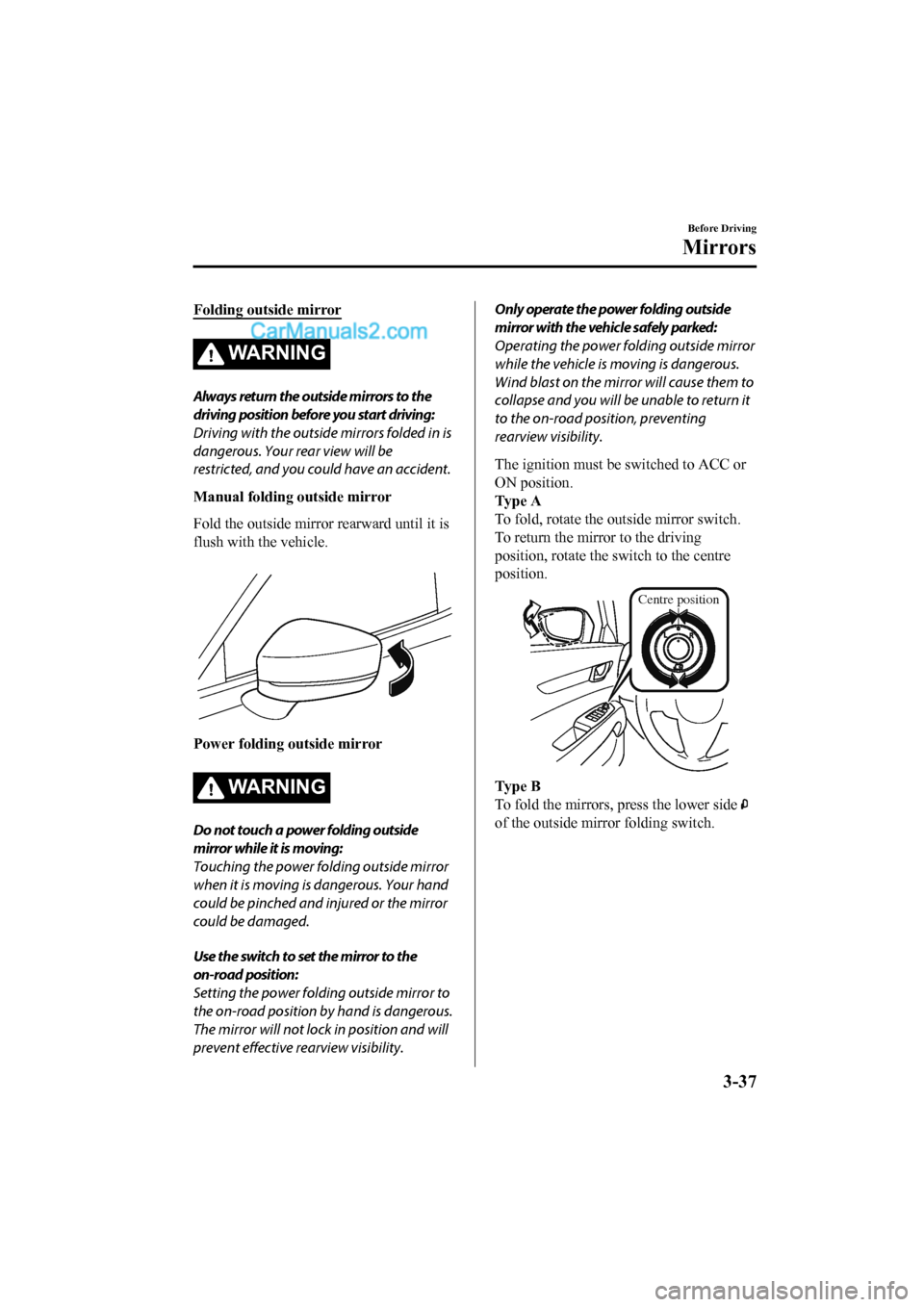

Folding outside mirror
WA R N I N G
Always return the outside mirrors to the
driving position before you start driving:
Driving with the outside mirrors folded in is
dangerous. Your rear view will be
restricted, and you could have an accident.
Manual folding outside mirror
Fold the outside mirror rearward until it is
flush with the vehicle.

Power folding outside mirror
WA R N I N G
Do not touch a power folding outside
mirror while it is moving:
Touching the power folding outside mirror
when it is moving is dangerous. Your hand
could be pinched and injured or the mirror
could be damaged.
Use the switch to set the mirror to the
on-road position:
Setting the power folding outside mirror to
the on-road position by hand is dangerous.
The mirror will not lock in position and will
prevent effective rearview visibility.
Only operate the power folding outside
mirror with the vehicle safely parked:
Operating the power folding outside mirror
while the vehicle is moving is dangerous.
Wind blast on the mirror will cause them to
collapse and you will be unable to return it
to the on-road position, preventing
rearview visibility.
The ignition must be switched to ACC or
ON position.
Ty p e A
To fold, rotate the outside mirror switch.
To return the mirror to the driving
position, rotate the switch to the centre
position.
Centre position
Ty p e B
To fold the mirrors, pr ess the lower side
of the outside mirror folding switch.
Before Driving
Mirrors
3-37
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

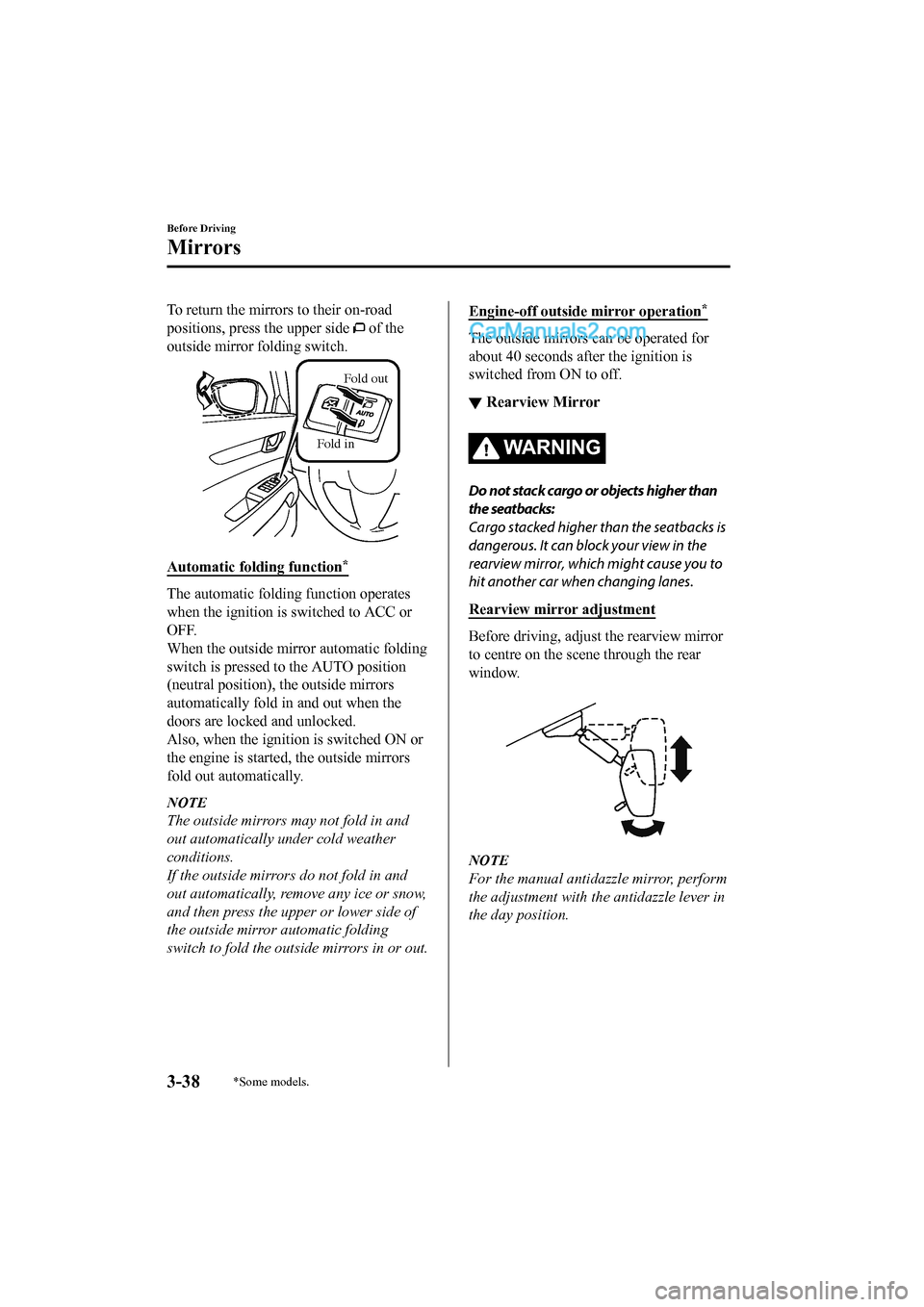

To return the mirrors to their on-road
positions, press the upper side
of the
outside mirror folding switch.
Fold in Fold out
Automatic folding function*
The automatic folding function operates
when the ignition is switched to ACC or
OFF.
When the outside mirror automatic folding
switch is pressed to the AUTO position
(neutral position),
the outside mirrors
automatically fold in and out when the
doors are locked and unlocked.
Also, when the ignition is switched ON or
the engine is started, the outside mirrors
fold out automatically.
NOTE
The outside mirrors may not fold in and
out automatically under cold weather
conditions.
If the outside mirro rs do not fold in and
out automatically, remove any ice or snow,
and then press the upper or lower side of
the outside mirror automatic folding
switch to fold the outs ide mirrors in or out.
Engine-off outside mirror operation*
The outside mirrors can be operated for
about 40 seconds after the ignition is
switched from ON to off.
▼Rearview Mirror
WA R N I N G
Do not stack cargo or objects higher than
the seatbacks:
Cargo stacked higher than the seatbacks is
dangerous. It can block your view in the
rearview mirror, which might cause you to
hit another car when changing lanes.
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to centre on the scene through the rear
window.

NOTE
For the manual antidazzle mirror, perform
the adjustment with the antidazzle lever in
the day position.
Before Driving
Mirrors
3-38*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Reducing glare from headlights
Manual antidazzle mirror
Push the antidazzle lever forward for day
driving. Pull it back to reduce glare of
headlights from vehicles at the rear.

Antidazzle lever
Day
Night
Auto-dimming mirror
The auto-dimming m irror automatically
reduces the glare of headlights from
vehicles at the rear when the ignition is
switched ON.
NOTE
•Do not use glass cleaner or suspend
objects on or around the light sensor.
Otherwise, light sensor sensitivity will
be affected and may not operate
normally.

Light sensor
•The auto-dimming function is cancelled
when the ignition is switched ON and
the shift/selector lever is in reverse (R).
Before Driving
Mirrors
3-39
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

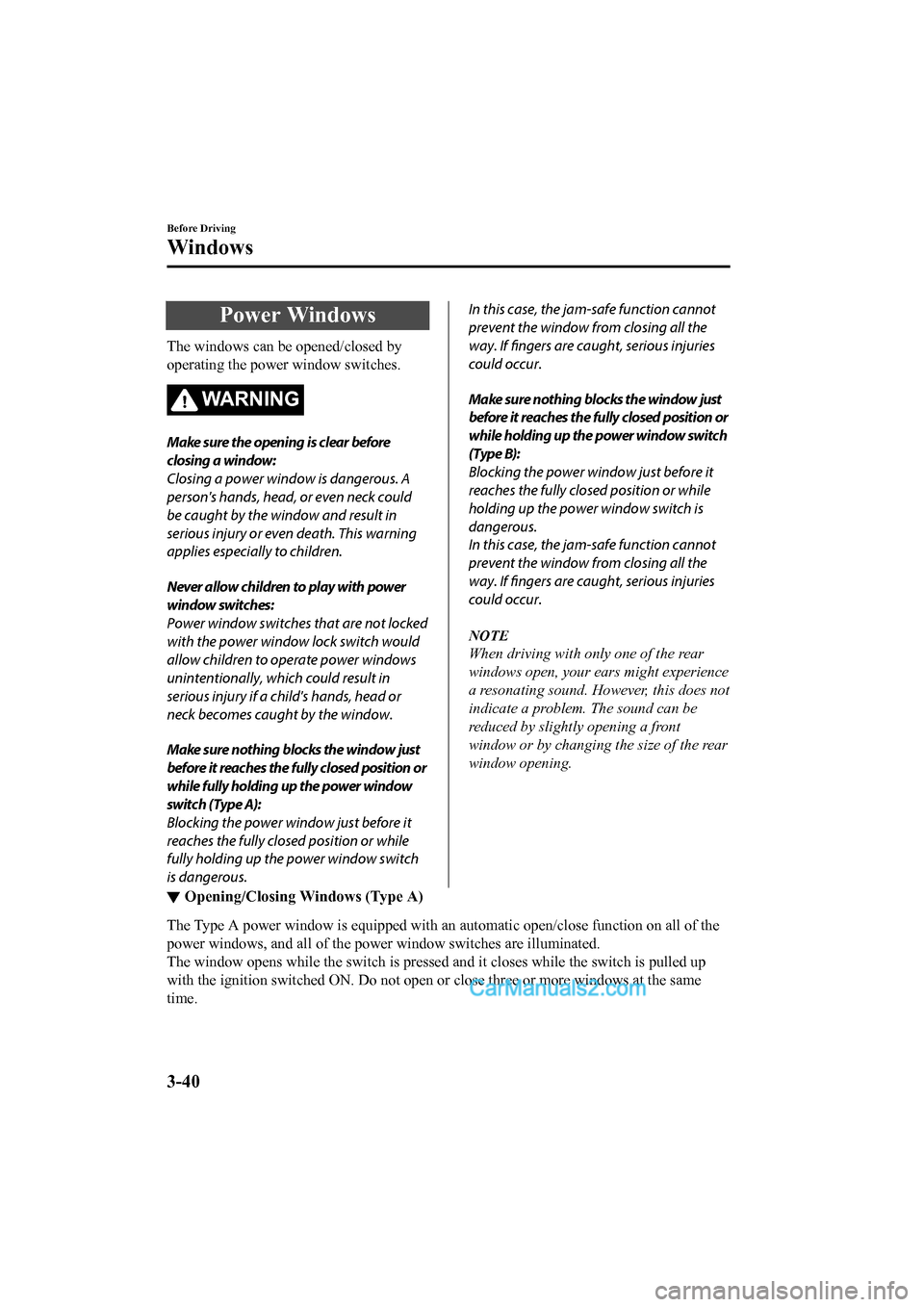

Power Windows
The windows can be opened/closed by
operating the power window switches.
WA R N I N G
Make sure the opening is clear before
closing a window:
Closing a power window is dangerous. A
person's hands, head, or even neck could
be caught by the window and result in
serious injury or even death. This warning
applies especially to children.
Never allow children to play with power
window switches:
Power window switches that are not locked
with the power window lock switch would
allow children to operate power windows
unintentionally, which could result in
serious injury if a child's hands, head or
neck becomes caught by the window.
Make sure nothing bloc ks the window just
before it reaches the fully closed position or
while fully holding up the power window
switch (Type A):
Blocking the power window just before it
reaches the fully closed position or while
fully holding up the power window switch
is dangerous.
In this case, the jam-safe function cannot
prevent the window from closing all the
way. If fingers are caught, serious injuries
could occur.
Make sure nothing bloc ks the window just
before it reaches the fully closed position or
while holding up the power window switch
(Type B):
Blocking the power window just before it
reaches the fully closed position or while
holding up the power window switch is
dangerous.
In this case, the jam-safe function cannot
prevent the window from closing all the
way. If fingers are caught, serious injuries
could occur.
NOTE
When driving with only one of the rear
windows open, your ears might experience
a resonating sound. However, this does not
indicate a problem. The sound can be
reduced by slightly opening a front
window or by changing the size of the rear
window opening.
▼ Opening/Closing Windows (Type A)
The Type A power window is equipped with an automatic open/clos
e function on all of the
power windows, and all of the power window switches are illumin ated.
The window opens while the switch is pressed and it closes whil e the switch is pulled up
with the ignition switched ON. Do not open or close three or mo re windows at the same
time.
Before Driving
Windows
3-40
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

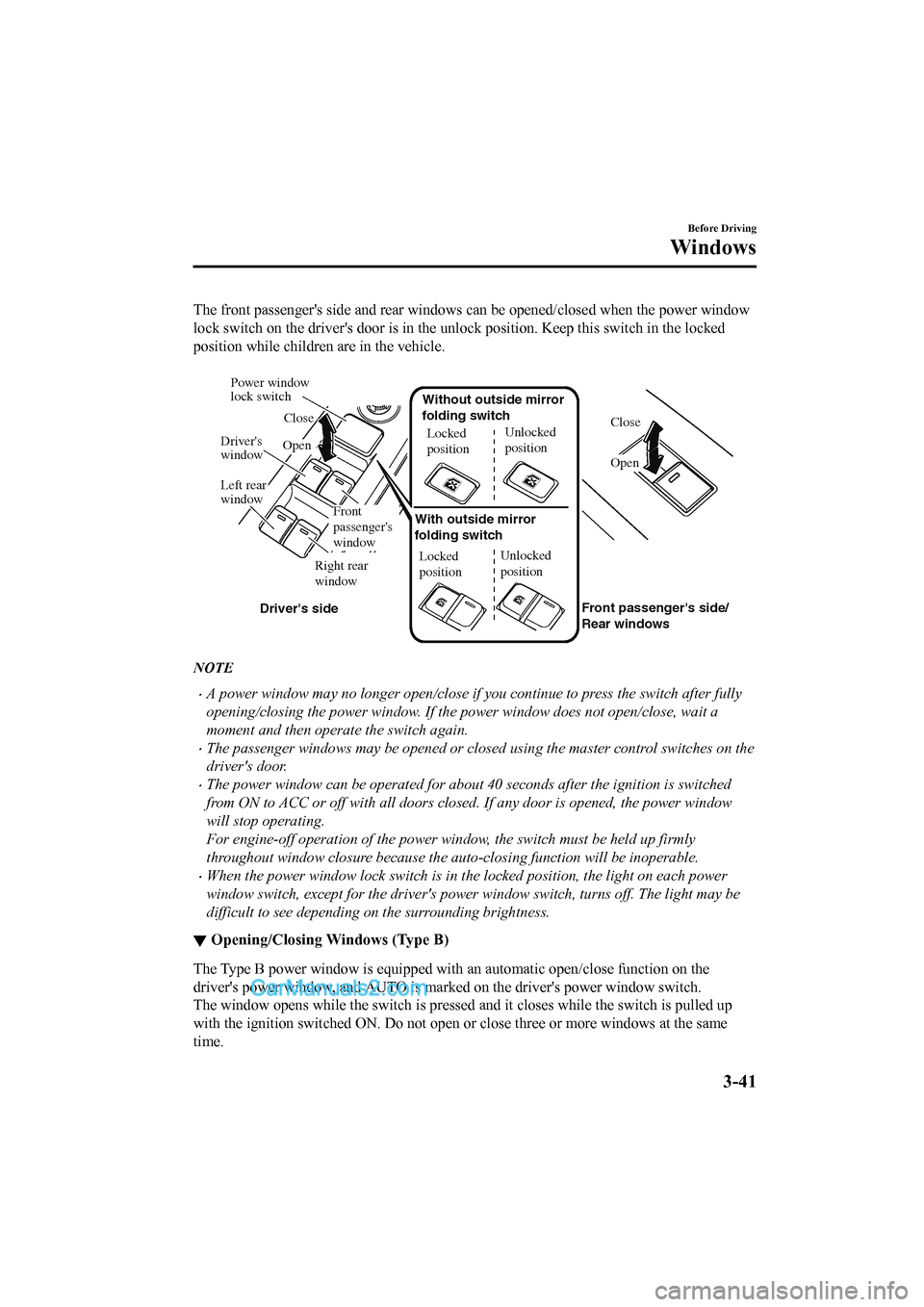

The front passenger's side and rear windows can be opened/closed when the power window
lock switch on the driver's door is in the unlock position. Kee p this switch in the locked
position while children are in the vehicle.

Close
Close
Open
Open
Right rear
window
Driver's
window
Power window
lock switch
Driver's side Front passenger's side/
Rear windows
Front
passenger's
window
Left rear
windowLocked
position
Unlocked
position
Locked
position
Unlocked
position
Without outside mirror
folding switch
With outside mirror
folding switch
NOTE
•A power window may no longer open/close if you continue to press the switch after fully
opening/closing the power window. If the power window does not open/close, wait a
moment and then operate the switch again.
•The passenger windows may be opened or closed using the master control switches on the
driver's door.
•The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power windo w, the switch must be held up firmly
throughout window closure because the auto -closing function will be inoperable.
•When the power window lock switch is in the locked position, the light on each power
window switch, except for the driver's power window switch, turns off. The light may be
difficult to see depending on the surrounding brightness.
▼Opening/Closing Windows (Type B)
The Type B power window is equipped with an automatic open/clos
e function on the
driver's power window, and AUTO is marked on the driver's power window switch.
The window opens while the switch is pressed and it closes whil e the switch is pulled up
with the ignition switched ON. Do not open or close three or mo re windows at the same
time.
Before Driving
Windows
3-41
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
