MAZDA MODEL CX-5 2017 Owner's Manual - RHD (UK, Australia) (in English)

To u n l o c k
To unlock the doors and the liftgate, press
the request switch on a front door and the
hazard warning lights will flash twice.
(Except European models)
A beep sound will be heard twice.
NOTE
•Confirm that all doors and the liftgate
are securely locked.
For the liftgate, move it without pressing
the electric liftgate opener to verify that
the liftgate has not been left ajar.
•(European models)
All doors and the liftgate cannot be
locked when any door is open.
(Except European models)
All doors and the liftgate cannot be
locked when any door or the liftgate is
open.
•It may require a few seconds for the
doors to unlock after the request switch
is pressed.
•(European models)
The setting can be changed so that a
beep sound is heard for confirmation
when the doors and the liftgate are
locked/unlocked using a request switch.
(Except European models)
A beep sound is heard for confirmation
when the doors and the liftgate are
locked/unlocked using the request
switch. If you prefer, the beep sound can
be turned off.
The volume of the beep sound can also
be changed. Refer to Personalisation
Features on page 9-12.
Use the following procedure to change
the setting.
1. Switch the ignition off and close all
of the doors and the liftgate.
2. Open the driver's door.
3. Within 30 seconds of opening thedriver's door, press and hold the
LOCK button on the key for 5
seconds or longer.
The beep sound activates at the
currently set volume. The setting
changes each time the LOCK button
on the key is pressed and the beep
sound activates at the set volume. (If
the beep sound has been set to not
activate, it will not activate.)
4. The setting change is completed by doing any one of the following:
•Switching the igni tion to ACC or
ON.
•Closing the driver's door.
•Opening the liftgate.
•Not operating the key for 10
seconds.
•Pressing any button except the
LOCK button on the key.
•Pressing a request switch.
•(With theft-deterrent system)
The hazard warning lights flash when
the theft-deterrent system is armed or
turned off.
Refer to Theft-Deterrent System on page
3-49.
•(With double locking system)
The double locking system can be
activated/deactivated using the request
switch.
Refer to Double Locking System on page
3-17.
•The setting can be changed so that the
doors and the liftgate are locked
automatically without pressing the
request switch.
Refer to Personalisation Features on
page 9-12.
Before Driving
Doors and Locks
3-12
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

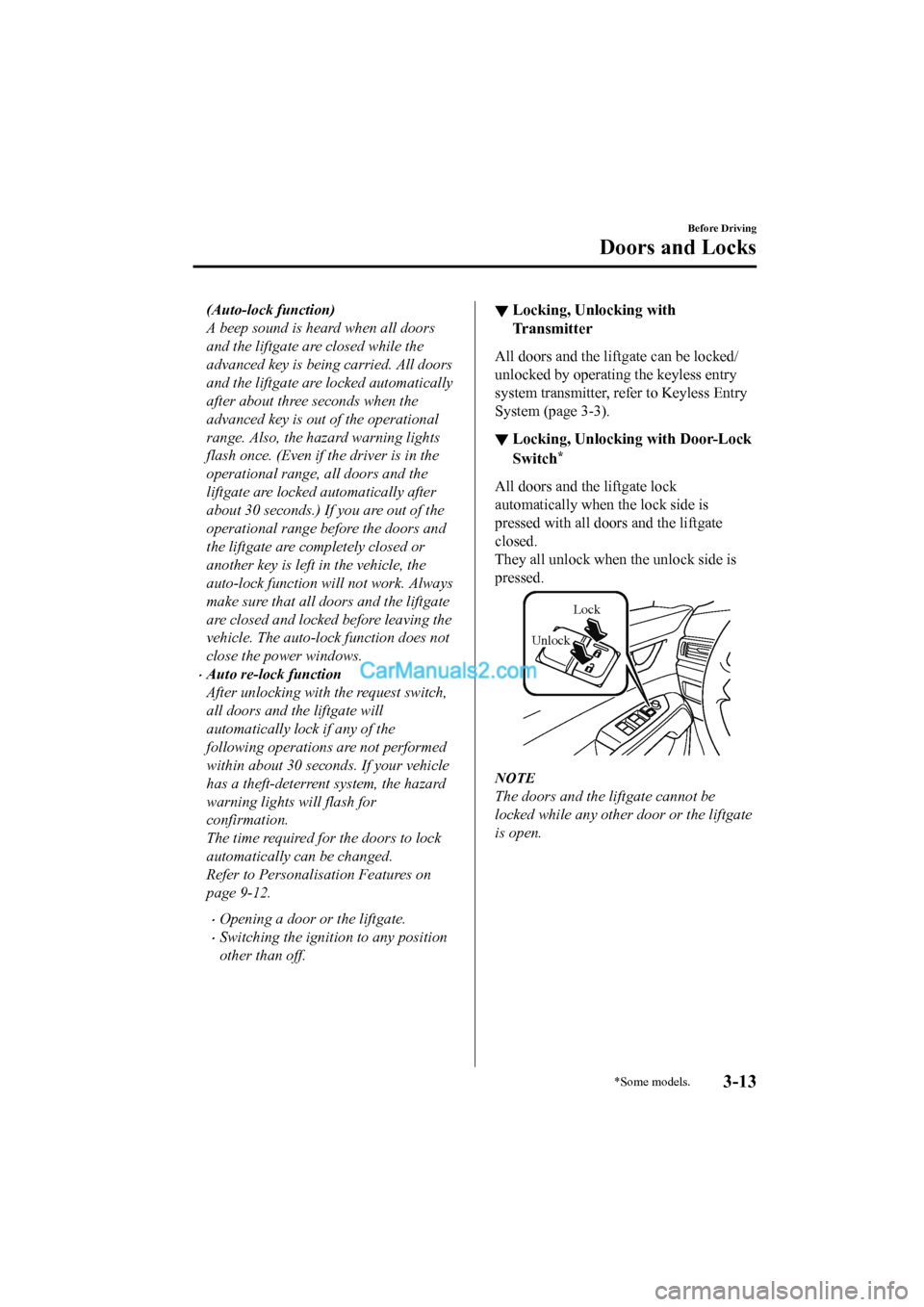

(Auto-lock function)
A beep sound is heard when all doors
and the liftgate are closed while the
advanced key is being carried. All doors
and the liftgate are locked automatically
after about three seconds when the
advanced key is out of the operational
range. Also, the hazard warning lights
flash once. (Even if the driver is in the
operational range, all doors and the
liftgate are locked automatically after
about 30 seconds.) If you are out of the
operational range before the doors and
the liftgate are completely closed or
another key is left in the vehicle, the
auto-lock function will not work. Always
make sure that all doors and the liftgate
are closed and locked before leaving the
vehicle. The auto-lock function does not
close the power windows.
•Auto re-lock function
After unlocking with the request switch,
all doors and the liftgate will
automatically lock if any of the
following operations are not performed
within about 30 seconds. If your vehicle
has a theft-deterrent system, the hazard
warning lights will flash for
confirmation.
The time required for the doors to lock
automatically can be changed.
Refer to Personalisation Features on
page 9-12.
•Opening a door or the liftgate.
•Switching the ignition to any position
other than off.
▼ Locking, Unlocking with
Transmitter
All doors and the liftgate can be locked/
unlocked by operating the keyless entry
system transmitter,
refer to Keyless Entry
System (page 3-3).
▼ Locking, Unlocking with Door-Lock
Switch*
All doors and the liftgate lock
automatically when the lock side is
pressed with all doors and the liftgate
closed.
They all unlock when the unlock side is
pressed.
Unlock
Lock
NOTE
The doors and the liftgate cannot be
locked while any other door or the liftgate
is open.
Before Driving
Doors and Locks
*Some models.3-13
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

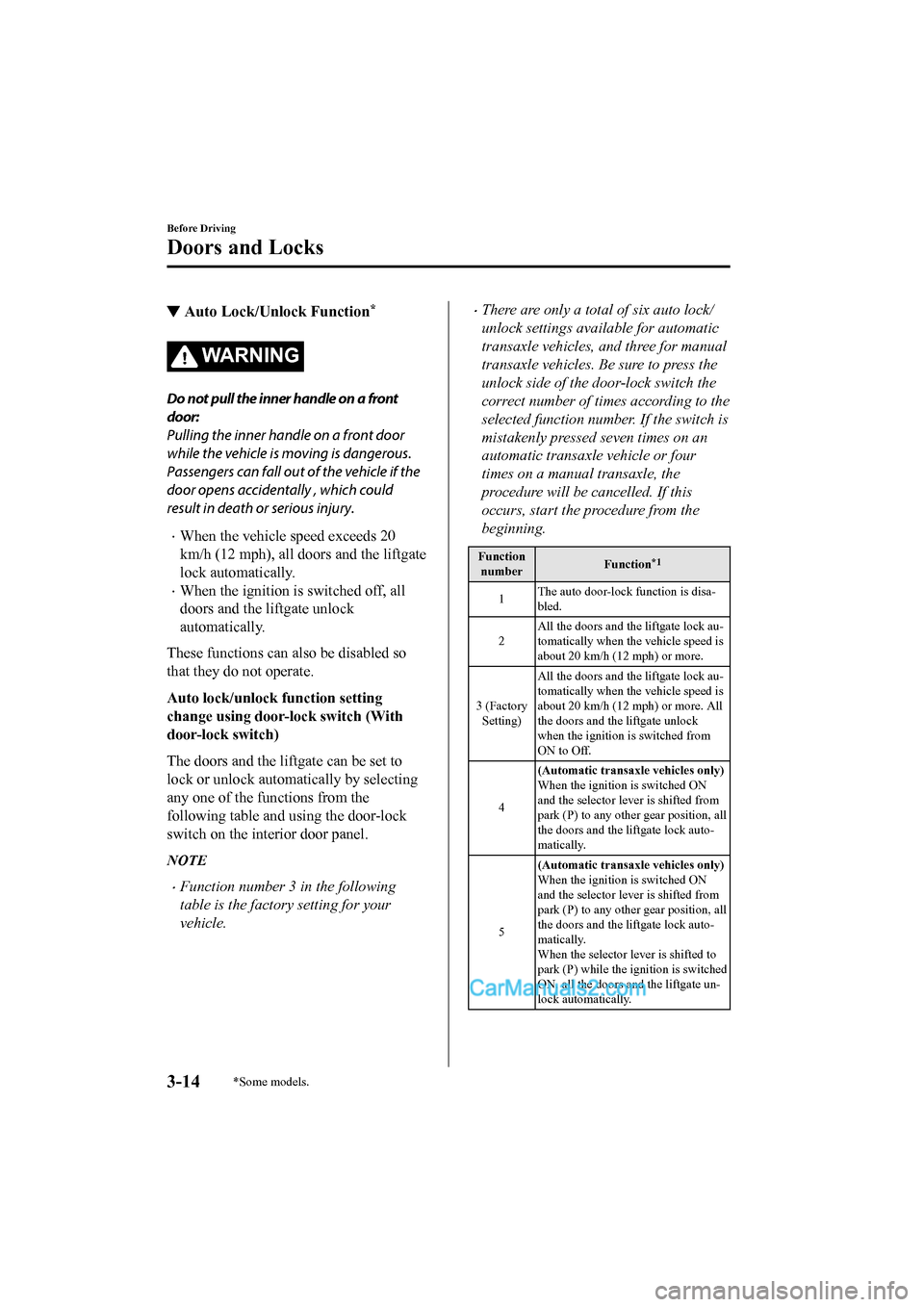

▼Auto Lock/Unlock Function*
WA R N I N G
Do not pull the inner handle on a front
door:
Pulling the inner handle on a front door
while the vehicle is moving is dangerous.
Passengers can fall out of the vehicle if the
door opens accidentally , which could
result in death or serious injury.
•When the vehicle speed exceeds 20
km/h (12 mph), all d
oors and the liftgate
lock automatically.
•When the ignition is switched off, all
doors and the liftgate unlock
automatically.
These functions can also be disabled so
that they do not operate.
Auto lock/unlock function setting
change using door-lock switch (With
door-lock switch)
The doors and the liftgate can be set to
lock or unlock automatically by selecting
any one of the functions from the
following table and using the door-lock
switch on the interior door panel.
NOTE
•Function number 3 in the following
table is the factory setting for your
vehicle.
•There are only a total of six auto lock/
unlock settings avai lable for automatic
transaxle vehicles, and three for manual
transaxle vehicles. Be sure to press the
unlock side of the door-lock switch the
correct number of times according to the
selected function number. If the switch is
mistakenly pressed seven times on an
automatic transaxle vehicle or four
times on a manual transaxle, the
procedure will be cancelled. If this
occurs, start the procedure from the
beginning.
Function
number Function*1
1The auto door-lock
function is disa-
bled.
2 All the doors and th
e liftgate lock au-
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more.
3 (Factory Setting) All the doors and th
e liftgate lock au-
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more. All
the doors and the liftgate unlock
when the ignition is switched from
ON to Off.
4 (Automatic transaxle vehicles only)
When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position, all
the doors and the liftgate lock auto-
matically.
5 (Automatic transaxle vehicles only)
When the ignition is switched ON
and the selector lever is shifted from
park (P) to any other gear position, all
the doors and the liftgate lock auto-
matically.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors an
d the liftgate un-
lock automatically.
Before Driving
Doors and Locks
3-14*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

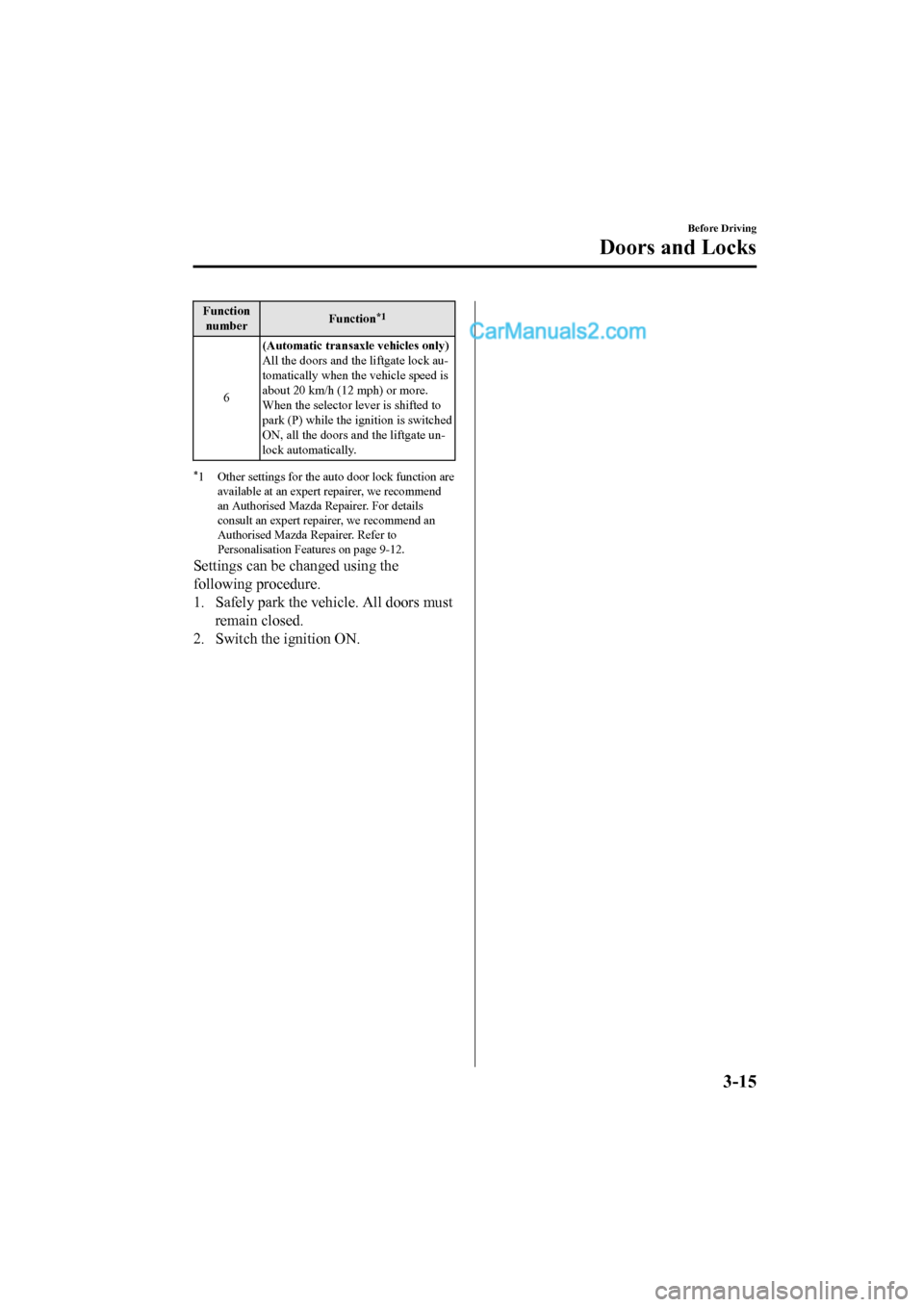

Functionnumber Function*1
6(Automatic transaxle vehicles only)
All the doors and the liftgate lock au-
tomatically when the vehicle speed is
about 20 km/h (12 mph) or more.
When the selector lever is shifted to
park (P) while the ignition is switched
ON, all the doors and the liftgate un-
lock automatically.
*1 Other settings for the auto door lock function are
available at an expert repairer, we recommend
an Authorised Mazda Repairer. For details
consult an expert repairer, we recommend an
Authorised Mazda Repairer. Refer to
Personalisation Features on page 9-12.
Settings can be changed using the
following procedure.
1. Safely park the vehicle. All doors mustremain closed.
2. Switch the ignition ON.
Before Driving
Doors and Locks
3-15
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

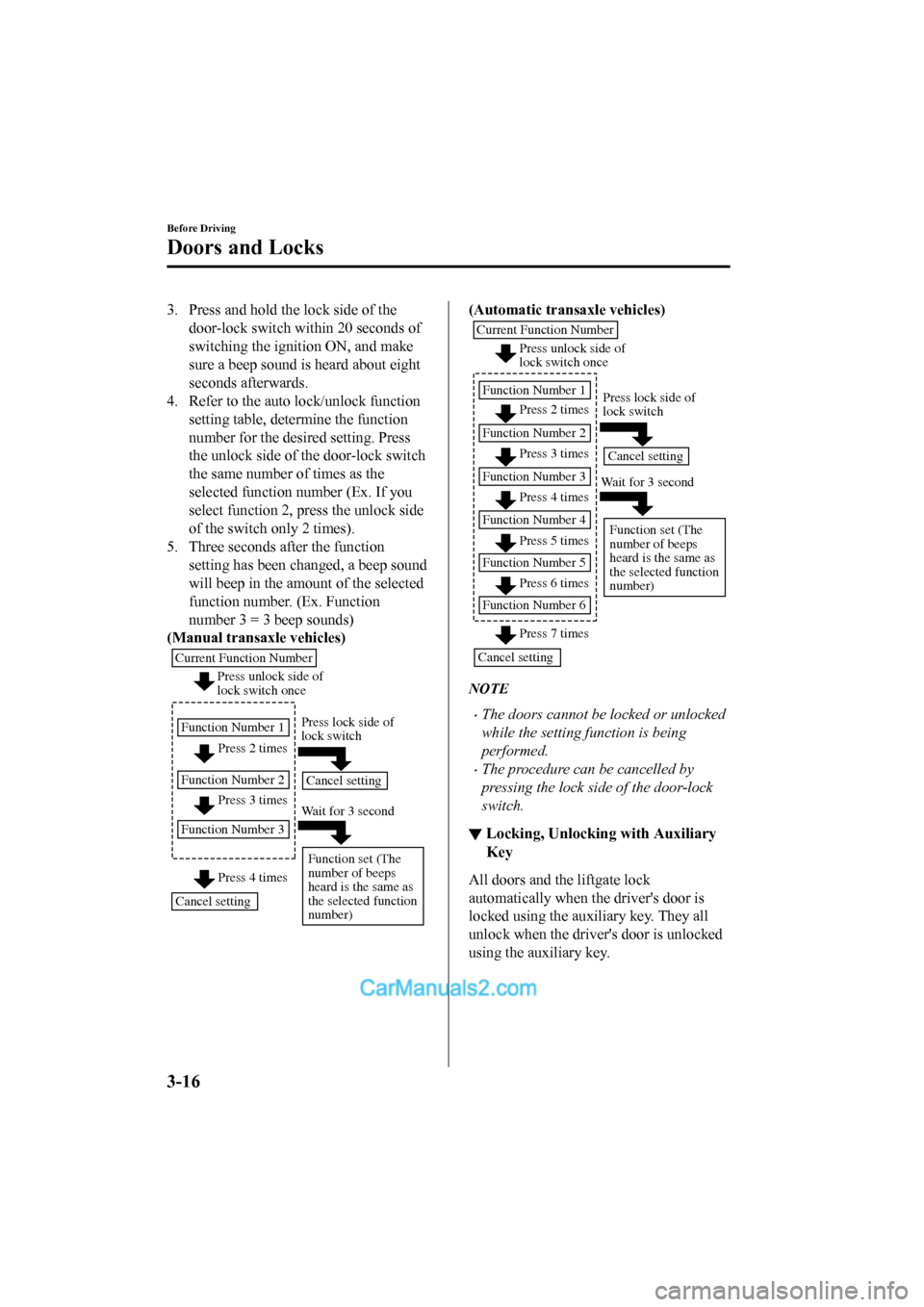

3. Press and hold the lock side of thedoor-lock switch within 20 seconds of
switching the ignition ON, and make
sure a beep sound is heard about eight
seconds afterwards.
4. Refer to the auto lock/unlock function
setting table, determine the function
number for the desired setting. Press
the unlock side of the door-lock switch
the same number of times as the
selected function number (Ex. If you
select function 2, press the unlock side
of the switch only 2 times).
5. Three seconds after the function
setting has been changed, a beep sound
will beep in the amount of the selected
function number. (Ex. Function
number 3 = 3 beep sounds)
(Manual transaxle vehicles)
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Function Number 3 Press 4 times
Press unlock side of
lock switch once
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
(Automatic transaxle vehicles)
Press unlock side of
lock switch once
Press 2 times
Press 3 times
Current Function Number
Function Number 1
Function Number 2
Press 4 times
Function Number 3
Press 5 times
Function Number 4
Press 7 times
Function Number 5
Press 6 times
Function Number 6
Cancel setting Cancel setting
Function set (The
number of beeps
heard is the same as
the selected function
number)
Press lock side of
lock switch
Wait for 3 second
NOTE
•The doors cannot be locked or unlocked
while the setting function is being
performed.
•The procedure can be cancelled by
pressing the lock side of the door-lock
switch.
▼ Locking, Unlocking with Auxiliary
Key
All doors and the liftgate lock
automatically when the driver's door is
locked using the aux
iliary key. They all
unlock when the driver's door is unlocked
using the auxiliary key.
Before Driving
Doors and Locks
3-16
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

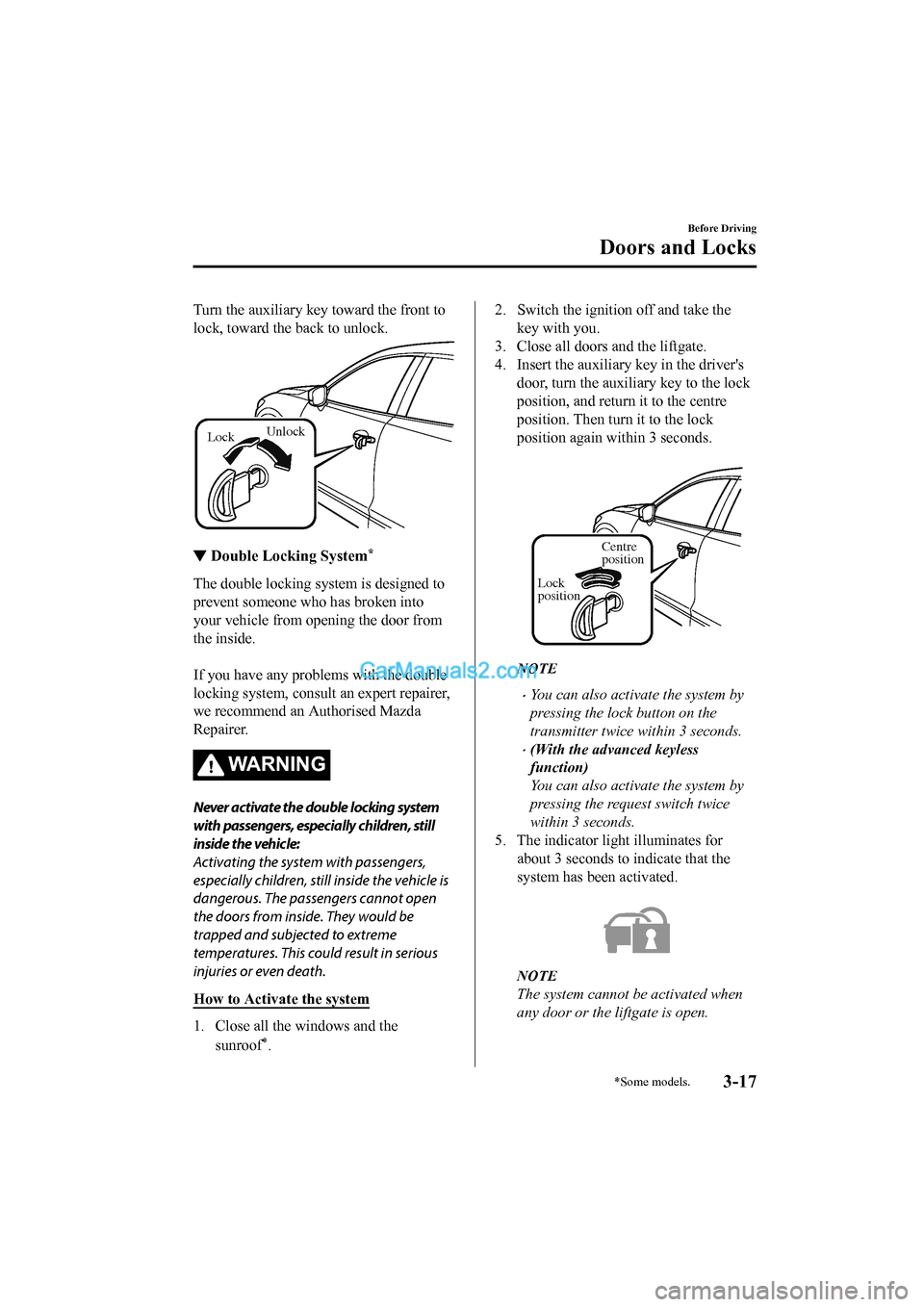

Turn the auxiliary key toward the front to
lock, toward the back to unlock.
Lock Unlock
▼
Double Locking System*
The double locking system is designed to
prevent someone who has broken into
your vehicle from opening the door from
the inside.

If you have any problems with the double
locking system, consult an expert repairer,
we recommend an Authorised Mazda
Repairer.
WA R N I N G
Never activate the double locking system
with passengers, especially children, still
inside the vehicle:
Activating the system with passengers,
especially children, still inside the vehicle is
dangerous. The passengers cannot open
the doors from inside. They would be
trapped and subjected to extreme
temperatures. This could result in serious
injuries or even death.
How to Activate the system
1. Close all the windows and the
sunroof
*.
2. Switch the ignition off and take thekey with you.
3. Close all doors and the liftgate.
4. Insert the auxiliary key in the driver's door, turn the auxiliary key to the lock
position, and return it to the centre
position. Then turn it to the lock
position again within 3 seconds.

Centre
position
Lock
position
NOTE
•You can also activate the system by
pressing the lock button on the
transmitter twice within 3 seconds.
•(With the advanced keyless
function)
You can also activate the system by
pressing the request switch twice
within 3 seconds.
5. The indicator light illuminates for
about 3 seconds to indicate that the
system has been activated.

NOTE
The system cannot be activated when
any door or the liftgate is open.
Before Driving
Doors and Locks
*Some models.3-17
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

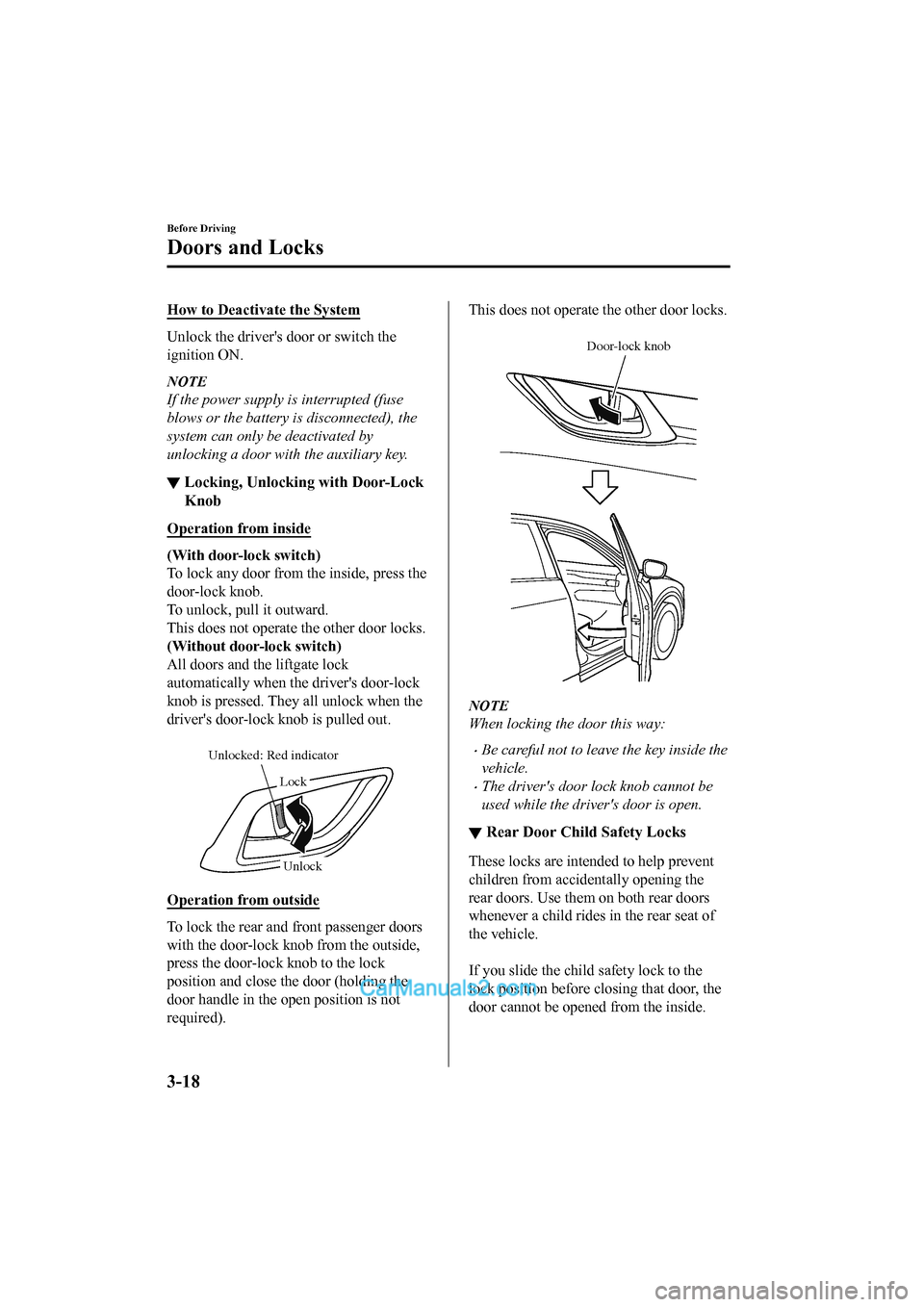

How to Deactivate the System
Unlock the driver's door or switch the
ignition ON.
NOTE
If the power supply is interrupted (fuse
blows or the battery is disconnected), the
system can only be deactivated by
unlocking a door with the auxiliary key.
▼Locking, Unlocking with Door-Lock
Knob
Operation from inside
(With door-lock switch)
To lock any door from the inside, press the
door-lock knob.
To unlock, pull it outward.
This does not operate the other door locks.
(Without door-lock switch)
All doors and the liftgate lock
automatically when th
e driver's door-lock
knob is pressed. They all unlock when the
driver's door-lock knob is pulled out.

Lock
Unlock
Unlocked: Red indicator
Operation from outside
To lock the rear and front passenger doors
with the door-lock knob from the outside,
press the door-lock knob to the lock
position and close the door (holding the
door handle in the open position is not
required).
This does not operate the other door locks.

Door-lock knob
NOTE
When locking the door this way:
•Be careful not to leave the key inside the
vehicle.
•The driver's door lock knob cannot be
used while the driver's door is open.
▼
Rear Door Child Safety Locks
These locks are intended to help prevent
children from accid
entally opening the
rear doors. Use them on both rear doors
whenever a child rides in the rear seat of
the vehicle.

If you slide the child safety lock to the
lock position be fore closing that door, the
door cannot be opened from the inside.
Before Driving
Doors and Locks
3-18
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

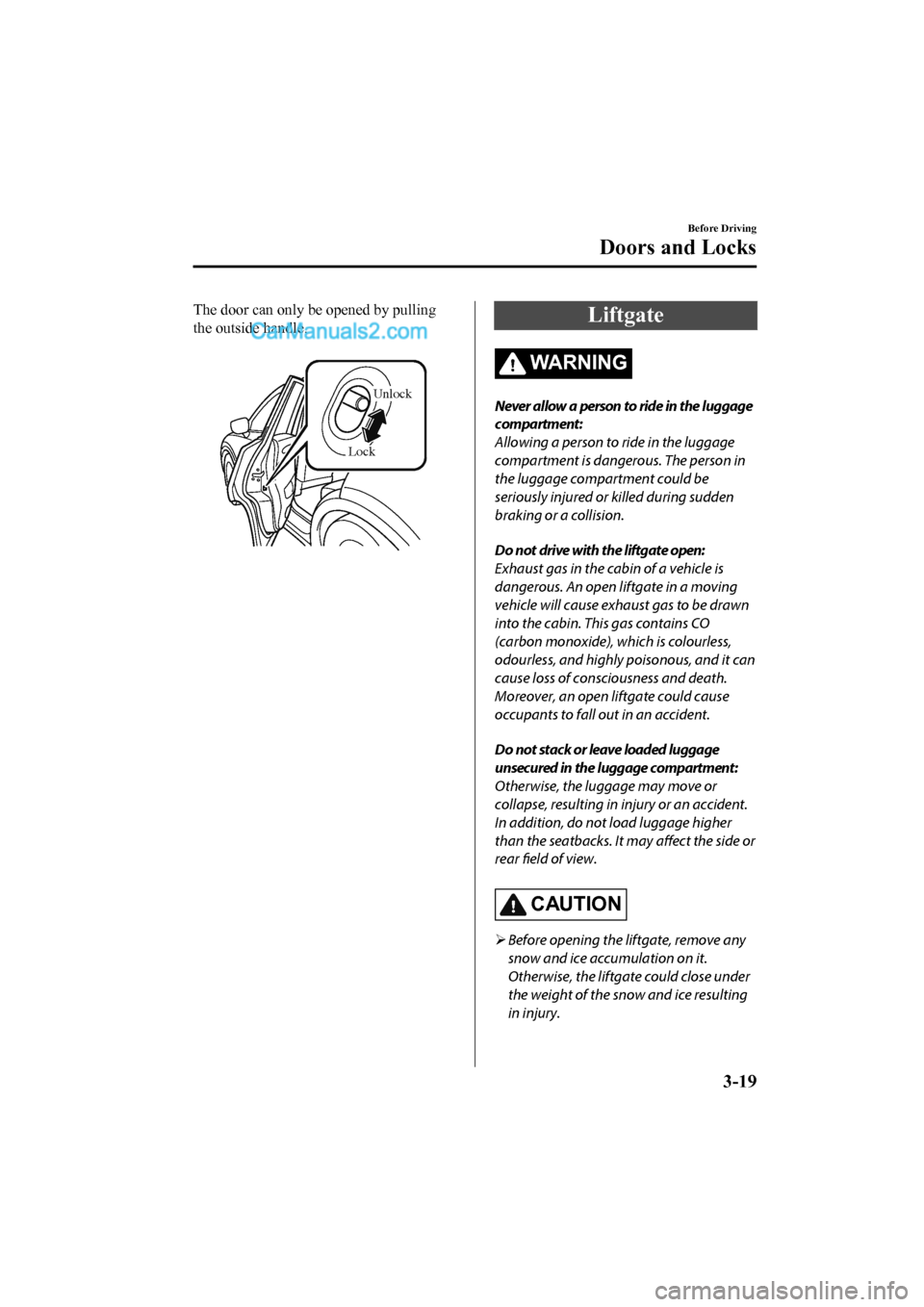

The door can only be opened by pulling
the outside handle.

LockUnlock
Liftgate
WA R N I N G
Never allow a person to ride in the luggage
compartment:
Allowing a person to ride in the luggage
compartment is dangerous. The person in
the luggage compartment could be
seriously injured or
killed during sudden
braking or a collision.
Do not drive with the liftgate open:
Exhaust gas in the cabin of a vehicle is
dangerous. An open liftgate in a moving
vehicle will cause exhaust gas to be drawn
into the cabin. This gas contains CO
(carbon monoxide), which is colourless,
odourless, and highly poisonous, and it can
cause loss of consciousness and death.
Moreover, an open liftgate could cause
occupants to fall out in an accident.
Do not stack or leave loaded luggage
unsecured in the luggage compartment:
Otherwise, the luggage may move or
collapse, resulting in injury or an accident.
In addition, do not load luggage higher
than the seatbacks. It may affect the side or
rear field of view.
CAUTION
 Before opening the liftgate, remove any
snow and ice accumulation on it.
Otherwise, the liftgate could close under
the weight of the snow and ice resulting
in injury.
Before Driving
Doors and Locks
3-19
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

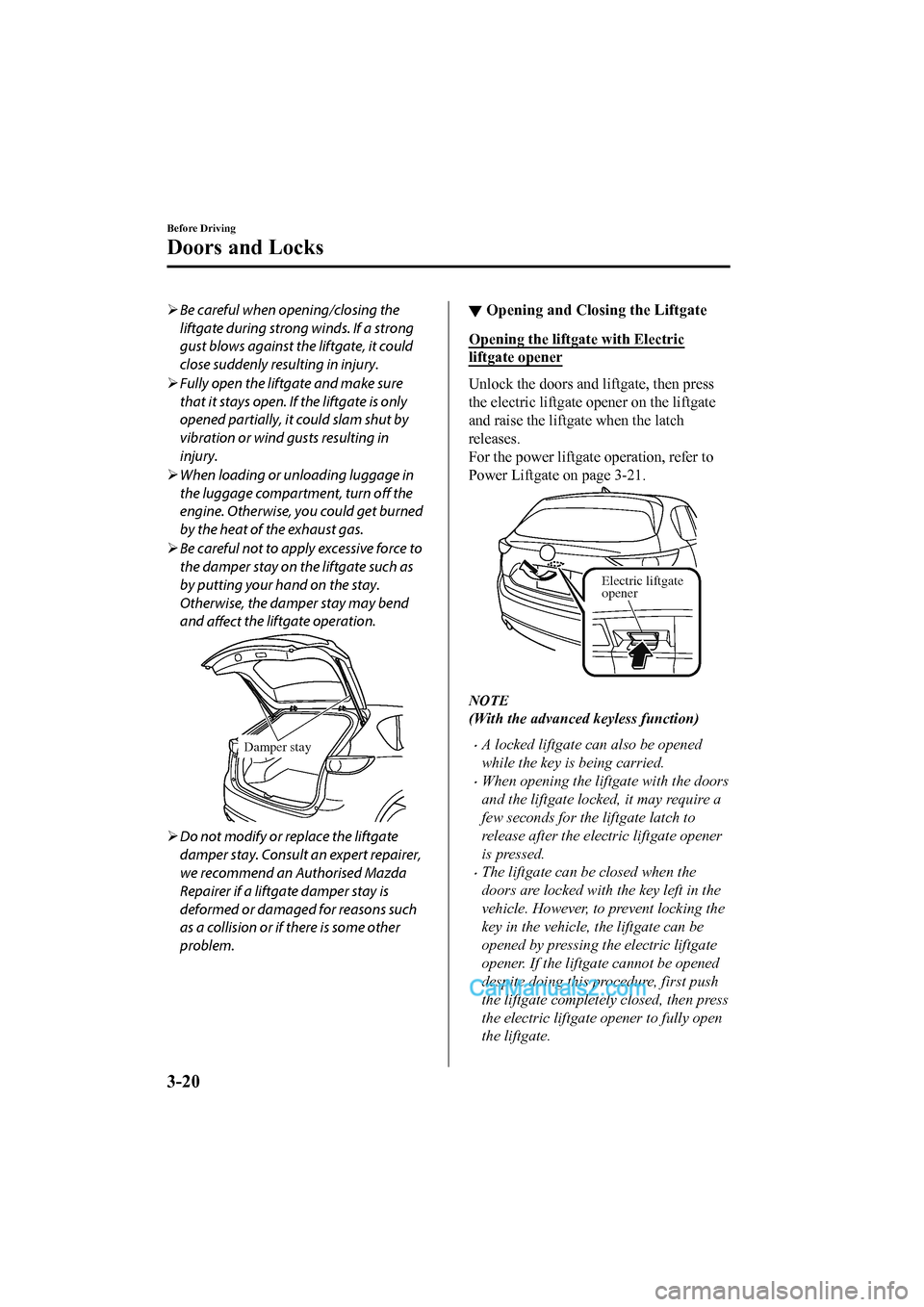

Be careful when opening/closing the
liftgate during strong winds. If a strong
gust blows against the liftgate, it could
close suddenly resulting in injury.
 Fully open the liftgate and make sure
that it stays open. If the liftgate is only
opened partially, it could slam shut by
vibration or wind gusts resulting in
injury.
 When loading or unloading luggage in
the luggage compartment, turn off the
engine. Otherwise, you could get burned
by the heat of the exhaust gas.
 Be careful not to apply excessive force to
the damper stay on the liftgate such as
by putting your hand on the stay.
Otherwise, the damper stay may bend
and
affect the liftgate operation.
Damper stay

Do not modify or replace the liftgate
damper stay. Consult an expert repairer,
we recommend an Authorised Mazda
Repairer if a liftgate damper stay is
deformed or damaged for reasons such
as a collision or if there is some other
problem.
▼ Opening and Clos
ing the Liftgate
Opening the liftgat e with Electric
liftgate opener
Unlock the doors and liftgate, then press
the electric liftgate opener on the liftgate
and raise the liftgate when the latch
releases.
For the power liftgate operation, refer to
Power Liftgate on page 3-21.
Electric liftgate
opener
NOTE
(With the advanced keyless function)
•A locked liftgate can also be opened
while the key is being carried.
•When opening the liftgate with the doors
and the liftgate locked, it may require a
few seconds for the liftgate latch to
release after the electric liftgate opener
is pressed.
•The liftgate can be closed when the
doors are locked with the key left in the
vehicle. However, to prevent locking the
key in the vehicle, the liftgate can be
opened by pressing the electric liftgate
opener. If the liftgate cannot be opened
despite doing this procedure, first push
the liftgate completely closed, then press
the electric liftgate opener to fully open
the liftgate.
Before Driving
Doors and Locks
3-20
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

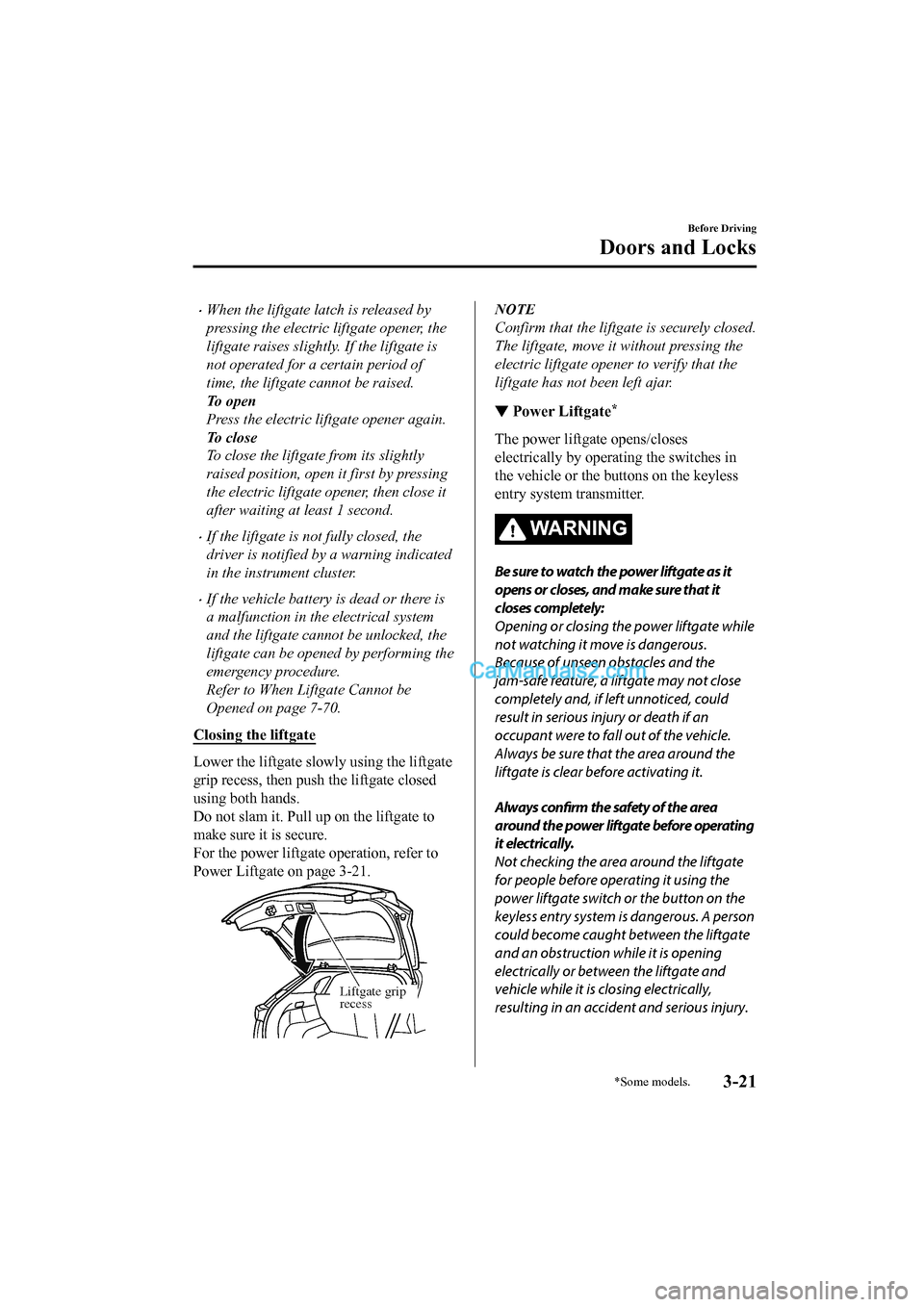

•When the liftgate latch is released by
pressing the electric liftgate opener, the
liftgate raises slightly. If the liftgate is
not operated for a certain period of
time, the liftgate cannot be raised.
To o p e n
Press the electric liftgate opener again.
To c l o s e
To close the liftgate from its slightly
raised position, open it first by pressing
the electric liftgate opener, then close it
after waiting at least 1 second.
•If the liftgate is not fully closed, the
driver is notified by a warning indicated
in the instrument cluster.
•If the vehicle battery is dead or there is
a malfunction in the electrical system
and the liftgate cannot be unlocked, the
liftgate can be opened by performing the
emergency procedure.
Refer to When Liftgate Cannot be
Opened on page 7-70.
Closing the liftgate
Lower the liftgate slowly using the liftgate
grip recess, then push the liftgate closed
using both hands.
Do not slam it. Pull up on the liftgate to
make sure it is secure.
For the power liftgate operation, refer to
Power Liftgate on page 3-21.
Liftgate grip
recess
NOTE
Confirm that the liftgate is securely closed.
The liftgate, move it without pressing the
electric liftgate opener to verify that the
liftgate has not been left ajar.
▼ Power Liftgate*
The power liftgate opens/closes
electrically by operating the switches in
the vehicle or the but
tons on the keyless
entry system transmitter.
WA R N I N G
Be sure to watch the power liftgate as it
opens or closes, and make sure that it
closes completely:
Opening or closing the power liftgate while
not watching it move is dangerous.
Because of unseen obstacles and the
jam-safe feature, a liftgate may not close
completely and, if left unnoticed, could
result in serious injury or death if an
occupant were to fall out of the vehicle.
Always be sure that the area around the
liftgate is clear be fore activating it.
Always confirm the safety of the area
around the power liftgate before operating
it electrically.
Not checking the area around the liftgate
for people before operating it using the
power liftgate switch or the button on the
keyless entry system is dangerous. A person
could become caught between the liftgate
and an obstruction while it is opening
electrically or between the liftgate and
vehicle while it is closing electrically,
resulting in an accident and serious injury.
Before Driving
Doors and Locks
*Some models.3-21
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
