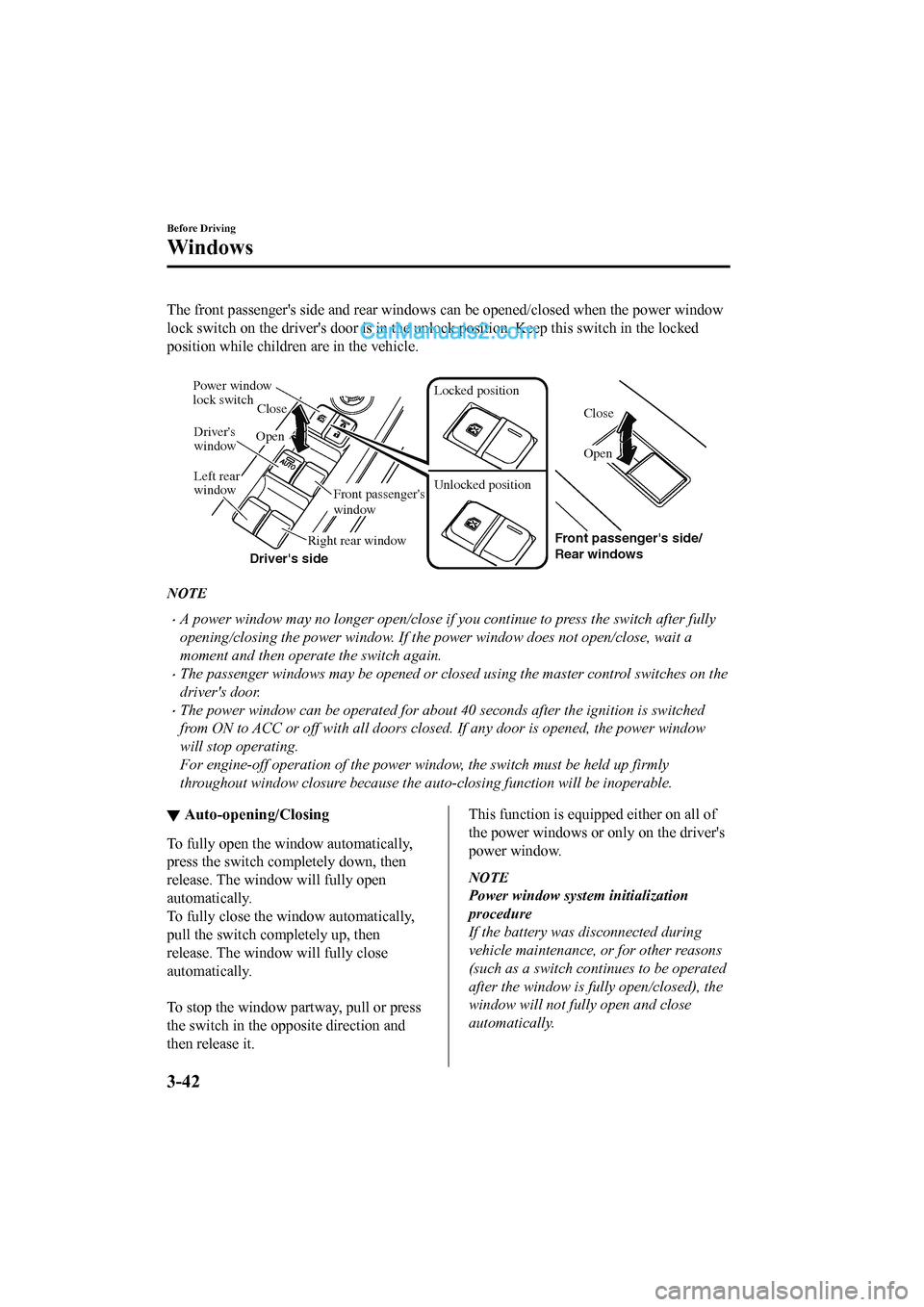

The front passenger's side and rear windows can be opened/closed when the power window
lock switch on the driver's door is in the unlock position. Kee p this switch in the locked
position while children are in the vehicle.

Close
Close
Open
Open
Right rear window
Driver's
window
Power window
lock switch
Driver's side Front passenger's side/
Rear windows
Locked position
Unlocked position
Front passenger's
window
Left rear
window
NOTE
•A power window may no longer open/close if you continue to press the switch after fully
opening/closing the power window. If the po
wer window does not open/close, wait a
moment and then operate the switch again.
•The passenger windows may be opened or closed using the master control switches on the
driver's door.
•The power window can be operated for about 40 seconds after the ignition is switched
from ON to ACC or off with all doors closed. If any door is opened, the power window
will stop operating.
For engine-off operation of the power window, the switch must be held up firmly
throughout window closure because the aut o-closing function will be inoperable.
▼Auto-opening/Closing
To fully open the window automatically,
press the switch completely down, then
release. The window will fully open
automatically.
To fully close the window automatically,
pull the switch completely up, then
release. The window will fully close
automatically.

To stop the window p
artway, pull or press
the switch in the opposite direction and
then release it.
This function is equipped either on all of
the power windows or only on the driver's
power window.
NOTE
Power window system initialization
procedure
If the battery was disconnected during
vehicle maintenance, or for other reasons
(such as a switch continues to be operated
after the window is fully open/closed), the
window will not fully open and close
automatically.
Before Driving
Windows
3-42
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

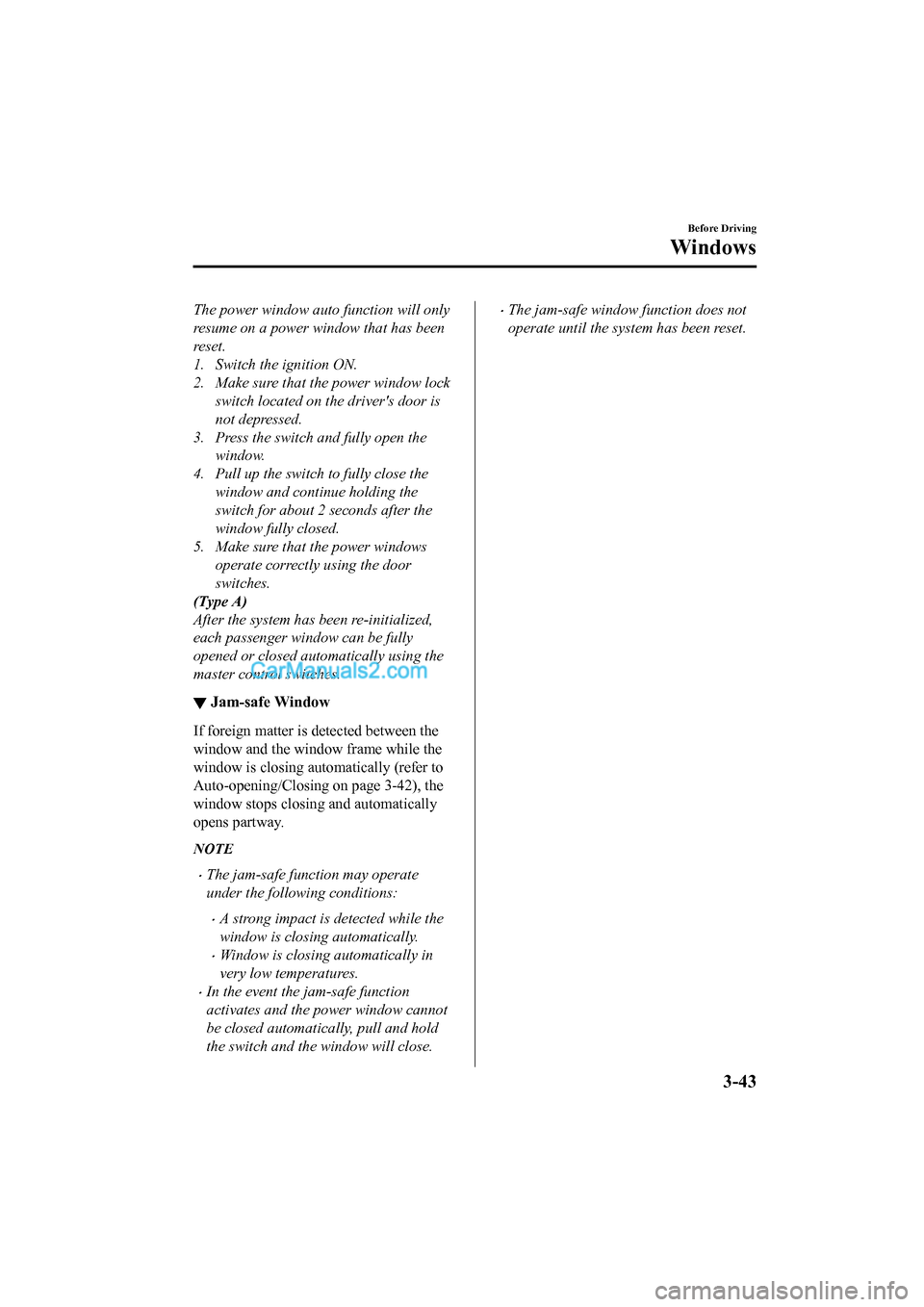

The power window auto function will only
resume on a power window that has been
reset.
1. Switch the ignition ON.
2. Make sure that the power window lock
switch located on the driver's door is
not depressed.
3. Press the switch and fully open the window.
4. Pull up the switch to fully close the window and continue holding the
switch for about 2 seconds after the
window fully closed.
5. Make sure that the power windows
operate correctly using the door
switches.
(Type A)
After the system has been re-initialized,
each passenger window can be fully
opened or closed automatically using the
master control switches.
▼ Jam-safe Window
If foreign matter is
detected between the
window and the window frame while the
window is closing au tomatically (refer to
Auto-opening/Closi ng on page 3-42), the
window stops closing and automatically
opens partway.
NOTE
•The jam-safe function may operate
under the following conditions:
•A strong impact is detected while the
window is closing automatically.
•Window is closing automatically in
very low temperatures.
•In the event the jam-safe function
activates and the power window cannot
be closed automatically, pull and hold
the switch and the window will close.
•The jam-safe window function does not
operate until the system has been reset.
Before Driving
Windows
3-43
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

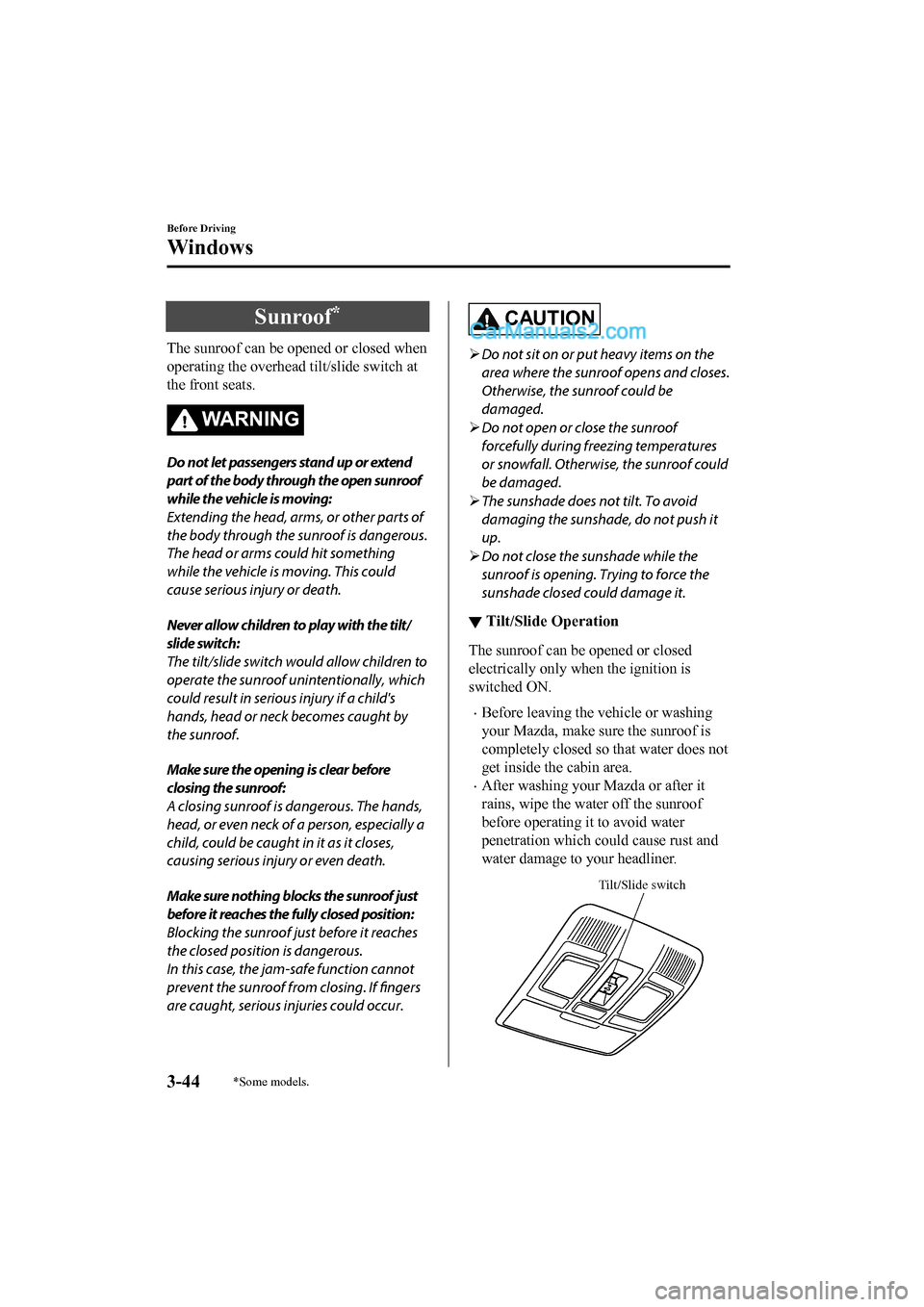

Sunroof*
The sunroof can be opened or closed when
operating the overhead tilt/slide switch at
the front seats.
WA R N I N G
Do not let passengers stand up or extend
part of the body through the open sunroof
while the vehicle is moving:
Extending the head, arms, or other parts of
the body through the sunroof is dangerous.
The head or arms could hit something
while the vehicle is moving. This could
cause serious injury or death.
Never allow children to play with the tilt/
slide switch:
The tilt/slide switch would allow children to
operate the sunroof unintentionally, which
could result in serious injury if a child's
hands, head or neck becomes caught by
the sunroof.
Make sure the opening is clear before
closing the sunroof:
A closing sunroof is dangerous. The hands,
head, or even neck of a person, especially a
child, could be caught in it as it closes,
causing serious injury or even death.
Make sure nothing blocks the sunroof just
before it reaches the fully closed position:
Blocking the sunroof just before it reaches
the closed position is dangerous.
In this case, the jam-safe function cannot
prevent the sunroof from closing. If fingers
are caught, serious injuries could occur.
CAUTION
 Do not sit on or put heavy items on the
area where the sunroof opens and closes.
Otherwise, the sunroof could be
damaged.
 Do not open or close the sunroof
forcefully during freezing temperatures
or snowfall. Otherwise, the sunroof could
be damaged.
 The sunshade does not tilt. To avoid
damaging the sunshade, do not push it
up.
 Do not close the sunshade while the
sunroof is opening. Trying to force the
sunshade closed could damage it.
▼ Tilt/Slide Operation
The sunroof can be opened or closed
electrically only when the ignition is
switched ON.
•Before leaving the vehicle or washing
your Mazda, make sure the sunroof is
completely closed so that water does not
get inside the cabin area.
•After washing your Mazda or after it
rains, wipe the water off the sunroof
before operating it to avoid water
penetration which could cause rust and
water damage to your headliner.
Tilt/Slide switch
Before Driving
Windows
3-44*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

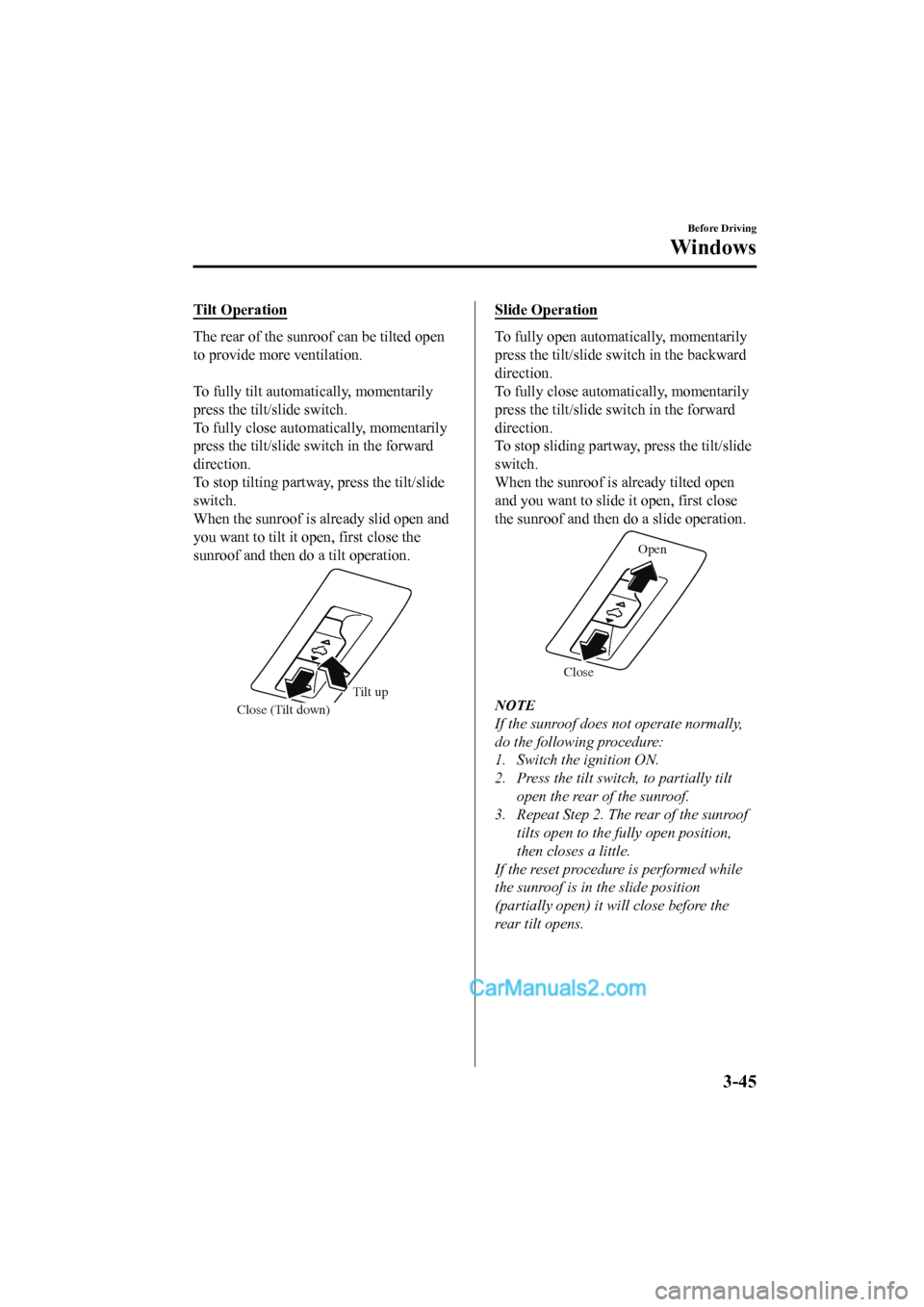

Tilt Operation
The rear of the sunroof can be tilted open
to provide more ventilation.

To fully tilt automatically, momentarily
press the tilt/slide switch.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop tilting partway, press the tilt/slide
switch.
When the sunroof is already slid open and
you want to tilt it open, first close the
sunroof and then do a tilt operation.
Close (Tilt down)Tilt up
Slide Operation
To fully open automatically, momentarily
press the tilt/slide sw
itch in the backward
direction.
To fully close automatically, momentarily
press the tilt/slide switch in the forward
direction.
To stop sliding partway, press the tilt/slide
switch.
When the sunroof is already tilted open
and you want to slide it open, first close
the sunroof and then do a slide operation.
Close Open
NOTE
If the sunroof does not operate normally,
do the following procedure:
1. Switch the ignition ON.
2. Press the tilt switch, to partially tilt
open the rear of the sunroof.
3. Repeat Step 2. The rear of the sunroof tilts open to the fully open position,
then closes a little.
If the reset procedure is performed while
the sunroof is in the slide position
(partially open) it will close before the
rear tilt opens.
Before Driving
Windows
3-45
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

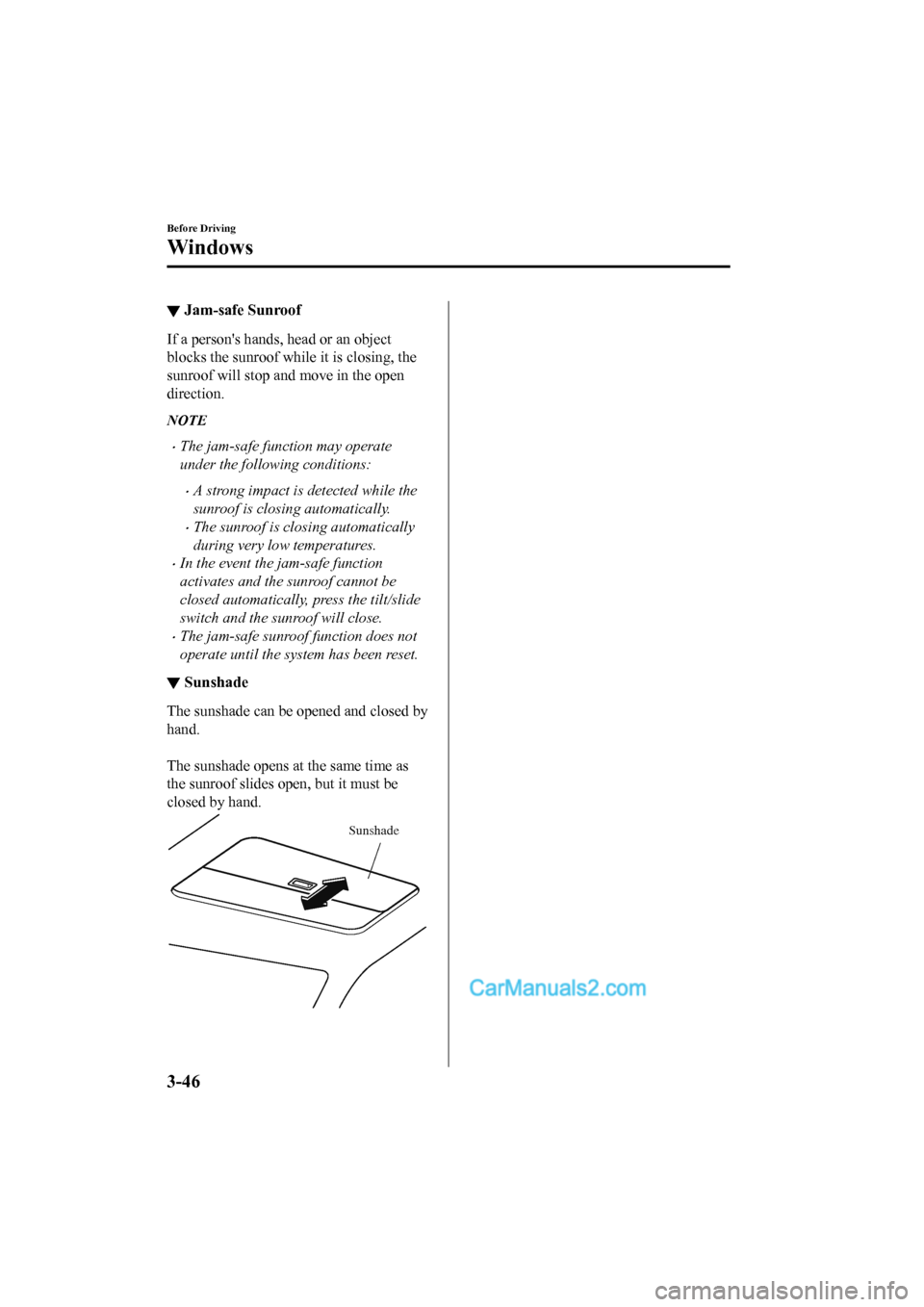

▼Jam-safe Sunroof
If a person's hands, head or an object
blocks the sunroof while it is closing, the
sunroof will stop and move in the open
direction.
NOTE
•The jam-safe function may operate
under the following conditions:
•A strong impact is detected while the
sunroof is closing automatically.
•The sunroof is closing automatically
during very low temperatures.
•In the event the
jam-safe function
activates and the sunroof cannot be
closed automatically, press the tilt/slide
switch and the sunroof will close.
•The jam-safe sunroof function does not
operate until the system has been reset.
▼ Sunshade
The sunshade can be opened and closed by
hand.

The sunshade opens at the same time as
the sunroof slides open, but it must be
closed by hand.
Sunshade
Before Driving
Windows
3-46
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

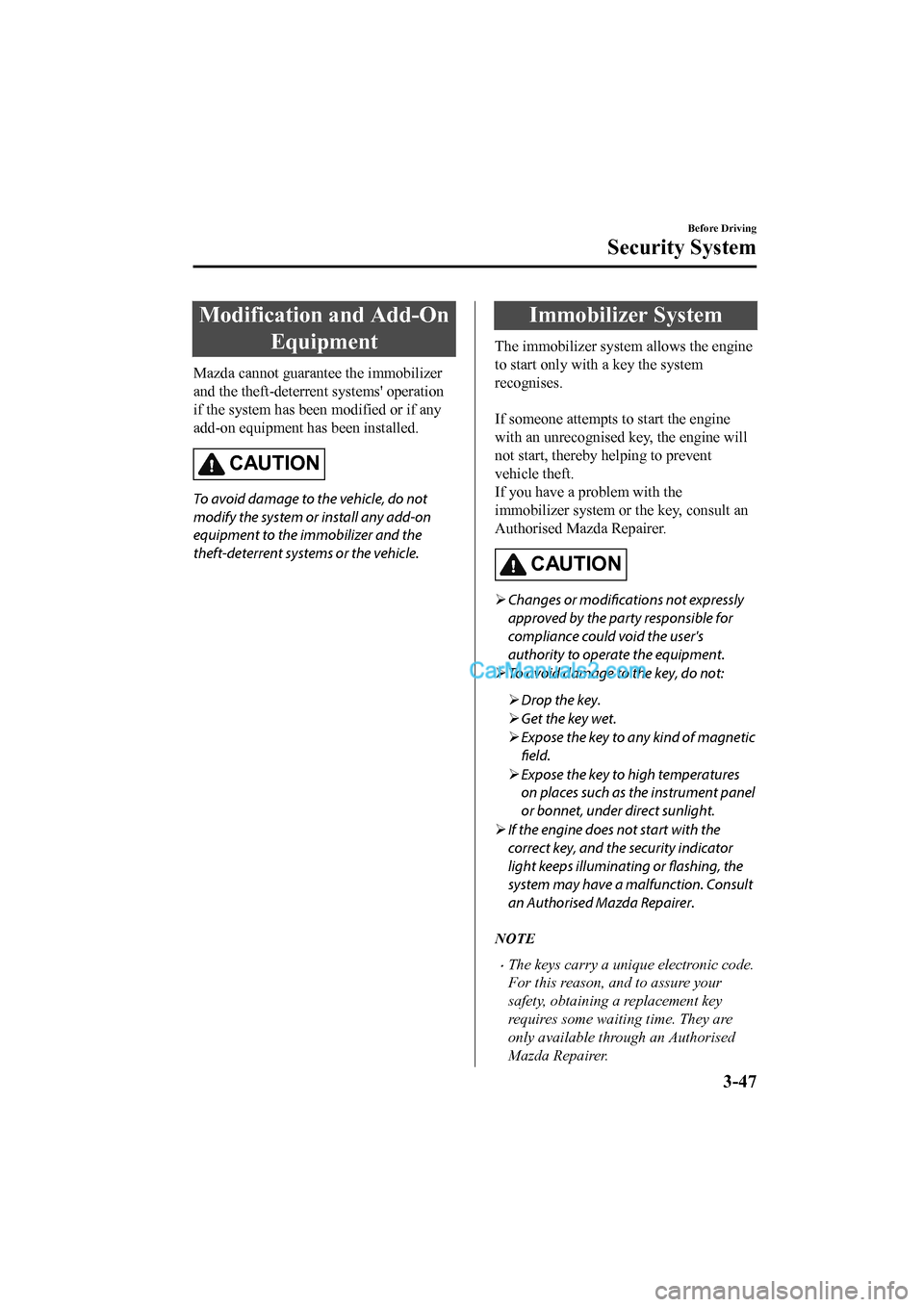

Modification and Add-OnEquipment
Mazda cannot guarantee the immobilizer
and the theft-deterrent systems' operation
if the system has been modified or if any
add-on equipment has been installed.
CAUTION
To avoid damage to the vehicle, do not
modify the system or install any add-on
equipment to the immobilizer and the
theft-deterrent systems or the vehicle.
Immobilizer System
The immobilizer syste m allows the engine
to start only with a key the system
recognises.

If someone attempts to start the engine
with an unrecognised key, the engine will
not start, thereby helping to prevent
vehicle theft.
If you have a problem with the
immobilizer system or the key, consult an
Authorised Mazda Repairer.
CAUTION
 Changes or
modifications not expressly
approved by the party responsible for
compliance could void the user's
authority to operate the equipment.
 To avoid damage to the key, do not:
 Drop the key.
 Get the key wet.
 Expose the key to any kind of magnetic
field.
 Expose the key to high temperatures
on places such as the instrument panel
or bonnet, under direct sunlight.
 If the engine does not start with the
correct key, and the security indicator
light keeps illuminating or flashing, the
system may have a malfunction. Consult
an Authorised Mazda Repairer.
NOTE
•The keys carry a unique electronic code.
For this reason, and to assure your
safety, obtaining a replacement key
requires some waiting time. They are
only available through an Authorised
Mazda Repairer.
Before Driving
Security System
3-47
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

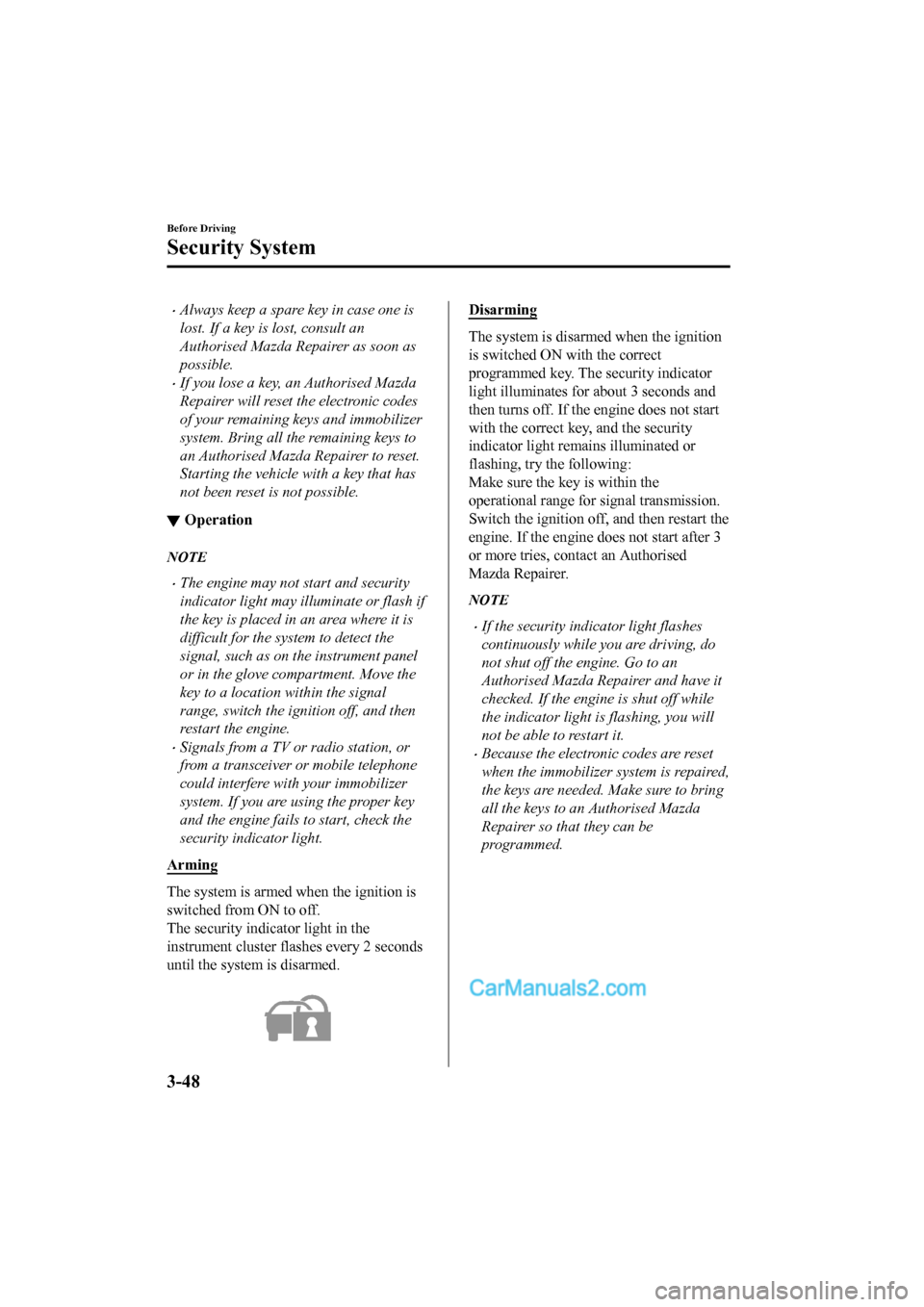

•Always keep a spare key in case one is
lost. If a key is lost, consult an
Authorised Mazda Repairer as soon as
possible.
•If you lose a key, an Authorised Mazda
Repairer will reset the electronic codes
of your remaining keys and immobilizer
system. Bring all the remaining keys to
an Authorised Mazda Repairer to reset.
Starting the vehicle with a key that has
not been reset is not possible.
▼Operation
NOTE
•The engine may not start and security
indicator light may illuminate or flash if
the key is placed in an area where it is
difficult for the system to detect the
signal, such as on the instrument panel
or in the glove comp
artment. Move the
key to a location within the signal
range, switch the ignition off, and then
restart the engine.
•Signals from a TV or radio station, or
from a transceiver or mobile telephone
could interfere with your immobilizer
system. If you are using the proper key
and the engine fails to start, check the
security indicator light.
Arming
The system is armed when the ignition is
switched from ON to off.
The security indica tor light in the
instrument cluster flashes every 2 seconds
until the system is disarmed.

Disarming
The system is disarmed when the ignition
is switched ON with the correct
programmed key. The security indicator
light illuminates for about 3 seconds and
then turns off. If the engine does not start
with the correct key, and the security
indicator light remains illuminated or
flashing, try the following:
Make sure the key is within the
operational range for signal transmission.
Switch the ignition off, and then restart the
engine. If the engine d oes not start after 3
or more tries, contact an Authorised
Mazda Repairer.
NOTE
•If the security indicator light flashes
continuously while you are driving, do
not shut off the engine. Go to an
Authorised Mazda Repairer and have it
checked. If the engine is shut off while
the indicator light is flashing, you will
not be able to restart it.
•Because the electronic codes are reset
when the immobilizer system is repaired,
the keys are needed. Make sure to bring
all the keys to an Authorised Mazda
Repairer so that they can be
programmed.
Before Driving
Security System
3-48
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Theft-Deterrent System*
If the theft-deterrent system detects an
inappropriate entry in to the vehicle or the
intrusion sensor detects movement in the
vehicle which could result in the vehicle
(with the intrusion sensor) or its contents
being stolen, the alarm alerts the
surrounding area of an abnormality by
sounding the siren/horn and flashing the
hazard warning lights.

The system will not function unless it's
properly armed. So when you leave the
vehicle, follow the arming procedure
correctly.
Intrusion sensor
*
The intrusion s ensor uses ultrasonic waves
to detect movement inside the vehicle and
to raise an alert of an intrusion into the
vehicle.

The intrusion s ensor detects certain kinds
of movement inside the vehicle, however,
it may also respond to phenomenon
outside the vehicle such as vibrations, loud
noise, wind, and air currents.
CAUTION
In order for the intrusion sensor to operate
appropriately, be aware of the following:
 Do not hang clothing or objects from a
head restraint or a coat hook.
 Return the extension sunvisors to their
original positions.
 Do not blind the intrusion sensor by
covering it or placing objects over it.
 Do not allow the intrusion sensor to get
soiled or wipe it with a liquid.
Do not shock or cause an impact to the
intrusion sensor or the intrusion sensor
bezel.
 Do not install seats that are not Mazda
genuine products.
 To prevent obstruction of intrusion
sensor, do not place objects or cargo
near the intrusion sensor that are higher
than the head restraints.

Intrusion sensor and
intrusion sensor bezel
▼ Operation
Siren/Horn triggering conditions
The siren/horn sounds intermittently and
the hazard warning lights flash for about
30 seconds when the system is triggered
by any one of the following:
•Unlocking a door with the auxiliary key
or an inside door-lock knob.
•Forcing open a door, the bonnet or the
liftgate.
•Opening the bonnet by operating the
bonnet release handle.
•Switching the ignition ON without using
the push button start.
•(With the intr
usion sensor)
The intrusion sensor detects a movement
in the vehicle.
Before Driving
Security System
*Some models.3-49
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

The system will be triggered again (up to
10 times) if one of the above conditions
remains.
•(With the intrusion sensor)
Disconnecting the battery terminal (the
hazard warning lights do not flash).
The system will be triggered about 10
times.
NOTE
•The liftgate does not open while the
theft-deterrent system is operating.
•For vehicles equipped with the power
liftgate, the liftgate can be opened even
while the theft-deterrent system is
operating by pressing the power liftgate
button on the transmitter or the electric
liftgate opener switc h while carrying the
key.
•If the battery goes dead while the
theft-deterrent system is armed, the
siren/horn will activate and the hazard
warning lights will flash when the
battery is charged or replaced.
▼ How to Arm the System
1. Close the windows and the sunroof*
securely.
NOTE
(With the intrusion sensor)
Even with a window or the sunroof
*
open, the system can be armed,
however, leaving the windows and the
sunroof
* even partially open can invite
theft, and wind blowing into the
vehicle could trigger the alarm.
The intrusion sensor function can also
be cancelled.
Refer to Cancelling the Intrusion
Sensor (With Intrusion Sensor) on
page 3-51.
2. Switch the ignition OFF.
3. Make sure the bonnet, the doors, and the liftgate are closed.
4. Press the lock butto n on the transmitter
or lock the driver's door from the
outside with the auxiliary key.
The hazard warning lights will flash
once.
(With the advanced keyless function)
Press a request switch.

The security indicator light in the
instrument cluster flashes twice per
second for 20 seconds.

5. After 20 seconds, the system is fully armed.
NOTE
•The theft-deterrent system can also
be armed by activating the auto
relock function with all the doors,
the liftgate and the bonnet closed.
Refer to Transmitter on page 3-4.
•The system will disarm if one of the
following operations takes place
within 20 seconds after pressing the
lock button:
•Unlocking any door.
•Opening any door.
•Opening the bonnet.
•Switching the ignition ON.
To rearm the system, do the arming
procedure again.
Before Driving
Security System
3-50*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

•When the doors are locked by
pressing the lock button on the
transmitter or using the auxiliary
key while the theft-deterrent system
is armed, the hazard warning lights
will flash once to indicate that the
system is armed.
▼Cancelling the Intrusion Sensor
(With Intrusion Sensor)
If the theft deterrent system has been
armed while any of the following
conditions are present, cancel the intrusion
sensor to prevent the
alarm from triggering
unnecessarily.
•Leaving the vehicle with a movable
object, passengers or pets remaining
inside.
•Leaving an object inside the vehicle that
can roll around, such as when the
vehicle is placed on a tilting, unstable
surface when being shipped.
•Hanging small objects/accessories in the
vehicle, hanging clothing on a coat
hook, or placing other items which can
move easily inside the vehicle.
•Parking in an area where there is strong
vibration or loud noise.
•When using a high pressure or
automatic car wash.
•Continuous shock and vibration from
hail or thunder and lightning is
transmitted to the vehicle.
•Doors are locked with a window or the
sunroof
* left open.
•An accessory heater or device that
produces moving air and vibration
operates while the theft deterrent system
is armed.
NOTE
If any door or the liftgate remains closed
for 30 seconds, all the doors and the
liftgate automatically re-lock and the theft
deterrent system arms even if a window
and the sunroof
* is left open.

To cancel the intrusion sensor, press the
intrusion sensor cancel button on the
transmitter within 20 seconds after
pressing the lock button.
The hazard warning lights will flash three
times.
NOTE
•To reactivate the intrusion sensor, turn
off the armed theft-deterrent system and
then rearm it.
•The intrusion sensor is operational
when the theft-deterrent system is
armed. To cancel the intrusion sensor,
press the intrusion sensor cancel button
each time the theft-deterrent system is
armed.
▼ To Turn Off an Armed System
An armed system can be turned off using
any one of the following methods:
•Pressing the unlock button on the
transmitter.
•Starting the engine with the push button
start.
•(With the advanced keyless function)
•Pressing a request switch on the
doors.
The hazard warning lights will flash twice.
Before Driving
Security System
*Some models.3-51
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
