NOTE
When the doors are unlocked by pressing
the unlock button on the transmitter while
the theft-deterrent system is turned off, the
hazard warning lights will flash twice to
indicate that the sy stem is turned off.
▼To Stop the Alarm
A triggered alarm can be turned off using
any one of the following methods:
•Pressing the unlock button on the
transmitter.
•Starting the engine with the push button
start.
•(With the advanced keyless function)
•Pressing a request switch on the
doors.
•Pressing the electric liftgate opener
while the key is being carried.
•Pressing the power liftgate button on
the transmitter.
The hazard warning lights will flash twice.
Before Driving
Security System
3-52
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Running-In
No special running-in is necessary, but a
few precautions in the first 1,000 km (600
miles) may add to the performance,
economy, and life of the vehicle.
•Do not race the engine.
•Do not maintain one constant speed,
either slow or fast, for a long period of
time.
•Do not drive constantly at full-throttle or
high engine rpm for extended periods of
time.
•Avoid unnecessary hard stops.
•Avoid full-throttle starts.
•Do not tow a trailer.
Saving Fuel and Protection of the Environment
How you operate your Mazda determines
how far it will travel on a tank of fuel. Use
these suggestions to help save fuel and
reduce CO
2.
•Avoid long warm-ups. Once the engine
runs smoothly, begin driving.
•Avoid fast starts.
•Drive at lower speeds.
•Anticipate when to apply the brakes
(avoid sudden braking).
•Follow the maintenance schedule (page
6-3) and have an expert repairer, we
recommend an Authorised Mazda
Repairer perform inspections and
servicing.
•Use the air conditioner only when
necessary.
•Slow down on rough roads.
•Keep the tyres properly inflated.
•Do not carry unnecessary weight.
•Do not rest your foot on the brake pedal
while driving.
•Keep the wheels in correct alignment.
•Keep windows closed at high speeds.
•Slow down when driving in crosswinds
and headwinds.
WA R N I N G
Never stop the engine when going down a
hill:
Stopping the engine when going down a
hill is dangerous. This causes the loss of
power steering and power brake control,
and may cause damage to the drivetrain.
Any loss of steering or braking control
could cause an accident.
Before Driving
Driving Tips
3-53
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

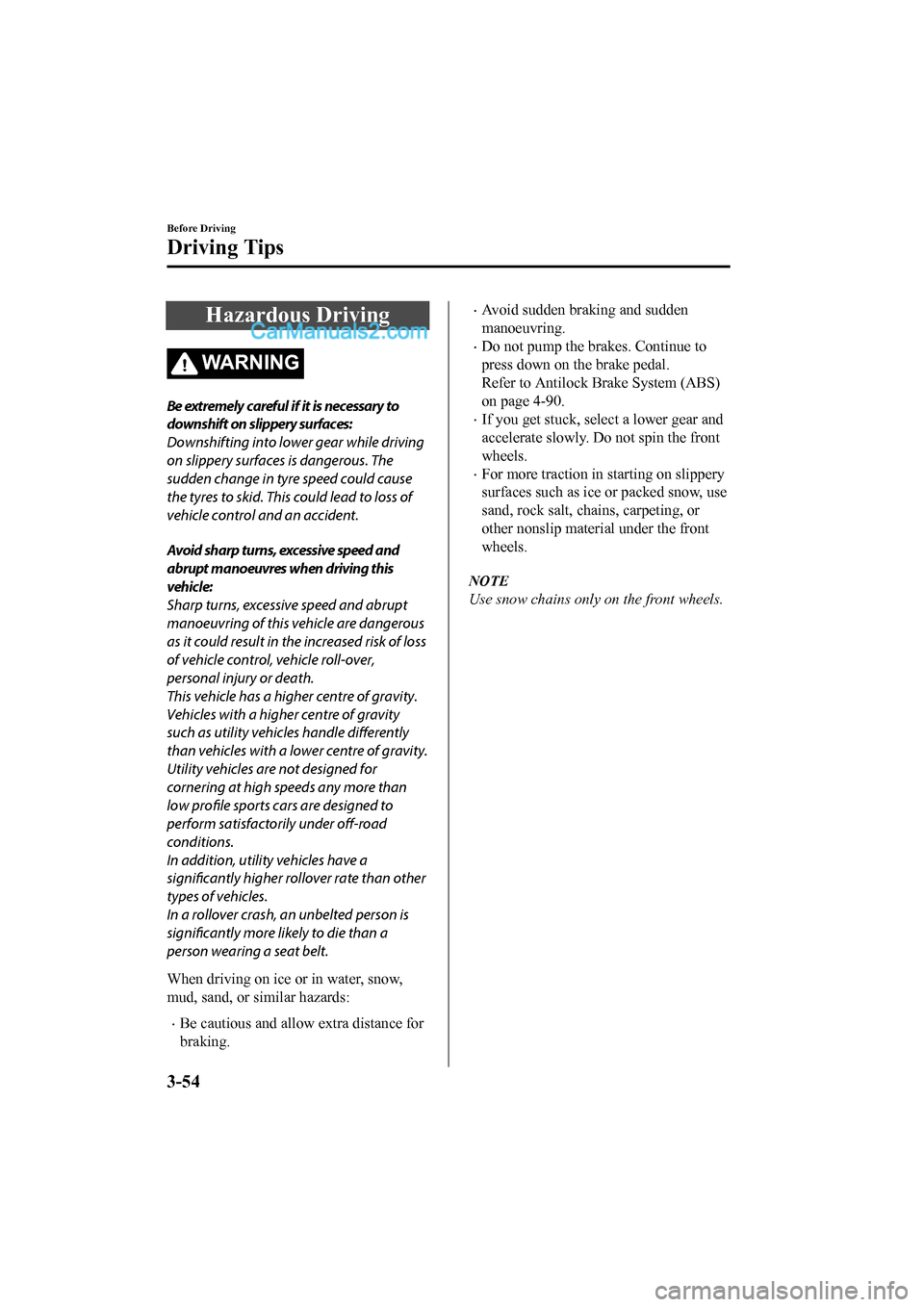

Hazardous Driving
WA R N I N G
Be extremely careful if it is necessary to
downshift on slippery surfaces:
Downshifting into lower gear while driving
on slippery surfaces is dangerous. The
sudden change in tyre speed could cause
the tyres to skid. This could lead to loss of
vehicle control and an accident.
Avoid sharp turns, excessive speed and
abrupt manoeuvres when driving this
vehicle:
Sharp turns, excessive speed and abrupt
manoeuvring of this vehicle are dangerous
as it could result in the increased risk of loss
of vehicle control, vehicle roll-over,
personal injury or death.
This vehicle has a higher centre of gravity.
Vehicles with a higher centre of gravity
such as utility vehicles handle differently
than vehicles with a lower centre of gravity.
Utility vehicles are not designed for
cornering at high speeds any more than
low profile sports cars are designed to
perform satisfactorily under off-road
conditions.
In addition, utility vehicles have a
significantly higher rollover rate than other
types of vehicles.
In a rollover crash, an unbelted person is
significantly more likely to die than a
person wearing a seat belt.
When driving on ice or in water, snow,
mud, sand, or similar hazards:
•Be cautious and allow extra distance for
braking.
•Avoid sudden braking and sudden
manoeuvring.
•Do not pump the brakes. Continue to
press down on the brake pedal.
Refer to Antilock Brake System (ABS)
on page 4-90.
•If you get stuck, select a lower gear and
accelerate slowly. Do not spin the front
wheels.
•For more traction in starting on slippery
surfaces such as ice or packed snow, use
sand, rock salt, cha ins, carpeting, or
other nonslip material under the front
wheels.
NOTE
Use snow chains only on the front wheels.
Before Driving
Driving Tips
3-54
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

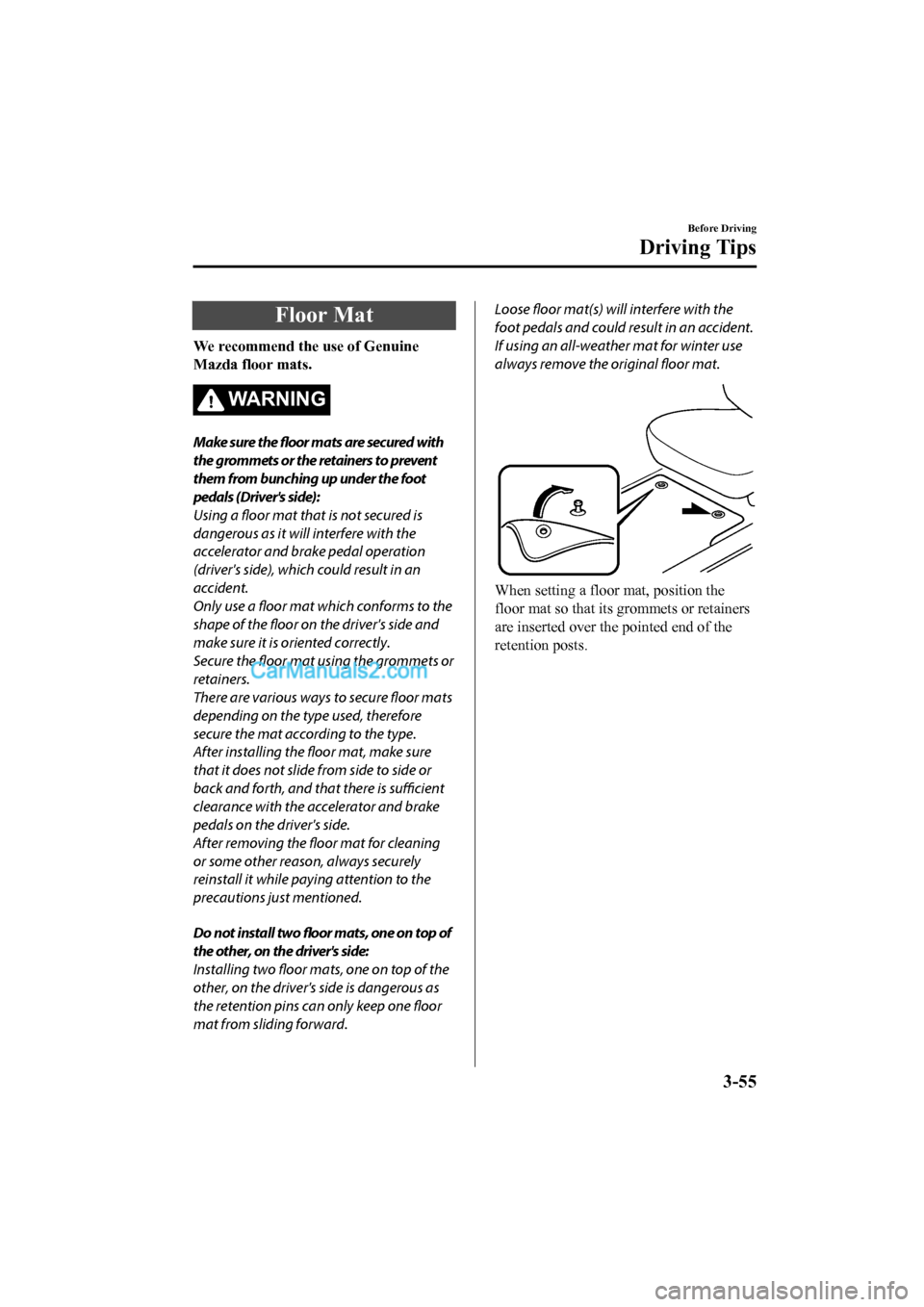

Floor Mat
We recommend the use of Genuine
Mazda floor mats.
WA R N I N G
Make sure the floor mats are secured with
the grommets or the retainers to prevent
them from bunching up under the foot
pedals (Driver's side):
Using a floor mat that is not secured is
dangerous as it will interfere with the
accelerator and brake pedal operation
(driver's side), which could result in an
accident.
Only use a floor mat which conforms to the
shape of the floor on the driver's side and
make sure it is oriented correctly.
Secure the floor mat using the grommets or
retainers.
There are various ways to secure floor mats
depending on the type used, therefore
secure the mat according to the type.
After installing the floor mat, make sure
that it does not slide from side to side or
back and forth, and that there is sufficient
clearance with the accelerator and brake
pedals on the driver's side.
After removing the floor mat for cleaning
or some other reason, always securely
reinstall it while paying attention to the
precautions just mentioned.
Do not install two floor mats, one on top of
the other, on the driver's side:
Installing two floor mats, one on top of the
other, on the driver's side is dangerous as
the retention pins can only keep one floor
mat from sliding forward.
Loose floor mat(s) will interfere with the
foot pedals and could result in an accident.
If using an all-weather mat for winter use
always remove the original floor mat.
When setting a floor mat, position the
floor mat so that its g rommets or retainers
are inserted over th e pointed end of the
retention posts.
Before Driving
Driving Tips
3-55
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Rocking the Vehicle
WA R N I N G
Do not spin the wheels at high speed, and
do not allow anyone to stand behind a
wheel when pushing the vehicle:
When the vehicle is stuck, spinning the
wheels at high speed is dangerous. The
spinning tyre could overheat and explode.
This could cause serious injuries.
CAUTION
Too much rocking may cause engine
overheating, transaxle failure, and tyre
damage.
If you must rock the vehicle to free it from
snow, sand or mud, depress the accelerator
slightly and slowly move the shift lever/
selector lever from 1 (D) to R.
Winter Driving
Carry emergency gear, including tyre
chains, window scraper, flares, a small
shovel, jumper leads, and a small bag of
sand or salt.
Ask an expert repairer, we recommend an
Authorised Mazda Repairer to check the
following:
•Have the proper ratio of antifreeze in the
radiator.
Refer to Engine Coolant on page 6-29.
•Inspect the ba ttery and its leads. Cold
reduces battery capacity.
•Use an engine oil appropriate for the
lowest ambient temperatures that the
vehicle will be driven in (page 6-25).
•Inspect the ignition system for damage
and loose connections.
•Use washer fluid made with
antifreeze―but do not use engine
coolant antifreeze for washer fluid (page
6-32).
NOTE
•Remove snow before driving. Snow left
on the windscreen is dangerous as it
could obstruct vision.
•Do not apply excessive force to a
window scraper when removing ice or
frozen snow on the mirror glass and
windscreen.
•Never use warm or hot water for
removing snow or ice from windows and
mirrors as it could result in the glass
cracking.
Before Driving
Driving Tips
3-56
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

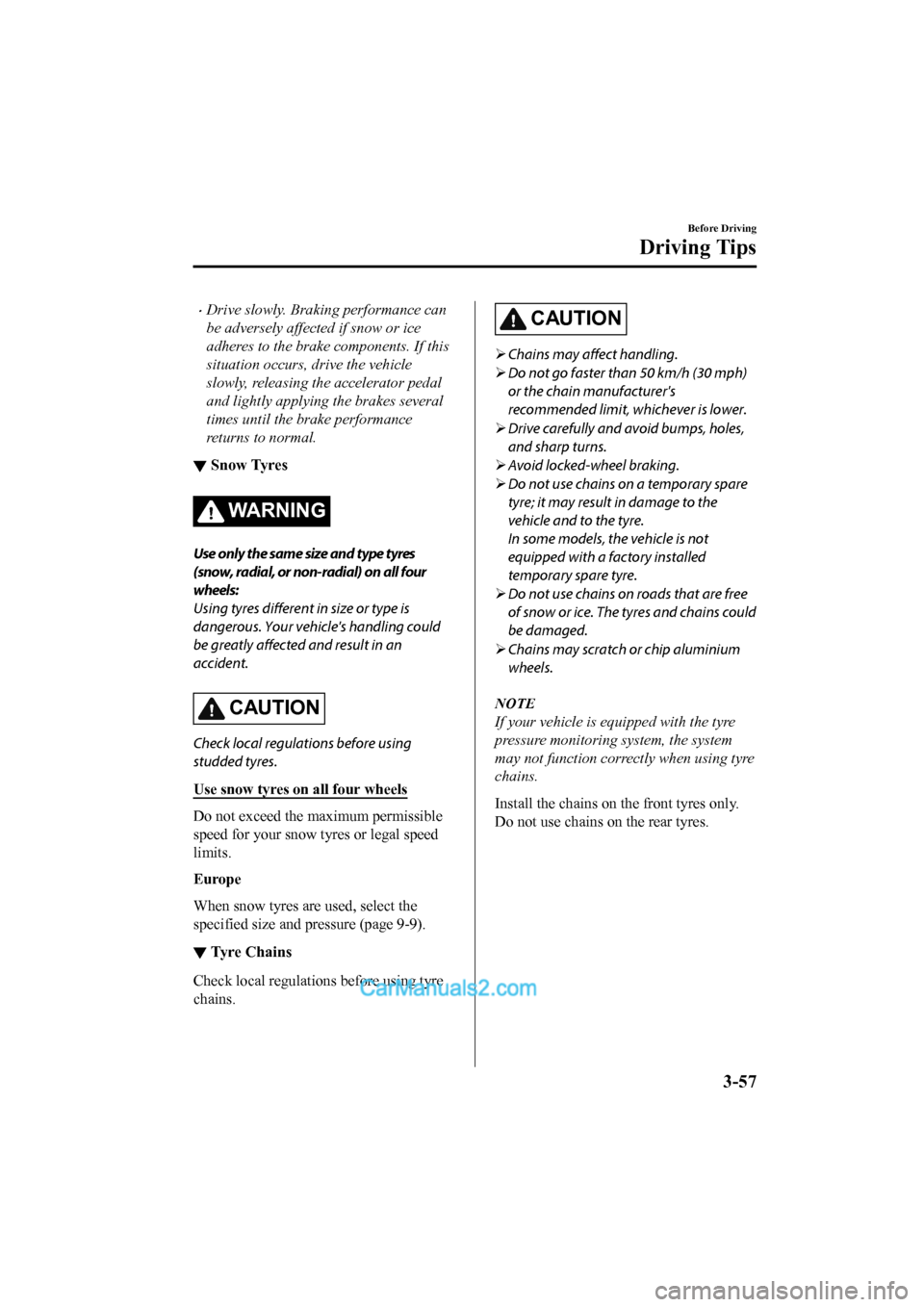

•Drive slowly. Braking performance can
be adversely affected if snow or ice
adheres to the brake components. If this
situation occurs, drive the vehicle
slowly, releasing the accelerator pedal
and lightly applying the brakes several
times until the brake performance
returns to normal.
▼Snow Tyres
WA R N I N G
Use only the same size and type tyres
(snow, radial, or non-radial) on all four
wheels:
Using tyres different in size or type is
dangerous. Your vehi
cle's handling could
be greatly affected and result in an
accident.
CAUTION
Check local regulations before using
studded tyres.
Use snow tyres on all four wheels
Do not exceed the maximum permissible
speed for your snow tyres or legal speed
limits.
Europe
When snow tyres are used, select the
specified size and pressure (page 9-9).
▼ Ty r e C h a i n s
Check local regulations before using tyre
chains.
CAUTION

Chains may
affect handling.
 Do not go faster than 50 km/h (30 mph)
or the chain manufacturer's
recommended limit, whichever is lower.
 Drive carefully and avoid bumps, holes,
and sharp turns.
 Avoid locked-wheel braking.
 Do not use chains on a temporary spare
tyre; it may result in damage to the
vehicle and to the tyre.
In some models, the vehicle is not
equipped with a factory installed
temporary spare tyre.
 Do not use chains on roads that are free
of snow or ice. The tyres and chains could
be damaged.
 Chains may scratch or chip aluminium
wheels.
NOTE
If your vehicle is equipped with the tyre
pressure monitoring system, the system
may not function correctly when using tyre
chains.
Install the chains on the front tyres only.
Do not use chains on the rear tyres.
Before Driving
Driving Tips
3-57
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

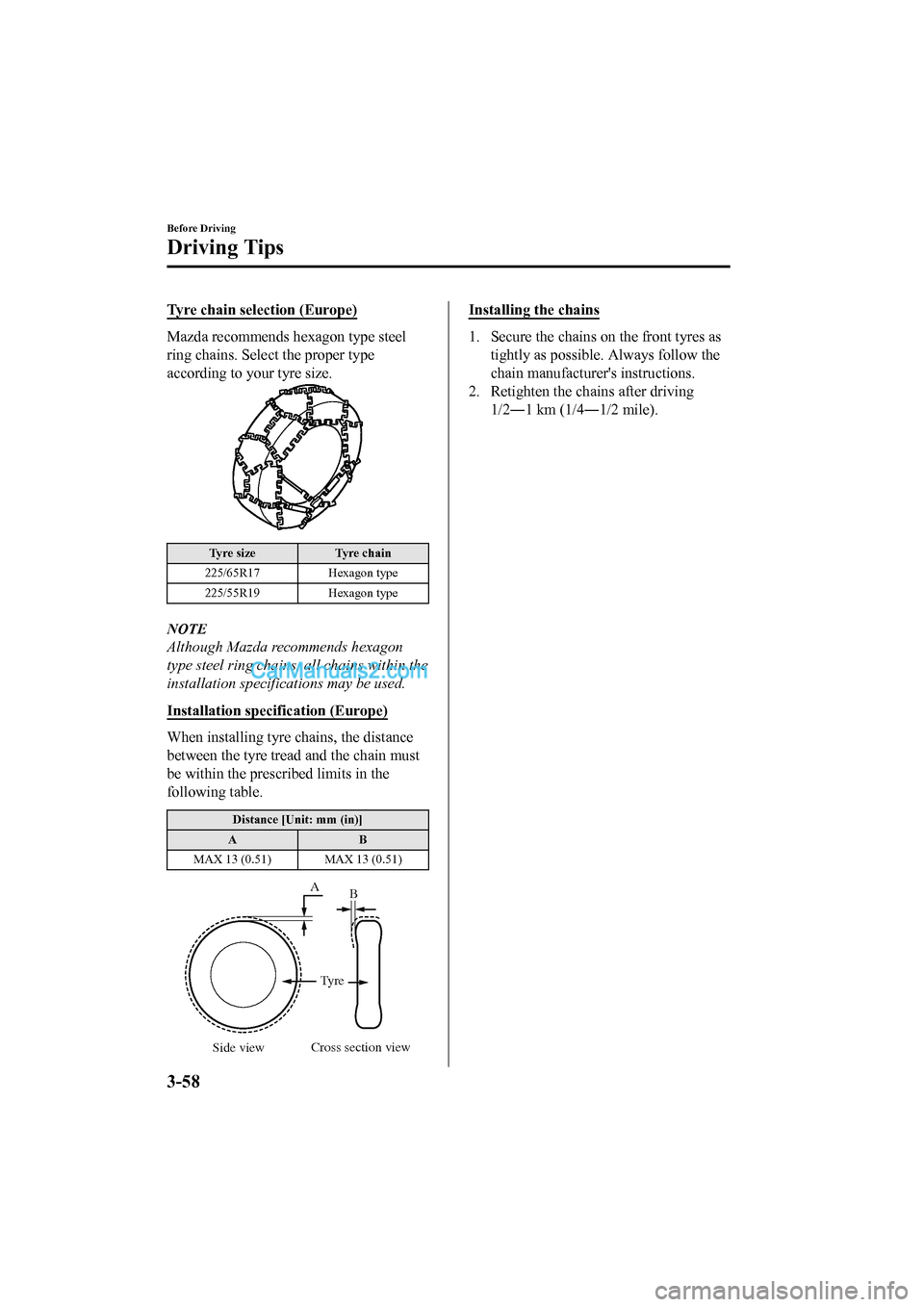

Tyre chain selection (Europe)
Mazda recommends hexagon type steel
ring chains. Select the proper type
according to your tyre size.
Tyre sizeTyre chain
225/65R17 Hexagon type
225/55R19 Hexagon type
NOTE
Although Mazda recommends hexagon
type steel ring chains, all chains within the
installation specifications may be used.
Installation specification (Europe)
When installing tyre chains, the distance
between the tyre tread and the chain must
be within the presc ribed limits in the
following table.
Distance [Unit: mm (in)]
AB
MAX 13 (0.51) MAX 13 (0.51)
Side view Cross section viewTyre
A
B
Installing the chains
1. Secure the chains on the front tyres as
tightly as possible . Always follow the
chain manufacturer's instructions.
2. Retighten the chains after driving
1/2―1 km (1/4―1/2 mile).
Before Driving
Driving Tips
3-58
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

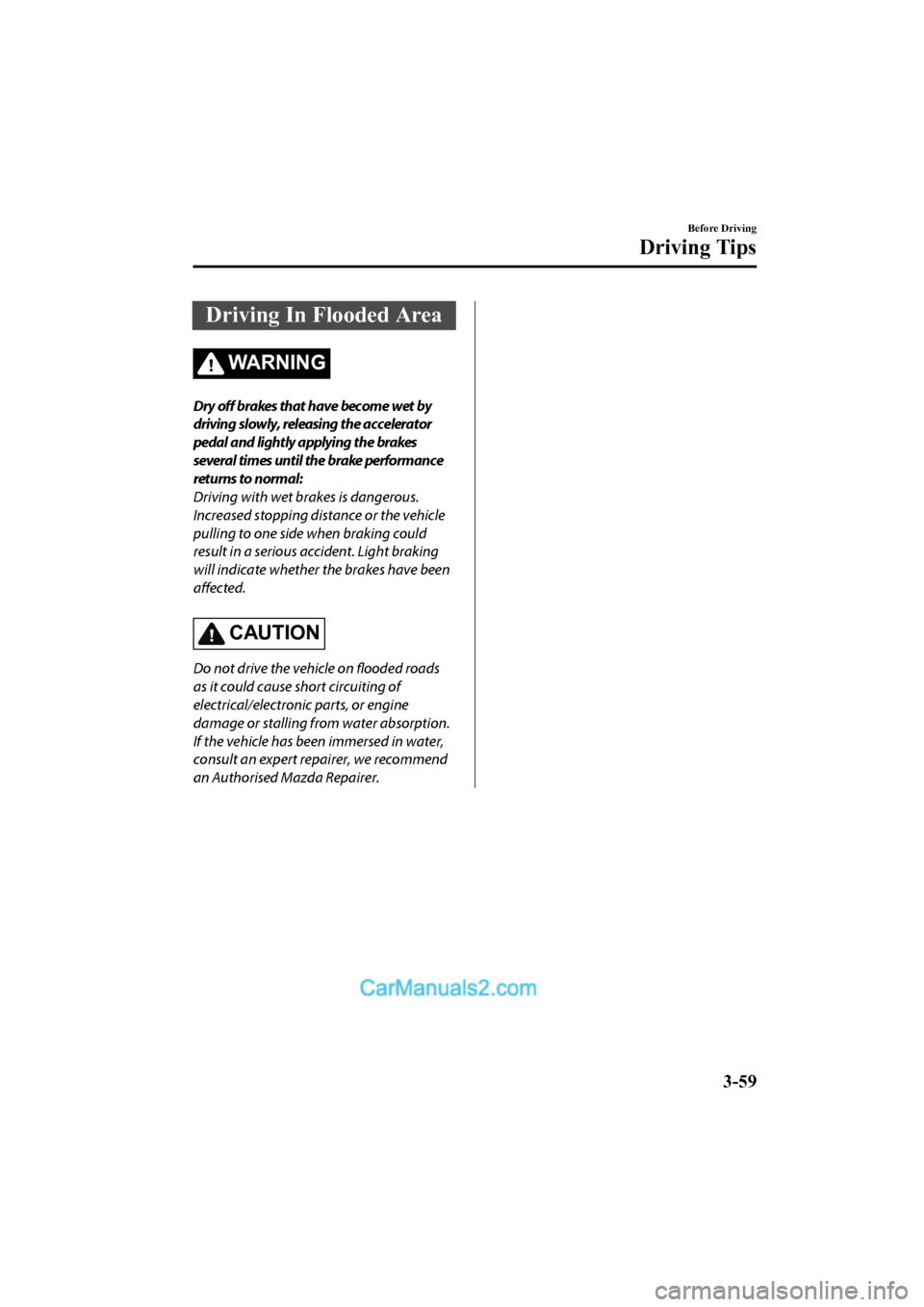

Driving In Flooded Area
WA R N I N G
Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:
Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.
CAUTION
Do not drive the vehicle on flooded roads
as it could cause short circuiting of
electrical/electronic parts, or engine
damage or stalling from water absorption.
If the vehicle has been immersed in water,
consult an expert repairer, we recommend
an Authorised Mazda Repairer.
Before Driving
Driving Tips
3-59
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

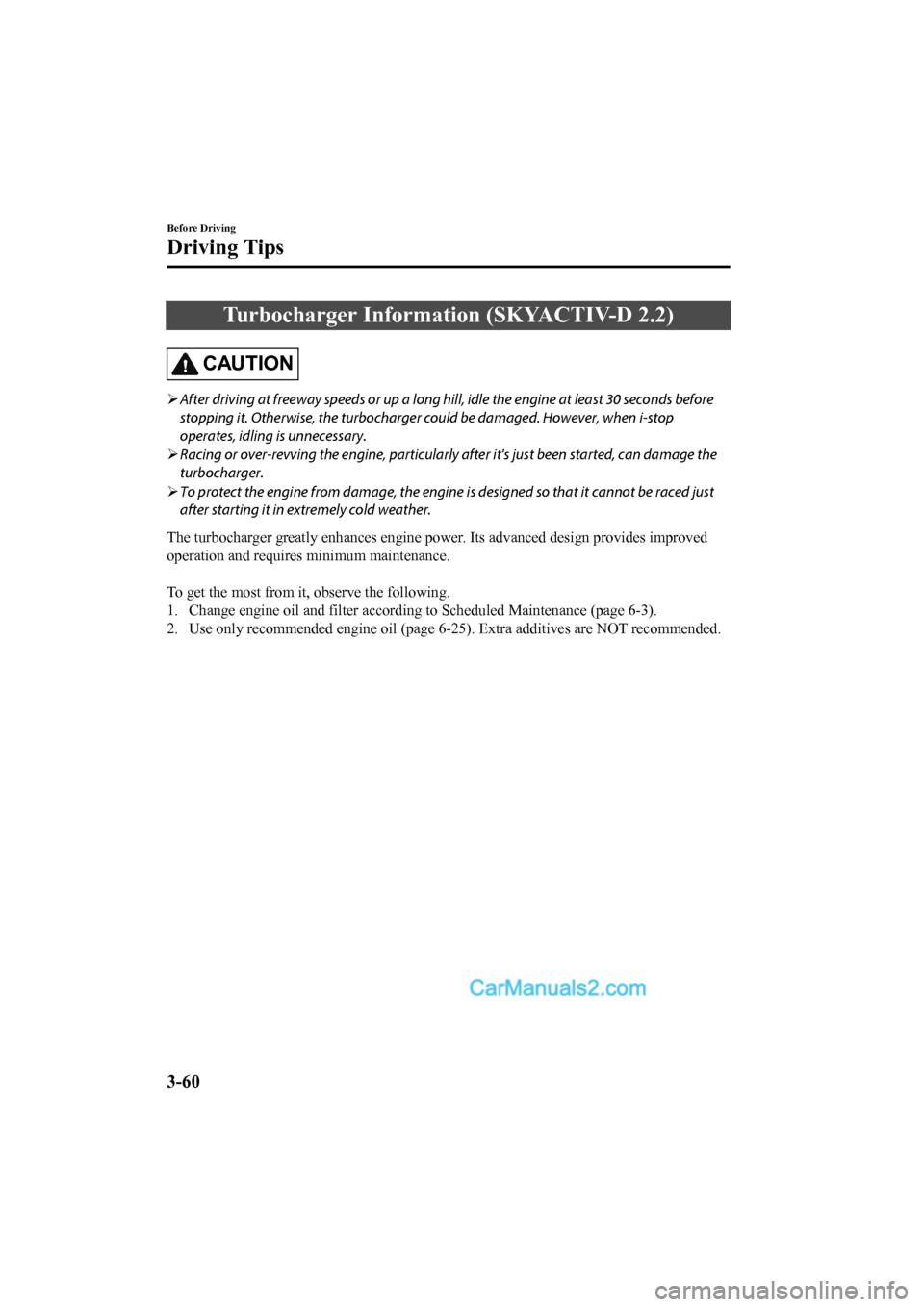

Turbocharger Information (SKYACTIV-D 2.2)
CAUTION
After driving at freeway speeds or up a long hi ll, idle the engine at least 30 seconds before
stopping it. Otherwise, the turbocharger could be damaged. However, when i-stop
operates, idling is unnecessary.
 Racing or over-revving the engine, particularly after it's just been started, can damage the
turbocharger.
 To protect the engine from damage, the engine is designed so that it cannot be raced just
after starting it in extremely cold weather.
The turbocharger greatly enhances engine power. Its advanced de sign provides improved
operation and requires minimum maintenance.

To get the most from it, observe the following.
1. Change engine oil and filter according to Scheduled Maintenan ce (page 6-3).
2. Use only recommended engine oil (page 6-25). Extra additives are NOT recommended.
Before Driving
Driving Tips
3-60
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Towing Caravans and Trailers (Europe/Russia/Turkey/Israel/South Africa)
Your Mazda was designed and built primarily to carry passengers and cargo.
If you tow a trailer, follow thes e instructions because driver and passenger safety depends
on proper equipment and safe d riving habits. Towing a trailer w ill affect handling, braking,
durability, performance, and economy.
Never overload vehicle or trailer. Consult an Authorised Mazda Dealer if you need further
details.
CAUTION
 Do not tow a trailer during the
first 1,000 km (600 miles) of your new Mazda. If you do, you
may damage the engine, transaxle, differenti al, wheel bearings, and other power train
components.
 Damage caused by towing a trailer/caravan in Turkey is not covered by the vehicle's
warranty.
▼ Weight Limits
The total trailer weight, gross
combination weight and trailer nose weight must be
within the prescribed limits in the Trailer Towing-Load Table.

TOTAL TRAILER WEIGHT:
Sum of weights of the trailer and its load.

GROSS COMBINATION WEIGHT:
Sum of total trailer weight and t owing vehicle weight; including trailer hitch, vehicle
passengers, and vehicle load.

TRAILER NOSE WEIGHT:
The weight exerted on the trailer tongue. It is varied by chang ing the weight distribution
when loading the trailer.

Before Driving
To w i n g
3-61
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
