SignalWarning Action to be taken
(Amber)
Smart Brake Support/
Smart City Brake Sup-
port (SBS/SCBS)
Warning Light
*
The light turns on if the windscreen or the
radar sensor are dirty, or there is a malfunc-
tion in the system. Verify the reason why the warning light is
illuminated on the centre display.
If the reason why the
warning light is illu-
minated is due to a dirty windscreen, clean
the windscreen.
If the warning light is illuminated because
of a dirty radar sensor, clean the front em-
blem.
For any other reasons, have the vehicle in-
spected at an expert repairer, we recom-
mend an Authorised Mazda Repairer.
Low Fuel Warning In- dication/Warning
Light The light turns on when the remaining fuel
is about 9.0 L (2.3 US gal, 1.9 Imp gal).NOTE
The light illumination timing may vary be-
cause fuel inside the fuel tank moves around
according to the driving conditions and the
vehicle posture.
Add fuel.
120km/h Warning
Light*
The 120 km/h warning light illuminates
when the vehicle speed exceeds 120 km/h. Lower the vehicle speed.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-54*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Action to be taken
Seat Belt Warning
Light (Front seat) The seat belt warning light turns on if the
driver or front passenger's seat is occupied
and the seat belt is not fastened with the ig-
nition switched ON.
If the driver or front passenger's seat belt is
unfastened (only when the front passenger's
seat is occupied) and the vehicle is driven at
a speed faster than abo
ut 20 km/h (12 mph),
the warning light flashes. After a short time,
the warning light stops flashing, but re-
mains illuminated. If a seat belt remains un-
fastened, the warning light flashes again for
a given period of time.
NOTE
•If the driver or front passenger's seat belt
is unfastened after th e warning light turns
on, and the vehicle speed exceeds 20 km/h
(12 mph), the warning light flashes again.
•Placing heavy items on the front passeng-
er's seat may cause the front passenger's
seat belt warning function to operate de-
pending on the weight of the item.
•To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger's seat. The sensor may
not function properly because the addi-
tional seat cushion could cause sensor in-
terference.
•If a small child is seated on the front pas-
senger's seat, the warning light may not
operate. Fasten the seat belts.
(Red)
Seat Belt Warning
Light (Rear seat)
*
If the rear seat belts are not fastened while
the ignition is switched ON , the driver and
the passenger are alerted by the warning
light.
The warning light opera tes even if there is
no passenger on the rear seat.
NOTE
If a rear seat belt is not fastened by a cer-
tain period of time after the engine has
been started, the warning light turns off. Fasten the seat belts.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-55
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

SignalWarning Action to be taken
Low Washer Fluid
Level Warning Indica-
tion/Warning Light
*
This warning light indicates that little wash-
er fluid remains. Add washer fluid (page 6-32).
Door-Ajar/Lift-
gate-Ajar Warning In-
dication/Warning Light The light turns on if a
ny door/liftgate is not
closed securely. Close the door/liftgate securely.

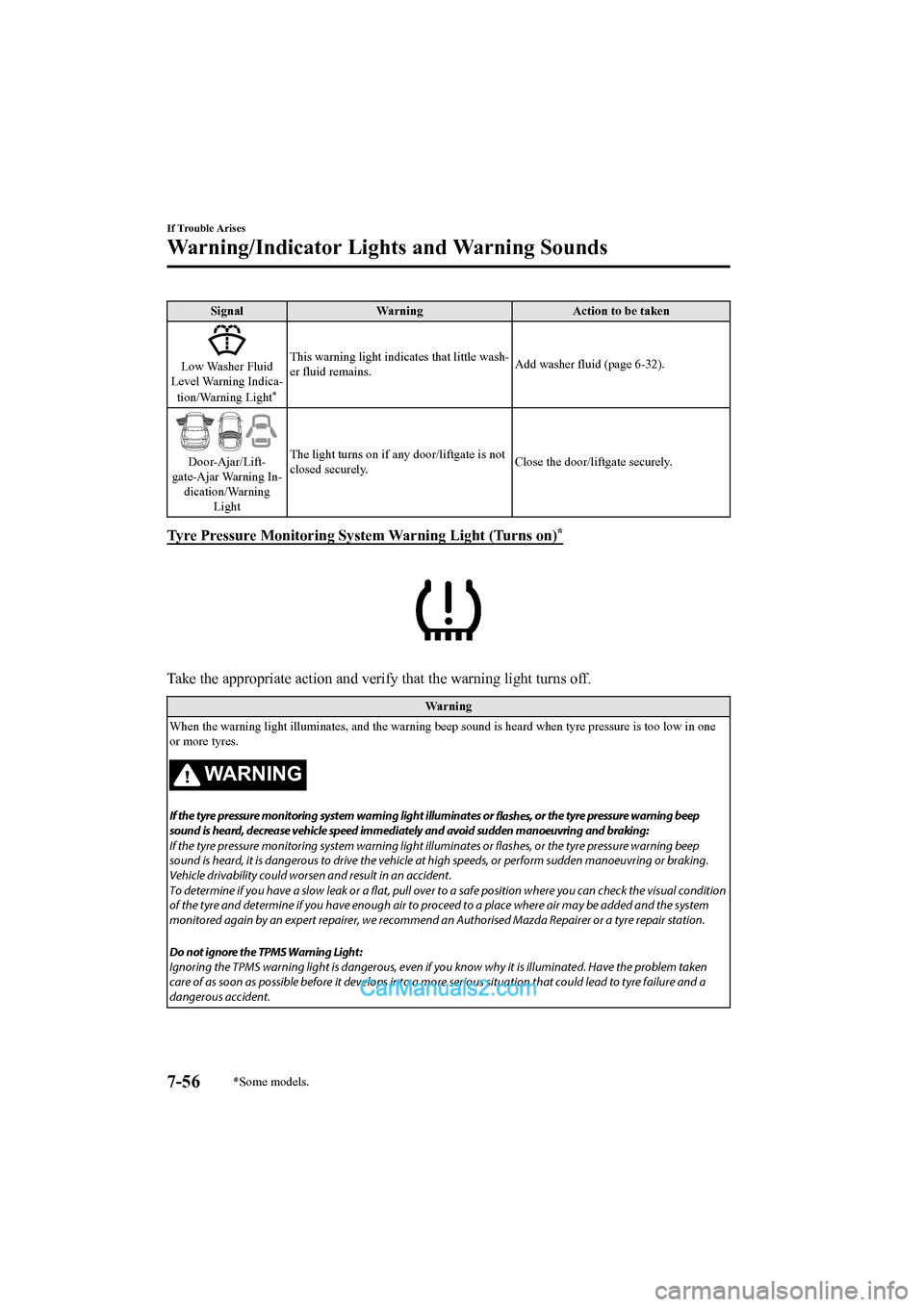

Tyre Pressure Monitoring System Warning Light (Turns on)*
Take the appropriate action and verify that the warning light t
urns off.
Wa r n i n g
When the warning light illuminate s, and the warning beep sound is heard when tyre pressure is too low in one
or more tyres.
WARNING
If the tyre pressure monitoring system warning light illuminates or flashes, or the tyre pressure warning beep
sound is heard, decrease vehicle speed immediately and avoid sudden manoeuvring and braking:
If the tyre pressure monitoring system warning light illuminates or flashes, or the tyre pressure warning beep
sound is heard, it is dangerous to drive the vehicle at high speeds, or perform sudden manoeuvring or braking.
Vehicle drivability could worsen and result in an accident.
To determine if you have a slow leak or a flat, pull over to a safe position where you can check the visual condition
of the tyre and determine if you have enough air to proceed to a place where air may be added and the system
monitored again by an expert repairer, we recommend an Authorised Mazda Repairer or a tyre repair station.
Do not ignore the TPMS Warning Light:
Ignoring the TPMS warning light is da ngerous, even if you know why it is illuminated. Have the problem taken
care of as soon as possible before it develops into a more serious situation that could lead to tyre failure and a
dangerous accident.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-56*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Action to be taken
Inspect the tyres and adjust to the specified inflation pressur e (page 6-43).
CAUTION
When replacing/repairing the tyres or wheels or both, have the work done by an Authorised Mazda Repairer, or
the tyre pressure sensors may be damaged.
NOTE
•Perform tyre pressure adjustment when the tyres are cold. Tyre pressure will vary according to the tyre temper-
ature, therefore let the vehicle stand for 1 hour or only drive it 1.6 km (1 mile) or less before adjusting the tyre
pressures. When pressure is adjusted on hot tyres to the cold inflation pressure, the TPMS warning light/beep
may turn on after the tyres cool and pressure drops below specification.
Also, an illuminated TPMS warning light, resulting from th e tyre air pressure dropping due to cold ambient
temperature, may turn off if the ambien t temperature rises. In this case, it will also be necessary to adjust the
tyre air pressures. If the TPMS warn ing light illuminates due to a drop in tyre air pressure, make sure to check
and adjust the tyre air pressures.
•After adjusting the tyre air pressures, it may require some time for the TPMS warning light to turn off. If the
TPMS warning light remains illuminated, drive the vehicle at a speed of at least 25 km/h (16 mph) for 10 mi-
nutes, and then verify that it turns off.
•Tyres lose air naturally over time and the TPMS cannot tell if the tyres are getting too soft over time or you
have a flat. However, when you find one low tyre in a se t of four-that is an indication of trouble; you should
have someone drive the vehicle slowly forward so you can inspect any low tyre for cuts and any metal objects
sticking through tread or sidewall. Pu t a few drops of water in the valve stem to see if it bubbles indicating a
bad valve. Leaks need to be addresse d by more than simply refilling the trouble tyre as leaks are dangerous ―
take it to an expert repairer, we recommend an Authoris ed Mazda Repairer which has all the equipment to fix
tyres, TPMS systems and order the best replacement tyre for your vehicle.
If the warning light illuminates again even after the tyre pressures are adju sted, there may be a tyre puncture.

If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-57
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

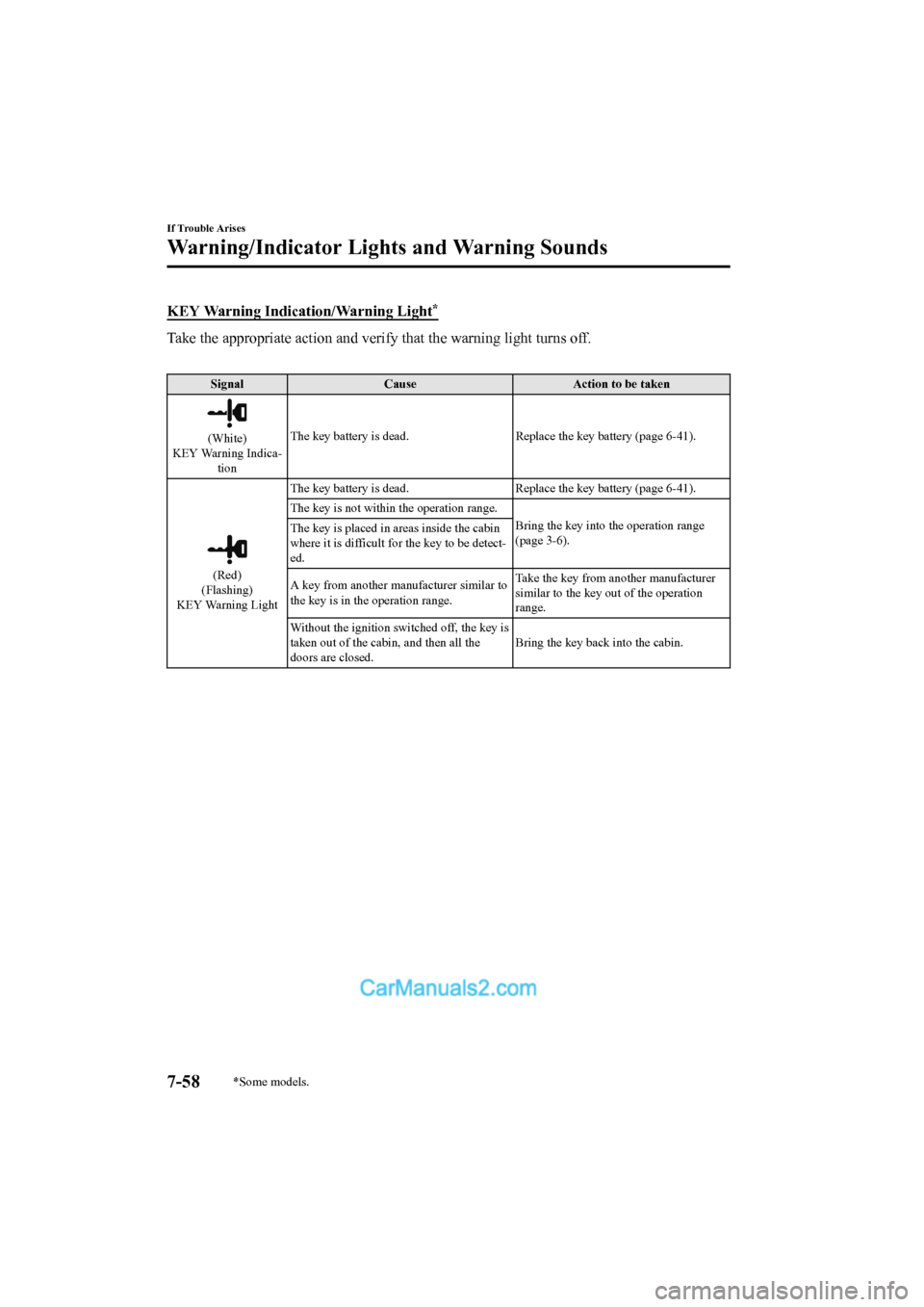

KEY Warning Indication/Warning Light*
Take the appropriate action and verify that the warning light turns off.

Signal Cause Action to be taken
(White)
KEY Warning Indica- tion The key battery is dead.
Replace the key battery (page 6-41).
(Red)
(Flashing)
KEY Warning Light The key battery is dead.
Replace the key battery (page 6-41).
The key is not within the operation range. Bring the key into the operation range
(page 3-6).
The key is placed in areas inside the cabin
where it is difficult for the key to be detect-
ed.
A key from another manufacturer similar to
the key is in the operation range. Take the key from another manufacturer
similar to the key out of the operation
range.
Without the ignition switched off, the key is
taken out of the cabin, and then all the
doors are closed. Bring the key back into the cabin.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-58*Some models.
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

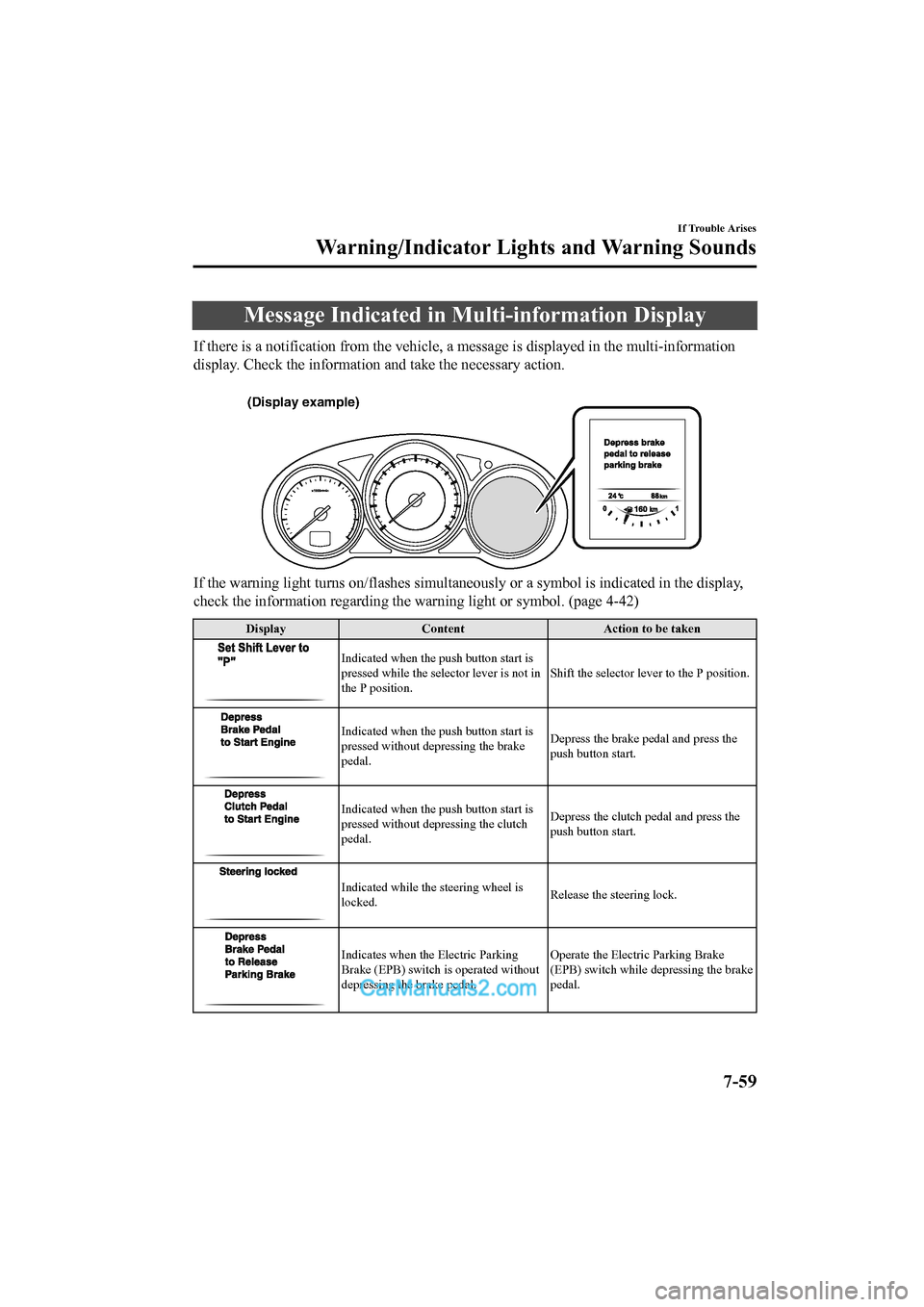

Message Indicated in Multi-information Display
If there is a notification from the vehicle, a message is displayed in the multi-information
display. Check the information and take the necessary action.

(Display example)
If the warning light turns on/fla shes simultaneously or a symbol is indicated in the display,
check the information regarding the warning light or symbol. (page 4-42)
Display Content Action to be taken
Indicated when the push button start is
pressed while the selector lever is not in
the P position. Shift the selector lev
er to the P position.
Indicated when the push button start is
pressed without depressing the brake
pedal. Depress the brake pedal and press the
push button start.
Indicated when the push button start is
pressed without depressing the clutch
pedal.Depress the clutch pedal and press the
push button start.
Indicated while the steering wheel is
locked.
Release the steering lock.
Indicates when the Electric Parking
Brake (EPB) switch is operated without
depressing the brake pedal.Operate the Electric Parking Brake
(EPB) switch while depressing the brake
pedal.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-59
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

DisplayContent Action to be taken
Indicates when there is a problem with
the brake related system while the vehi-
cle is being held in a stop position by the
AUTOHOLD function or during the
Mazda Radar Cruise Control with Stop
& Go function (MRCC with Stop & Go
function) stop hold control. Depress the brake pedal.
Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (M
RCC with Stop & Go
function), and have your vehicle inspect-
ed at an expert repairer, we recommend
an Authorised Mazda Repairer.
Indicates the possibility of the vehicle
not being held in the stopped position by
the AUTOHOLD function, such as on
steep slopes. Depress and hold your foot on the brake
pedal.
Indicates when the cancel operation is
done without depressing the brake pedal
while the vehicle is being held in the
stopped position by the AUTOHOLD
function or during the stop hold control
of the Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop
& Go function).Cancel the AUTOHOLD function or the
Mazda Radar Cruise Control with Stop
& Go function (M
RCC with Stop & Go
function) stop hold control while de-
pressing the brake pedal.
Indicated when the engine may be over-
heating and the engine output is restrict-
ed Drive slowly and make sure that the in-
dication turns off.
If the indication does not turn off, con-
sult an expert repairer, we recommend
an Authorised Mazda Repairer.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-60
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

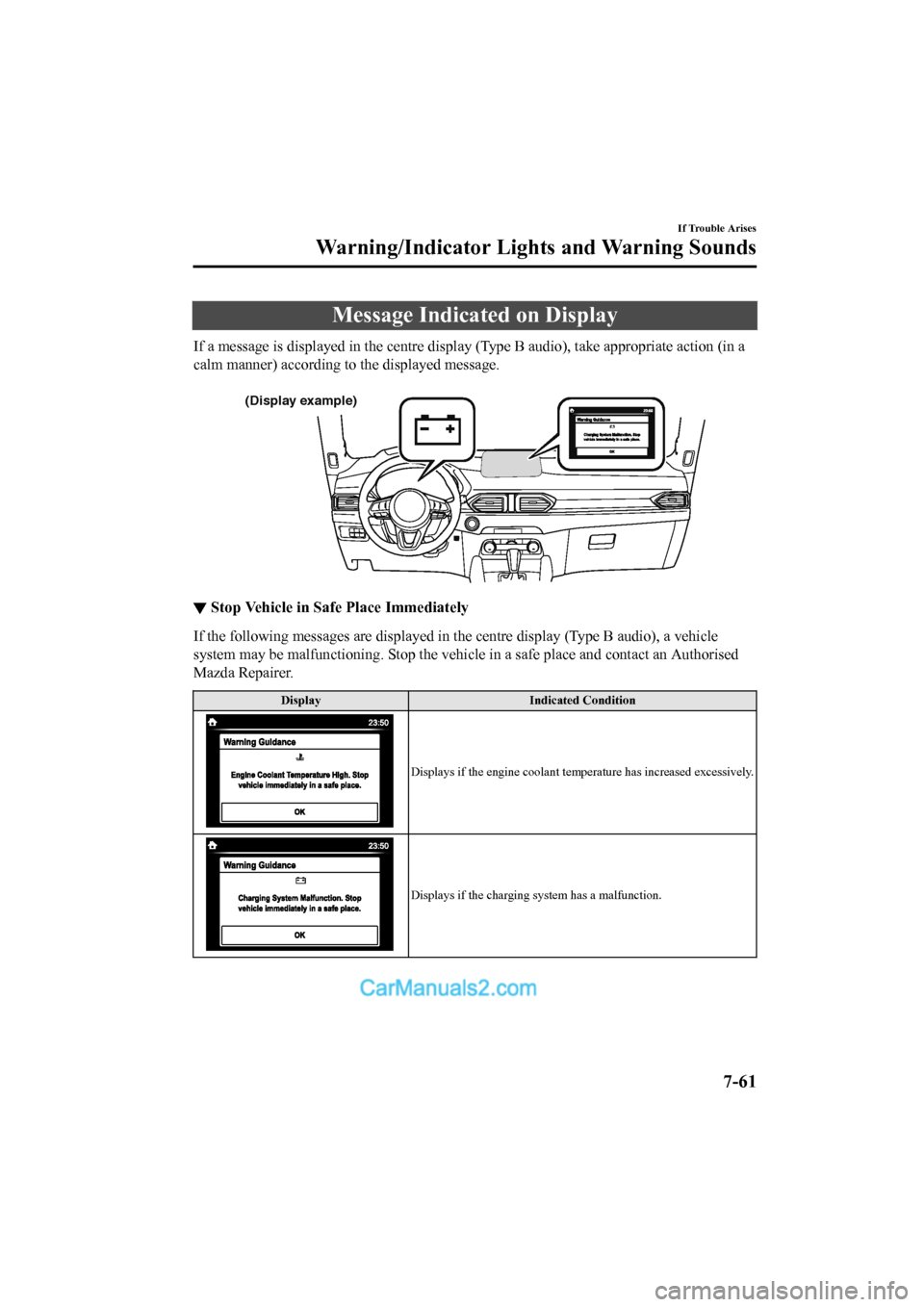

Message Indicated on Display
If a message is displayed in the centre display (Type B audio), take appropriate action (in a
calm manner) according to the displayed message.

(Display example)
▼ Stop Vehicle in Safe Place Immediately
If the following messag
es are displayed in the centre display (Type B audio), a vehicle
system may be malfunctioning. St op the vehicle in a safe place and contact an Authorised
Mazda Repairer.
Display Indicated Condition
Displays if the engine coolant temperature has increased excess ively.
Displays if the charging system has a malfunction.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-61
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

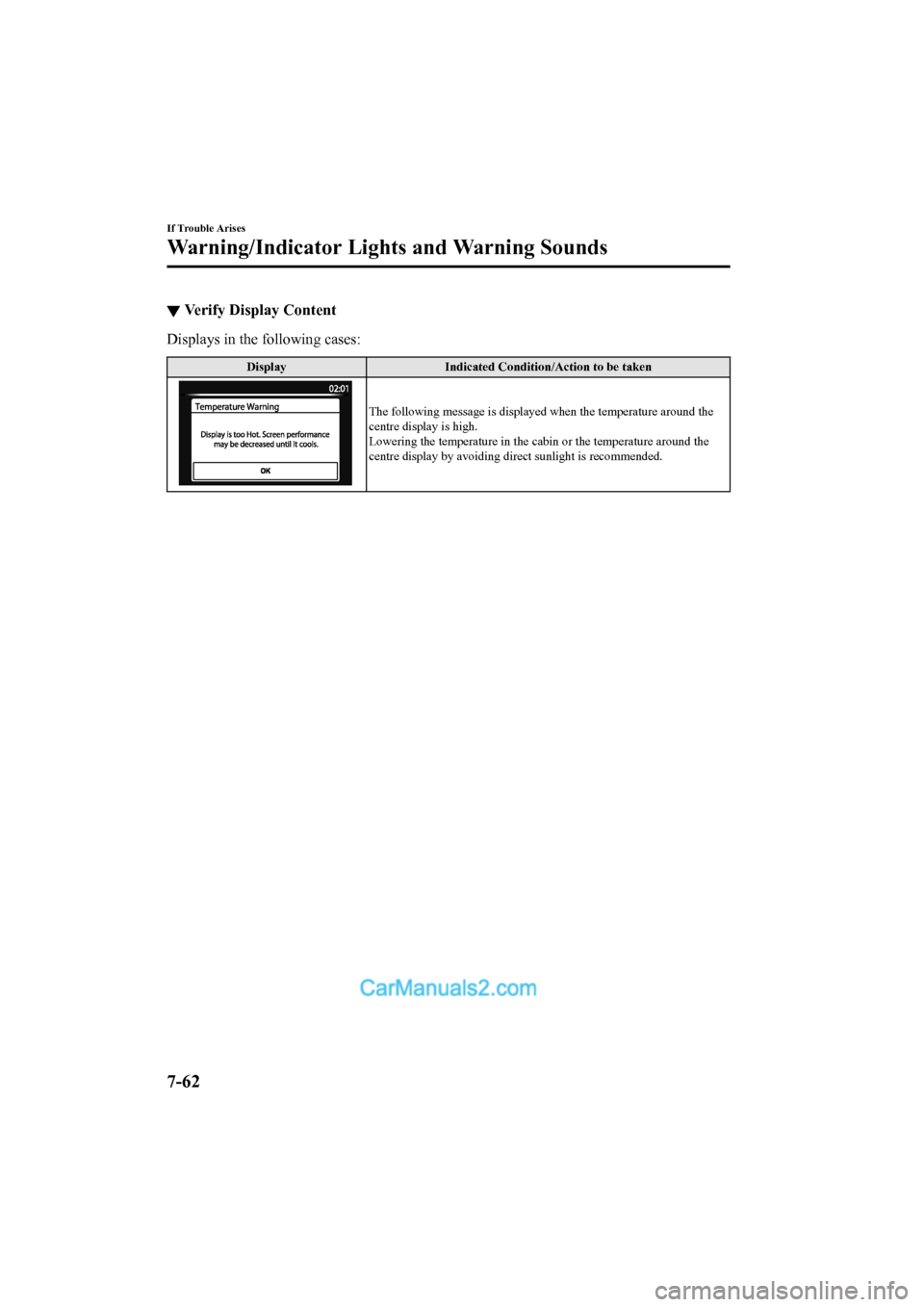

▼Verify Display Content
Displays in the following cases:
Display
Indicated Condition/Action to be taken
The following message is displayed when the temperature around the
centre display is high.
Lowering the temperature in the cabin or the temperature around the
centre display by avoiding di rect sunlight is recommended.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-62
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2

Warning Sound isActivated
▼Lights-On Reminder
If lights are on and the ignition is switched
to ACC or off, a continuous beep sound
will be heard when the driver's door is
opened.
NOTE
•When the ignition is
switched to ACC,
the “Ignition Not Switched Off (STOP)
Warning Beep” (page 7-64) overrides
the lights-on reminder.
•A personalised function is available to
change the sound volume for the
lights-on reminder.
Refer to Personalisation Features on
page 9-12.
▼ Air Bag/Seat Belt Pretensioner
System Warning Beep
If there is a problem with the air bag/seat
belt pretensioner systems and the warning
light illumination, a warning beep sound
will be heard for about 5 seconds every
minute.

The air bag and seat belt pretensioner
system warning beep sound will continue
to be heard for approximately 35 minutes.
Have your vehicle inspected at an expert
repairer, we recommend an Authorised
Mazda Repairer as soon as possible.
WA R N I N G
Do not drive the vehicle with the air bag/
seat belt pretensioner system warning beep
sounding:
Driving the vehicle with the air bag/seat
belt pretensioner system warning beep
sounding is dangerous. In a collision, the
air bags and the seat belt pretensioner
system will not deploy and this could result
in death or serious injury. Contact an
expert repairer, we recommend an
Authorised Mazda Repairer to have the
vehicle inspected as soon as possible.
▼Seat Belt Warning Beep
Front seat
If the vehicle speed exceeds about 20
km/h (12 mph) with the driver or front
passenger's seat belt unfastened, a warning
beep sounds continuously. If the seat belt
remains unfastened, the beep sound stops
once and then continues for about 90
seconds. The beep stops after the driver or
front passenger's seat belt is fastened.
NOTE
•Placing heavy items on the front
passenger seat may cause the front
passenger seat belt warning function to
operate depending on the weight of the
item.
•To allow the front passenger seat weight
sensor to function properly, do not place
and sit on an additional seat cushion on
the front passenger seat. The sensor may
not function properly because the
additional seat cushion could cause
sensor interference.
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
7-63
2017-6-7 7:51:19 Form No. CX-5 8FY4-EE-17E+L_Edition2
