between connector terminals and ground. Resistance should be 13-25 ohms. Replace solenoids as necessary.
Ensure transmission case is grounded.
VEHICLE SPEED SENSOR (VSS)
Disconnect negative battery cable. Remove combination meter. Disconnect harness connectors and speedometer
cable. Connect analog voltmeter leads to meter terminals "A" and "B". See Fig. 8
. Using appropriate
screwdriver, rotate speedometer cable shaft. If voltmeter needle does not fluctuate, replace sensor.

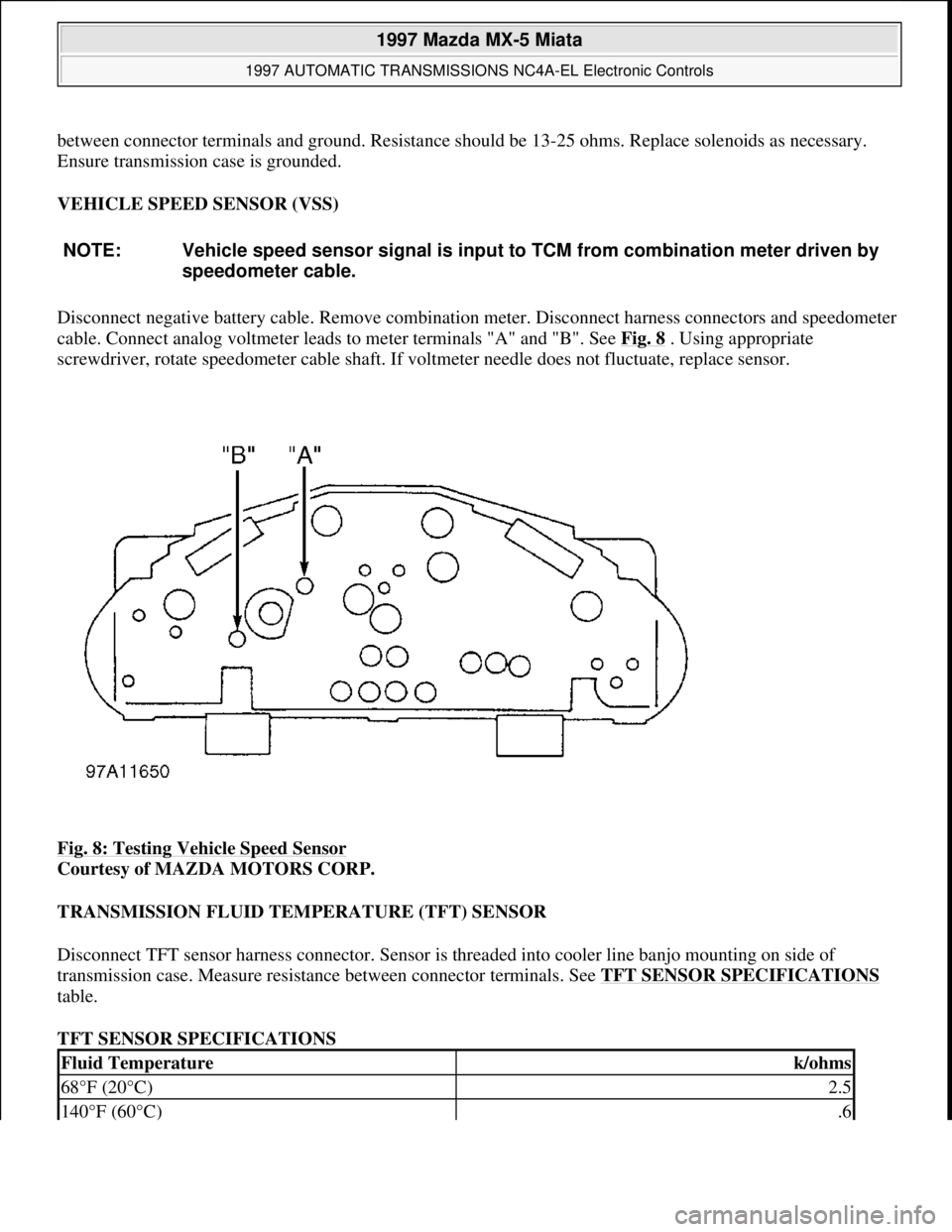

Fig. 8: Testing Vehicle Speed Sensor

Courtesy of MAZDA MOTORS CORP.
TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR
Disconnect TFT sensor harness connector. Sensor is threaded into cooler line banjo mounting on side of
transmission case. Measure resistance between connector terminals. See TFT SENSOR SPECIFICATIONS

table.
TFT SENSOR SPECIFICATIONS NOTE: Vehicle speed sensor signal is input to TCM from combination meter driven by
speedometer cable.
Fluid Temperaturek/ohms
68°F (20°C)2.5
140°F (60°C).6

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 23 © 2005 Mitchell Repair Information Company, LLC.

TRANSMISSION RANGE SWITCH
1. Check for starter operation with ignition switch in START position and selector lever in "P" and "N"
position only. Ensure back-up lights illuminate with ignition in ON position and selector lever in "R"
position. If any problems are found, go to next step.
2. Disconnect transmission range switch connector. See Fig. 3
. Check continuity between specified
terminals. See Fig. 9
. If continuity is not as specified, replace switch.

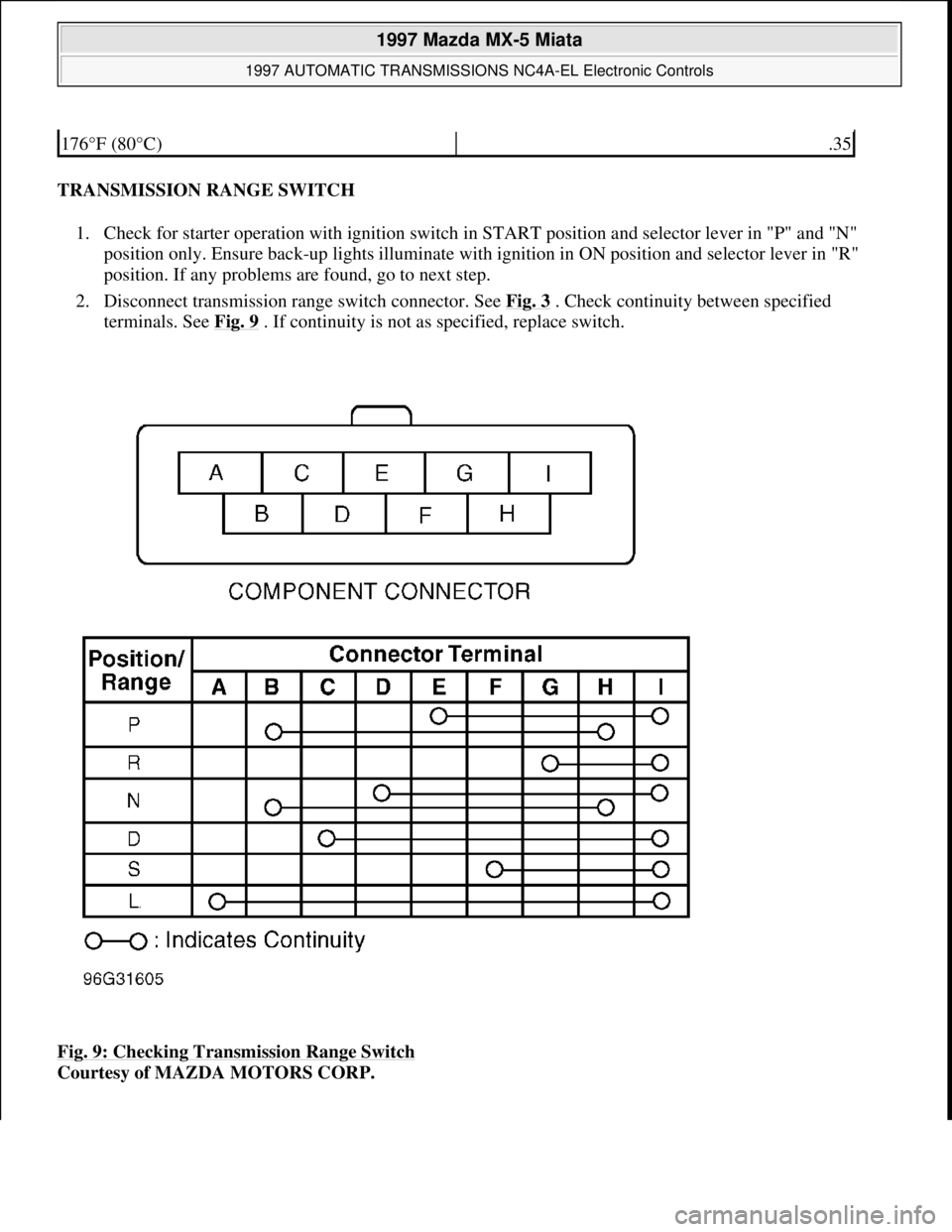

Fig. 9: Checking Transmission Range Switch

Courtesy of MAZDA MOTORS CORP.
176°F (80°C).35

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 24 © 2005 Mitchell Repair Information Company, LLC.

TCM TERMINAL VOLTAGE TESTS
Turn ignition switch to ON position. Access TCM. TCM is mounted under left corner of dash, above fuse box.
DO NOT disconnect harness connector. Using DVOM, measure voltage. See Fig. 4
for terminal identification.
See Fig. 10
and Fig. 11 . After verifying that appropriate condition has been met, check voltage. If voltage is
not within specification, inspect component or appropriate circuit. If voltage is within specification, replace
TCM.

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 25 © 2005 Mitchell Repair Information Company, LLC.

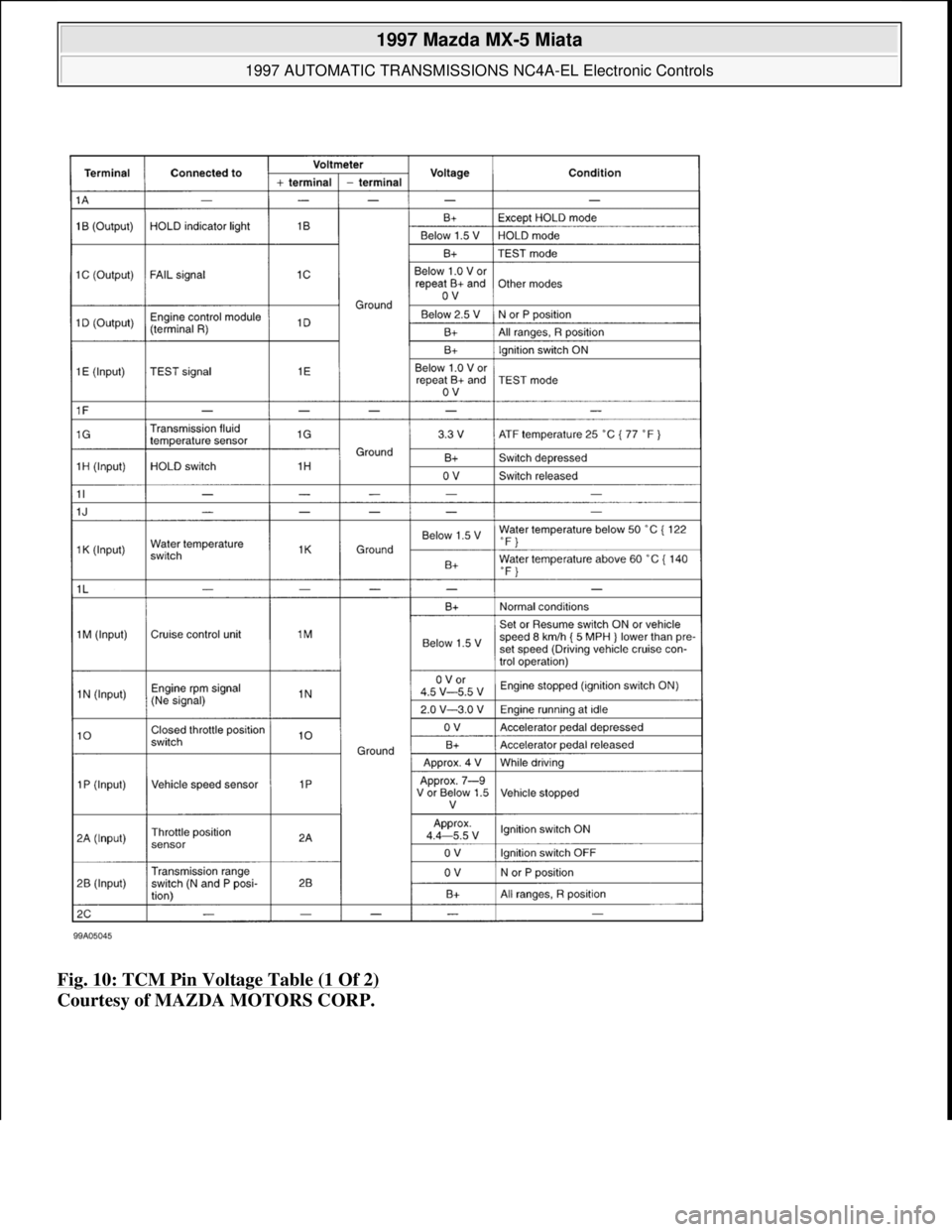

Fig. 10: TCM Pin Voltage Table (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 26 © 2005 Mitchell Repair Information Company, LLC.

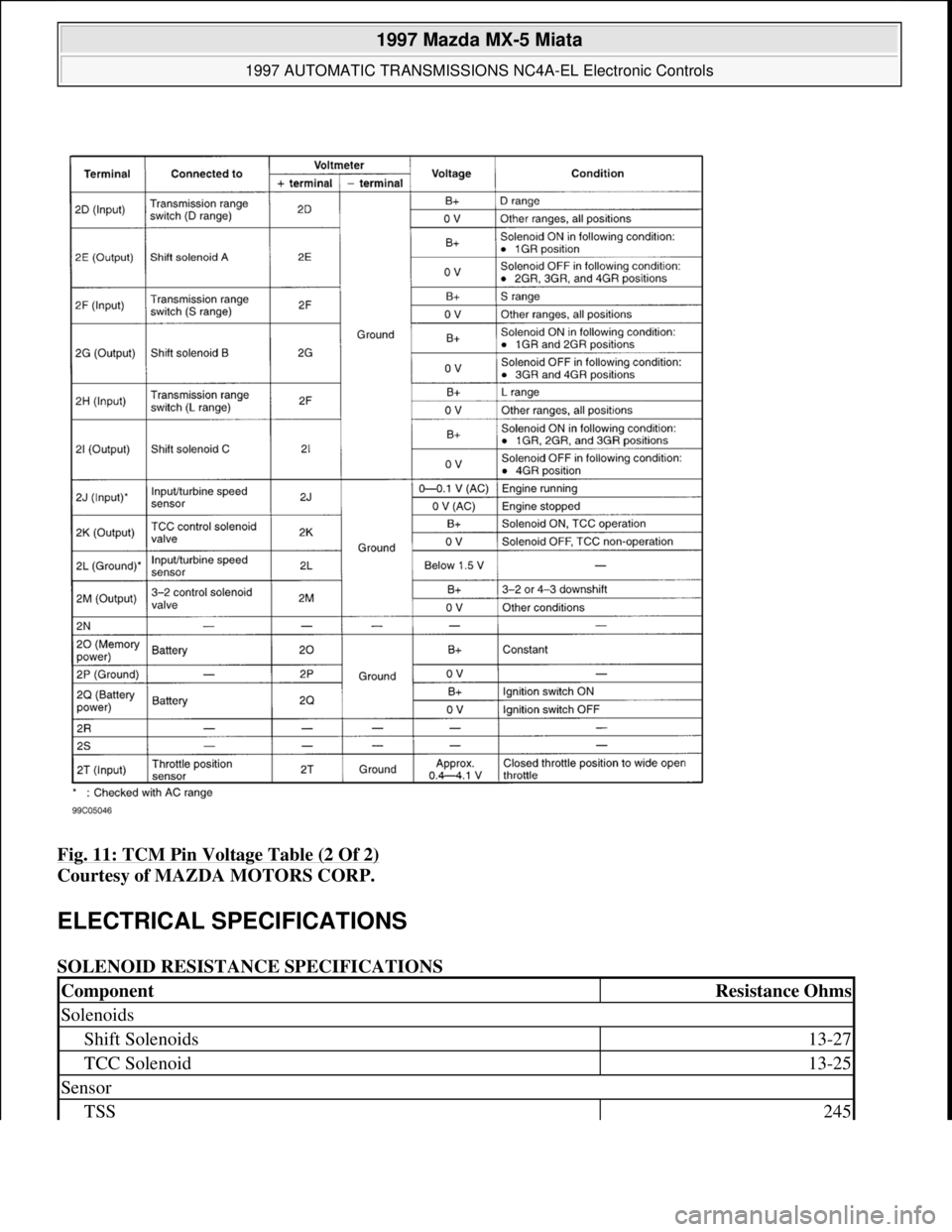

Fig. 11: TCM Pin Voltage Table (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
ELECTRICAL SPECIFICATIONS
SOLENOID RESISTANCE SPECIFICATIONS
ComponentResistance Ohms
Solenoids
Shift Solenoids13-27
TCC Solenoid13-25
Sensor
TSS245

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 27 © 2005 Mitchell Repair Information Company, LLC.

WIRING DIAGRAMS

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 28 © 2005 Mitchell Repair Information Company, LLC.

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 29 © 2005 Mitchell Repair Information Company, LLC.

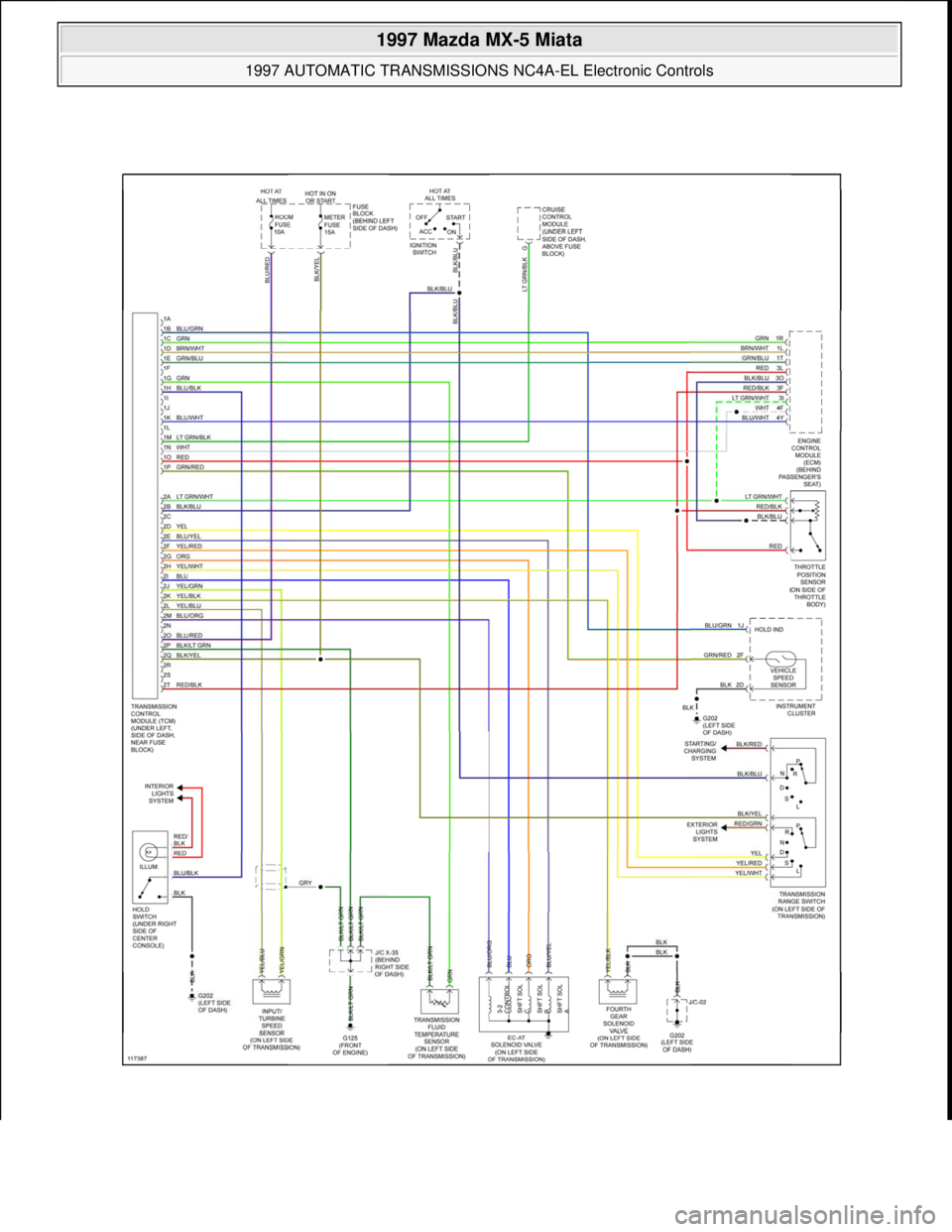

Fig. 12: Transmission Wiring Diagram (1997 Miata)

1997 Mazda MX-5 Miata
1997 AUTOMATIC TRANSMISSIONS NC4A-EL Electronic Controls
Microsoft
Sunday, July 05, 2009 1:35:04 PMPage 30 © 2005 Mitchell Repair Information Company, LLC.

1997-2001 DRIVE AXLES
Axle Shafts - MX-5 Miata
TROUBLE SHOOTING
Inspect CV joint boot on axle shaft for cracks, damage, leaking, grease, and looseness in boot band. Inspect axle
shaft for bending, cracks, and wear of joint splines. Repair or replace as necessary.
REMOVAL & INSTALLATION
AXLE SHAFTS
Removal
1. Raise vehicle and support with safety stands. Remove wheel and tire assembly. Remove axle shaft lock
nut. See Fig. 1
.
2. Remove brake caliper assembly. Remove lower control arm bolt at knuckle, and pull knuckle/hub
assembly outward. Using pry bar between differential housing and inner CV joint, remove inner CV joint
from differential. See Fig. 2
. Remove axle shaft from knuckle/hub assembly. NOTE: See DRIVE AXLE NOISE DIAGNOSIS article in GENERAL INFORMATION.
CAUTION: If vehicle is equipped with ABS, before performing following procedure,
remove ABS wheel speed sensor (axle side) and fix it to an appropriate
place where sensor will not be pulled by mistake while servicing vehicle.
NOTE: If axle shaft will not come out of rear hub support easily, install a discarded nut
onto axle shaft so that nut is flush with end of axle shaft. Tap nut with a copper
hammer to loosen axle shaft from wheel hub.

1997 Mazda MX-5 Miata
1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata

1997 Mazda MX-5 Miata
1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:51:37 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.
Microsoft
Sunday, July 05, 2009 1:51:53 PMPage 1 © 2005 Mitchell Repair Information Company, LLC.

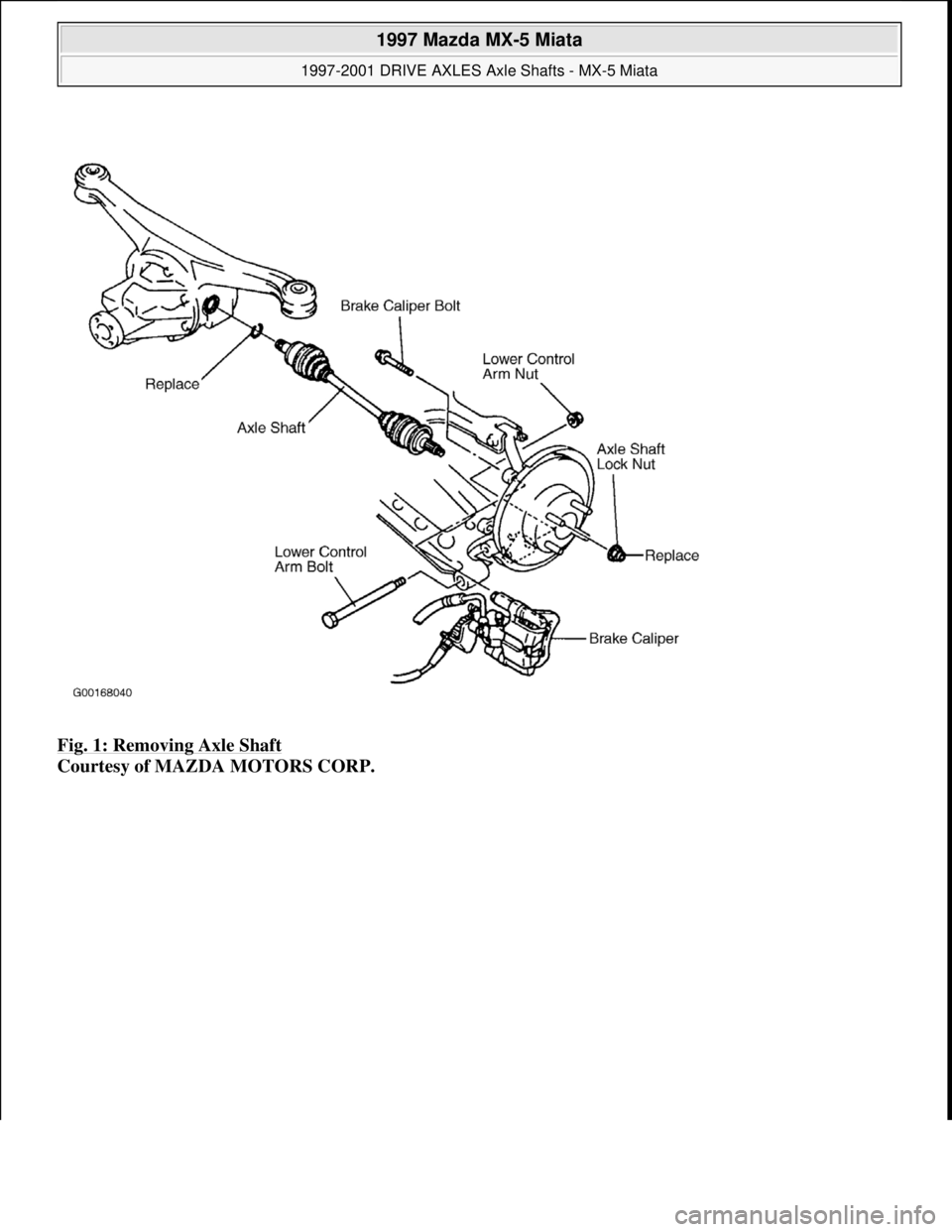

Fig. 1: Removing Axle Shaft
Courtesy of MAZDA MOTORS CORP.

1997 Mazda MX-5 Miata
1997-2001 DRIVE AXLES Axle Shafts - MX-5 Miata
Microsoft
Sunday, July 05, 2009 1:51:37 PMPage 2 © 2005 Mitchell Repair Information Company, LLC.
