369 Technical data
Rims and Tires
Minispare wheelModel
C 240 (all models)
Rim (steel)
3.5 B x16 H2
Wheel offset
0.67 in (17 mm)
Tire
T 125/90 R16 98M
1
1Must not be used with snow chains.

370 Technical dataElectrical systemModel
C 240 (all models)
Generator (alternator)
14 V/120 A
Starter motor
12 V/1.7 kW
Battery
12 V/100 Ah
Spark plugs
Bosch F 8 DPP 332
NGK PFR 5 R-11
Electrode gap
0.039 in (1.0 mm)
Tightening torque
15 – 22 lb-ft (20 – 30 Nm)

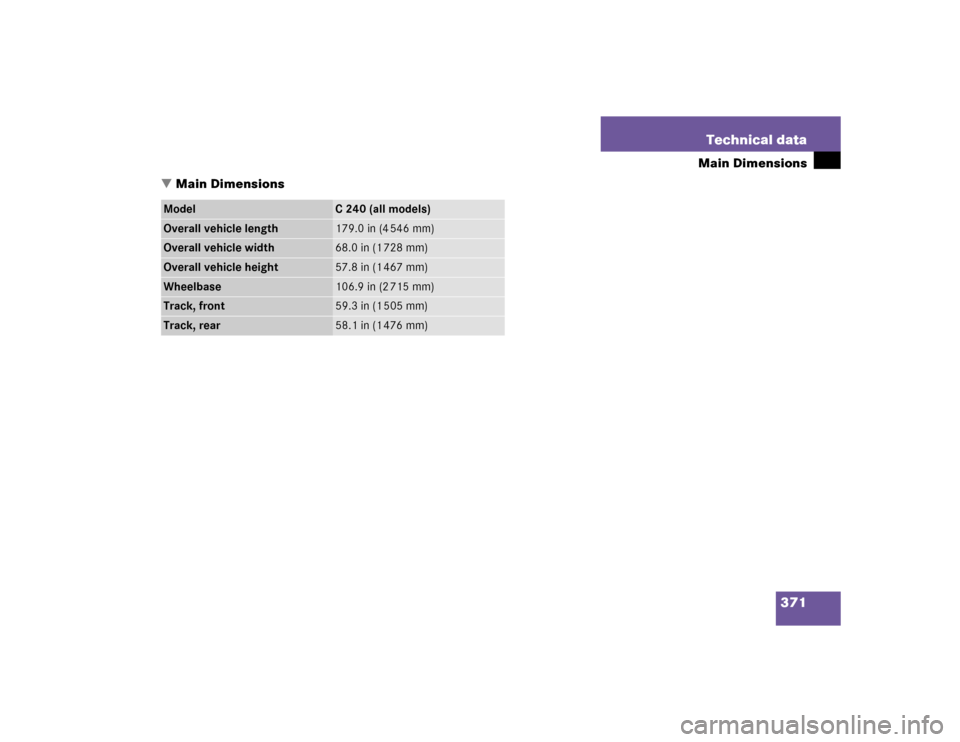

371 Technical data
Main Dimensions
Main Dimensions
Model
C 240 (all models)
Overall vehicle length
179.0 in (4 546 mm)
Overall vehicle width
68.0 in (1 728 mm)
Overall vehicle height
57.8 in (1 467 mm)
Wheelbase
106.9 in (2 715 mm)
Track, front
59.3 in (1 505 mm)
Track, rear
58.1 in (1 476 mm)

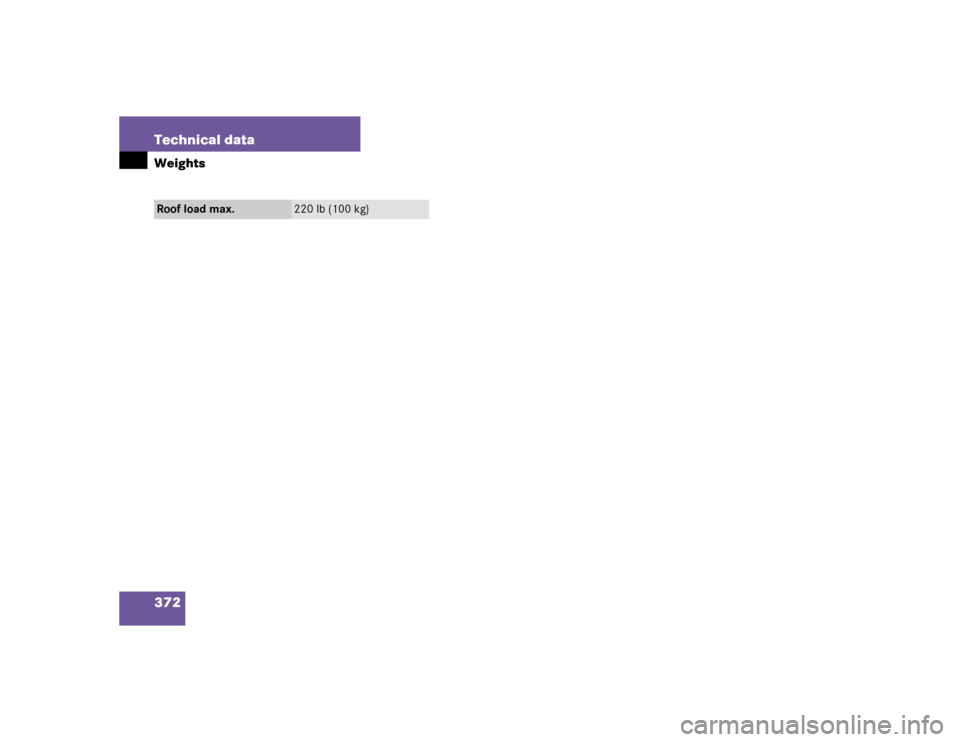

372 Technical dataWeightsRoof load max.
220 lb (100 kg)

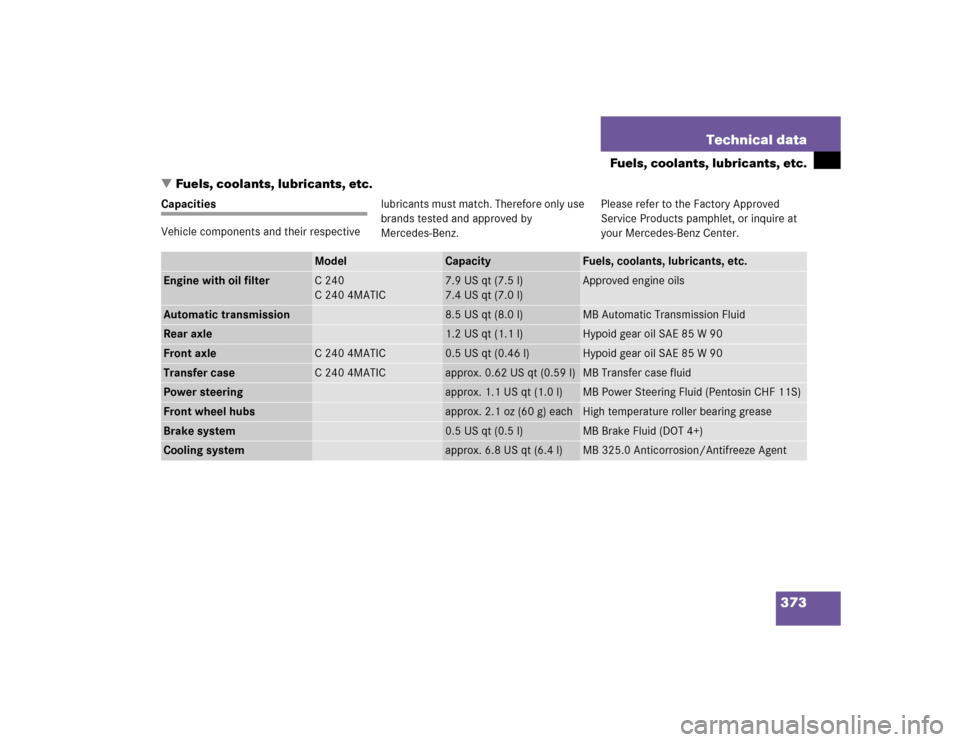

373 Technical data
Fuels, coolants, lubricants, etc.
Fuels, coolants, lubricants, etc.
Capacities
Vehicle components and their respectivelubricants must match. Therefore only use
brands tested and approved by
Mercedes-Benz.Please refer to the Factory Approved
Service Products pamphlet, or inquire at
your Mercedes-Benz Center.
Model
Capacity
Fuels, coolants, lubricants, etc.
Engine with oil filter
C240
C2404MATIC
7.9 US qt (7.5 l)
7.4 US qt (7.0 l)
Approved engine oils
Automatic transmission
8.5 US qt (8.0 l)
MB Automatic Transmission Fluid
Rear axle
1.2 US qt (1.1 l)
Hypoid gear oil SAE 85 W 90
Front axle
C2404MATIC
0.5 US qt (0.46 l)
Hypoid gear oil SAE 85 W 90
Transfer case
C2404MATIC
approx. 0.62 US qt (0.59 l)
MB Transfer case fluid
Power steering
approx. 1.1 US qt (1.0 l)
MB Power Steering Fluid (Pentosin CHF 11S)
Front wheel hubs
approx. 2.1 oz (60 g) each
High temperature roller bearing grease
Brake system
0.5 US qt (0.5 l)
MB Brake Fluid (DOT 4+)
Cooling system
approx. 6.8 US qt (6.4 l)
MB 325.0 Anticorrosion/Antifreeze Agent

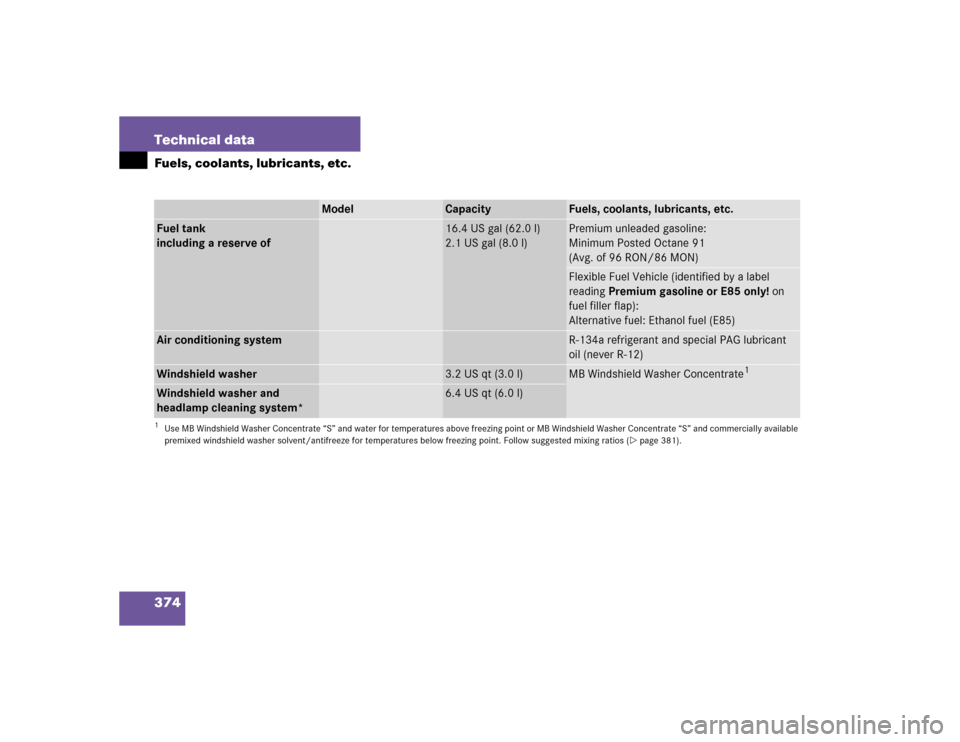

374 Technical dataFuels, coolants, lubricants, etc.
Model
Capacity
Fuels, coolants, lubricants, etc.
Fuel tank
including a reserve of
16.4 US gal (62.0 l)
2.1 US gal (8.0 l)
Premium unleaded gasoline:
Minimum Posted Octane 91
(Avg. of 96 RON/86 MON)Flexible Fuel Vehicle (identified by a label
reading Premium gasoline or E85 only! on
fuel filler flap):
Alternative fuel: Ethanol fuel (E85)
Air conditioning system
R-134a refrigerant and special PAG lubricant
oil (never R-12)
Windshield washer
3.2 US qt (3.0 l)
MB Windshield Washer Concentrate
1
Windshield washer and
headlamp cleaning system*
6.4 US qt (6.0 l)
1Use MB Windshield Washer Concentrate “S” and water for temperatures above freezing point or MB Windshield Washer Concentrate “S” and commercially available
premixed windshield washer solvent/antifreeze for temperatures below freezing point. Follow suggested mixing ratios (page 381).

375 Technical data
Fuels, coolants, lubricants, etc.
Engine oils
Engine oils are specifically tested for their
suitability in our engines and durability for
our service intervals. Therefore, only use
approved engine oils and oil filters
required for vehicles with Maintenance
System (U.S. vehicles) or FSS (Canada
vehicles). For a listing of approved engine
oils and oil filters, refer to the Factory
Approved Service Products pamphlet, or
contact an authorized Mercedes-Benz
Center.
Using engine oils and oil filters of
specification other than those expressly
required for the Maintenance System
(U.S. vehicles) or FSS (Canada vehicles), or
changing of oil and oil filter at change
intervals longer than those called for by
the Maintenance System (U.S. vehicles) or
FSS (Canada Vehicles) will result in engine
damage not covered by the
Mercedes-Benz Limited Warranty.Please follow Maintenance System
(U.S. vehicles) or FSS (Canada vehicles)
recommendations for scheduled oil
changes. Failure to do so will result in
engine damage not covered by the
Mercedes-Benz Limited Warranty.
Engine oil additives
Do not blend oil additives with engine oil.
They may damage the engine.
Damage or malfunctions resulting from
blending oil additives are not covered by
the Mercedes-Benz Limited Warranty.Air conditioning refrigerant
R-134a (HFC) refrigerant and special PAG
lubricating oil is used in the air
conditioning system.
Never use R-12 (CFC) or mineral-based
lubricating oil. Otherwise damage to the
system will occur.
Brake fluid
During vehicle operation, the boiling point
of the brake fluid is continuously reduced
through the absorption of moisture from
the atmosphere. Under extremely strenu-
ous operating conditions, this moisture
content can lead to the formation of
bubbles in the system, thus reducing the
system’s efficiency.
Therefore, the brake fluid must be
replaced every two years, preferably in the
spring.
Only brake fluid approved by
Mercedes-Benz is recommended. Your
authorized Mercedes-Benz Center will
provide you with additional information.

376 Technical dataFuels, coolants, lubricants, etc.Premium unleaded gasoline
Fuel requirements
Only use premium unleaded fuel:

The octane number (posted at the
pump) must be 91 min. It is an average
of both the Research (R) octane num-
ber and the Motor (M) octane number:
(R+M)/2). This is also known as the
ANTI-KNOCK INDEX.Unleaded gasoline containing oxygenates
such as Ethanol, IPA, IBA and TBA can be
used provided the ratio of any one of these
oxygenates to gasoline does not
exceed 10%; MTBE must not exceed 15%.
The ratio of Methanol to gasoline must not
exceed 3% plus additional cosolvents.
Using mixtures of Ethanol and Methanol is
not allowed. Gasohol, which contains 10%
Ethanol and 90% unleaded gasoline, can
be used.
These blends must also meet all other fuel
requirements, such as resistance to spark
knock, boiling range, vapor pressure, etc.
!To maintain the engine’s durability and
performance, premium unleaded gaso-
line must be used. If premium unleaded
is not available and low octane fuel is
used, follow these precautions:

Have the fuel tank only partially
filled with unleaded regular and fill
up with premium unleaded as soon
as possible.


Avoid full throttle driving and abrupt
acceleration.


Do not exceed an engine speed of
3 000 rpm if the vehicle is loaded
with a light load such as two
persons and no luggage.


Do not exceed
2/3 of maximum
accelerator pedal position if the
vehicle is fully loaded or operating
in mountainous terrain.
iFlexible Fuel Vehicles (identified by a
label reading Premium gasoline or
E85 only! are designed to operate on
premium unleaded gasoline or Ethanol
fuel (E85) or any mixture of these two.
For more information, see “Flexible
Fuel Vehicles” (
page 377).

377 Technical data
Fuels, coolants, lubricants, etc.
Gasoline additives
A major concern among engine
manufacturers is carbon build-up caused
by gasoline. Mercedes-Benz recommends
only the use of quality gasoline containing
additives that prevent the build up of
carbon deposits.
After an extended period of using fuels
without such additives, carbon deposits
can build up especially on the intake valves
and in the combustion area, leading to
engine performance problems such as:

Warm-up hesitation


Unstable idle


Knocking/pinging


Misfire


Power lossIn areas where carbon deposits may be
encountered due to lack of availability of
gasolines which contain these additives,
Mercedes-Benz recommends the use of
additives approved by us for use on
Mercedes-Benz vehicles. Refer to Factory
Approved Service Products pamphlet for a
listing of approved product(s). Follow
directions on product label.
Do not blend any specific fuel additives
with fuel. This only results in unnecessary
cost and may be harmful to engine
operation.
Damage or malfunction resulting from
poor fuel quality or from blending
additional fuel additives other than those
tested and approved by us for use on
Mercedes-Benz vehicles listed in the
Factory Approved Service Products
pamphlet are not covered by the
Mercedes-Benz Limited Warranty.
Flexible Fuel Vehicles
Flexible Fuel Vehicles are identified by a
label reading Premium gasoline or E85
only! on fuel filler flap.
These vehicles are designed to operate on
premium unleaded gasoline or Ethanol
fuel (E85), or on any mixture of these two.
Ethanol fuel (E85) is a mixture of
approximately 85% ethanol and 15%
unleaded gasoline.Warning!
G
Ethanol fuel (E85) and its fumes are highly
flammable, poisonous and burn easily. Etha-
nol fuel can cause serious injuries if ignited
or if you come into contact with it or inhale
fumes of it. Avoid inhalation of ethanol
fumes and skin contact with ethanol. Extin-
guish all open flames before fueling. Never
smoke or create sparks close to ethanol.

378 Technical dataFuels, coolants, lubricants, etc.Switching fuels
For best performance and driveability it is
recommended to use either one or the
other fuel. A refueling pattern that
alternates between the two different fuels
should be avoided if possible.
When switching fuels, make sure:

Fuel level is below half full.


Fuel level is above reserve (fuel reserve
warning lamp is not lit).


Amount of added fuel is more than
5gallons (20liters).


Ignition is off during refill.


Immediately after refueling engine is
started and operated for at least five
minutes.
These precautions and recommendations
are supposed to prevent any difficulties
when starting and operating the engine
which otherwise may be experienced
before the engine has fully adapted to the
different fuel.If in spite of these recommendations the
engine does not perform properly, adding
more gasoline [at least 3 gallons
(12 liters)] to the fuel may improve the
engine behavior.
Cold weather performance
It is possible that starting times will signif-
icantly increase at temperatures
below 32°F (0°C). At low temperatures
the use of a block heater (Canada only) is
recommended (see an authorized
Mercedes-Benz Center for further
information). Rough idling may also be
experienced at such temperatures before
the engine is fully warmed up.Hot weather performance
At ambient temperatures above 95°F
(35°C) start times may increase and be
accompanied by a rough idle following the
start.
Cruising range
E85 fuel contains less energy per gallon
than gasoline. To make sure that engine
performance with ethanol fuel is similar to
that when using gasoline, the engine must
burn more ethanol fuel. As a result, it is to
be expected that the fuel consumption will
increase when using E85 compared to
gasoline operation.
Maintenance
Please inform your Mercedes-Benz Center
if you use or have used E85 fuel when your
vehicle is delivered for maintenance or
repairs.
!E85 fuel is unsuitable for use when
ambient temperatures fall below 14°F
(-10°C).
iUse of E85 may reduce your driving
range.
