MERCEDES-BENZ CL-Class 2002 C215 Comand Manual

Telephone
Telephone119
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Begin dialing:
Press the rotary/pushbutton
to confirm the “Send”
button. The “End” button will now be highlighted. The
message “Dialing” will appear.
Note:
If the list is empty, the message “No entry in list” will
appear.
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
. The main telephone menu is activated and the phone
number or name selected will appear.
P82.85-6073-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 119

120 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Dialing from calls list
Use the rotary/pushbutton
to highlight and confirm
the “Calls” menu field in the main telephone menu.
The incoming calls memory will be activated.Turn the rotary/pushbutton
to select the desired
phone number.
Begin dialing:
Press the rotary/pushbutton (to confirm the “Send”
button). The “End” button is highlighted.
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
.
P82.85-6074-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 120

Telephone
Telephone121
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Speed-dialing (only with COMAND)
For all memory locations
When the main telephone menu is on display enter the
memory location desired with the number keys, e.g.
. You can enter up to 2 digits.Begin dialing, use one of the two ways:
• Press the rotary/pushbutton
to confirm the
“Send” button. The “End” button will now be
highlighted.
• Press the last number key longer than
2 seconds.
Important!
If you enter “1” and press the rotary/pushbutton
,
the number stored in memory location 1 (default is
9-1-1) will be dialed.
Pressing or holding “1” longer than 2 seconds will also
initiate the call.
The 9-1-1 emergency call system is a public service.
Using it without due cause is a criminal offense.
P82.85-6075-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 121

122 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Ending a call, use one of the three ways:
• Press the rotary/pushbutton
to confirm the
“End” button
• Press
• Press
.
The phone number or name will appear in the menu.
When the call is initiated, the call time will appear on
the screen.
P82.85.6076-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 122

Telephone
Telephone123
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings Quick-dialing (for the first 10 memory locations)
The main telephone menu is displayed:
Press
through
longer than 2 seconds.Important:
Pressing or holding “1” longer than 2 seconds will
initiate the emergency call 9-1-1 (default), page 121.
The phone number or the name stored at this memory
location will appear on the screen.
When the call is initiated, the call time will appear on
the screen.
Ending the call, page 113.
P82.85-6077-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 123

124 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Notebook
You can enter a telephone number in the notebook or
edit an existing one at any time, if the main telephone
menu is displayed.
To open the notebook:
Use the rotary/pushbutton
to highlight the “
”
symbol and press to confirm.
Then use the rotary/pushbutton
to highlight the
“Notebook” menu field and press to confirm.To enter the telephone number:
Use the number keys
through
, or press
and
.
To correct input:
• Press
briefly or use the rotary/pushbutton
to highlight the back arrow and confirm by press-
ing – the last digit will be corrected
• Press
longer than 2 seconds – the whole entry
will be corrected.
To close the notebook and store input:
Press
.
Dialing a telephone number from the notebook
To open the notebook, see information on the left.
When the telephone number in the notebook appears,
press the rotary/pushbutton
to dial the number.
Note:
The telephone number in the notebook can be trans-
ferred to the phone book, page 115.
P82.85-6078-26
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 124

Telephone
Telephone125
Introduction
AudioTelephone
Navigation
Index Info Services and

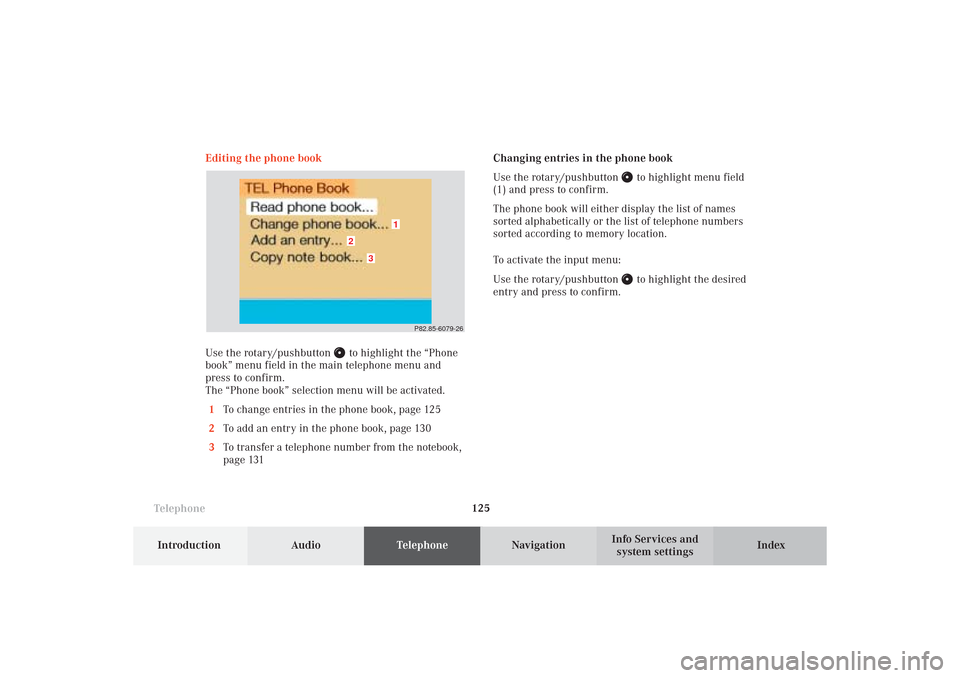

system settings Changing entries in the phone book
Use the rotary/pushbutton
to highlight menu field
(1) and press to confirm.
The phone book will either display the list of names
sorted alphabetically or the list of telephone numbers
sorted according to memory location.
To activate the input menu:
Use the rotary/pushbutton to highlight the desired
entry and press to confirm. Editing the phone book
Use the rotary/pushbutton
to highlight the “Phone
book” menu field in the main telephone menu and
press to confirm.
The “Phone book” selection menu will be activated.
1To change entries in the phone book, page 125
2To add an entry in the phone book, page 130
3To transfer a telephone number from the notebook,
page 131
P82.85-6079-26
3
2
1
08-TELEFON-25-US.pm509.07.2004, 14:22 Uhr 125

126 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
To change a name:
4Phone book entry selected,
enter up to 20 characters
5Character list,
selection of letters, digits and special characters
6Zoom, character selected appears magnified
7Confirm the changed entry
8Deletes the entry in the phone book, page 129To correct input:
• Press
briefly or use the rotary/pushbutton
to highlight the back arropw and confirm by
pressing – the last digit will be corrected
• Press
longer than 2 seconds – the whole entry
will be corrected.
Use the rotary/pushbutton
to highlight the desired
character one after the other and press to confirm. A
character selected will be displayed magnified (6).
The name will be entered in the input line (4). The
input cursor indicates the current input position.
P82.85.6449-26
4
5
6
7
8
08-TELEFON-25-US.pm509.07.2004, 14:23 Uhr 126

Telephone
Telephone127
Introduction
AudioTelephone
Navigation
Index Info Services and
system settings To adopt the character selected and to enter it in the
input line:
• press
or turn the rotary/pushbutton
• automatically after 2 seconds.
Select one of the options to store a name changed in the
phone book:
• Use the rotary/pushbutton
highlight the “OK”
menu field and press it to confirm.
• Press and hold down the rotary/pushbutton
to
confirm the last letter of the name.
The menu for entering telephone numbers (page 128)
will appear.
If you do not wish to save the changes:
Press
. Note:
The characters can also be selected using the numerical
keys. Each numerical key has more than one assign-
ment.
Select a character by pressing the key as listed below the
corresponding number of times. The character selected
(6) will appear magnified.
Button 1: , . – 1 : ‘ /
Button 2: A B C 2 Ä Å Æ Ç
Button 3: D E F 3 É È
Button 4: G H I 4 IJ
Button 5: J K L 5
Button 6: M N O 6 Ñ Ö Ø Œ
Button 7: P Q R S 7
Button 8: T U V 8 Ü
Button 9: W X Y Z 9
Button 0: Blank 0
08-TELEFON-25-US.pm509.07.2004, 14:23 Uhr 127

128 Telephone
AudioTelephoneNavigation
Index Info Services and
system settings Introduction
Changing a telephone number:
9Current name or name previously changed (brown)
will not be displayed if there is no name entry in
the phone book for the telephone number con-
cerned.
10Input line, marked when activated
11Telephone number will be stored in the phone book
Enter the telephone number using the numerical keys
through
, or press
and
.To correct input:
• Press
briefly or use the rotary/pushbutton
to highlight the back arrow and confirm by
pressing – the last digit will be corrected
• Press
longer than 2 seconds – the whole entry
will be corrected.
To store the telephone number in the phone book:
Use the rotary/pushbutton
to highlight menu field
(11) and press to confirm.
The main telephone menu will be activated.
P82.85-6081-26
9
11
10
08-TELEFON-25-US.pm509.07.2004, 14:23 Uhr 128
