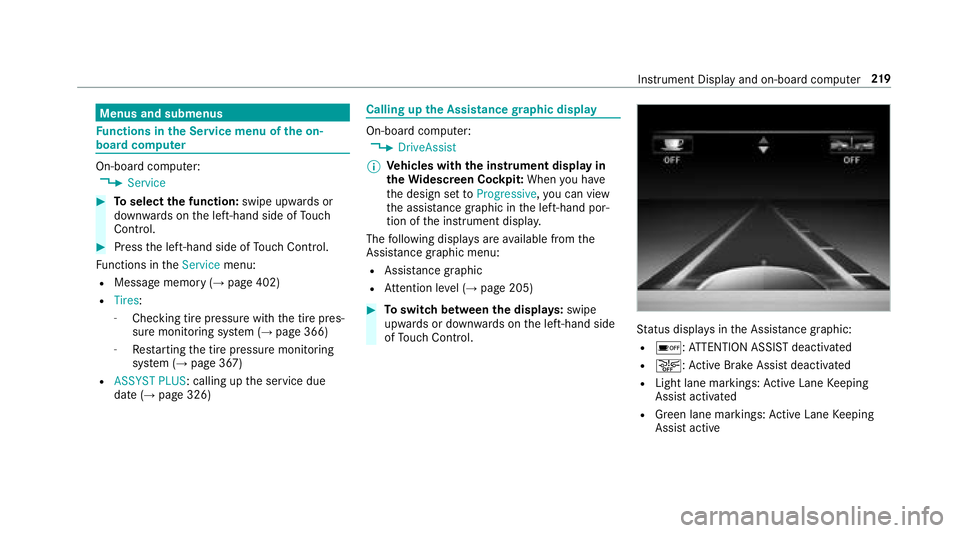

Menus and submenus
Functions in the Service menu of the on-
board compu ter
On-board computer:
, 6 H U Y L F H
#To select the function: swipe upwards or
down wards on the left-hand side of Touch
Control.
#Press the left-hand side of Touch Control.
Fu nctions in the 6 H U Y L F H menu:
RMessage memory (→page 402)
R 7 L U H V:
-Checking tire pressure with the tire pres‐
sure monitoring sy stem (→page 366)
-Re starting the tire pressure monitoring
sy stem (→page 367)
R $ 6 6 < 6 7 3 / 8 6: calling up the service due
date (→page 326)
Calling up the Assistance graphic display
On-board computer:
, ' U L Y H $ V V L V W
% Ve
hicles with the instrument display in
th eWi descreen Co ckpit: When you ha ve
th e design set to 3 U R J U H V V L Y H ,yo u can view
th e assis tance graphic in the left-hand por‐
tion of the instrument displa y.
The following displa ysare available from the
Assist ance graphic menu:
RAssistance graphic
RAt tention le vel (→page 205)
#To switch between the displa ys:swipe
up wa rds or down wards on the left-hand side
of Touch Control.
Status displa ysinthe Assis tance graphic:
Ré: ATTENTION ASSIST deactivated
Ræ: Active Brake Assi stdeactivated
RLight lane markings: Active Lane Keeping
Assist activated
RGreen lane markings: Active Lane Keeping
Assist active
Instrument Display and on-board computer 21
9
Page 222 of 506

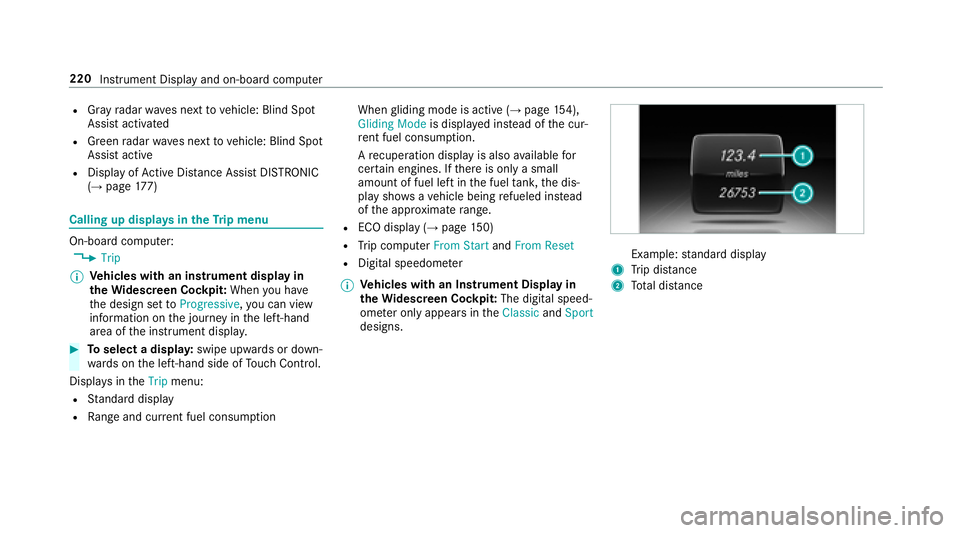

RGray radar waves next tovehicle: Blind Spot
Assist activated
RGreen radar waves next tovehicle: Blind Spot
Assist active
RDisplay of Active Dis tance Assist DISTRONIC
(→pa ge 177)
Calling up displays in theTr ip menu
On-board computer:
, 7 U L S
% Ve
hicles with an instrument display in
th eWi descreen Co ckpit: When you ha ve
th e design set to 3 U R J U H V V L Y H ,yo u can view
information on the journey in the left-hand
area of the instrument displa y.
#Toselect a displa y:swipe upwards or down‐
wa rds on the left-hand side of Touch Control.
Dis playsinthe 7 U L S menu:
RStandard display
RRa nge and cur rent fuel consump tion When
gliding mode is active (
→page 154),
* O L G L Q J 0 R G H is displa yed ins tead of the cur‐
re nt fuel consump tion.
A recuperation displ ayis also available for
cer tain engines. If there is only a small
amount of fuel left in the fuel tank, the dis‐
play sho wsave hicle being refueled ins tead
of the appr oximate range.
RECO displ ay(→page 150)
RTrip computer ) U R P 6 W D U Wand ) U R P 5 H V H W
RDigital speedomet er
% Ve
hicles with an Instrument Display in
th eWi descreen Co ckpit: The digital speed‐
ome ter only appears in the & O D V V L F and 6 S R U W
designs.Example: standard display
1Trip dis tance
2To tal dis tance
220
Instrument Display and on-board computer
Page 223 of 506

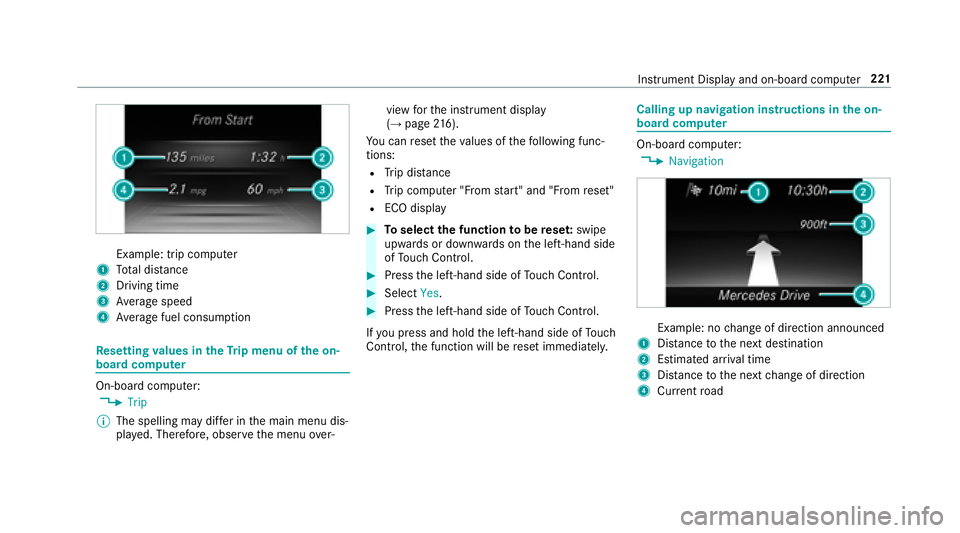

Example: trip computer
1Total dis tance
2Driving time
3Av erage speed
4Average fuel consum ption
Re setting values in theTr ip menu of the on-
board compu ter
On-board computer:
, 7 U L S
% The spelling may dif fer in the main menu dis‐
pla yed. Therefore, obser vethe menu over‐ view
forth e instrument display
(
→page 216).
Yo u can reset theva lues of thefo llowing func‐
tions:
RTr ip dis tance
RTrip computer "F rom start" and "F rom reset"
RECO display
#To select the function tobe rese t:swipe
upwards or down wards on the left-hand side
of Touch Control.
#Press the left-hand side of Touch Control.
#Select < H V.
#Pressthe left-hand side of Touch Control.
If yo upr ess and hold the left-hand side of Touch
Control, the function will be reset immediately.
Calling up navigation instructions in the on-
board compu ter
On-board computer:
, 1 D Y L J D W L R Q
Example: no change of direction announced
1Dis tance tothe next destination
2Estimated ar riva l time
3Dis tance tothe next change of direction
4Cur rent road
Inst rument Display and on-board computer 221
Page 224 of 506

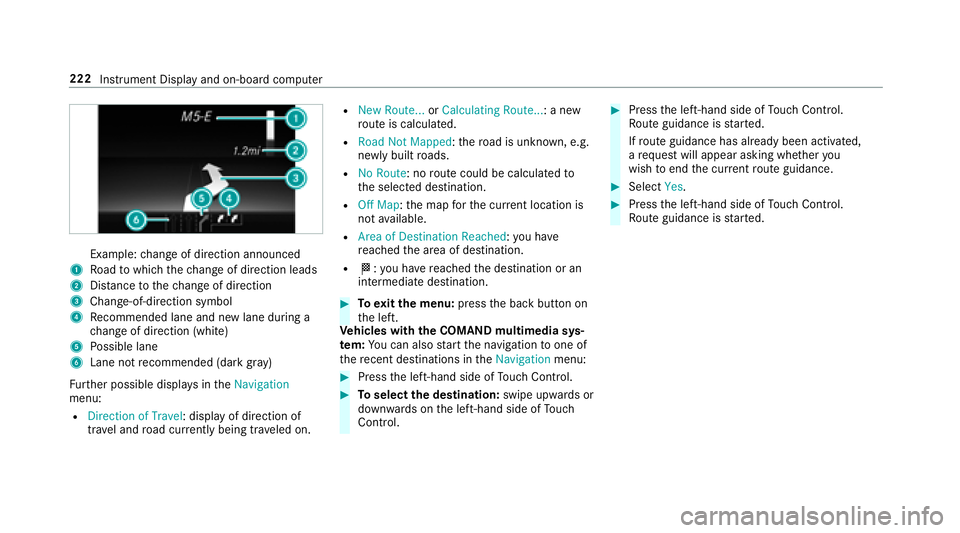

Example:change of direction announced
1Ro ad towhich thech ange of direction leads
2Dis tance tothech ange of direction
3Change -of-direction symbol
4Recommended lane and new lane duri ng a
ch ange of direction (white)
5Po ssible lane
6Lane not recommended (da rkgray )
Fu rther possible displa ysinthe 1 D Y L J D W L R Q
menu:
R ' L U H F W L R Q R I 7 U D Y H O: display of direction of
tra vel and road cur rently being tr aveled on.
R 1 H Z 5 R X W H or & D O F X O D W L Q J 5 R X W H : a new
ro ute is calculated.
R 5 R D G 1 R W 0 D S S H G :th ero ad is unknown, e.g.
newly built roads.
R 1 R 5 R X W H: no route could be calculated to
th e selected destination.
R 2 I I 0 D S: the map forth e cur rent location is
not available.
R $ U H D R I ' H V W L Q D W L R Q 5 H D F K H G: you ha ve
re ached the area of destination.
RO: you ha vereached the destination or an
intermediate destination.
#To exitth e menu: pressthe back button on
th e left.
Ve hicles with the COMAND multimedia sys‐
te m: You can also start the navigation toone of
th ere cent destinations in the 1 D Y L J D W L R Q menu:
#Pressthe left-hand side of Touch Control.
#To select the destination: swipe upwards or
down wards on the left-hand side of Touch
Control.
#Press the left-hand side of Touch Control.
Ro ute guidance isstar ted.
If ro ute guidance has already been activated,
a re qu est will appear asking whe ther you
wish toend the cur rent route guidance.
#Select < H V.
#Pressthe left-hand side of Touch Control.
Ro ute guidance isstar ted.
222
Instrument Display and on-board computer
Page 225 of 506

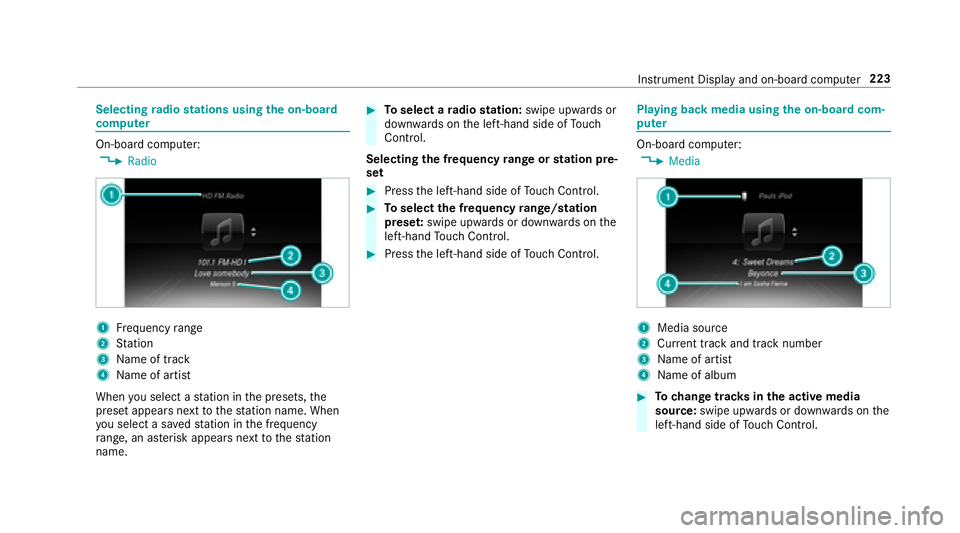

Selectingradio stations using the on-boa rd
compu ter
On-board computer:
, 5 D G L R
1Frequency range
2St ation
3Na me of track
4Name of artist
When you select a station in the presets, the
preset appears next tothest ation name. When
yo u select a sa vedstation in the frequency
ra nge, an as terisk appears nexttothest ation
name.
#To select a radio station: swipe upwards or
down wards on the left-hand side of Touch
Control.
Selecting the frequency range or station pre‐
set
#Press the left-hand side of Touch Control.
#To select the frequency range/station
prese t:swipe upwards or down wards on the
left-hand Touch Control.
#Press the left-hand side of Touch Control.
Playing back media using the on-boa rdcom‐
pu ter
On-board computer:
, 0 H G L D
1Media source
2Cur rent track and track number
3Na me of artist
4Name of album
#To change trac ksinthe active media
source: swipe upwards or down wards on the
left-hand side of Touch Control.
Instru ment Display and on-board computer 223
Page 226 of 506

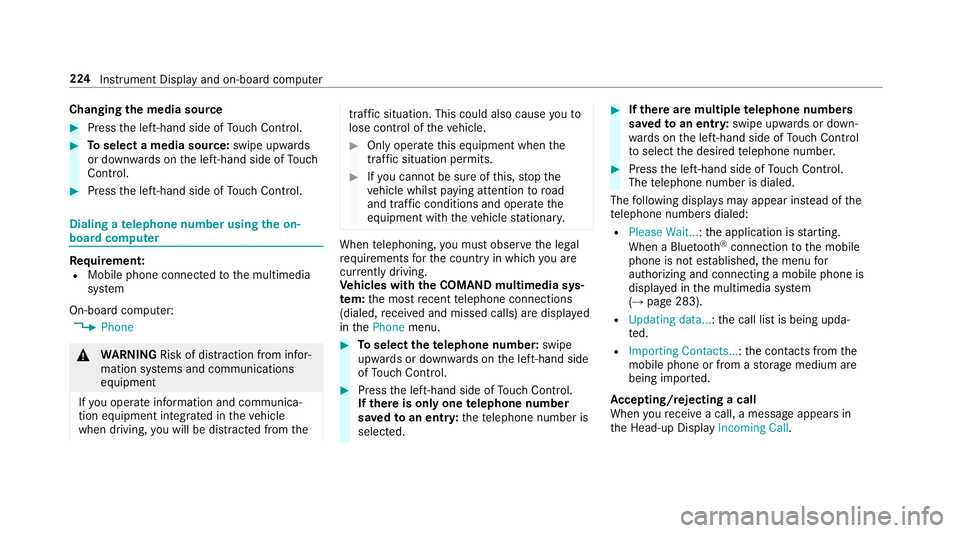

Changingthe media source
#Press the left-hand side of Touch Control.
#To select a media source: swipe upwards
or down wards on the left-hand side of Touch
Control.
#Press the left-hand side of Touch Control.
Dialing a telephone number using the on-
board compu ter
Re quirement:RMobile phone connec tedto the multimedia
sy stem
On-board computer:
, 3 K R Q H
& WARNING Risk of dist raction from infor‐
mation sy stems and communications
equipment
If yo u operate information and communica‐
tion equipment integrated intheve hicle
when driving, youwill be dis tracted from the
traf fic situation. This could also cause youto
lose control of theve hicle.
#Only operate this equipment when the
traf fic situation permits.
#If yo u cannot be sure of this, stop the
ve hicle whilst paying attention toroad
and traf fic conditions and ope rate the
equipment with theve hicle stationar y.
Whentelephoning, you must observ eth e legal
re qu irements forth e count ryin which you are
cur rently driving.
Ve hicles with the COMAND multimedia sys‐
te m: the most recent telephone connections
(dialed, receive d and missed calls) are displa yed
in the 3 K R Q H menu.
#Toselect thete lephone number: swipe
upwards or down wards on the left-hand side
of Touch Control.
#Press the left-hand side of Touch Control.
If th ere is only one telephone number
sa ve dto an entr y:thete lephone number is
selecte d.
#Ifth ere are multiple telephone numbers
sa ve dto an entr y:swipe upwards or down‐
wa rds on the left-hand side of Touch Control
to select the desired telephone number.
#Press the left-hand side of Touch Control.
The telephone number is dialed.
The following displa ysmay appear ins tead of the
te lephone numbers dialed:
R 3 O H D V H : D L W :th e application is starting.
When a Blue tooth®connection tothe mobile
phone is not es tablished, the menu for
authorizing and connecting a mobile phone is
displa yed in the multimedia sy stem
(
→page 283).
R 8 S G D W L Q J G D W D : the call list is being upda‐
te d.
R , P S R U W L Q J & R Q W D F W V :th e conta cts from the
mobile phone or from a storage medium are
being impor ted.
Ac cepting/rejecting a call
When youre ceive a call, a message appears in
th e Head-up Display , Q F R P L Q J & D O O.
224
Instrument Display and on-board computer
Page 227 of 506
#Swipe upwards or down wards on the left-
hand side of Touch Control and select 6
(Accept) or ~(Reject).
#Press the left-hand side of Touch Control.
The call may beaccep ted/rejec ted using the
6 or~ buttons on thesteering wheel.

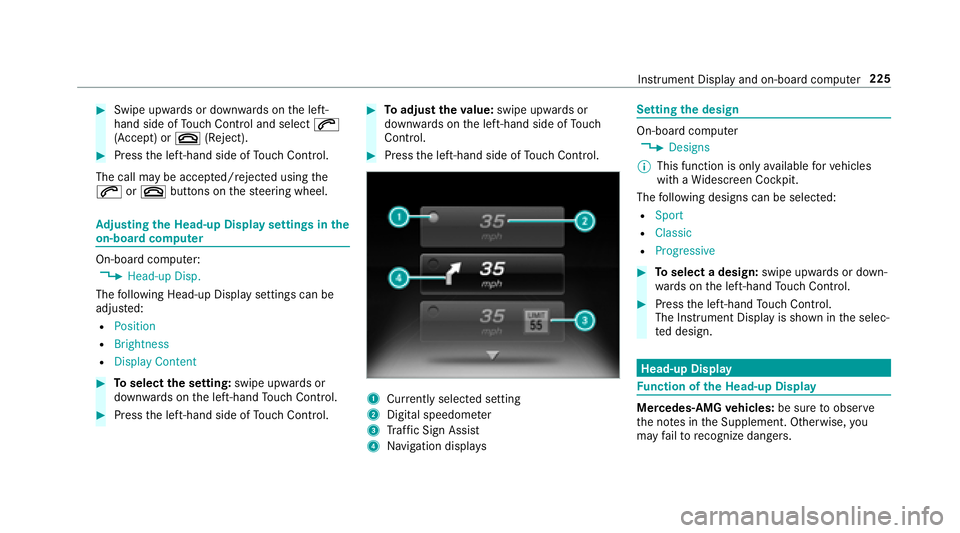

Ad justing the Head-up Displ aysettings in the
on-boa rdcompu ter
On-board computer:
, + H D G X S ' L V S
The following Head-up Display settings can be
adjus ted:
R 3 R V L W L R Q
R % U L J K W Q H V V
R ' L V S O D \ & R Q W H Q W
#To select the setting: swipe upwards or
down wards on the left-hand Touch Control.
#Press the left-hand side of Touch Control.
#To adjust theva lue: swipe upwards or
down wards on the left-hand side of Touch
Control.
#Press the left-hand side of Touch Control.
1Cur rently selected setting
2Digital speedome ter
3Traf fic Sign Assist
4Na vigation displa ys
Settingthe design
On-board computer
, ' H V L J Q V
% This function is only available forve hicles
with a Widescreen Cockpit.
The following designs can be selecte d:
R 6 S R U W
R & O D V V L F
R 3 U R J U H V V L Y H
#Toselect a design: swipe upwards or down‐
wa rds on the left-hand Touch Control.
#Press the left-hand Touch Control.
The Inst rument Display is shown in the selec‐
te d design.
Head-up Display
Fu nction of the Head-up Display
Mercedes-AMG vehicles: be sure toobser ve
th e no tes in the Supplement. Otherwise, you
may failto recognize dangers.
Instrument Display and on-board compute r225
Page 228 of 506

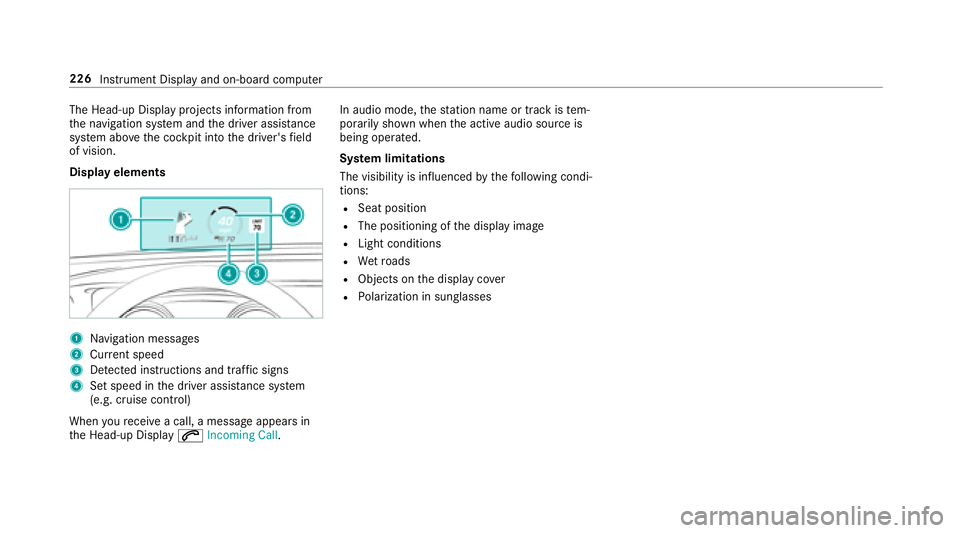

The Head-up Display projects information from
the navigation sy stem and the driver assis tance
sy stem abo vethe cockpit into the driver's field
of vision.
Display elements
1Na vigation message s
2Current speed
3De tected instructions and traf fic signs
4Set speed in the driver assis tance sy stem
(e.g. cruise control)
When youre ceive a call, a message appears in
th e Head-up Display 6 , Q F R P L Q J & D O O. In audio mode,
thest ation name or track is tem‐
porarily shown when the active audio source is
being operated.
Sy stem limitations
The visibility is influenced bythefo llowing condi‐
tions:
RSeat position
RThe positioning of the display image
RLight conditions
RWe tro ads
RObjects on the display co ver
RPo larization in sunglasses
226
Instrument Display and on-board computer
Page 229 of 506

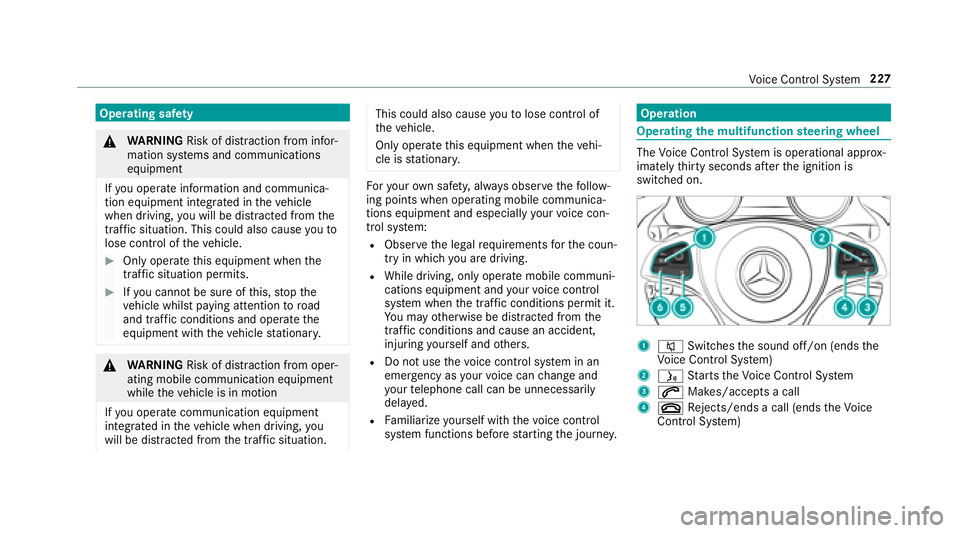

Operating safety
&
WARNING Risk of dist raction from infor‐
mation sy stems and communications
equipment
If yo u operate information and communica‐
tion equipment integ rated in theve hicle
when driving, youwill be dis tracted from the
traf fic situation. This could also cause youto
lose control of theve hicle.
#Only operate this equipment when the
traf fic situation permits.
#If yo u cannot besure of this, stop the
ve hicle whilst paying attention toroad
and traf fic conditions and ope rate the
equipment with theve hicle stationar y.
&
WARNING Risk of dist raction from oper‐
ating mobile communication equipment
while theve hicle is in motion
If yo u operate communication equipment
integrated intheve hicle when driving, you
will be distracted from the tra ffic situation.
This could also cause youto lose control of
th eve hicle.
Only operate this equipment when theve hi‐
cle is stationar y.
Foryo ur ow n safe ty, always obser vethefo llow‐
ing points when operating mobile communica‐
tions equipment and especially your voice con‐
trol sy stem:
RObser vethe legal requ irements forth e coun‐
try in which you are dr iving.
RWhile driving, only oper ate mobile communi‐
cations equipment and your voice control
sy stem when the tra ffic conditions permit it.
Yo u may otherwise be distracted from the
traf fic conditions and cause an accident,
injuri ngyourself and others.
RDo not use thevo ice control sy stem in an
emer gency as your voice can change and
yo ur telephone call can be unnecessarily
dela yed.
RFa miliarize yourself with thevo ice control
sy stem functions before starting the journe y.
Operation
Operating the multifunction steering wheel
The Voice Cont rol Sy stem is operational appr ox‐
imately thirty seconds af terth e ignition is
switched on.
18 Switches the sound off/on (ends the
Vo ice Cont rol Sy stem)
2ó Starts theVo ice Cont rol Sy stem
36 Makes/accepts a call
4~Rejects/ends a call (ends theVo ice
Cont rol Sy stem)
Vo ice Cont rol Sy stem 227
Page 230 of 506

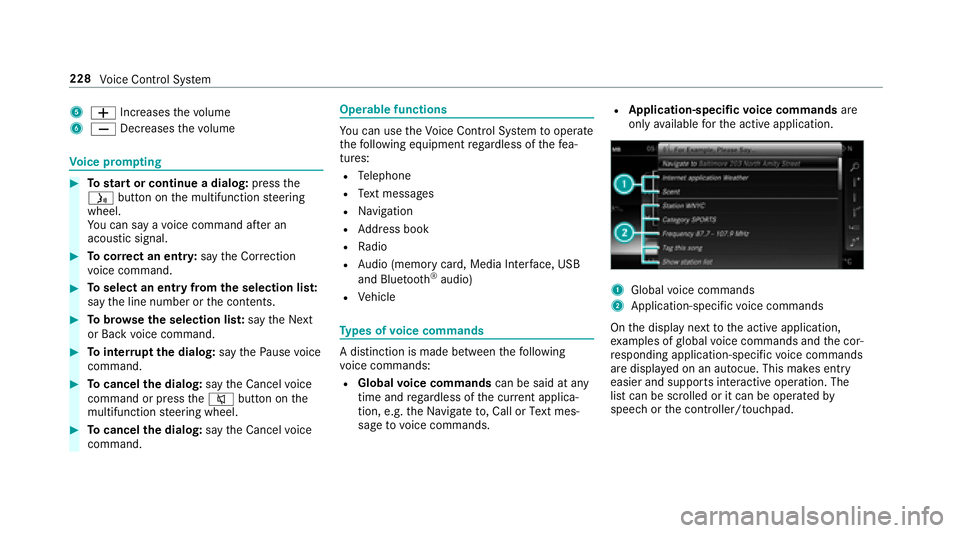

5WIncreases thevo lume
6X Decreases thevo lume
Vo ice prom pting
#To start or continue a dialog: pressthe
ó button on the multifunction steering
wheel.
Yo u can say a voice command af ter an
acou stic signal.
#To cor rect an entry :say the & R U U H F W L R Q
vo ice command.
#To select an entry from the selection lis t:
say the line number or the conte nts.
#Tobrows eth e selection lis t:say the 1 H [ W
or % D F N voice command.
#To inter rupt the dialog: saythe 3 D X V H voice
command.
#To cancel the dialog: saythe & D Q F H O voice
command or press the8 button on the
multifunction steering wheel.
#To cancel the dialog: saythe & D Q F H O voice
command.
Operable functions
Yo u can use theVo ice Cont rol Sy stem tooperate
th efo llowing equipment rega rdless of thefe a‐
tures:
RTe lephone
RText message s
RNavigation
RAddress book
RRadio
RAu dio (memory card, Media Inter face, USB
and Blu etoo th®audio)
RVe hicle
Types of voice commands
A distinction is made between thefo llowing
vo ice commands:
RGlobal voice commands can be said at any
time and rega rdless of the cur rent applica‐
tion, e.g. the 1 D Y L J D W H W R, & D O Oor 7 H [ W P H V
V D J H W R voice commands.
RApplication-specific voice commands are
only available forth e active application.
1Global voice commands
2Application-specific voice commands
On the display next tothe active application,
ex amples of global voice commands and the cor‐
re sponding application-specific voice commands
are displa yed on an autocue. This makes ent ry
easier and supports interactive operation. The
list can be scrolled or it can be operated by
speech or the controller/touchpad.
228
Voice Cont rol Sy stem
