MERCEDES-BENZ G500 2002 W463 Owner's Manual

328 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Exterior lamps
Headlamp adjustment
Correct headlamp adjustment is extremely important.
Check and readjust headlamps at regular intervals and
when a bulb has been replaced.Replacing bulbs
To prevent a possible electrical short circuit, switch off
lamp prior to replacing a bulb.
When replacing bulbs, install only 12 volt bulbs with
the specified watt rating.
When replacing halogen bulbs do not touch glass
portion of bulb with bare hands. Use plain paper or a
clean cloth.
Wa r n i n g !
Bulbs and bulb holders can be very hot. Allow the
lamp to cool down before changing a bulb.
Halogen lamps contain pressurized gas. A bulb can
explode if you:
• touch or move it when hot,
•drop the bulb,
• scratch the bulb.Wear eye and hand protection.
J_G463.book Seite 328 Mittwoch, 19. September 2001 8:06 08

329 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Headlamp assembly (Halogen)
1Securing screw
2Head lamp trim panel
3Headlamp
4Headlamp-securing screwTo r e m ove h e a d l a mp :
Unscrew securing screws (1) and remove head lamp
trim panel (2) and seal.
Unscrew headlamp-securing screws (4) and remove
headlamp (3).
Vehicle with brush guard (MB Accessory):
The brush guard must be lowered before the headlamp
bulbs can be replaced, see page 182.
4
4
4
J_G463.book Seite 329 Mittwoch, 19. September 2001 8:06 08

330 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
5Protection cover
6Electrical connector (standing- and parking lamp)
7Electrical connector (high- and low beam)8Retainer spring
9Bulb for high- and low beam
10Bulb socket for standing- and parking lamp
J_G463.book Seite 330 Mittwoch, 19. September 2001 8:06 08

331 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index Bulbs for low and high beam
H4 60 / 55W 12V
Remove protection cover (5) and pull off electrical
connector (6).
Unclip retainer spring (8) and take out bulb (9).
Insert new bulb so that the base locates in the recess on
the holder.
Clip in retainer spring (8), plug the electrical
connector (6) onto the bulb (9) and press on protection
cover (5).
Bulbs for parking and standing lamp
T 4W 12V
Pull off electrical connector (6) from the bulb (10).
Push bulb (10) into socket, turn counterclockwise and
remove.
Insert new bulb (10) in socket, push in and turn
clockwise until it clicks in.
Plug electrical connector (6) onto the bulb (10).To reinstall headlamp:
Insert headlamp (3) and screw in headlamp-securing
screws (4).
Install head lamp trim panel (2) and seal and screw in
securing screws (1).
J_G463.book Seite 331 Mittwoch, 19. September 2001 8:06 08

332 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

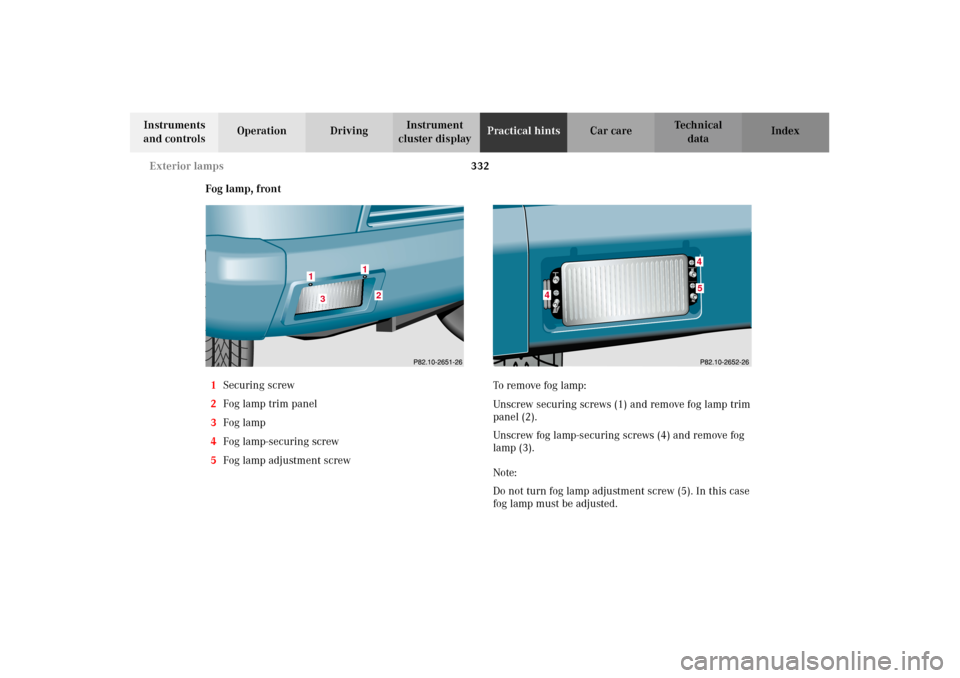

Fog lamp, front
1Securing screw
2Fog lamp trim panel
3Fog lamp
4Fog lamp-securing screw
5Fog lamp adjustment screwTo r e m ove fo g l a mp :
Unscrew securing screws (1) and remove fog lamp trim
panel (2).
Unscrew fog lamp-securing screws (4) and remove fog
lamp (3).
Note:
Do not turn fog lamp adjustment screw (5). In this case
fog lamp must be adjusted.
1
1
3
2
4
45
J_G463.book Seite 332 Mittwoch, 19. September 2001 8:06 08

333 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

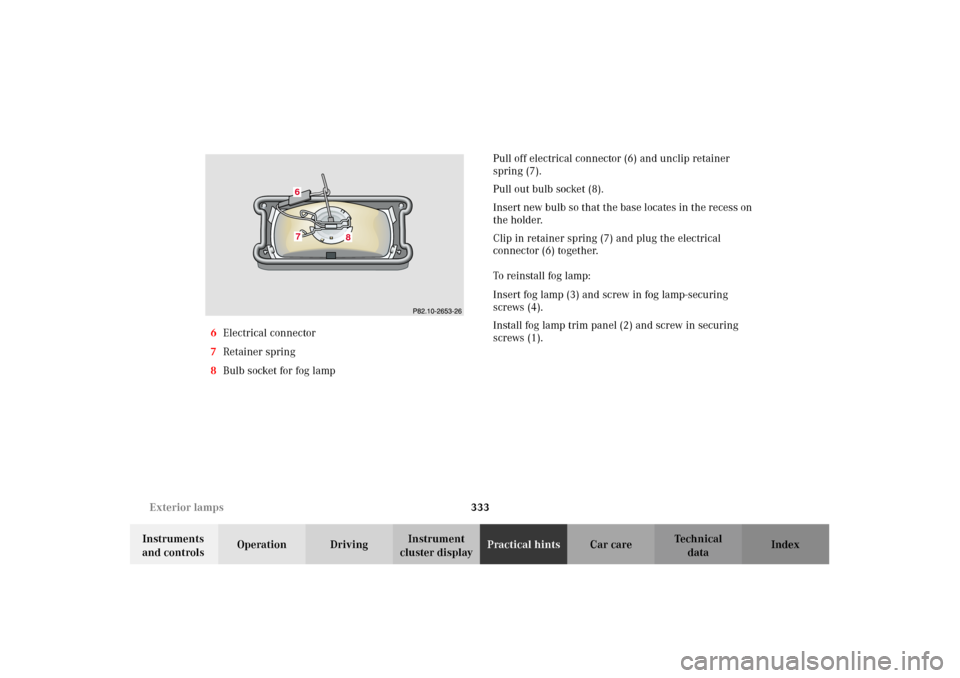

cluster displayPractical hintsCar care Index 6Electrical connector
7Retainer spring
8Bulb socket for fog lamp Pull off electrical connector (6) and unclip retainer
spring (7).
Pull out bulb socket (8).
Insert new bulb so that the base locates in the recess on
the holder.
Clip in retainer spring (7) and plug the electrical
connector (6) together.
To reinstall fog lamp:
Insert fog lamp (3) and screw in fog lamp-securing
screws (4).
Install fog lamp trim panel (2) and screw in securing
screws (1).
67
8
J_G463.book Seite 333 Mittwoch, 19. September 2001 8:06 08

334 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index
Turn signal lamp, front
1Securing screw
2Turn signal lens
3Bulb for turn signal lamp
PY 21W 12V (1156NA[cp 32])Unscrew securing screws (1) and remove turn signal
lens (2).
Push bulb (3) into socket, turn counterclockwise and
remove.
Insert new bulb (3) in socket, push in and turn
clockwise until it clicks in.
Install turn signal lens (2) and screw in securing
screws (1).
Do not overtighten the securing screws, as this could
cause the turn signal lens to break.
J_G463.book Seite 334 Mittwoch, 19. September 2001 8:06 08

335 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

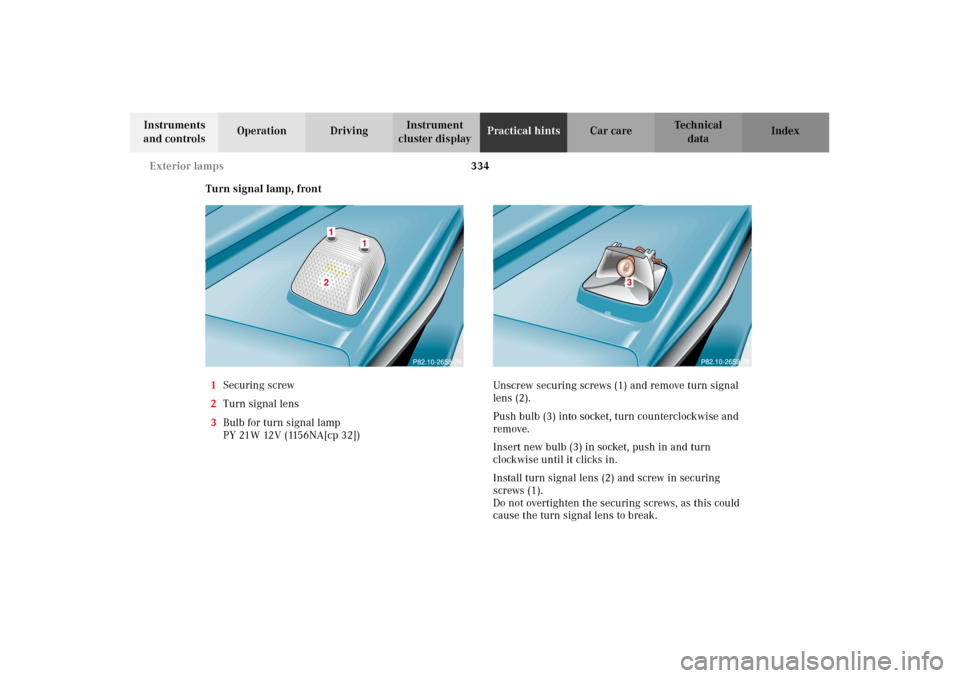

cluster displayPractical hintsCar care Index Turn signal lamp, side
1Securing screw
2Turn signal lamp housing
3Bulb socket for turn signal lamp, sideUnscrew securing screws (1) and remove turn signal
lamp housing (2).
Pull out bulb socket (3) from turn signal lamp
housing (2).
J_G463.book Seite 335 Mittwoch, 19. September 2001 8:06 08

336 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument
cluster displayPractical hintsCar care Index

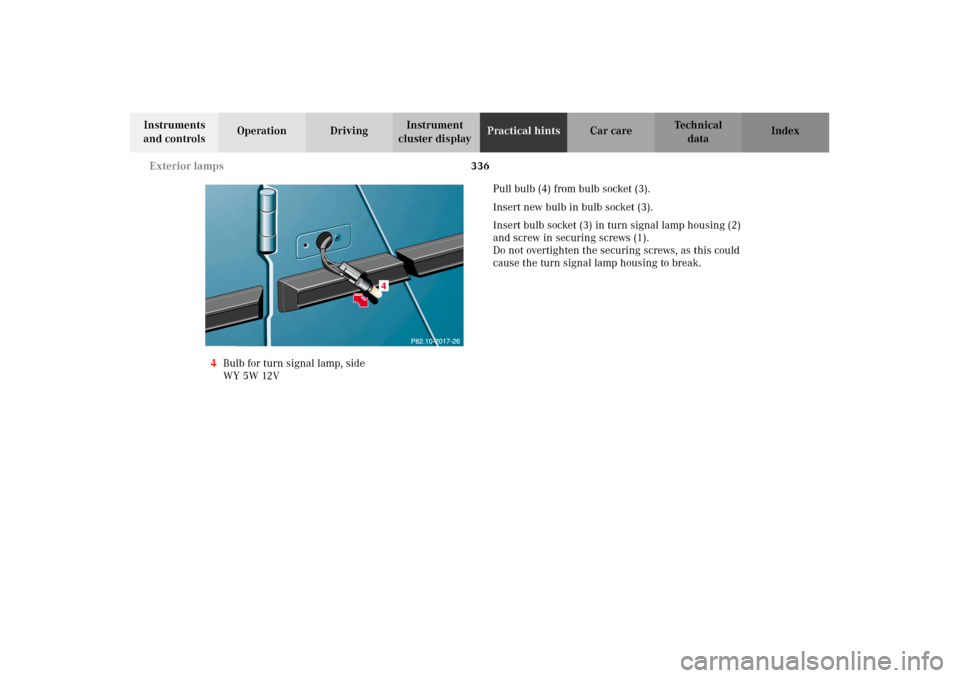

4Bulb for turn signal lamp, side
WY 5W 12V Pull bulb (4) from bulb socket (3).
Insert new bulb in bulb socket (3).
Insert bulb socket (3) in turn signal lamp housing (2)
and screw in securing screws (1).
Do not overtighten the securing screws, as this could
cause the turn signal lamp housing to break.
4
J_G463.book Seite 336 Mittwoch, 19. September 2001 8:06 08

337 Exterior lamps
Te ch n i c a l
data Instruments
and controlsOperation DrivingInstrument

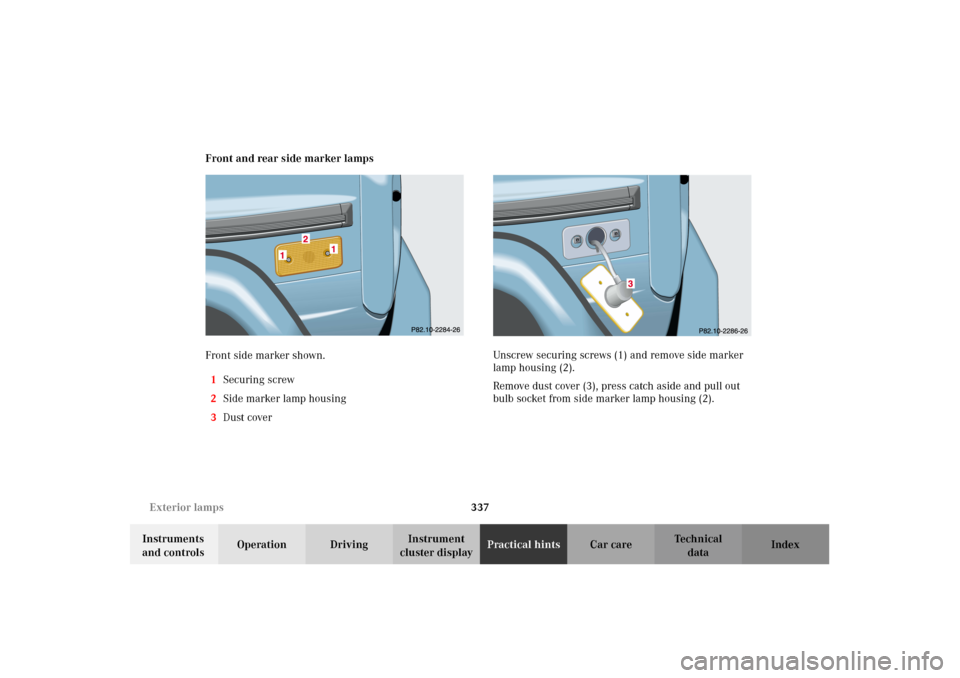

cluster displayPractical hintsCar care Index Front and rear side marker lamps
Front side marker shown.
1Securing screw
2Side marker lamp housing
3Dust coverUnscrew securing screws (1) and remove side marker
lamp housing (2).
Remove dust cover (3), press catch aside and pull out
bulb socket from side marker lamp housing (2).
