MERCEDES-BENZ GLC SUV 2015 Owners Manual

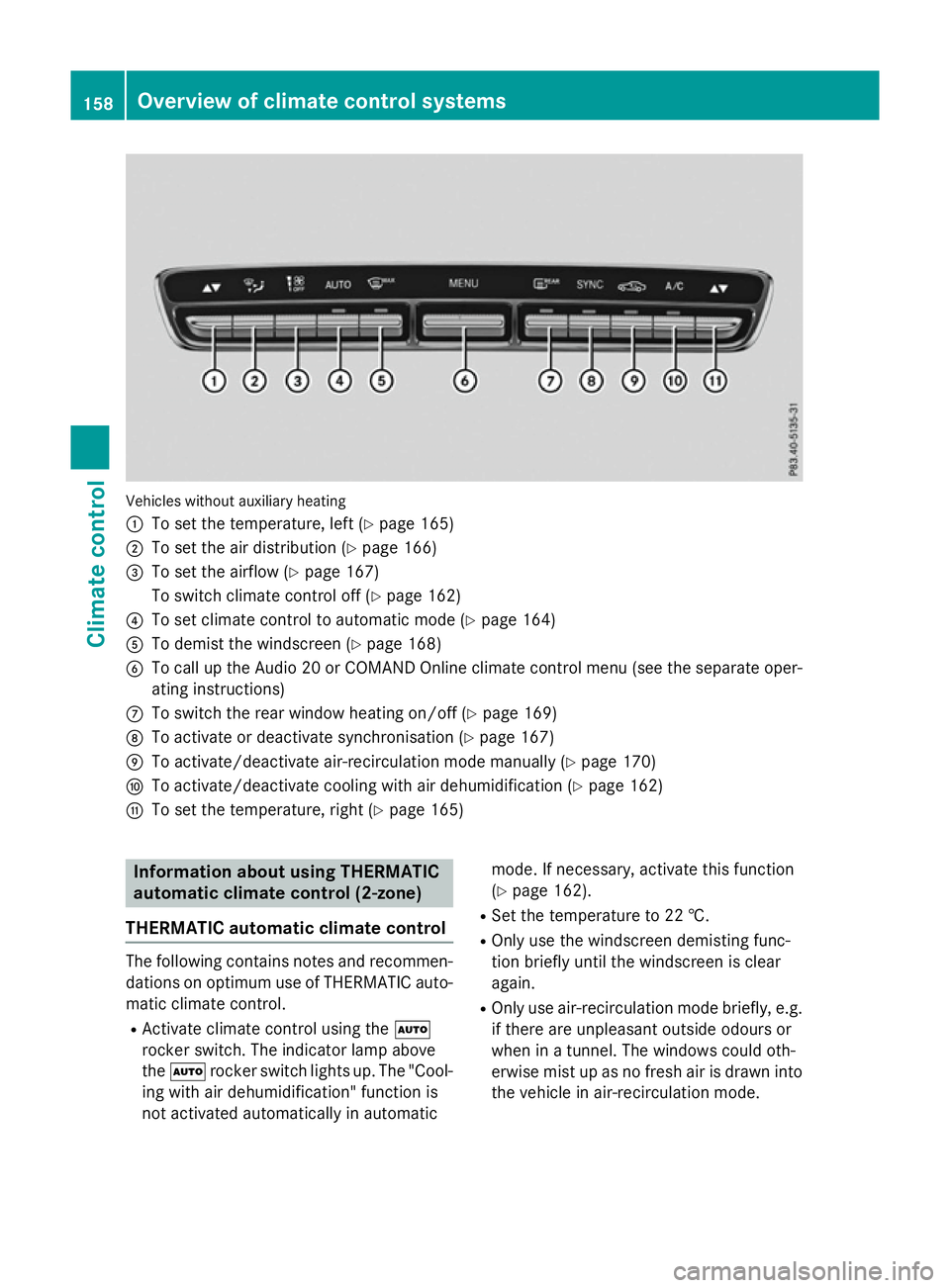

Vehicles without auxiliary heating
:
To set the temperature, left (Y page 165)
; To set the air distribution (Y page 166)
= To set the airflow (Y page 167)
To switch climate control off (Y page 162)
? To set climate control to automatic mode (Y page 164)
A To demist the windscreen (Y page 168)
B To call up the Audio 20 or COMAND Online climate control menu (see the separate oper-
ating instructions)
C To switch the rear window heating on/off (Y page 169)
D To activate or deactivate synchronisation (Y page 167)
E To activate/deactivate air-recirculation mode manually (Y page 170)
F To activate/deactivate cooling with air dehumidification (Y page 162)
G To set the temperature, right (Y page 165)Information about using THERMATIC
automatic climate control (2‑zone)
THERMATIC automatic climate control The following contains notes and recommen-
dations on optimum use of THERMATIC auto-
matic climate control.
R Activate climate control using the Ã
rocker switch. The indicator lamp above
the à rocker switch lights up. The "Cool-
ing with air dehumidification" function is
not activated automatically in automatic mode. If necessary, activate this function
(Y page 162).
R Set the temperature to 22 †.
R Only use the windscreen demisting func-
tion briefly until the windscreen is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odours or
when in a tunnel. The windows could oth-
erwise mist up as no fresh air is drawn into
the vehicle in air-recirculation mode. 158
Overview of climate control systemsClimate control

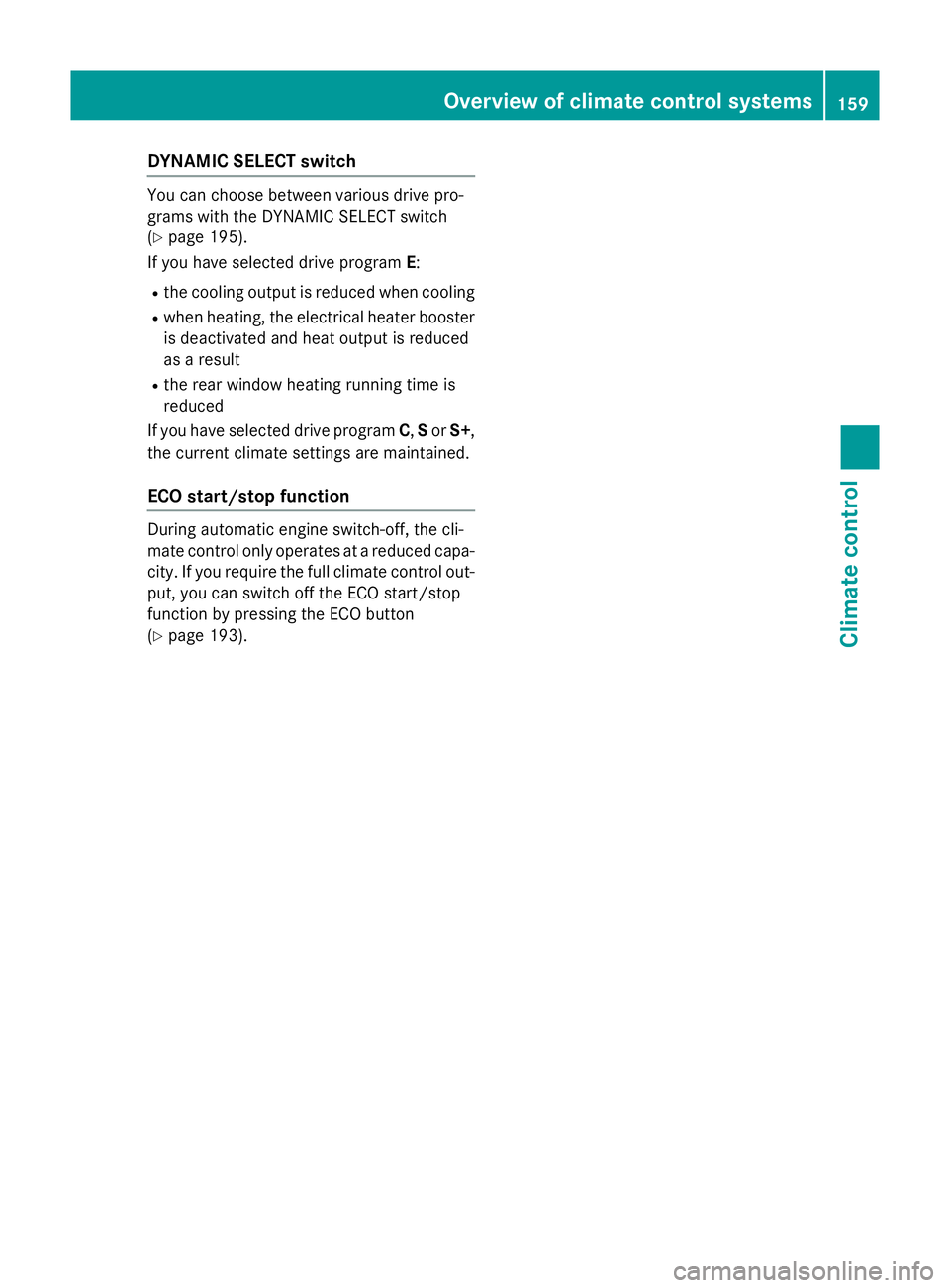

DYNAMIC SELECT switch
You can choose between various drive pro-
grams with the DYNAMIC SELECT switch
(Y page 195).
If you have selected drive program E:
R the cooling output is reduced when cooling
R when heating, the electrical heater booster
is deactivated and heat output is reduced
as a result
R the rear window heating running time is
reduced
If you have selected drive program C,Sor S+ ,
the current climate settings are maintained.
ECO start/stop function During automatic engine switch-off, the cli-
mate control only operates at a reduced capa- city. If you require the full climate control out-
put, you can switch off the ECO start/stop
function by pressing the ECO button
(Y page 193). Overview of climate cont
rol systems
159Climate control

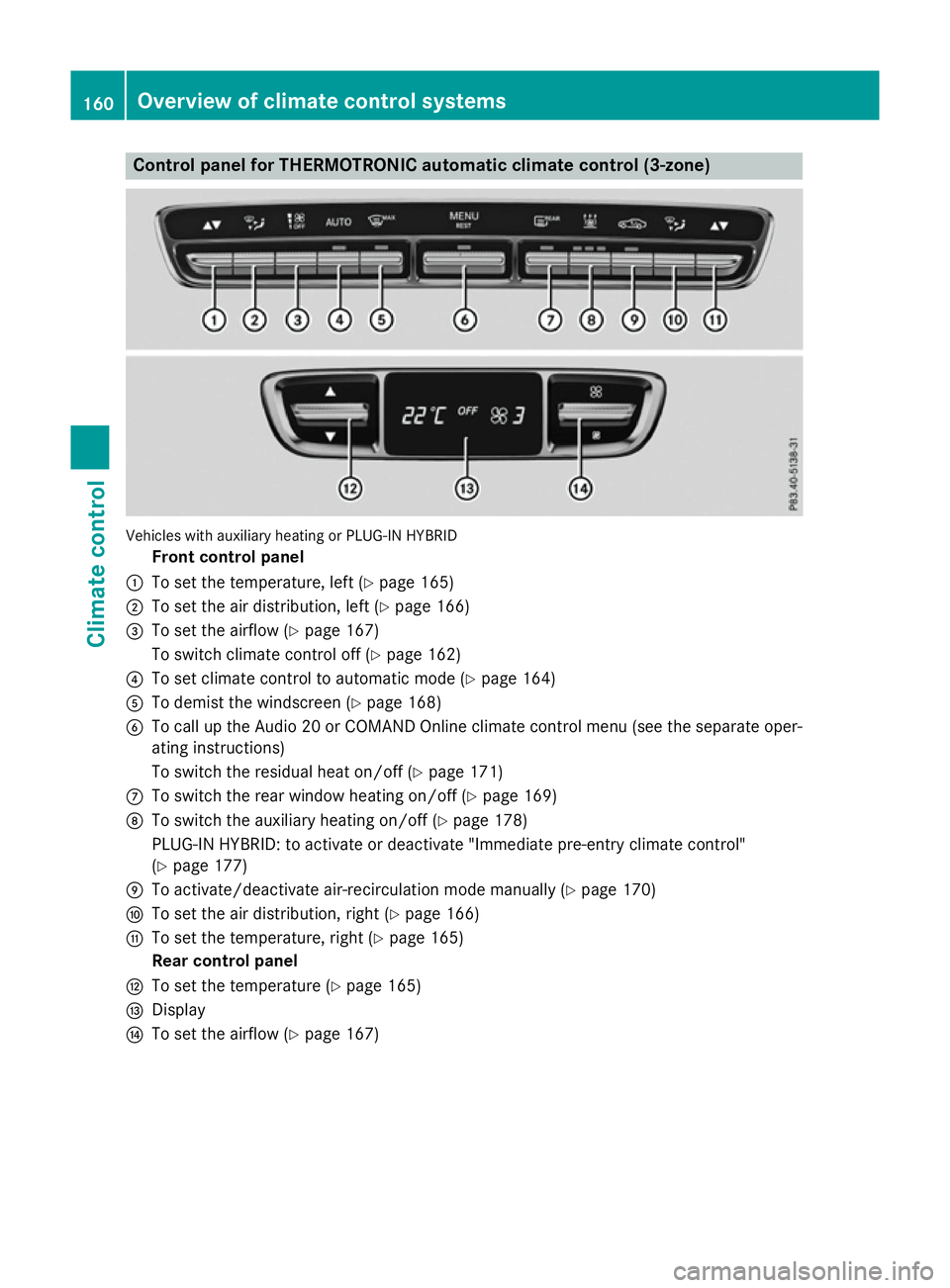

Control panel for THERMOTRONIC automatic climate control (3-zone)
Vehicles with auxiliary heating or PLUG-IN HYBRID
Front control panel
: To set the temperature, left (Y page 165)
; To set the air distribution, left (Y page 166)
= To set the airflow (Y page 167)
To switch climate control off (Y page 162)
? To set climate control to automatic mode (Y page 164)
A To demist the windscreen (Y page 168)
B To call up the Audio 20 or COMAND Online climate control menu (see the separate oper-
ating instructions)
To switch the residual heat on/off (Y page 171)
C To switch the rear window heating on/off (Y page 169)
D To switch the auxiliary heating on/off (Y page 178)
PLUG-IN HYBRID: to activate or deactivate "Immediate pre-entry climate control"
(Y page 177)
E To activate/deactivate air-recirculation mode manually (Y page 170)
F To set the air distribution, right (Y page 166)
G To set the temperature, right (Y page 165)
Rear control panel
H To set the temperature (Y page 165)
I Display
J To set the airflow (Y page 167)160
Overview of climate control systemsClimate control

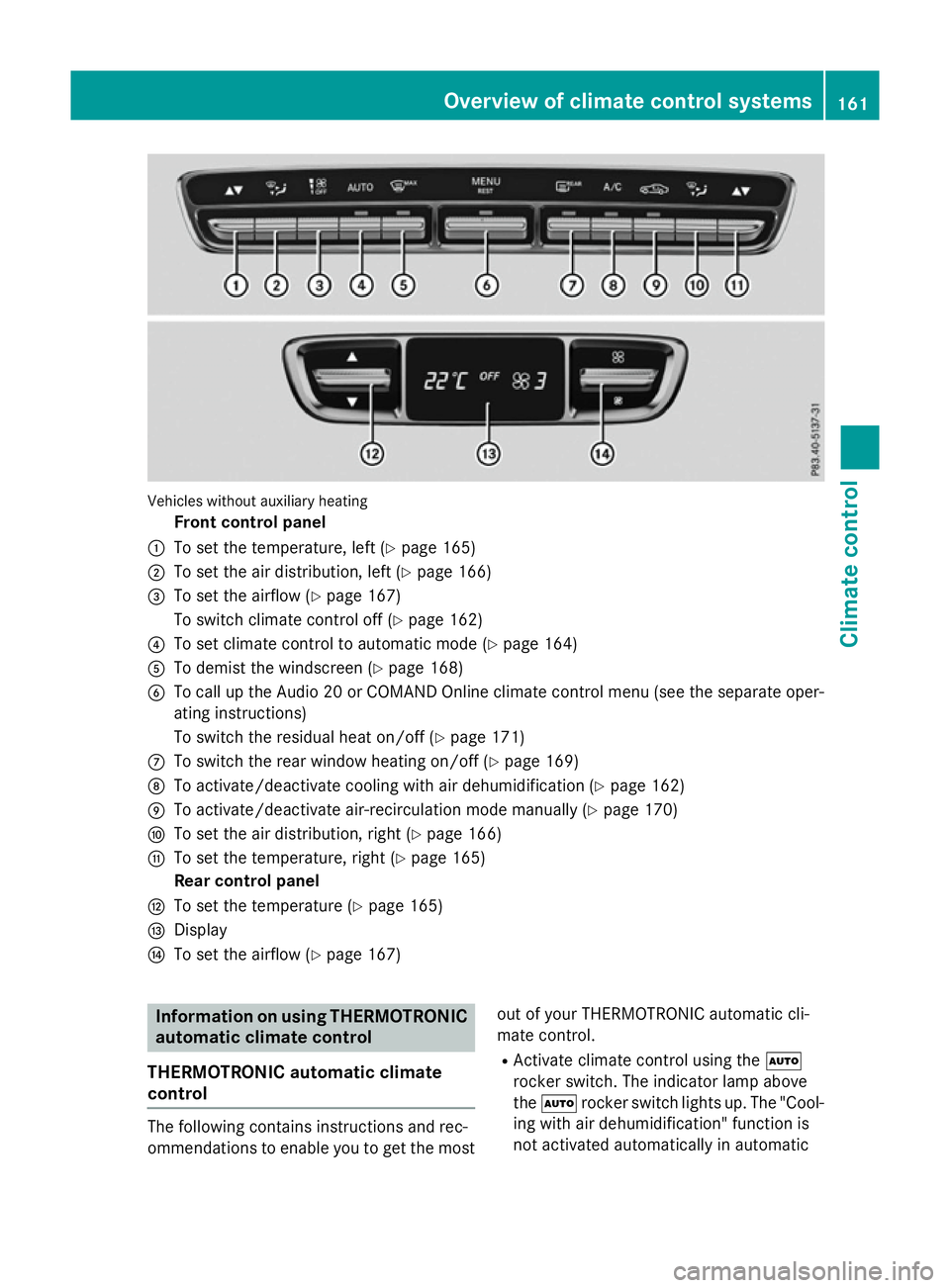

Vehicles without auxiliary heating
Front control panel
: To set the temperature, left (Y page 165)
; To set the air distribution, left (Y page 166)
= To set the airflow (Y page 167)
To switch climate control off (Y page 162)
? To set climate control to automatic mode (Y page 164)
A To demist the windscreen (Y page 168)
B To call up the Audio 20 or COMAND Online climate control menu (see the separate oper-
ating instructions)
To switch the residual heat on/off (Y page 171)
C To switch the rear window heating on/off (Y page 169)
D To activate/deactivate cooling with air dehumidification (Y page 162)
E To activate/deactivate air-recirculation mode manually (Y page 170)
F To set the air distribution, right (Y page 166)
G To set the temperature, right (Y page 165)
Rear control panel
H To set the temperature (Y page 165)
I Display
J To set the airflow (Y page 167) Information on using THERMOTRONIC
automatic climate control
THERMOTRONIC automatic climate
control The following contains instructions and rec-
ommendations to enable you to get the most
out of your THERMOTRONIC automatic cli-
mate control.
R Activate climate control using the Ã
rocker switch. The indicator lamp above
the à rocker switch lights up. The "Cool-
ing with air dehumidification" function is
not activated automatically in automatic Overview of climate control systems
161Climate control

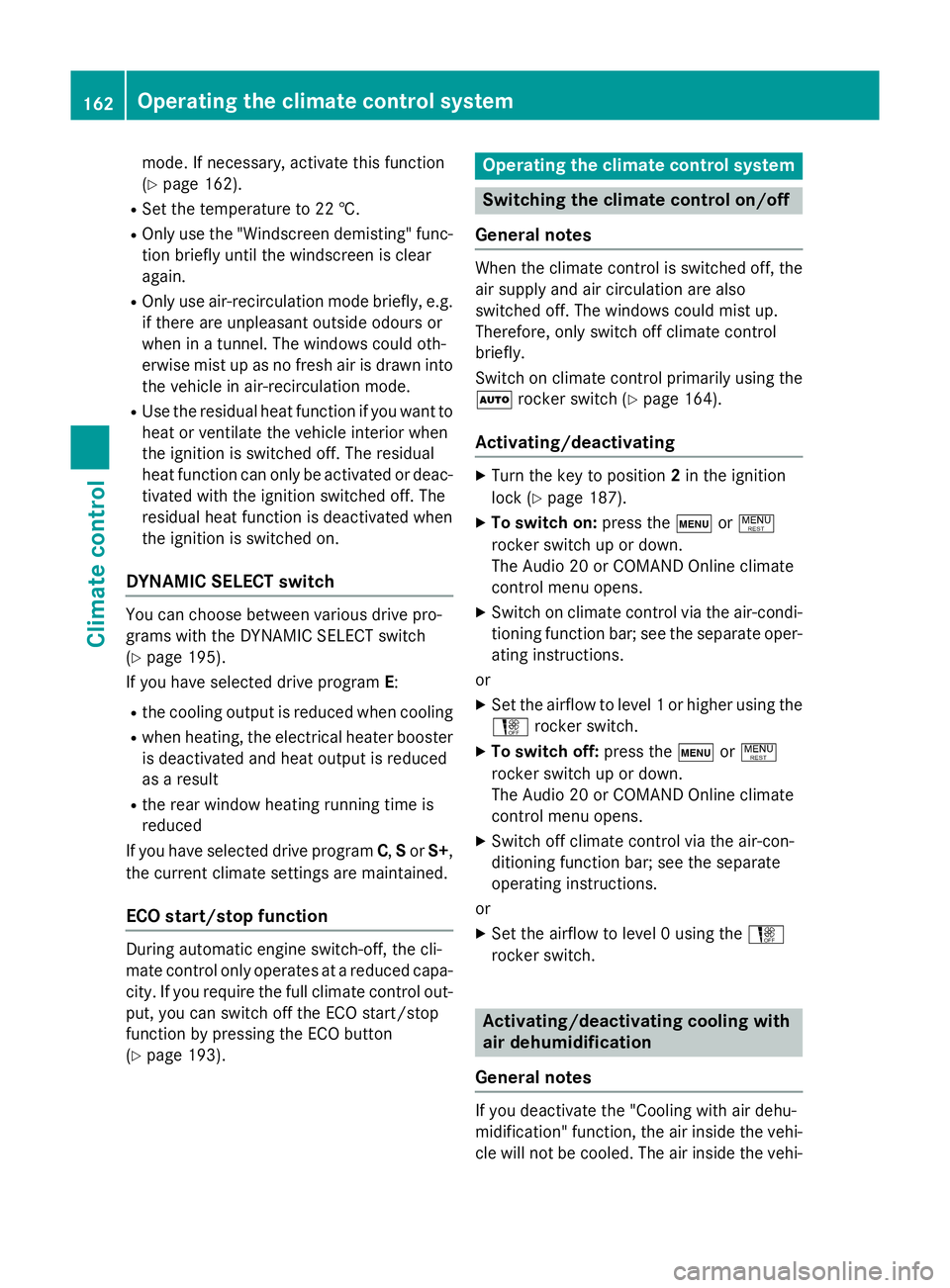

mode. If necessary, activate this function
(Y
page 162).
R Set the temperature to 22 †.
R Only use the "Windscreen demisting" func-
tion briefly until the windscreen is clear
again.
R Only use air-recirculation mode briefly, e.g.
if there are unpleasant outside odours or
when in a tunnel. The windows could oth-
erwise mist up as no fresh air is drawn into the vehicle in air-recirculation mode.
R Use the residual heat function if you want to
heat or ventilate the vehicle interior when
the ignition is switched off. The residual
heat function can only be activated or deac-
tivated with the ignition switched off. The
residual heat function is deactivated when
the ignition is switched on.
DYNAMIC SELECT switch You can choose between various drive pro-
grams with the DYNAMIC SELECT switch
(Y
page 195).
If you have selected drive program E:
R the cooling output is reduced when cooling
R when heating, the electrical heater booster
is deactivated and heat output is reduced
as a result
R the rear window heating running time is
reduced
If you have selected drive program C,Sor S+,
the current climate settings are maintained.
ECO start/stop function During automatic engine switch-off, the cli-
mate control only operates at a reduced capa-
city. If you require the full climate control out-
put, you can switch off the ECO start/stop
function by pressing the ECO button
(Y page 193). Operating the climate control system
Switching the climate control on/off
General notes When the climate control is switched off, the
air supply and air circulation are also
switched off. The windows could mist up.
Therefore, only switch off climate control
briefly.
Switch on climate control primarily using the à rocker switch (Y page 164).
Activating/deactivating X
Turn the key to position 2in the ignition
lock (Y page 187).
X To switch on: press thetor!
rocker switch up or down.
The Audio 20 or COMAND Online climate
control menu opens.
X Switch on climate control via the air-condi-
tioning function bar; see the separate oper- ating instructions.
or
X Set the airflow to level 1 or higher using the
H rocker switch.
X To switch off: press thetor!
rocker switch up or down.
The Audio 20 or COMAND Online climate
control menu opens.
X Switch off climate control via the air-con-
ditioning function bar; see the separate
operating instructions.
or
X Set the airflow to level 0 using the H
rocker switch. Activating/deactivating cooling with
air dehumidification
General notes If you deactivate the "Cooling with air dehu-
midification" function, the air inside the vehi- cle will not be cooled. The air inside the vehi- 162
Operating the climate control systemClimate control

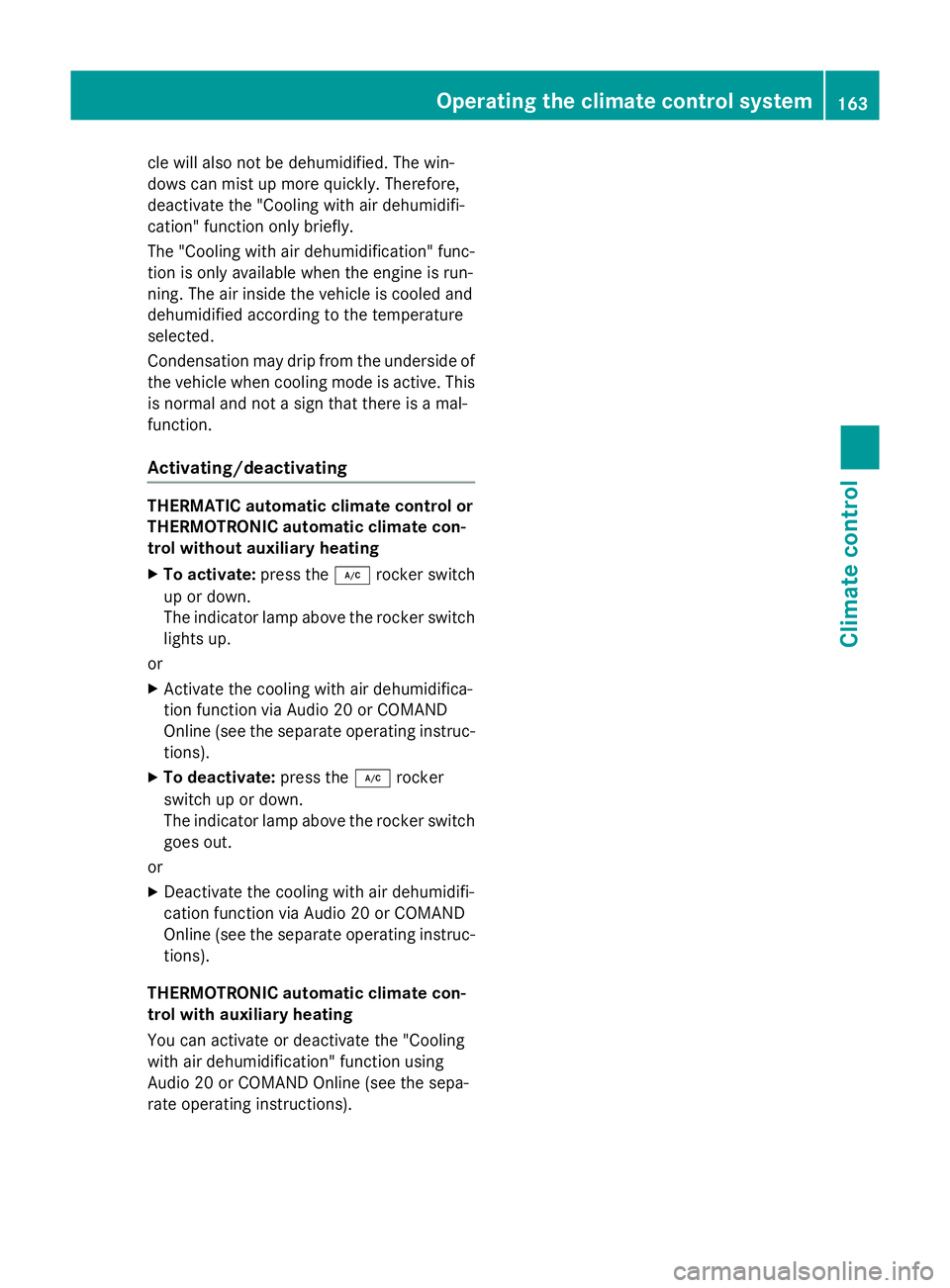

cle will also not be dehumidified. The win-
dows can mist up more quickly. Therefore,
deactivate the "Cooling with air dehumidifi-
cation" function only briefly.
The "Cooling with air dehumidification" func-
tion is only available when the engine is run-
ning. The air inside the vehicle is cooled and
dehumidified according to the temperature
selected.
Condensation may drip from the underside of the vehicle when cooling mode is active. This
is normal and not a sign that there is a mal-
function.
Activating/deactivating THERMATIC automatic climate control or
THERMOTRONIC automatic climate con-
trol without auxiliary heating
X To activate: press the¿rocker switch
up or down.
The indicator lamp above the rocker switch
lights up.
or X Activate the cooling with air dehumidifica-
tion function via Audio 20 or COMAND
Online (see the separate operating instruc-
tions).
X To deactivate: press the¿rocker
switch up or down.
The indicator lamp above the rocker switch
goes out.
or X Deactivate the cooling with air dehumidifi-
cation function via Audio 20 or COMAND
Online (see the separate operating instruc-
tions).
THERMOTRONIC automatic climate con-
trol with auxiliary heating
You can activate or deactivate the "Cooling
with air dehumidification" function using
Audio 20 or COMAND Online (see the sepa-
rate operating instructions). Operating the climate control system
163Climate control

Problems with the "Cooling with air dehumidification" function
Problem
Possible causes/consequences and
M
MSolutions THERMATIC or
THERMOTRONIC
without auxiliary
heating:
the indicator
lamp over the
¿ rocker switch
flashes three times or
remains off. The cool-
ing with air dehumidifi-
cation function can
also no longer be acti-
vated using Audio 20 or
COMAND Online (see
the separate operating
instructions). The cooling with air dehumidification function has been deactiva-
ted due to a malfunction.
X Consult a qualified specialist workshop. THERMOTRONIC
with auxiliary heat-
ing:
cooling with air
dehumidification can
no longer be activated
using Audio 20 or
COMAND Online (see
the separate operating
instructions). The cooling with air dehumidification function has been deactiva-
ted due to a malfunction.
X Consult a qualified specialist workshop. Setting climate control to automatic
mode
General notes In automatic mode, the set temperature is
maintained automatically at a constant level.
The system automatically regulates the tem-
perature of the dispensed air, the airflow and
the air distribution.
The automatic mode functions optimally
when the "Cooling with air dehumidification"
function is activated. The "Cooling with air
dehumidification" function must be activated
manually in automatic mode. If necessary,
"Cooling with air dehumidification" can also
be deactivated. If you deactivate the "Cooling with air-dehu-
midification" function, the air inside the vehi- cle will not be cooled. The air inside the vehi-
cle will also not be dehumidified. The win-
dows can mist up more quickly. Therefore,
deactivate the "Cooling with air-dehumidifi-
cation" function only briefly. 164
Operating the climate control systemClimate control

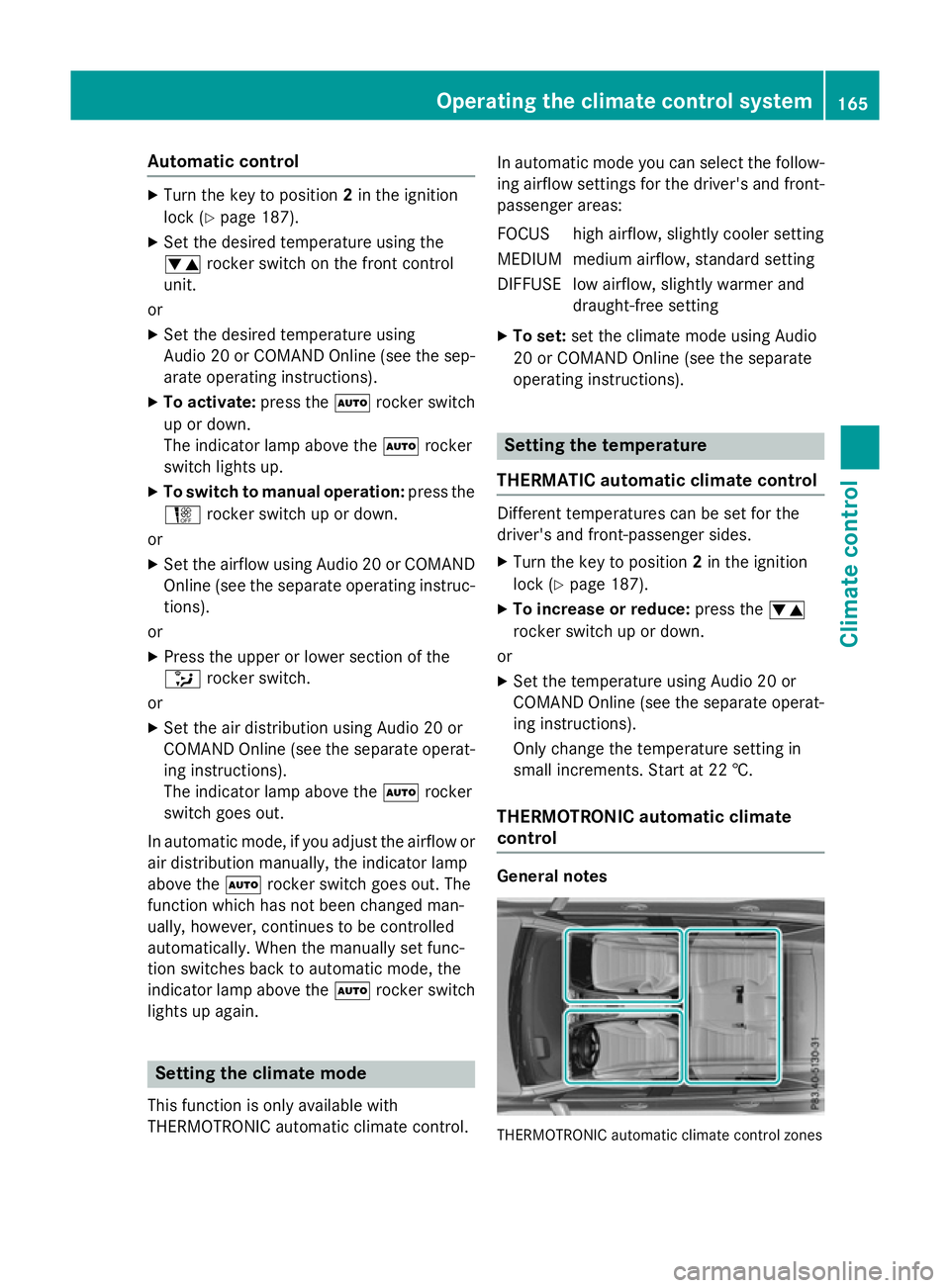

Automatic control
X
Turn the key to position 2in the ignition
lock (Y page 187).
X Set the desired temperature using the
w rocker switch on the front control
unit.
or X Set the desired temperature using
Audio 20 or COMAND Online (see the sep-
arate operating instructions).
X To activate: press theÃrocker switch
up or down.
The indicator lamp above the Ãrocker
switch lights up.
X To switch to manual operation: press the
H rocker switch up or down.
or X Set the airflow using Audio 20 or COMAND
Online (see the separate operating instruc-
tions).
or
X Press the upper or lower section of the
_ rocker switch.
or
X Set the air distribution using Audio 20 or
COMAND Online (see the separate operat- ing instructions).
The indicator lamp above the Ãrocker
switch goes out.
In automatic mode, if you adjust the airflow or air distribution manually, the indicator lamp
above the Ãrocker switch goes out. The
function which has not been changed man-
ually, however, continues to be controlled
automatically. When the manually set func-
tion switches back to automatic mode, the
indicator lamp above the Ãrocker switch
lights up again. Setting the climate mode
This function is only available with
THERMOTRONIC automatic climate control. In automatic mode you can select the follow-
ing airflow settings for the driver's and front-
passenger areas:
FOCUS high airflow, slightly cooler setting
MEDIUM medium airflow, standard setting
DIFFUS Elow airflow, slightly warmer and
draught-free setting
X To set: set the climate mode using Audio
20 or COMAND Online (see the separate
operating instructions). Setting the temperature
THERMATIC automatic climate control Different temperatures can be set for the
driver's and front-passenger sides.
X Turn the key to position 2in the ignition
lock (Y page 187).
X To increase or reduce: press thew
rocker switch up or down.
or
X Set the temperature using Audio 20 or
COMAND Online (see the separate operat-
ing instructions).
Only change the temperature setting in
small increments. Start at 22 †.
THERMOTRONIC automatic climate
control General notes
THERMOTRONIC automatic climate control zonesOperating the climate control system
165Climate control

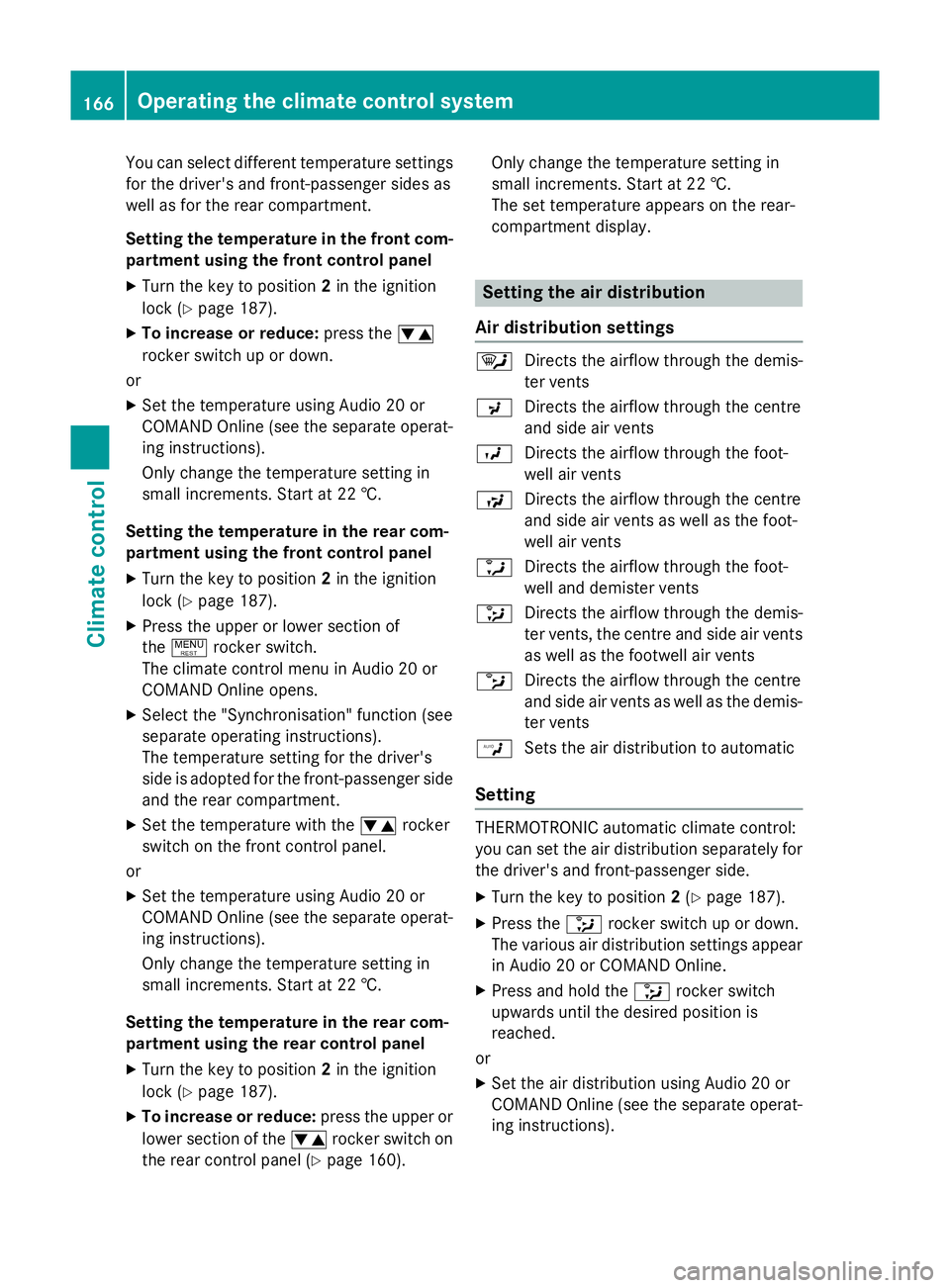

You can select different temperature settings
for the driver's and front-passenger sides as
well as for the rear compartment.
Setting the temperature in the front com-
partment using the front control panel
X Turn the key to position 2in the ignition
lock (Y page 187).
X To increase or reduce: press thew
rocker switch up or down.
or X Set the temperature using Audio 20 or
COMAND Online (see the separate operat- ing instructions).
Only change the temperature setting in
small increments. Start at 22 †.
Setting the temperature in the rear com-
partment using the front control panel
X Turn the key to position 2in the ignition
lock (Y page 187).
X Press the upper or lower section of
the ! rocker switch.
The climate control menu in Audio 20 or
COMAND Online opens.
X Select the "Synchronisation" function (see
separate operating instructions).
The temperature setting for the driver's
side is adopted for the front-passenger side
and the rear compartment.
X Set the temperature with the wrocker
switch on the front control panel.
or X Set the temperature using Audio 20 or
COMAND Online (see the separate operat- ing instructions).
Only change the temperature setting in
small increments. Start at 22 †.
Setting the temperature in the rear com-
partment using the rear control panel
X Turn the key to position 2in the ignition
lock (Y page 187).
X To increase or reduce: press the upper or
lower section of the wrocker switch on
the rear control panel (Y page 160).Only change the temperature setting in
small increments. Start at 22 †.
The set temperature appears on the rear-
compartment display. Setting the air distribution
Air distribution settings ¯
Directs the airflow through the demis-
ter vents
P Directs the airflow through the centre
and side air vents
O Directs the airflow through the foot-
well air vents
S Directs the airflow through the centre
and side air vents as well as the foot-
well air vents
a Directs the airflow through the foot-
well and demister vents
_ Directs the airflow through the demis-
ter vents, the centre and side air vents as well as the footwell air vents
b Directs the airflow through the centre
and side air vents as well as the demis-
ter vents
W Sets the air distribution to automatic
Setting THERMOTRONIC automatic climate control:
you can set the air distribution separately for
the driver's and front-passenger side.
X Turn the key to position 2(Y page 187).
X Press the _rocker switch up or down.
The various air distribution settings appear in Audio 20 or COMAND Online.
X Press and hold the _rocker switch
upwards until the desired position is
reached.
or
X Set the air distribution using Audio 20 or
COMAND Online (see the separate operat- ing instructions). 166
Operating the climate control systemClimate control

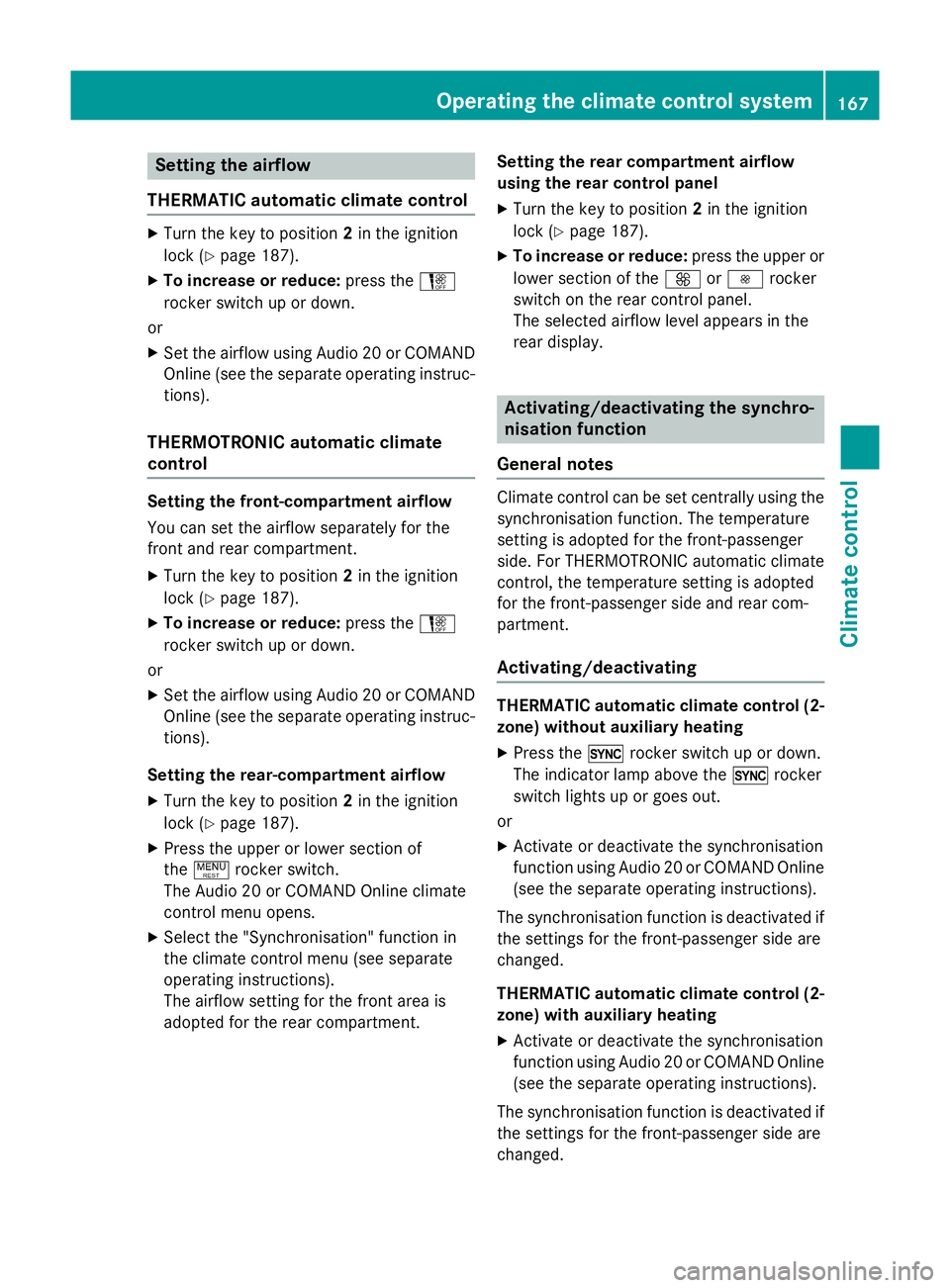

Setting the airflow
THERMATIC automatic climate control X
Turn the key to position 2in the ignition
lock (Y page 187).
X To increase or reduce: press theH
rocker switch up or down.
or
X Set the airflow using Audio 20 or COMAND
Online (see the separate operating instruc-
tions).
THERMOTRONIC automatic climate
control Setting the front-compartment airflow
You can set the airflow separately for the
front and rear compartment.
X Turn the key to position 2in the ignition
lock (Y page 187).
X To increase or reduce: press theH
rocker switch up or down.
or
X Set the airflow using Audio 20 or COMAND
Online (see the separate operating instruc-
tions).
Setting the rear-compartment airflow X Turn the key to position 2in the ignition
lock (Y page 187).
X Press the upper or lower section of
the ! rocker switch.
The Audio 20 or COMAND Online climate
control menu opens.
X Select the "Synchronisation" function in
the climate control menu (see separate
operating instructions).
The airflow setting for the front area is
adopted for the rear compartment. Setting the rear compartment airflow
using the rear control panel
X Turn the key to position 2in the ignition
lock (Y page 187).
X To increase or reduce: press the upper or
lower section of the KorI rocker
switch on the rear control panel.
The selected airflow level appears in the
rear display. Activating/deactivating the synchro-
nisation function
General notes Climate control can be set centrally using the
synchronisation function. The temperature
setting is adopted for the front-passenger
side. For THERMOTRONIC automatic climatecontrol, the temperature setting is adopted
for the front-passenger side and rear com-
partment.
Activating/deactivating THERMATIC automatic climate control (2-
zone) without auxiliary heating
X Press the 0rocker switch up or down.
The indicator lamp above the 0rocker
switch lights up or goes out.
or X Activate or deactivate the synchronisation
function using Audio 20 or COMAND Online
(see the separate operating instructions).
The synchronisation function is deactivated if the settings for the front-passenger side are
changed.
THERMATIC automatic climate control (2-
zone) with auxiliary heating
X Activate or deactivate the synchronisation
function using Audio 20 or COMAND Online
(see the separate operating instructions).
The synchronisation function is deactivated if
the settings for the front-passenger side are
changed. Operating the climate control system
167Climate control
