MERCEDES-BENZ M-Class 2011 W164 Owner's Manual

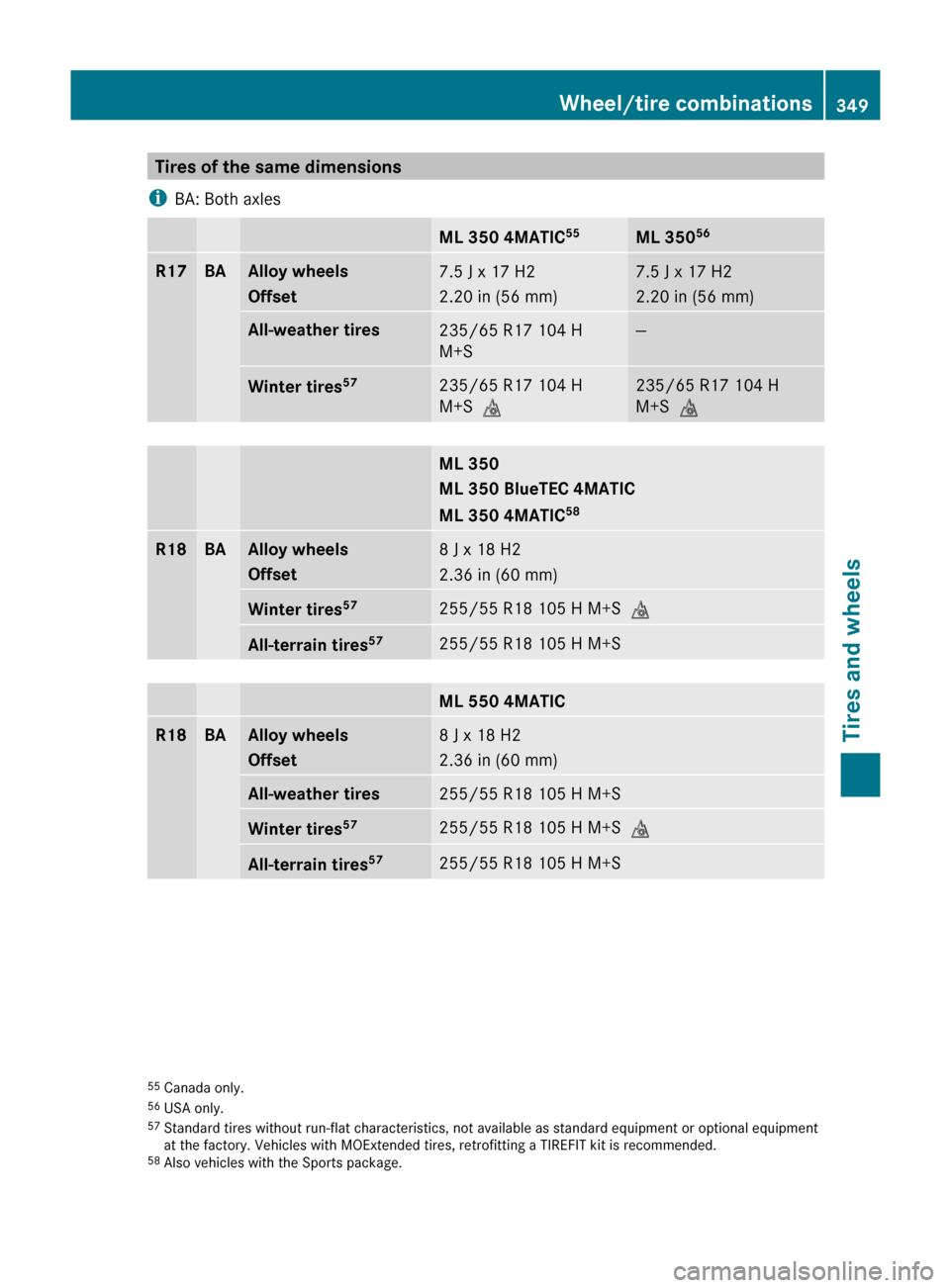

Tires of the same dimensions
i BA: Both axlesML 350 4MATIC 55ML 35056R17BAAlloy wheels
Offset7.5 J x 17 H2
2.20 in (56 mm)7.5 J x 17 H2
2.20 in (56 mm)All-weather tires235/65 R17 104 H
M+S—Winter tires 57235/65 R17 104 H
M+S i235/65 R17 104 H
M+S iML 350
ML 350 BlueTEC 4MATIC
ML 350 4MATIC 58R18BAAlloy wheels
Offset8 J x 18 H2
2.36 in (60 mm)Winter tires 57255/55 R18 105 H M+S
iAll-terrain tires57255/55 R18 105 H M+SML 550 4MATICR18BAAlloy wheels
Offset8 J x 18 H2
2.36 in (60 mm)All-weather tires255/55 R18 105 H M+SWinter tires 57255/55 R18 105 H M+S
iAll-terrain tires57255/55 R18 105 H M+S55
Canada only.
56 USA only.
57 Standard tires without run-flat characteristics, not available as standard equipment or optional equipment
at the factory. Vehicles with MOExtended tires, retrofitting a TIREFIT kit is recommended.
58 Also vehicles with the Sports package.Wheel/tire combinations349Tires and wheelsBA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 349Z

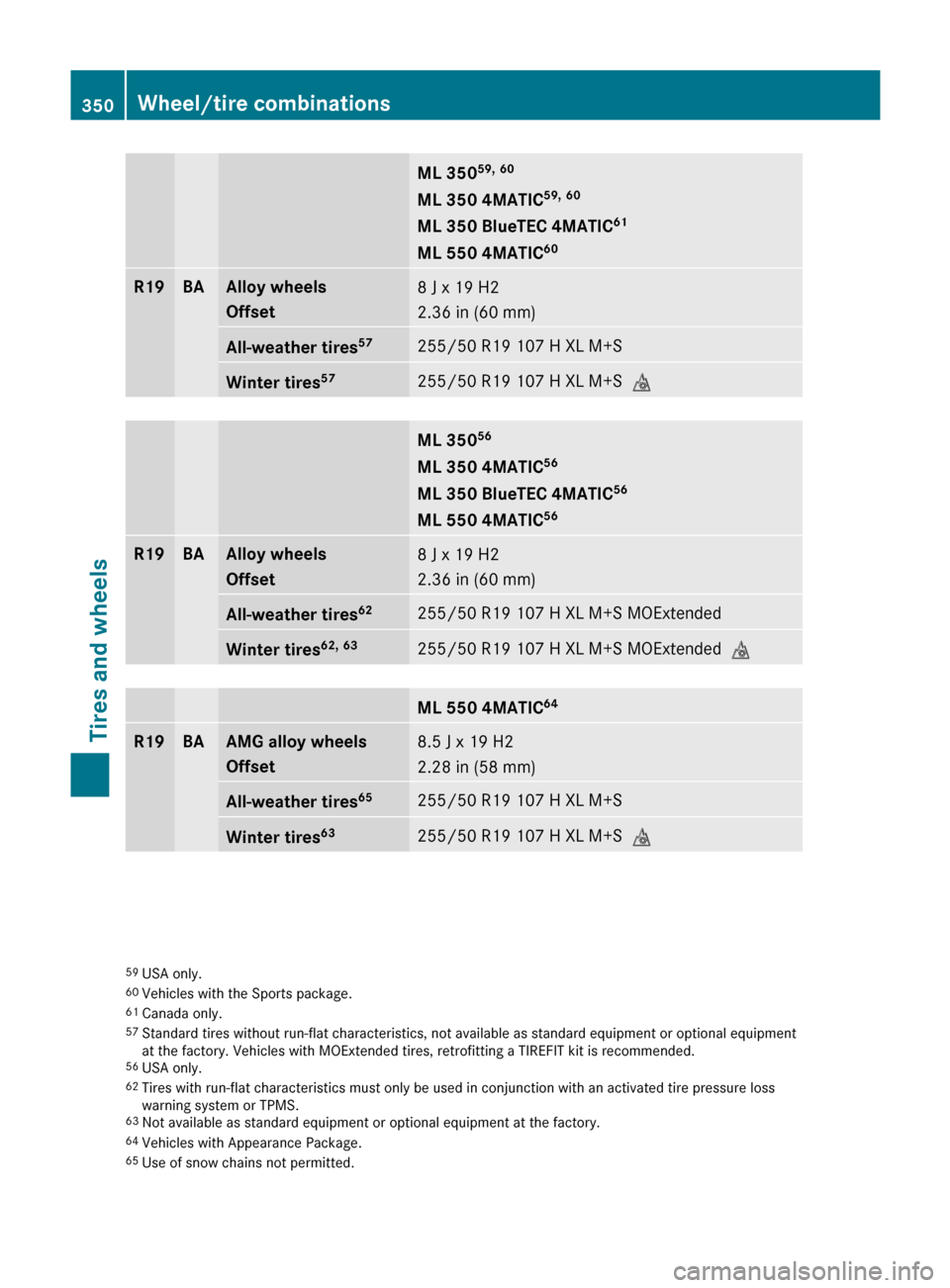

ML 35059,
60
ML 350 4MATIC 59,
60
ML 350 BlueTEC 4MATIC 61
ML 550 4MATIC 60R19BAAlloy wheels
Offset8 J x 19 H2
2.36 in (60 mm)All-weather tires 57255/50 R19 107 H XL M+SWinter tires57255/50 R19 107 H XL M+S
iML 35056
ML 350 4MATIC 56
ML 350 BlueTEC 4MATIC 56
ML 550 4MATIC 56R19BAAlloy wheels
Offset8 J x 19 H2
2.36 in (60 mm)All-weather tires 62255/50 R19 107 H XL M+S MOExtendedWinter tires62,
63255/50 R19 107 H XL M+S MOExtended
iML 550 4MATIC64R19BAAMG alloy wheels
Offset8.5 J x 19 H2
2.28 in (58 mm)All-weather tires 65255/50 R19 107 H XL M+SWinter tires63255/50 R19 107 H XL M+S
i59
USA only.
60 Vehicles with the Sports package.
61 Canada only.
57 Standard tires without run-flat characteristics, not available as standard equipment or optional equipment
at the factory. Vehicles with MOExtended tires, retrofitting a TIREFIT kit is recommended.
56 USA only.
62 Tires with run-flat characteristics must only be used in conjunction with an activated tire pressure loss
warning system or TPMS.
63 Not available as standard equipment or optional equipment at the factory.
64 Vehicles with Appearance Package.
65 Use of snow chains not permitted.350Wheel/tire combinationsTires and wheels
BA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 350

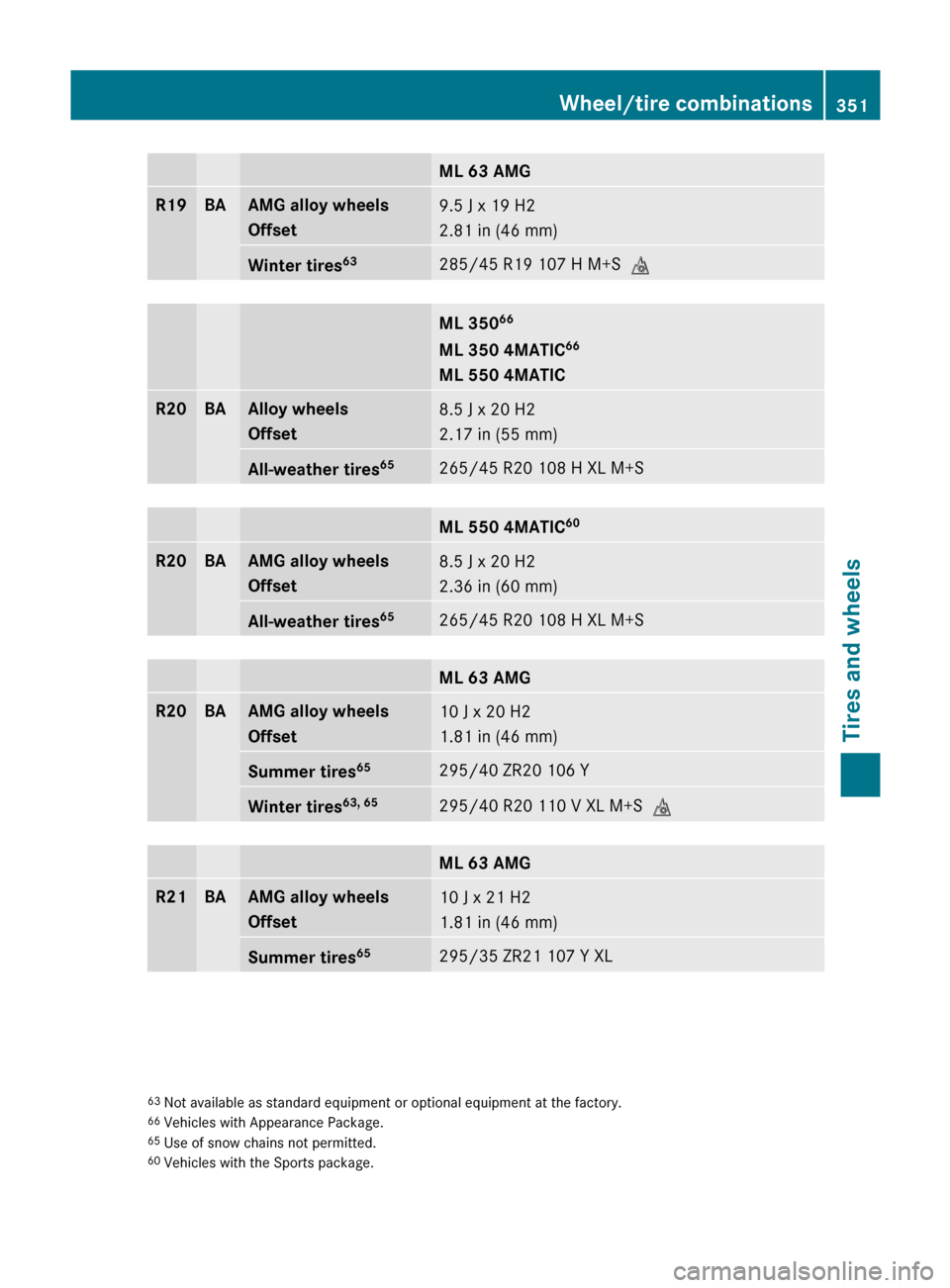

ML 63 AMGR19BAAMG alloy wheels
Offset9.5 J x 19 H2
2.81 in (46 mm)Winter tires 63285/45 R19 107 H M+S
iML 35066
ML 350 4MATIC 66
ML 550 4MATICR20BAAlloy wheels
Offset8.5 J x 20 H2
2.17 in (55 mm)All-weather tires 65265/45 R20 108 H XL M+SML 550 4MATIC60R20BAAMG alloy wheels
Offset8.5 J x 20 H2
2.36 in (60 mm)All-weather tires 65265/45 R20 108 H XL M+SML 63 AMGR20BAAMG alloy wheels
Offset10 J x 20 H2
1.81 in (46 mm)Summer tires 65295/40 ZR20 106 YWinter tires63, 65295/40 R20 110 V XL M+S
iML 63 AMGR21BAAMG alloy wheels
Offset10 J x 21 H2
1.81 in (46 mm)Summer tires 65295/35 ZR21 107 Y XL63
Not available as standard equipment or optional equipment at the factory.
66 Vehicles with Appearance Package.
65 Use of snow chains not permitted.
60 Vehicles with the Sports package.Wheel/tire combinations351Tires and wheelsBA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 351Z

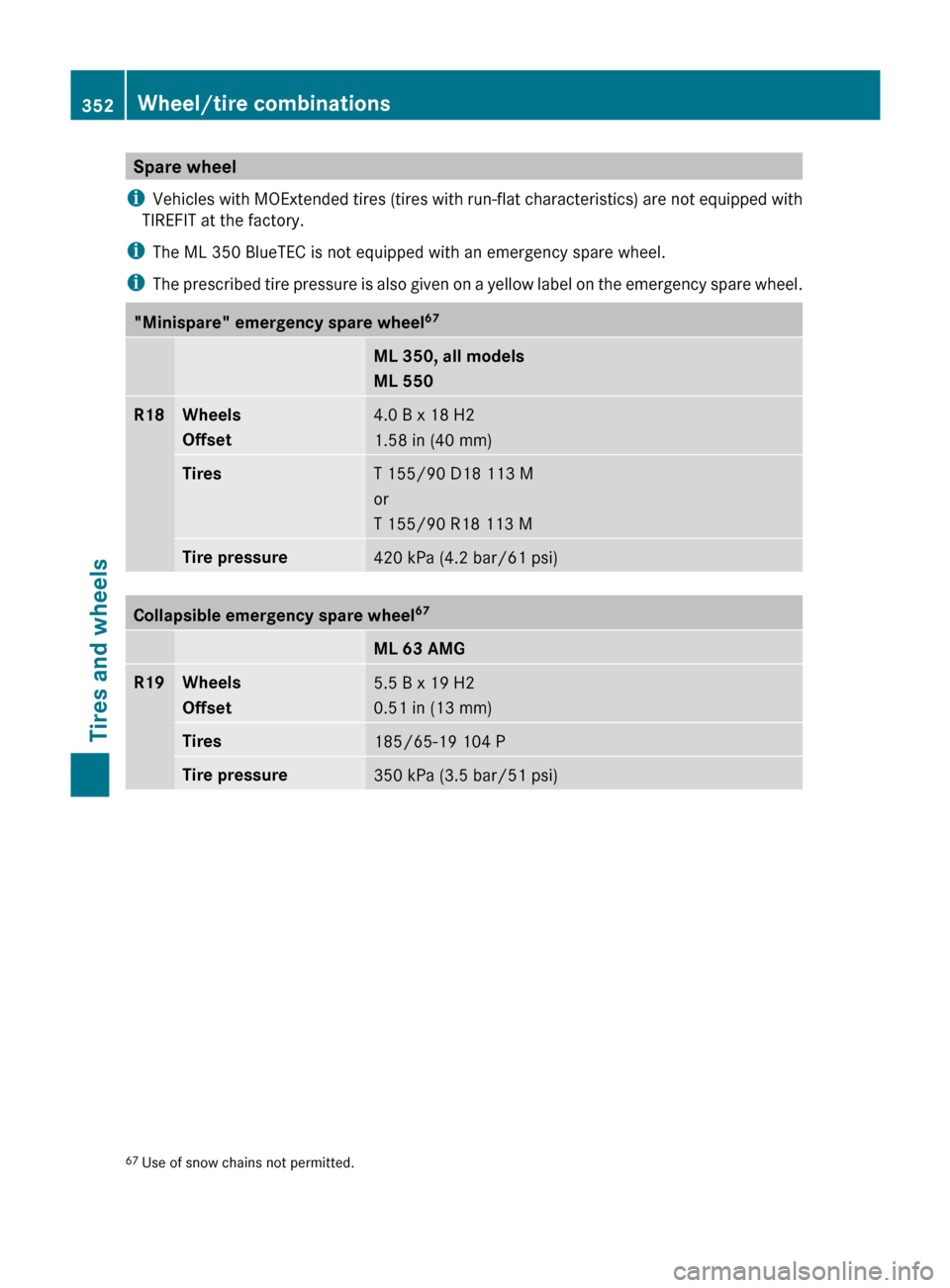

Spare wheel
i Vehicles with MOExtended tires (tires with run-flat characteristics) are not equipped with
TIREFIT at the factory.
i The ML 350 BlueTEC is not equipped with an emergency spare wheel.
i The prescribed tire pressure is also given on a yellow label on the emergency spare wheel."Minispare" emergency spare wheel 67ML 350, all models
ML 550R18Wheels
Offset4.0 B x 18 H2
1.58 in (40 mm)TiresT 155/90 D18 113 M
or
T 155/90 R18 113 MTire pressure420 kPa (4.2 bar/61 psi)Collapsible emergency spare wheel 67ML 63 AMGR19Wheels
Offset5.5 B x 19 H2
0.51 in (13 mm)Tires185/65-19 104 PTire pressure350 kPa (3.5 bar/51 psi)67 Use of snow chains not permitted.352Wheel/tire combinationsTires and wheels
BA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 352

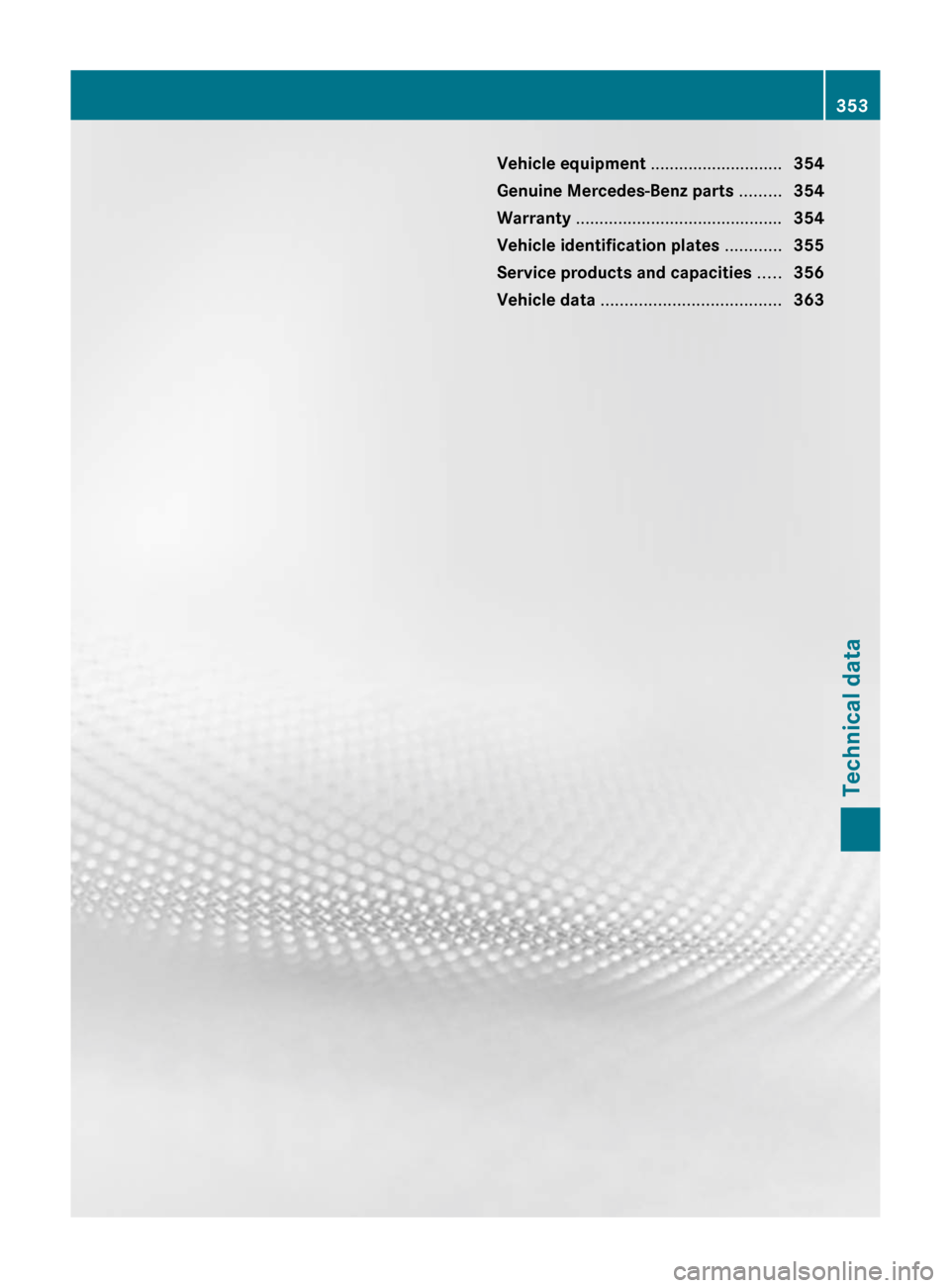

Vehicle equipment ............................354
Genuine Mercedes-Benz parts .........354
Warranty ............................................ 354
Vehicle identification plates ............355
Service products and capacities .....356
Vehicle data ...................................... 363353Technical dataBA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 353

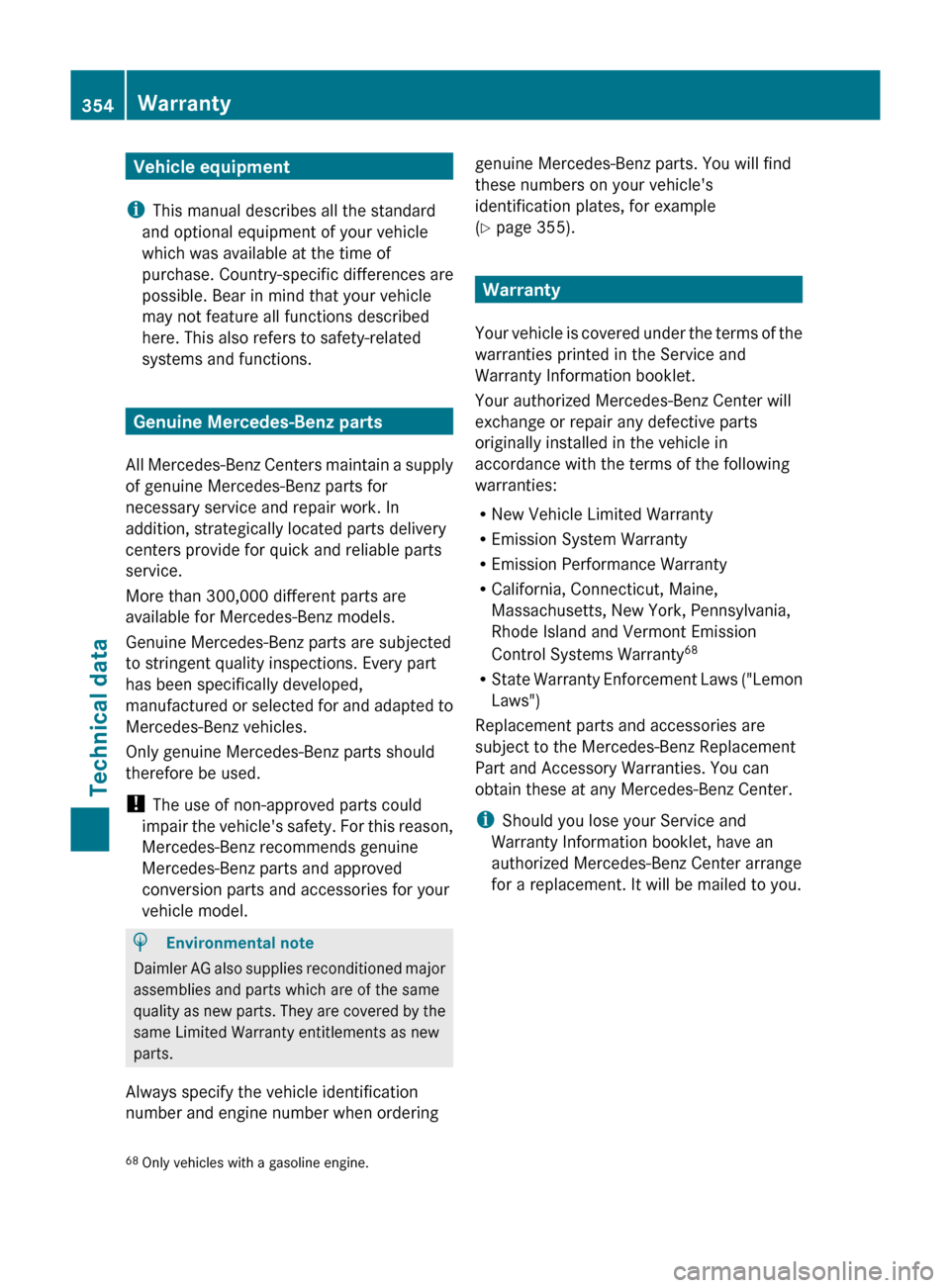

Vehicle equipment
i This manual describes all the standard
and optional equipment of your vehicle
which was available at the time of
purchase. Country-specific differences are
possible. Bear in mind that your vehicle
may not feature all functions described
here. This also refers to safety-related
systems and functions.
Genuine Mercedes-Benz parts
All Mercedes-Benz Centers maintain a supply
of genuine Mercedes-Benz parts for
necessary service and repair work. In
addition, strategically located parts delivery
centers provide for quick and reliable parts
service.
More than 300,000 different parts are
available for Mercedes-Benz models.
Genuine Mercedes-Benz parts are subjected
to stringent quality inspections. Every part
has been specifically developed,
manufactured or selected for and adapted to
Mercedes-Benz vehicles.
Only genuine Mercedes-Benz parts should
therefore be used.
! The use of non-approved parts could
impair the vehicle's safety. For this reason,
Mercedes-Benz recommends genuine
Mercedes-Benz parts and approved
conversion parts and accessories for your
vehicle model.
HEnvironmental note
Daimler AG also supplies reconditioned major
assemblies and parts which are of the same
quality as new parts. They are covered by the
same Limited Warranty entitlements as new
parts.
Always specify the vehicle identification
number and engine number when ordering
genuine Mercedes-Benz parts. You will find
these numbers on your vehicle's
identification plates, for example
( Y page 355).
Warranty
Your vehicle is covered under the terms of the
warranties printed in the Service and
Warranty Information booklet.
Your authorized Mercedes-Benz Center will
exchange or repair any defective parts
originally installed in the vehicle in
accordance with the terms of the following
warranties:
R New Vehicle Limited Warranty
R Emission System Warranty
R Emission Performance Warranty
R California, Connecticut, Maine,
Massachusetts, New York, Pennsylvania,
Rhode Island and Vermont Emission
Control Systems Warranty 68
R State Warranty Enforcement Laws ("Lemon
Laws")
Replacement parts and accessories are
subject to the Mercedes-Benz Replacement
Part and Accessory Warranties. You can
obtain these at any Mercedes-Benz Center.
i Should you lose your Service and
Warranty Information booklet, have an
authorized Mercedes-Benz Center arrange
for a replacement. It will be mailed to you.
68 Only vehicles with a gasoline engine.354WarrantyTechnical data
BA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 354

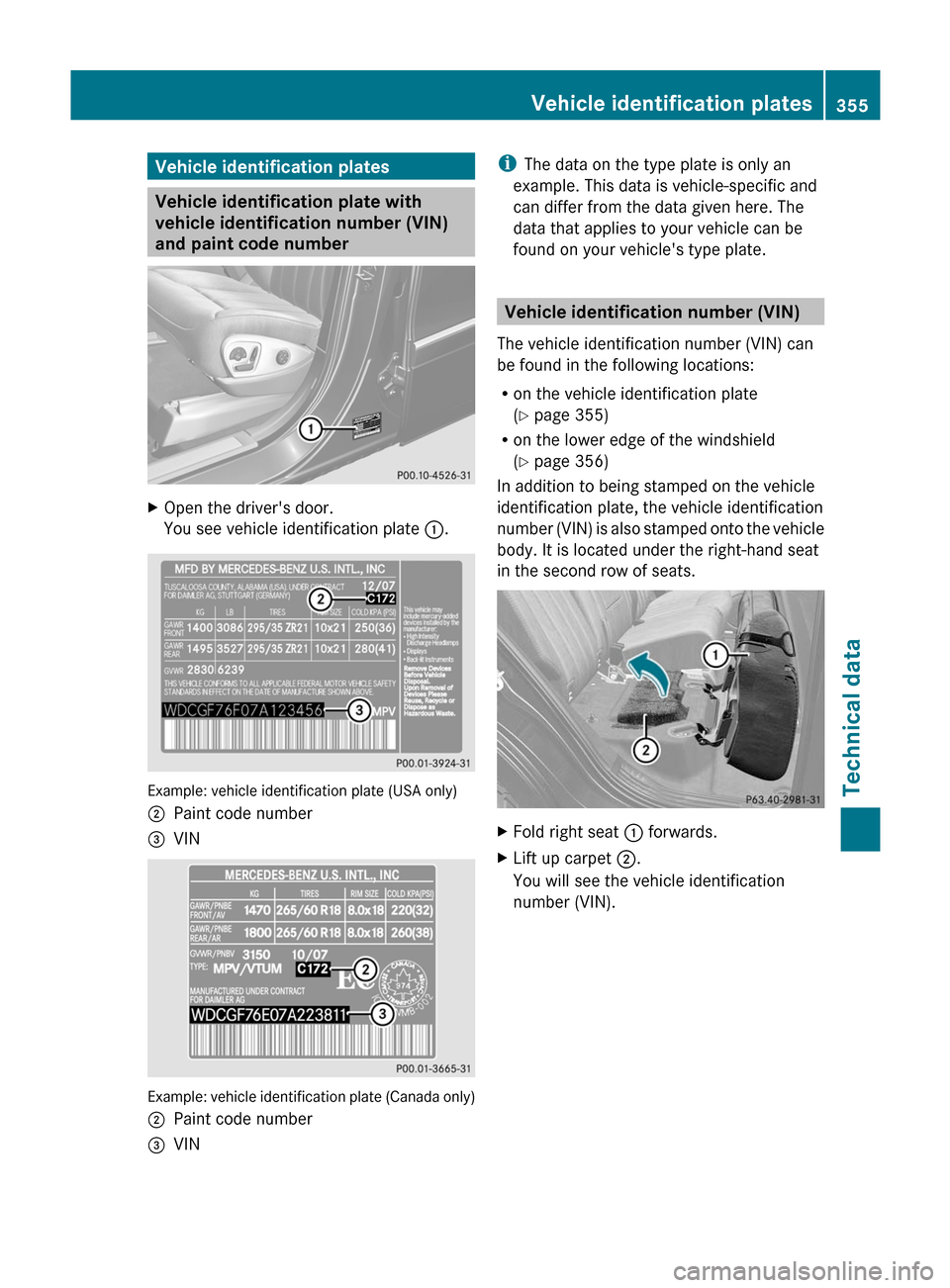

Vehicle identification plates
Vehicle identification plate with
vehicle identification number (VIN)
and paint code number
XOpen the driver's door.
You see vehicle identification plate :.
Example: vehicle identification plate (USA only)
;Paint code number=VIN
Example: vehicle identification plate (Canada only)
;Paint code number=VINi
The data on the type plate is only an
example. This data is vehicle-specific and
can differ from the data given here. The
data that applies to your vehicle can be
found on your vehicle's type plate.
Vehicle identification number (VIN)
The vehicle identification number (VIN) can
be found in the following locations:
R on the vehicle identification plate
( Y page 355)
R on the lower edge of the windshield
( Y page 356)
In addition to being stamped on the vehicle
identification plate, the vehicle identification
number (VIN) is also stamped onto the vehicle
body. It is located under the right-hand seat
in the second row of seats.
XFold right seat : forwards.XLift up carpet ;.
You will see the vehicle identification
number (VIN).Vehicle identification plates355Technical dataBA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 355Z

Engine number:Emissions control information label,
including the certification of both federal
and Californian emissions reference
values;Engine number (stamped into the
crankcase)=VIN (on the lower edge of the windshield)
Service products and capacities
Important safety guidelines
Service products include the following:
R fuels (e.g. gasoline, diesel)
R additives for exhaust gas aftertreatment
(AdBlue ®
)
R lubricants (e.g. engine oil, transmission oil)
R coolant
R brake fluid
R windshield washer fluid
Vehicle components and their respective
lubricants must match. You should therefore
only use products that have been tested and
approved by Mercedes-Benz.
Information on tested and approved products
can be obtained at an authorized Mercedes-
Benz Center or on the Internet at http://
www.mbusa.com (USA only).
GWarning
Comply with all valid regulations with respect
to handling, storing and disposing of service
fluids. Otherwise, you could endanger
persons or the environment.
Keep service fluids out of the reach of
children.
For health reasons, you should prevent
service fluids from coming into direct contact
with your skin or clothing.
If a service fluid is swallowed, contact a
physician immediately.356Service products and capacitiesTechnical data
BA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 356

CapacitiesVehicle modelCapacityFuel, coolant,
lubricants etc.Engine oil and
filterML 350 BlueTEC
4MATIC9.0 US qt (8.5 l)Approved engine
oilsML 350 4MATIC
ML 3508.5 US qt (8.0 l)ML 550 4MATIC9.5 US qt (9.0 l)ML 63 AMG 6910.3 US qt (9.7 l)Power steeringML 350Approx. 1.3 US qt (1.2 l)MB Power Steering
Fluid or approved
Dexron III ATFML 350 BlueTEC
4MATIC
ML 350 4MATIC
ML 550 4MATICApprox. 1.06 US qt (1.0 l)MB Power Steering
FluidML 63 AMGApprox. 1.3 US qt (1.2 l)Cooling systemML 350 BlueTEC
4MATIC
ML 350 4MATIC
ML 350Approx. 10.0 US qt (9.5 l)MB 325.0
Anticorrosion/
AntifreezeML 550 4MATICApprox. 12.7 US qt (12.0 l)ML 63 AMGApprox. 12.2 US qt (11.5 l)Tank capacityAll models25.1 US gal (95.0 l)Gasoline engines:
premium-grade
unleaded gasoline
(at least 91 octane,
average value
between 96 RON/
86 MON)
Diesel engines:
ULTRA-LOW
SULFUR DIESEL
FUEL (ULSD,
maximum sulfur
content 15 ppm)ReserveAll models except
AMG vehiclesApprox. 3.4 US gal (13.0 l)ML 63 AMGApprox. 4.0 US gal (15.0 l)69 Includes external oil cooler.Service products and capacities357Technical dataBA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 357Z

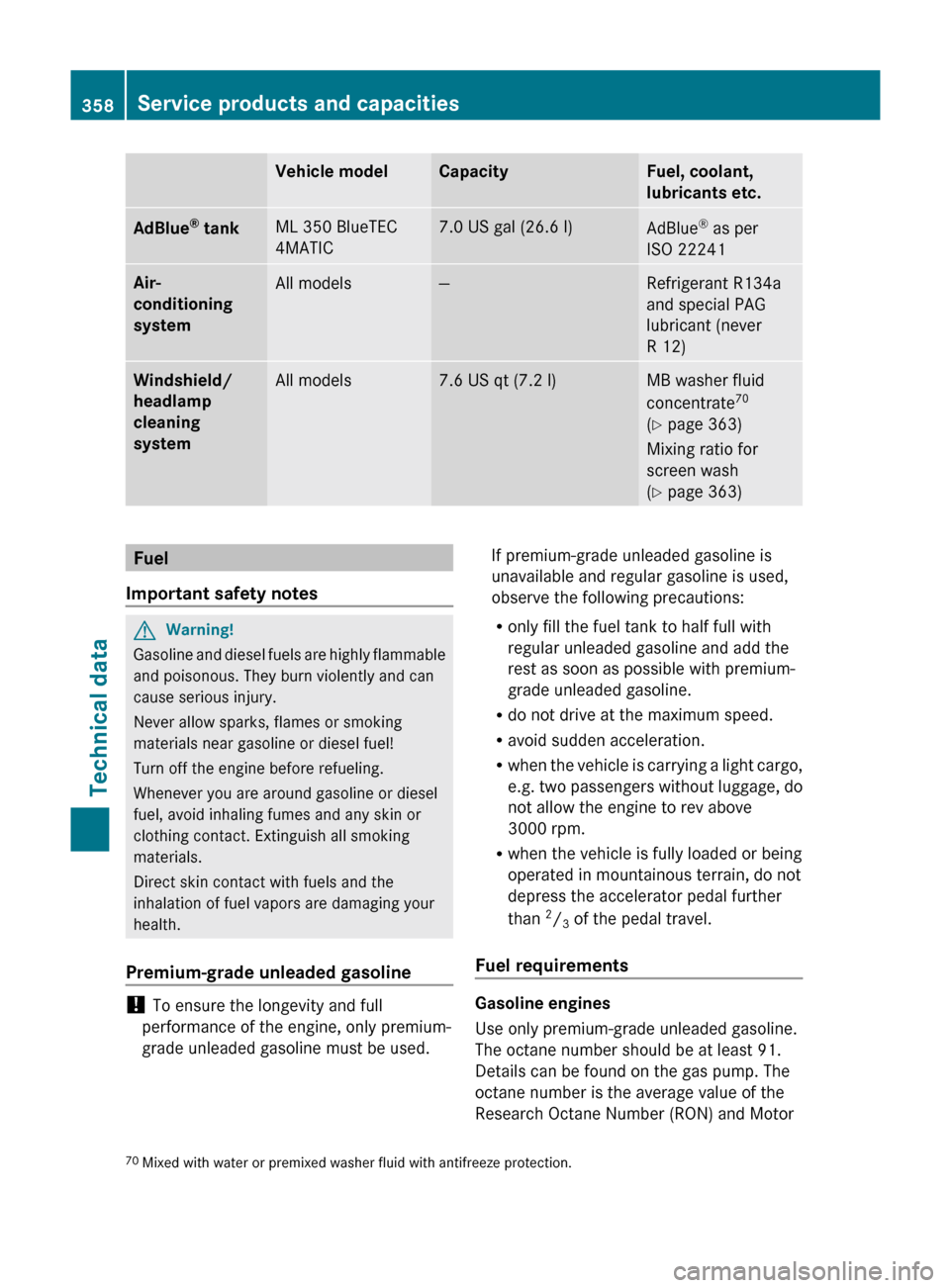

Vehicle modelCapacityFuel, coolant,
lubricants etc.AdBlue ®
tankML 350 BlueTEC
4MATIC7.0 US gal (26.6 l)AdBlue ®
as per
ISO 22241Air-
conditioning
systemAll models—Refrigerant R134a
and special PAG
lubricant (never
R 12)Windshield/
headlamp
cleaning
systemAll models7.6 US qt (7.2 l)MB washer fluid
concentrate 70
( Y page 363)
Mixing ratio for
screen wash
( Y page 363)Fuel
Important safety notesGWarning!
Gasoline and diesel fuels are highly flammable
and poisonous. They burn violently and can
cause serious injury.
Never allow sparks, flames or smoking
materials near gasoline or diesel fuel!
Turn off the engine before refueling.
Whenever you are around gasoline or diesel
fuel, avoid inhaling fumes and any skin or
clothing contact. Extinguish all smoking
materials.
Direct skin contact with fuels and the
inhalation of fuel vapors are damaging your
health.
Premium-grade unleaded gasoline
! To ensure the longevity and full
performance of the engine, only premium-
grade unleaded gasoline must be used.
If premium-grade unleaded gasoline is
unavailable and regular gasoline is used,
observe the following precautions:
R only fill the fuel tank to half full with
regular unleaded gasoline and add the
rest as soon as possible with premium-
grade unleaded gasoline.
R do not drive at the maximum speed.
R avoid sudden acceleration.
R when the vehicle is carrying a light cargo,
e.g. two passengers without luggage, do
not allow the engine to rev above
3000 rpm.
R when the vehicle is fully loaded or being
operated in mountainous terrain, do not
depress the accelerator pedal further
than 2
/ 3 of the pedal travel.
Fuel requirements
Gasoline engines
Use only premium-grade unleaded gasoline.
The octane number should be at least 91.
Details can be found on the gas pump. The
octane number is the average value of the
Research Octane Number (RON) and Motor
70 Mixed with water or premixed washer fluid with antifreeze protection.358Service products and capacitiesTechnical data
BA 164.1 USA, CA Edition B 2011; 1; 2, en-USd2mskotVersion: 3.0.3.52010-04-21T17:25:06+02:00 - Seite 358
