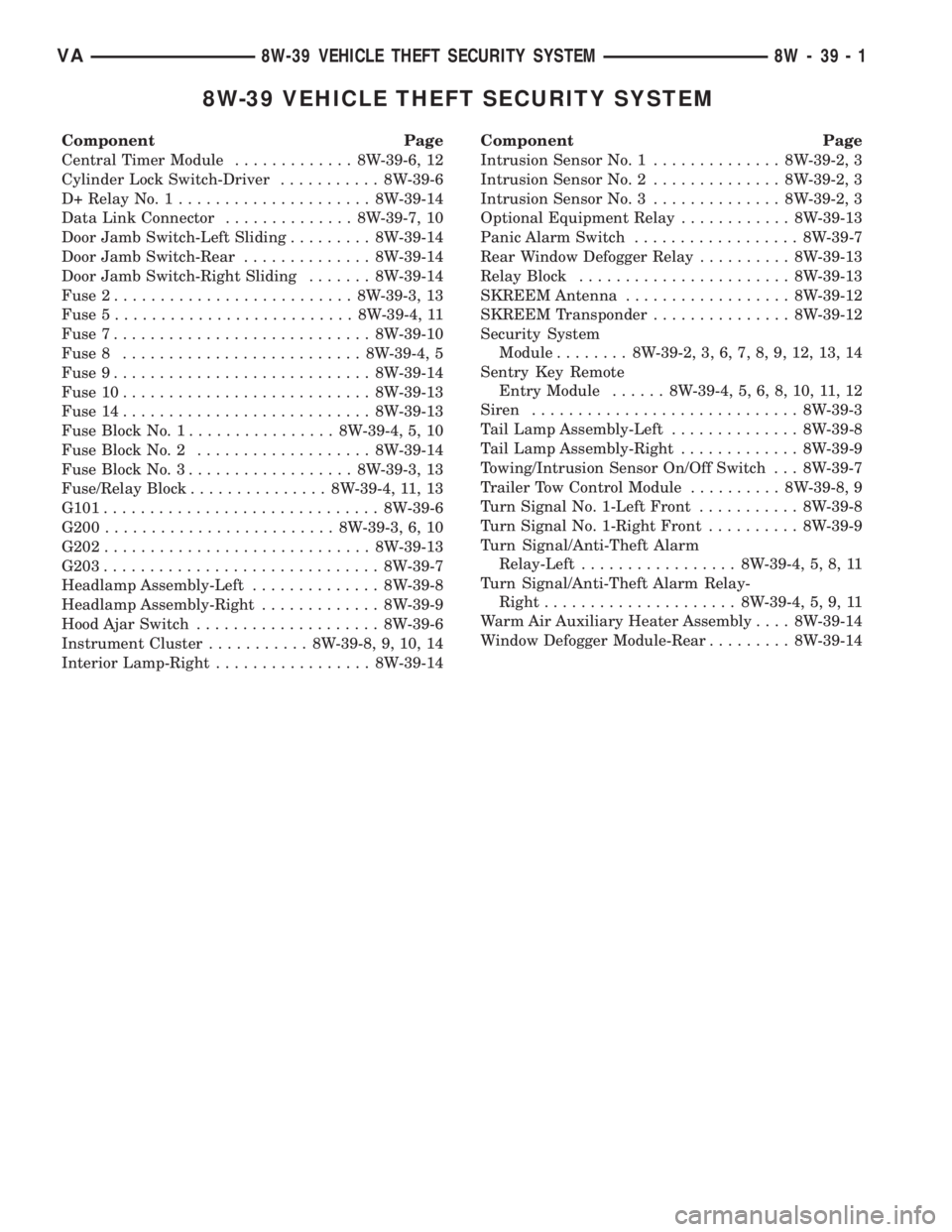

8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Central Timer Module............. 8W-39-6, 12

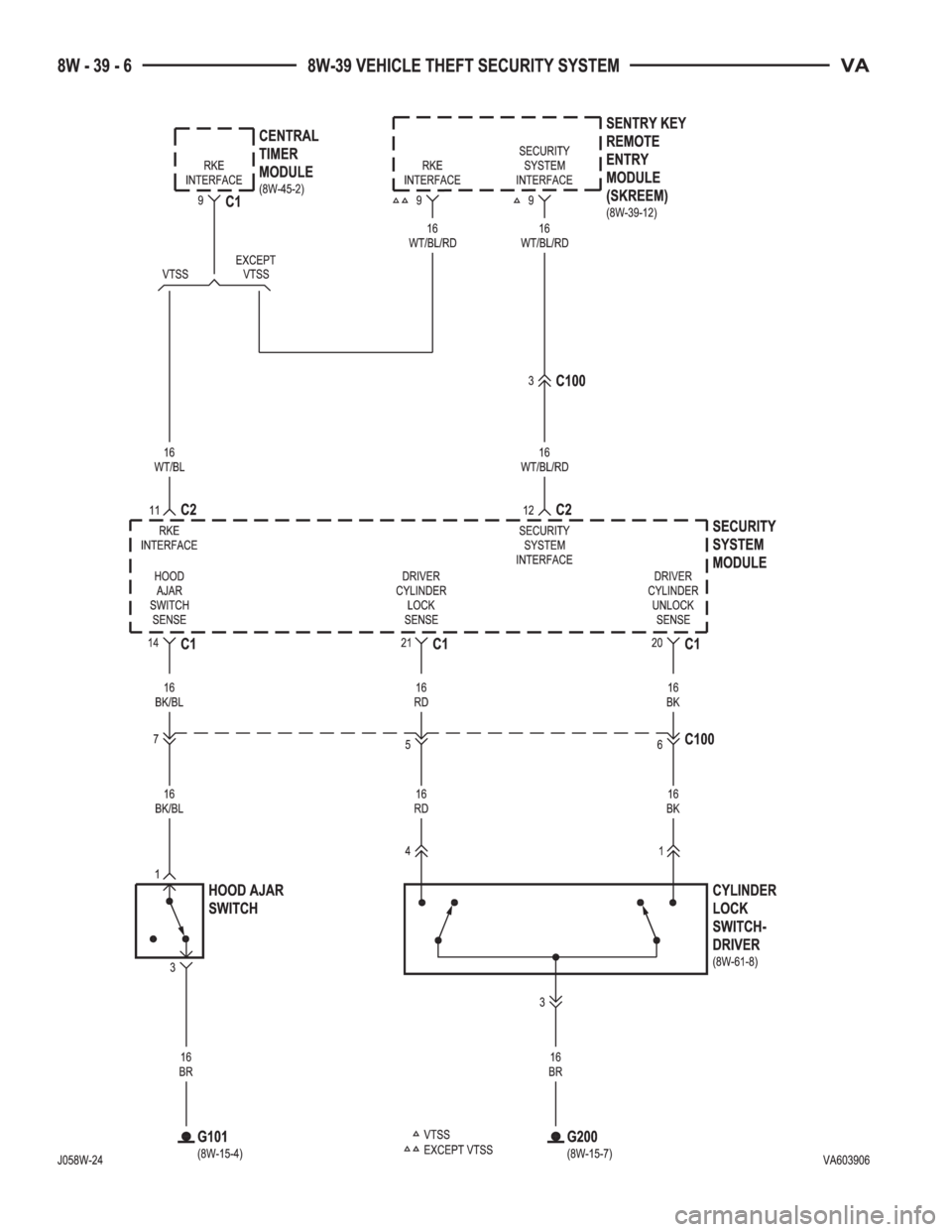

Cylinder Lock Switch-Driver........... 8W-39-6
D+ Relay No. 1..................... 8W-39-14
Data Link Connector.............. 8W-39-7, 10
Door Jamb Switch-Left Sliding......... 8W-39-14
Door Jamb Switch-Rear.............. 8W-39-14
Door Jamb Switch-Right Sliding....... 8W-39-14
Fuse 2.......................... 8W-39-3, 13
Fuse 5.......................... 8W-39-4, 11
Fuse 7............................ 8W-39-10
Fuse 8.......................... 8W-39-4, 5
Fuse 9............................ 8W-39-14
Fuse 10........................... 8W-39-13
Fuse 14........................... 8W-39-13
Fuse Block No. 1................ 8W-39-4, 5, 10
Fuse Block No. 2................... 8W-39-14
Fuse Block No. 3.................. 8W-39-3, 13
Fuse/Relay Block............... 8W-39-4, 11, 13
G101.............................. 8W-39-6
G200......................... 8W-39-3, 6, 10
G202............................. 8W-39-13
G203.............................. 8W-39-7
Headlamp Assembly-Left.............. 8W-39-8
Headlamp Assembly-Right............. 8W-39-9
Hood Ajar Switch.................... 8W-39-6
Instrument Cluster........... 8W-39-8, 9, 10, 14
Interior Lamp-Right................. 8W-39-14Component Page

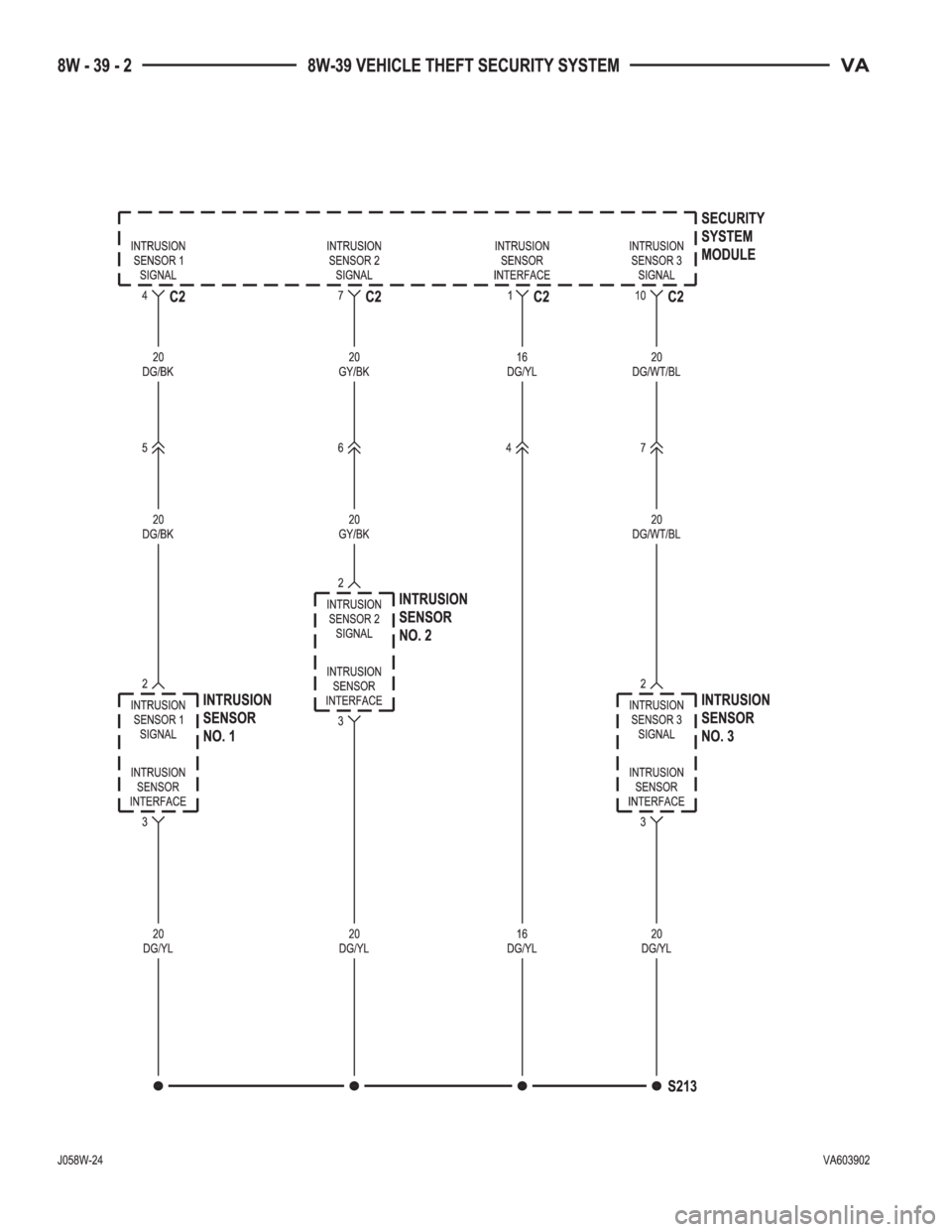

Intrusion Sensor No. 1.............. 8W-39-2, 3
Intrusion Sensor No. 2.............. 8W-39-2, 3
Intrusion Sensor No. 3.............. 8W-39-2, 3
Optional Equipment Relay............ 8W-39-13

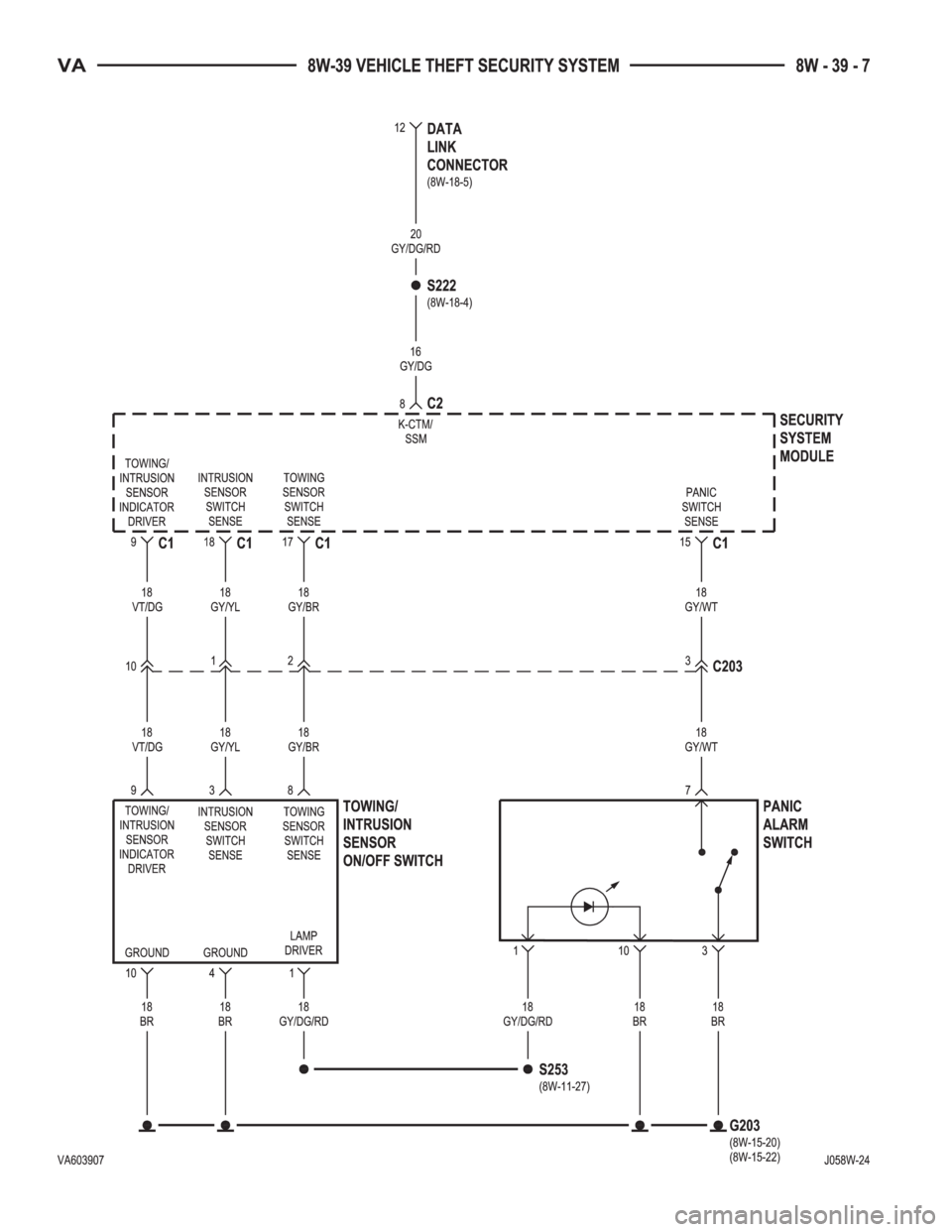

Panic Alarm Switch.................. 8W-39-7
Rear Window Defogger Relay.......... 8W-39-13
Relay Block....................... 8W-39-13
SKREEM Antenna.................. 8W-39-12
SKREEM Transponder............... 8W-39-12
Security System
Module........ 8W-39-2, 3, 6, 7, 8, 9, 12, 13, 14
Sentry Key Remote
Entry Module...... 8W-39-4, 5, 6, 8, 10, 11, 12

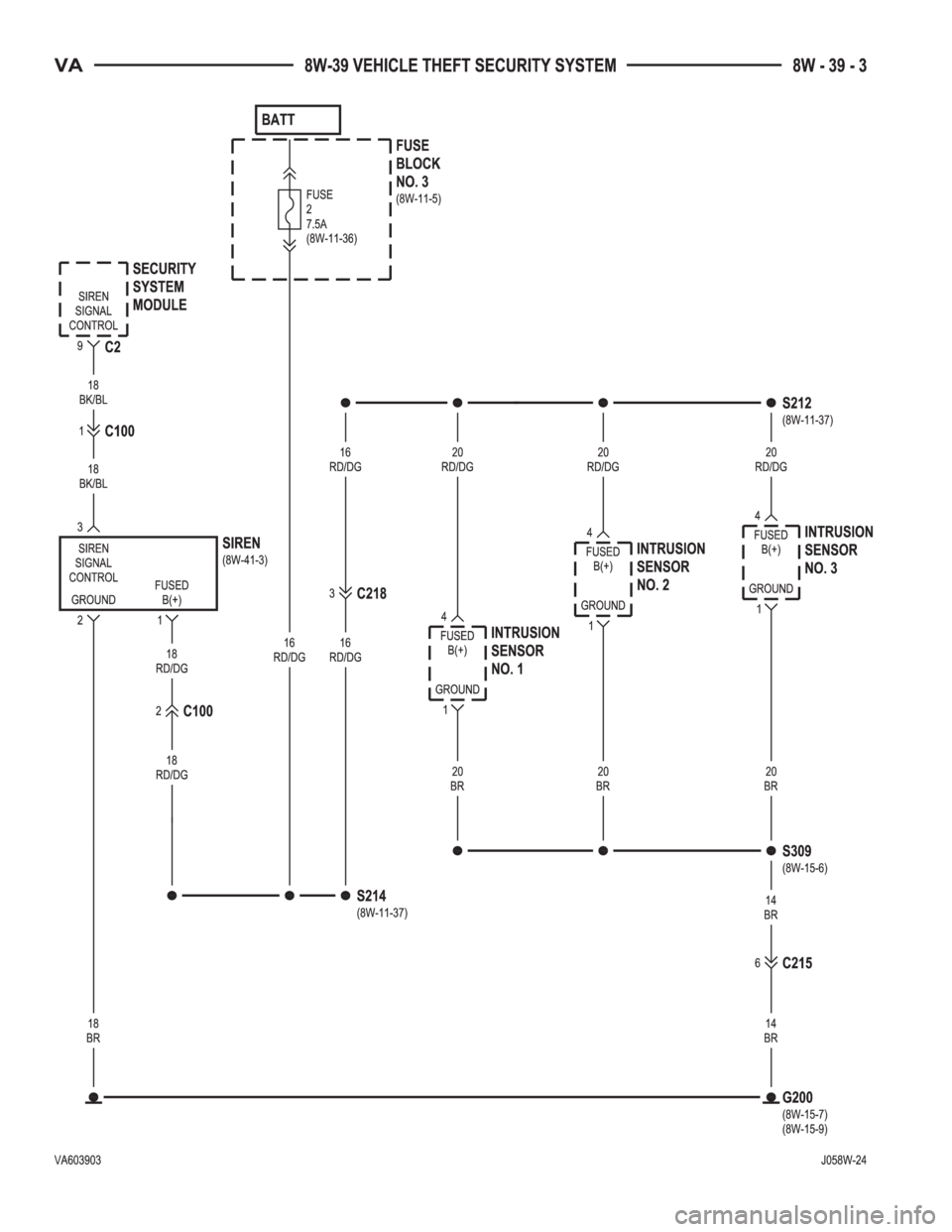

Siren............................. 8W-39-3
Tail Lamp Assembly-Left.............. 8W-39-8
Tail Lamp Assembly-Right............. 8W-39-9
Towing/Intrusion Sensor On/Off Switch . . . 8W-39-7
Trailer Tow Control Module.......... 8W-39-8, 9
Turn Signal No. 1-Left Front........... 8W-39-8
Turn Signal No. 1-Right Front.......... 8W-39-9

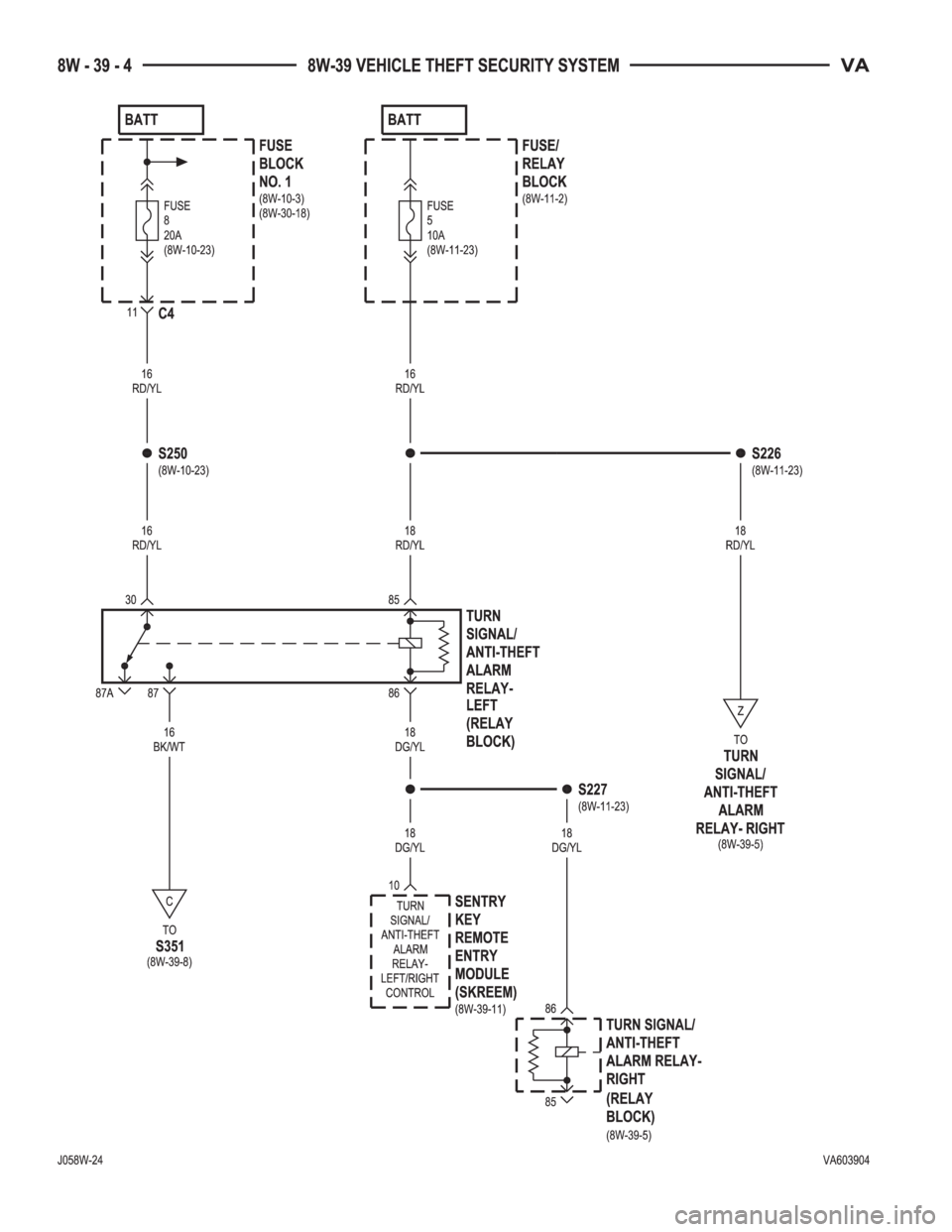

Turn Signal/Anti-Theft Alarm
Relay-Left................. 8W-39-4, 5, 8, 11

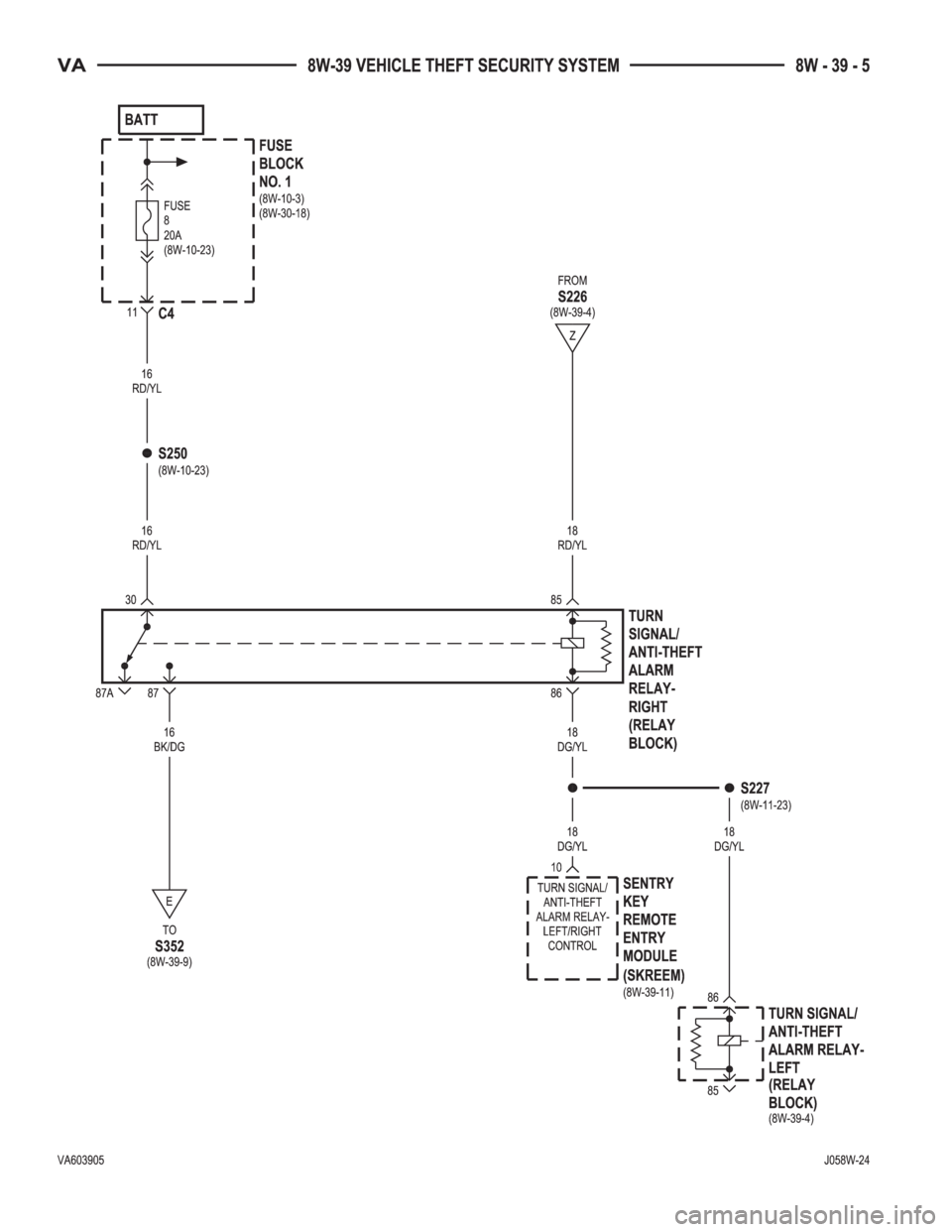

Turn Signal/Anti-Theft Alarm Relay-
Right..................... 8W-39-4, 5, 9, 11
Warm Air Auxiliary Heater Assembly.... 8W-39-14
Window Defogger Module-Rear......... 8W-39-14
