MITSUBISHI 380 2005 Workshop Manual

WINDSHIELD WIPER AND WASHER
EXTERIOR51-18
NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch
P.54A-170.
WIPER BLADE REMOVAL STEPS
>>B<<1. WIPER BLADE ASSEMBLY
>>B<<2. WIPER BLADE RUBBER
>>A<<3. WIPER ARM AND BLADE
ASSEMBLY
WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY REMOVAL STEPS
4. FENDER HOLE COVER
5. FRONT DECK GARNISH
ASSEMBLY6. GUTTER
7. WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY
8. MOTOR WINDSHIELD WIPER MOTOR AND
LINK ASSEMBLY REMOVAL STEPS

WINDSHIELD WIPER AND WASHER
EXTERIOR51-19
INSTALLATION SERVICE POINTS
.
>>A<< WIPER ARM AND BLADE ASSEMBLY
INSTALLATION
Install the wiper blade at the position specified above.
.

WINDSHIELD WIPER AND WASHER
EXTERIOR51-20
>>B<< WIPER BLADE RUBBER/ WIPER BLADE
ASSEMBLY INSTALLATION
Ensure that the backings are bent in the direction indi-
cated, and then install the backings to the wiper blade rub-
ber.
INSPECTIONM1511008000146
WINDSHIELD WIPER MOTOR CHECK
Inspect the windshield wiper motor by removing the harness
connector with the motor attached to the vehicle.
.

WINDSHIELD WIPER AND WASHER
EXTERIOR51-21
Wiper Motor at Low-Speed and High-Speed
Operation
Connect the battery to the windshield wiper motor to inspect
the operation of motor rotation in low or high speed.
.
Wiper Motor at Stop Position Operation
1. Connect the battery to the windshield wiper motor as shown
in the illustration (A).
2. Run the windshield wiper motor at low speed, then
disconnect the battery in the middle of the motor turning and
check to see that the motor stops.
3. As shown in the illustration (B), connect the terminals of the
windshield wiper motor connectors.
4. Check to see that the windshield wiper motor runs at low
speed and then stops at the automatic stop position.

WINDSHIELD WIPER AND WASHER
EXTERIOR51-22
WINDSHIELD WIPER SWITCH CHECK
Check continuity between the switch terminals.
WINDSHIELD INTERMITTENT WIPER INTERVAL
CHECK
Check that the resistance varies between 0 and 1 kiloohm
when the windshield intermittent interval is turned from FAST to
SLOW by after measuring resistance between connector termi-
nals 27 and 28 at the column switch.SWITCH POSITION TESTER
CONNECTIONSPECIFIED
CONDITION
OFF 23
32, 23 31,
23
30, 23 21Open circuit
Windshield mist wiper
switch23
32 Less than 2 ohms
Windshield
intermittent wiper
switch23
31
Windshield low-speed
wiper switch23
30
Windshield
high-speed wiper
switch21
23

WINDSHIELD WIPER AND WASHER
EXTERIOR51-23

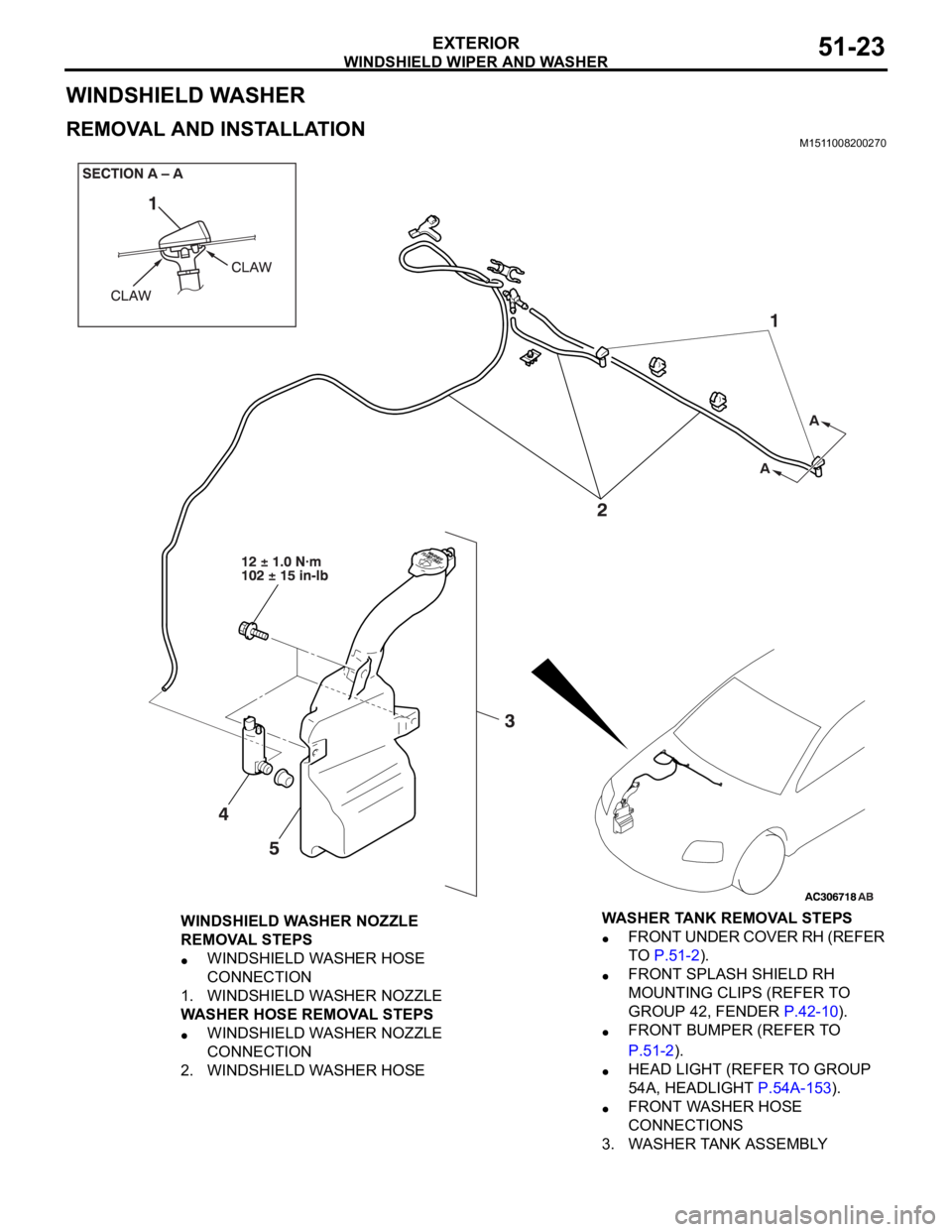

WINDSHIELD WASHER
REMOVAL AND INSTALLATIONM1511008200270
WINDSHIELD WASHER NOZZLE
REMOVAL STEPS
WINDSHIELD WASHER HOSE
CONNECTION
1. WINDSHIELD WASHER NOZZLE
WASHER HOSE REMOVAL STEPS
WINDSHIELD WASHER NOZZLE
CONNECTION
2. WINDSHIELD WASHER HOSEWASHER TANK REMOVAL STEPS
FRONT UNDER COVER RH (REFER
TO P.51-2).
FRONT SPLASH SHIELD RH
MOUNTING CLIPS (REFER TO
GROUP 42, FENDER P.42-10).
FRONT BUMPER (REFER TO
P.51-2).
HEAD LIGHT (REFER TO GROUP
54A, HEADLIGHT P.54A-153).
FRONT WASHER HOSE
CONNECTIONS
3. WASHER TANK ASSEMBLY

WINDSHIELD WIPER AND WASHER
EXTERIOR51-24
NOTE: For removal and installation of the wiper and
washer switch, refer to GROUP 54A, Column switch
P.54A-170.
INSPECTIONM1511008300147
WINDSHIELD WASHER MOTOR CHECK
1. Remove the washer tank assembly with the washer hose
attached. Then fill the washer tank with water.
2. Check to see that the water is vigorously sprayed when
connecting the positive battery terminal to terminal number
2 and terminal number 1 to ground.
WINDSHIELD WASHER SWITCH CHECK
4. WINDSHIELD WASHER MOTOR
5. WASHER TANK
WASHER MOTOR REMOVAL STEPS
FRONT UNDER COVER RH (REFER
TO P.51-2).
FRONT WASHER HOSE
CONNECTIONS
4. WINDSHIELD WASHER MOTOR WASHER TANK REMOVAL STEPS
SWITCH POSITION TESTER
CONNECTIONSPECIFIED
CONDITION
OFF 22
23 Open circuit
Windshield washer
switch ON22
23 Less than 2 ohms

MARK
EXTERIOR51-25
MARK

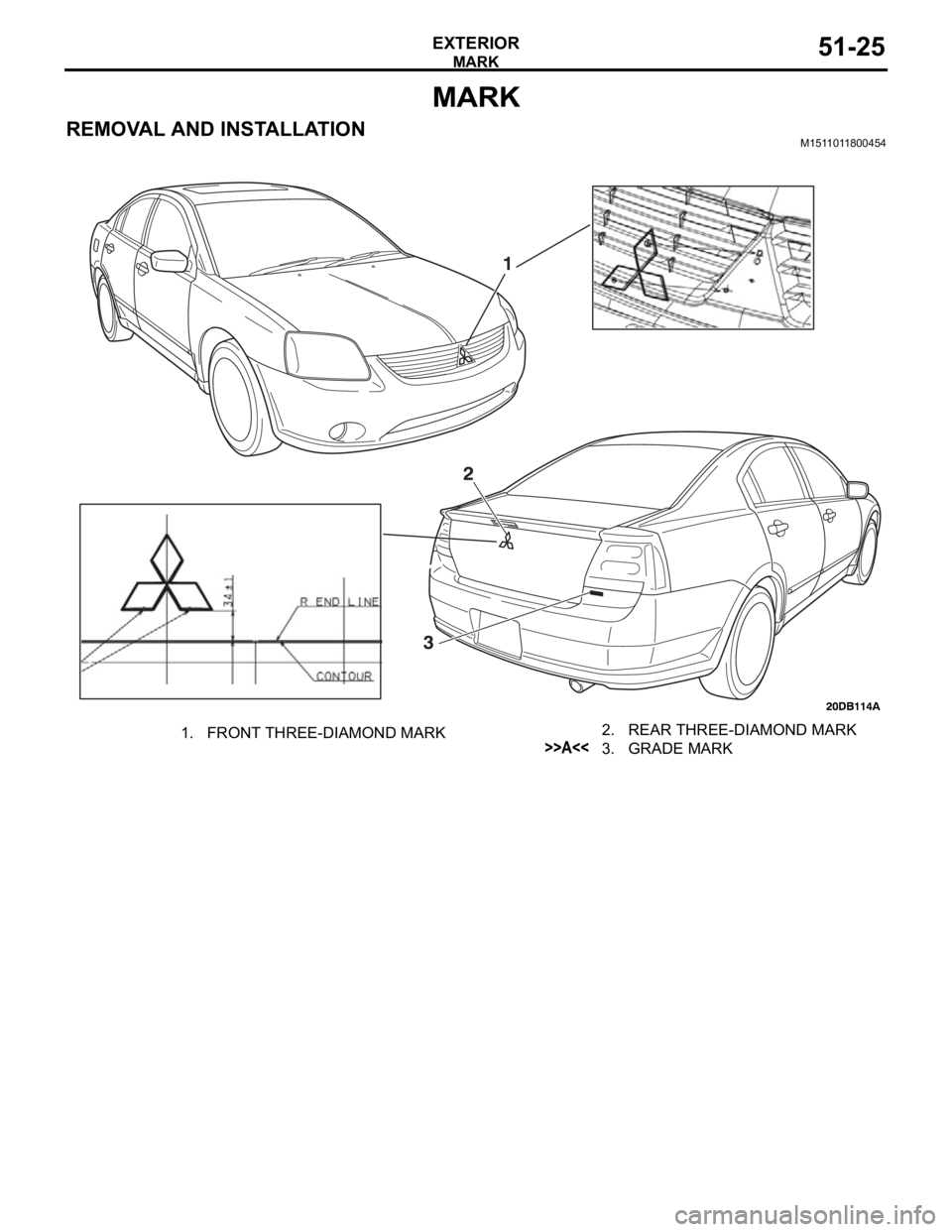

REMOVAL AND INSTALLATIONM1511011800454
1. FRONT THREE-DIAMOND MARK 2. REAR THREE-DIAMOND MARK>>A<<3. GRADE MARK

MARK
EXTERIOR51-26
INSTALLATION SERVICE POINT
.
>>A<< MARK INSTALLATION
1. Installation position
Attach the correct grade mark to the position shown in the
illustration. ie (380/380LS/380VRX/380GT).
2. Installation procedure
(1) Use 3M
AAD Part number 8906 or equivalent to clean
the mark installation surfaces on the body.
When attaching the mark, the ambient temperature should
be 20
38C (60 100F) and the air should be completely
free of dust. If the ambient temperature is lower than 20
C
(60
F), the mark and the place on the vehicle body where
the mark is to be attached should be heated to 20
38C
(60
100F).
(2) Peel off the protection sheet on the back of the mark to
affix it in position.

DOOR MIRROR
EXTERIOR51-27
DOOR MIRROR
GENERAL DESCRIPTIONM1511000100570
OPERATION DOOR MIRROR
Remote Controlled Mirror Operation
The mirror on the door mirror moves up/down
and left/right by operating the remote controlled
door mirror switch when the ignition switch is in
the "ON" or "ACC" position.
