ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-4
ENGINE COMPARTMENTM1801000301403
A-01 (2-B) WHEEL SPEED SENSOR (FRONT:
RH)
A-02 (26-B) ABS-ECU OR ABS/TCL-ECU
A-03 (5-B) WINDSHIELD WIPER MOTOR
A-04 (2-B) WHEEL SPEED SENSOR (FRONT:
LH)
A-05X (4) FOG LAMP RELAY
A-06X (4) HORN RELAY
A-10X (4) FAN CONTROL RELAYA-11X (11) FRONT-ECU
A-12X (11) FRONT-ECU
A-13 (17-GR) FRONT WIRING HARNESS AND
CONTROL WIRING HARNESS
COMBINATION
A-14 (6-GR) GROUNDING CONNECTOR
A-17 (2) SIDE TURN SIGNAL LAMP (LH)
A-18 (2) FRONT TURN SIGNAL LAMP (LH)
A-20 (6) HEADLAMP COMBINATION (LH)

ENGINE COMPARTMENT
CONFIGURATION DIAGRAMS80-5
A-22 (2-B) FOG LAMP (LH)
A-23 (2-Y) FRONT IMPACT SENSOR (LH)
A-24 (3-B) RADIATOR AND CONDENSER FAN
CONTROLLER MODULE
A-25 (2-BR) AMBIENT TEMPERATURE SENSOR
A-26 (2-B) HOOD SECURITY SWITCH
A-27 (2-Y) FRONT IMPACT SENSOR (RH)
A-28 (2-B) FOG LAMP (RH)
A-29 (2) WINDSHIELD WASHER MOTORA-30 (3-B) A/C PRESSURE SENSOR
A-32 (6) HEADLAMP COMBINATION (RH)
A-34 (2) FRONT TURN SIGNAL LAMP (RH)
A-35 (2) SIDE TURN SIGNAL LAMP (RH)
A-36 (1-B) HORN (LOW)
A-37 (1-B) HORN (HIGH)
A-38 (2) CONDENSOR FAN CONNECTION
TO CONTROLLER MODULE

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-6
ENGINE AND TRANSMISSIONM1801000401079
B-01 (2-GR) INJECTOR 1
B-02 (3-B) MANIFOLD ABSOLUTE PRESSURE
SENSOR
B-03 (2-GR) INJECTOR 3
B-04 (2-GR) INJECTOR 5
B-05 (2-B) EVAPORATIVE EMISSION PURGE
SOLENOID
B-06 (6-B) THROTTLE BODY ASSEMBLY
B-07 (2-GR) BRAKE FLUID LEVEL SWITCHB-08 (4-GR) RIGHT BANK HEATED OXYGEN
SENSOR (REAR)
B-09 (4-B) RIGHT BANK HEATED OXYGEN
SENSOR (FRONT)
B-10 (5) MASS AIRFLOW SENSOR
B-16X (4) A/T CONTROL RELAY
B-17X (4) MPI RELAY
B-18X (4) A/C COMPRESSOR CLUTCH RELAY

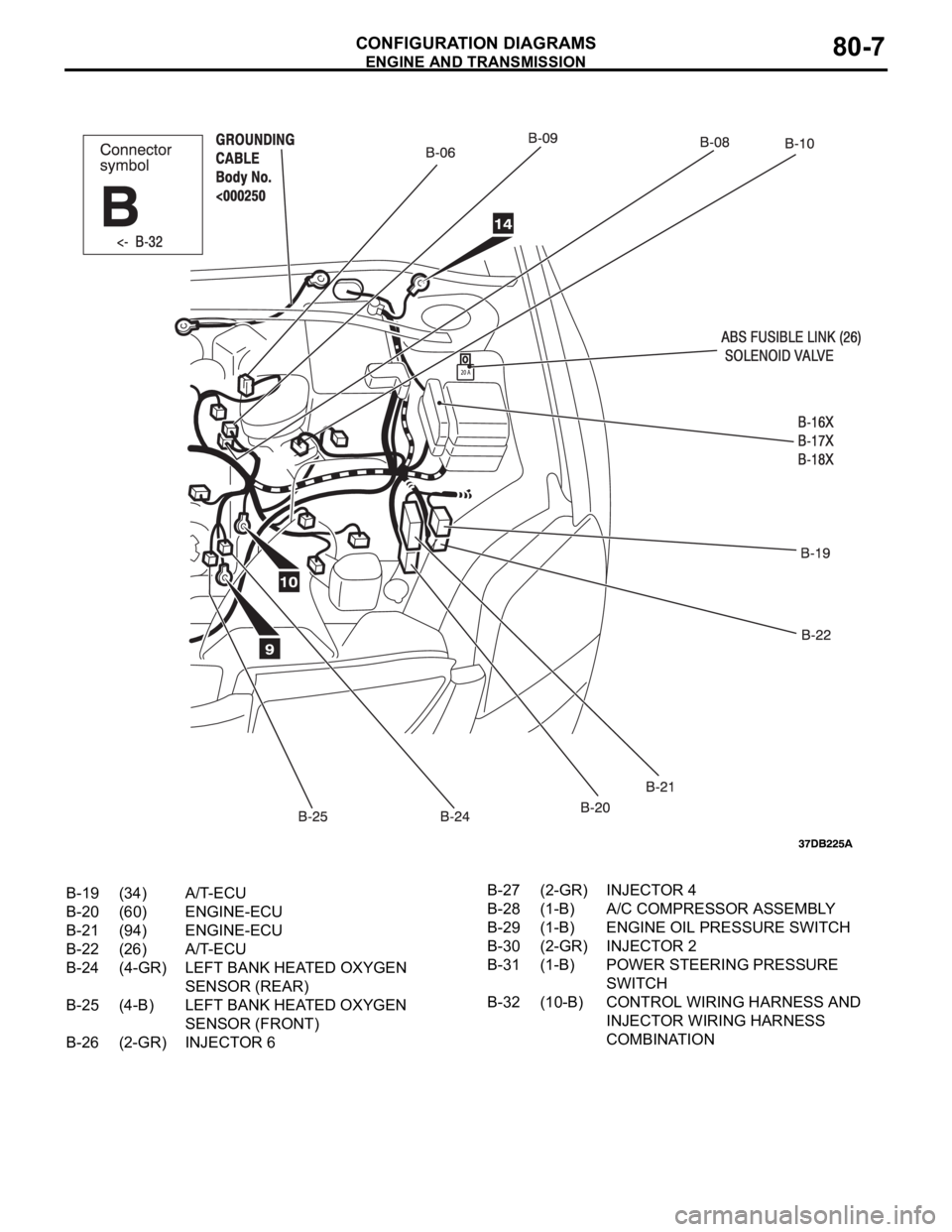

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-7
B-19 (34) A/T-ECU
B-20 (60) ENGINE-ECU
B-21 (94) ENGINE-ECU
B-22 (26) A/T-ECU
B-24 (4-GR) LEFT BANK HEATED OXYGEN
SENSOR (REAR)
B-25 (4-B) LEFT BANK HEATED OXYGEN
SENSOR (FRONT)
B-26 (2-GR) INJECTOR 6B-27 (2-GR) INJECTOR 4
B-28 (1-B) A/C COMPRESSOR ASSEMBLY
B-29 (1-B) ENGINE OIL PRESSURE SWITCH
B-30 (2-GR) INJECTOR 2
B-31 (1-B) POWER STEERING PRESSURE
SWITCH
B-32 (10-B) CONTROL WIRING HARNESS AND
INJECTOR WIRING HARNESS
COMBINATION

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-8
B-101 (3-GR) IGNITION COIL 1
B-102 (3-GR) IGNITION COIL 3
B-103 (3-GR) IGNITION COIL 5
B-104 (2-B) ENGINE COOLANT TEMPERATURE
SENSOR
B-106 (3-B) CAMSHAFT POSITION SENSORB-107 (3-GR) OUTPUT SHAFT SPEED SENSOR
B-108 (10-GR) A/T CONTROL SOLENOID VALVE
ASSEMBLY
B-109 (3-B) INPUT SHAFT SPEED SENSOR
B-110 (10-B) TRANSMISSION INHIBITOR
(RANGE) SWITCH

ENGINE AND TRANSMISSION
CONFIGURATION DIAGRAMS80-9
B-112 (1) STARTER
B-113 (1-B) STARTER
B-114 (3-GR) IGNITION COIL 6
B-115 (1) ALTERNATOR
B-116 (2) ALTERNATORB-117 (3-GR) IGNITION COIL 4
B-118 (3-GR) IGNITION COIL 2
B-119 (3-B) CRANKSHAFT POSITION SENSOR
B-120 (2-GR) KNOCK SENSOR

CIRCUIT DIAGRAMS90-2
AUTOMATIC AIR CONDITIONING
SYSTEM . . . . . . . . . . . . . . . . . . . . . . .90-71
WINDSHIELD WIPER AND WASHER90-75
REAR WINDOW DEFOGGER . . . . . .90-78
REMOTE CONTROLLED MIRROR . .90-79
AUDIO SYSTEM . . . . . . . . . . . . . . . .90-80
ACCESSORY SOCKET . . . . . . . . . . .90-82
CLOCK DISPLAY . . . . . . . . . . . . . . .90-83
MULTI-CENTER DISPLAY . . . . . . . .90-84
SUNROOF . . . . . . . . . . . . . . . . . . . . .90-87
AUTO-CRUISE CONTROL SYSTEM90-89
ANTI-LOCK BRAKING SYSTEM (ABS)
CONTROL (TCL)> . . . . . . . . . . . . . . .90-93
ANTI-LOCK BRAKING SYSTEM (ABS)
CONTROL (TCL)> . . . . . . . . . . . . . . .90-96SUPPLEMENTAL RESTRAINT
SYSTEM (SRS) . . . . . . . . . . . . . . . . . .90-99
ENGINE IMMOBILISER SYSTEM . . .90-103
POWER SEAT WITH MEMORY
(DRIVER). . . . . . . . . . . . . . . . . . . . . . .90-104
POWER SEAT (8-WAY)
(DRIVER AND PASSENGER) . . . . . .90-106
POWER SEAT [(6-WAY) DRIVER] . .90-108
FORGOTTEN KEY PREVENTION
FUNCTION . . . . . . . . . . . . . . . . . . . . .90-109
LIGHTING MONITOR TONE ALARM90-111
IGNITION KEY REMINDER TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-112
SEAT BELT WARNING TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-113
DOOR AJAR WARNING TONE
ALARM . . . . . . . . . . . . . . . . . . . . . . . .90-115
RHEOSTAT . . . . . . . . . . . . . . . . . . . . .90-118
CONTROLLER AREA NETWORK
(CAN) . . . . . . . . . . . . . . . . . . . . . . . . .90-119

CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-12
CENTRALISED JUNCTIONM1901000301013
FUSIBLE LINK AND FUSE
ENGINE COMPARTMENT
NO. POWER SUPPLY
CIRCUITNAME RATED
CAPACITY (A)HOUSING
COLOURLOAD CIRCUIT
1 Battery/Alternator
(Fusible link No.27)Fusible
link80 Black Fuse Nos.5, 6, 9 and 10 (in junction
block) circuit
2 50 Blue Radiator fan motor
3 30 Pink ABS-ECU and ABS/TCL-ECU (motor
power supply)
4 40 Green Ignition switch circuit
5 40 Green Fuse Nos.3 and 4 (in junction block
circuit), front power window regulator
motor, power seat assembly, power
window main switch and rear power
window regulator motor
6 Fuse 15 Blue Fog lamp and fog lamp relay
720Yellow
8 15 Red Horn (High), horn (Low) and horn
relay
9 20 Yellow Camshaft position sensor, crankshaft
position sensor, engine oil control
valve, evaporative emission purge
solenoid, evaporative emission
ventilation solenoid, heated oxygen
sensor,ETACS-ECU, injector, mass
airflow sensor, MPI relay, Engine
ECU, A/T ECU, throttle actuator
control motor relay and fan control
relay
10 10 Red A/C compressor assembly and
A/C-ECU
11 15 Blue ABS-ECU, ABS/TCL-ECU,
high-mounted stoplamp, Engine ECU
and rear combination lamp
12
13 7.5 Brown
Alternator
14 10 Red ETACS-ECU, Hazard lamps
15 20 Yellow A/T control solenoid valve and Engine
ECU
16 Front-ECU
(Headlamp relay:
High)15 Blue Headlamp (RH) and headlamp (High:
RH)
17 15 Blue Headlamp (LH) and headlamp (High:
LH)
18 Front-ECU (Field
effect transistor for
headlamp: Low)10 Red Headlamp (RH) and headlamp (Low:
RH)

CENTRALISED JUNCTION
CIRCUIT DIAGRAMS90-15
NO. POWER SUPPLY
CIRCUITNAME RATED
CAPACITY (A)HOUSING
COLOURLOAD CIRCUIT
1 Fusible link No.1 Fuse 30 Green Rear window demister
2 30 Green Blower motor and resistor
3
4
5 15 Blue Accessory socket
6 15 Blue Data link connector and ETACS-ECU
7 Ignition switch (ACC) 15 Blue ETACS-ECU
8
9 Ignition switch (IG2) 7.5 Brown Sunroof assembly
10 Ignition switch (ACC) 7.5 Brown Remote controlled mirror
11
12
13 Ignition switch (IG1) 7.5 Brown Fuel pump relay and Engine ECU
14 Ignition switch (ACC) 20 Yellow Windscreen wiper
15 Fusible link No.1
(Fuse No.5 in junction
block)7.5 Brown Remote controlled mirror
16 Ignition switch (IG2) 7.5 Brown A/C compressor clutch relay,
A/C-ECU, blower relay, condenser
fan motor, fan control relay,
front-ECU, outside/inside air selection
damper control motor and rear
window defogger relay
17 Ignition switch (IG1)
18 7.5 Brown A/T control relay, input shaft speed
sensor, output shaft speed sensor,
Engine ECU, rear combination lamp
and SRS-ECU
19 7.5 Brown ABS-ECU, ABS/TCL-ECU, column
switch, combination meter,
ETACS-ECU, multi-center display unit
and SRS-ECU
20 10 Red Ignition coil
21
22
23 Fusible link No.5 20 Yellow Sunroof assembly
24
