MITSUBISHI COLT 2008 Owner's Manual (in English)

For pleasant driving5-55
5

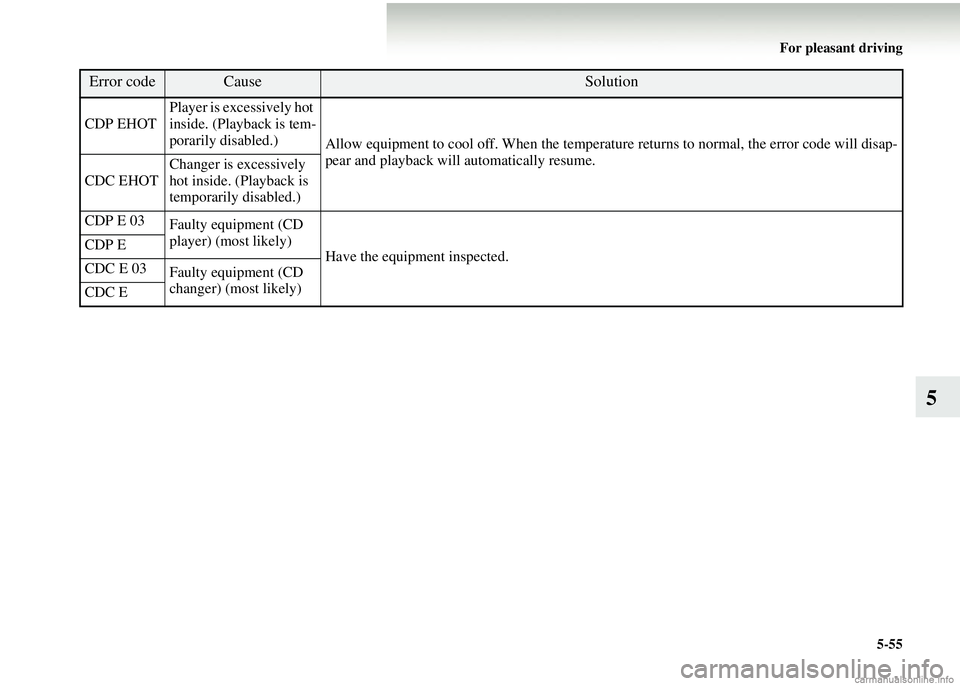

CDP EHOTPlayer is excessively hot
inside. (Playback is tem-
porarily disabled.)
Allow equipment to cool off. When the temperature returns to normal, the error code will disap-
pear and playback will automatically resume.
CDC EHOT Changer is excessively
hot inside. (Playback is
temporarily disabled.)
CDP E 03 Faulty equipment (CD
player) (most likely)
Have the equipment inspected.
CDP E
CDC E 03
Faulty equipment (CD
changer) (most likely)
CDC E
Error codeCauseSolution

5-56 For pleasant driving

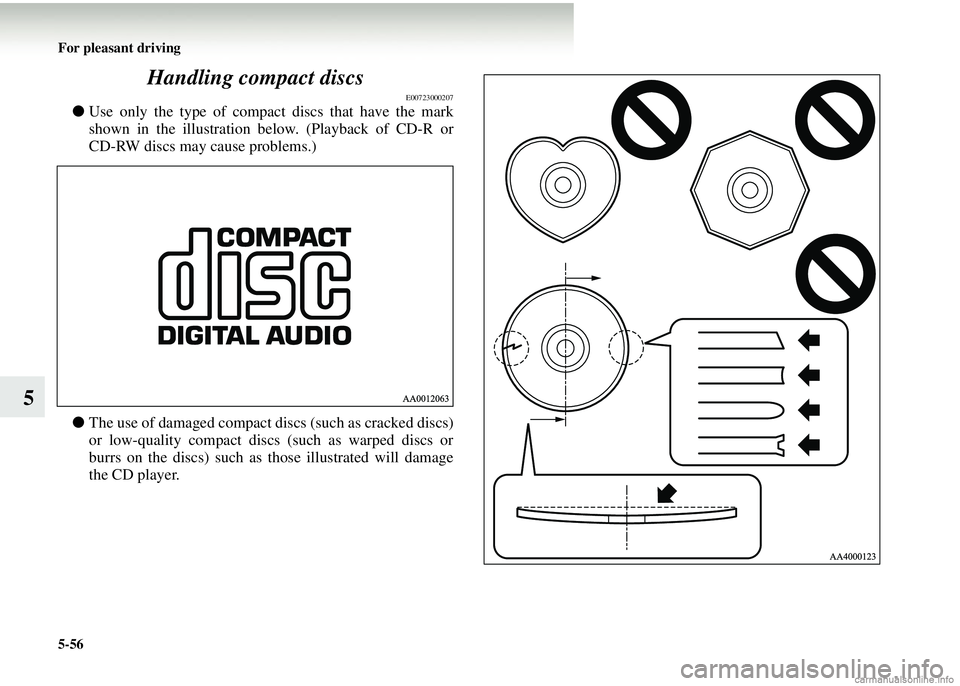

5Handling compact discs
E00723000207
●
Use only the type of compact discs that have the mark
shown in the illustration below. (Playback of CD-R or
CD-RW discs may cause problems.)
● The use of damaged compact discs (such as cracked discs)
or low-quality compact discs (such as warped discs or
burrs on the discs) such as those illustrated will damage
the CD player.

For pleasant driving5-57
5
●In the following circumstan ces, moisture can form on
discs and inside the audio system, preventing normal
operation. • When there is high humidity (for example, when it is raining).
• When the temperature suddenly rises, such as right after
the heater is turned on in cold weather.
In this case, wait until the moisture has had time to dry
out.
● When the CD player is subj ected to violent vibrations,
such as during off-road dr iving, the tracking may not
work.
● When storing compact discs, always store them in their
separate cases. Never place compact discs in direct sun-
light, or in any place where th e temperature or humidity is
high.
● Never touch the flat surface of the disc where there isn’t a
label. This will damage the disc surface and could affect
the sound quality. When handling a compact disc, always
hold it by the outer edge and the centre hole. ●
To clean a disc, use a soft, cl ean, dry cloth. Wipe directly
from the centre hole towards the outer edge. Do not wipe
in a circle. Never use any chemicals such as benzine, paint
thinner, a disc spray cleaner, or an anti-static agent on the
disc.
● Do not use a ball point pen, felt pen, pencil, etc. to write
on the label surface of the disc.

5-58 For pleasant driving
5

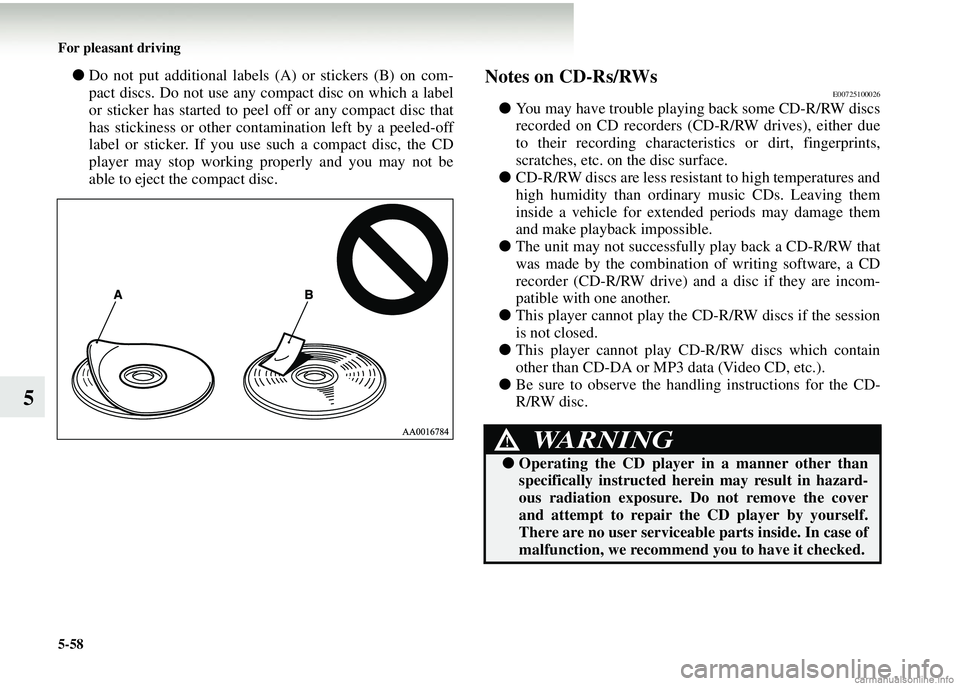

●Do not put additional labels (A) or stickers (B) on com-
pact discs. Do not use any compact disc on which a label
or sticker has started to peel off or any compact disc that
has stickiness or other contamination left by a peeled-off
label or sticker. If you use such a compact disc, the CD
player may stop working properly and you may not be
able to eject the compact disc.Notes on CD-Rs/RWsE00725100026
●You may have trouble playing back some CD-R/RW discs
recorded on CD recorders (C D-R/RW drives), either due
to their recording characteris tics or dirt, fingerprints,
scratches, etc. on the disc surface.
● CD-R/RW discs are less resistant to high temperatures and
high humidity than ordinary music CDs. Leaving them
inside a vehicle for extended periods may damage them
and make playback impossible.
● The unit may not successfully play back a CD-R/RW that
was made by the combination of writing software, a CD
recorder (CD-R/RW drive) an d a disc if they are incom-
patible with one another.
● This player cannot play the CD-R/RW discs if the session
is not closed.
● This player cannot play CD-R/RW discs which contain
other than CD-DA or MP3 data (Video CD, etc.).
● Be sure to observe the handling instructions for the CD-
R/RW disc.
WARNING!
●Operating the CD player in a manner other than
specifically instructed herein may result in hazard-
ous radiation exposure. Do not remove the cover
and attempt to repair the CD player by yourself.
There are no user serviceabl e parts inside. In case of
malfunction, we recommend you to have it checked.

For pleasant driving5-59
5
Antenna
E00710500093
Roof antenna
To remove the roof antenna, unscrew it by turning it anticlock-
wise.
NOTE●
Be sure to remove the roof antenna in the following cases:
• When entering a place with low clearance.
• When going into an automatic car wash.
• When placing a car cove r over the vehicle.
Sun visors
E00711201010
1- To eliminate front glare
2- To eliminate side glare

5-60 For pleasant driving

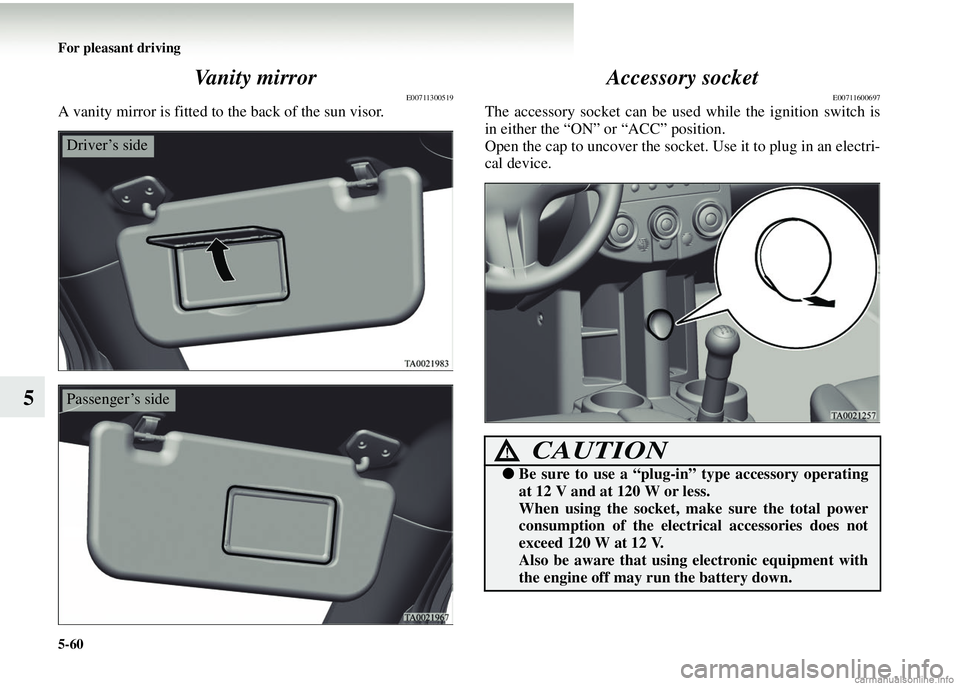

5Vanity mirror
E00711300519
A vanity mirror is fitted to the back of the sun visor.
Accessory socket
E00711600697
The accessory socket can be used while the ignition switch is
in either the “ON” or “ACC” position.
Open the cap to uncover the socket
. Use it to plug in an electri-
cal device.
Driver’s side
Passenger’s side
CAUTION!
● Be sure to use a “plug-in” type accessory operating
at 12 V and at 120 W or less.
When using the socket, ma ke sure the total power
consumption of the electri cal accessories does not
exceed 120 W at 12 V.
Also be aware that usin g electronic equipment with
the engine off may run the battery down.

For pleasant driving5-61
5

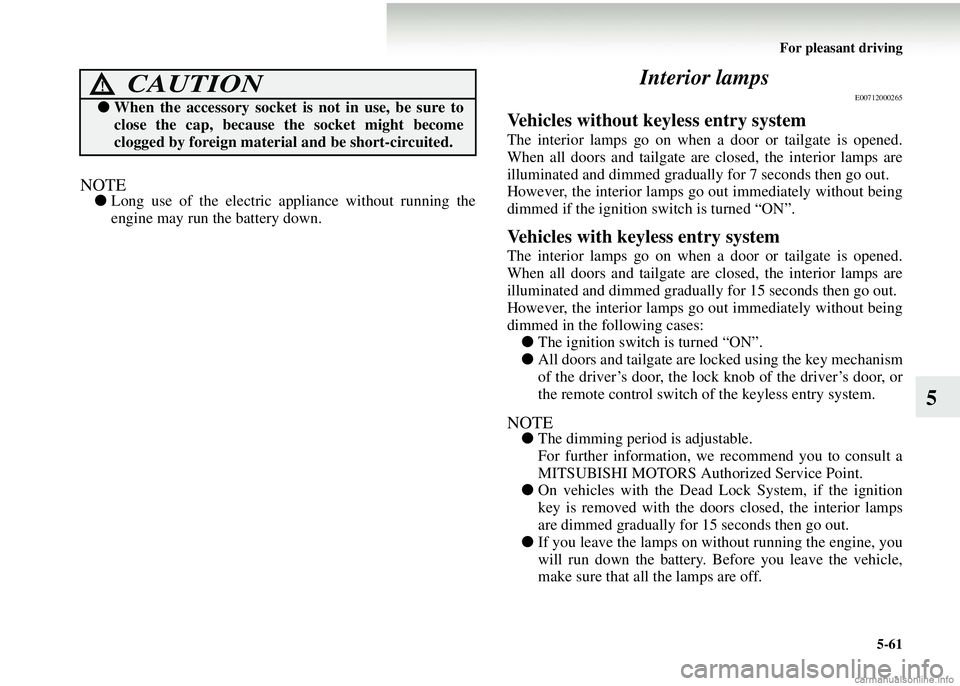

NOTE●Long use of the electric appliance without running the
engine may run the battery down.
Interior lamps
E00712000265
Vehicles without ke yless entry system
The interior lamps go on when a door or tailgate is opened.
When all doors and tailgate are closed, the interior lamps are
illuminated and dimmed gradually for 7 seconds then go out.
However, the interior lamps go out immediately without being
dimmed if the ignition switch is turned “ON”.
Vehicles with keyless entry system
The interior lamps go on when a door or tailgate is opened.
When all doors and tailgate are closed, the interior lamps are
illuminated and dimmed gradually for 15 seconds then go out.
However, the interior lamps go out immediately without being
dimmed in the following cases: ● The ignition switch is turned “ON”.
● All doors and tailgate are lo cked using the key mechanism
of the driver’s door, the lock knob of the driver’s door, or
the remote control switch of the keyless entry system.
NOTE●The dimming period is adjustable.
For further information, we recommend you to consult a
MITSUBISHI MOTORS Auth orized Service Point.
● On vehicles with the Dead Lock System, if the ignition
key is removed with the doors closed, the interior lamps
are dimmed gradually for 15 seconds then go out.
● If you leave the lamps on without running the engine, you
will run down the battery. Before you leave the vehicle,
make sure that all the lamps are off.
● When the accessory socket is not in use, be sure to
close the cap, because the socket might become
clogged by foreign material and be short-circuited.
CAUTION!

5-62 For pleasant driving
5

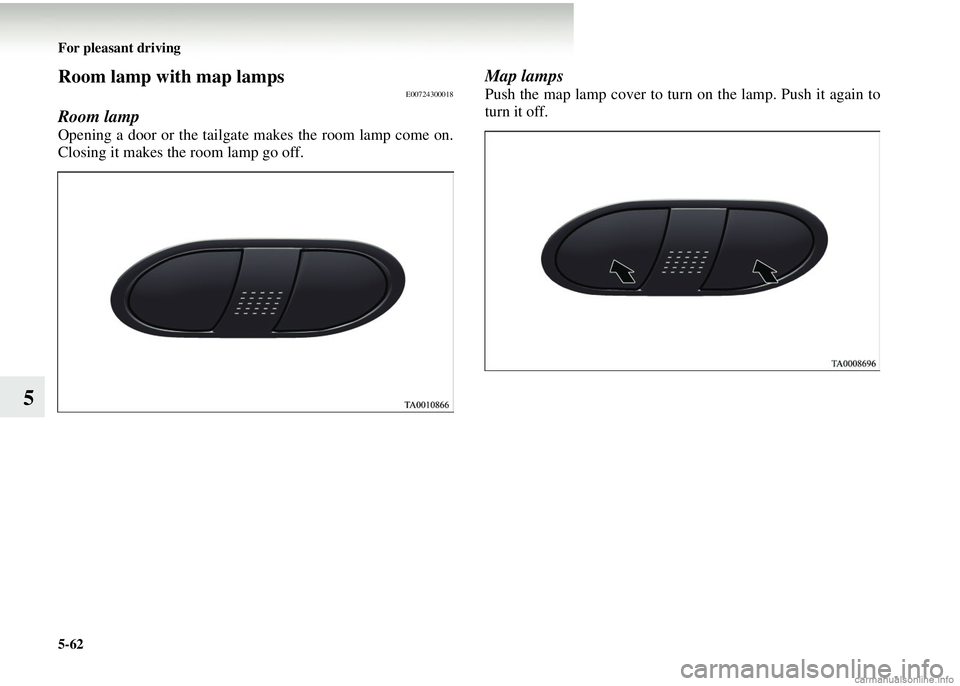

Room lamp with map lampsE00724300018
Room lamp
Opening a door or the tailgate makes the room lamp come on.
Closing it makes the room lamp go off.
Map lamps
Push the map lamp cover to turn on the lamp. Push it again to
turn it off.

For pleasant driving5-63
5

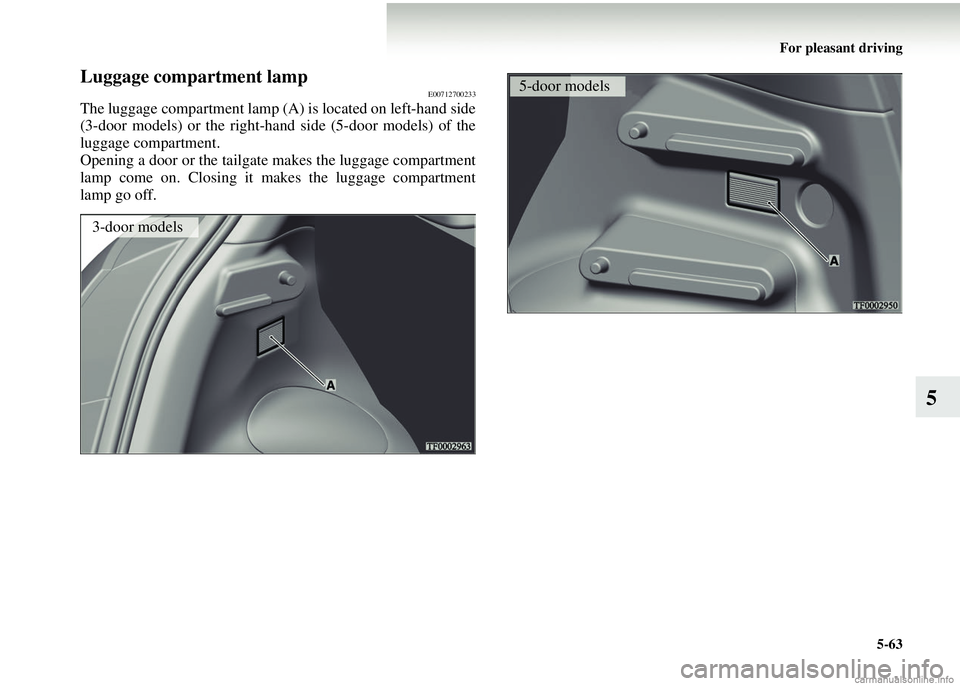

Luggage compartment lampE00712700233
The luggage compartment lamp (A ) is located on left-hand side
(3-door models) or the right-hand side (5-door models) of the
luggage compartment.
Opening a door or the tailgate makes the luggage compartment
lamp come on. Closing it makes the luggage compartment
lamp go off.
3-door models
5-door models

5-64 For pleasant driving

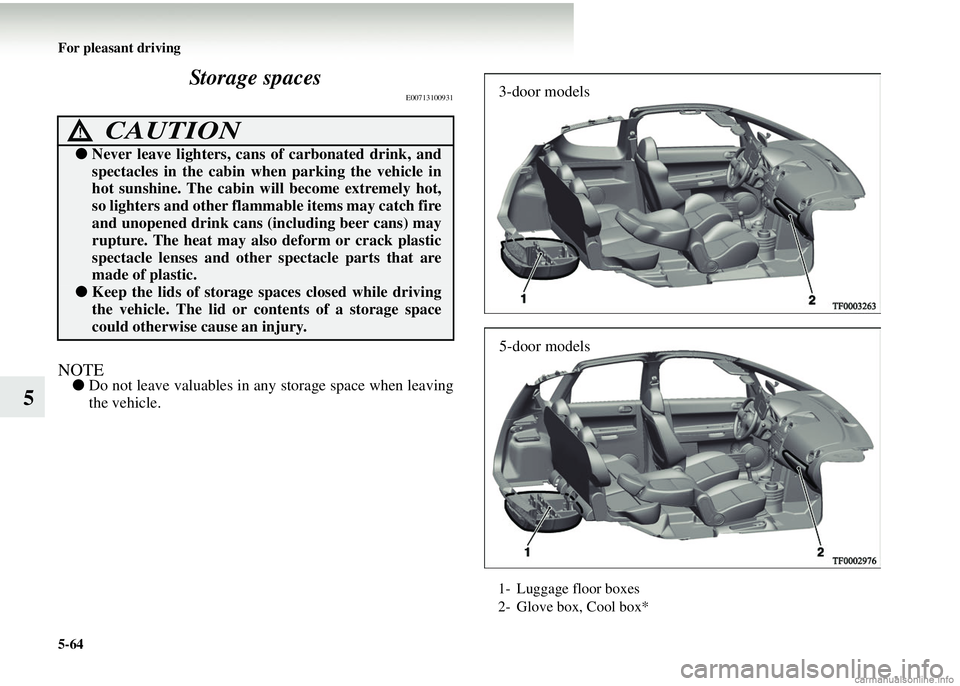

5Storage spaces
E00713100931
NOTE●
Do not leave valuables in an y storage space when leaving
the vehicle.
CAUTION!
● Never leave lighters, cans of carbonated drink, and
spectacles in the cabin wh en parking the vehicle in
hot sunshine. The cabin wi ll become extremely hot,
so lighters and other fla mmable items may catch fire
and unopened drink cans (including beer cans) may
rupture. The heat may also deform or crack plastic
spectacle lenses and other spectacle parts that are
made of plastic.
● Keep the lids of storage spaces closed while driving
the vehicle. The lid or co ntents of a storage space
could otherwise cause an injury.
1- Luggage floor boxes
2- Glove box, Cool box*
3-door models
5-door models
