MITSUBISHI ENDEAVOR 2004 Service Repair Manual

1. Disconnect the clock spring connector C-306.

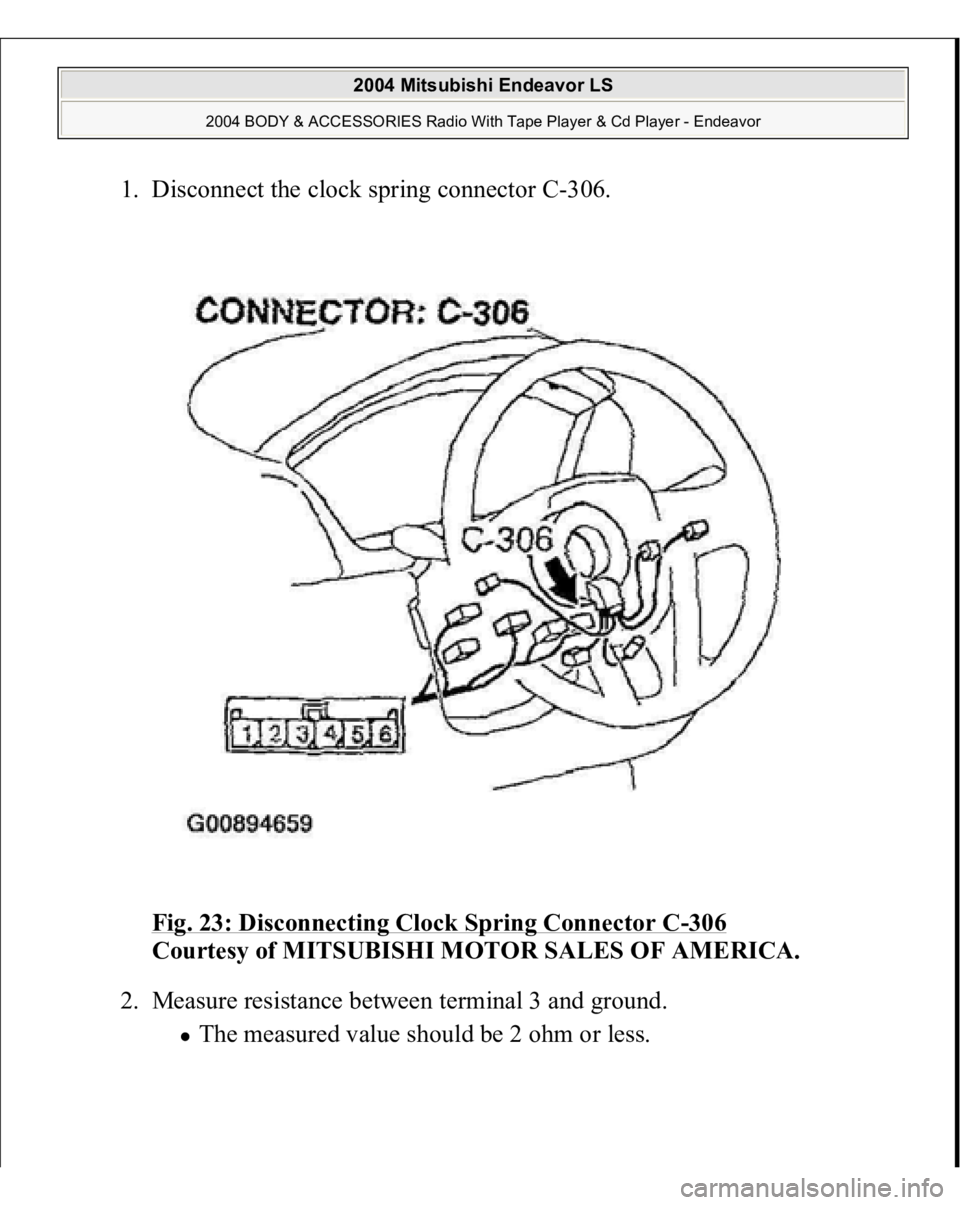

Fig. 23: Disconnecting Clock Spring Connector C
-306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure resistance between terminal 3 and ground.
The measured value should be 2 ohm or less.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

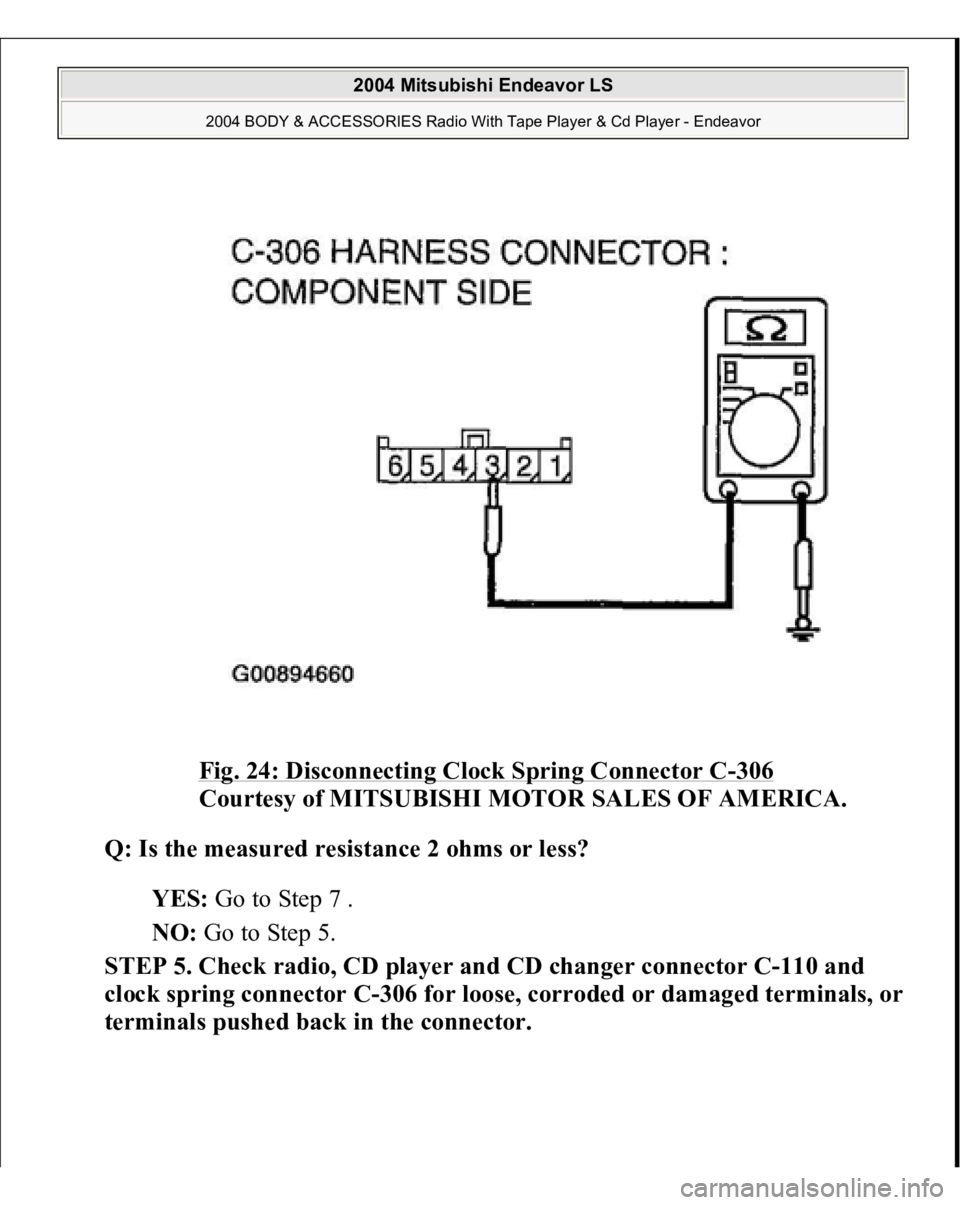

Fig. 24: Disconnecting Clock Spring Connector C
-306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7 .
NO: Go to Step 5.
STEP 5. Check radio, CD player and CD changer connector C-110 and
clock spring connector C-306 for loose, corroded or dama
ged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

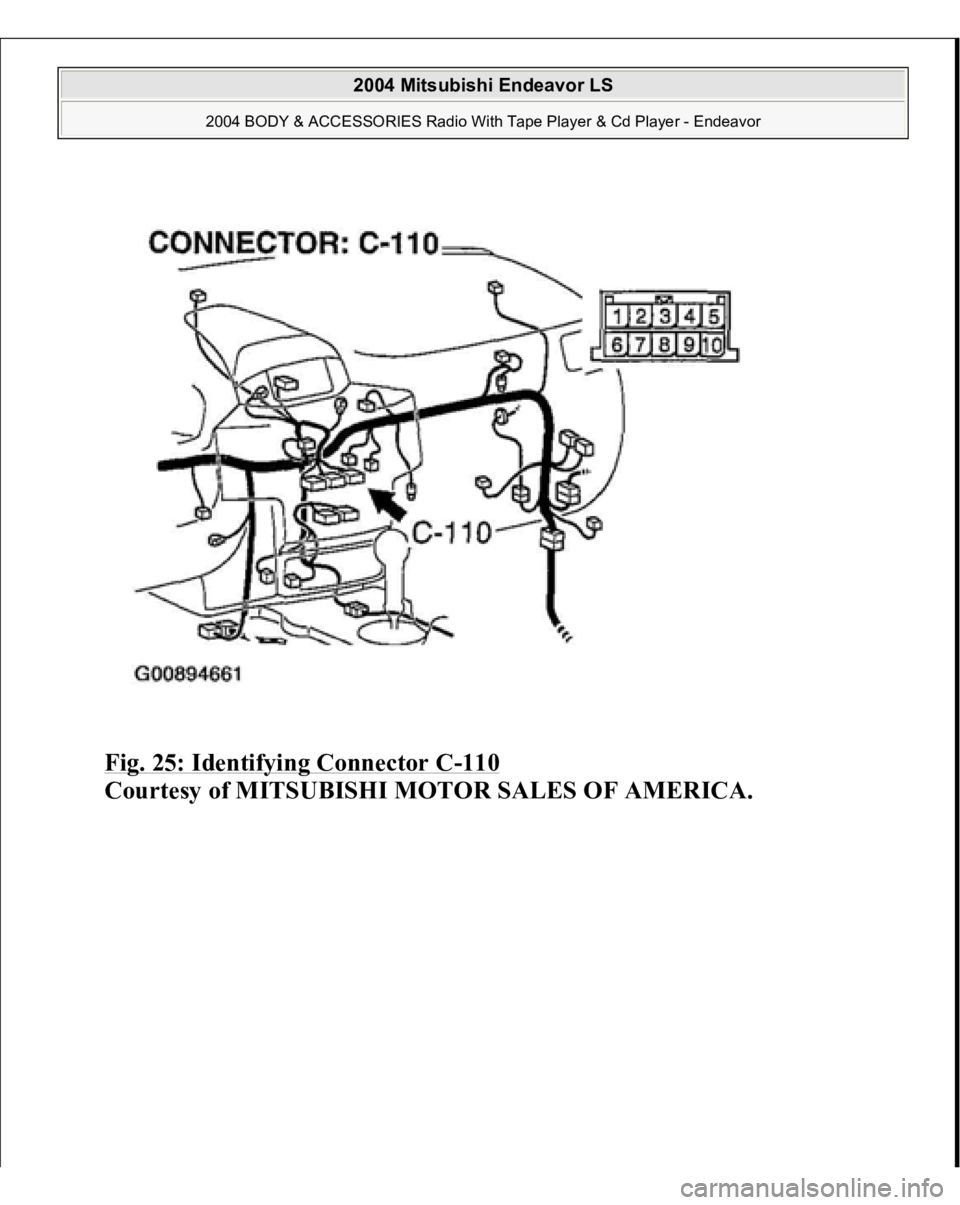

Fig. 25: Identifying Connector C
-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

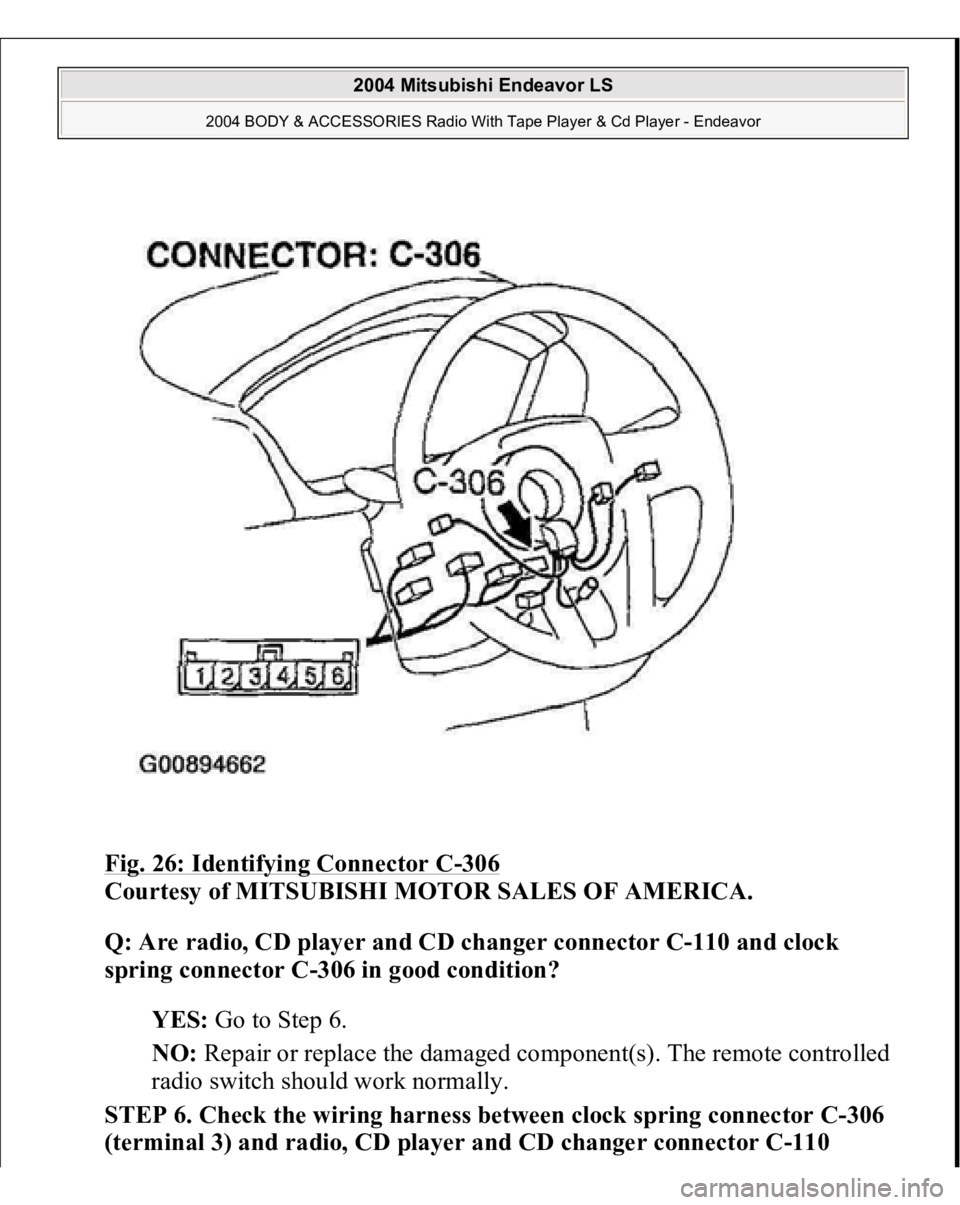

Fig. 26: Identifying Connector C
-306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are radio, CD player and CD changer connector C-110 and clock
spring connector C-306 in good condition?
YES: Go to Step 6.
NO: Repair or replace the damaged component(s). The remote controlled
radio switch should work normally.
STEP 6. Check the wiring harness between clock spring connector C-306
(terminal 3) and radio, CD player and CD changer connector C-110

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

(terminal 10)
.

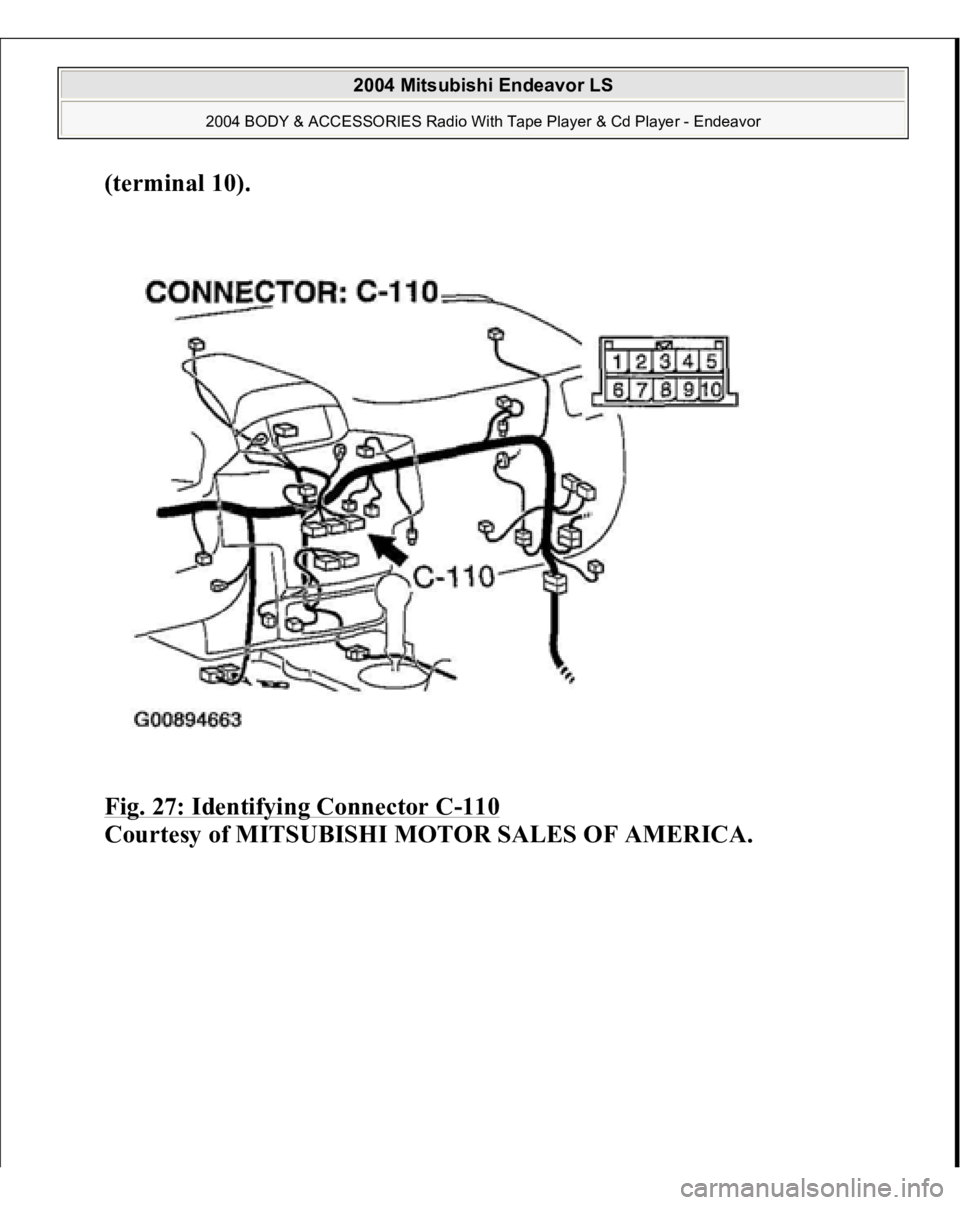

Fig. 27: Identifying Connector C
-110

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

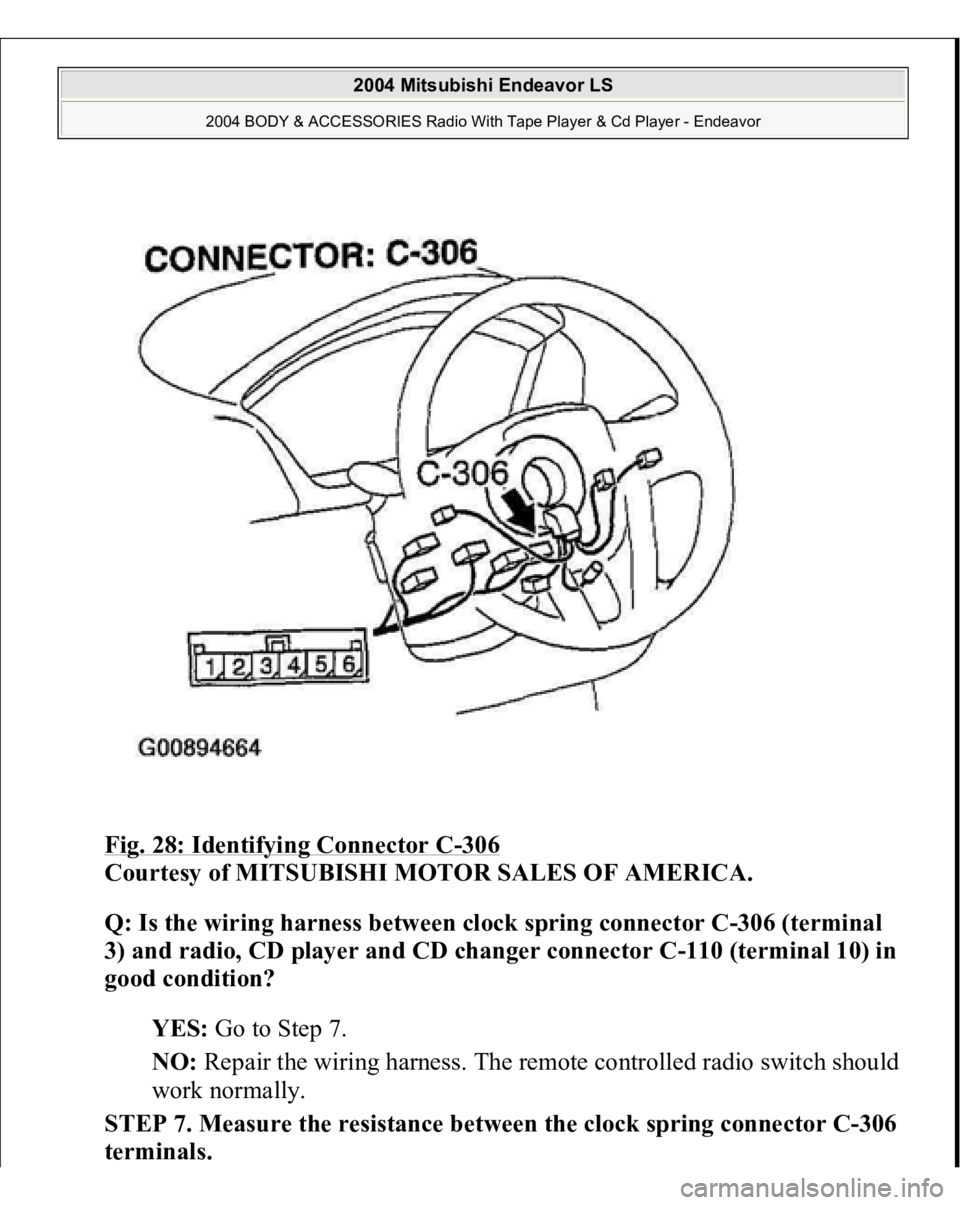

Fig. 28: Identifying Connector C
-306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between clock spring connector C-306 (terminal
3) and radio, CD player and CD changer connector C-110 (terminal 10) in
good condition?
YES: Go to Step 7.
NO: Repair the wiring harness. The remote controlled radio switch should
work normally.
STEP 7. Measure the resistance between the clock spring connector C-306
terminals.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

1. Disconnect the clock spring connector C-306.

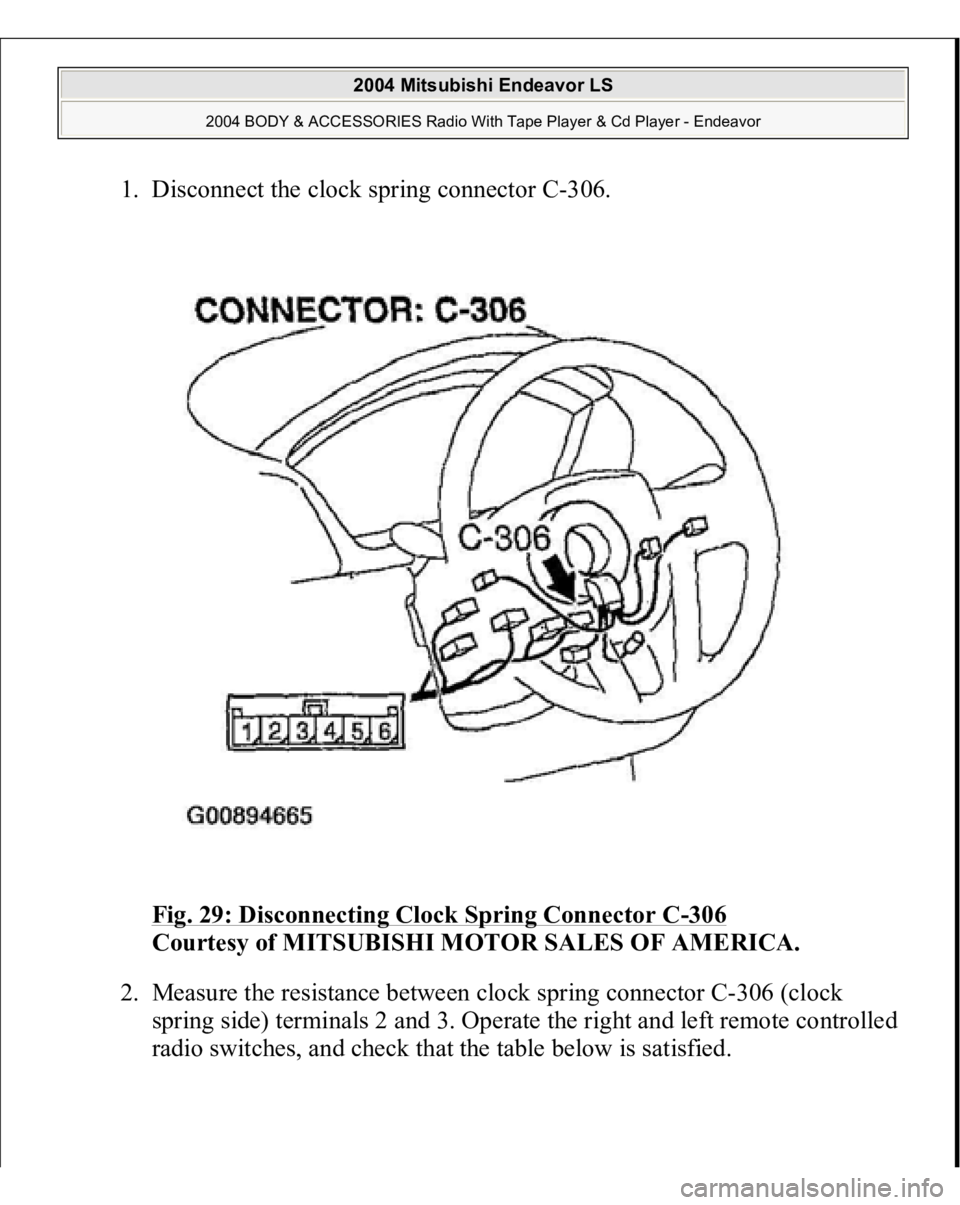

Fig. 29: Disconnecting Clock Spring Connector C
-306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure the resistance between clock spring connector C-306 (clock
spring side) terminals 2 and 3. Operate the right and left remote controlled
radio switches, and check that the table below is satisfied.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

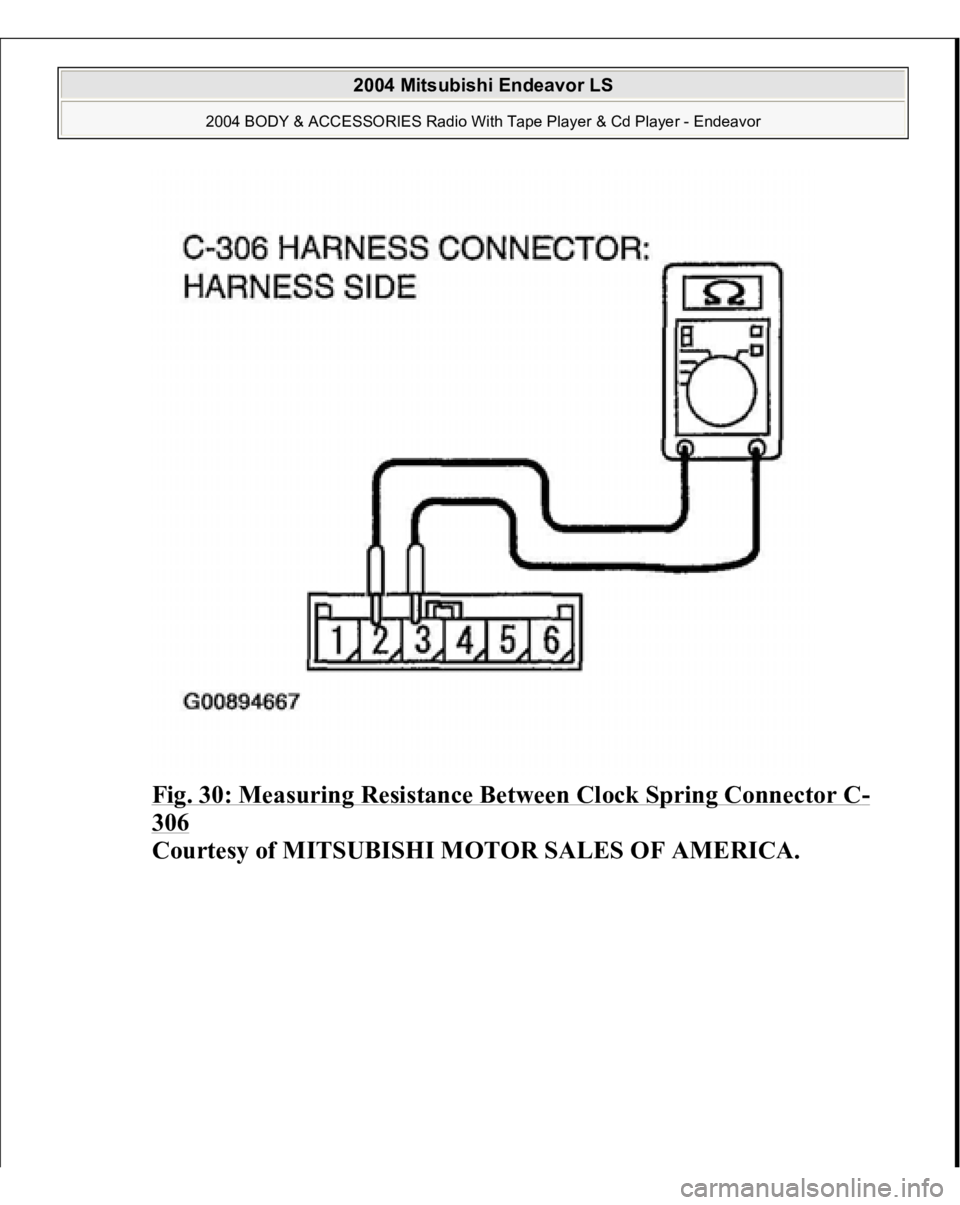

Fig. 30: Measuring Resistance Between Clock Spring Connector C
-
306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 31: Switch Position Table

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the resistance between terminals 2 and 3 normal?
YES: This malfunction is intermittent. Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
.
NO: Go to Step 8.
STEP 8. Measure the resistance at clock spring terminal.
1. Remove the clock spring (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance at clock s
prin
g connectors C-303 and C-306.
NOTE: When checking the right remote controlled radio
switch, do not operate the left remote controlled
radio switch.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

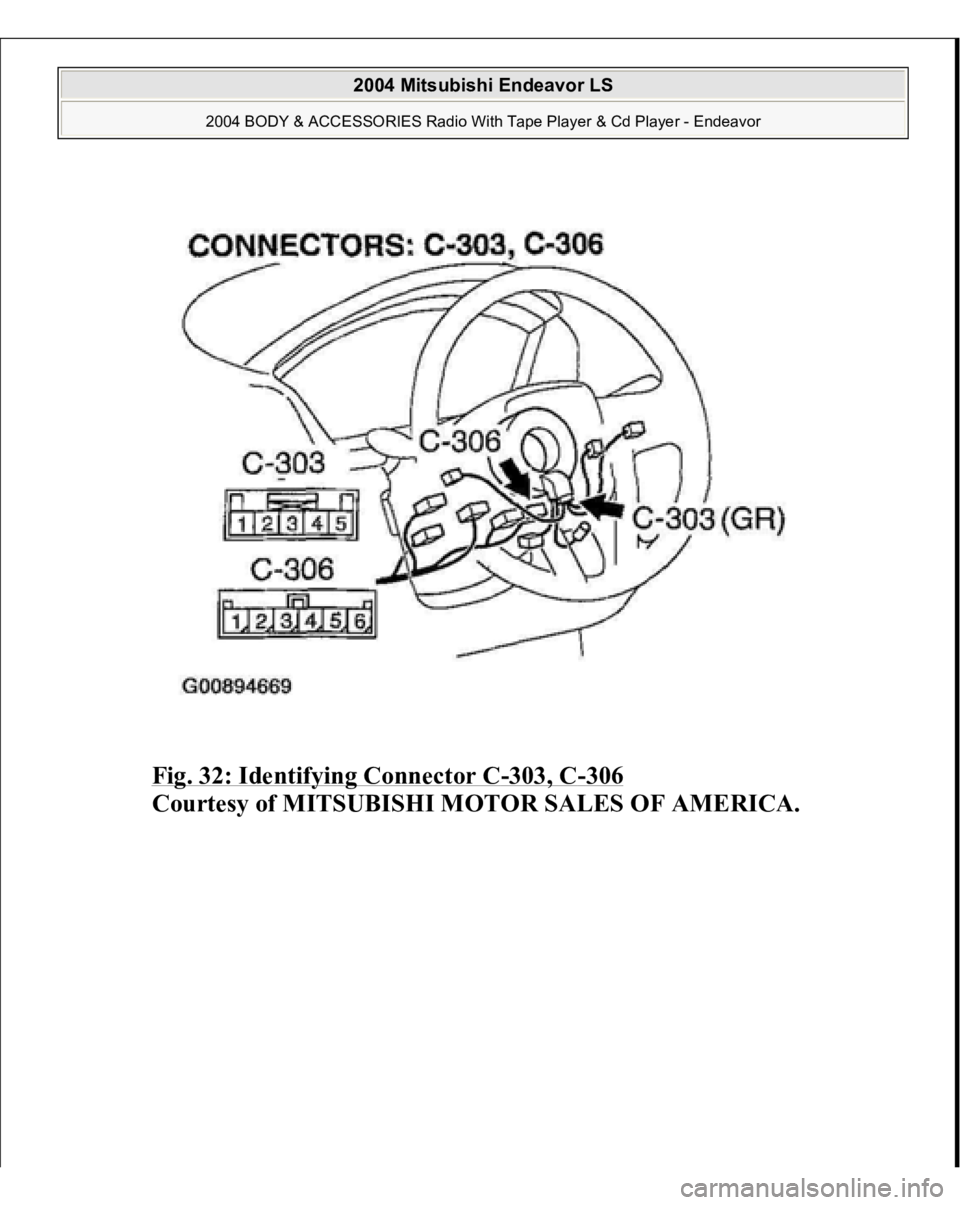

Fig. 32: Identifying Connector C
-303, C
-306

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
