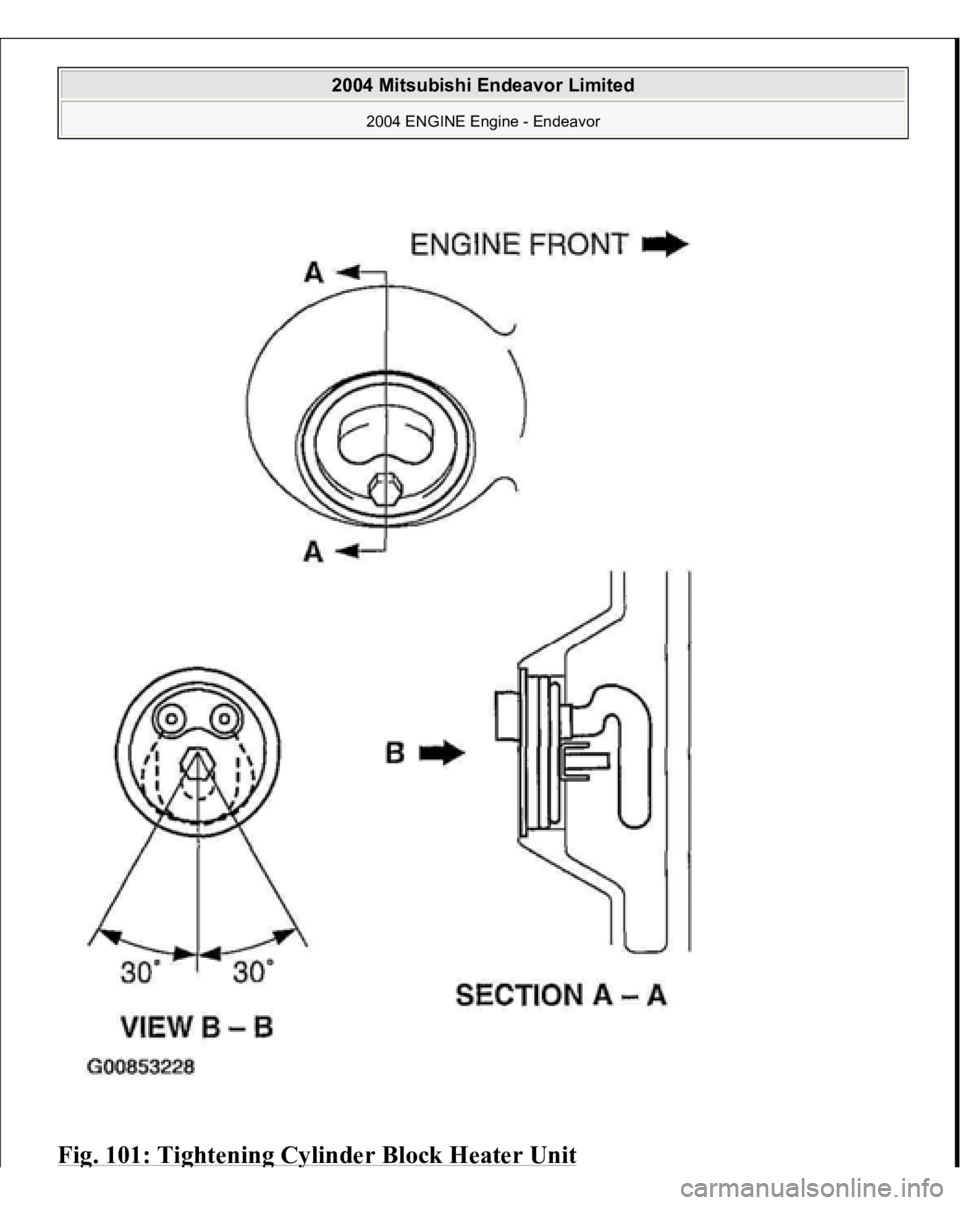

Fig. 101: Ti
ghtenin
g Cylinder Block Heater Uni
t

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

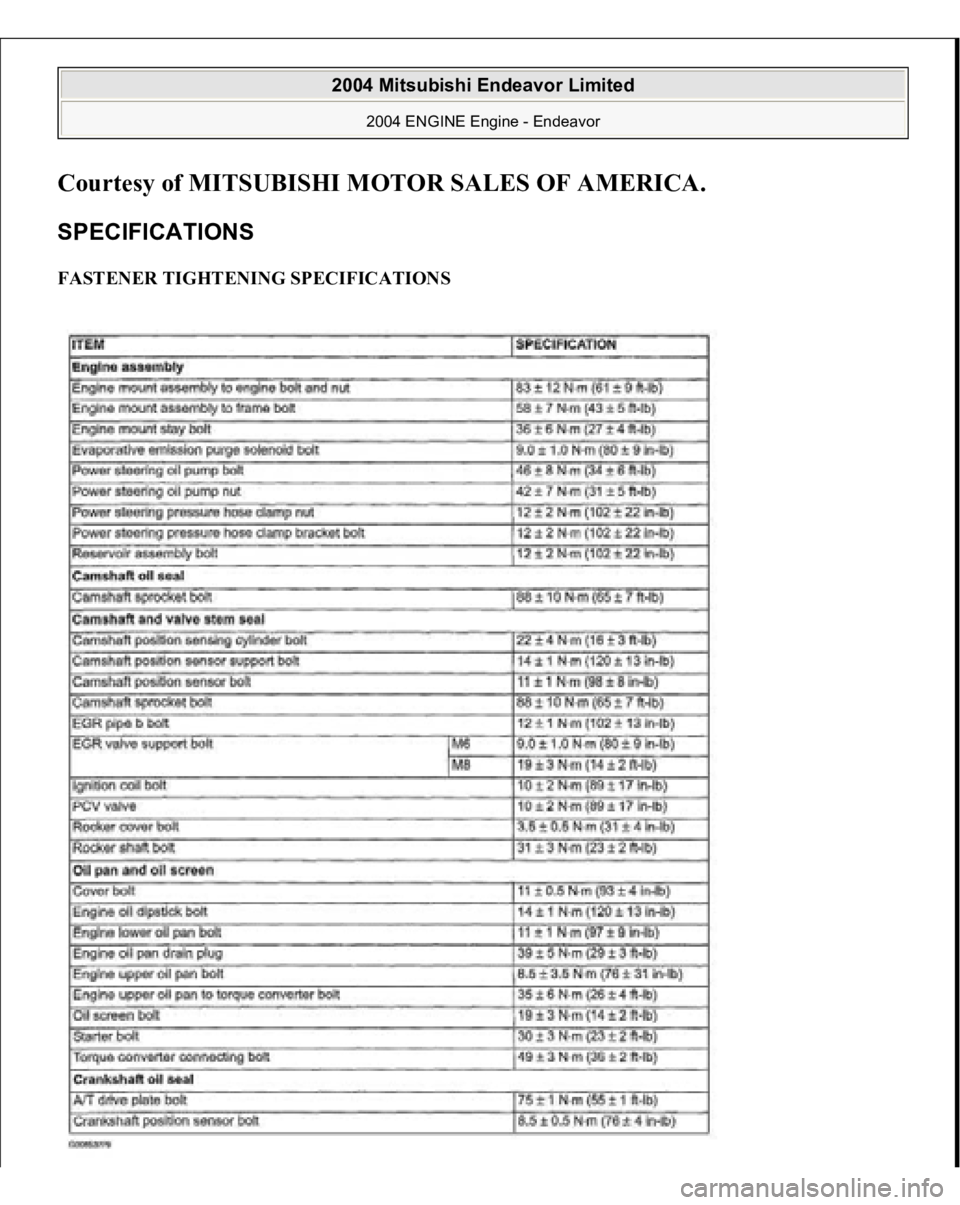

SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

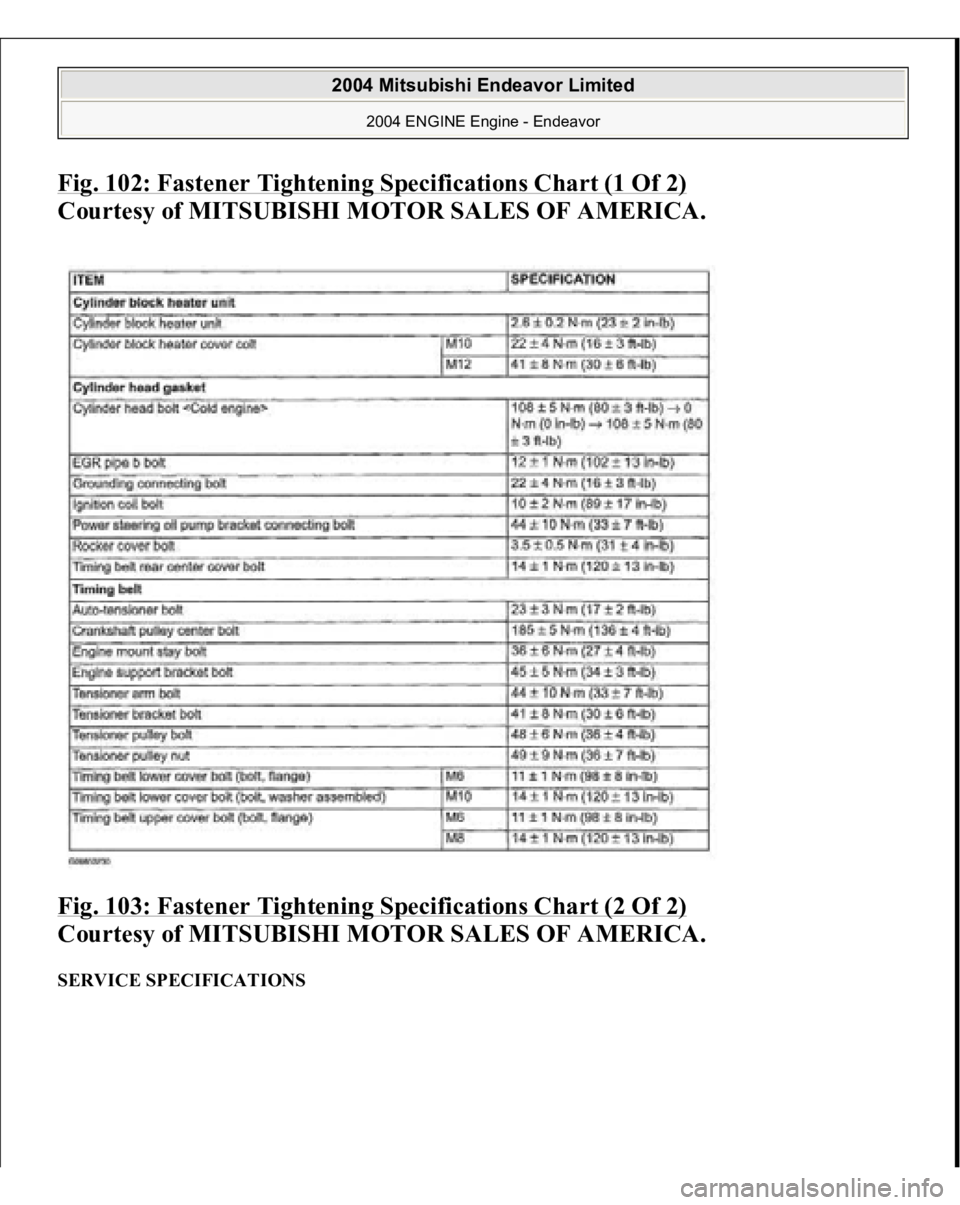

Fig. 102: Fastener Tightening Specifications Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 103: Fastener Tightening Specifications Chart (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SERVICE SPECIFICATIONS
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

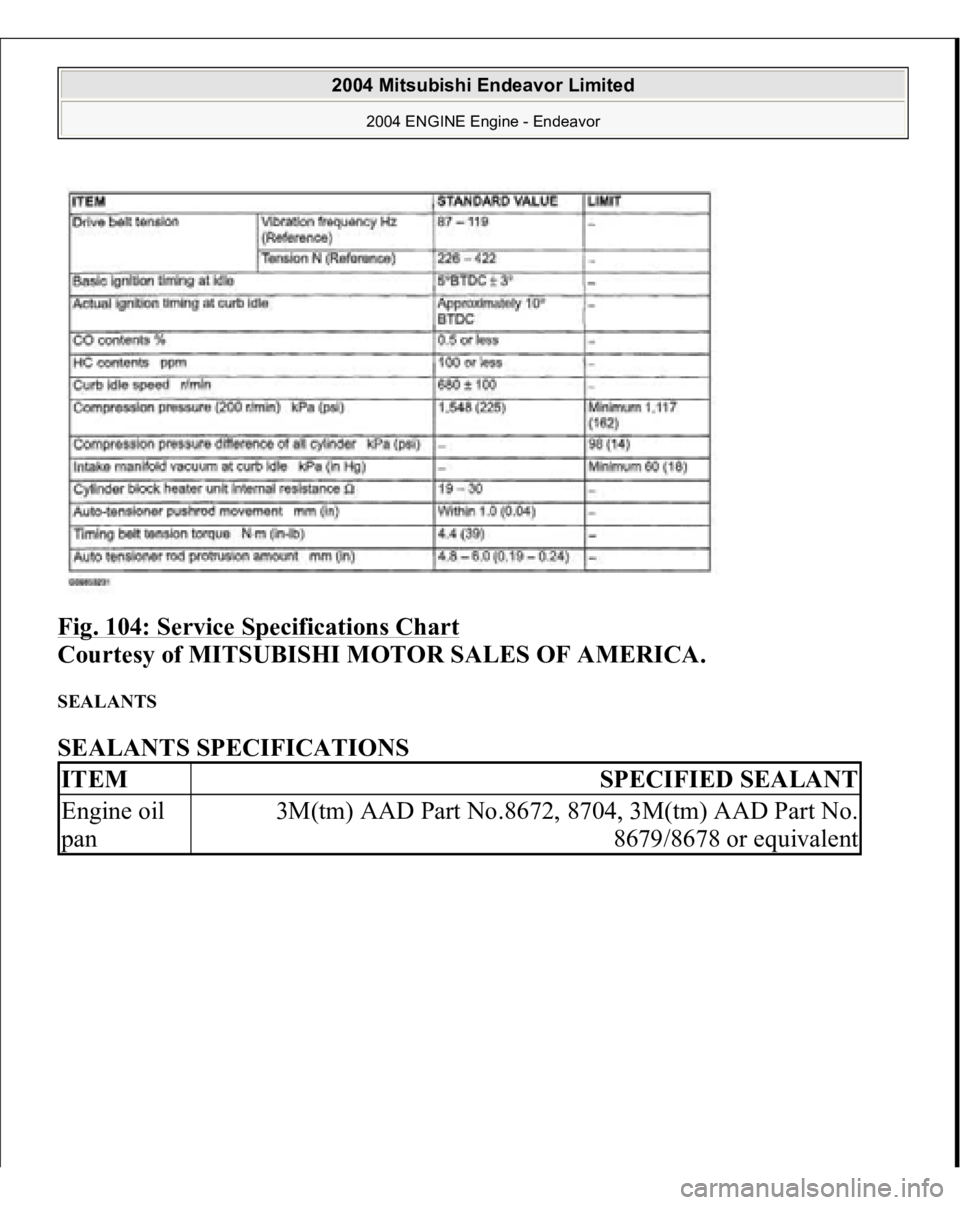

Fig. 104: Service Specifications Chart

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SEALANTS SEALANTS SPECIFICATIONS ITEM
SPECIFIED SEALANT
Engine oil
pan
3M(tm) AAD Part No.8672, 8704, 3M(tm) AAD Part No.
8679/8678 or equivalent

2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor

2004 BODY & ACCESSORIES
Radio With Tape Player & Cd Player - Endeavor
RADIO WITH TAPE PLAYER AND CD PLAYER GENERAL DESCRIPTION < Vehicles with six speakers >
Radio and CD player Shows textual information regarding audio system operation on the low grade
type multi-center display.
< Vehicles with seven speakers > Radio, CD player and CD changer A woofer is fitted. Audio amplifier is fitted. Shows graphical information regarding audio system operation on the middle
grade type multi-center display.
RADIO WITH TAPE PLAYER AND CD PLAYER, SPEAKER AND ANTENNA DIAGNOSIS INTRODUCTION TO AUDIO SYSTEM DIAGNOSIS The diagnosis for symptoms such as noise being emitted, no sound being played, or
sound coming only out of one speaker (or set of speakers) is provided. AUDIO ERROR CODES If the radio and CD player or radio, or CD player and CD changer detects any
malfunction in itself or the inserted CD, the error codes below will be shown on the
multi-center dis
play.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor


2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

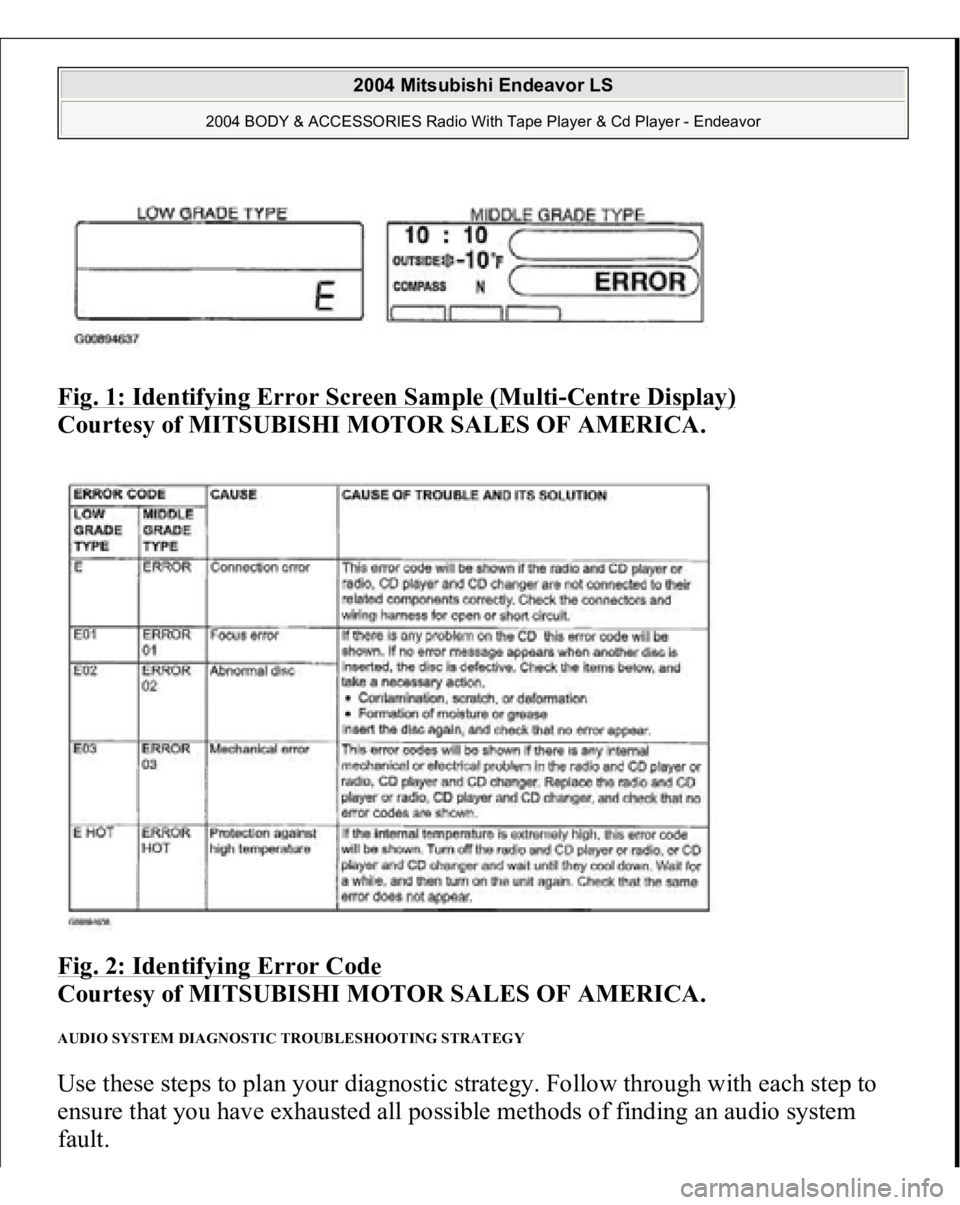

Fig. 1: Identifying Error Screen Sample (Multi
-Centre Display)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 2: Identifying Error Code

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
AUDIO SYSTEM DIAGNOSTIC TROUBLESHOOTING STRATEGY Use these steps to plan your diagnostic strategy. Follow through with each step to
ensure that you have exhausted all possible methods of finding an audio system
fault.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

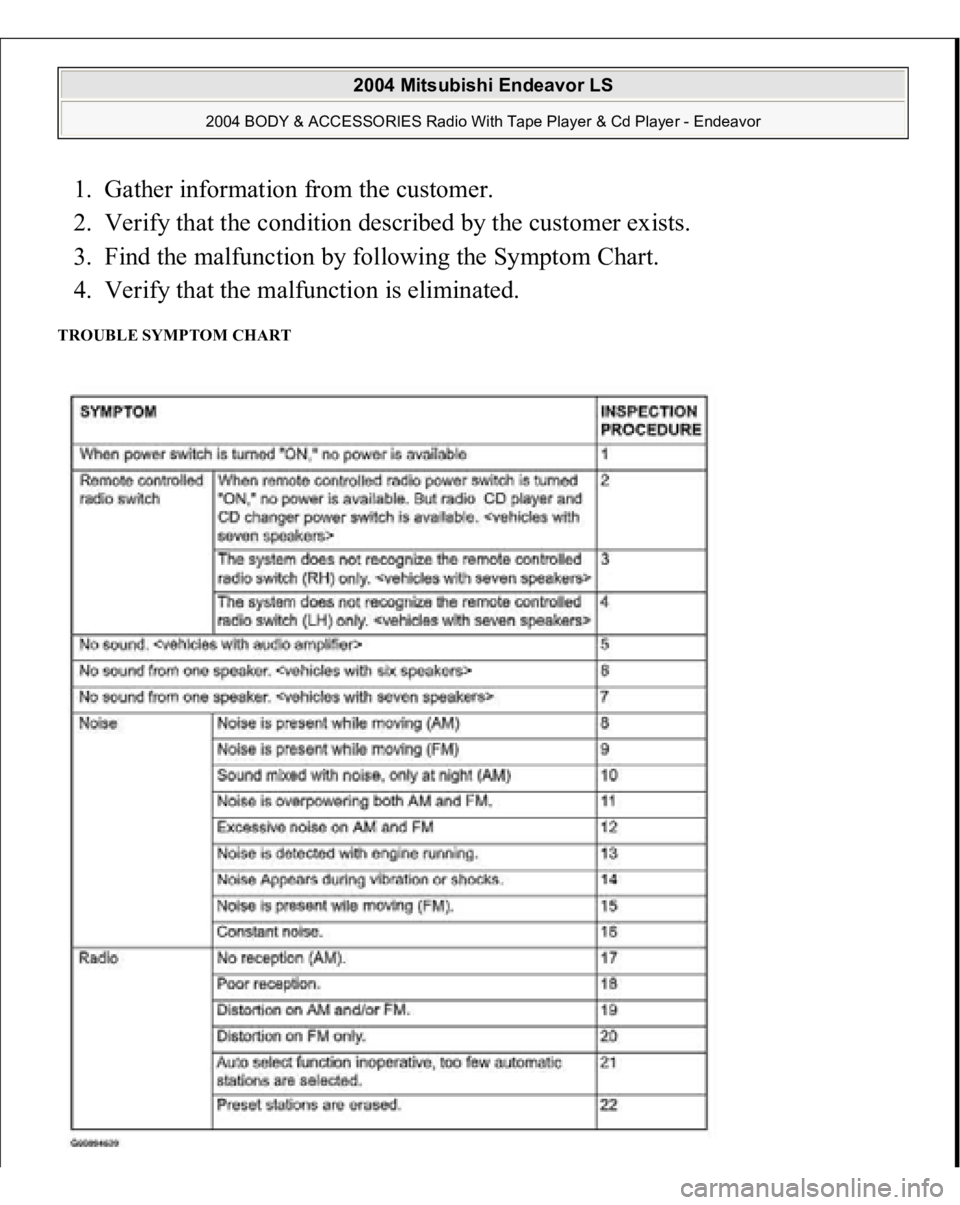

1. Gather information from the customer.
2. Verify that the condition described by the customer exists.
3. Find the malfunction by following the Symptom Chart.
4. Verify that the malfunction is eliminated. TROUBLE SYMPTOM CHART
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

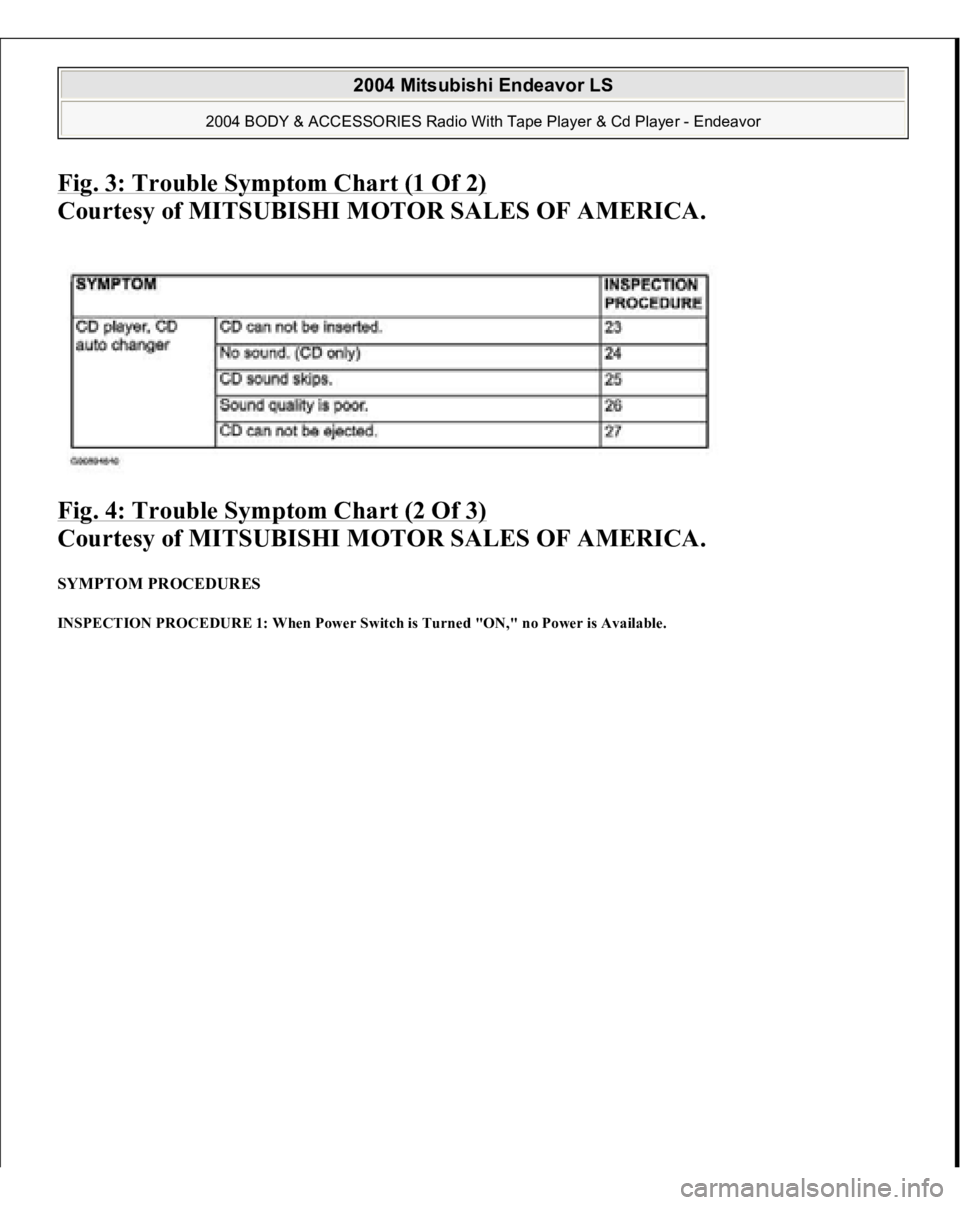

Fig. 3: Trouble Symptom Chart (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 4: Trouble Symptom Chart (2 Of 3)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SYMPTOM PROCEDURES INSPECTION PROCEDURE 1: When Power Switch is Turned "ON," no Power is Available.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 5: Radio And CD Player Or Radio, CD Player And CD Changer Power Supply Circuit Diagram

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

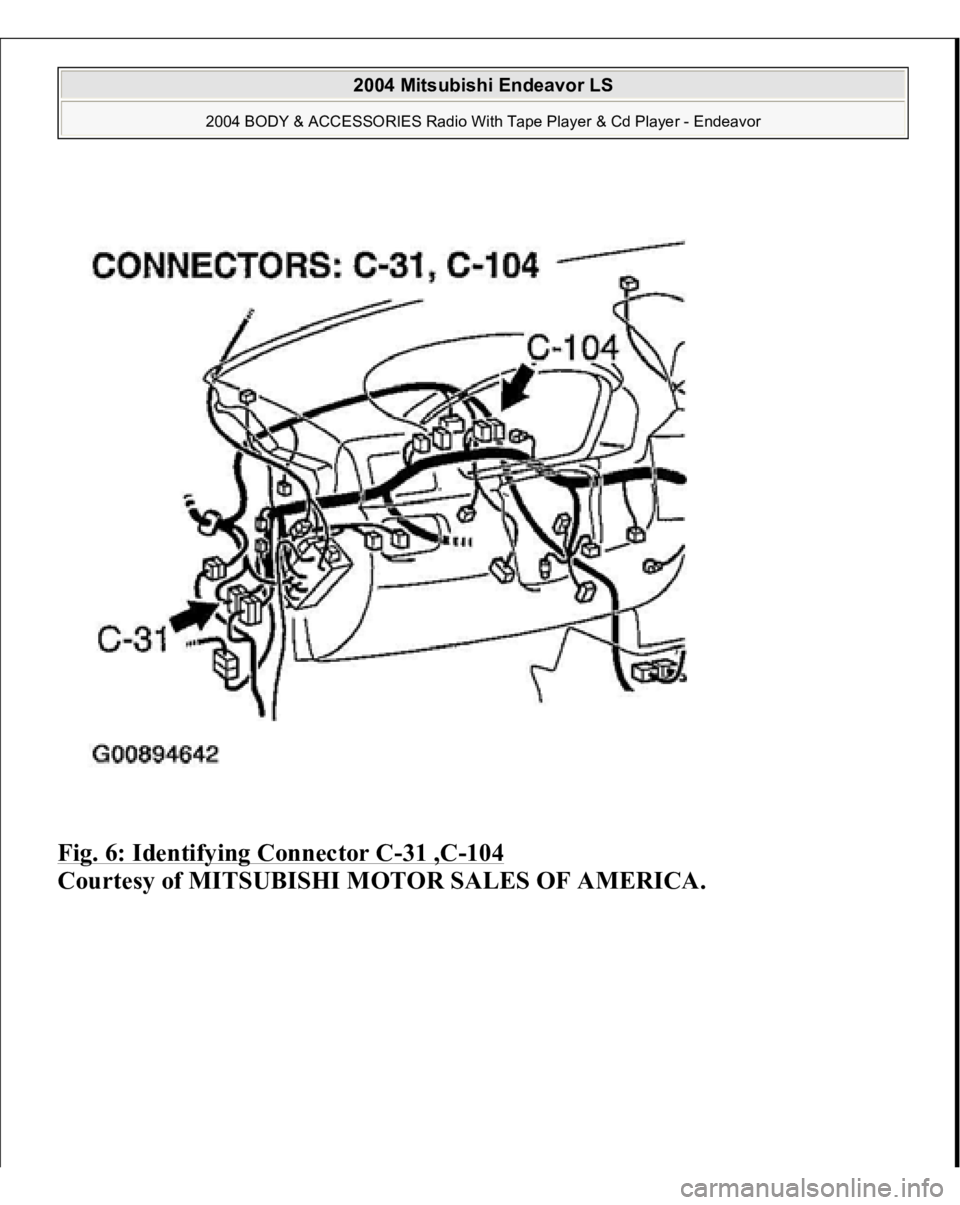

Fig. 6: Identifying Connector C
-31 ,C
-104

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
