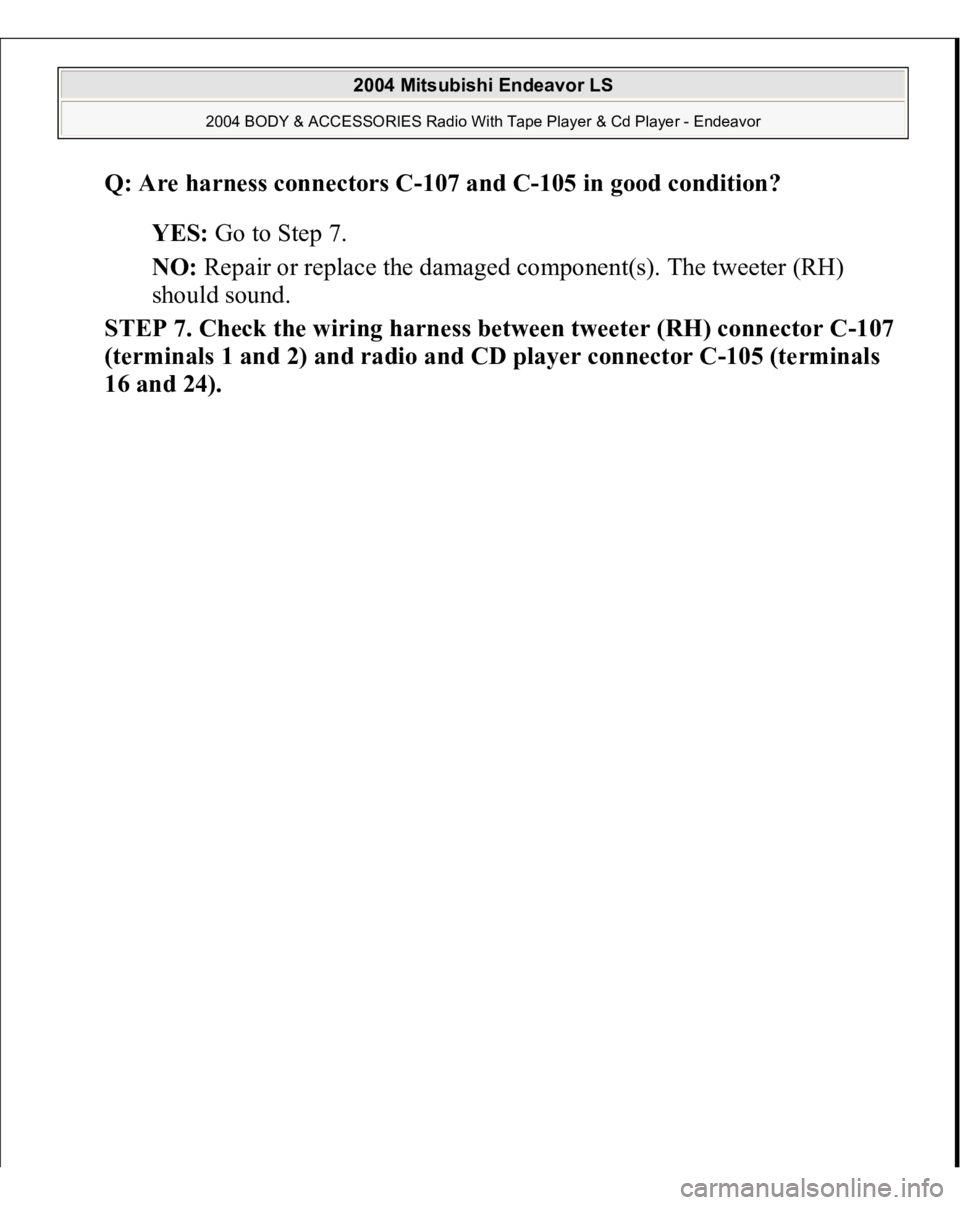

Q: Are harness connectors C-107 and C-105 in good condition?
YES: Go to Step 7.
NO: Repair or replace the damaged component(s). The tweeter (RH)
should sound.
STEP 7. Check the wiring harness between tweeter (RH) connector C-107
(terminals 1 and 2) and radio and CD player connector C-105 (terminals
16 and 24).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

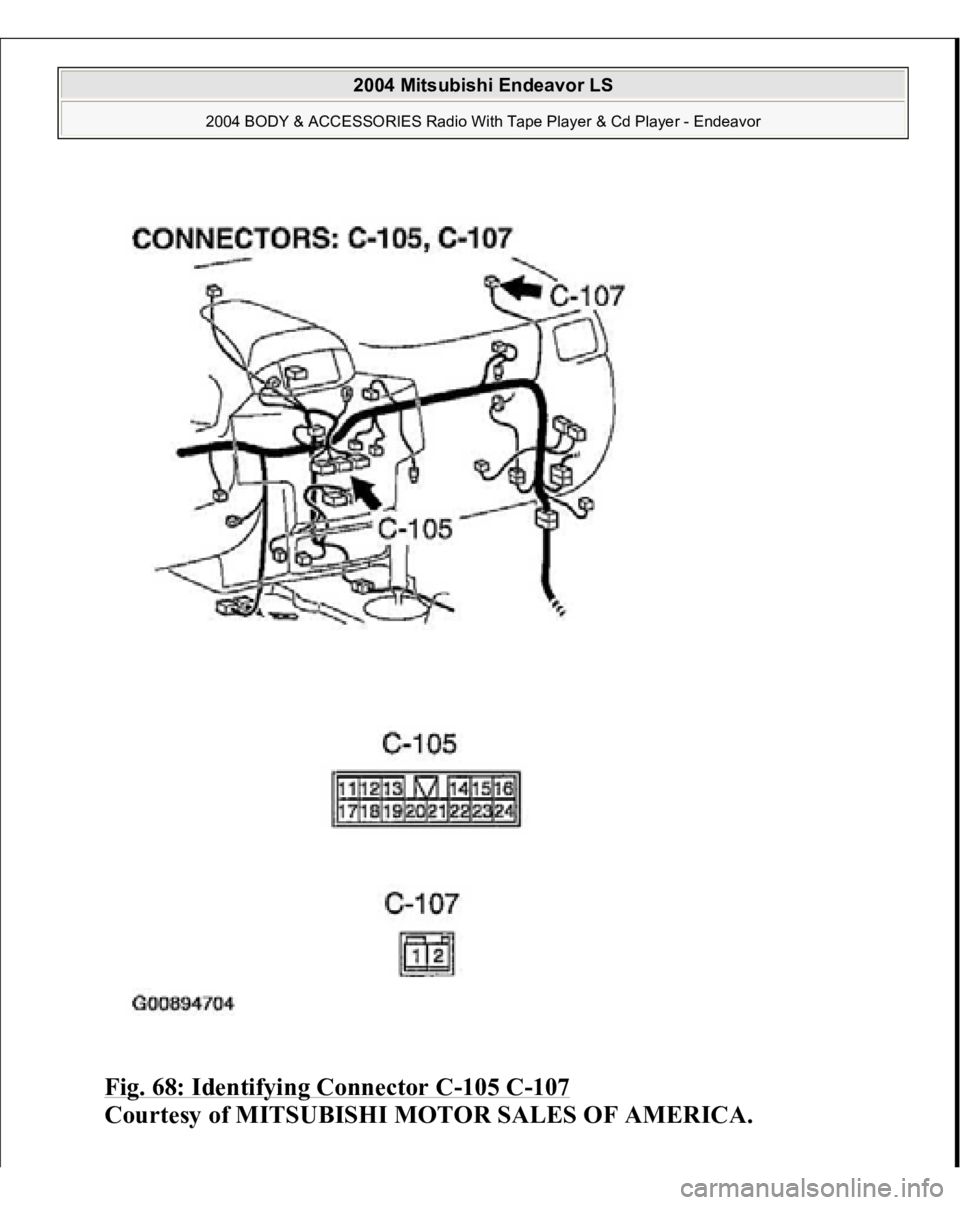

Fig. 68: Identifying Connector C
-105 C
-107

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

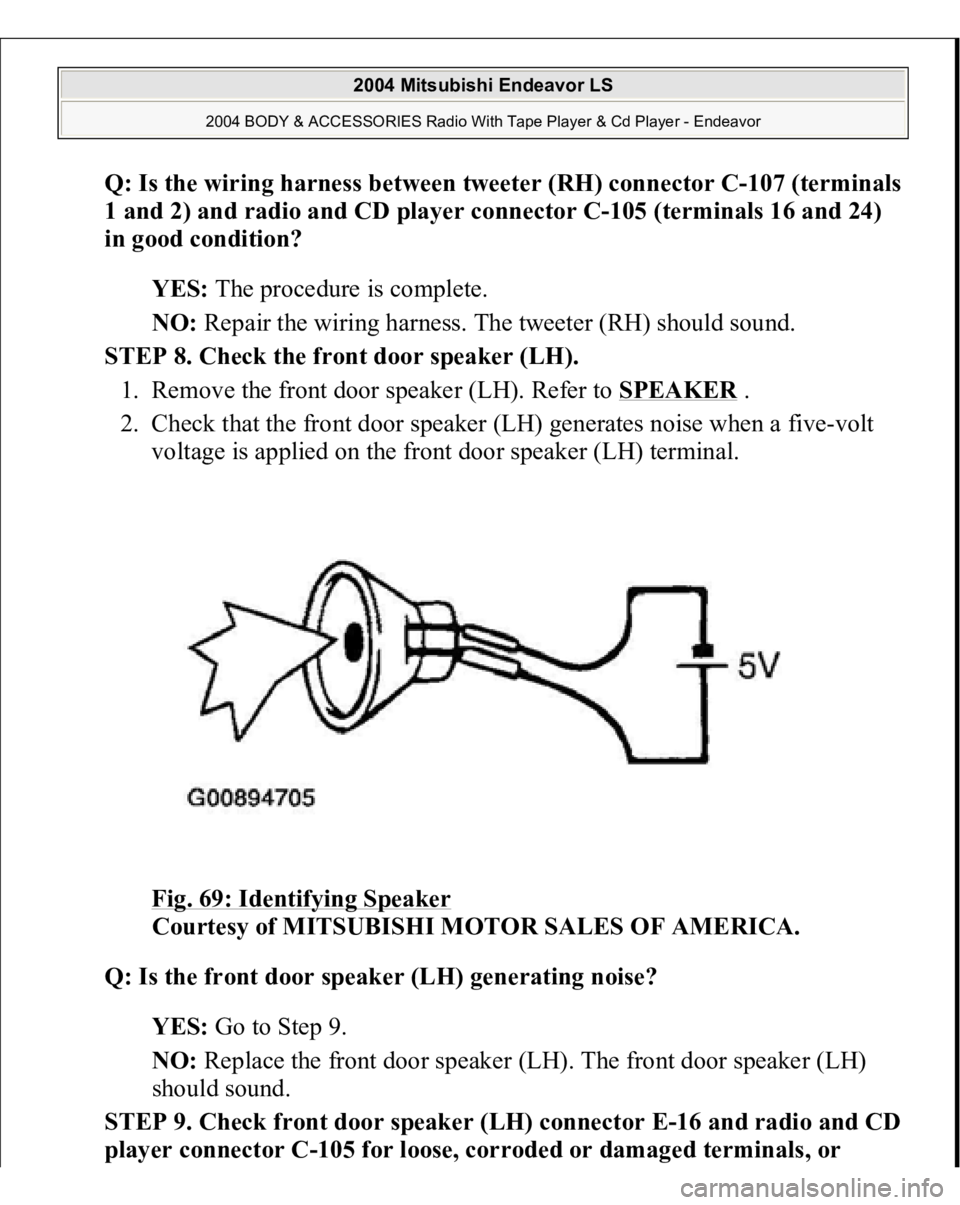

Q: Is the wiring harness between tweeter (RH) connector C-107 (terminals
1 and 2) and radio and CD player connector C-105 (terminals 16 and 24)
in good condition?
YES: The procedure is complete.
NO: Repair the wiring harness. The tweeter (RH) should sound.
STEP 8. Check the front door speaker (LH).
1. Remove the front door speaker (LH). Refer to SPEAKER
.
2. Check that the front door speaker (LH) generates noise when a five-volt
voltage is applied on the front door speaker (LH) terminal.
Fig. 69: Identifying Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the front door speaker (LH) generating noise?
YES: Go to Step 9.
NO: Replace the front door speaker (LH). The front door speaker (LH)
should sound.
STEP 9. Check front door speaker (LH) connector E-16 and radio and CD
player connector C-105 for loose, corroded or damaged terminals, or

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

terminals pushed back in the connector
.

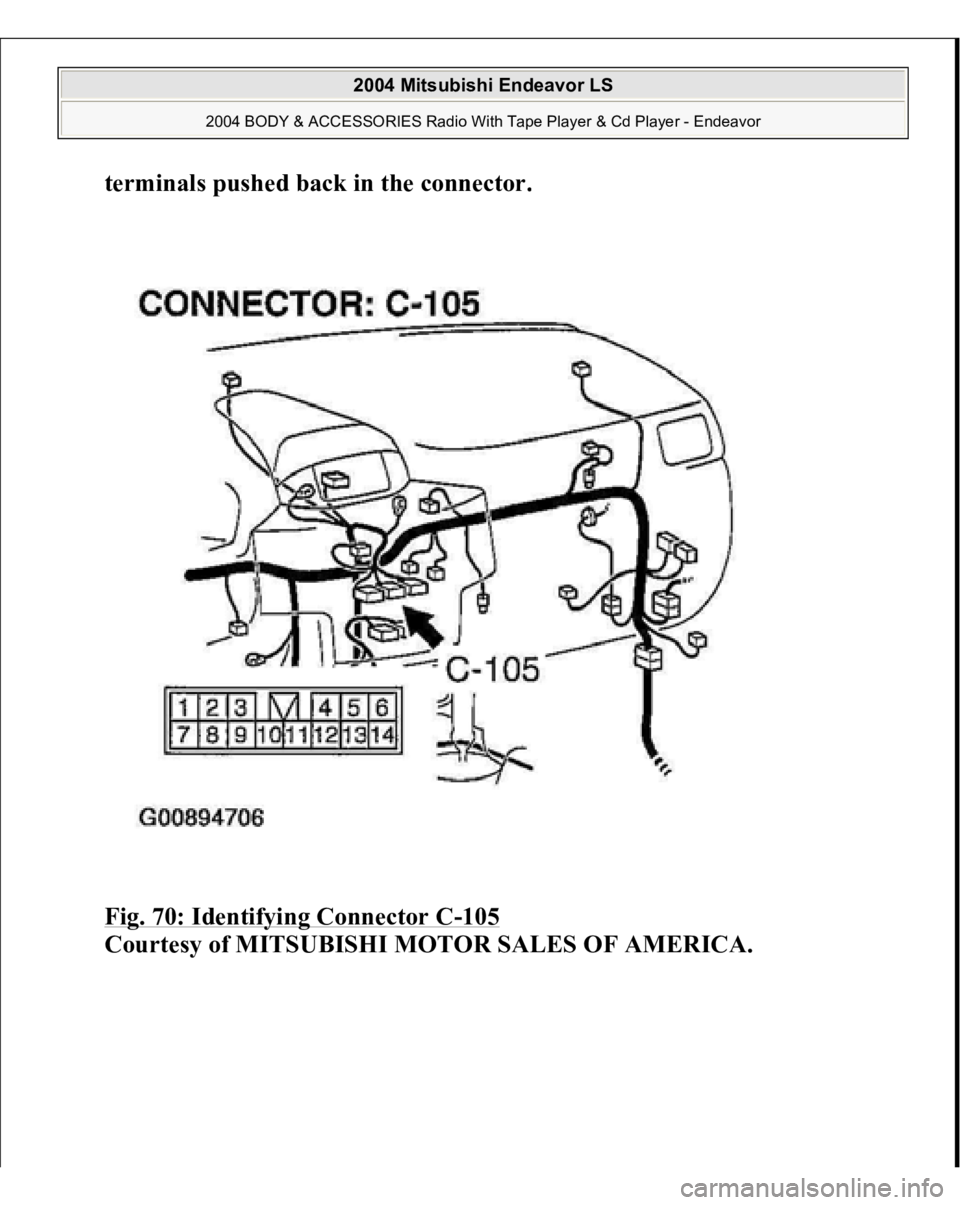

Fig. 70: Identifying Connector C
-105

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

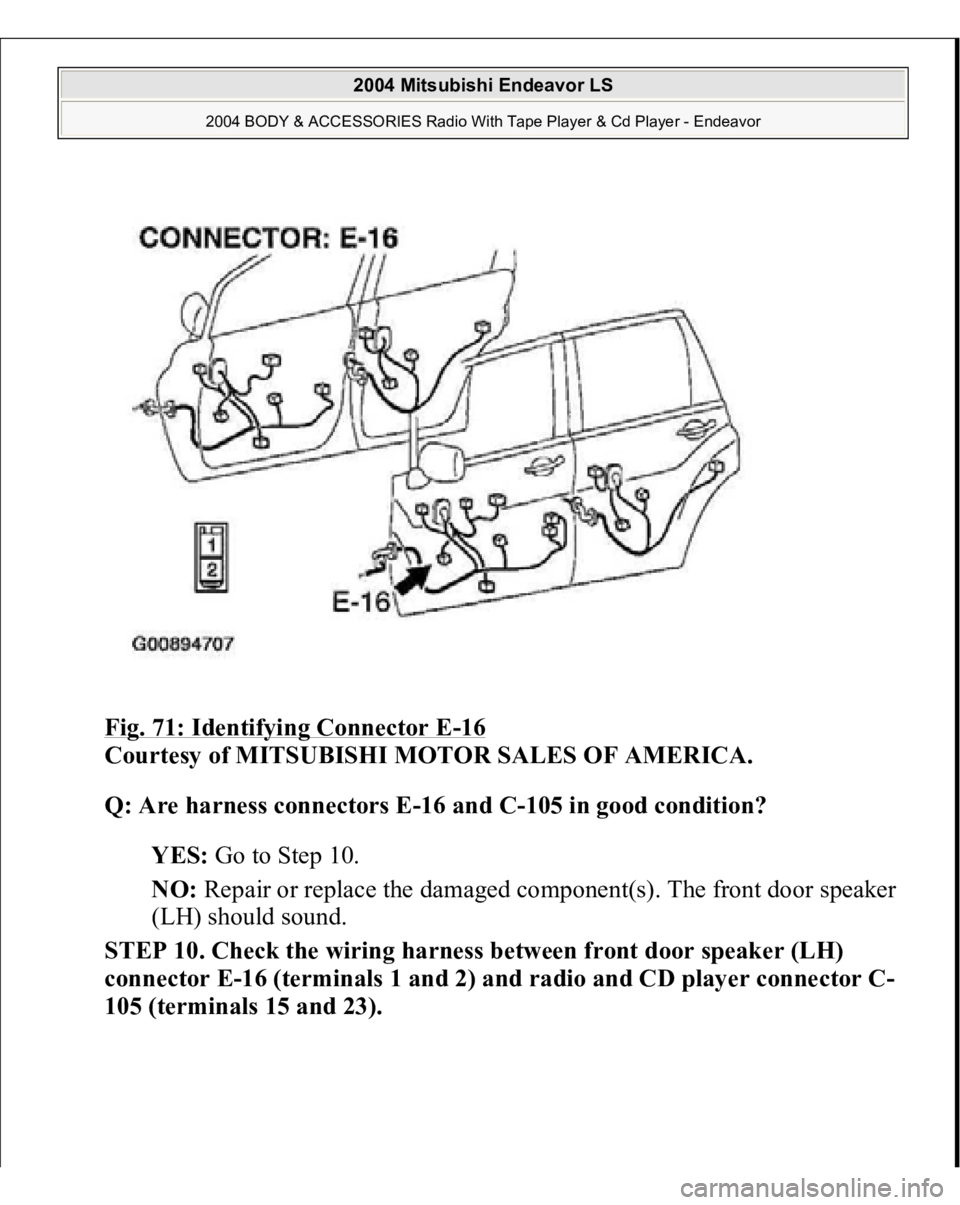

Fig. 71: Identifying Connector E
-16
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are harness connectors E-16 and C-105 in good condition?
YES: Go to Step 10.
NO: Repair or replace the damaged component(s). The front door speaker
(LH) should sound.
STEP 10. Check the wiring harness between front door speaker (LH)
connector E-16 (terminals 1 and 2) and radio and CD player connector C-
105 (terminals 15 and 23).

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

Fig. 72: Identifying Connector C
-105

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

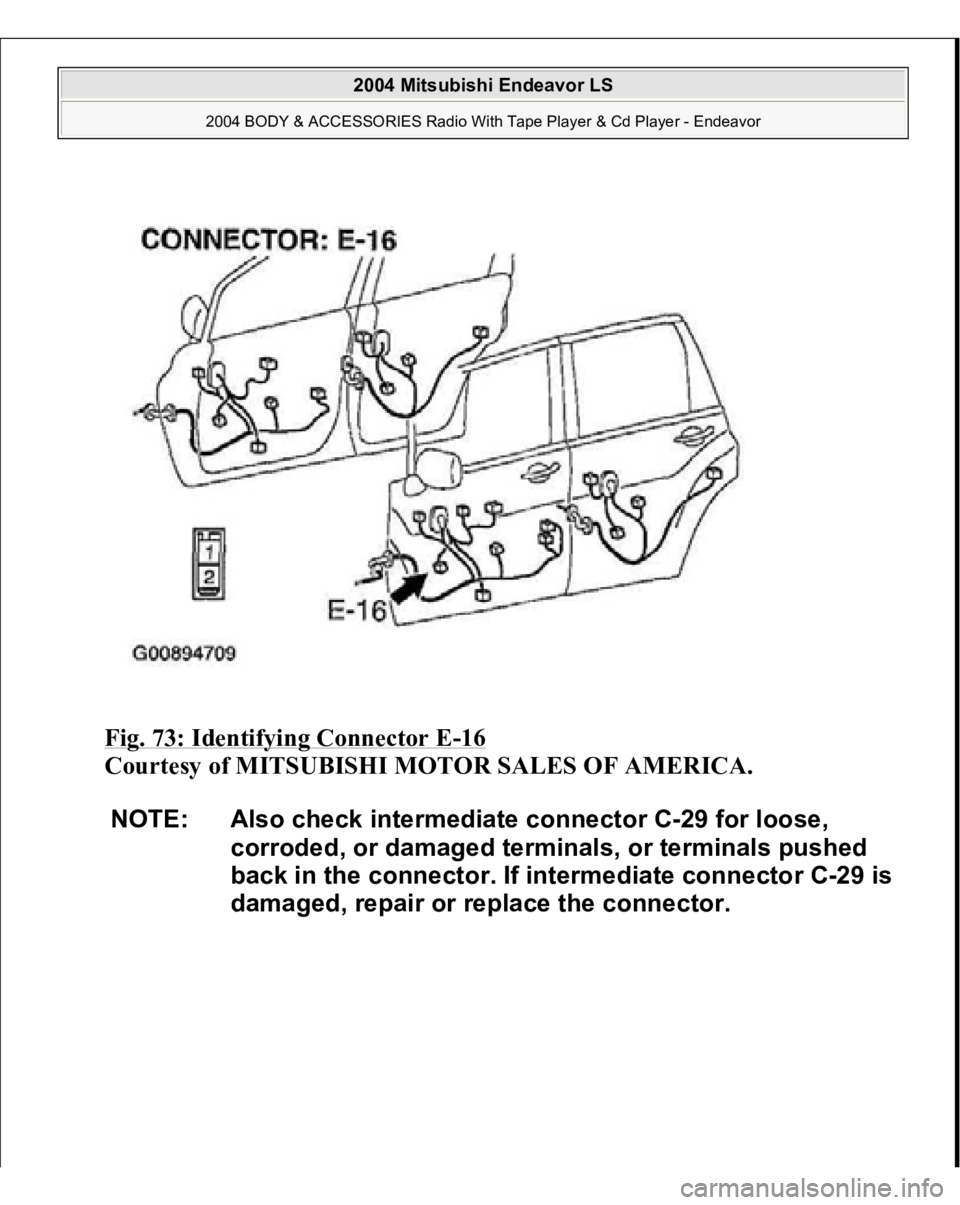

Fig. 73: Identifying Connector E
-16
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Also check intermediate connector C-29 for loose,
corroded, or damaged terminals, or terminals pushed
back in the connector. If intermediate connector C-29 is
damaged, repair or replace the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

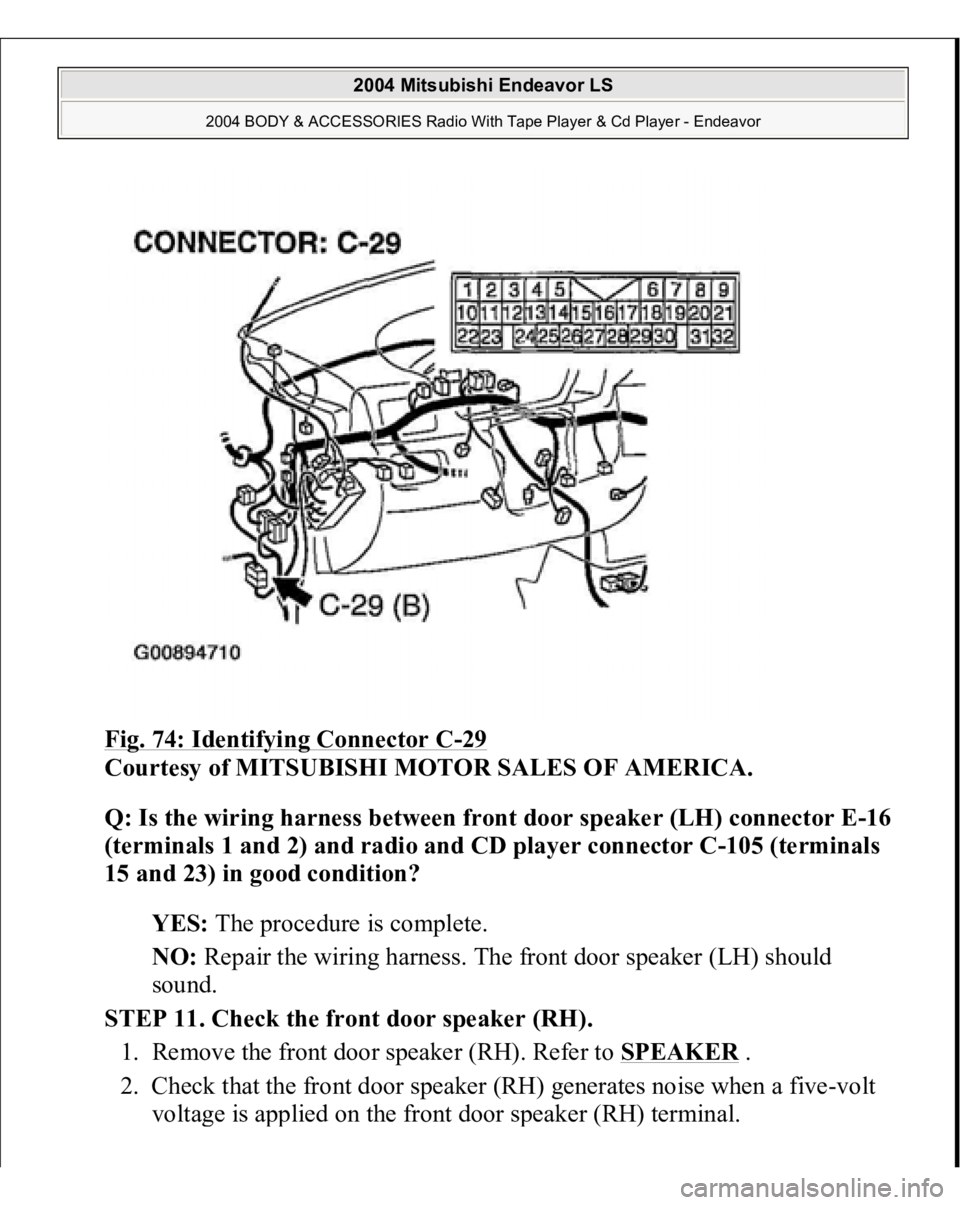

Fig. 74: Identifying Connector C
-29
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between front door speaker (LH) connector E-16
(terminals 1 and 2) and radio and CD player connector C-105 (terminals
15 and 23) in good condition?
YES: The procedure is complete.
NO: Repair the wiring harness. The front door speaker (LH) should
sound.
STEP 11. Check the front door speaker (RH).
1. Remove the front door speaker (RH). Refer to SPEAKER
.
2. Check that the front door speaker (RH) generates noise when a five-volt
volta
ge is a
pplied on the front door s
peaker
(RH
) terminal.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

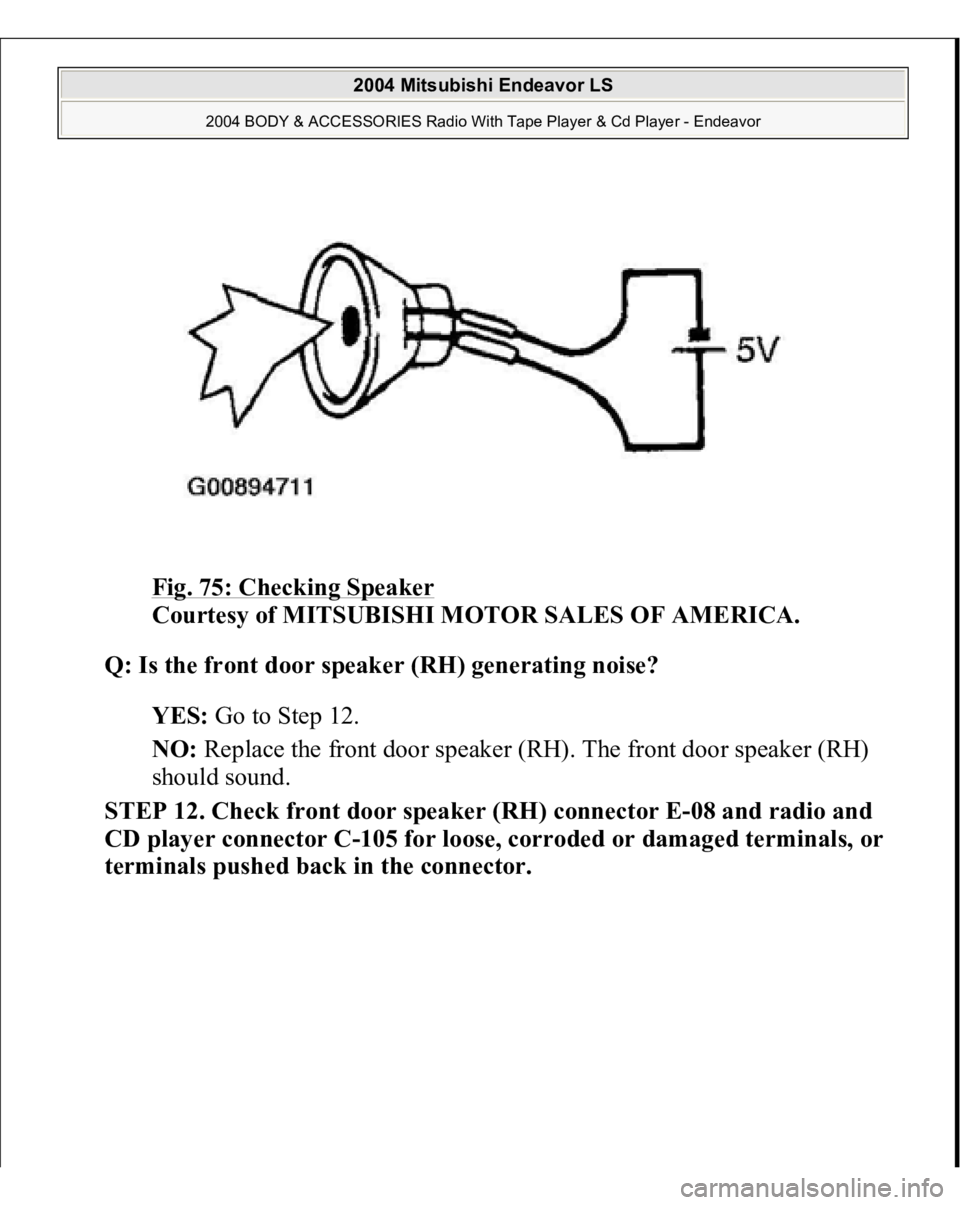

Fig. 75: Checking Speaker

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the front door speaker (RH) generating noise?
YES: Go to Step 12.
NO: Replace the front door speaker (RH). The front door speaker (RH)
should sound.
STEP 12. Check front door speaker (RH) connector E-08 and radio and
CD player connector C-105 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor

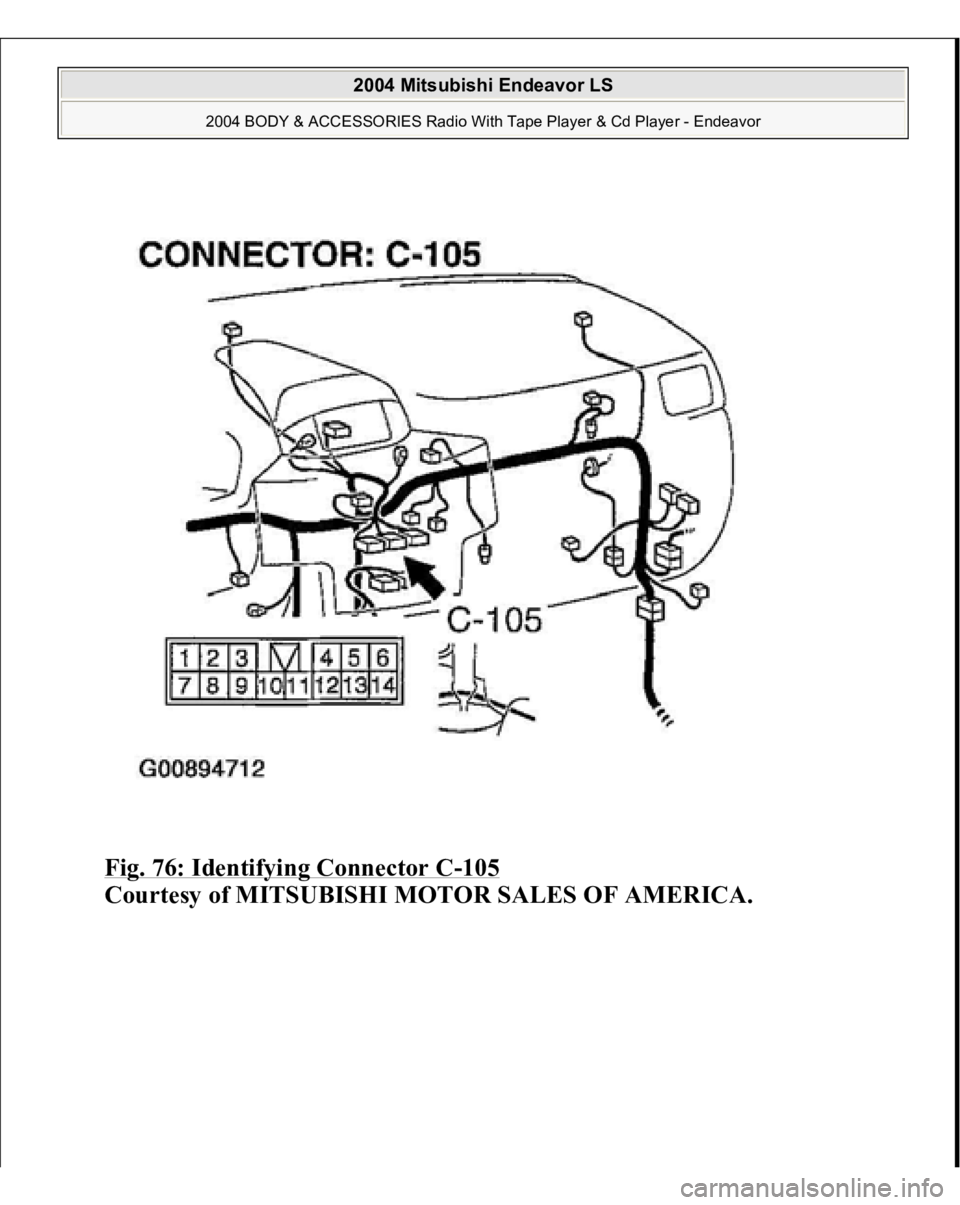

Fig. 76: Identifying Connector C
-105

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
