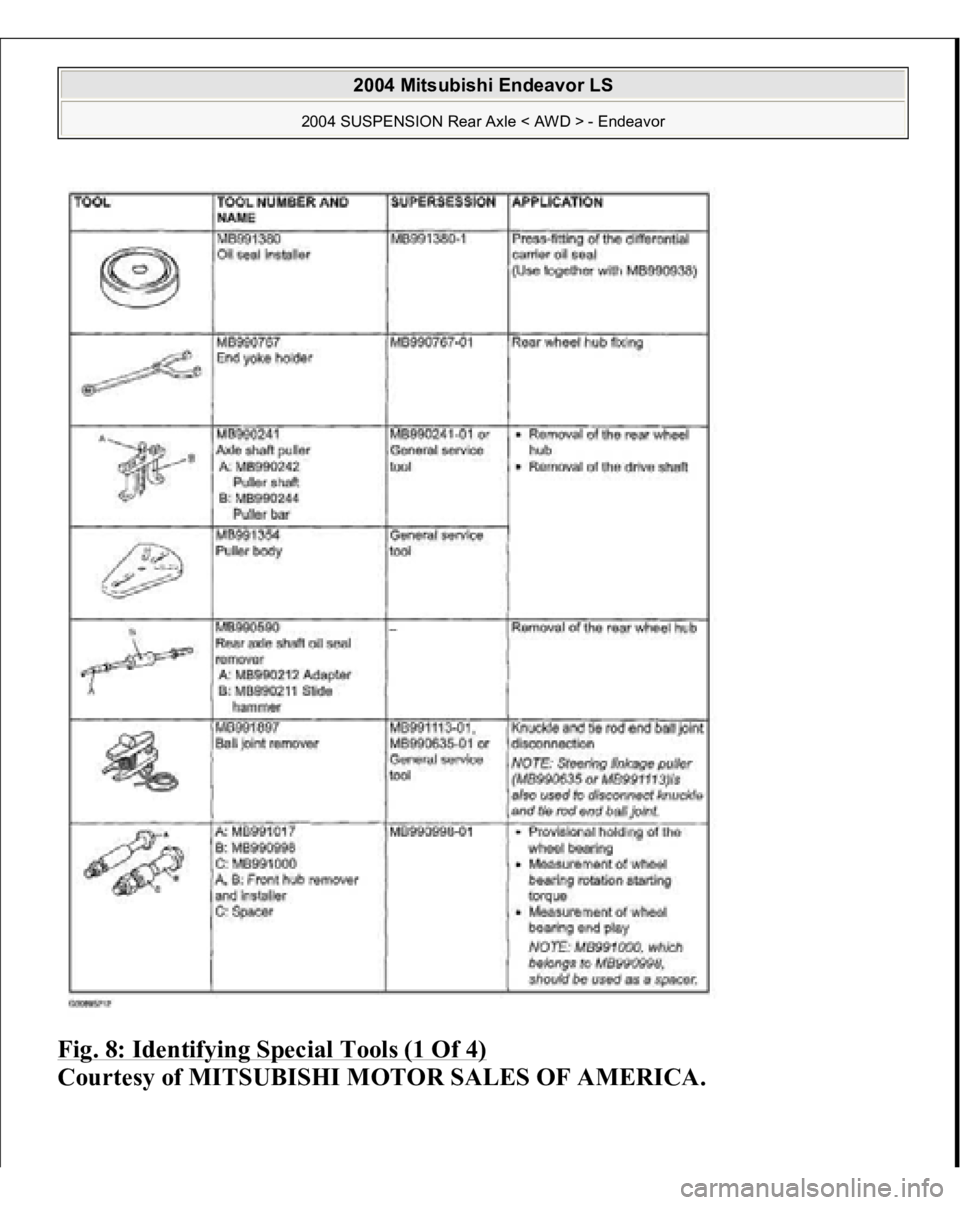

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 8: Identifying Special Tools (1 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2942 of 3870

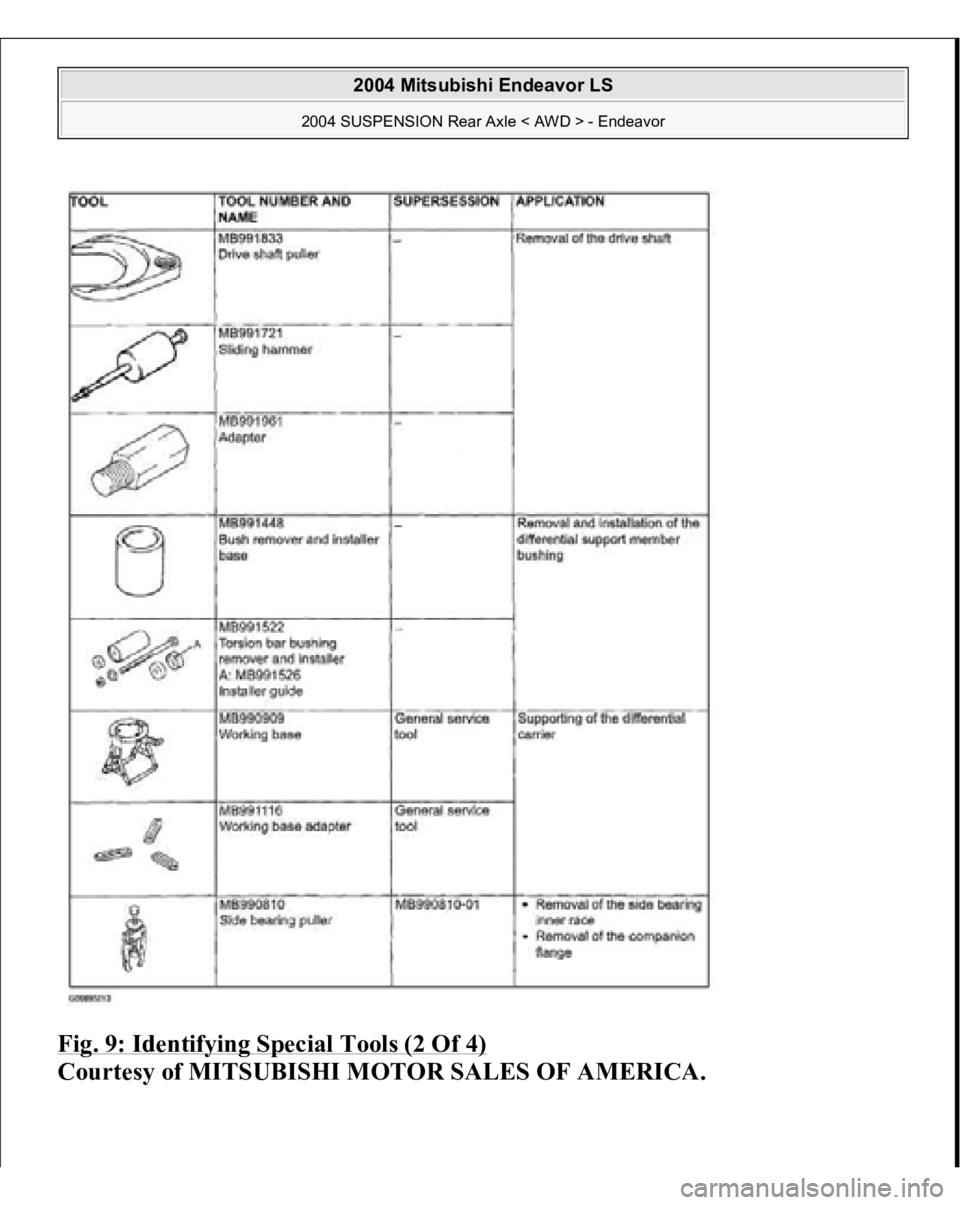

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 9: Identifying Special Tools (2 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2943 of 3870

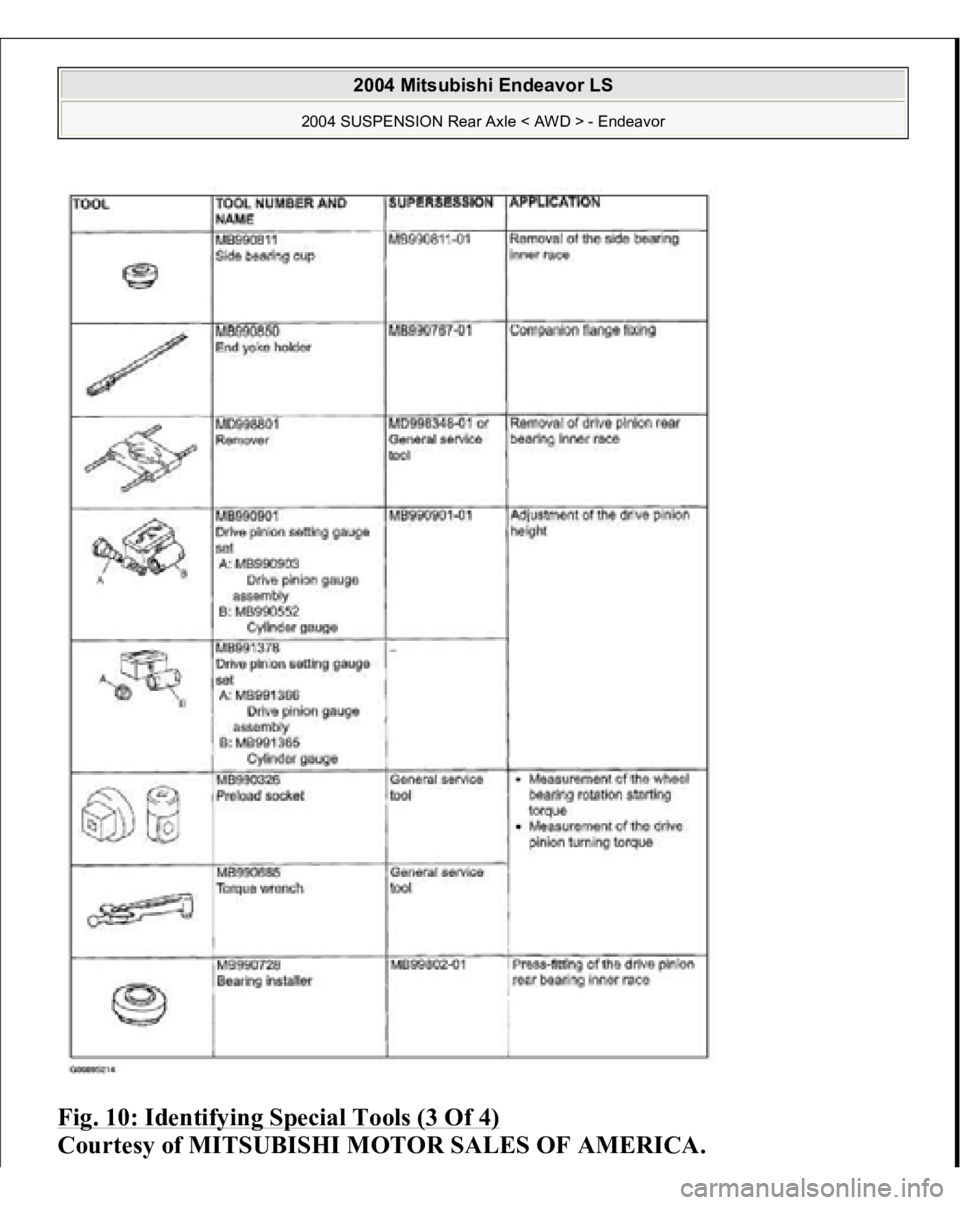

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 10: Identifying Special Tools (3 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 SUSPENSION Rear Axle < AWD > - Endeavor

Page 2944 of 3870

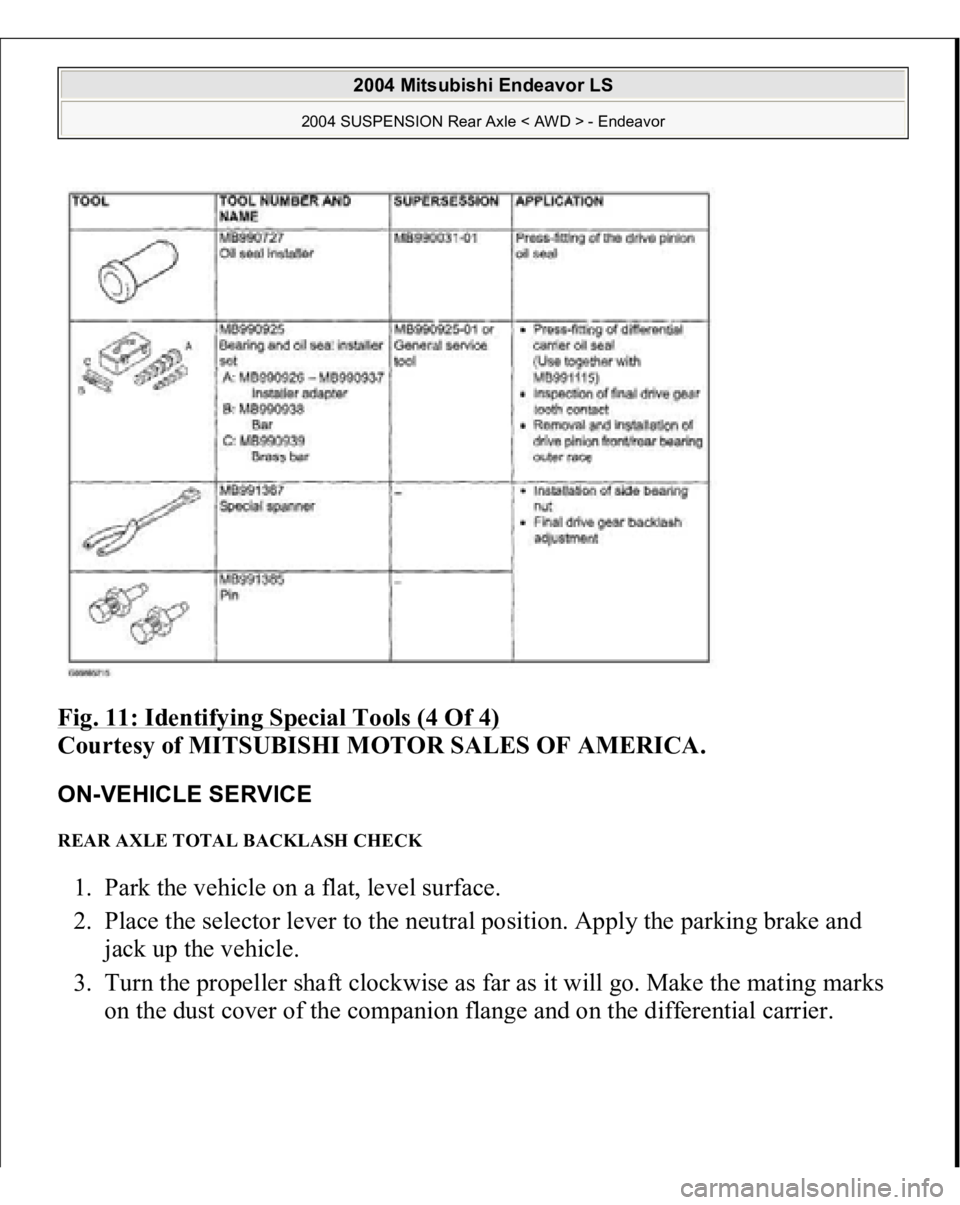

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 11: Identifying Special Tools (4 Of 4)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE REAR AXLE TOTAL BACKLASH CHECK 1. Park the vehicle on a flat, level surface.
2. Place

Page 2945 of 3870

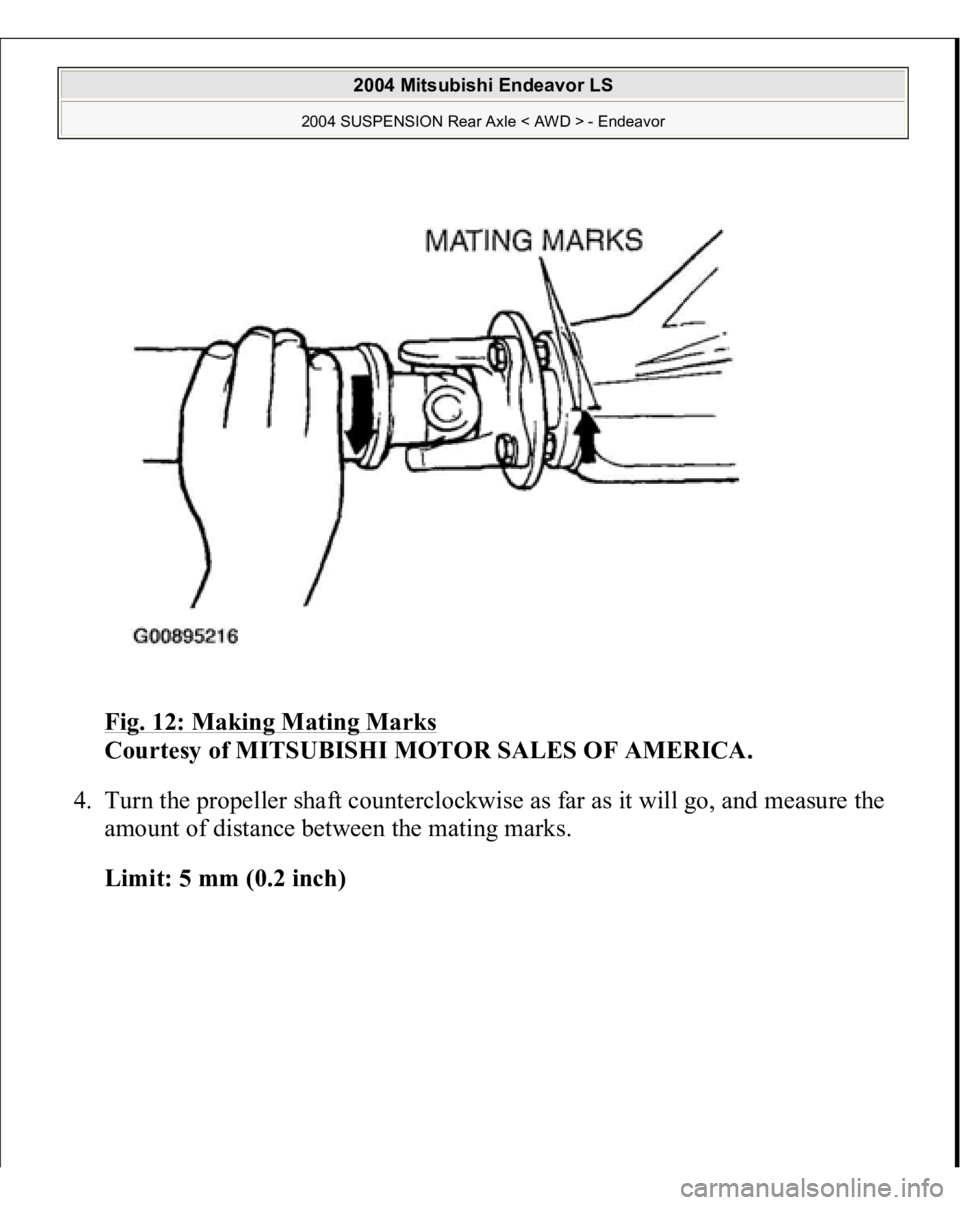

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 12: Making Mating Marks

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Turn the propeller shaft counterclockwise as far as it will go, and measure the
amount of distance between the mating

Page 2946 of 3870

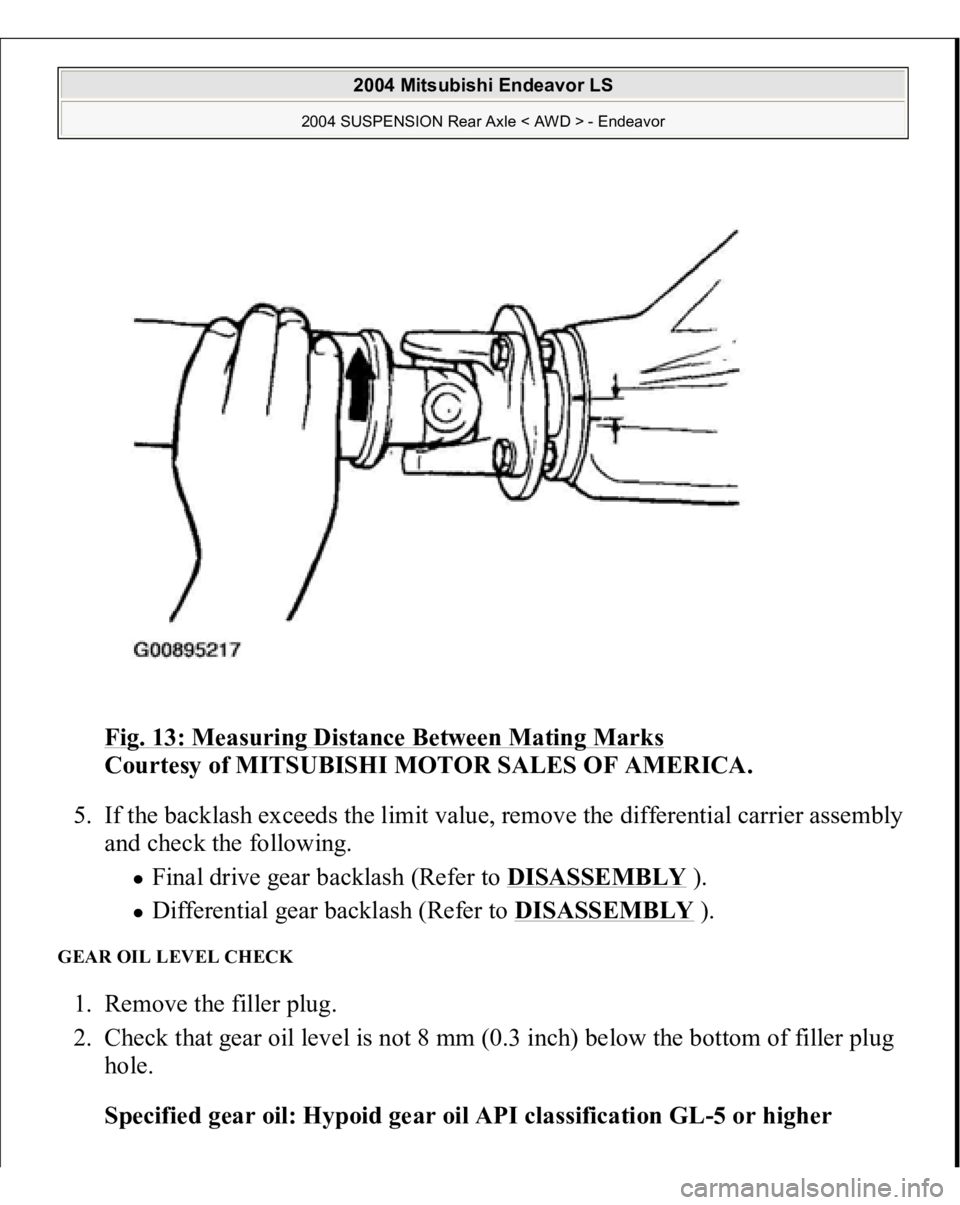

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 13: Measuring Distance Between Mating Marks

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. If the backlash exceeds the limit value, remove the differential carrier assembly
and check the f

Page 2947 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Above-23°C (-10°F): SAE 90, 85W-90, 80W-90
From-34 to-23°C (-30 to-10°F): SAE 80W, 80W-90
Below-34°C (-30°F): SAE 75W

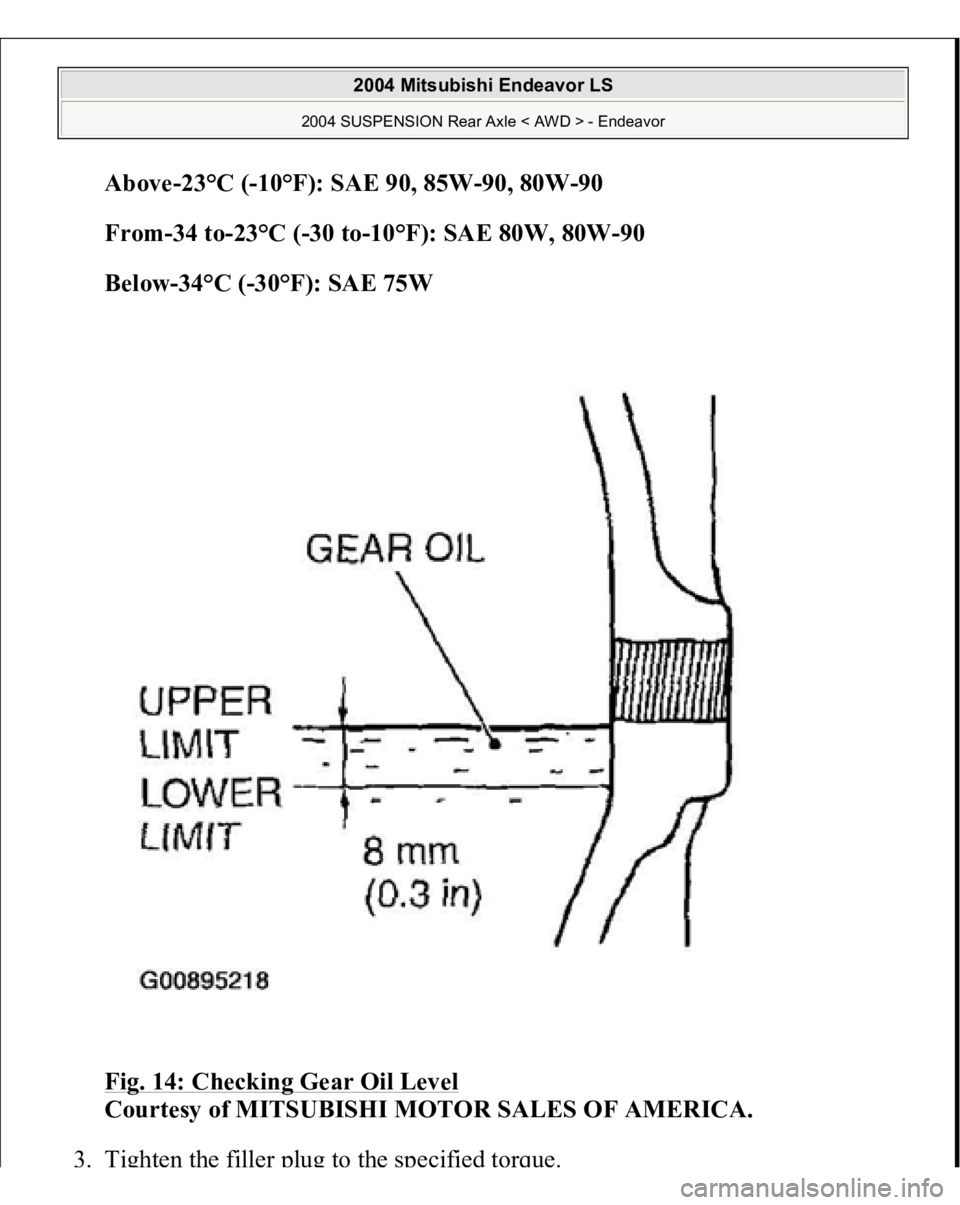

Fig. 14: Checking Gear Oil Level

Courtesy of MITSUBISHI MOTOR SALES

Page 2948 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Tightening torque: 49 +/- 9 N.m (37 +
/-6 f
t-lb)

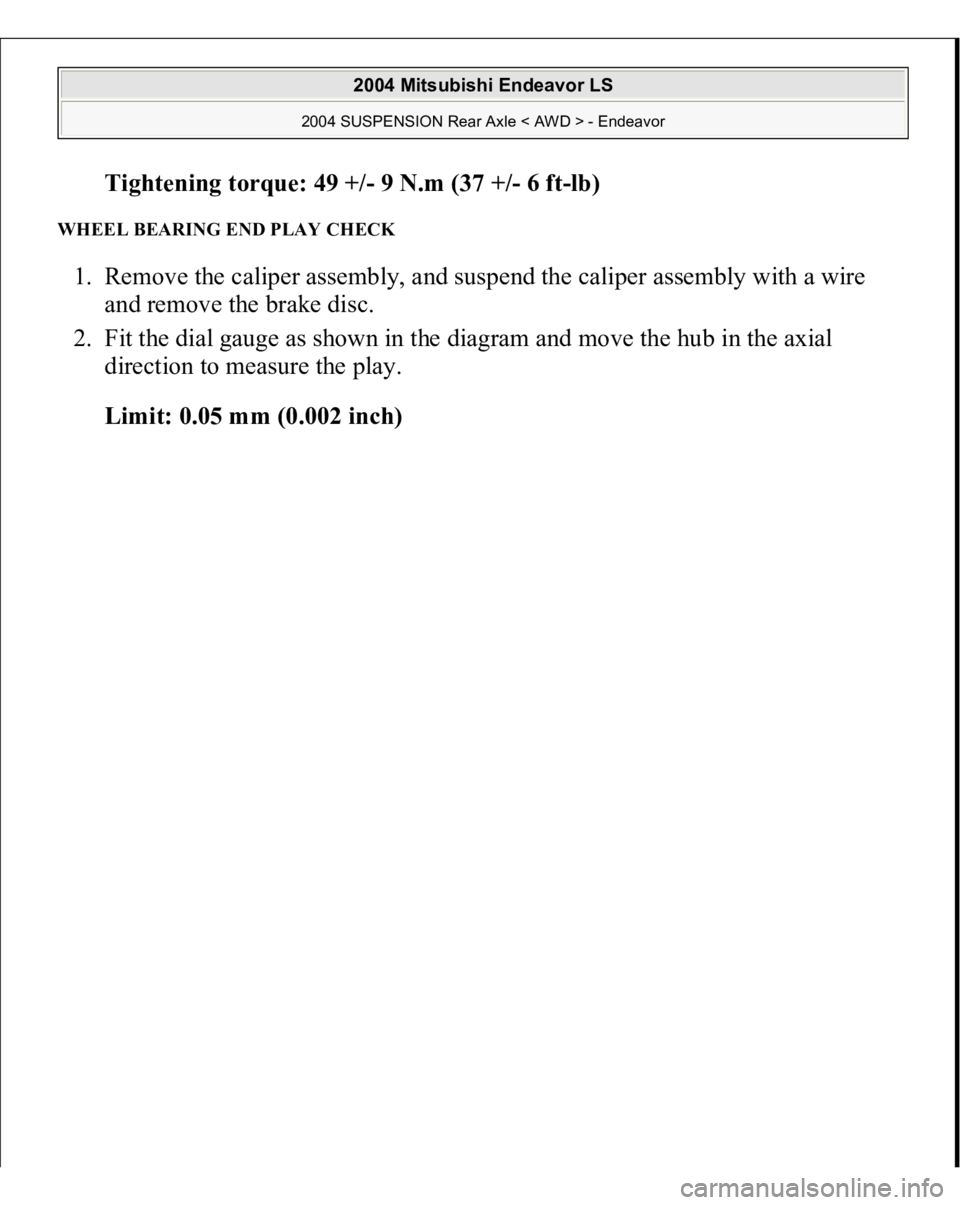

WHEEL BEARING END PLAY CHECK 1. Remove the caliper assembly, and suspend the caliper assembly with a wire
and remove the brake disc.
2. Fit the d

Page 2949 of 3870

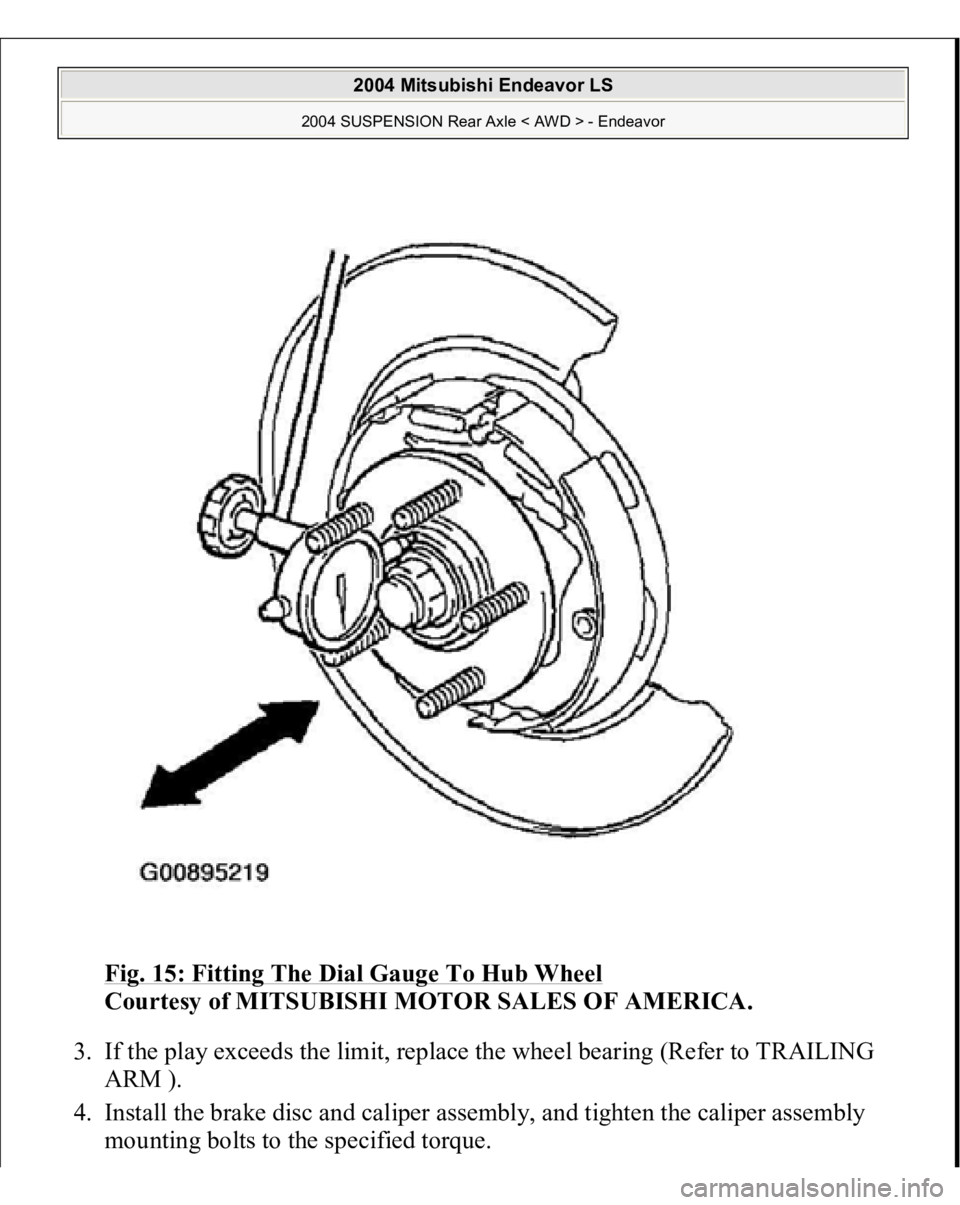

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Fig. 15: Fitting The Dial Gauge To Hub Wheel

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. If the play exceeds the limit, replace the wheel bearing (Refer to TRAILING
ARM ).
4. Install the b

Page 2950 of 3870

MITSUBISHI ENDEAVOR 2004  Service Repair Manual Tightening torque: 60 +/- 5 N.m (45 +
/-3 f
t-lb)

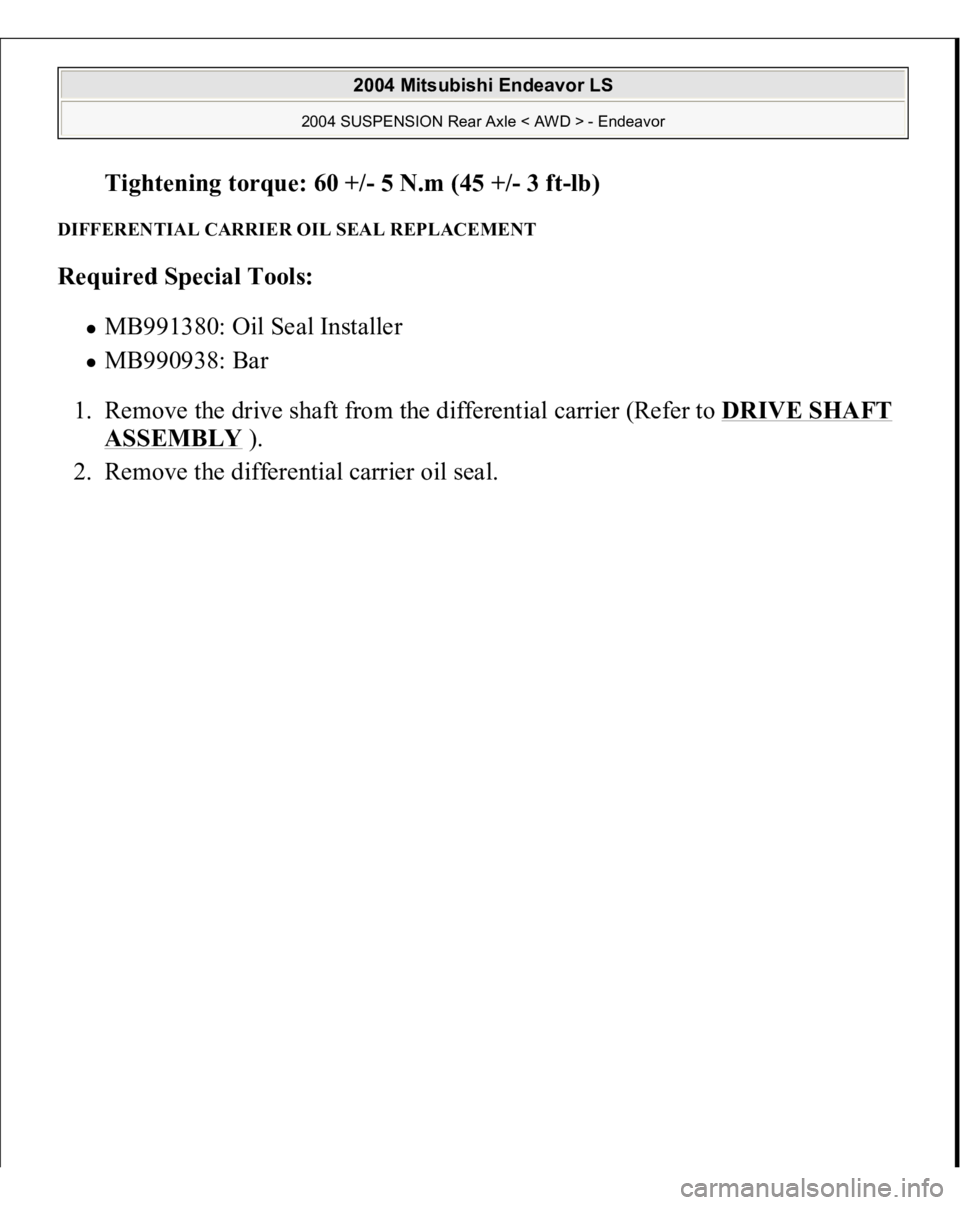

DIFFERENTIAL CARRIER OIL SEAL REPLACEMENT Required Special Tools:
MB991380: Oil Seal Installer  MB990938: Bar
1. Remove the drive shaft from the
