MITSUBISHI ENDEAVOR 2004 Service Repair Manual

Fig. 85: Checking ABS Sensor Connector D
-15 (Step 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and
ABS sensor < rear: LH > connector D-15 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 16.
NO: Open or short circuit may be present in the rear left ABS sensor
circuit. Repair the wiring harness between TCL/ASC-ECU connector A-
32 (terminals 6 and 7) and rear left ABS sensor D-10 (terminals 1 and 2).
Then go to Step 16
.
STEP 15. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

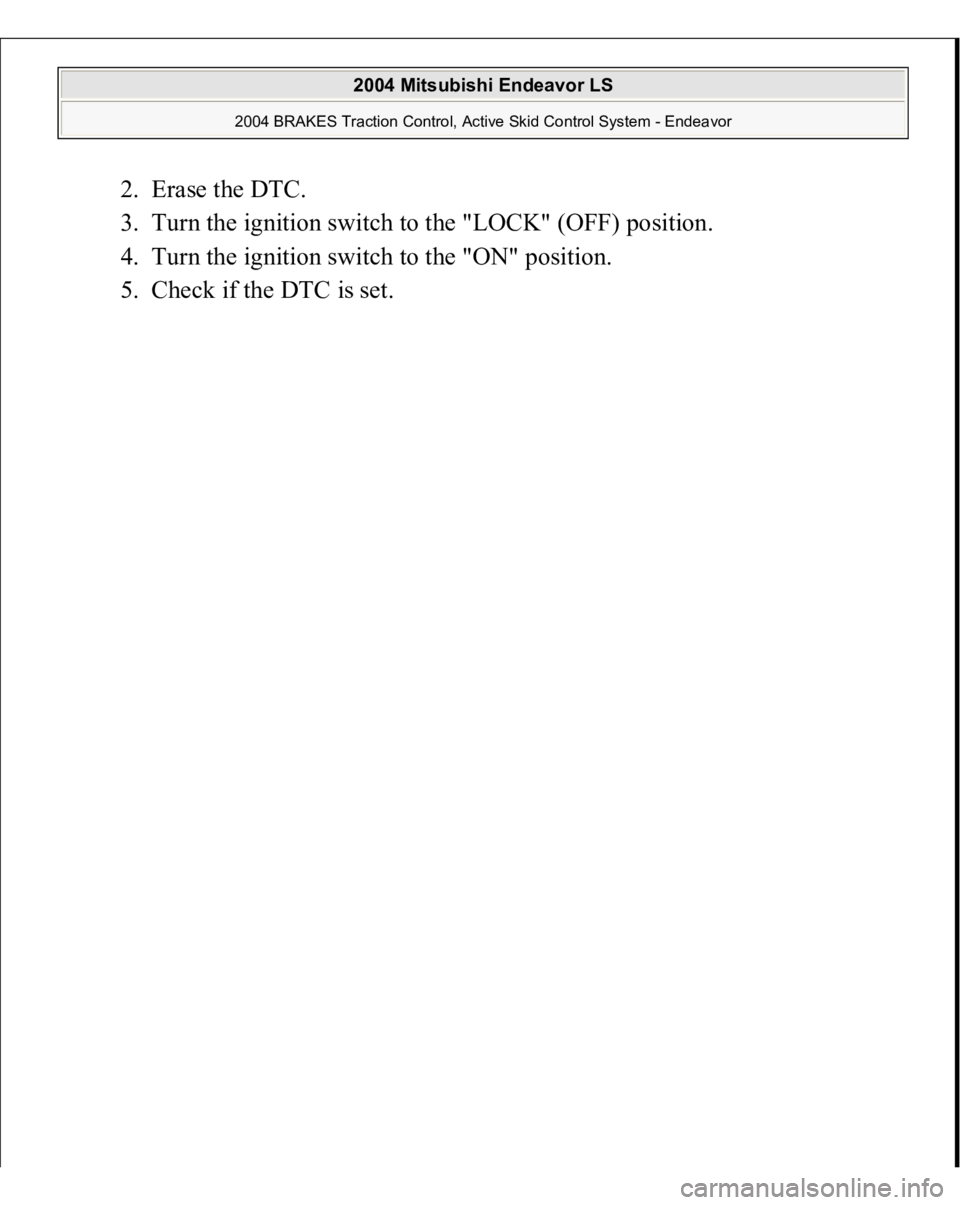

2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 86: Recheck For Diagnostic Trouble Code

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

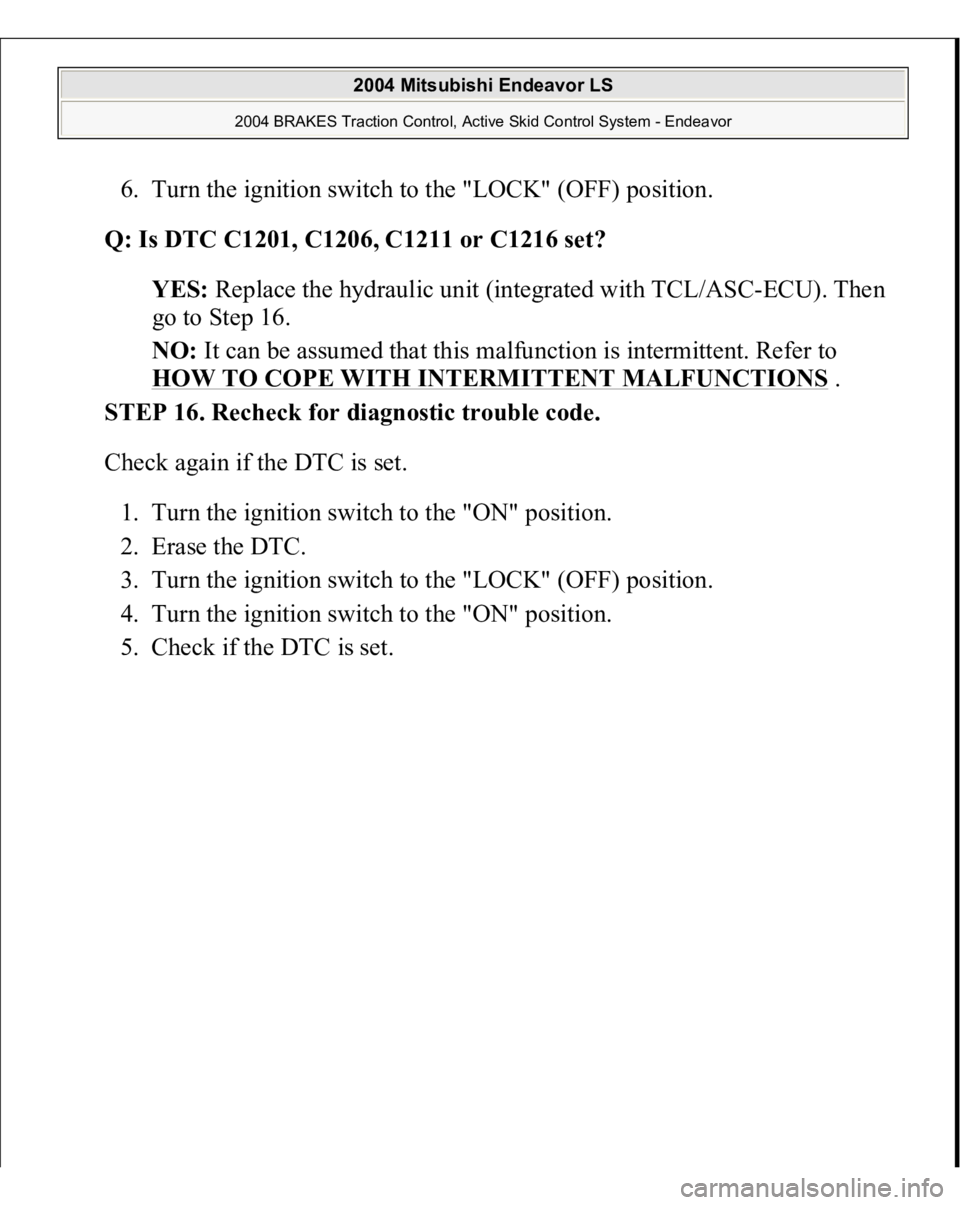

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1201, C1206, C1211 or C1216 set?
YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then
go to Step 16.
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 16. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

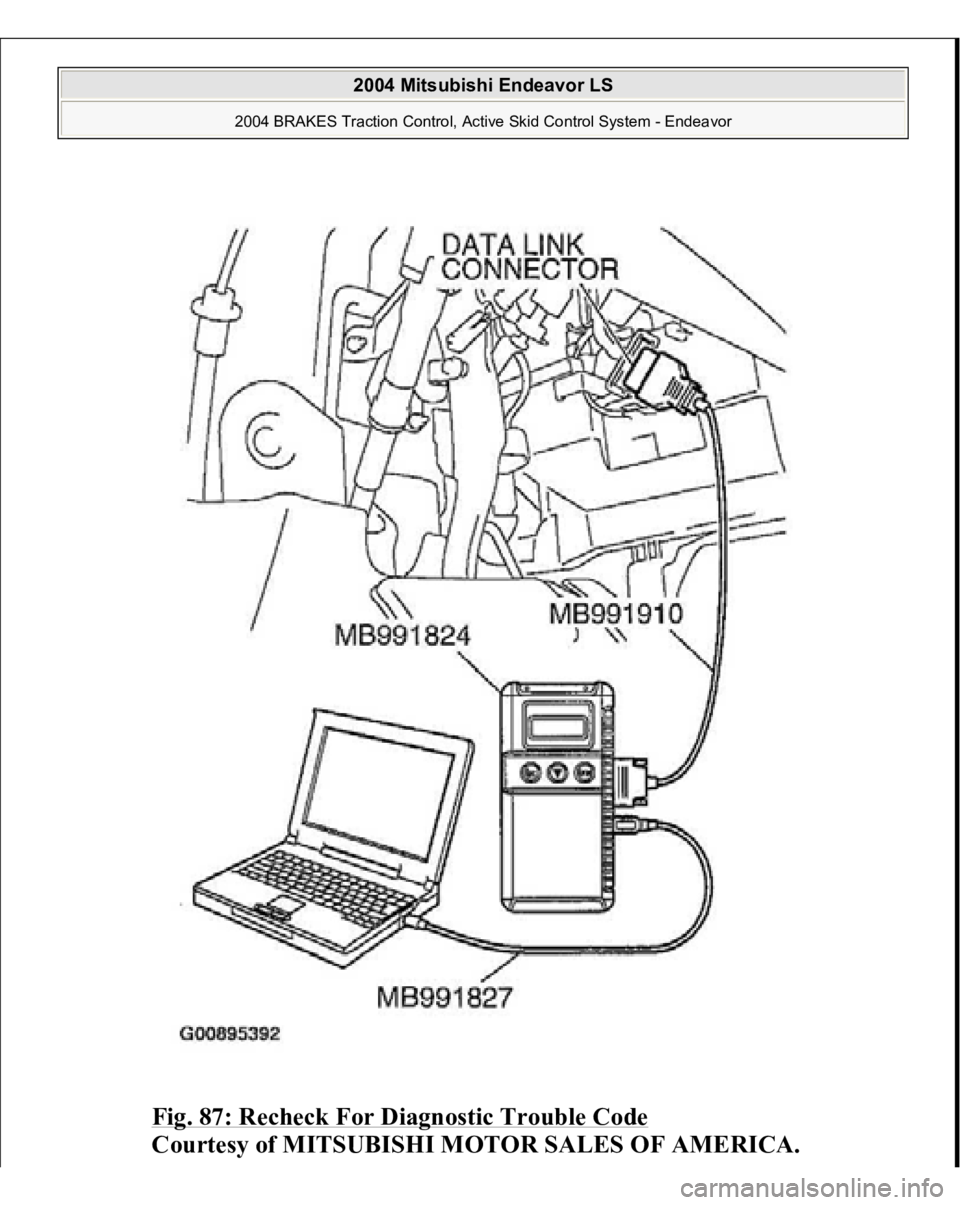

Fig. 87: Recheck For Diagnostic Trouble Code

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1201, C1206, C1211 or C1216 set?
YES: Go to Step 1.
NO: The procedure is complete.
DTC C1223: SUSPENSION OF SNSR. ACTIVE CHECK
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

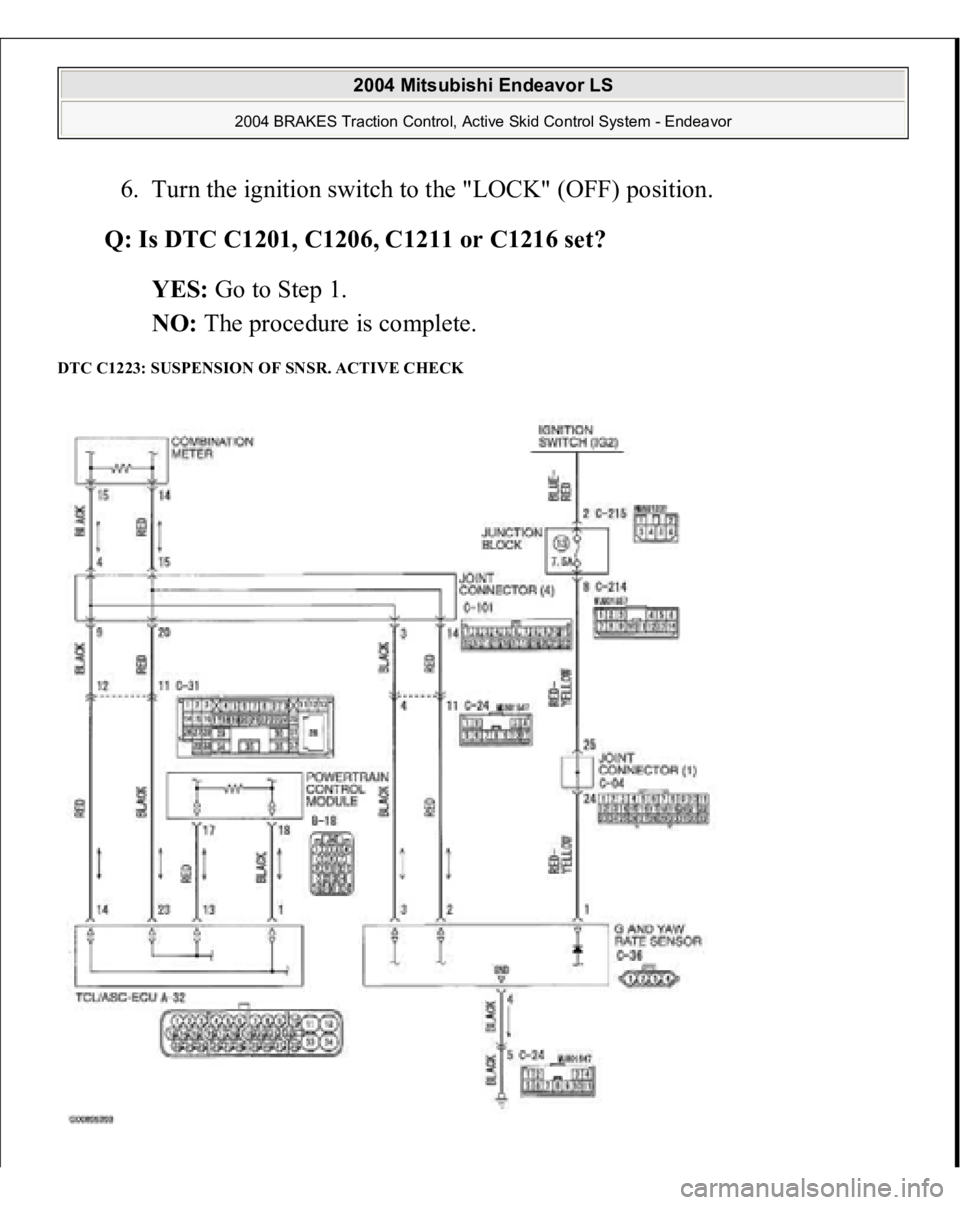

Fig. 88: G And Yaw Rate Sensor Circuit Diagra
m
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

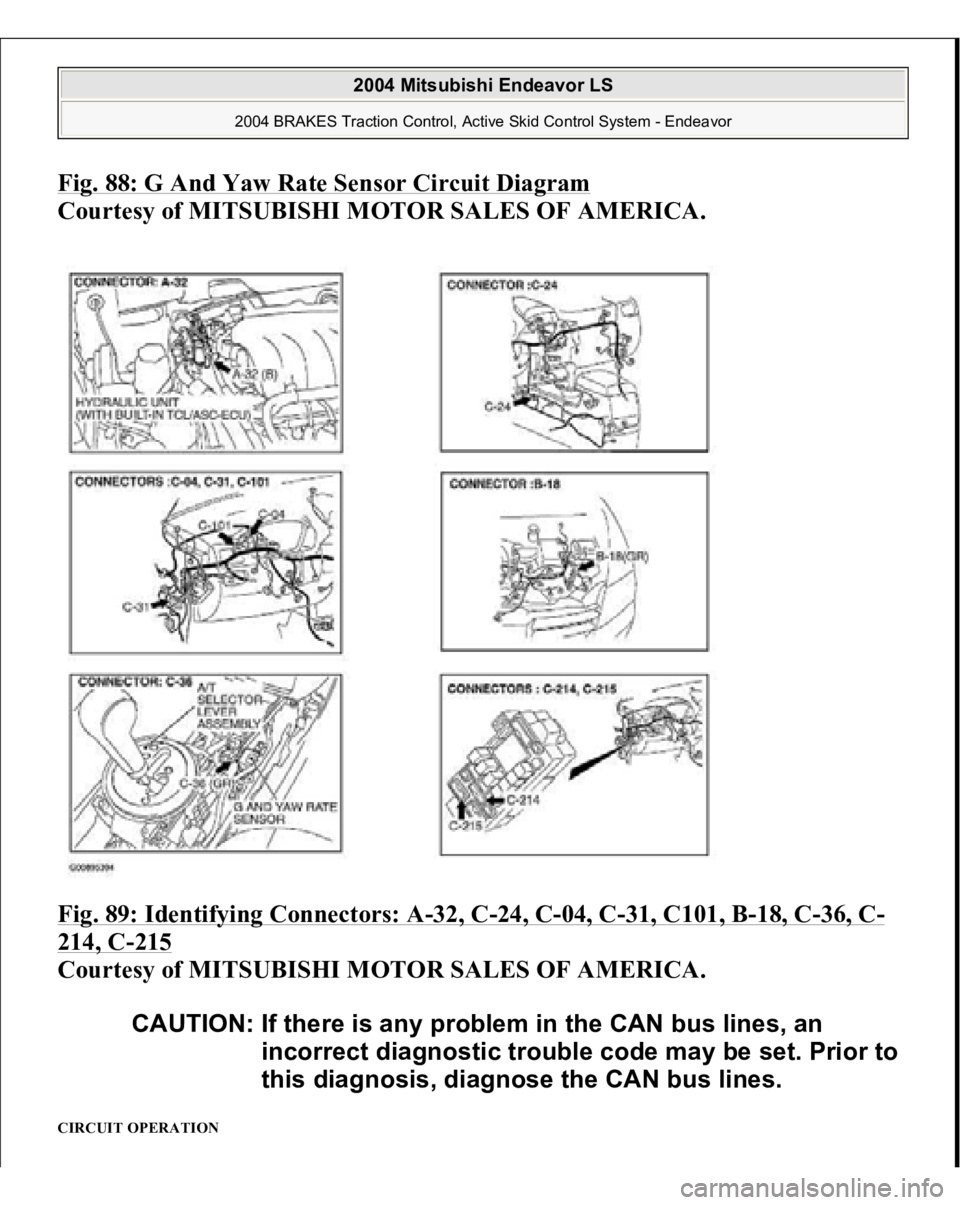

Fig. 89: Identifying Connectors: A
-32, C
-24, C
-04, C
-31, C101, B
-18, C
-36, C
-
214, C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
CAUTION: If there is any problem in the CAN bus lines, an
incorrect dia
gnostic trouble code ma
y be set. Prior to
this diagnosis, diagnose the CAN bus lines.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

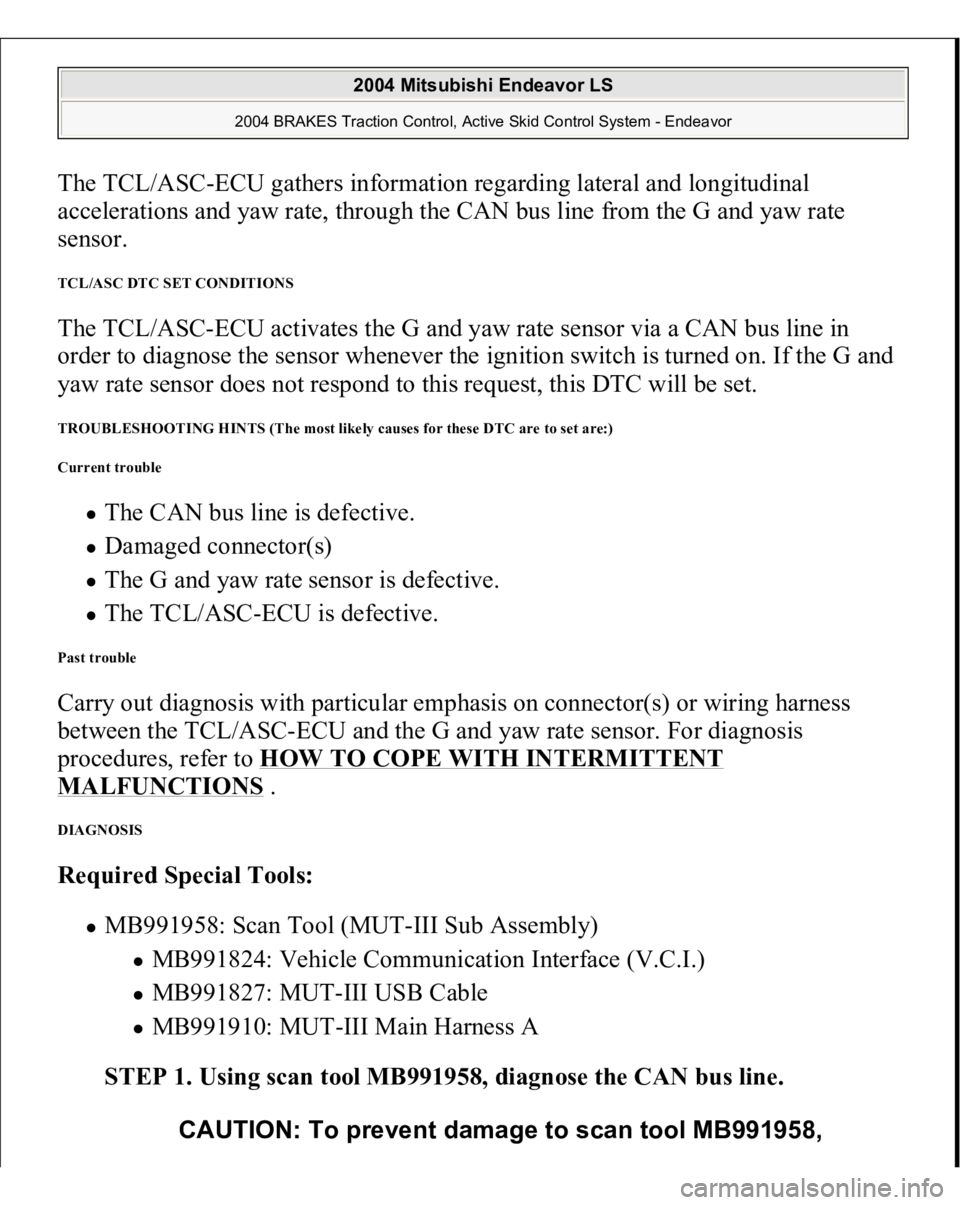

The TCL/ASC-ECU gathers information regarding lateral and longitudinal
accelerations and yaw rate, through the CAN bus line from the G and yaw rate
sensor. TCL/ASC DTC SET CONDITIONS The TCL/ASC-ECU activates the G and yaw rate sensor via a CAN bus line in
order to diagnose the sensor whenever the ignition switch is turned on. If the G and
yaw rate sensor does not respond to this request, this DTC will be set. TROUBLESHOOTING HINTS (The most likely causes for these DTC are to set are:)
Current trouble
The CAN bus line is defective. Damaged connector(s) The G and yaw rate sensor is defective. The TCL/ASC-ECU is defective.
Past trouble Carry out diagnosis with particular emphasis on connector(s) or wiring harness
between the TCL/ASC-ECU and the G and yaw rate sensor. For diagnosis
procedures, refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
STEP 1. Using scan tool MB991958, diagnose the CAN bus line.
CAUTION: To prevent damage to scan tool MB991958,

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

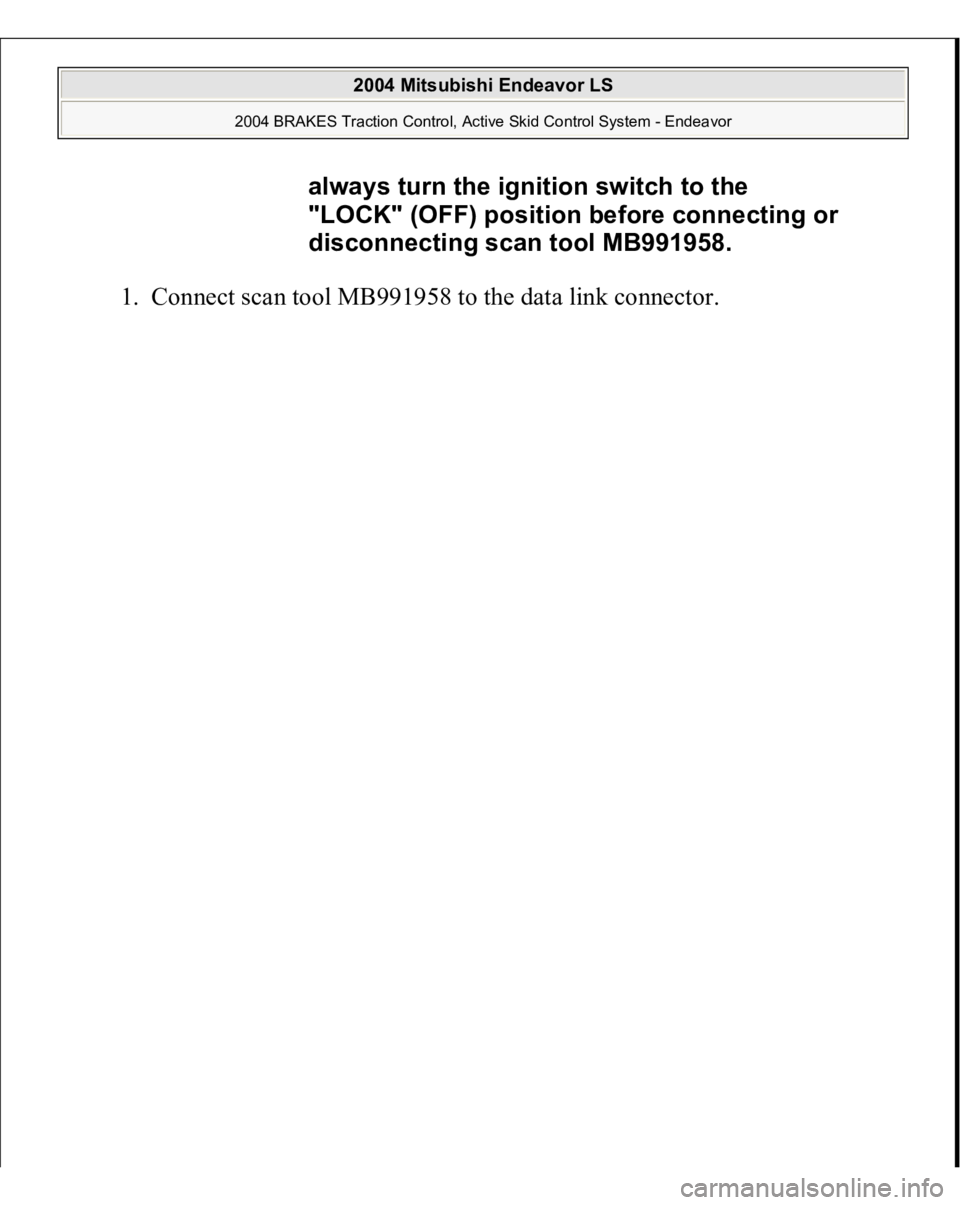

1. Connect scan tool MB991958 to the data link connec
tor. always turn the ignition switch to the
"LOCK" (OFF) position before connecting or
disconnecting scan tool MB991958.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 90: Connecting Scan Tool MB991958 To Data Link Connector
