MITSUBISHI ENDEAVOR 2004 Service Repair Manual

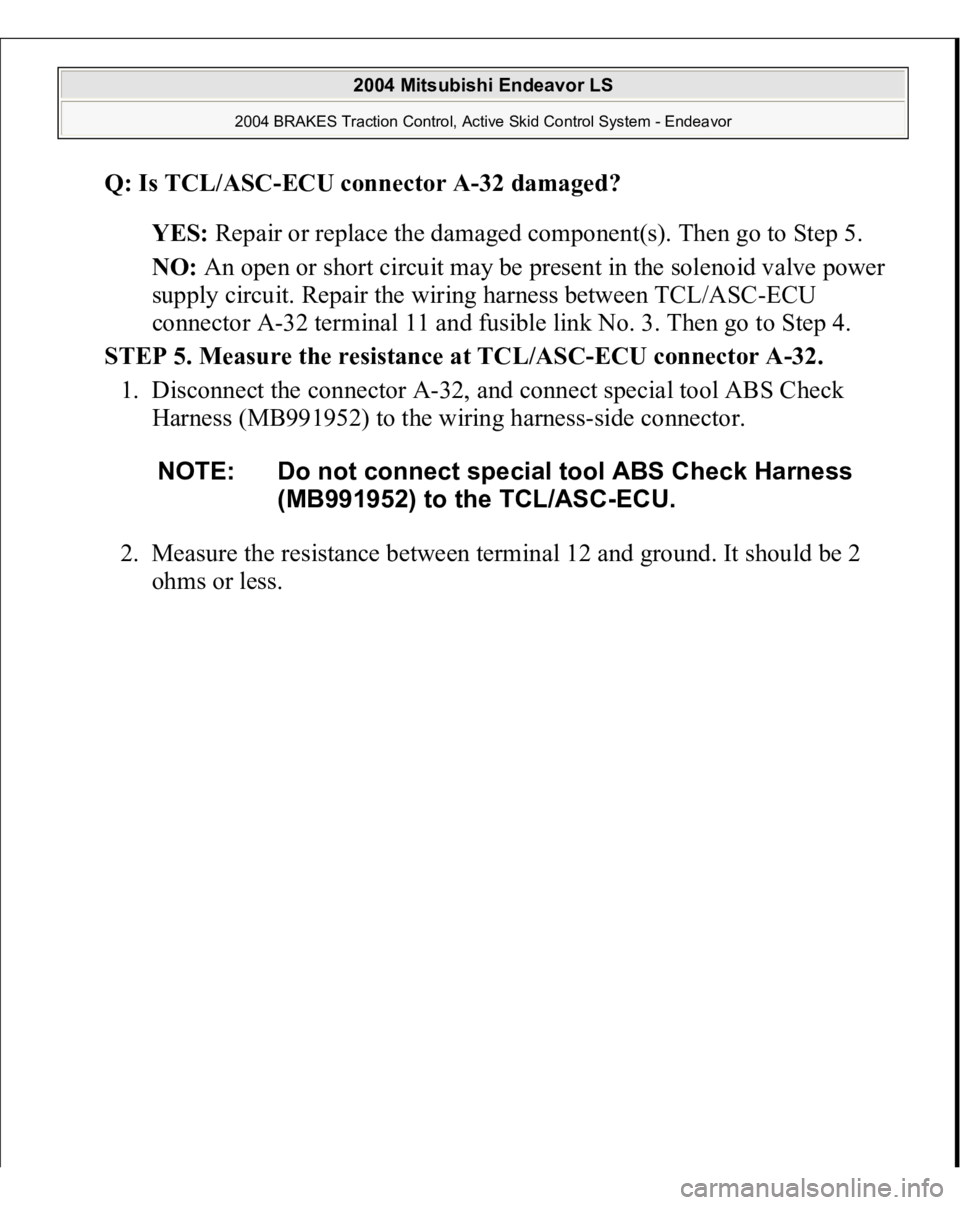

Q: Is TCL/ASC-ECU connector A-32 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 5.
NO: An open or short circuit may be present in the solenoid valve power
supply circuit. Repair the wiring harness between TCL/ASC-ECU
connector A-32 terminal 11 and fusible link No. 3. Then go to Step 4.
STEP 5. Measure the resistance at TCL/ASC-ECU connector A-32.
1. Disconnect the connector A-32, and connect special tool ABS Check
Harness (MB991952) to the wiring harness-side connector.
2. Measure the resistance between terminal 12 and ground. It should be 2
ohms or less. NOTE: Do not connect special tool ABS Check Harness
(MB991952) to the TCL/ASC-ECU.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

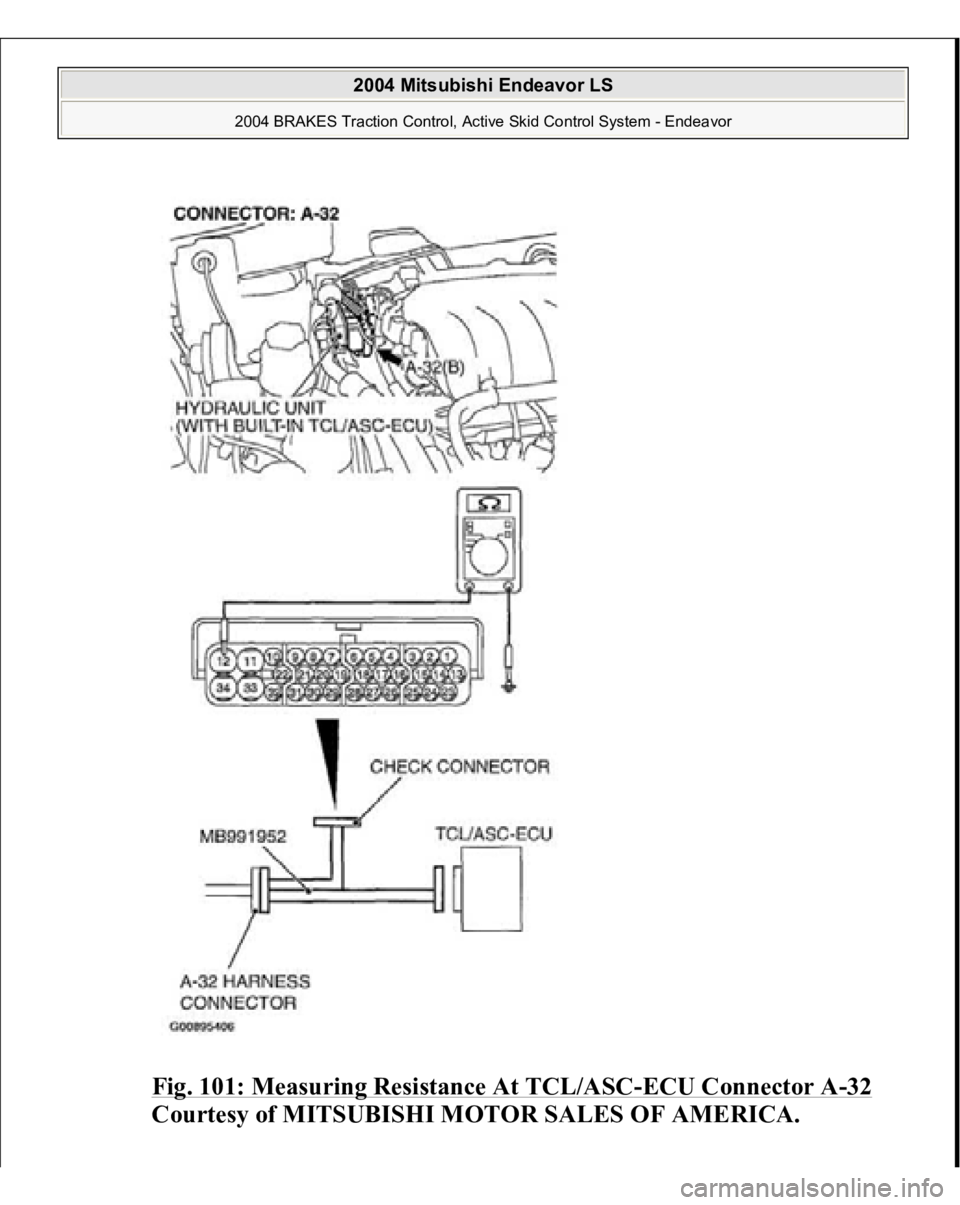

Fig. 101: Measuring Resistance At TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

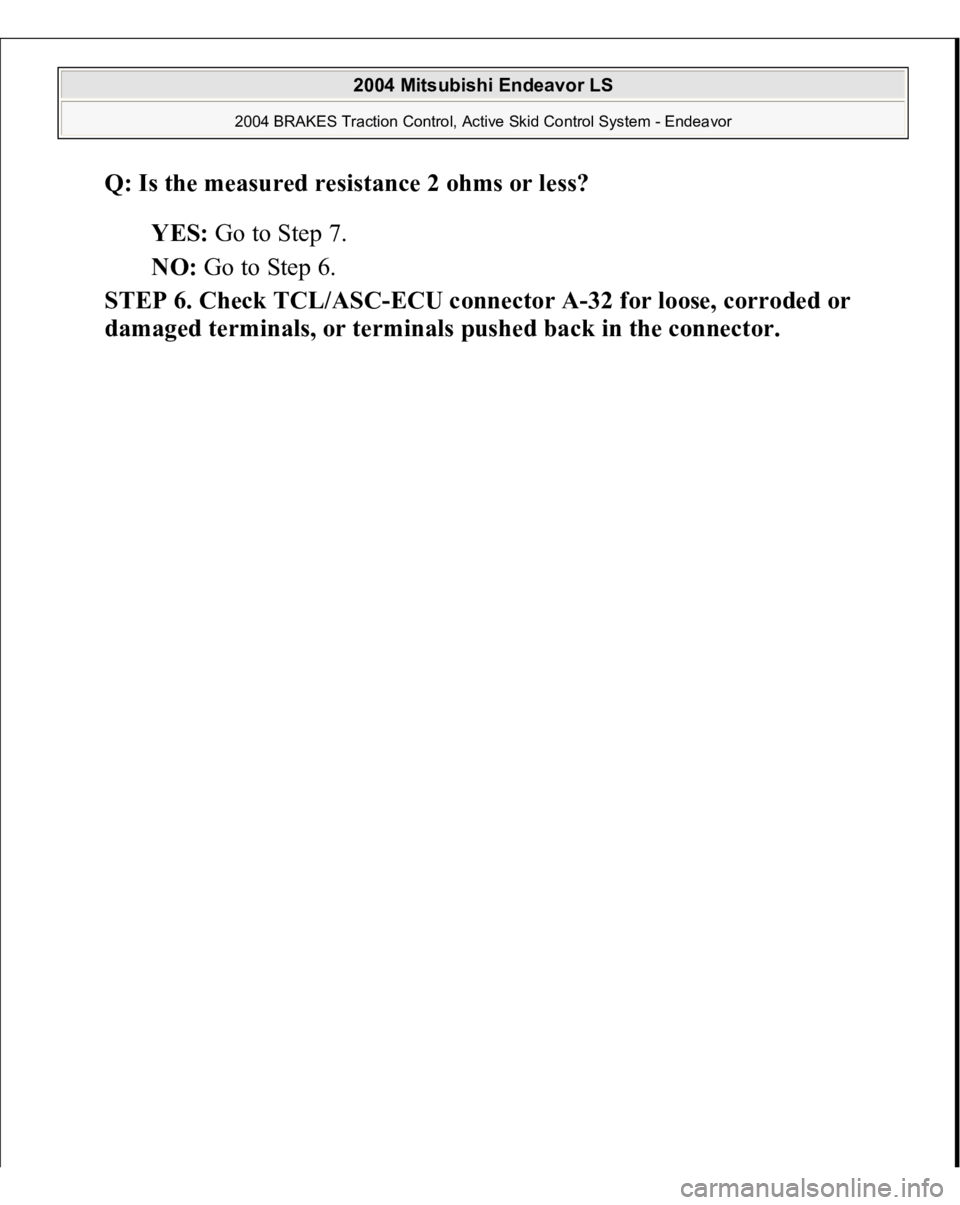

Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 7.
NO: Go to Step 6.
STEP 6. Check TCL/ASC-ECU connector A-32 for loose, corroded or
dama
ged terminals, or terminals
pushed back in the connector
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 102: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

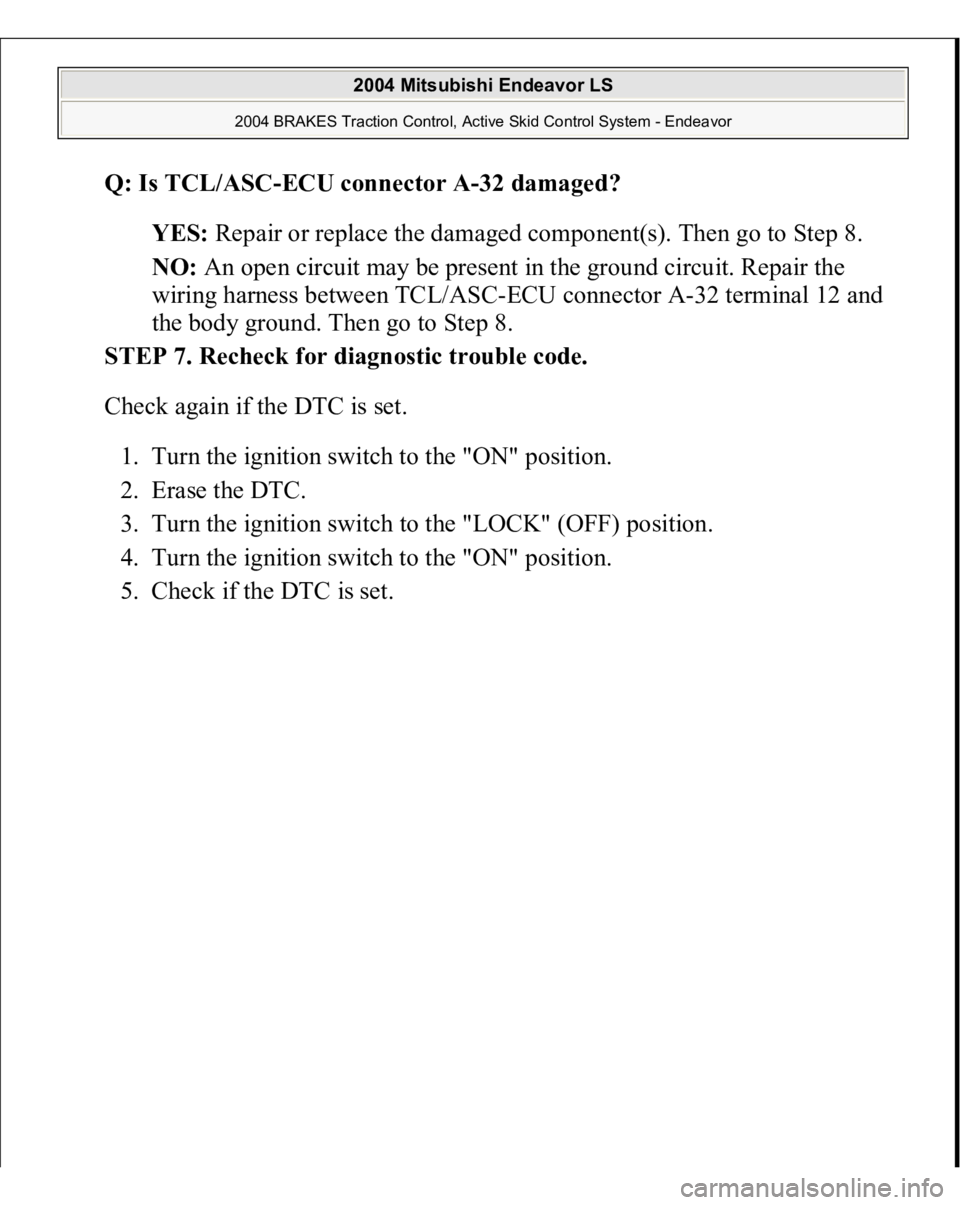

Q: Is TCL/ASC-ECU connector A-32 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 8.
NO: An open circuit may be present in the ground circuit. Repair the
wiring harness between TCL/ASC-ECU connector A-32 terminal 12 and
the body ground. Then go to Step 8.
STEP 7. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 103: Rechecking For Diagnostic Trouble Code

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

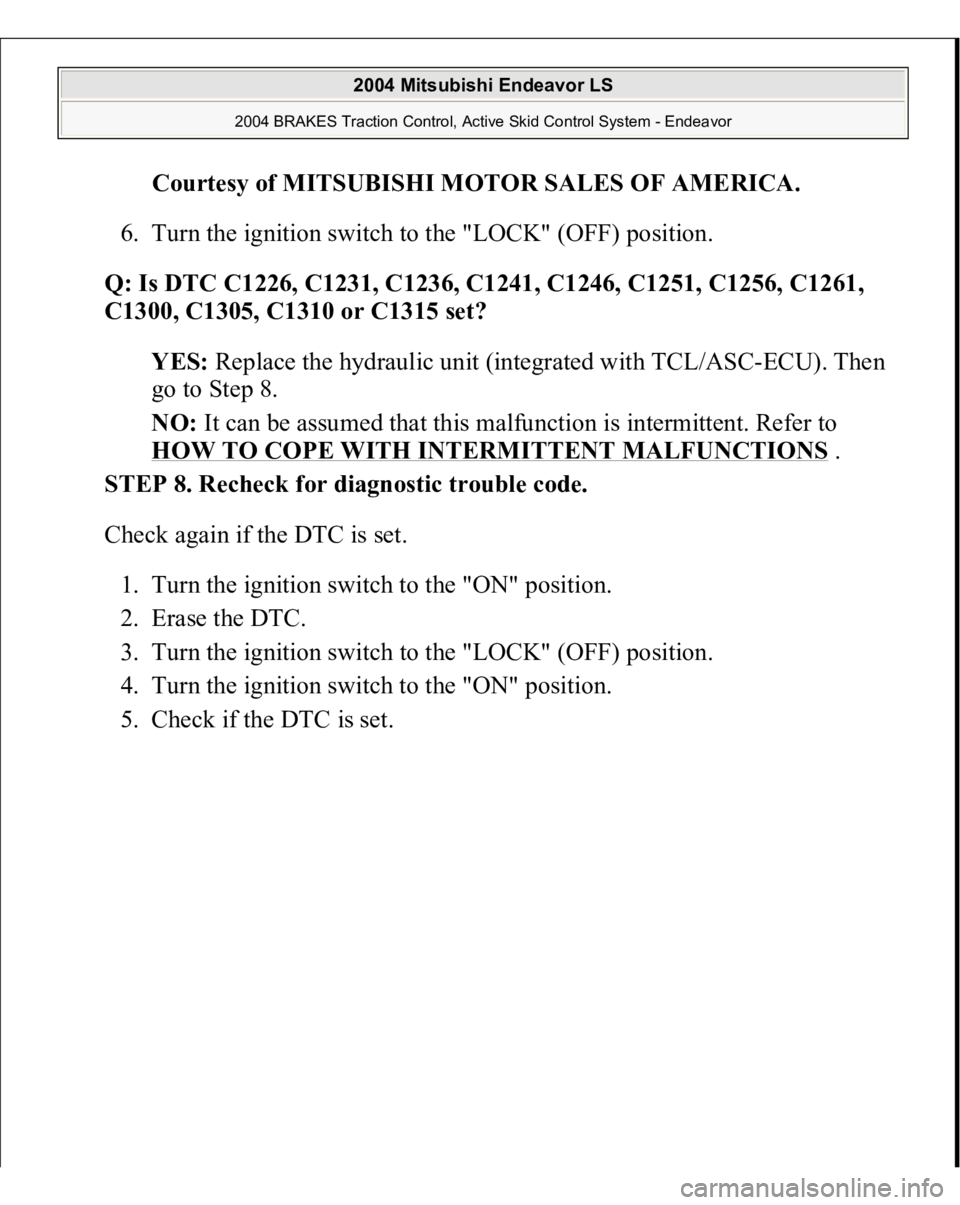

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC C1226, C1231, C1236, C1241, C1246, C1251, C1256, C1261,
C1300, C1305, C1310 or C1315 set?
YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then
go to Step 8.
NO: It can be assumed that this malfunction is intermittent. Refer to
HOW TO COPE WITH INTERMITTENT MALFUNCTIONS
.
STEP 8. Recheck for diagnostic trouble code.
Check again if the DTC is set.
1. Turn the ignition switch to the "ON" position.
2. Erase the DTC.
3. Turn the ignition switch to the "LOCK" (OFF) position.
4. Turn the ignition switch to the "ON" position.
5. Check if the DTC is set.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

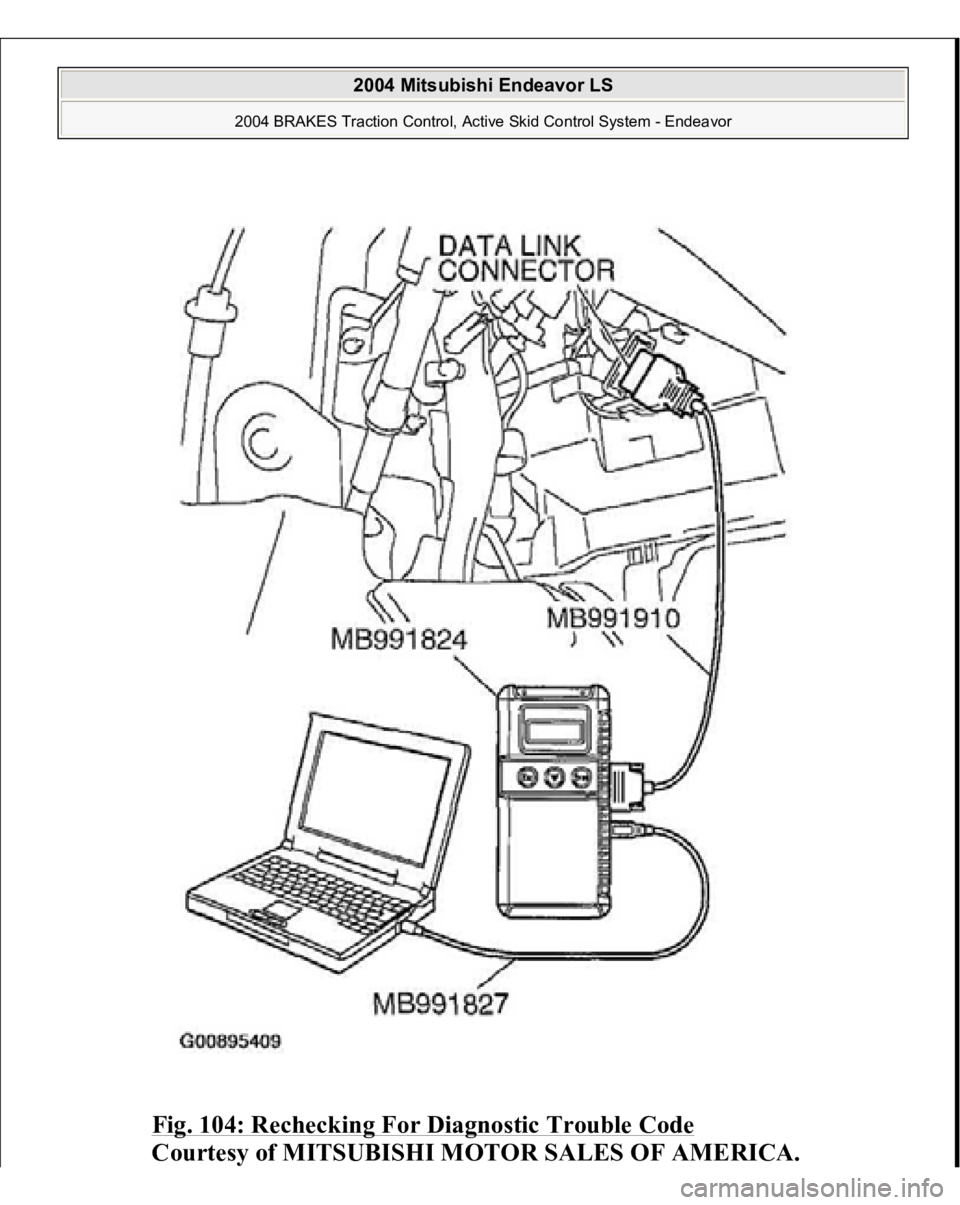

Fig. 104: Rechecking For Diagnostic Trouble Code

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is C1226, C1231, C1236, C1241, C1246, C1251, C1256, C1261, C1300,
C1305, C1310 or C1315 set?
YES: Go to Step 1.
NO: The procedure is complete.

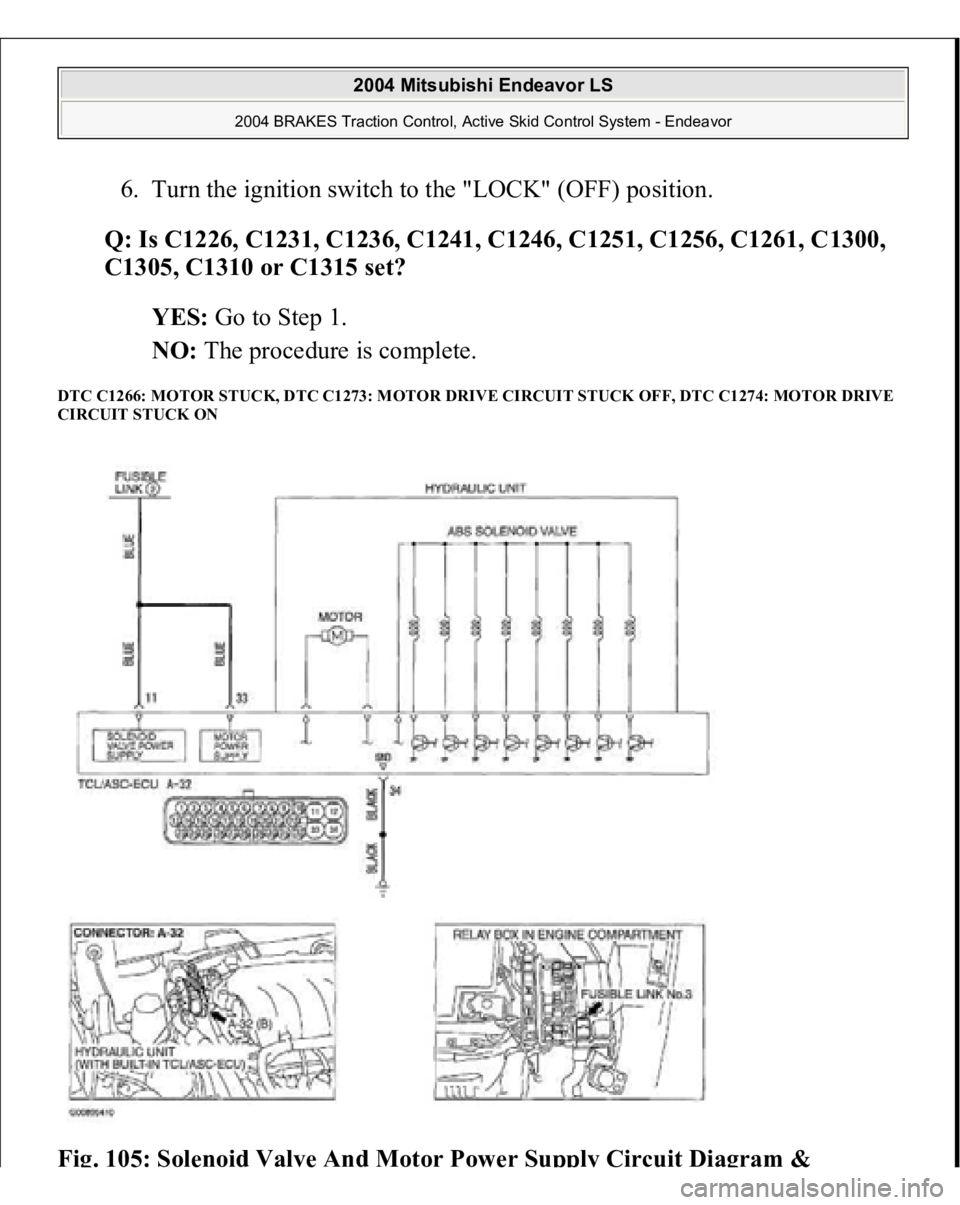

DTC C1266: MOTOR STUCK, DTC C1273: MOTOR DRIVE CIRCUIT STUCK OFF, DTC C1274: MOTOR DRIVE
CIRCUIT STUCK ON Fig. 105: Solenoid Valve And Motor Power Su
pp
ly Circuit Dia
gram &

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Connector Identificatio
n
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
The TCL/ASC-ECU contains the power supply circuit (terminal 33) for the
pump motor. The pump motor is energized by the motor relay, which is
incorporated in the TCL/ASC-ECU. The motor relay, which is incorporated in the TCL/ASC-ECU, is always off
unless the motor solenoid valve check is activated when the vehicle is started. The TCL/ASC-ECU activates the pump motor by turning on the ECU built-in
motor relay when the ABS is working.
TCL/ASC DTC SET CONDITIONS These diagnostic trouble codes will be set under the cases below. DTC C1266: MOTOR SYSTEM (SEIZURE)
If the TCL/ASC-ECU determines that the pump motor is not running smoothly
(i.e. motor seizure) after the motor relay is turned off, this DTC will be set.
DTC C1273: MOTOR RELAY PROBLEM (STUCK OFF)
If the TCL/ASC-ECU determines that the motor is not running after the motor
relay is turned on, the ECU determines that the motor relay is stuck off, and
sets this DTC.
DTC C1274: MOTOR RELAY PROBLEM (STUCK ON)
If the TCL/ASC-ECU determines that the motor is running after the motor
relay is turned off, the ECU determines that the motor relay is stuck on, and
sets this DTC.
TROUBLESHOOTING HINTS (The most likely causes for these DTCs are to set are:)
CAUTION: If there is any problem in the CAN bus lines, an
incorrect diagnostic trouble code may be set. Prior to
this diagnosis, diagnose the CAN bus lines.
