Q: Is the resistance between terminals 30 and 21, 22 and 31, 8 and 9, or 6
and 7 within the standard value?
YES (When resistances between all terminals are within the standard
value): Go to Step 15.
NO (When resistance between terminals 30 and 21 is not within the
standard value): Go to Step 11.
NO (When resistance between terminals 22 and 31 is not within the
standard value): Go to Step 12.
NO (When resistance between terminals 8 and 9 is not within the
standard value): Go to Step 13.
NO (When resistance between terminals 6 and 7 is not within the
standard value): Go to Step 14.
STEP 11. Check TCL/ASC-ECU connector A-32 and ABS sensor < front:
RH > connector A-31 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

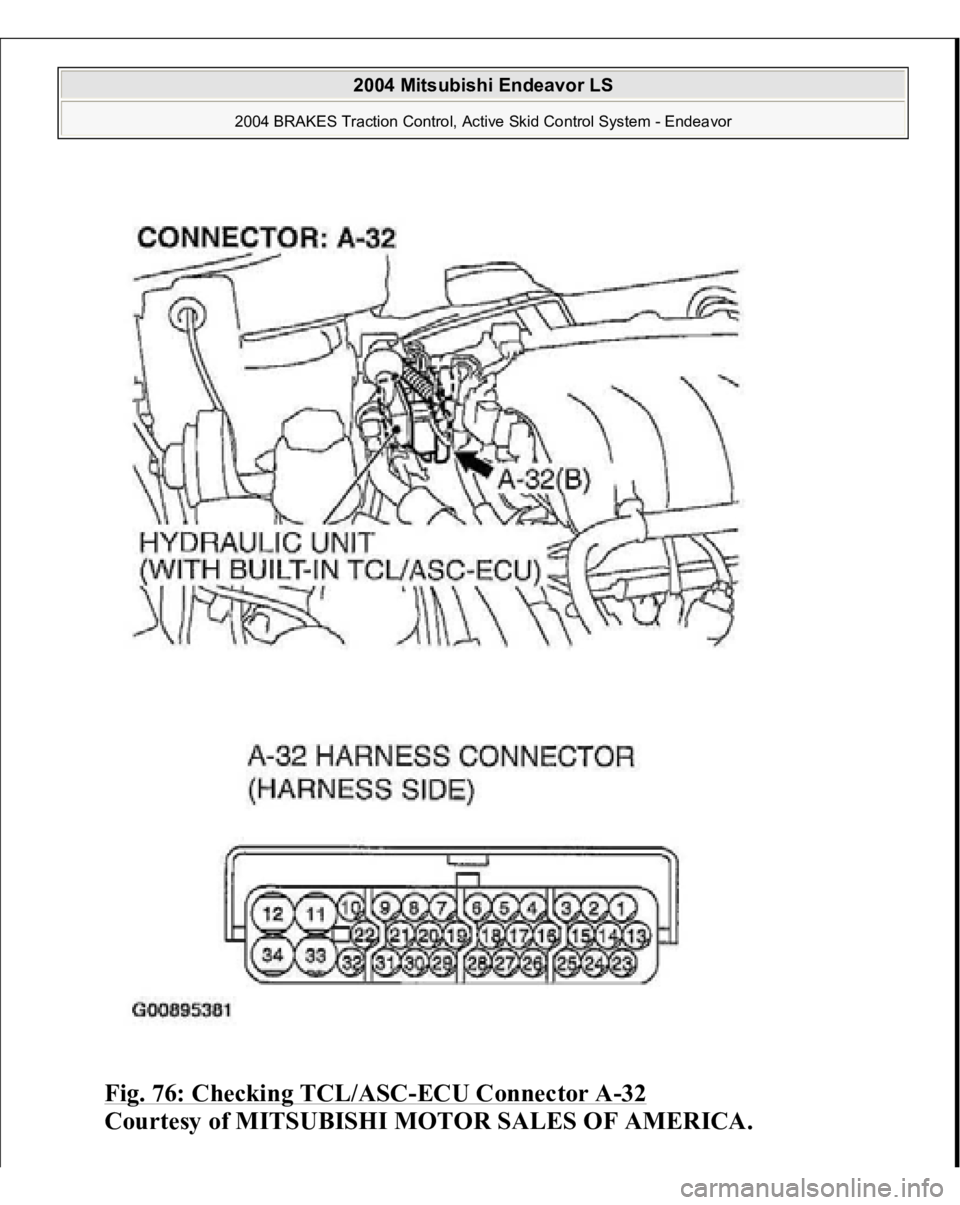

Fig. 76: Checking TCL/ASC
-ECU Connector A
-32
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 77: Checking ABS Sensor Connector A
-31
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: RH >
connector A-31 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 16.
NO: Open or short circuit may be present in the front right ABS sensor
circuit. Repair the wiring harness between TCL/ASC-ECU connector A-
32 (terminals 30 and 21) and front right ABS sensor A-31 (terminals 2 and
1). Then go to Step 16.
STEP 12. Check TCL/ASC-ECU connector A-32 and ABS sensor < front:
LH > connector A-14 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

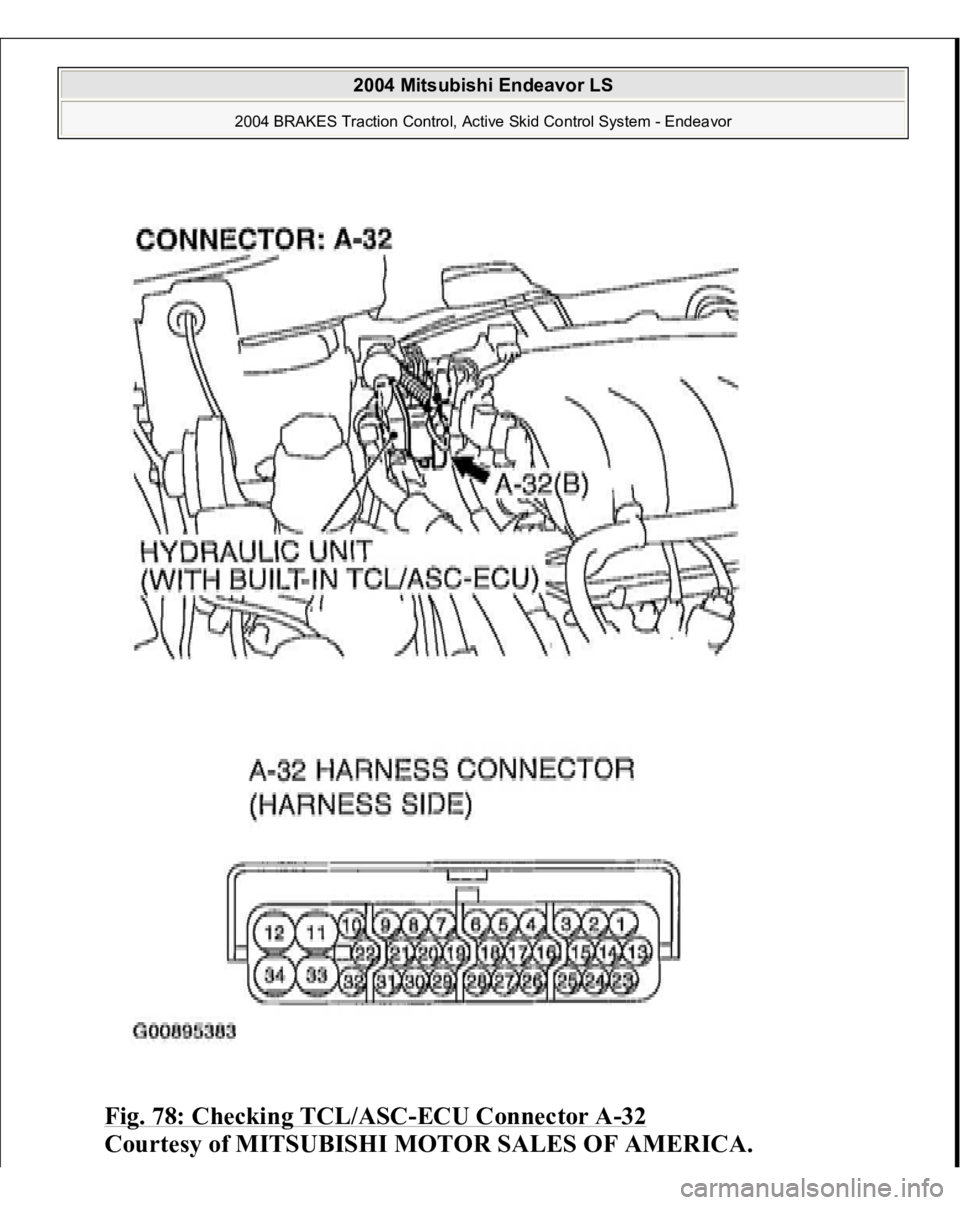

Fig. 78: Checking TCL/ASC
-ECU Connector A
-32
Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 79: Checking ABS Sensor Connector A
-14
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32 and ABS sensor < front: LH >
connector A-14 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 16.
NO: Open or short circuit may be present in the front right ABS sensor
circuit. Repair the wiring harness between TCL/ASC-ECU connector A-
32 (terminals 22 and 31) and front left ABS sensor A-14 (terminals 2 and
1). Then go to Step 16.
STEP 13. Check TCL/ASC-ECU connector A-32, intermediate connector
C-32 and ABS sensor < rear: RH > connector D-10 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

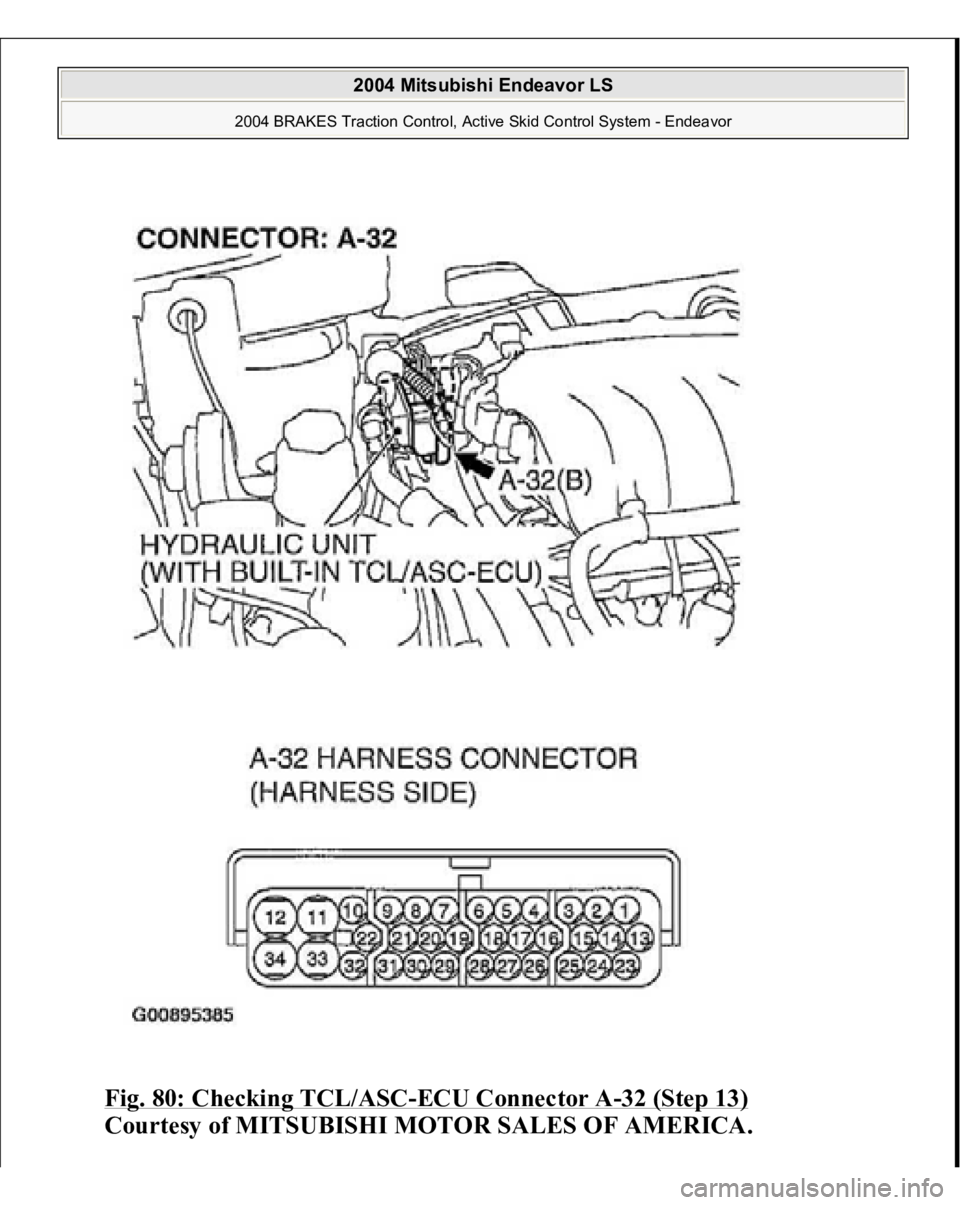

Fig. 80: Checking TCL/ASC
-ECU Connector A
-32 (Step 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

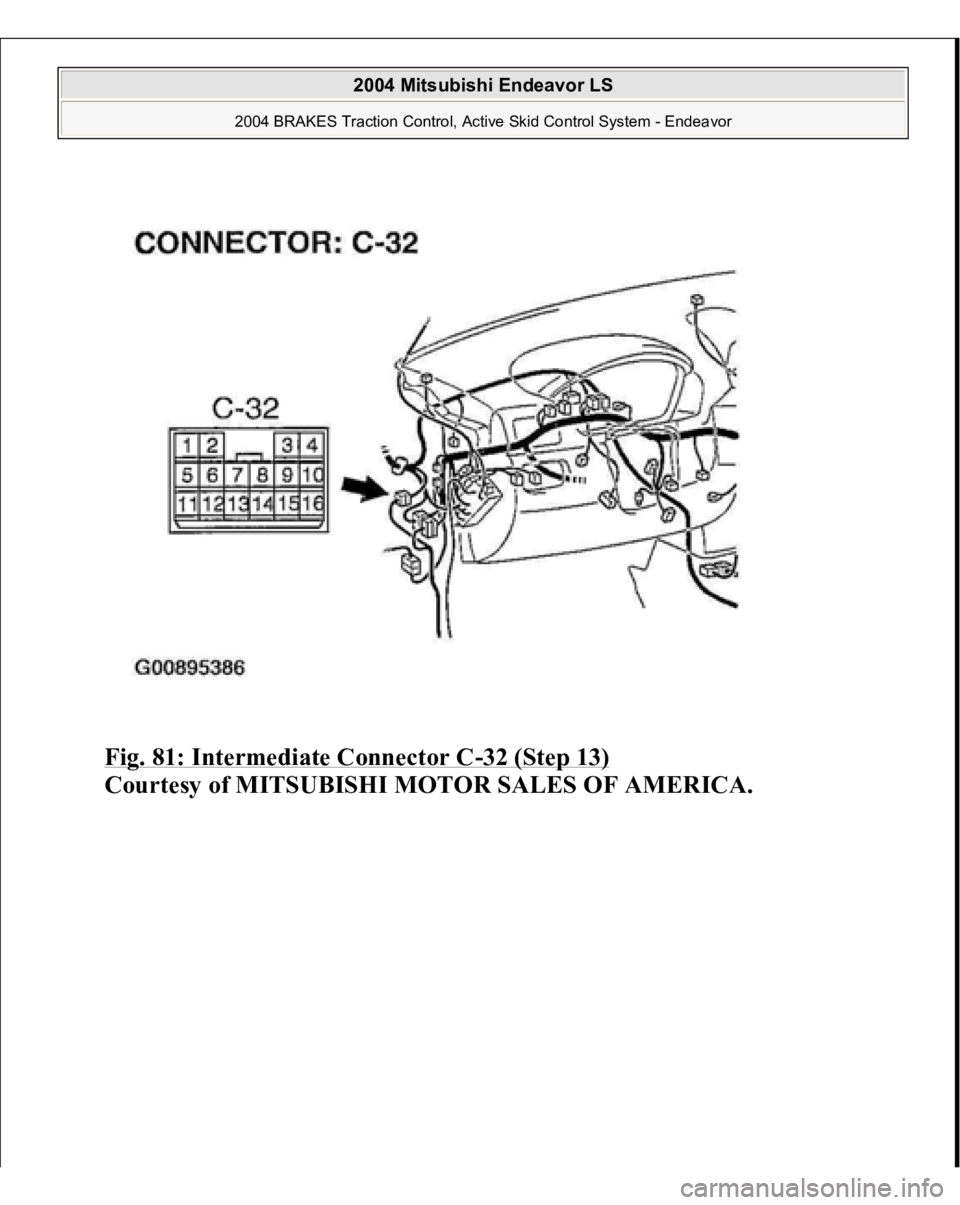

Fig. 81: Intermediate Connector C
-32 (Step 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 82: Checking ABS Sensor Connector D
-10 (Step 13)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are TCL/ASC-ECU connector A-32, intermediate connector C-32 and
ABS sensor < rear: RH > connector D-10 damaged?
YES: Repair or replace the damaged component(s). Then go to Step 16.
NO: Open or short circuit may be present in the rear right ABS sensor
circuit. Repair the wiring harness between TCL/ASC-ECU connector A-
32 (terminals 8 and 9) and rear right ABS sensor D-10 (terminals 1 and 2).
Then go to Step 16
.
STEP 14. Check TCL/ASC-ECU connector A-32, intermediate connector
C-32 and ABS sensor < rear: LH > connector D-15 for loose, corroded or
damaged terminals, or terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

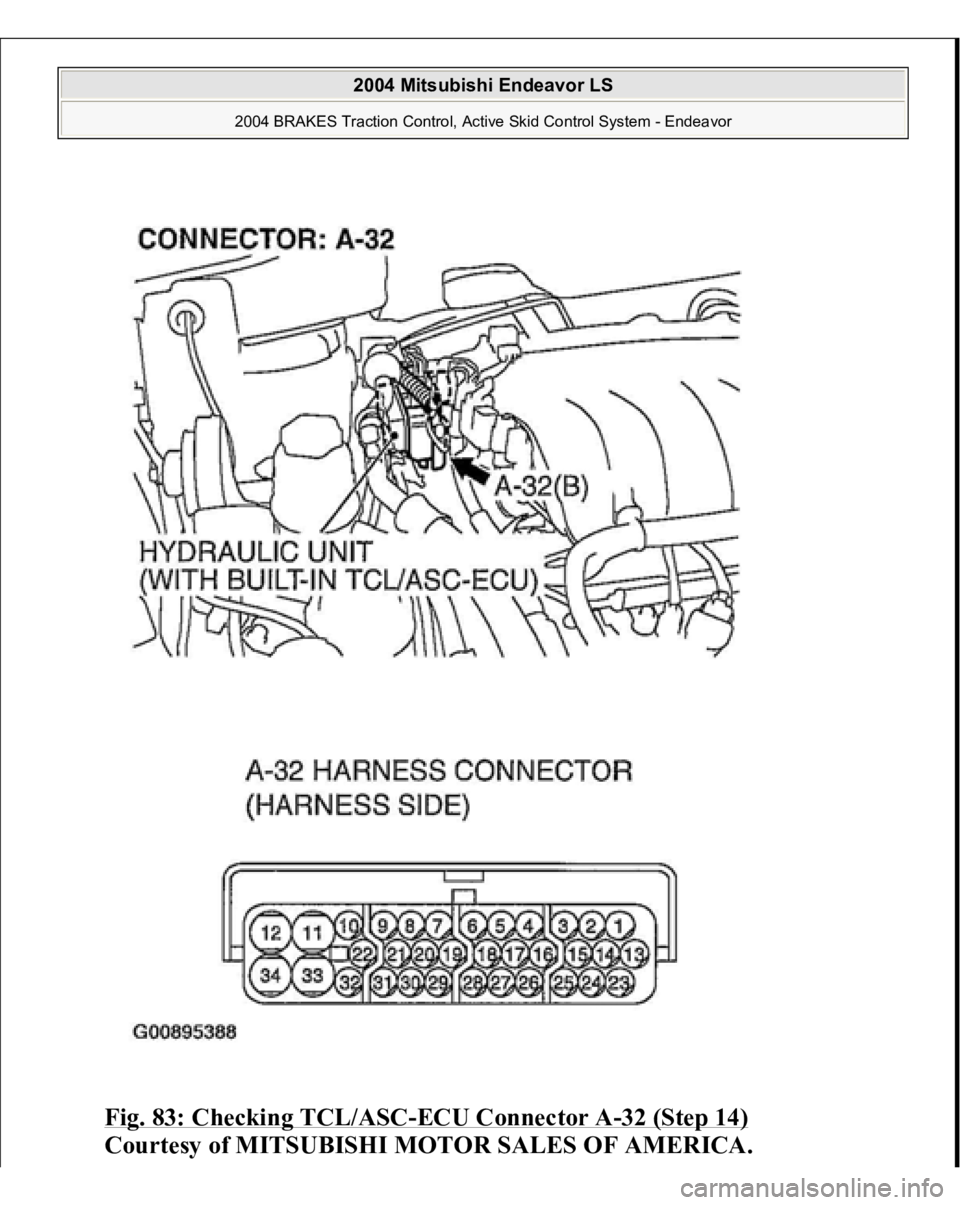

Fig. 83: Checking TCL/ASC
-ECU Connector A
-32 (Step 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

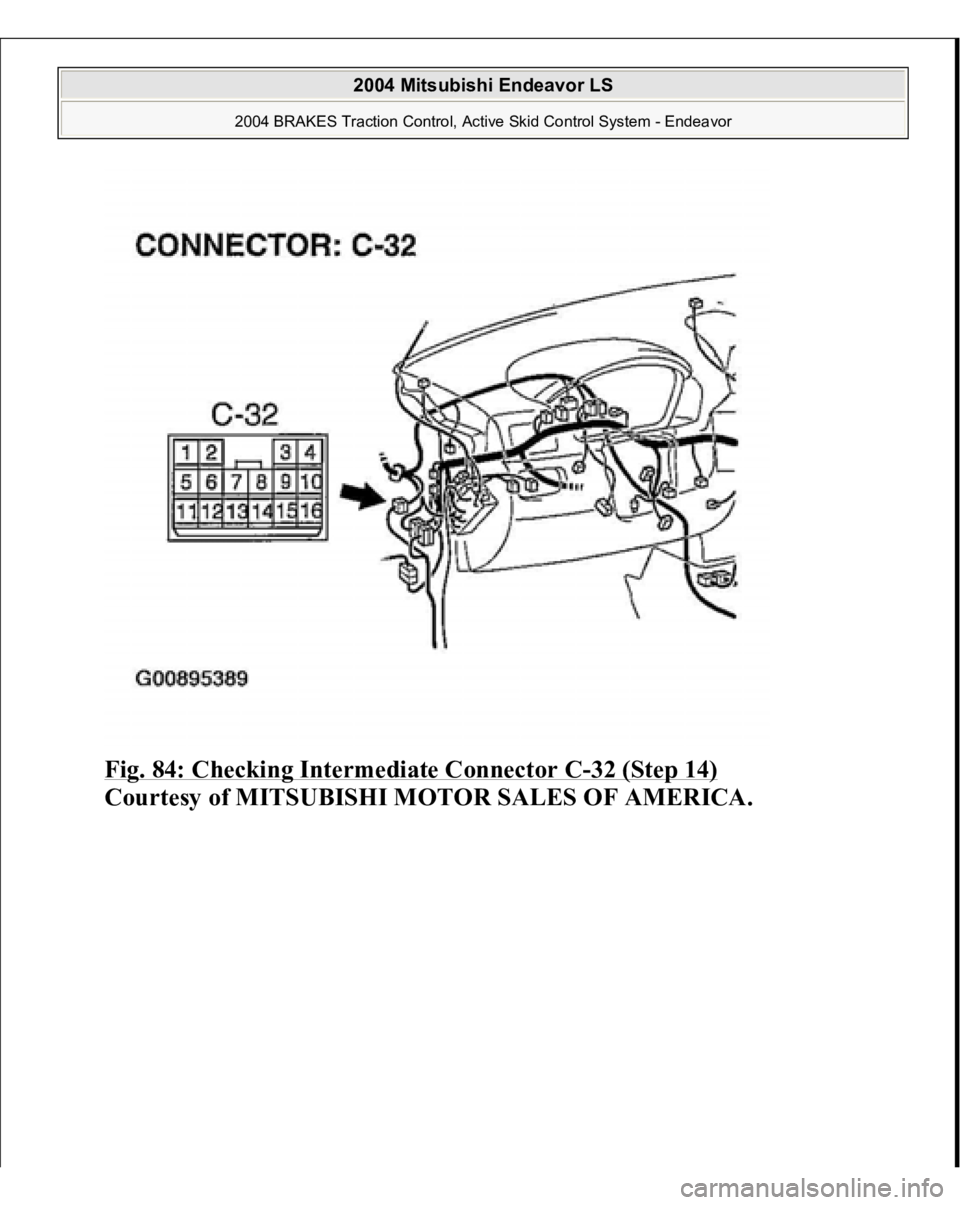

Fig. 84: Checking Intermediate Connector C
-32 (Step 14)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor LS
