INSPECTION PROCEDURE 4: Steering wheel sensor power supply system
2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

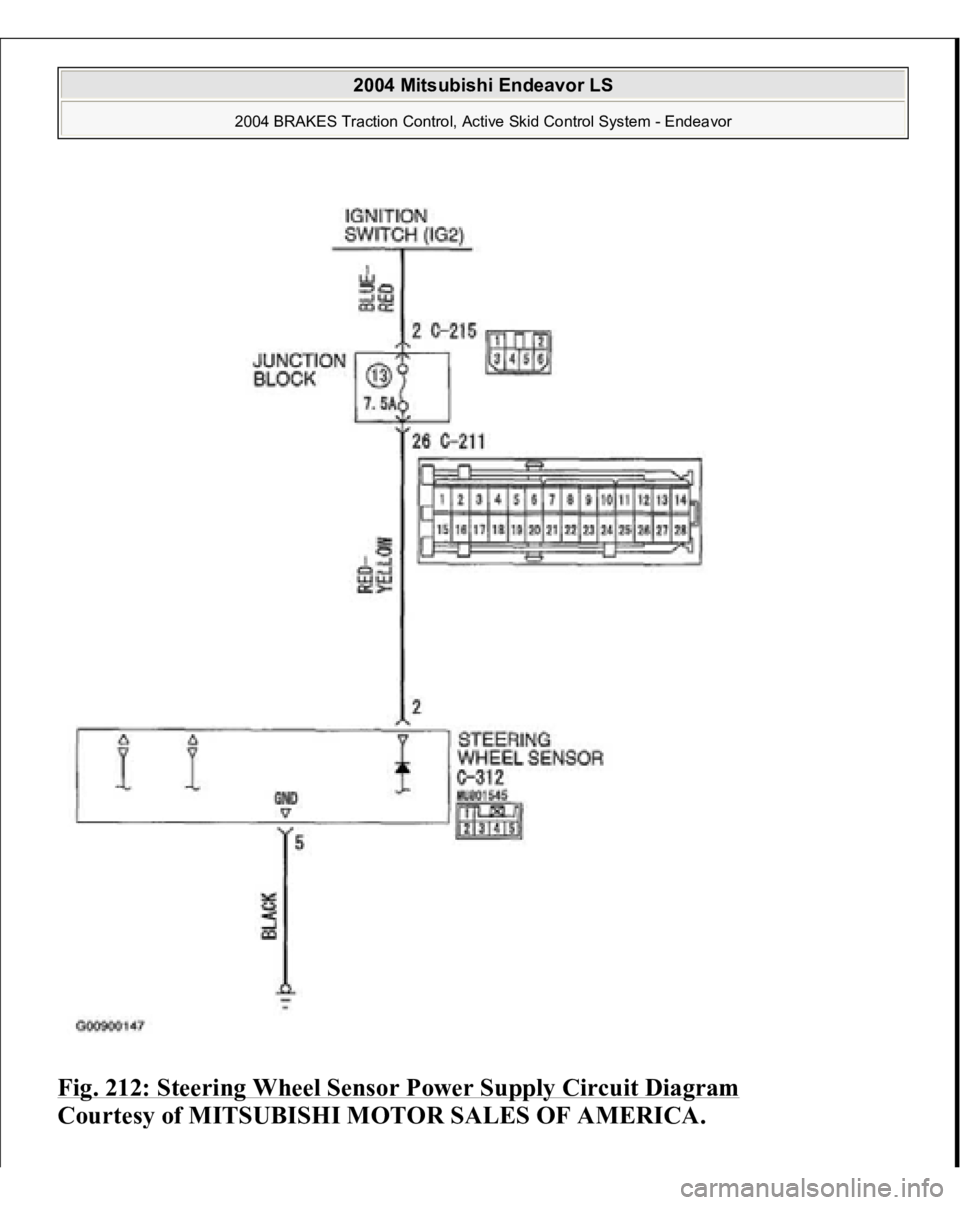

Fig. 212: Steering Wheel Sensor Power Supply Circuit Diagram

Courtes
y of MITSUBISHI MOTOR SALES OF AMERICA
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Fig. 213: Identifying Connectors: C
-211, C
-215, C
-312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
CIRCUIT OPERATION
The steering wheel sensor is energized by the ignition switch (IG2) through
multi-purpose fuse 13 and the steering wheel sensor terminal 2. If the power supply to the steering wheel sensor has failed, scan tool (MUT-III
Sub Assembly) will not be able to communicate with it.
TROUBLESHOOTING HINTS (The most likely causes for this case:)
Damaged wiring harness or connector Defective battery Charging system failed Malfunction of the steering wheel sensor
DIAGNOSIS Required Special Tools:
MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A
MB991952: ABS Check Harness
STEP 1. Measure the volta
ge at steerin
g wheel sensor connector C-312
.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

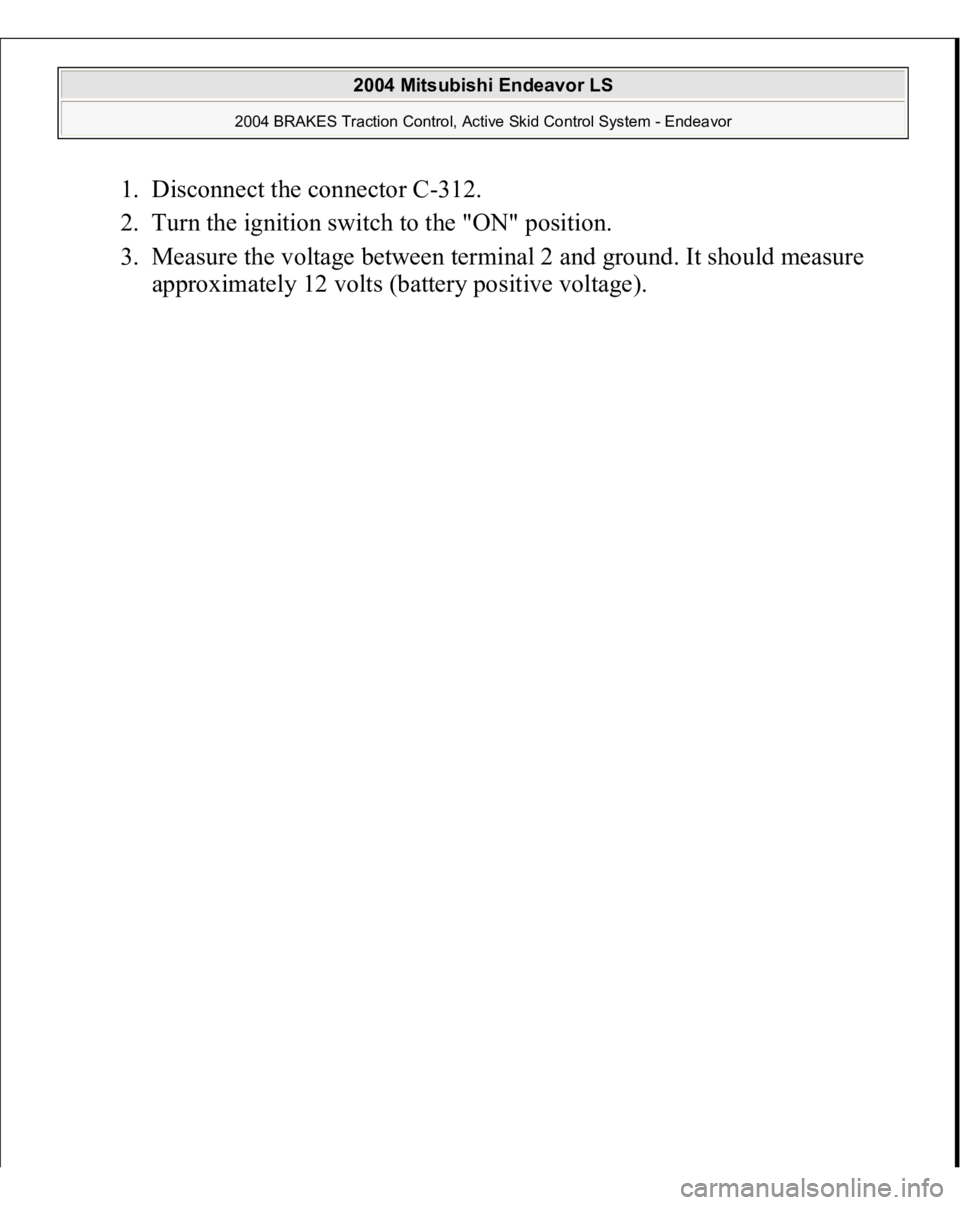

1. Disconnect the connector C-312.
2. Turn the ignition switch to the "ON" position.
3. Measure the voltage between terminal 2 and ground. It should measure
approximately 12 volts (battery positive voltage).

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

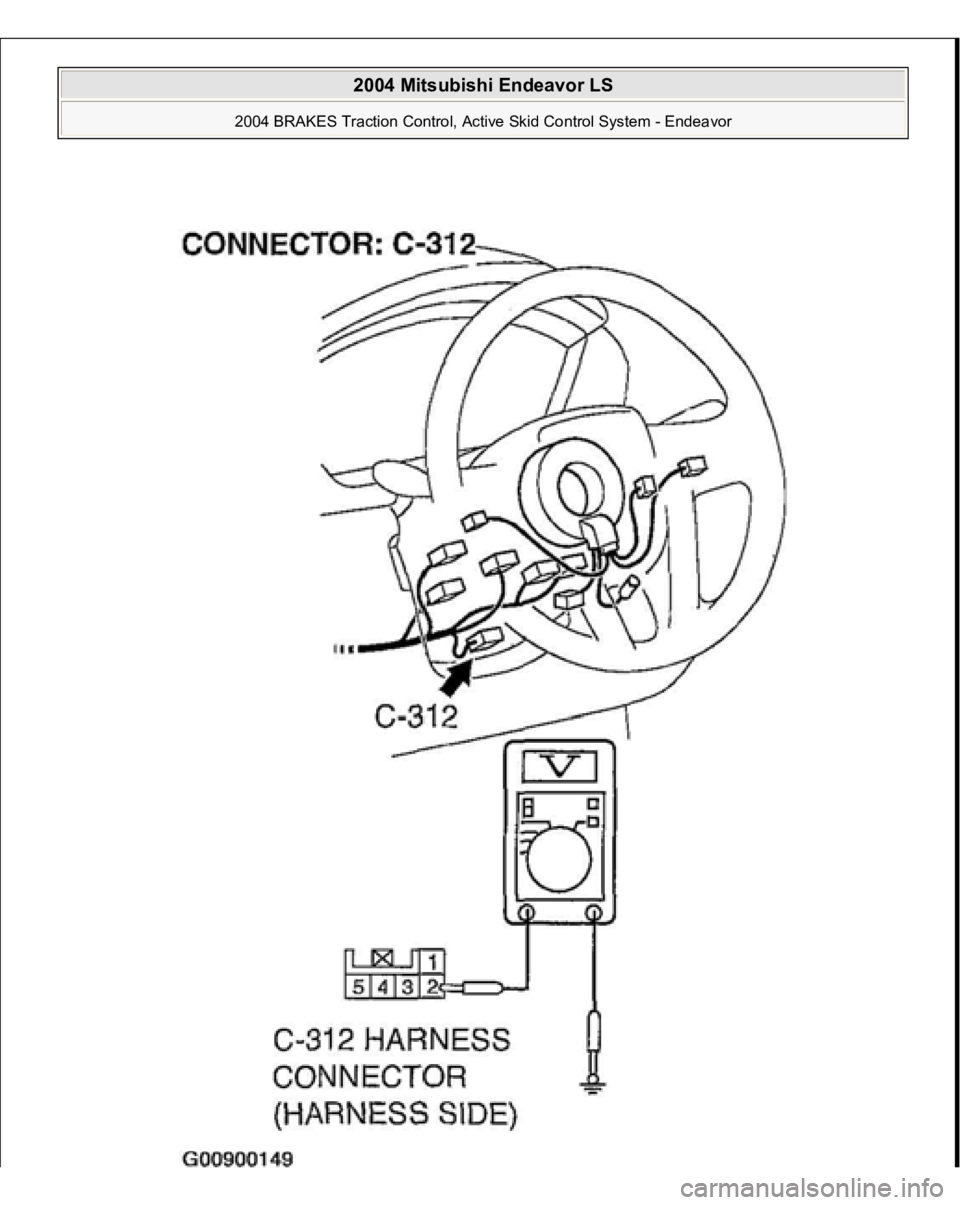

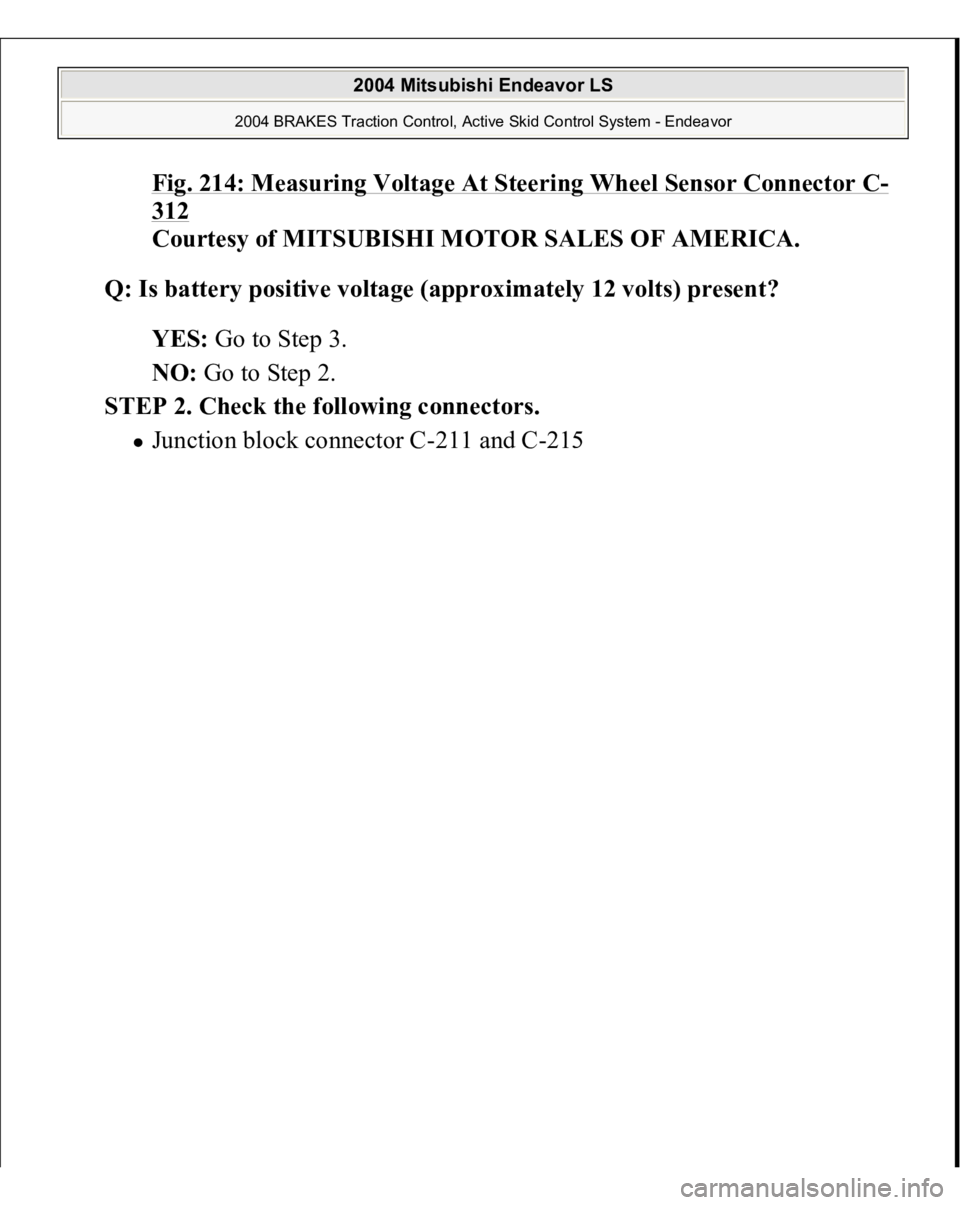

Fig. 214: Measuring Voltage At Steering Wheel Sensor Connector C
-
312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is battery positive voltage (approximately 12 volts) present?
YES: Go to Step 3.
NO: Go to Step 2.
STEP 2. Check the following connectors.
Junction block connector C-211 and C-215

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

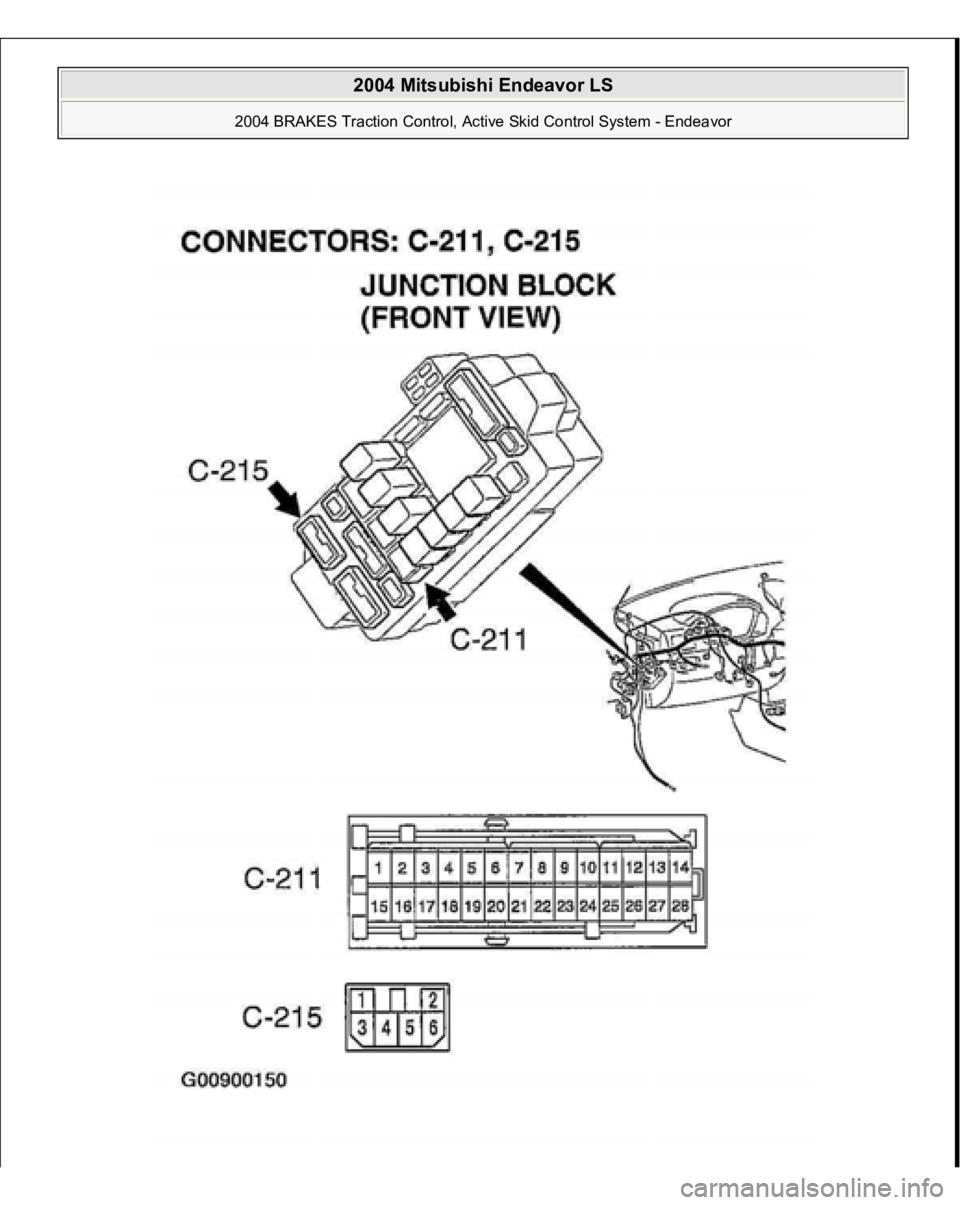

Fig. 215: Checking Junction block connector C
-211 and C
-215

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Ignition switch connector C-308

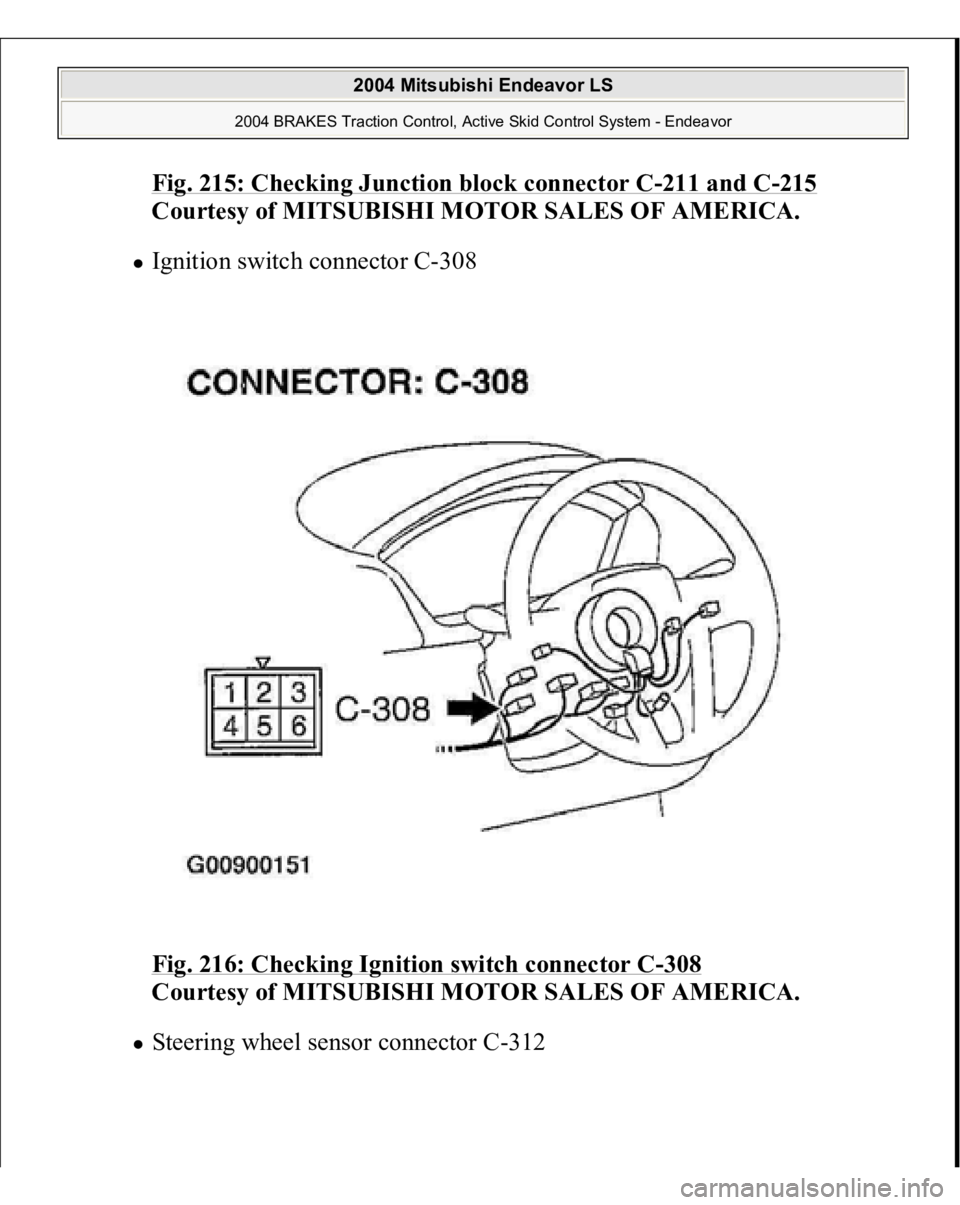

Fig. 216: Checking Ignition switch connector C
-308

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Steerin
g wheel sensor connector C-312

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

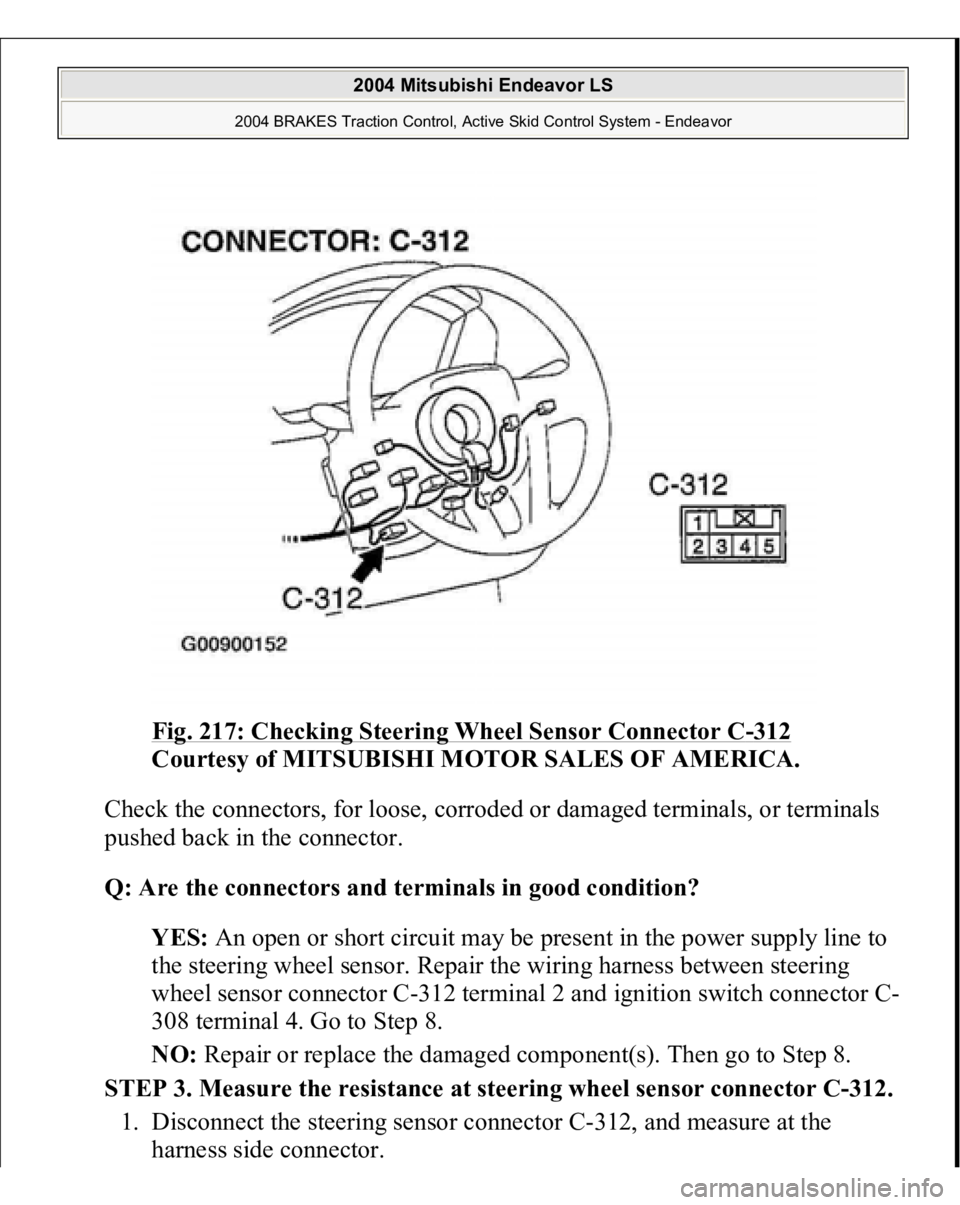

Fig. 217: Checking Steering Wheel Sensor Connector C
-312

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Check the connectors, for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
Q: Are the connectors and terminals in good condition?
YES: An open or short circuit may be present in the power supply line to
the steering wheel sensor. Repair the wiring harness between steering
wheel sensor connector C-312 terminal 2 and ignition switch connector C-
308 terminal 4. Go to Step 8.
NO: Repair or replace the damaged component(s). Then go to Step 8.
STEP 3. Measure the resistance at steering wheel sensor connector C-312.
1. Disconnect the steering sensor connector C-312, and measure at the
harness side connector.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor

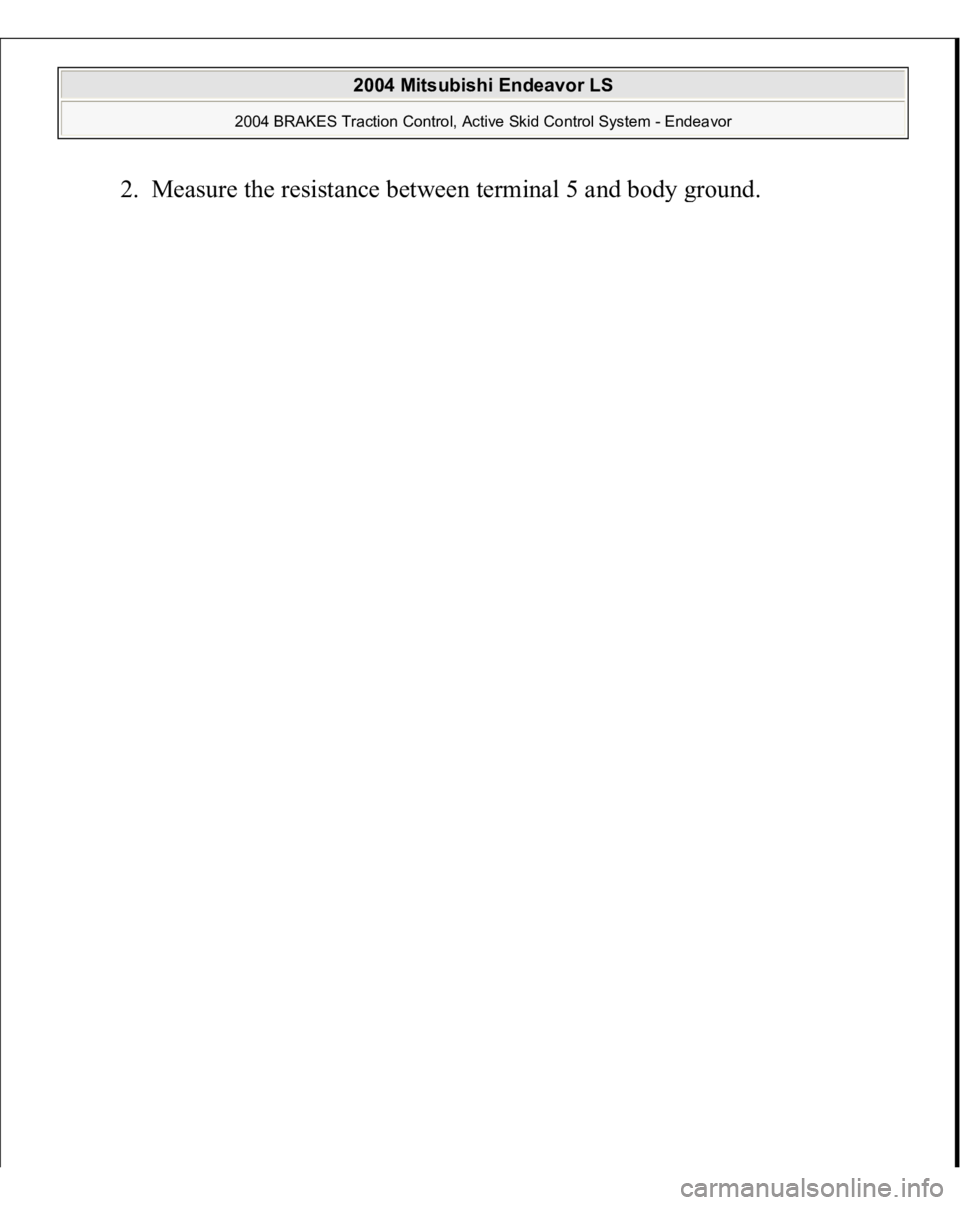

2. Measure the resistance between terminal 5 and bod
y ground.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control, Active Skid Control System - Endeavor
