MITSUBISHI ENDEAVOR 2004 Service Repair Manual

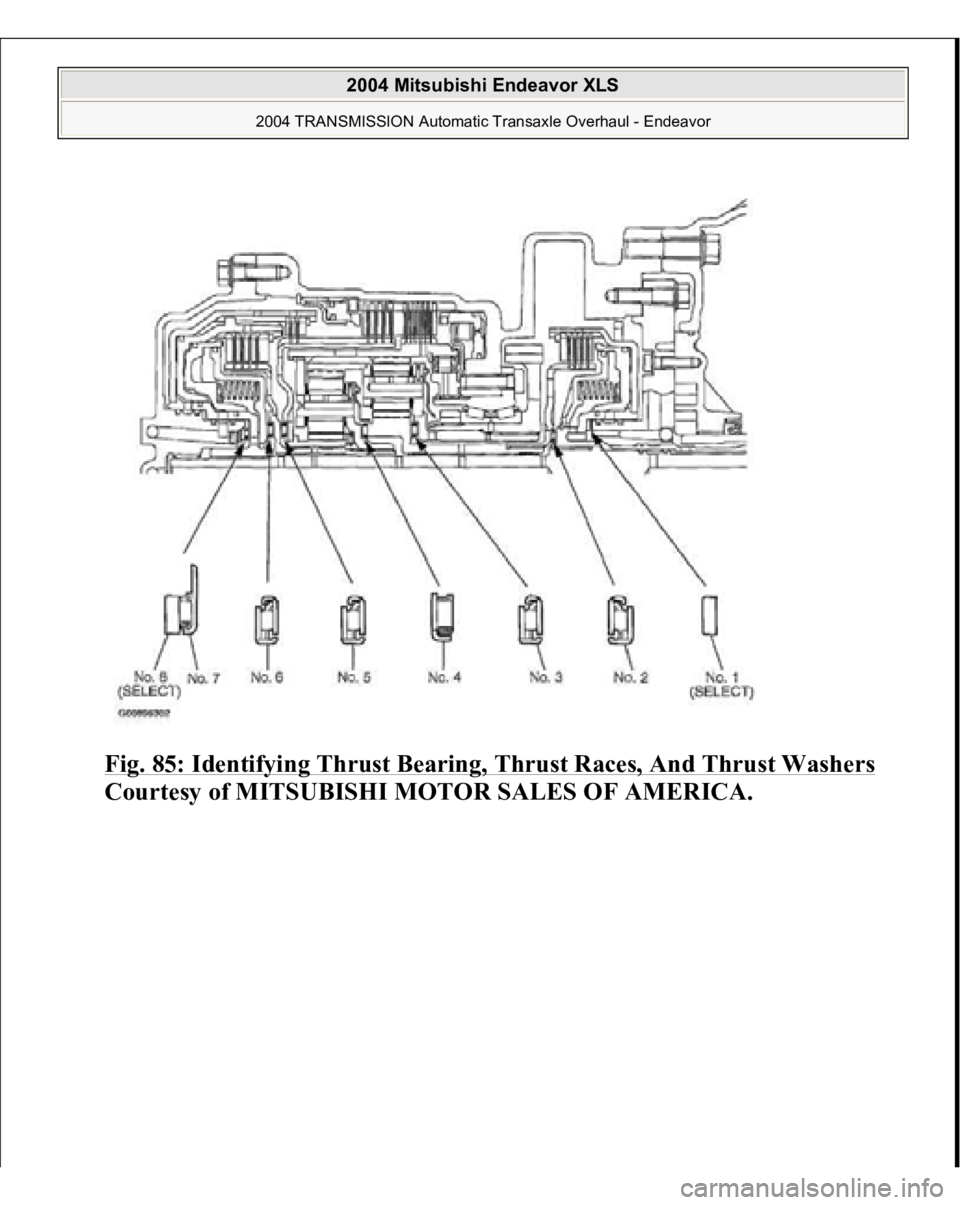

Fig. 85: Identifying Thrust Bearing, Thrust Races, And Thrust Washers

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

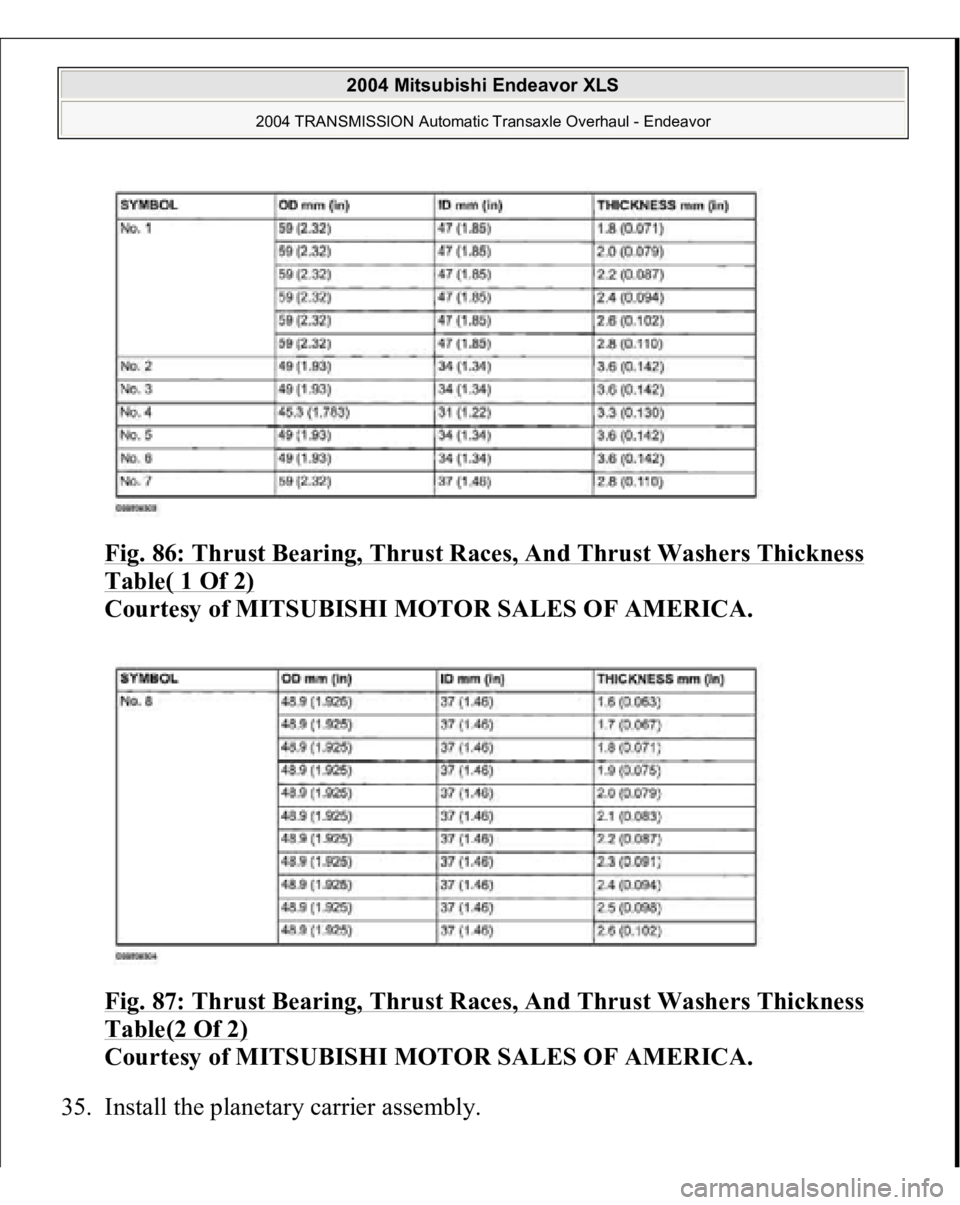

Fig. 86: Thrust Bearing, Thrust Races, And Thrust Washers Thickness Table( 1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 87: Thrust Bearing, Thrust Races, And Thrust Washers Thickness
Table(2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
35. Install the
planetar
y carrier assembl
y.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

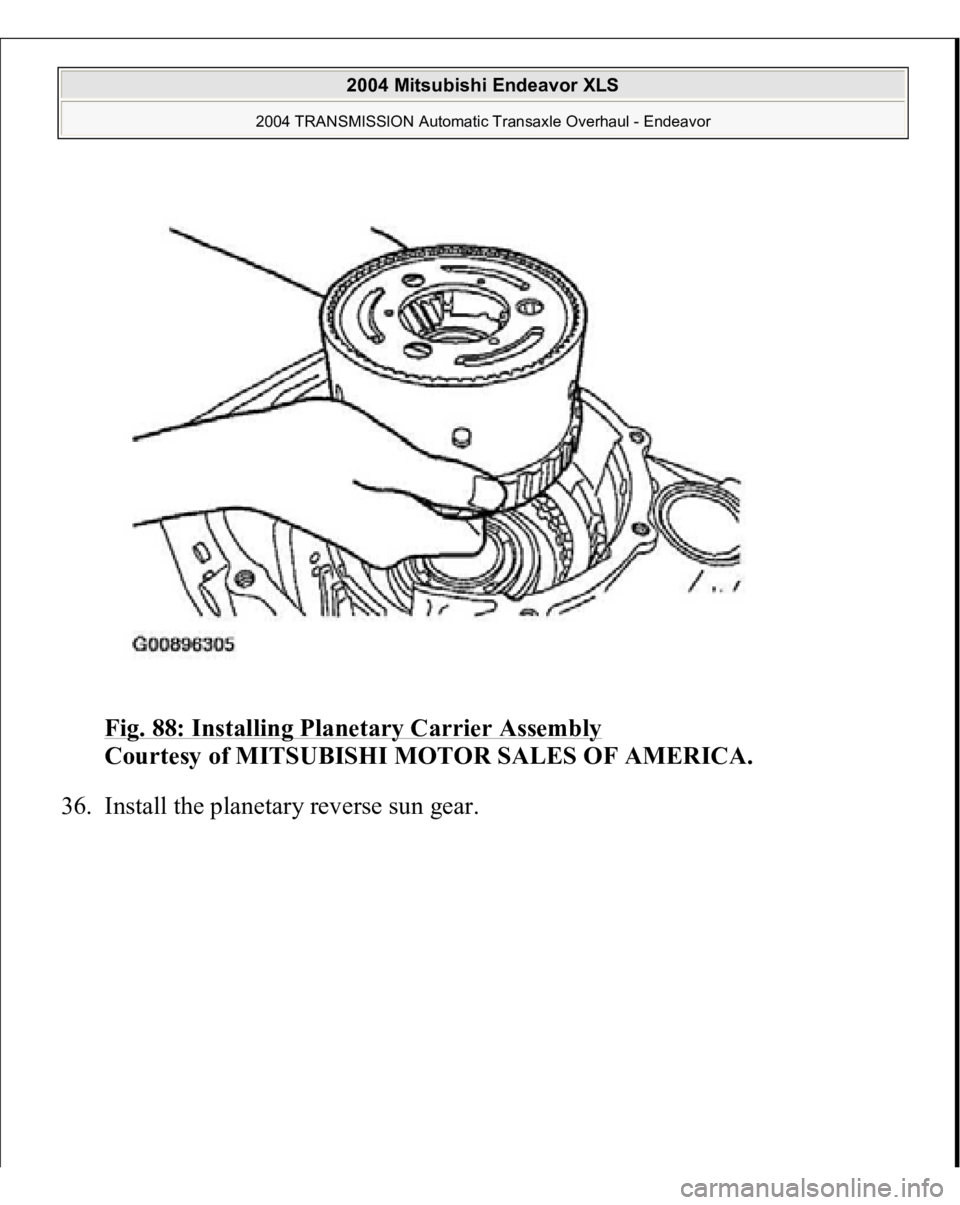

Fig. 88: Installing Planetary Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
36. Install the
planetar
y reverse sun
gear.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

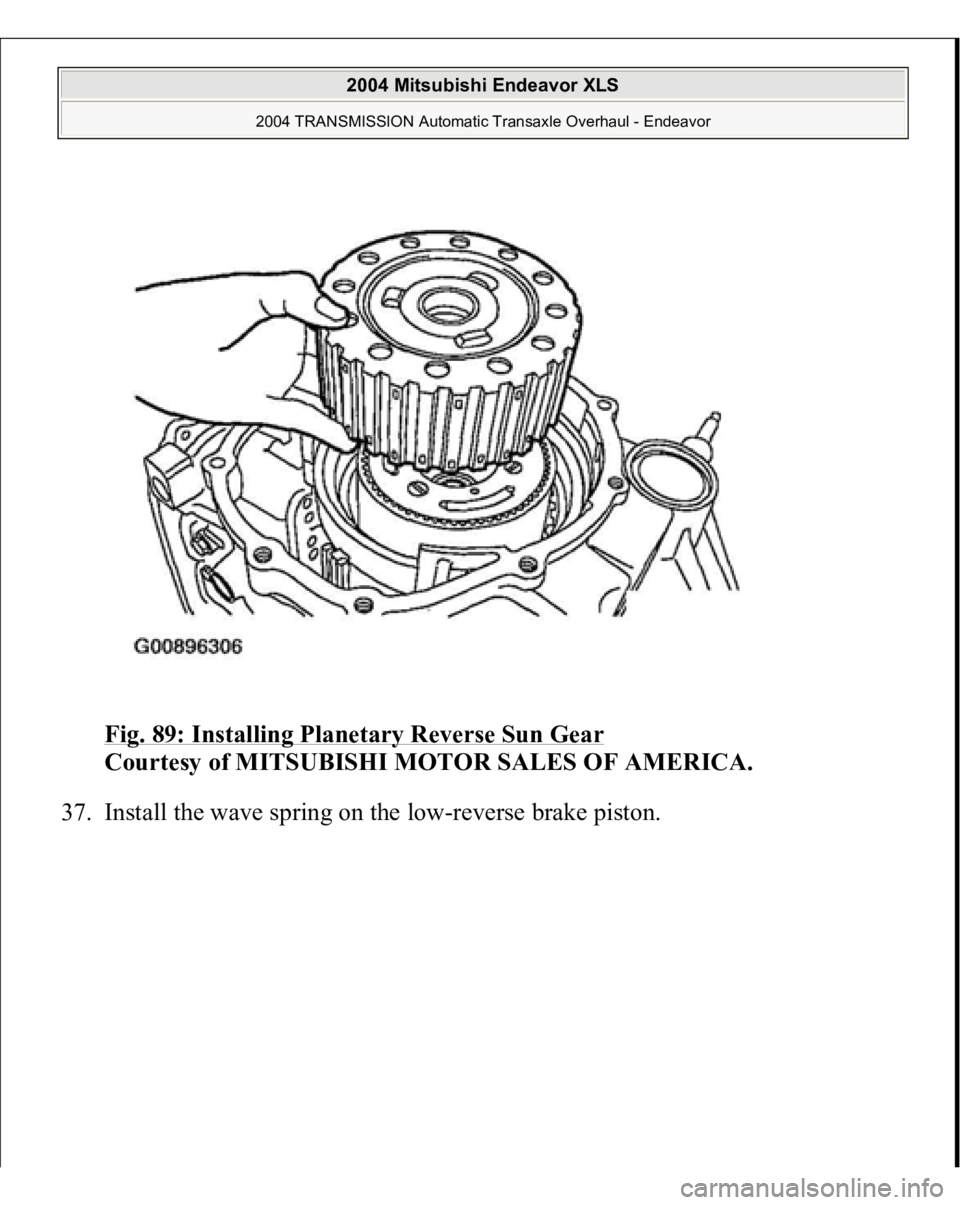

Fig. 89: Installing Planetary Reverse Sun Gear

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
37. Install the wave s
prin
g on the low-reverse brake
piston.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

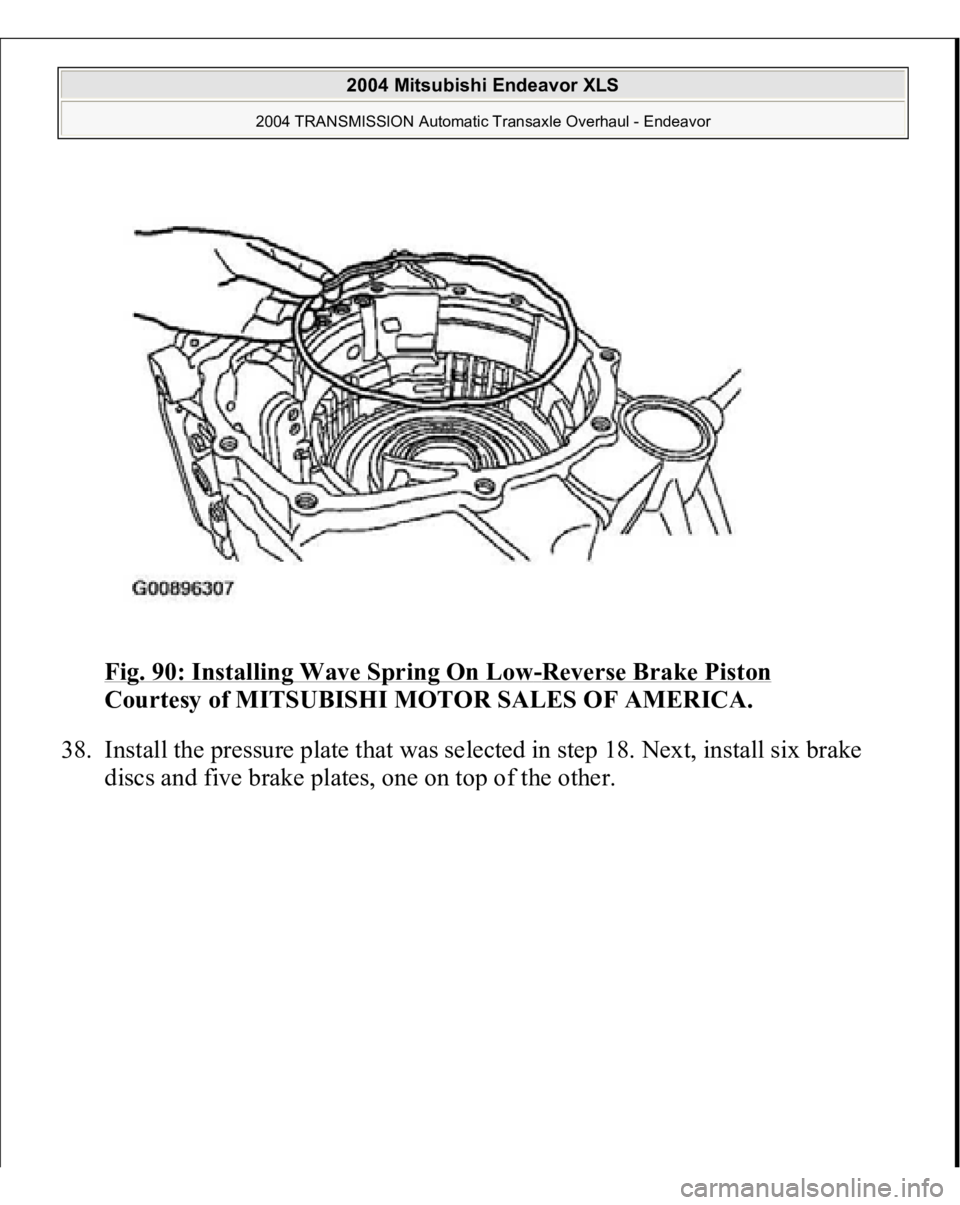

Fig. 90: Installing Wave Spring On Low
-Reverse Brake Piston

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
38. Install the pressure plate that was selected in step 18. Next, install six brake
discs and five brake
plates, one on to
p of the other.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

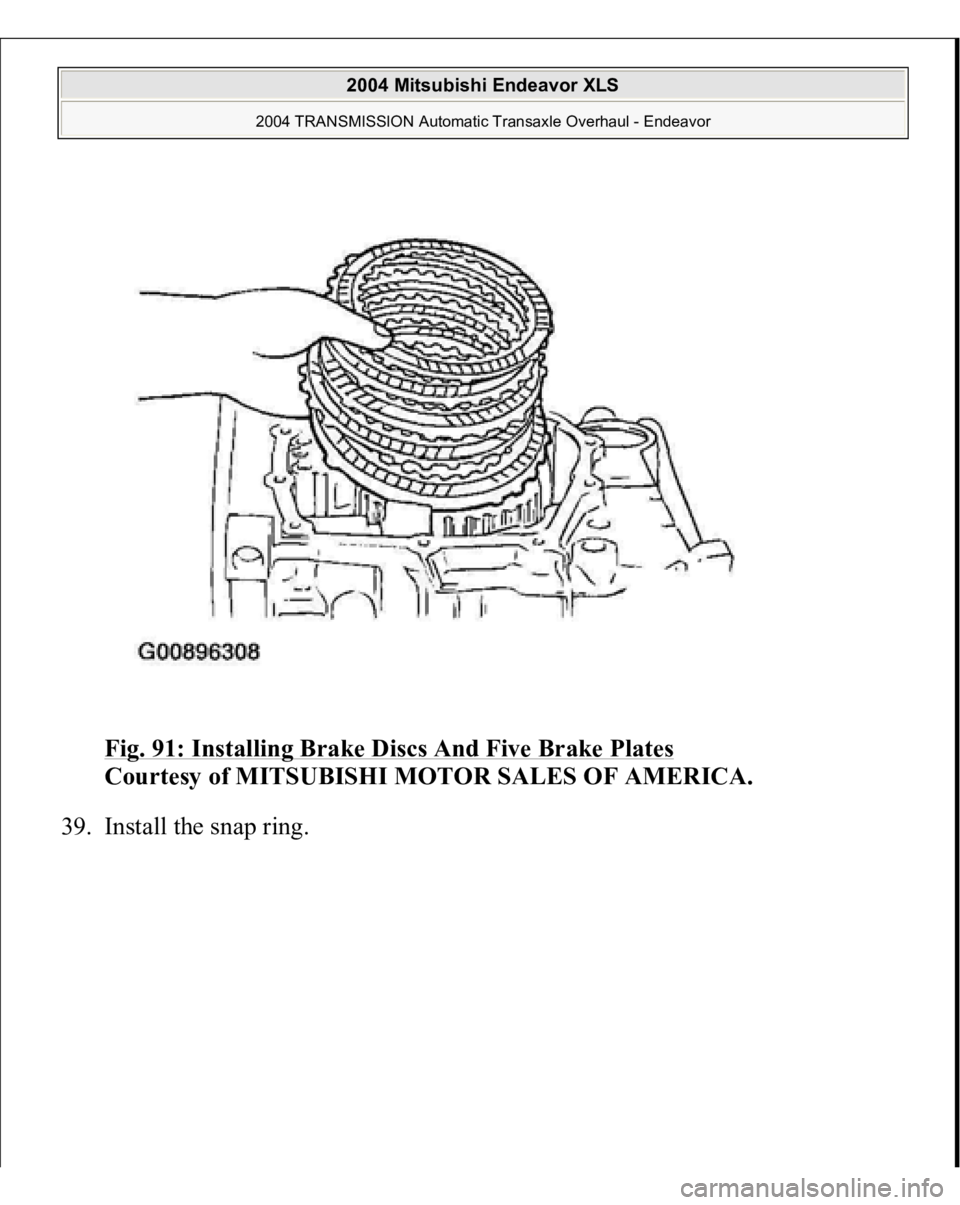

Fig. 91: Installing Brake Discs And Five Brake Plates

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
39. Install the sna
p rin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

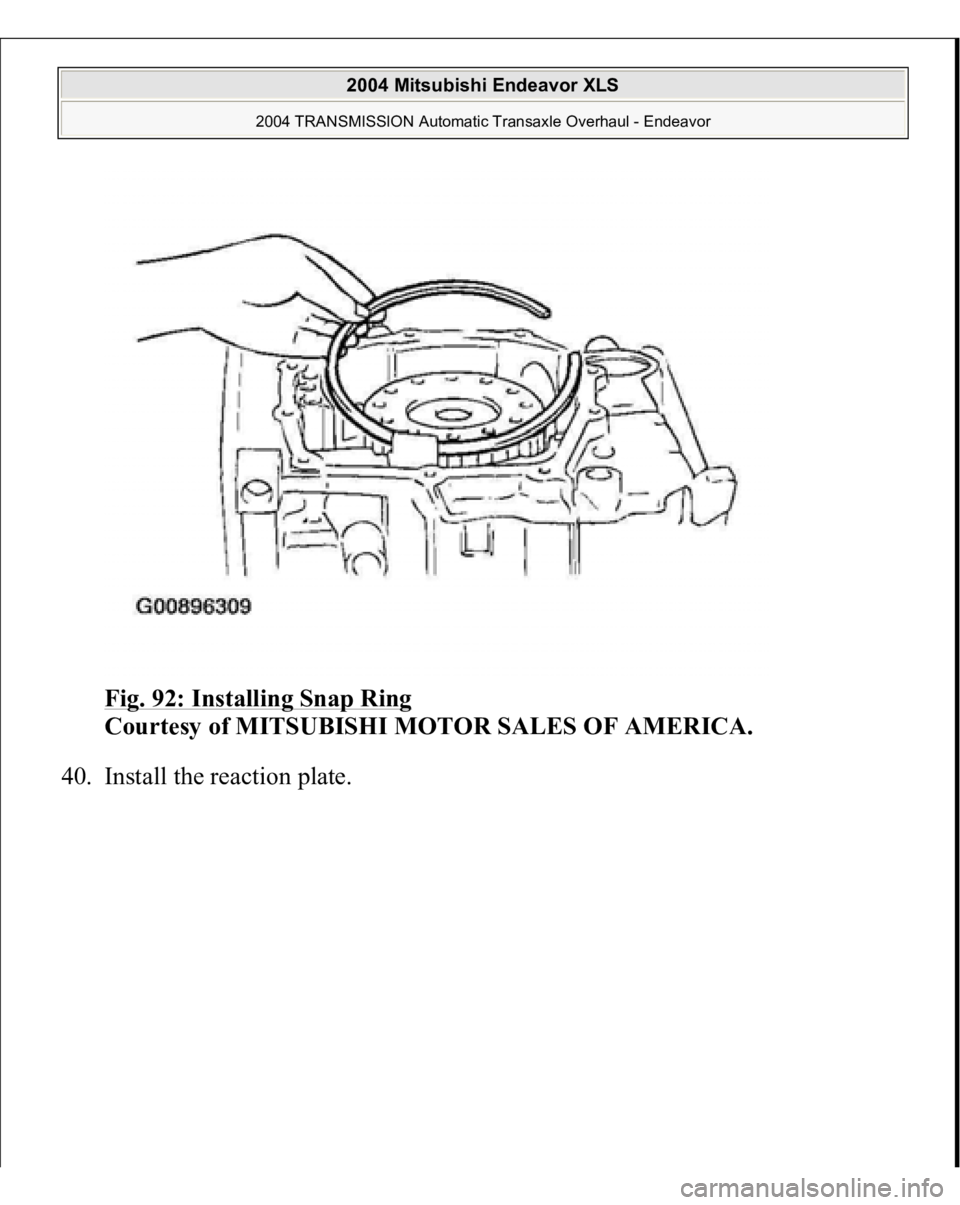

Fig. 92: Installing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
40. Install the reaction plate.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

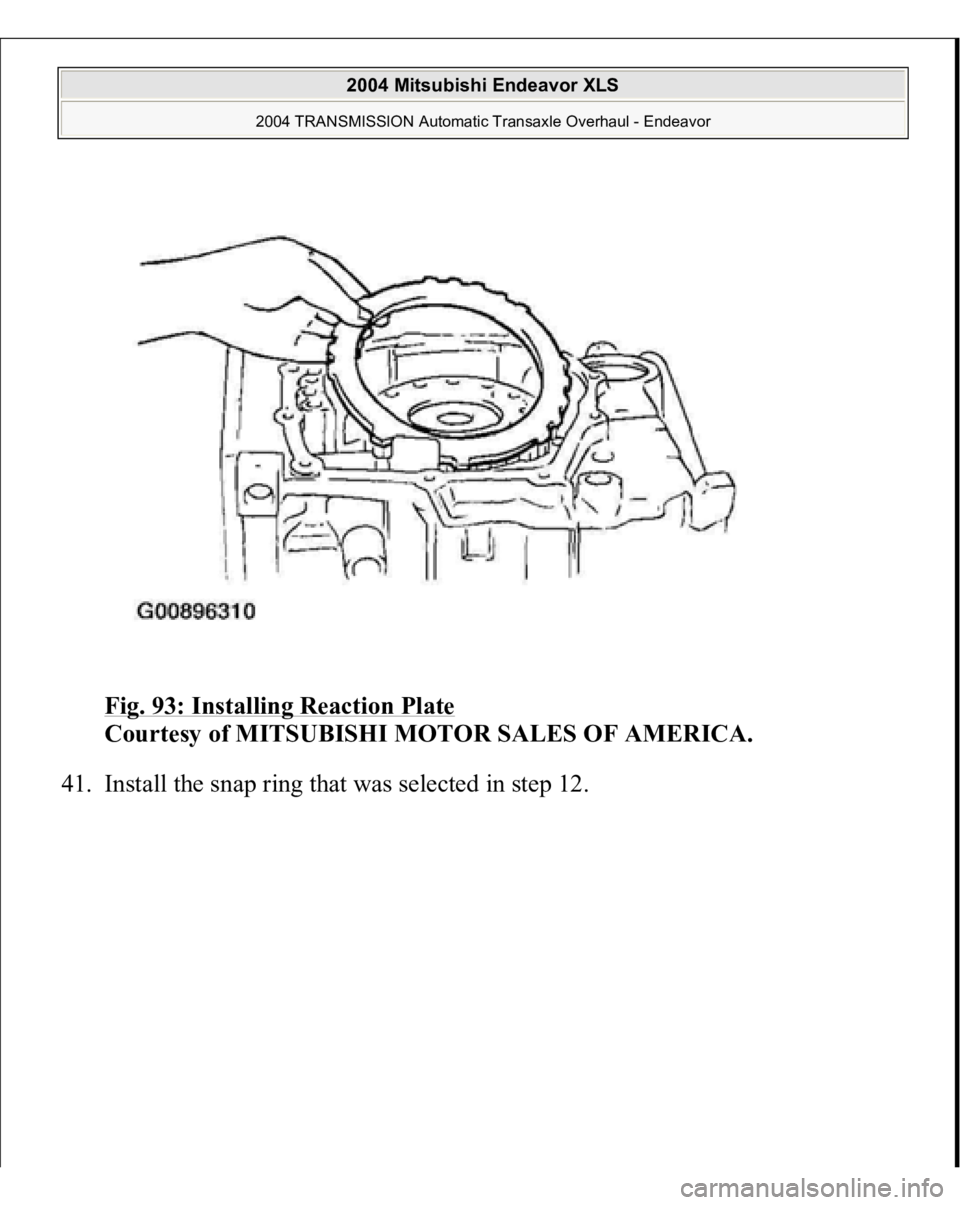

Fig. 93: Installing Reaction Plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
41. Install the sna
p rin
g that was selected in ste
p 12.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

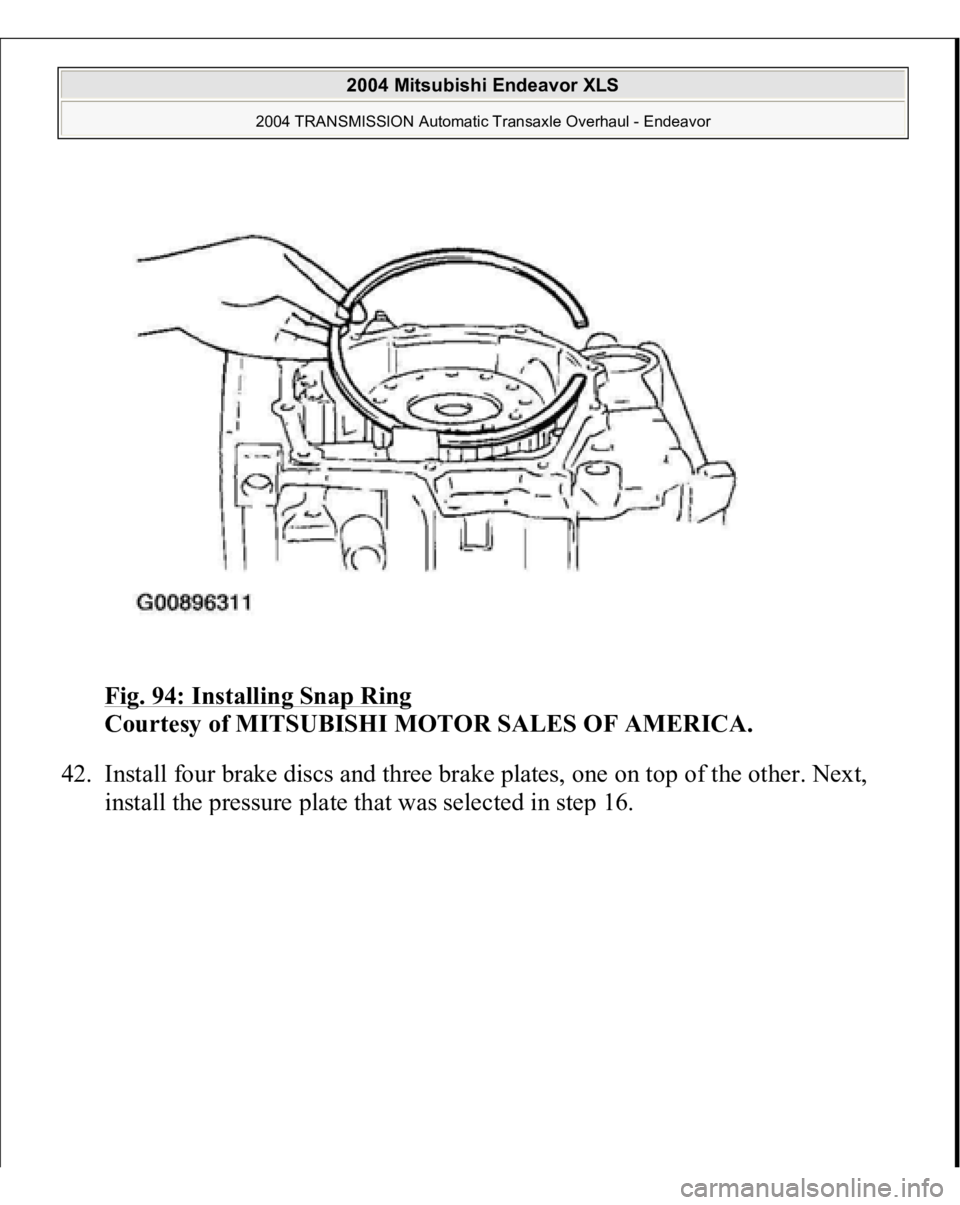

Fig. 94: Installing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
42. Install four brake discs and three brake plates, one on top of the other. Next,
install the
pressure
plate that was selected in ste
p 16.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

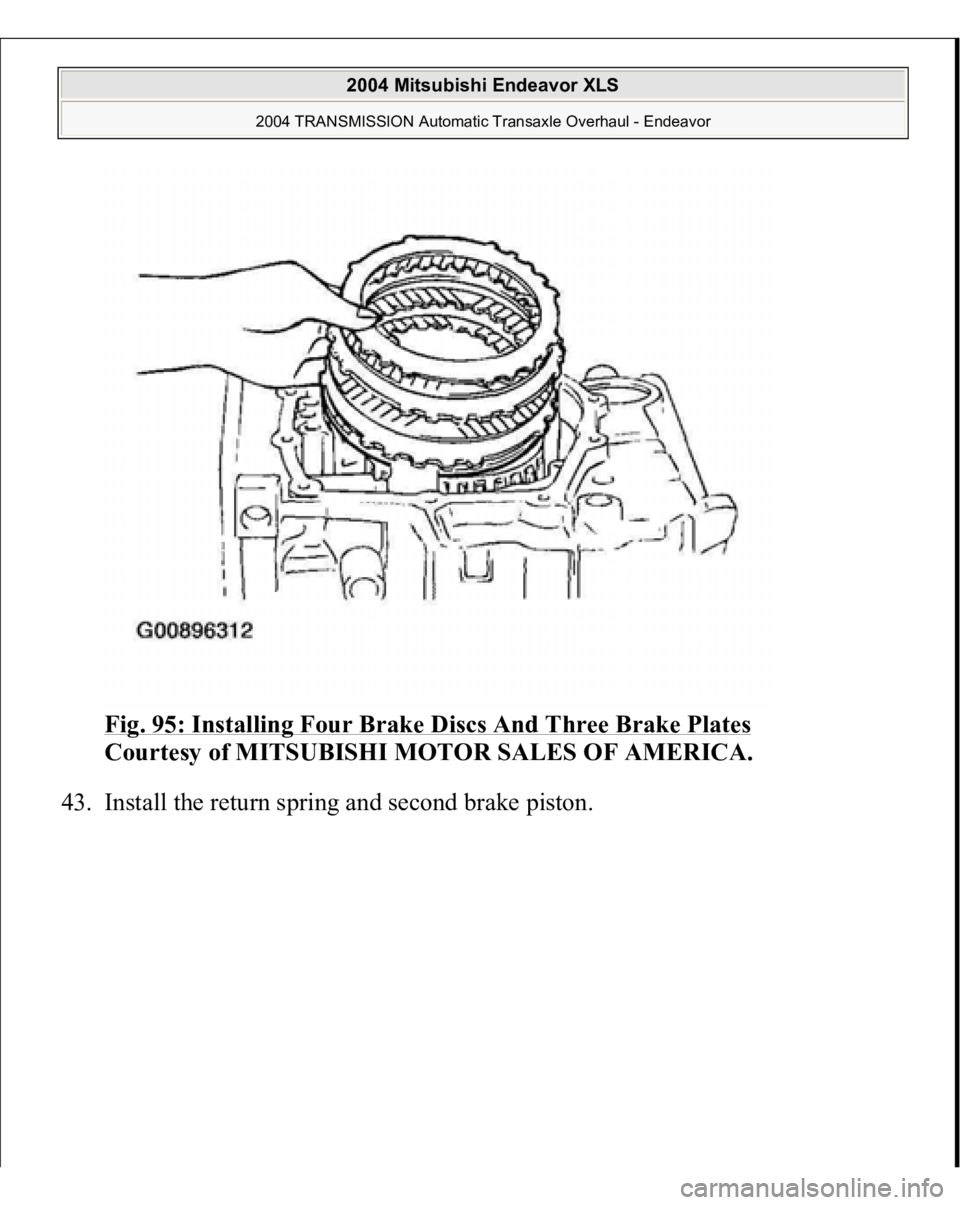

Fig. 95: Installing Four Brake Discs And Three Brake Plates

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
43. Install the return s
prin
g and second brake
piston.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
