MITSUBISHI ENDEAVOR 2004 Service Repair Manual

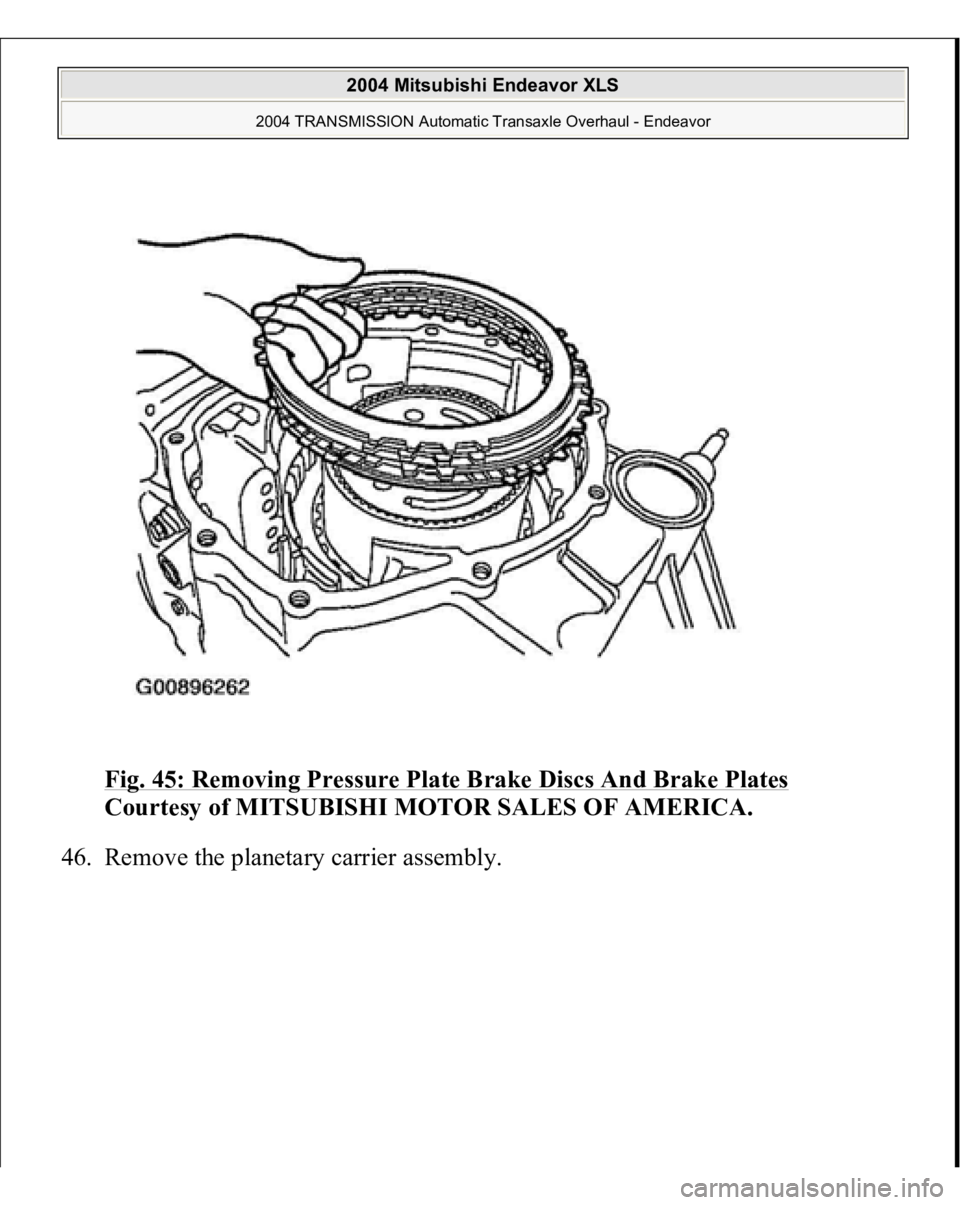

Fig. 45: Removing Pressure Plate Brake Discs And Brake Plates

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
46. Remove the
planetar
y carrier assembl
y.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

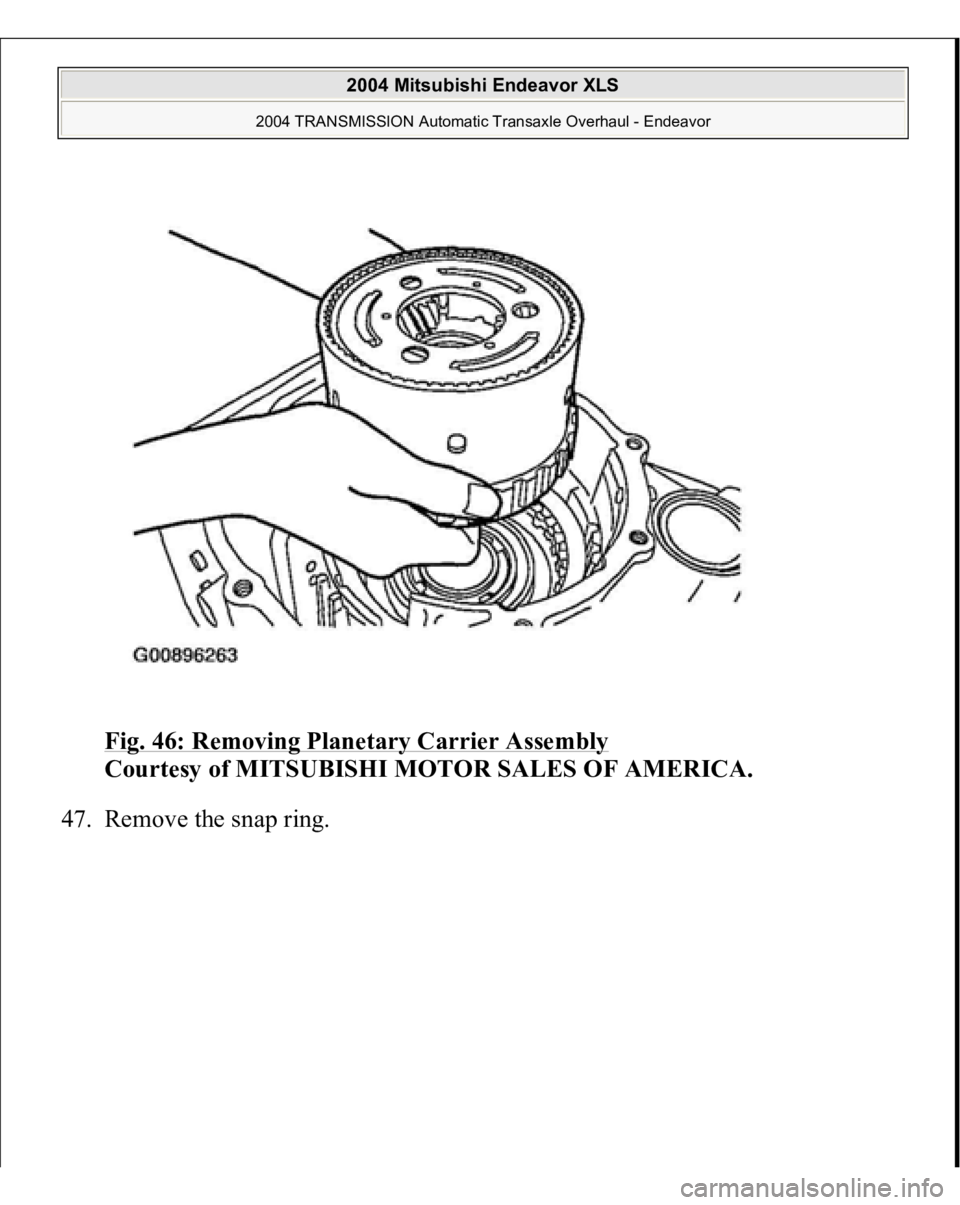

Fig. 46: Removing Planetary Carrier Assembly

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
47. Remove the sna
p rin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

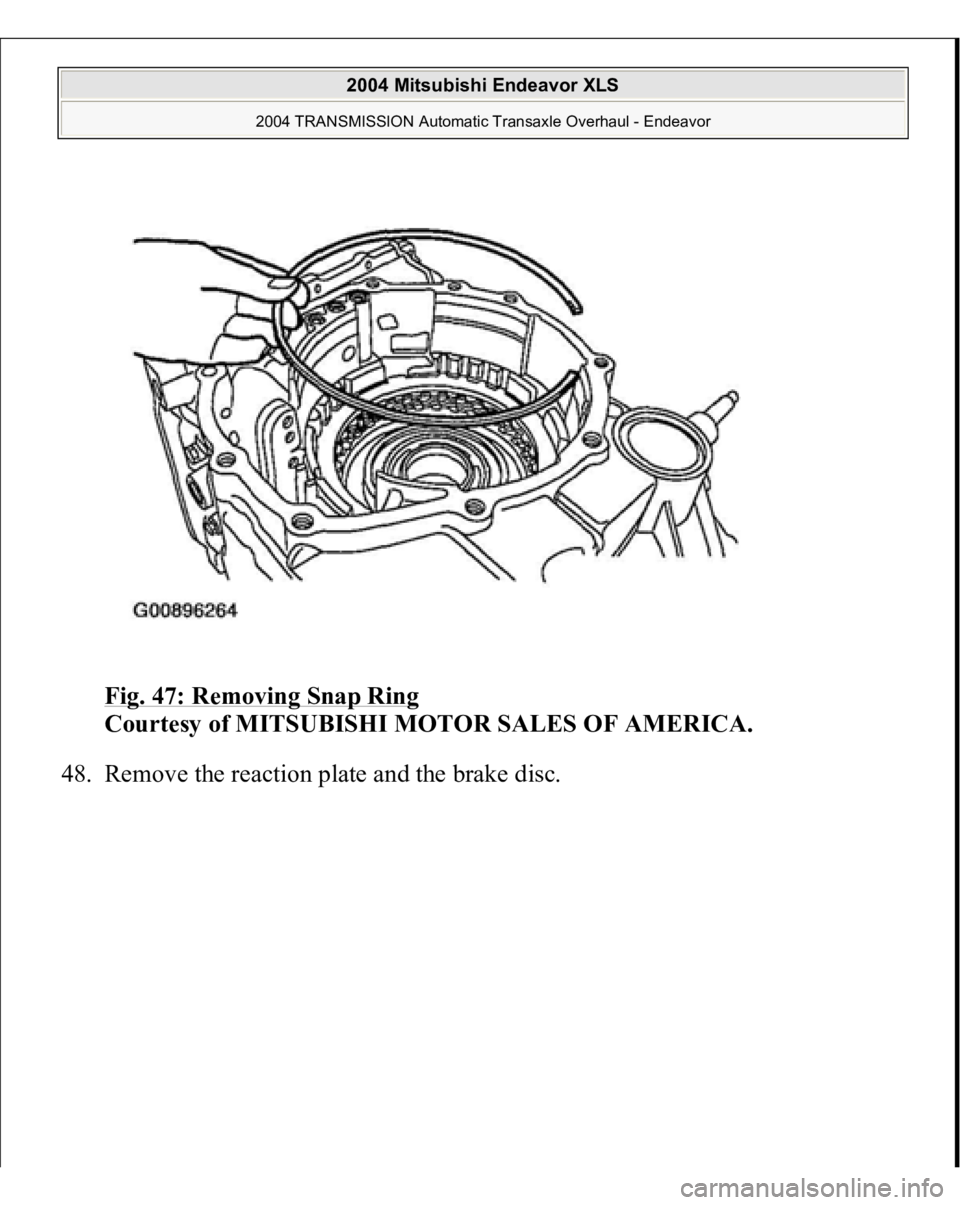

Fig. 47: Removing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
48. Remove the reaction
plate and the brake disc.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

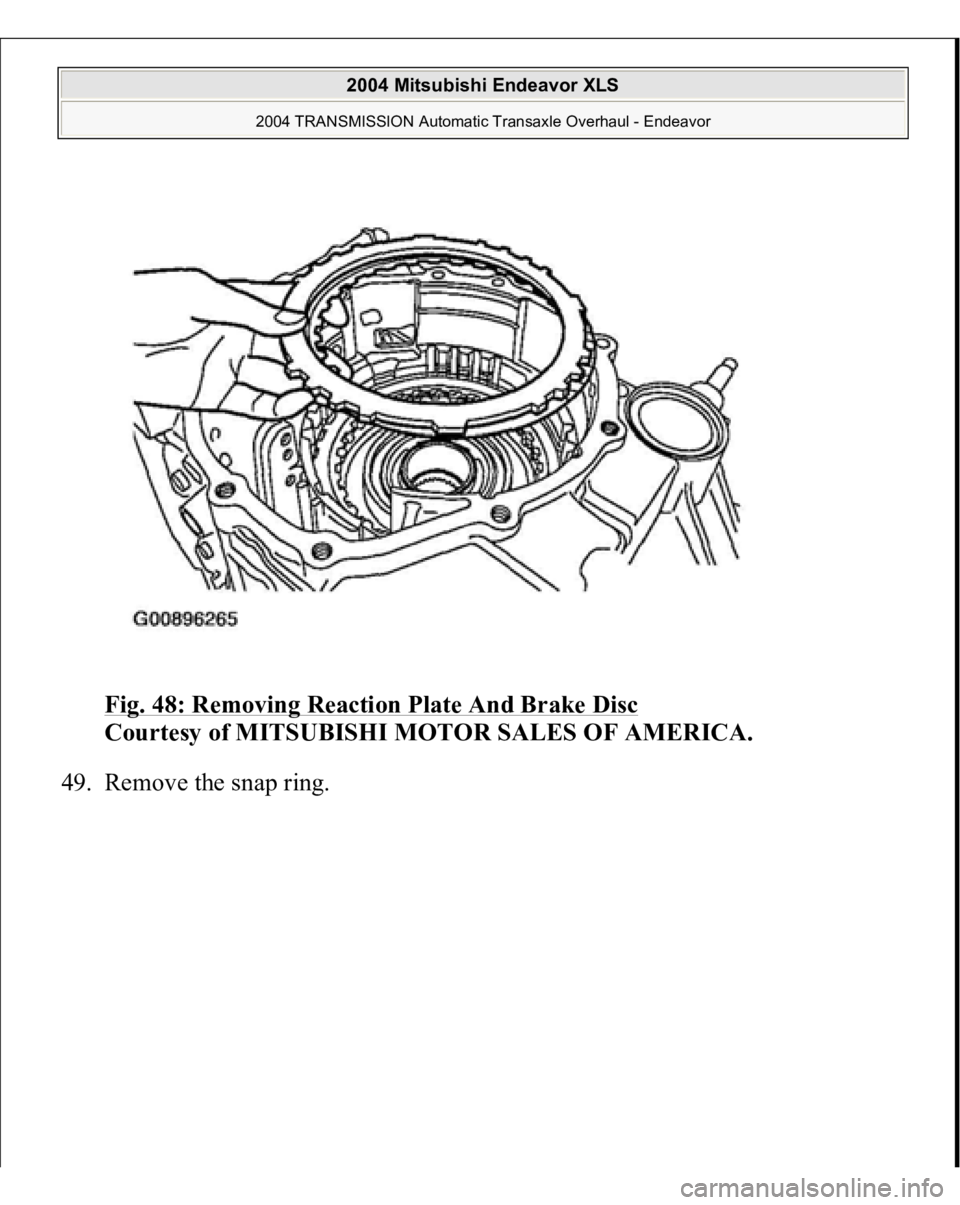

Fig. 48: Removing Reaction Plate And Brake Disc

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
49. Remove the sna
p rin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

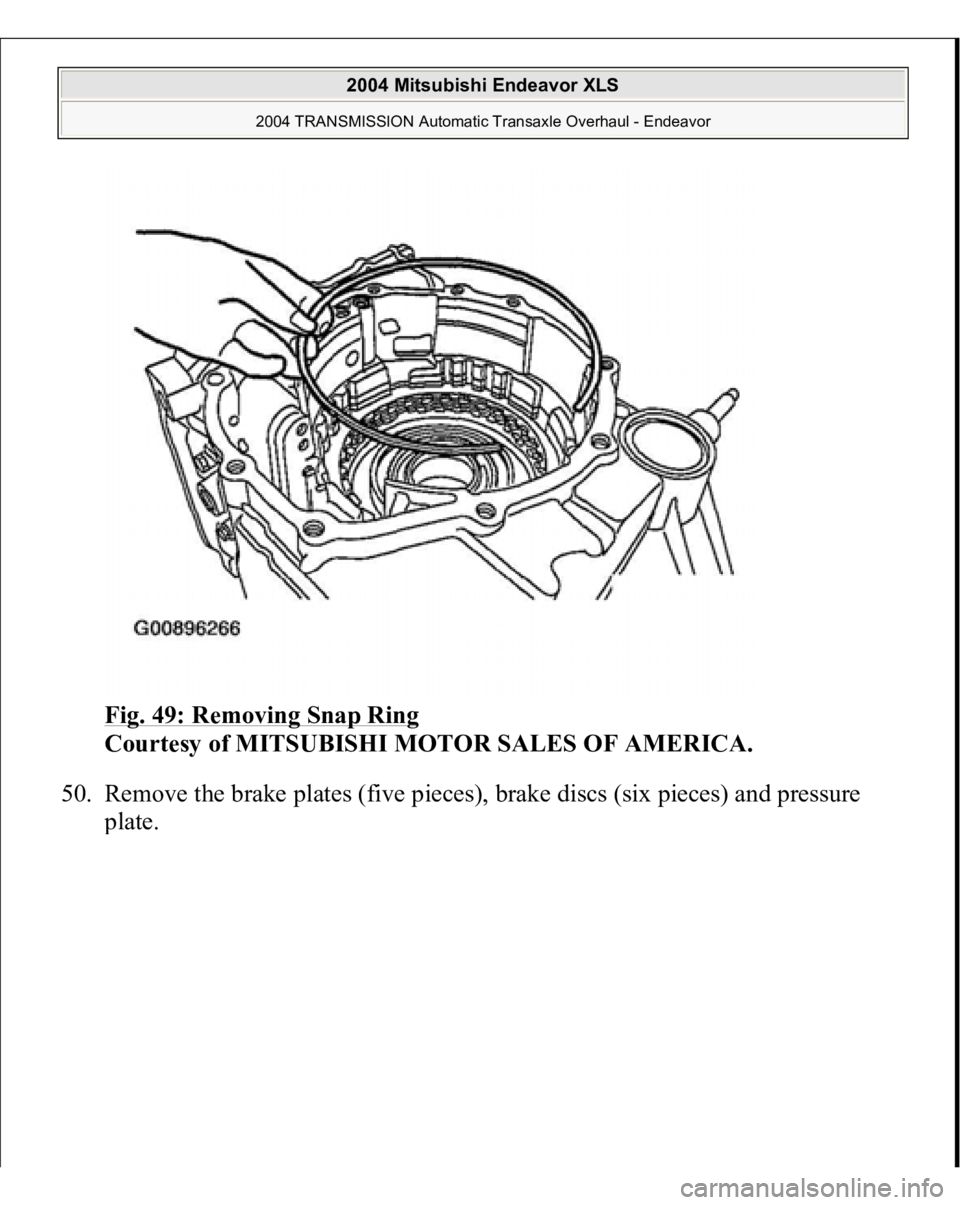

Fig. 49: Removing Snap Ring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
50. Remove the brake plates (five pieces), brake discs (six pieces) and pressure
plate.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

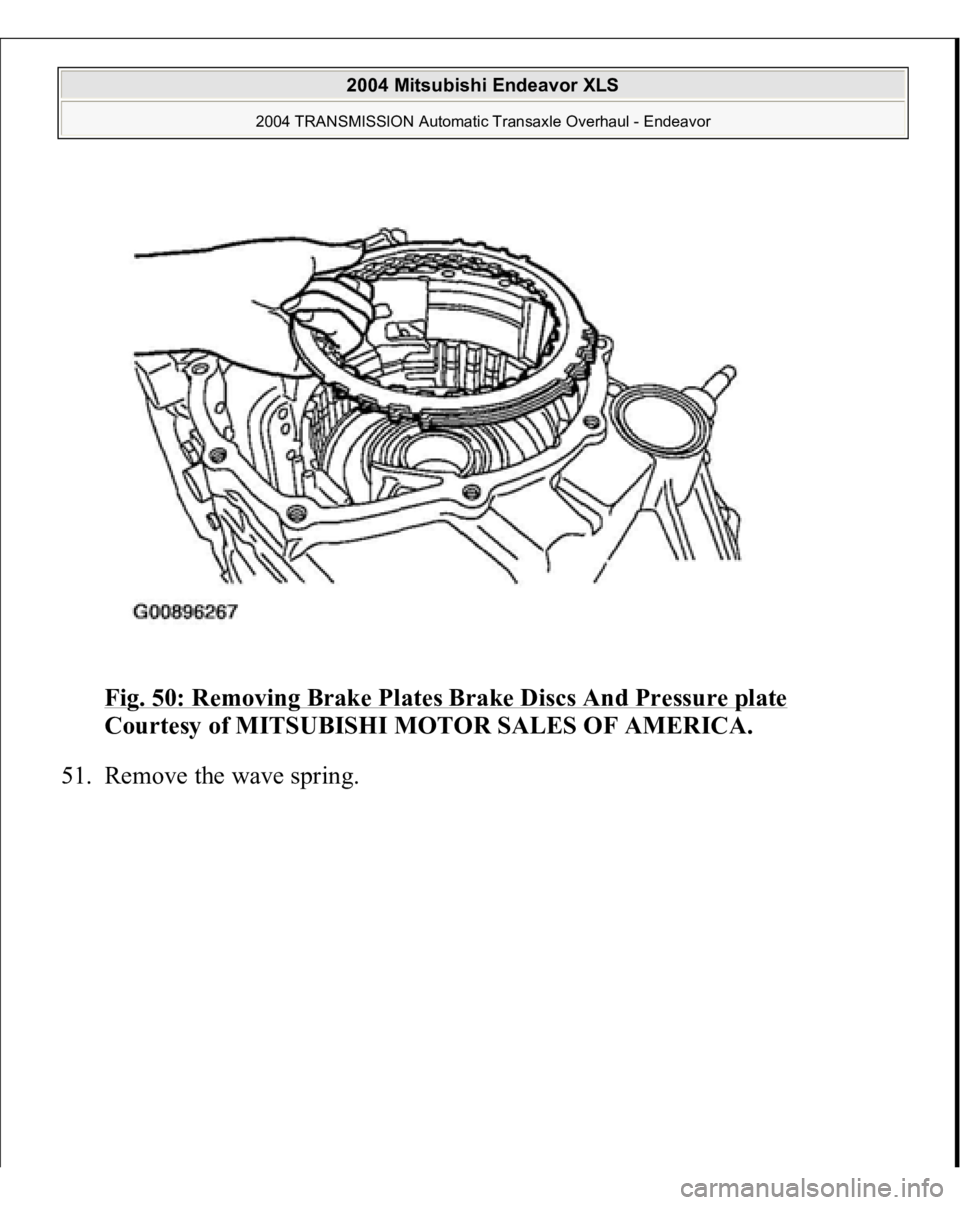

Fig. 50: Removing Brake Plates Brake Discs And Pressure plate

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
51. Remove the wave s
prin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

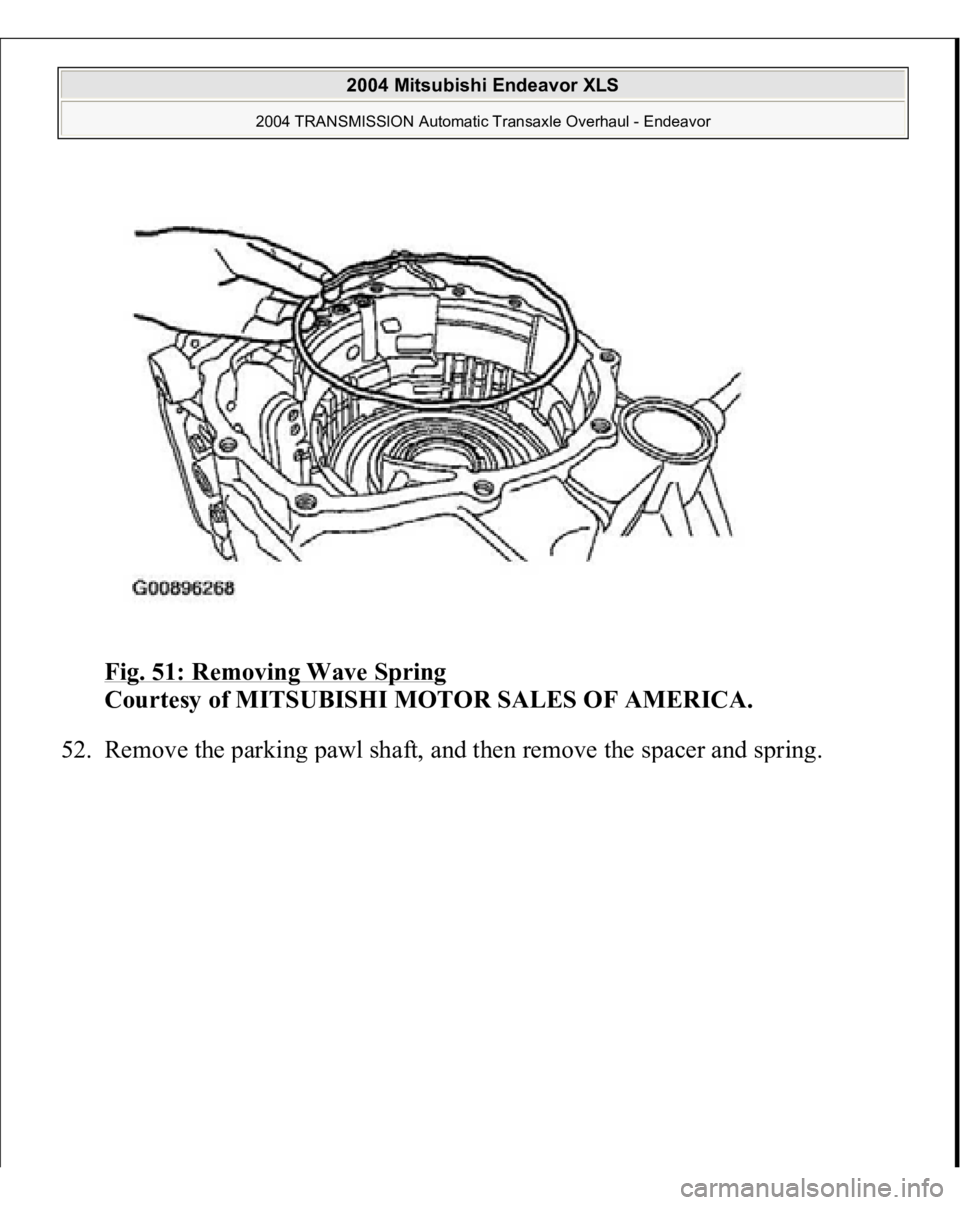

Fig. 51: Removing Wave Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
52. Remove the
parkin
g pawl shaft, and then remove the s
pacer and s
prin
g.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

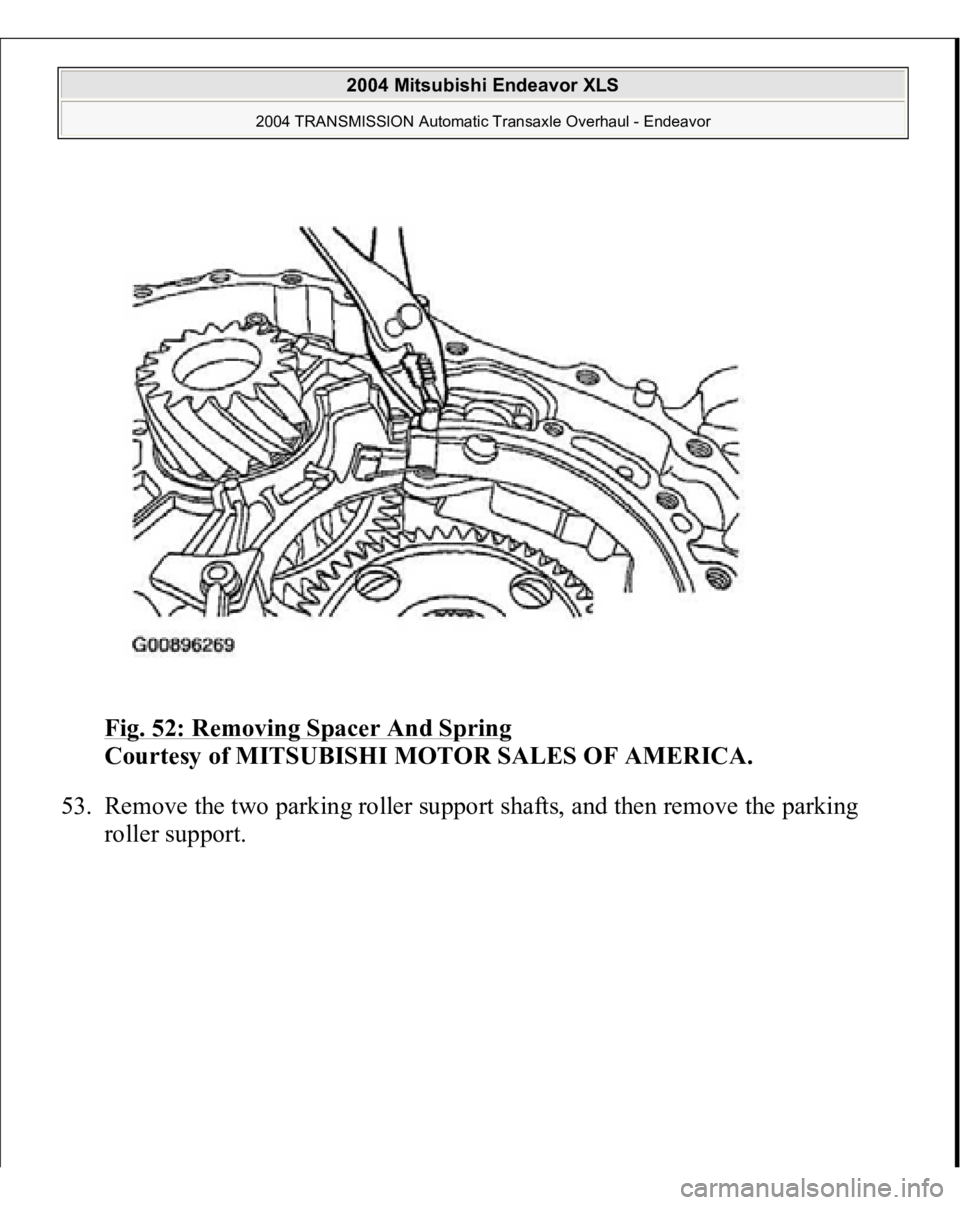

Fig. 52: Removing Spacer And Spring

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
53. Remove the two parking roller support shafts, and then remove the parking
roller su
pport.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

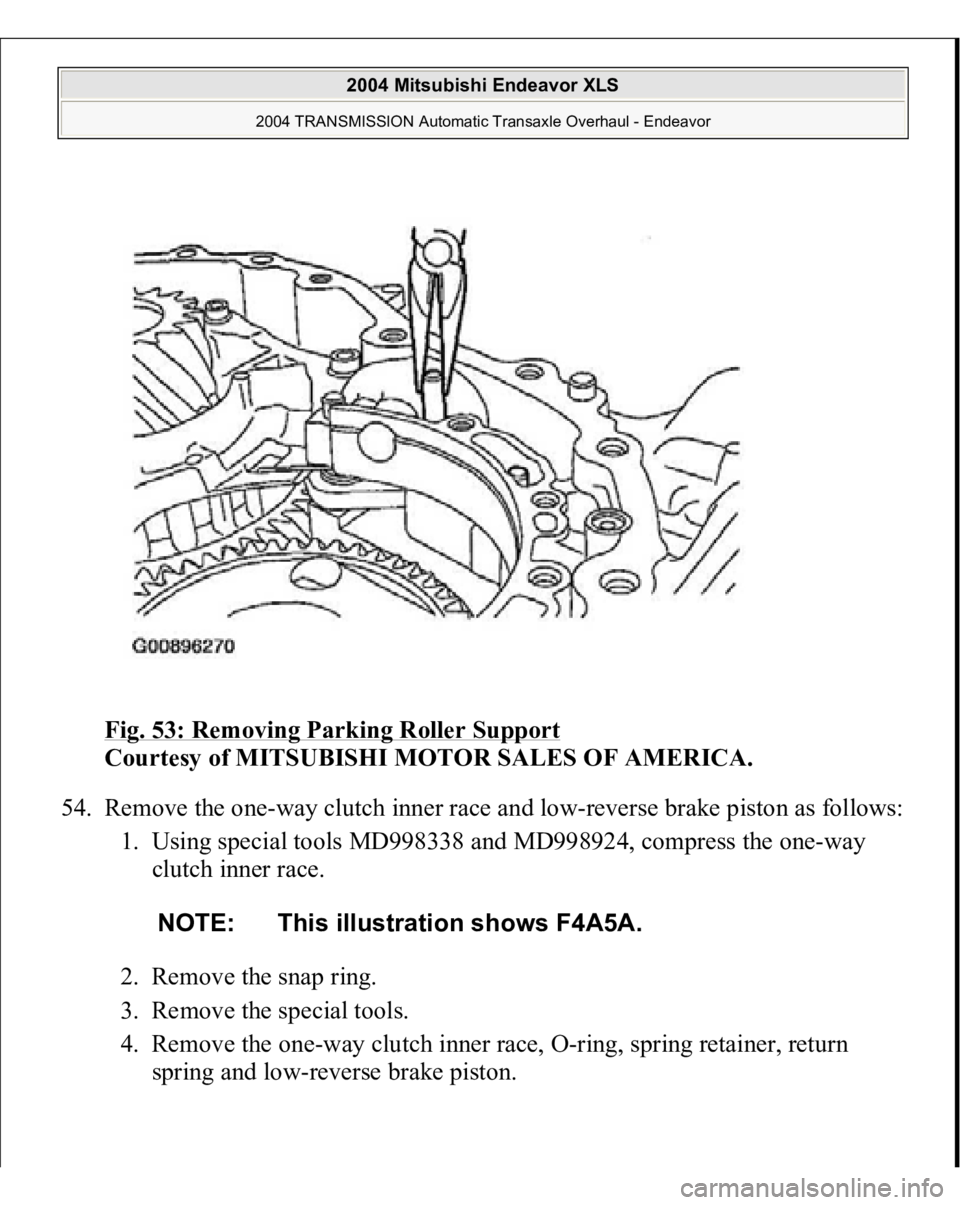

Fig. 53: Removing Parking Roller Support

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
54. Remove the one-way clutch inner race and low-reverse brake piston as follows:
1. Using special tools MD998338 and MD998924, compress the one-way
clutch inner race.
2. Remove the snap ring.
3. Remove the special tools.
4. Remove the one-way clutch inner race, O-ring, spring retainer, return
s
prin
g and low-reverse brake
piston.
NOTE: This illustration shows F4A5A.

2004 Mitsubishi Endeavor XLS
2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

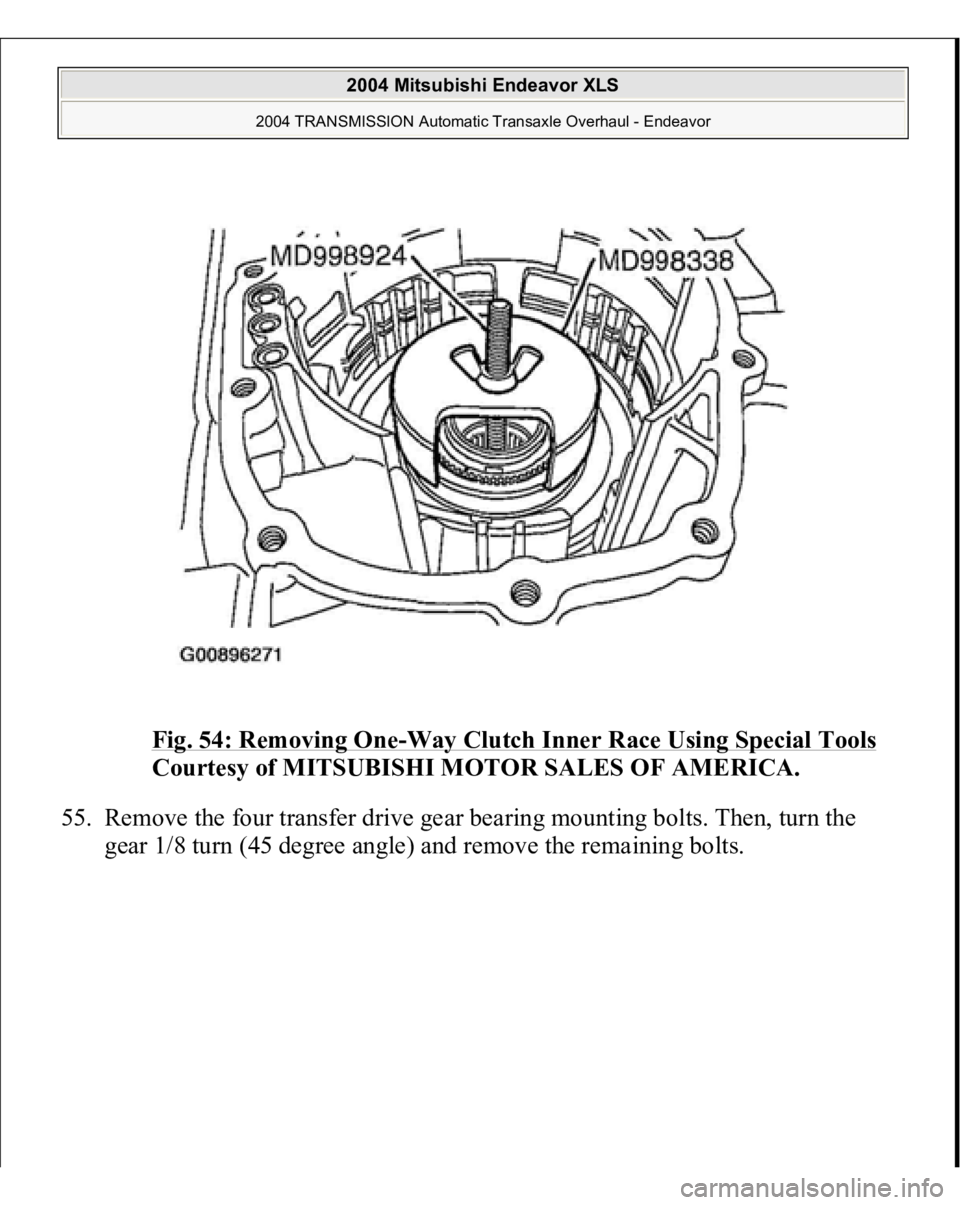

Fig. 54: Removing One
-Way Clutch Inner Race Using Special Tools

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
55. Remove the four transfer drive gear bearing mounting bolts. Then, turn the
gear 1/8 turn
(45 de
gree an
gle) and remove the remainin
g bolts.
